MAZDA MODEL 6 2009 Owners Manual (in English)

Black plate (391,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 M.DEF 10 A Mirror defroster
í
2ST SIG 5 A Starter sig
3 ABS SOL 30 A ABS, DSCí
4 P.WIND (P) 25 A Power window
5 P.SEAT (P) 30 A Power seatí
6 SUN ROOF 15 A Moonroofí
7 TAIL 15 A BCM, Tail lamp
8 P.OUTLET (R) 15 A Accessory sockets
9 AUDIO 30 A Audio system (Bose
®Sound System-equipped model)
10 ABS MOTOR 60 A ABS, DSCí
11 P.WIND (D) 40 A Power window
12 DEFOG 40 A Rear window defroster
13 SEAT HEAT 20 A Seat heat
14 A/C 10 A Air conditioner
15 FOG 15 A Fog lights
í
16 BLOWER 2 15 A Blower motor
17FAN 60 A Cooling fan
Maintenance and Care
Owner Maintenance
8-49íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page391
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (392,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
18 P.SEAT (D) 30 A Power seat
í
19 BTN 30 A For protection of various circuits
20 IG KEY2 40 A Starting system
21 BLOWER 40 A Blower motor
22 FUEL PUMP 25 A Fuel pump
23 ENGINE2 15 A Engine control system
24 EGI INJ 15 A Injector
25 PCM 10 A Engine control system
26 ENGINE 10 A
*1Engine control system
20 A*2
27 IG 20 A For protection of various circuits
28 TCM 20 A TCMí
29ESCL 10 A Electronic steering lock
30 IG KEY1 40 A For protection of various circuits
31 MAIN 125 A For protection of all circuits
32 DRL 20 A DRL
í
33 HAZARD 10 A Hazard warning flashers
34 ENG+B 10 A PCM
35 STOP 10 A Brake lights
36 HORN 15 A Horn
37 HEAD HI RH 15 A Headlight-high beam (Right)
38 HEAD LO RH 10 A Headlight-low beam (Right)
39 HEAD HI LH 15 A Headlight-high beam (Left)
40 HEAD LO LH 10 A Headlight-low beam (Left)
*1 2.5-liter engine
*2 3.7-liter engine
8-50
Maintenance and Care
íSome models.
Owner Maintenance
Mazda6_8Z64-EA-08H_Edition1 Page392
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (393,1)
Fuse block (Passenger's side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 P.WIND 30 A Power window
2 METER IG 15 A For protection of various circuits
3 ILLUMI 7.5 A BCM, Illumination
4 MIRROR 5 A Power control mirror
5 SAS 5 A Air bag, ABS
6 ―― ―
7 INT, LOCK/SHIFT 5 A AT shift
í
8 ―― ―
9 HEGO 5 A Power control mirror
10 A/C 10 A Air conditioner
11 P.OUTLET/CIGAR 15 A Lighter
í
12 D.LOOK 25 A BCM, Door lock motor
13 ENGINE IG 15 A Engine control system
14 WIPER 25 A Windshield wiper and washer
15 ROOM 15 A Interior lights
16 SPARE ――
17 SPARE ――
18 SPARE ――
Maintenance and Care
Owner Maintenance
8-51íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page393
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (394,1)
How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
8-52
Maintenance and Care
Appearance Care
Mazda6_8Z64-EA-08H_Edition1 Page394
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (395,1)
qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel. NOTE
lThe paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of paint
chipping.
lChipped paint can lead to rust forming on
your Mazda. Before this happens, repair the
damage by using Mazda touch-up paint
according to the instructions in this section.
Failure to repair the affected area could
lead to serious rusting and expensive
repairs.
Maintenance and Care
Appearance Care
8-53
Mazda6_8Z64-EA-08H_Edition1 Page395
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (396,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
q Maintaining the Finish
Washing
CAUTION
When the wiper lever is in the AUTO
position and the ignition switch is in
the ON position, the wipers may
move automatically in the following
cases:
Ø If the windshield above the rain
sensor is touched.
Ø If the windshield above the rain
sensor is wiped with a cloth.
Ø If the windshield is struck with a
hand or other object.
Ø If the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing your Mazda, make sure
the wiper lever is in the OFF position.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur. Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for scratches
caused by automatic car washes or
improper washing.
lScratches are more noticeable on vehicles
with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDon't use abrasive cleansers or wax
that contain abrasives.
CAUTION
Don't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.
8-54
Maintenance and Care
Appearance Care
Mazda6_8Z64-EA-08H_Edition1 Page396
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (397,1)
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Don't allow soap
to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal:Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.Waxes containing abrasive will remove
paint and could damage bright metal
parts. 2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas even if the rest of the
vehicle doesn't need it.
q Repairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced,
make sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
Maintenance and Care
Appearance Care
8-55
Mazda6_8Z64-EA-08H_Edition1 Page397
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (398,1)
CAUTION
Don't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt. It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal: Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
qAluminum Wheel Maintenanceí
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lOnly use a mild soap or neutral detergent
and always use a sponge or soft cloth to
clean the wheels.
Rinse thoroughly with lukewarm or cold
water. Also, be sure to clean the wheels
after driving on dusty or salted roads. This
helps prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-31.
8-56
Maintenance and Care
íSome models.
Appearance Care
Mazda6_8Z64-EA-08H_Edition1 Page398
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (399,1)

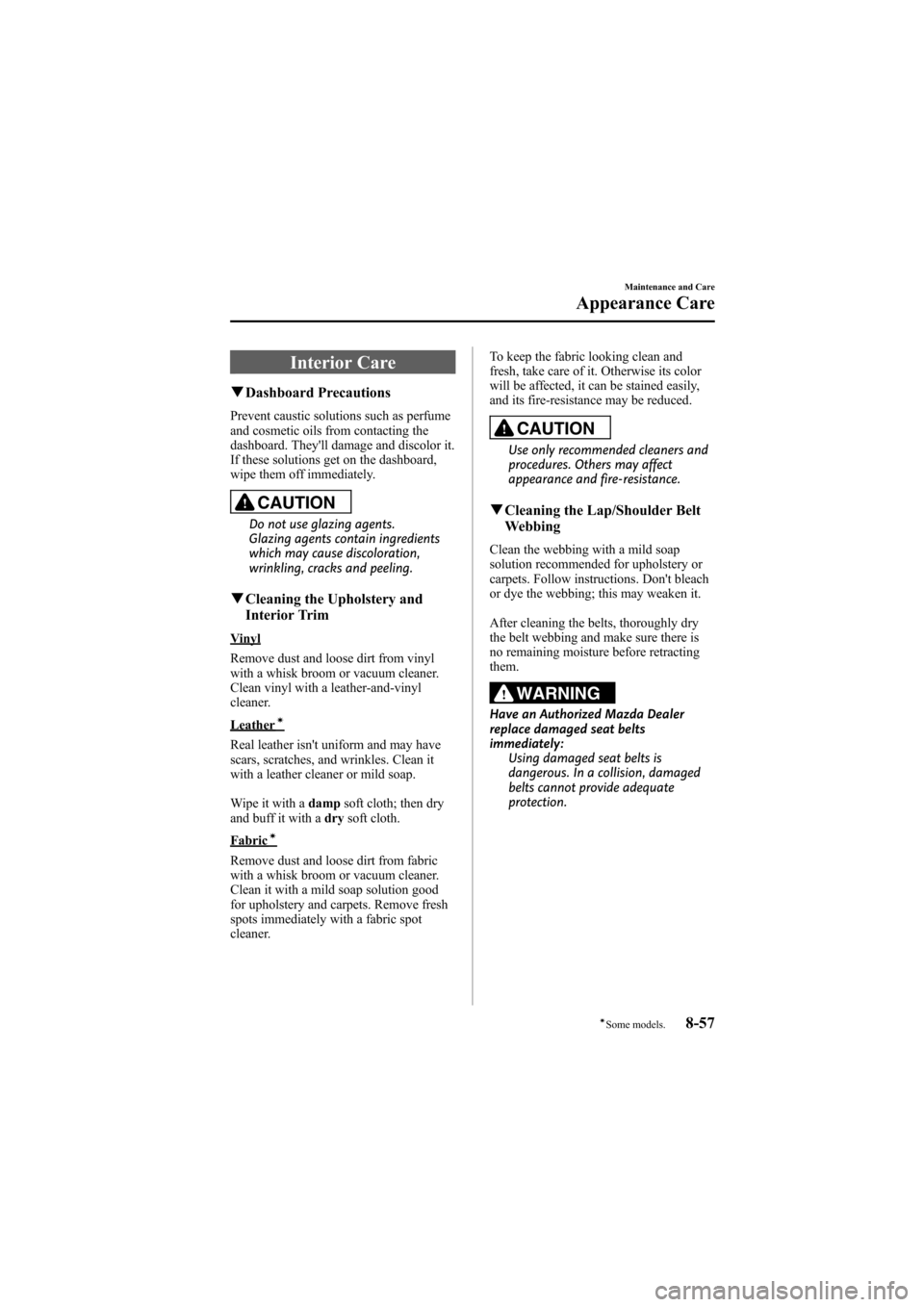

Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with a dampsoft cloth; then dry
and buff it with a drysoft cloth.
Fabricí
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner. To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
q
Cleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Have an Authorized Mazda Dealer
replace damaged seat belts
immediately:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection.
Maintenance and Care
Appearance Care
8-57íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page399
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (400,1)
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
Ø Don't scrape or scratch the inside
of the rear window. You may
damage the rear window defroster
grid.
Ø When washing the inside rear
window, use a soft cloth
dampened in lukewarm water,
gently wiping the antenna lines.
Use of glass cleaning products
could damage the antenna.
8-58
Maintenance and Care
Appearance Care
Mazda6_8Z64-EA-08H_Edition1 Page400
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H
