Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
NOTE
If the headlights flicker, or the brightness
weakens, the bulb-life may be depleted and a
replacement is necessary. Consult an
Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-61íSome models.
Mazda6_8Z64-EA-08H_Edition1 Page205
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (208,1)
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position to turn on the fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will be turned on
when the headlights, the exterior lights and
dashboard illumination are automatically
turned on.
Windshield Wipers and
Washer
The ignition must be switched ON.
WARNING
Use only windshield washer fluid or
plain water in the reservoir: Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions: Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid.
5-64
Driving Your Mazda
íSome models.
Switches and Controls
Mazda6_8Z64-EA-08H_Edition1 Page208
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (209,1)
NOTEBecause heavy ice and snow can jam the wiper
blades, the wiper motor is protected from
motor breakdown, overheating and possible
fire by a circuit breaker. This mechanism will
automatically stop operation of the blades, but
only for about 5 minutes.
If this happens, turn off the wiper switch and
park off the right-of-way, and remove the snow
and ice.
After 5 minutes, turn on the switch and the
blades should operate normally. If they do not
resume functioning, consult an Authorized
Mazda Dealer as soon as possible. Drive to
the side of the road and park off the right-of-
way. Wait until the weather clears before trying
to drive with the wipers inoperative.
qWindshield Wipers
Type A (With INT position)
Turn the wipers on by pulling the lever
down.
INT ―Intermittent
LO ―Low speed
HI ―High speed
For a single wiping cycle, press the lever
up to MIST.
MIST ―Mist
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.
INT ring
Type B (With AUTO position)
Turn the wipers on by pulling the lever
down.
AUTO ―Auto control
LO ―Low speed
HI ―High speed
For a single wiping cycle, press the lever
up to MIST.
MIST ―Mist
Driving Your Mazda
Switches and Controls
5-65
Mazda6_8Z64-EA-08H_Edition1 Page209
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (211,1)
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched.
ØIf the windshield above the rain
sensor is wiped with a cloth.
ØIf the windshield is struck with
a hand or other object.
ØIf the rain sensor is struck with
a hand or other object from
inside the vehicle.
Keep hands and scrapers clear of
the windshield when the ignition is
switched ON as fingers could be
pinched or the wipers and wiper
blades damaged when they
activate automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely - this is
particularly important when
clearing ice and snow - when it is
particularly tempting to leave the
engine running. NOTE
lSwitching the auto-wiper lever from the
OFF to the AUTO position while driving at
a vehicle speed of 4 km/h (2 mph) or higher
(or after driving the vehicle) activates the
windshield wipers once, after which they
operate according to the rainfall amount.
lThe auto-wiper control may not operate
when the rain sensor temperature is about
_
10 °C (14 °F) or lower, or about 85 °C
(185 °F) or higher.
lIf the windshield is coated with water
repellent, the rain sensor may not be able to
sense the amount of rainfall correctly and
auto-wiper control may not operate
properly.
lIf dirt or foreign matter (e.g. ice or matter
containing salt water) adheres to the
windshield above the rain sensor or if the
windshield is iced, it could cause the wipers
to move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper control will
stop operation. In this case, pull the wiper
lever to the low speed or high speed
position for manual operation, or remove
the ice, dirt or foreign matter by hand to
restore the auto-wiper operation.
Driving Your Mazda
Switches and Controls
5-67
Mazda6_8Z64-EA-08H_Edition1 Page211
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (212,1)

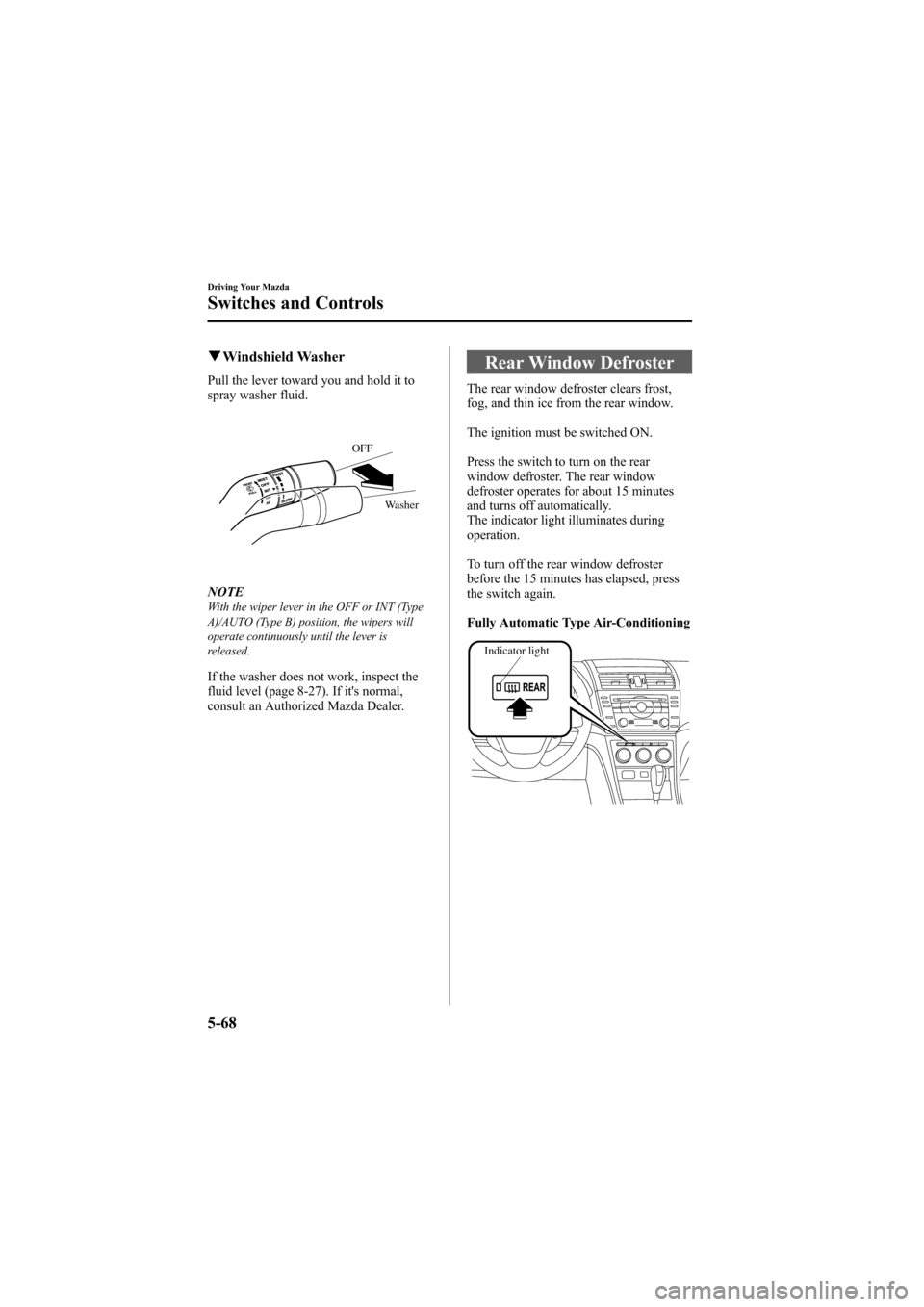

qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
OFF
Washer
NOTEWith the wiper lever in the OFF or INT (Type
A)/AUTO (Type B) position, the wipers will
operate continuously until the lever is
released.
If the washer does not work, inspect the
fluid level (page 8-27). If it's normal,
consult an Authorized Mazda Dealer.
Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition must be switched ON.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
Fully Automatic Type Air-Conditioning
Indicator light
5-68
Driving Your Mazda
Switches and Controls
Mazda6_8Z64-EA-08H_Edition1 Page212
Wednesday, June 25 2008 10:4 AM
Form No.8Z64-EA-08H

Black plate (370,1)
Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
Wiper Blades
CAUTION
ØHot waxes applied by automatic
car washers have been known to
affect the wiper's ability to clean
windows.
Ø To prevent damage to the wiper
blades, don't use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
qReplacing Windshield Wiper Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION
To prevent damage to the wiper arms
and other components, don't try to
sweep the wiper arm by hand.
NOTE
To prevent damage to the wiper arm blades
when raising both the driver and passenger
side wiper arms, raise the driver side wiper
arm first. Conversely, when setting down the
wiper arms, set the passenger side wiper arm
down first.
1. Raise the wiper arm.
8-28
Maintenance and Care
Owner Maintenance
Mazda6_8Z64-EA-08H_Edition1 Page370
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (396,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
q Maintaining the Finish
Washing
CAUTION
When the wiper lever is in the AUTO
position and the ignition switch is in
the ON position, the wipers may
move automatically in the following
cases:
Ø If the windshield above the rain
sensor is touched.
Ø If the windshield above the rain
sensor is wiped with a cloth.
Ø If the windshield is struck with a
hand or other object.
Ø If the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing your Mazda, make sure
the wiper lever is in the OFF position.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur. Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for scratches
caused by automatic car washes or
improper washing.
lScratches are more noticeable on vehicles
with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDon't use abrasive cleansers or wax
that contain abrasives.
CAUTION
Don't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.
8-54
Maintenance and Care
Appearance Care
Mazda6_8Z64-EA-08H_Edition1 Page396
Wednesday, June 25 2008 10:5 AM
Form No.8Z64-EA-08H

Black plate (463,1)
T
TowingDescription ................................. 7-17
Emergency towing ..................... 7-17
Recreational towing ................... 7-18
Trailer towing ............................. 4-12
Traction Control System (TCS) ........ 5-23 TCS OFF indicator light ............ 5-24
TCS OFF switch ........................ 5-24
TCS/DSC indicator light ............ 5-23
Trailer Towing .................................. 4-12
Trip Meter ......................................... 5-39
Trunk Lid .......................................... 3-33 Inside trunk release lever ............ 3-36
Trunk Light ....................................... 3-35
Turn and Lane-Change Signals ......... 5-63
V
Vanity Mirrors ................................... 6-93
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-43 ABS ............................................ 5-46
Air bag system ........................... 5-48
Automatic transaxle ................... 5-51
Brake system .............................. 5-45
Charging system ......................... 5-47
Check engine .............................. 5-47
Check fuel cap ........................... 5-49
Door-ajar .................................... 5-51
Electronic Steering Lock ............ 5-55
Engine oil pressure ..................... 5-47
Front seat belt pretensioner
system ........................................ 5-48
KEY Warning Light
(Red)/KEY Indicator Light
(Green) ....................................... 5-53
Low fuel ..................................... 5-49
Low washer fluid level ............... 5-51
Powertrain malfunction/reduced
power .......................................... 5-48
Seat belt ...................................... 5-49
Tire pressure monitoring
system ........................................ 5-51
Warranty ............................................ 9-14
Washer Fluid ..................................... 8-27
Weights ............................................. 10-5
Wheel Replacement .......................... 8-35
Windows Power windows .......................... 3-37
Windshield Washer ........................... 5-68
Windshield Wipers ............................ 5-65 Blades replacement .................... 8-28
Winter Driving .................................... 4-8
Index
11-7
Mazda6_8Z64-EA-08H_Edition1 Page463
Wednesday, June 25 2008 10:6 AM
Form No.8Z64-EA-08H
