NOTE
Under the following conditions, the system may be unable to detect vehicles, or detection may be
delayed.
lThe vehicle is reversed at a speed of 12 km/h or fasterlThe radar is obstructed by objects such as a large vehicle parked adjacently or by a wall.
(Reverse vehicle to position in which radar is not obstructed.)
Your vehicle
lA vehicle approaches from straight behind
Your vehicle
lThe vehicle is parked at a highly acute angle
Your vehicle
lImmediately after the system has been activated by pressing the Blind Spot Monitoring (BSM)
OFF switch again after it has been turned off (Blind Spot Monitoring (BSM) OFF indicator light
in instrument panel illuminates) by pressing the switch.
When Driving
Blind Spot Monitoring (BSM) System
4-127
Mazda6_8DQ8-EA-13L_Edition3 Page251
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (252,1)
qBSM Warning Light
The Blind Spot Monitoring (BSM) system alerts the driver to the presence of another
vehicle in an adjacent lane using the Blind Spot Monitoring (BSM) warning lights and the
warning beep while the system is operational.
The warning light is equipped on the left and right door mirrors.
This warning light illuminates for a few seconds when the ignition is switched ON.
Driving forward
If the Blind Spot Monitoring (BSM) system detects a vehicle in the detection area while the
vehicle is driven at a speed of about 10 km/h (6.2mph) or more, the Blind Spot Monitoring
(BSM) warning light illuminates on the side of the vehicle where the rear on-coming
vehicle is detected. A warning indicator light flashes when the turn signal lever is operated
to the side where the Blind Spot Monitoring (BSM) warning lights is illuminated to alert
the driver.
Reversing
If vehicles approach from the rear on the left and right, the Blind Spot Monitoring (BSM)
warning lights on both sides flash.
NOTE
lIf ice or snow adhere to the outer mirror surface, the Blind Spot Monitoring (BSM) warning light
may not be visible.
lIf the door window glass is tinted, it may affect the visibility of the Blind Spot Monitoring (BSM)
warning light, making it difficult to confirm the illumination of the light.
4-128
When Driving
Blind Spot Monitoring (BSM) System
Mazda6_8DQ8-EA-13L_Edition3 Page252
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (253,1)
qBSM OFF Switch
When the BSM OFF switch is pressed,
the BSM system turns off and the BSM
OFF indicator light illuminates.
Press the BSM OFF switch again to turn
on the BSM system. The BSM OFF
indicator light turns off.
NOTE
lThe system may not operate normally when
towing a trailer. Turn off the system by
operating the BSM OFF switch when
towing a trailer.
lIf the ignition is switched off with the BSM
system turned off, the system becomes
operable automatically when the ignition is
switched ON.
qCare of Radar Sensors
The radar sensors are equipped inside the
rear bumper.
Radar sensors
Always keep the bumper surface near the
radar sensor area clean so that the BSM
system operates normally. Refer to
Exterior Care on page 6-58.
NOTE
lThe BSM OFF indicator light flashes if the
radar sensors cannot operate normally. If
the light remains flashing after cleaning the
bumper surface near the radar sensor area,
consult an Authorized Mazda Dealer.
lFor repairs or paintwork around the radar
sensors, or replacement of the bumper,
consult an Authorized Mazda Dealer.
When Driving
Blind Spot Monitoring (BSM) System
4-129
Mazda6_8DQ8-EA-13L_Edition3 Page253
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (254,1)
Lane Departure Warning System (LDWS)í
lThe LDWS notifies the driver that the vehicle may be deviating from its lane.lThe system detects the white (yellow) lines on the traffic lane using the Forward
Sensing Camera (FSC) and if it determines that the vehicle may be deviating from its
lane, it notifies the driver by flashing the LDWS indicator light (green) and operating the
LDWS warning sound.
lUse the LDWS when you drive the vehicle on roads with white (yellow) lines.lFor vehicles with type A instrument cluster, check the vehicle condition or have the
vehicle inspected at an Authorized Mazda Dealer according to the indication.
lA system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-23.
Refer to Lane Departure Warning System (LDWS) Warning Sound on page 7-41.
Forward Sensing Camera (FSC)
WARNING
Do not use the LDWS under the following conditions:
The system may not operate adequately according to the actual driving conditions,
resulting in an accident.
ØDriving on roads with tight curves.
ØDriving under bad weather conditions (rain, fog, and snow).
The functions of the LDWS have limitations:
Always stay on course using the steering wheel and drive with care. The system is
not designed to compensate for a driver's lack of caution, and if you rely too much
on the LDWS it could lead to an accident. The driver is responsible for assuring lane
changes and other maneuvers. Always pay attention to the direction in which the
vehicle is traveling and the vehicle's surroundings.
4-130
When Driving
íSome models.
Lane Departure Warning System (LDWS)
Mazda6_8DQ8-EA-13L_Edition3 Page254
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (255,1)

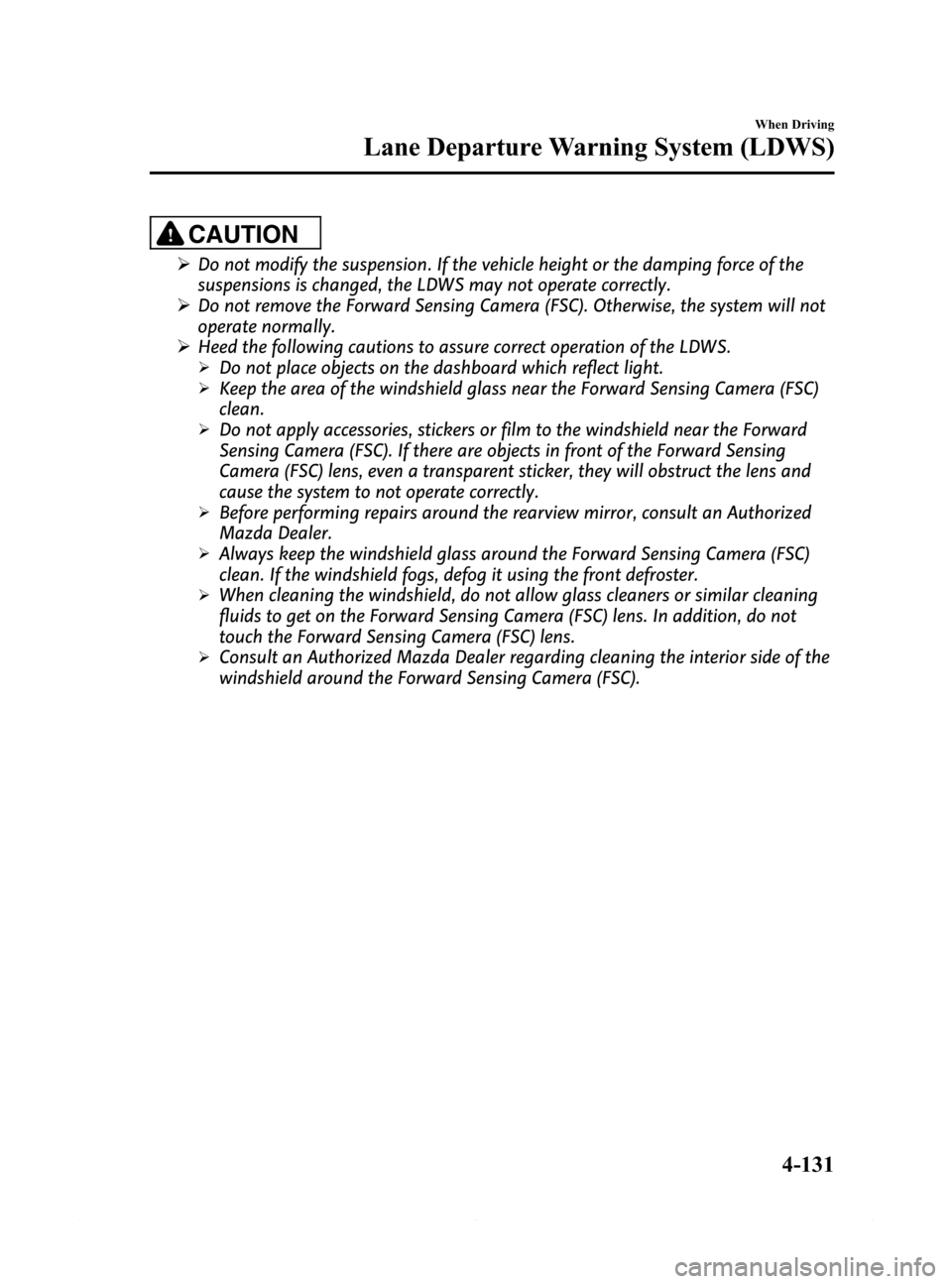

CAUTION
ØDo not modify the suspension. If the vehicle height or the damping force of the
suspensions is changed, the LDWS may not operate correctly.
ØDo not remove the Forward Sensing Camera (FSC). Otherwise, the system will not
operate normally.
ØHeed the following cautions to assure correct operation of the LDWS.
ØDo not place objects on the dashboard which reflect light.
ØKeep the area of the windshield glass near the Forward Sensing Camera (FSC)
clean.
ØDo not apply accessories, stickers or film to the windshield near the Forward
Sensing Camera (FSC). If there are objects in front of the Forward Sensing
Camera (FSC) lens, even a transparent sticker, they will obstruct the lens and
cause the system to not operate correctly.
ØBefore performing repairs around the rearview mirror, consult an Authorized
Mazda Dealer.
ØAlways keep the windshield glass around the Forward Sensing Camera (FSC)
clean. If the windshield fogs, defog it using the front defroster.
ØWhen cleaning the windshield, do not allow glass cleaners or similar cleaning
fluids to get on the Forward Sensing Camera (FSC) lens. In addition, do not
touch the Forward Sensing Camera (FSC) lens.
ØConsult an Authorized Mazda Dealer regarding cleaning the interior side of the
windshield around the Forward Sensing Camera (FSC).
When Driving
Lane Departure Warning System (LDWS)
4-131
Mazda6_8DQ8-EA-13L_Edition3 Page255
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (256,1)
NOTElIf your vehicle deviates from its traffic lane, the LDWS operates (warning sound and indicator
light). Steer the vehicle adequately to drive the vehicle to the center of the lane.
lWhen the turn signal lever is operated for a lane change, the LDWS warning is automatically
canceled. The LDWS warning becomes operable when the turn signal lever is returned and the
system detects the white (yellow) lines.
lIf the steering wheel, accelerator pedal, or brake pedal is operated abruptly and the vehicle moves
close to a white (yellow) line, the system determines that the driver is making a lane change and
the LDWS warning is automatically canceled.
lThe LDWS may not operate during the period immediately after the vehicle has deviated from its
lane and the LDWS has operated, or the vehicle deviates from its lane repeatedly within a short
period of time.
lThe LDWS does not operate if it does not detect the white (yellow) lines of the traffic lane.lUnder the following conditions, the LDWS may not be able to detect white (yellow) lines correctly
and the LDWS may not operate correctly.
lIf an object placed on the dashboard is reflected in the windshield and picked up by the
camera.
lHeavy luggage is loaded in the luggage compartment or on the rear seat and the vehicle is
inclined.
lThe tire pressures are not adjusted to the specified pressure.lWhen the vehicle is driven on the entry and exit to or from the rest area or tollgate of a
highway.
lThe white (yellow) lines are less visible because of dirt or paint flaking.lThe vehicle in front of your vehicle is running near a white (yellow) line and the line is less
visible.
lA white (yellow) line is less visible because of bad weather (rain, fog, or snow).lThe vehicle is driven on a temporary lane or section with a closed lane due to construction.lA misleading line is picked up on the road such as a temporary line for construction, or
because of shade, lingering snow, or grooves filled with water.
lThe surrounding brightness suddenly changes such as when entering or exiting a tunnel.lThe illumination of the headlights is weakened because of dirt or the optical axis is deviated.lThe windshield is dirty or foggy.lBack-light is reflecting from the road surface.lThe road surface is wet and shiny after rain, or there are puddles on the road.lThe shade of a guardrail parallel to a white (yellow) line is on the road.lThe width of a lane is excessively narrow or wide.lThe road is excessively uneven.lThe vehicle is shaken after hitting a road bump.lThere are two or more adjacent white (yellow) lines.lThere are various road markings or lane markings of various shapes near an intersection.
4-132
When Driving
Lane Departure Warning System (LDWS)
Mazda6_8DQ8-EA-13L_Edition3 Page256
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (257,1)
qWhen The System Operates
1. Press the LDWS switch. The LDWS
goes on stand-by and the LDWS
warning light (amber) illuminates.
On the type A instrument cluster, the
lane indication (bordered line) is
indicated in the display.
Indication on display
2. Drive the vehicle near the center of the
lane and the LDWS indicator light
(green) illuminates in the instrument
cluster when all of the following
conditions are met.
On the type A instrument cluster, the
lane indication is indicated in the
display.
lThe vehicle is driven near the center
of the lane with the white (yellow)
line on the left and right sides, or on
either side.
lThe vehicle speed is about 65 km/h
(41 mph) or more
lThe vehicle is driven on a straight
road or road with gentle curves
Indication on display
NOTElThe LDWS remains on stand-by until it
detects white (yellow) lines on both the left
and right sides, or on either side.
lWhen the system detects a white (yellow)
line on one side only, the system will
operate the warning only when the vehicle
deviates to the side the white (yellow) line
detected.
When Driving
Lane Departure Warning System (LDWS)
4-133
Mazda6_8DQ8-EA-13L_Edition3 Page257
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (258,1)
Auto cancel
Under the following conditions, the
LDWS is automatically canceled and kept
on stand-by, and the LDWS warning light
(amber) in the instrument cluster
illuminates.
On the type A instrument cluster, the lane
indication (bordered line) is indicated in
the display.
The LDWS is automatically enabled when
the condition changes and the system is
operable.
lThe system cannot detect white
(yellow) lines.
lThe vehicle speed is less than about 60
km/h (37 mph).
lThe vehicle is making a sharp curve.lThe vehicle is making a curve at an
inadequate speed.
lThe temperature inside the camera is
high or low.
lThe windshield around the camera is
foggy.
lThe windshield around the camera is
blocked by an obstruction, causing
poor forward visibility.
Auto cancel of warning
Under the following conditions, the
LDWS determines that the driver is
making lane changes and the warning is
automatically canceled.
The LDWS is automatically enabled after
the operation.
lThe steering wheel is operated
abruptly.
lThe brake pedal is depressed abruptly.lThe accelerator pedal is depressed
abruptly.
lA turn signal lever is operated (after
the turn signal lever is returned, the
LDWS warning may not operate for
about 3 seconds which is the period of
time required to make a lane
correction).
NOTE
lAfter about 5 seconds have elapsed with the
turn signal lever left operating, the LDWS
warning may operate if the vehicle is close
to a white (yellow) line.
lThe sensitivity of the warning (sensitivity
with which the system determines the
driver’s intentional lane change) can be
changed.
Refer to Personalization Features on page 9-9.
qCanceling The System
To cancel the LDWS, press the LDWS
switch. The LDWS indicator light (Green/
Amber) in the instrument cluster turns off.
The lane indication displayed in the type
A instrument cluster turns off.
qLDWS Warning
If the system determines that the vehicle
may be deviating from its lane while the
system is operating, the LDWS warning
sounds and the LDWS indicator light
(green) flashes.
Refer to Warning/Indicator Lights on page
4-23.
Refer to Lane Departure Warning System
(LDWS) Warning Sound on page 7-41.
In the display of the type A instrument
cluster, the direction in which the system
determined that the vehicle may be
deviating from its lane is indicated.
Operate the steering wheel adequately and
drive in the center of the lane.
4-134
When Driving
Lane Departure Warning System (LDWS)
Mazda6_8DQ8-EA-13L_Edition3 Page258
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (259,1)
Indication on display
NOTElIf the LDWS warning sound is set to
rumble, the sound will be heard from the
vehicle speaker on the side which the
system determined the vehicle may be
deviating from its lane.
lThe LDWS warning sound may not be
heard depending on the surrounding
conditions such as outside noise.
lThe warning timing with which the system
determines the vehicle may be deviating
from its lane can be changed.
Refer to Personalization Features on page
9-9.
qForward Sensing Camera (FSC)
lThe LDWS camera, located near the
rearview mirror, also functions as the
Forward Sensing Camera (FSC) for the
High Beam Control System (HBC).
lIf the temperature inside the Forward
Sensing Camera (FSC) is extremely
high or low, the LDWS is
automatically canceled and kept on
stand-by, and the LDWS warning light
(amber) in the instrument cluster
flashes. Message information is
indicated in the display in the type A
instrument cluster.
The LDWS is automatically enabled
when the conditions change and the
system is operable.
Forward Sensing Camera (FSC)
When Driving
Lane Departure Warning System (LDWS)
4-135
Mazda6_8DQ8-EA-13L_Edition3 Page259
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (260,1)
CAUTION
Heed the following cautions to assure
the correct operation of the Forward
Sensing Camera (FSC).
ØDo not remove the Forward
Sensing Camera (FSC) cover.
ØConsult an Authorized Mazda
Dealer regarding cleaning of the
camera lens.
ØDo not hit or apply strong force to
the Forward Sensing Camera (FSC)
or the area around it. If the
Forward Sensing Camera (FSC)
has been severely hit, do not use
the LDWS and consult an
Authorized Mazda Dealer.
ØConsult an Authorized Mazda
Dealer before performing repairs
around the Forward Sensing
Camera (FSC).
ØThe Forward Sensing Camera
(FSC) is installed to the windshield.
Consult an Authorized Mazda
Dealer for windshield repair and
replacement.
ØThe direction in which the Forward
Sensing Camera (FSC) is pointed
has been finely adjusted. Do not
change the installation position of
the Forward Sensing Camera (FSC)
or remove it. Otherwise, it could
result in damage or malfunction.
ØBe careful not to scratch the
Forward Sensing Camera (FSC)
lens or allow it to get dirty. Also,
do no take the camera apart.
Otherwise, it could result in
damage or malfunction.
ØAlways keep the windshield glass
around the camera clean by
removing dirt or fogging. Use the
windshield defroster to remove
fogging on the windshield.
4-136
When Driving
Lane Departure Warning System (LDWS)
Mazda6_8DQ8-EA-13L_Edition3 Page260
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L
