language MAZDA MODEL 6 2016 (in English) User Guide

Black plate (370,1)
1. Press the pick-up button or talk button
with a short press.
2.Say:[Beep]“Setup”
3.Prompt:“Select one of the following:
Pairing options, confirmation prompts,
language,passcode, select phone or
select music player.”
4.Say:[Beep]“Confirmation prompts”
5.Prompt:“Confirmation prompts are
on/off. Would you like to turn
confirmation prompts off/on?”
6.Say:[Beep]“Ye s”
7.Prompt:“Confirmation prompts are
off/on.”
qVoice Recognition Learning Function
(Speaker Enrollment) (Type A)
The voice recognition learning function
enables voice recognition appropriate to
the characteristics of the user's voice. If
the recognition of the voice input
commands to the system is not adequate,
this function can largely improve the
system's voice recognition of the user. If
your voice can be recognized sufficiently
without using this function, you may not
realize the added benefit of the function.
To register your voice, the voice input
command list must be read out. Read out
the list when the vehicle is parked.
Perform the registration in as quiet a place
as possible (page 5-81). The registration
must be performed completely. The
required time is a few minutes. The user
needs to be seated in the driver's seat with
the voice input command list for voice
recognition learning open to the page
indicated below.
When voice recognition learning is
done for the first time
1. Press the pick-up button or talk button
with a short press.
2.Say:[Beep]“Voice training”
3.Prompt:“This operation must be
performed in a quiet environment while
the vehicle is stopped. See the owner's
manual for the list of required training
phrases. Press and release the talk
button when you are ready to begin.
Press the hang-up button to cancel at
any time.”
4. Press the talk button with a short press.
5. The voice guidance reads out the voice
input command number (refer to the
voice input command list for voice
recognition learning). (Ex.“Please read
phrase 1”)
6.Say:[Beep]“0123456789”(Say the
voice input command for voice
recognition learning (1 to 8) according
to the voice guidance.)
7.Prompt:“Speaker enrollment is
complete.”
NOTE
If an error occurred in the voice recognition
learning, re-learning can be done by pressing
the talk button with a short press.
Voice recognition re-learning
If voice recognition learning has already
been done.
1. Press the pick-up button or talk button
with a short press.
2.Say:[Beep]“Voice training”
5-84
Interior Features
Bluetooth®
Mazda6_8EA2-EA-14K_Edition2 Page370
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (374,1)
5. Select.
6. Select
.
Changing PIN code
PIN code (4 digits) can be changed.
1. Select the
icon on the home screen
and display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Input the new PIN code to be set.
7. Select
.
qAvailable Language (Type B)
The Bluetooth®Hands-Free System
applies to the following languages:
lEnglishlSpanishlFrench
Refer to Settings on page 5-49.
qVoice Recognition (Type B)
In this section, the basic operation of the
voice recognition is explained.
Activating Voice Recognition
Press the talk button.
Ending Voice Recognition
Use one of the following methods:
lPress the hang-up button.lSay,“Cancel”.lOperate the commander switch or the
center display (only when vehicle is
stopped).
Skipping Voice Guidance (for faster
operation)
Press and release the talk button.
Troubleshooting for Voice Recognition
If you do not understand an operation
method while in the voice recognition
mode, say“Tutorial”or“Help”.
Commands useable anytime during
voice recognition
“Go Back”and“Cancel”are commands
which can be used at anytime during
voice recognition.
Returning to previous operation
To return to the previous operation, say,
“Go Back”while in voice recognition
mode.
Cancel
To put the Bluetooth
®Hands-Free system
in standby mode, say,“Cancel”while in
voice recognition mode.
To prevent a deterioration in the voice
recognition rate and voice quality, the
following points should be observed:
lThe voice recognition cannot be
performed while voice guidance or
the beep sound is operating. Wait
until the voice guidance or the beep
sound is finished before saying your
commands.
lPhone related commands are available
only when your phone is connected via
Bluetooth
®. Make sure your phone is
connected via Bluetooth®before you
operate phone related voice commands.
lMusic play commands, such as Play
Artist and Play Album can be used
only in USB audio mode.
lDo not speak too slowly or loudly (no
loud voice).
5-88
Interior Features
Bluetooth®
Mazda6_8EA2-EA-14K_Edition2 Page374
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (392,1)
NOTE
Up to three preset messages can be selected.
Example of use (verify unread E-mail)
1. Select the
icon on the home screen
and display the Communication screen.
2. Select
to display the inbox.
3. Select the unread message displayed in
bold.
4. The details of the message are
displayed and replying to the message,
making a call, or playback can be
performed.
Changing account for displaying (E-
mail only)
1. Select
.
2. Select the account which you would
like to display. Only the messages for
the selected account are displayed in
the inbox.
Editing preset messages
1. Select the
icon on the home screen
and display the Communication screen.
2. Select
.
3. Select
.4. Select the preset message which you
would like to edit. The keyboard screen
is displayed.
5. When the message is input and
is
selected, the message is stored as a
preset message.
NOTE
lSelect theicon to change the language.lSelect theicon to switch between
capitalized and lower-case characters.
lSelect theicon to return to the previous
screen without storing the edit.
5-106
Interior Features
Bluetooth®
Mazda6_8EA2-EA-14K_Edition2 Page392
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (412,1)
Regarding problems with calls
Symptom Cause Solution method
When starting a call, vehicle noise
from the other party can be heardFor about three seconds after starting
a call, the Bluetooth
®unit's Noise
Suppression function requires time to
adapt to the call environment.This does not indicate a problem
with the device.
The other party cannot be heard or
the speaker's voice is quietThe volume is set at zero or low. Increase the volume.
Other problems
Symptom Cause Solution method
The indication for the remaining
battery is different between the
vehicle and the deviceThe indication method is different
between the vehicle and the device.―
When a call is made from the
vehicle, the telephone number is
updated in the incoming/outgoing
call record but the name does not
appearThe number has not been registered
into the phonebook.If the number has been registered
into the phonebook, the
incoming/outgoing call record is
updated by the name in the
phonebook when the engine is
restarted.
The cell phone does not synchronize
with the vehicle regarding the
incoming/outgoing call recordSome types of cell phones do not
synchronize automatically.Operate the cell phone for
synchronization.
It takes a long time to complete the
function for changing the languageA maximum of 60 seconds is
required.―
5-126
Interior Features
Bluetooth®
Mazda6_8EA2-EA-14K_Edition2 Page412
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

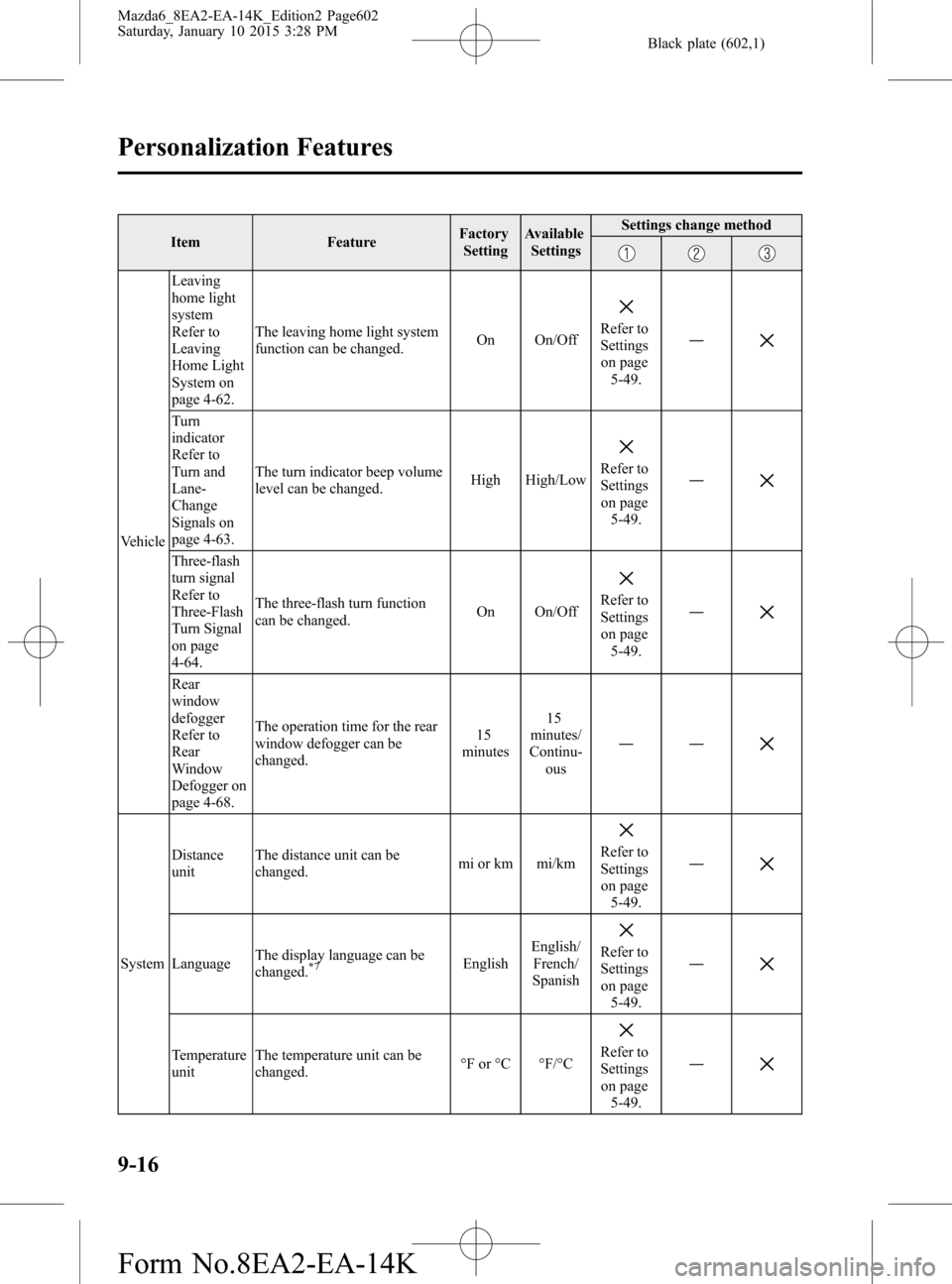

Black plate (602,1)
Item FeatureFactory
SettingAvailable
SettingsSettings change method
VehicleLeaving
home light
system
Refer to
Leaving
Home Light
System on
page 4-62.The leaving home light system
function can be changed.On On/Off
Refer to
Settings
on page
5-49.―
Turn
indicator
Refer to
Turn and
Lane-
Change
Signals on
page 4-63.The turn indicator beep volume
level can be changed.High High/Low
Refer to
Settings
on page
5-49.―
Three-flash
turn signal
Refer to
Three-Flash
Turn Signal
on page
4-64.The three-flash turn function
can be changed.On On/Off
Refer to
Settings
on page
5-49.―
Rear
window
defogger
Refer to
Rear
Window
Defogger on
page 4-68.The operation time for the rear
window defogger can be
changed.15
minutes15
minutes/
Continu-
ous――
SystemDistance
unitThe distance unit can be
changed.mi or km mi/km
Refer to
Settings
on page
5-49.―
LanguageThe display language can be
changed.*7EnglishEnglish/
French/
SpanishRefer to
Settings
on page
5-49.―
Temperature
unitThe temperature unit can be
changed.°F or °C °F/°CRefer to
Settings
on page
5-49.―
9-16
Personalization Features
Mazda6_8EA2-EA-14K_Edition2 Page602
Saturday, January 10 2015 3:28 PM
Form No.8EA2-EA-14K
