MAZDA MODEL 6 2016 (in English) Owner's Manual

Black plate (21,1)
NOTElIndividual seat positions can be
programmed to the two available
programming buttons on the side of the
driver's seat, plus one seat position for each
registered key.
lIf the vehicle has been serviced and the
battery cables disconnected, the
programmed seat positions will have been
erased. Re-program the seat positions.
Programming
1. Switch the ignition OFF.
2. Adjust the seat to the desired position
using the slide lifter and reclining
switches.
Refer to Seat Operation on page 2-5.
3. Press and hold the memory SET button
until a beep sound is heard.
4. Perform one of the following settings
within 5 seconds of completing step 3
above:
lTo program memory button 1 or 2,
press and hold the button until a
beep sound is heard.
lTo program a key, press and hold
the key
switch until a beep sound
is heard.
Adjusting a programmed position
(Programming to a button on the seat
side)
1. While the vehicle is stopped, press the
programming button for the seat
position you want to call up (button 1
or 2).
2. A beep sound is heard when the seat
position adjustment is completed.NOTE
lIf seat movement is not required, only the
beep sounds.
lWhen the ignition is switched ON, the seat
position memory function does not operate
unless the selector lever is in the P position
(Automatic transaxle) or the parking brake
is applied (Manual transaxle).
lWhen the ignition is switched OFF, the seat
position memory function is operable while
the selector lever is in a position other than
P position (Automatic transaxle) or the
parking brake is not applied (Manual
transaxle), however, if the ignition is
switched ON while the seat position
memory function is operating, the operation
is stopped.
lThe seat position adjustment is canceled in
the following cases:
lAny of the seat adjustment switches is
operated.
lThe SET button is pressed.lProgramming button 1 or 2 is pressed.lThe key lock switch or unlock switch is
operated.
lThe vehicle starts moving.
(When programming to the key)
1. Unlock the doors by pressing a request
switch or the key
switch.
2. After unlocking the doors, the seat
position adjustment begins within 40
seconds of opening the driver's door,
and a beep sounds when the operation
is finished.
Essential Safety Equipment
Seats
2-9
Mazda6_8EA2-EA-14K_Edition2 Page21
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (22,1)
NOTElIf there is no seat position movement, a
beep is not heard.
lWhen the ignition is switched ON, the seat
position memory function does not operate
unless the selector lever is in the P position
(Automatic transaxle) or the parking brake
is applied (Manual transaxle).
lWhen the ignition is switched OFF, the seat
position memory function is operable while
the selector lever is in a position other than
P position (Automatic transaxle) or the
parking brake is not applied (Manual
transaxle), however, if the ignition is
switched ON while the seat position
memory function is operating, the operation
is stopped.
lThe seat position adjustment is canceled in
the following cases:
lAny of the seat adjustment switches is
operated.
lThe SET button is pressed.lProgramming button 1 or 2 is pressed.lThe keyswitch orswitch is
operated.
lThe vehicle starts moving.
Erasing programmed seat positions
(Erasing the seat positions programmed
to the key)
1. Switch the ignition OFF.
2. Continue pressing the seat SET button
until a beep sound is heard.
3. After the beep sounds, press the key
switch continuously within 5 seconds
until the beep sounds.
Rear Seat
qSplit Folding
By lowering the rear seatbacks the
luggage compartment space can be
expanded.
WARNING
Do not drive the vehicle with occupants
on folded down seatbacks or in the
luggage compartment.
Putting occupants in the luggage
compartment is dangerous because
seat belts cannot be fastened which
could lead to serious injury or death
during sudden braking or a collision
Do not allow children to play inside the
vehicle with the seatbacks lowered.
Allowing children to play in the
vehicle with the seatbacks folded
down is dangerous, If a child enters
the luggage compartment and the
seatbacks were raised back up, the
child may become trapped in the
luggage compartment which could
lead to an accident.
Tightly secure cargo in the luggage
compartment when it is transported
with the seatbacks folded down.
Driving without tightly securing
cargo and luggage is dangerous as it
could move and become an
obstruction to driving during
emergency braking or a collision
resulting in an unexpected accident.
2-10
Essential Safety Equipment
Seats
Mazda6_8EA2-EA-14K_Edition2 Page22
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (23,1)
When transporting cargo, do not allow
the cargo to exceed the height of the
seatbacks.
Transporting cargo stacked higher
than the seatbacks is dangerous as
visibility to the rear and sides of the
vehicle is reduced which could
interfere with driving operations and
lead to an accident.
Lowering the seatbacks
CAUTION
Check the position of a front seat
before folding a rear seatback.
Depending on the position of a front
seat, it may not be possible to fold a
rear seatback all the way down
because it may hit the seatback of
the front seat which could scratch or
damage the front seat or its pocket.
Lower or remove the head restraint
on the rear outboard seat if
necessary.
1.(With seat warmer)
Turn the rear seat warmer switch off.
Refer to Seat Warmer on page 2-7.
2. Open the trunk lid and pull the lever
for the seatback you want to fold
down.
3. Open a rear door and fold the rear seat
forward.
To return the seatback to its upright
position:
WARNING
When returning a seatback to its
upright position, make sure the 3-point
seat belt is not caught in the seatback.
If the seat belt is used while it is
caught in the seatback, the seat belt
cannot function at its full capacity,
which could cause serious injury or
death.
Press the seatback rearward and lock it in
place. After returning the seatback to its
upright position, make sure it is securely
locked.
qArmrest
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
Essential Safety Equipment
Seats
2-11
Mazda6_8EA2-EA-14K_Edition2 Page23
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (24,1)
WARNING
Never put your hands and fingers
around the moving parts of the seat
and armrest:
Putting your hands and fingers
around the moving parts of the seat
and armrest is dangerous as they
could get injured.
Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
rear center seat. The head restraints are
intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted.:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
qHeight Adjustment
Adjust the head restraint so that the center
is even with the top of the passenger's
ears.
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
2-12
Essential Safety Equipment
Seats
Mazda6_8EA2-EA-14K_Edition2 Page24
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (25,1)
Front outboard seat
Rear outboard seat
Rear center seat
qRemoval/Installation
To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, insert the legs
into the holes while pressing the stop-
catch.
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
installed:
Driving with the head restraints not
installed is dangerous. With no
support behind your head, your neck
could be seriously injured in a
collision.
After installing a head restraint, try
lifting it to make sure that it does not
pull out:
Driving with an unsecured head
restraint is dangerous as the
effectiveness of the head restraint will
be compromised which could cause it
to unexpectedly detach from the seat.
Essential Safety Equipment
Seats
2-13
Mazda6_8EA2-EA-14K_Edition2 Page25
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (26,1)

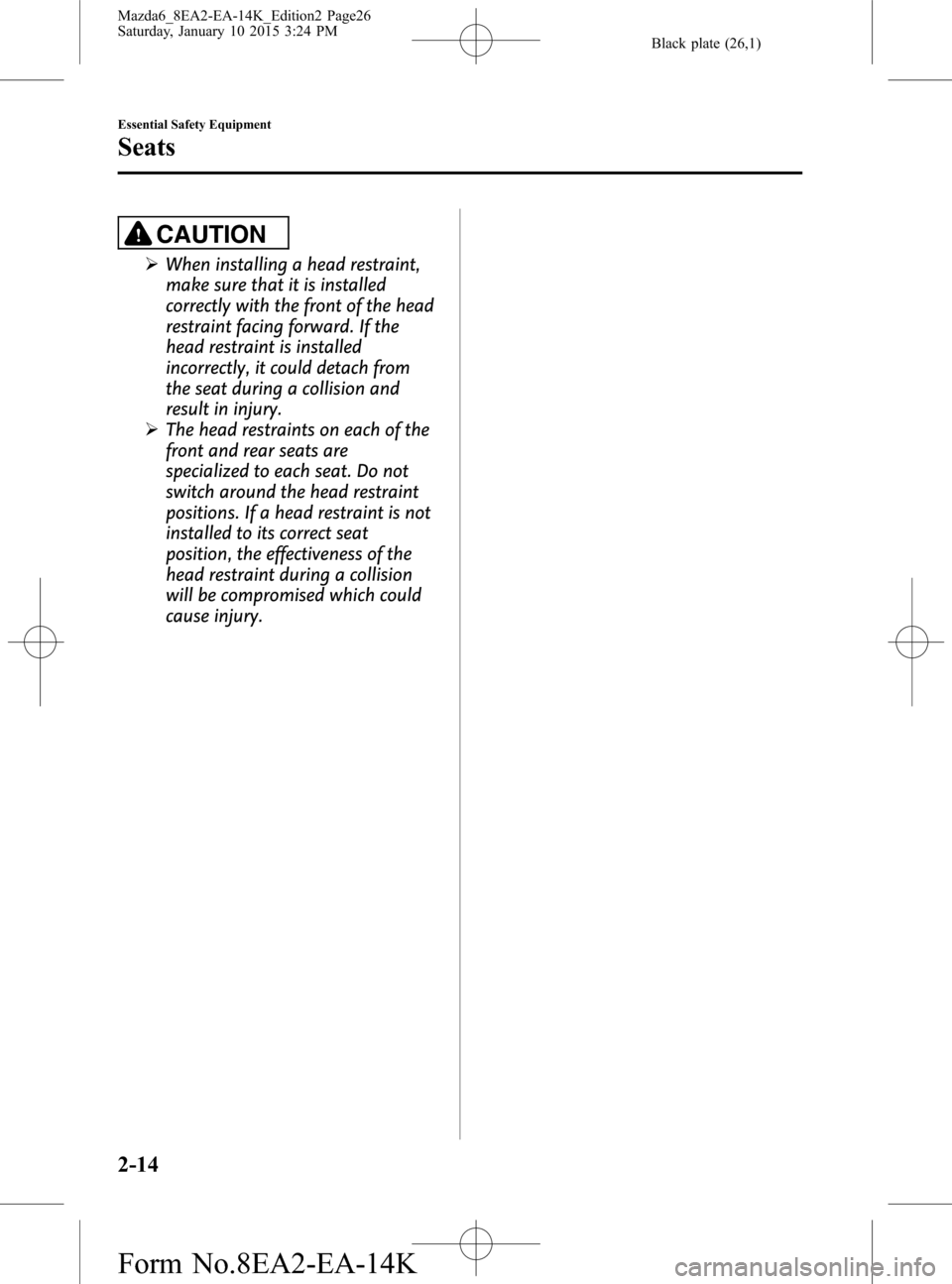

CAUTION
ØWhen installing a head restraint,
make sure that it is installed
correctly with the front of the head
restraint facing forward. If the
head restraint is installed
incorrectly, it could detach from
the seat during a collision and
result in injury.
ØThe head restraints on each of the
front and rear seats are
specialized to each seat. Do not
switch around the head restraint
positions. If a head restraint is not
installed to its correct seat
position, the effectiveness of the
head restraint during a collision
will be compromised which could
cause injury.
2-14
Essential Safety Equipment
Seats
Mazda6_8EA2-EA-14K_Edition2 Page26
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (27,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, in some models (with automatic locking mode) the front passenger's seat and all
rear lap/shoulder belt retractors operate in two modes: emergency locking mode, and for
child-restraint systems, automatic locking mode. While we recommend you put all children
in the rear seats, if you must use the front passenger seat for a child, slide the front
passenger seat as far back as possible and make sure any child-restraint system is secured
properly.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Essential Safety Equipment
Seat Belt Systems
2-15
Mazda6_8EA2-EA-14K_Edition2 Page27
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (28,1)
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended:
Always have an Authorized Mazda Dealer immediately inspect the front seat belt
pretensioners and air bags after any collision. Like the air bags, the front seat belt
pretensioners and load limiters will only function once and must be replaced after
any collision that caused them to deploy. A seat belt with an expended pretensioner
or load limiter is still better than wearing no seat belt at all; however, if the front
seat belt pretensioners and load limiters are not replaced, the risk of injury in a
collision will increase.
Positioning the Shoulder Portion of the Seat Belt:
Improper positioning of the shoulder portion of the seat belt is dangerous. Always
make sure the shoulder portion of the seat belt is positioned across your shoulder
and near your neck, but never under your arm, on your neck, or on your upper arm.
Positioning the Lap Portion of the Seat Belt:
The lap portion of the seat belt worn too high is dangerous. In a collision, this would
concentrate the impact force directly on the abdominal area, causing serious injury.
Wear the lap portion of the belt snugly and as low as possible.
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to“Cleaning the
Lap/Shoulder Belt Webbing”(page 6-69).
Ring
2-16
Essential Safety Equipment
Seat Belt Systems
Mazda6_8EA2-EA-14K_Edition2 Page28
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (29,1)
qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
When the seat belt is fastened, it will always be in the emergency locking mode.
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.
(Seat Belt with Automatic Locking Mode)
When the seat belt is fastened, it will always be in the emergency locking mode until it is
switched to automatic locking mode by pulling it all the way out to its full length. If the
belt feels tight and hinders comfortable movement while the vehicle is stopped or in
motion, it may be in the automatic locking mode because the belt has been pulled too far
out. To return the belt to the more comfortable emergency locking mode, wait until the
vehicle has stopped in a safe, level area, retract the belt fully to convert it back to
emergency locking mode and then extend it around you again.
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-23).
Essential Safety Equipment
Seat Belt Systems
2-17
Mazda6_8EA2-EA-14K_Edition2 Page29
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K

Black plate (30,1)
Seat Belt
qFastening the Seat Belt
Seat belt
buckleSeat belt tongue
Position the lap belt as low as possible,
not on the abdominal area, then adjust the
shoulder belt so that it fits snugly against
your body.
Keep low on
hip bone
Too highTake up slack
qUnfastening the Seat Belt
Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.
qFront Shoulder Belt Adjuster
To raise To lower
Make sure the adjuster is locked.
2-18
Essential Safety Equipment
Seat Belt Systems
Mazda6_8EA2-EA-14K_Edition2 Page30
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K
