Black plate (375,1)
lSpeak clearly, without pausing between
words or numbers.
lDialects or different wording other than
Hands-Free prompts cannot be
recognized by voice recognition. Speak
in the wording specified by the voice
commands.
lIt is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.
lClose the windows and/or the
moonroof to reduce loud noises from
outside the vehicle, or turn down the
airflow of the air-conditioning system
while Bluetooth
®Hands-Free is being
used.
lMake sure the vents are not directing
air up towards the microphone.
NOTE
If the voice recognition performance is not
satisfactory.
Refer to Troubleshooting on page 5-124.
Interior Features
Bluetooth®
5-89
Mazda6_8EA2-EA-14K_Edition2 Page375
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (420,1)
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
qCenter Console
To open, pull the lower release handle.
qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
5-134
Interior Features
Interior Equipment
Mazda6_8EA2-EA-14K_Edition2 Page420
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K

Black plate (487,1)
qPlastic Part Maintenance
lWhen cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
lIf plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
lHigh water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended
period of time, it could deform plastic
parts or damage the paint.
lDo not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
lIn addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.
Interior Care
WARNING
Do not spray water in the cabin:
Splashing water on electrical parts
such as the audio unit and switches
is dangerous as it could cause a
malfunction or a fire.
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They will damage and discolor
the dashboard. If these solutions get on
the dashboard, wipe them off
immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
Instrument panel top (soft pad)
lExtremely soft material is used for the
soft pad surface. When cleaning, it is
recommended that you use a clean
towel dampened in a mild detergent to
remove soiling.
lIf the soft pad surface is rubbed
harshly, it could result in the surface
being damaged leaving white scratch
marks.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Maintenance and Care
Appearance Care
6-67
Mazda6_8EA2-EA-14K_Edition2 Page487
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (491,1)
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-6
Battery Runs Out ........................................................................ 7-14
Jump-Starting .......................................................................... 7-14
Emergency Starting .................................................................... 7-17
Starting a Flooded Engine ....................................................... 7-17
Push-Starting ........................................................................... 7-17
Overheating ................................................................................. 7-18
Overheating ............................................................................. 7-18
Emergency Towing ..................................................................... 7-20
Towing Description ................................................................. 7-20
Tiedown Hooks
í.................................................................... 7-21
Warning/Indicator Lights and Warning Sounds ..................... 7-23
When Warning/Indicator Lights Illuminate/Flash ................... 7-23
Warning Sound is Activated ................................................... 7-33
When Trunk Lid Cannot be Opened ........................................ 7-38
When Trunk Lid Cannot be Opened ....................................... 7-38
Active Driving Display Does Not Operate ................................ 7-39
If the Active Driving Display does not operate ....................... 7-39
7-1íSome models.
Mazda6_8EA2-EA-14K_Edition2 Page491
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (492,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher switch
and all the turn signals will flash. The
hazard warning indicator lights in the
instrument cluster flash simultaneously.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
If Trouble Arises
Parking in an Emergency
Mazda6_8EA2-EA-14K_Edition2 Page492
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (502,1)
6. Remove the belt for securing the flat
tire.
7. Put the flat tire into the trunk on the left
and toward the back.
8. Fold the seat back forward on the right
side of the rear seat.
9. Thread the belt through the rear seat as
shown in the figure.
10. Thread the buckle through the wheel
as shown in the figure and secure it so
that the buckle does not contact the
wheel.
11. Thread the belt through the buckle,
then pull the belt end to secure the flat
tire.
12. Return the seat back on the right side
of the rear seat to its original position.
13. Remove the tire blocks and store the
tools and jack.
14. Check the inflation pressure. Refer to
Tires on page 9-7.
15. Have the flat tire repaired or replaced
as soon as possible.
7-12
If Trouble Arises
Flat Tire
Mazda6_8EA2-EA-14K_Edition2 Page502
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (507,1)
Starting a Flooded Engine
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. If the engine does not start within five
seconds on the first try, wait ten
seconds and try again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and
hold it there.
4. Depress the clutch pedal (Manual
transaxle) or the brake pedal
(Automatic transaxle), then press the
push button start. If the engine starts,
release the accelerator immediately
because the engine will suddenly rev
up.
5. If the engine fails to start, crank it
without depressing the accelerator.
If the engine still does not start using the
above procedure, have your vehicle
inspected by an Authorized Mazda
Dealer.
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has
a manual transaxle. It can damage
the emission control system.
NOTE
You cannot start a vehicle with an automatic
transaxle by pushing it.
If Trouble Arises
Emergency Starting
7-17
Mazda6_8EA2-EA-14K_Edition2 Page507
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (510,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
ØDo not tow the vehicle pointed
backward with driving wheels on
the ground. This may cause
internal damage to the transaxle.
ØDo not tow with sling-type
equipment. This could damage
your vehicle. Use wheel-lift or
flatbed equipment.
7-20
If Trouble Arises
Emergency Towing
Mazda6_8EA2-EA-14K_Edition2 Page510
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (511,1)

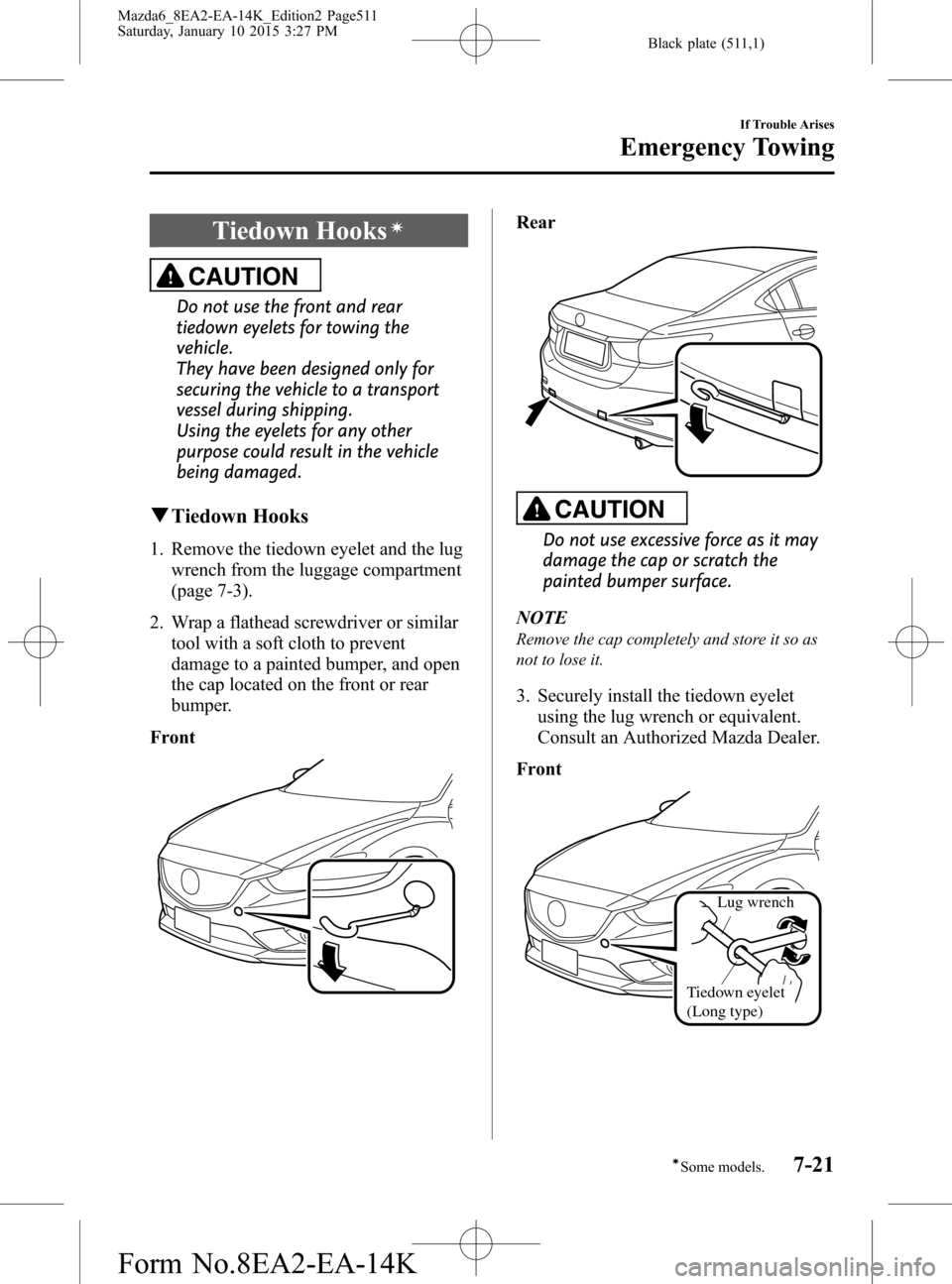

Tiedown Hooksí
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hooks
1. Remove the tiedown eyelet and the lug
wrench from the luggage compartment
(page 7-3).
2. Wrap a flathead screwdriver or similar
tool with a soft cloth to prevent
damage to a painted bumper, and open
the cap located on the front or rear
bumper.
Front
Rear
CAUTION
Do not use excessive force as it may
damage the cap or scratch the
painted bumper surface.
NOTE
Remove the cap completely and store it so as
not to lose it.

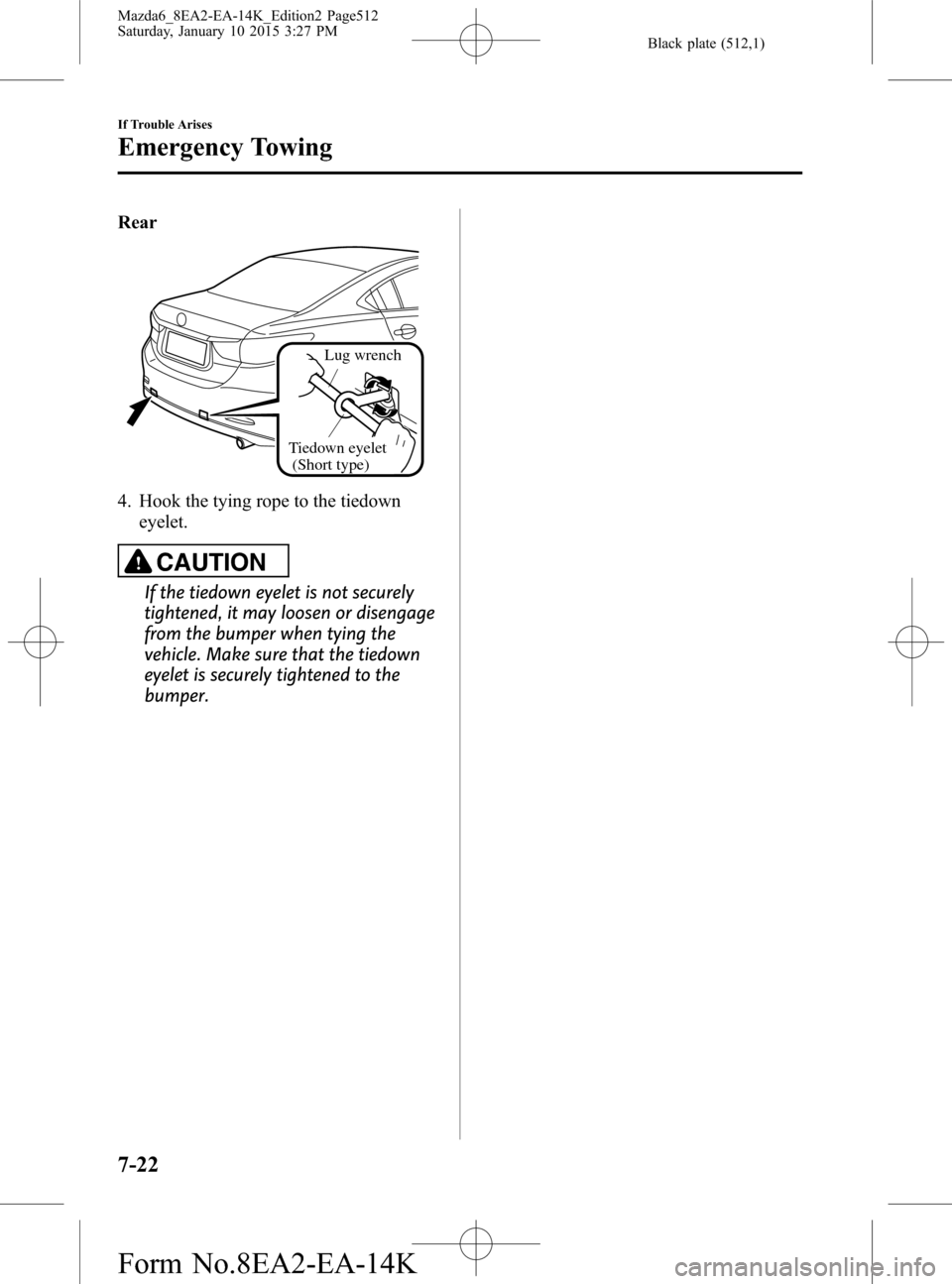

3. Securely install the tiedown eyelet
using the lug wrench or equivalent.
Consult an Authorized Mazda Dealer.
Front
Lug wrench
Tiedown eyelet
(Long type)
If Trouble Arises
Emergency Towing
7-21íSome models. Mazda6_8EA2-EA-14K_Edition2 Page511
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K

Black plate (512,1)
Rear
Tiedown eyelet
(Short type)
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.
7-22
If Trouble Arises
Emergency Towing
Mazda6_8EA2-EA-14K_Edition2 Page512
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K
