Interior Equipment (View B)
SRS air bags ...................................................................................................... page 2-41
Active driving display ........................................................................................ page 4-20
Climate control system ........................................................................................ page 5-2
Rear window defogger switch ........................................................................... page 4-68
Audio system ..................................................................................................... page 5-13
Glove compartment ......................................................................................... page 5-134
Shift levers/Selector levers ....................................................................... page 4-47, 4-49
Commander switch ............................................................................................ page 5-32
Electric parking brake switch ............................................................................ page 4-75
Drive selection switch ....................................................................................... page 4-90
Fuse block .......................................................................................................... page 6-58
1-4
Pictorial Index
The equipment and installation position varies by vehicle
Interior Overview
Mazda6_8EA2-EA-14K_Edition2 Page10
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K
Page 107 of 614
Black plate (107,1)
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death. This warning applies
especially to children.
Never allow children to play with
power window switches:
Power window switches that are not
locked with the power window lock
switch would allow children to
operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
NOTE
A power window may no longer open/close if
you continue to press the switch after fully
opening/closing the power window. If the
power window does not open/close, wait a
moment and then operate the switch again.
qOperating the Power Windows
NOTElEach passenger window can be operated
with each door switch when the power
window lock switch on the driver's door is
in the unlocked position (page 3-35).
lEach passenger window can also be
operated using the master control switches
on the driver's door.
Left rear window
Right rear windowFront
passenger's
window
Driver's window Master control switches
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Driver's window
Open Close Master control switches
Before Driving
Windows
3-33
Mazda6_8EA2-EA-14K_Edition2 Page107
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K
Page 136 of 614
Black plate (136,1)
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
l(Vehicles with type B audio)
If the fuel economy data is reset using the
fuel economy monitor, or trip A is reset
using the trip meter when the function
which synchronizes the fuel economy
monitor and the trip meter is on, the fuel
economy data and trip A are reset
simultaneously.
Refer to Fuel Economy Monitor on page
4-87.
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 9999.9 km
(mile).
qTachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
*1 The range varies depending on the type
of gauge.
*1 Striped zone
*
1 Red zone
NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the driver
that the gears should be shifted before entering
the RED ZONE.
4-12
When Driving
Instrument Cluster and Display
Mazda6_8EA2-EA-14K_Edition2 Page136
Saturday, January 10 2015 3:24 PM
Form No.8EA2-EA-14K
Page 232 of 614
Black plate (232,1)
Function for cancelling illumination dimmer
When the headlight switch is in the
orposition, the brightness of the Blind Spot
Monitoring (BSM) warning lights is dimmed. If the Blind Spot Monitoring (BSM) warning
lights are difficult to see due to glare from surrounding brightness when traveling on snow-
covered roads or under foggy conditions, press the dimmer cancellation button to cancel
the dimmer and increase the brightness of Blind Spot Monitoring (BSM) warning lights
when they turn on.
Refer to Dashboard Illumination on page 4-14.
Blind Spot Monitoring (BSM) warning beep
The Blind Spot Monitoring (BSM) warning beep is activated simultaneously with the
flashing of a Blind Spot Monitoring (BSM) warning light.
qBlind Spot Monitoring (BSM) Switch
When the Blind Spot Monitoring (BSM)
switch is pressed, the Blind Spot
Monitoring (BSM) and Rear Cross Traffic
Alert (RCTA) systems are turned off and
the Blind Spot Monitoring (BSM) OFF
indication/indicator light in the instrument
cluster turns on.
If the switch is pressed again, the Blind
Spot Monitoring (BSM) and Rear Cross
Traffic Alert (RCTA) systems become
operable and the Blind Spot Monitoring
(BSM) OFF indication/indicator light
turns off.NOTE
lWhen the ignition is switched off, the
condition before the system was turned off
is maintained. For example, if the ignition
is switched OFF while the Blind Spot
Monitoring (BSM) and Rear Cross Traffic
Alert (RCTA) systems are operational, the
Blind Spot Monitoring (BSM) and Rear
Cross Traffic Alert (RCTA) systems remain
operational the next time the ignition is
switched ON.
lThe Blind Spot Monitoring (BSM) and Rear
Cross Traffic Alert (RCTA) systems are
turned off when the battery is disconnected
such as when the battery terminals or fuses
have been removed and re-installed. To turn
the Blind Spot Monitoring (BSM) and Rear
Cross Traffic Alert (RCTA) systems back on,
press the Blind Spot Monitoring (BSM)
switch.
4-108
When Driving
i-ACTIVSENSE
Mazda6_8EA2-EA-14K_Edition2 Page232
Saturday, January 10 2015 3:25 PM
Form No.8EA2-EA-14K
Page 382 of 614
Black plate (382,1)
qReceiving an Incoming Call
1.Prompt:“Incoming call, press the
pick-up button to answer”
2. To accept the call, press the pick-up
button.
To reject the call, press the hang-up
button.
qHanging Up a Call
Press the hang-up button during the call.
A beep sound will confirm that call is
ended.
qMute
The microphone can be muted during a
call.
1. Press the talk button with a short press.
2.Say:[Beep]“Mute”
3.Prompt:“Microphone muted”
Canceling mute
1. Press the talk button with a short press.
2.Say:[Beep]“Mute off”
3.Prompt:“Microphone unmuted”
qTransferring a Call from Hands-
Free to a Device (Mobile Phone)
Communication between the Hands-Free
unit and a device (Mobile phone) is
canceled, and the line can be switched to a
standard call using a device (Mobile
phone).
1. Press the talk button with a short press.
2.Say:[Beep]“Transfer call”
3.Prompt:“Transferred call to phone”
qTransferring a Call from a Device
(Mobile Phone) to Hands-Free
Communication between devices (Mobile
phone) can be switched to Bluetooth®
Hands-Free.
1. Press the talk button with a short press.
2.Say:[Beep]“Transfer call”
3.Prompt:“Transferred call to Hands-
Free system”
qCall interrupt
A call can be interrupted to receive an
incoming call from a third party.
Switch to a new incoming call using the
following methods.
Method 1
1. Press the pick-up button.
2.Prompt:“Swapping calls.”
Method 2
1. Press the talk button with a short press.
2.Say:[Beep]“Swap calls”
3.Prompt:“Swapping calls.”
NOTE
lTo refuse an incoming call, press the hang-
up button.
lAfter receiving a new incoming call, the
previous call is placed on hold.
Switching calls
Switching back to the previous call can
also be done.
Method 1
1. Press the pick-up button.
2.Prompt:“Swapping calls.”
5-96
Interior Features
Bluetooth®
Mazda6_8EA2-EA-14K_Edition2 Page382
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K
Page 389 of 614
Black plate (389,1)
NOTElIf the ignition is switched off during a
Hands-Free call, the line is transferred to
the device (Mobile phone) automatically.
lIf the DTMF code has two or more digits or
symbols, each one must be transmitted
individually.
qCall Interrupt
A call can be interrupted to receive an
incoming call from a third party.
When
is selected or the pick-
up button on the steering wheel is pressed,
the current call is held and the system
switches to the new incoming call.
When
is selected, the current
call is ended and the system switches to
the new incoming call (GSM network
only).
When
is selected or the hang-up
button on the steering wheel is pressed, an
incoming call is refused.
NOTE
lThe function may not be available
depending on the contractual content of the
mobile device.
lThe function may not be operable
depending on the type of the telephone
network and the mobile device.
qReceiving and Replying to
Messages (available only with E-
mail/SMS compatible phones)
SMS (Short Message Service) messages,
and E-mail received by connected devices
can be downloaded, displayed, and played
(read by the system).
Additionally, replies can also be made to
calls and messages in the received
messages.
Downloading messages
Up to 20 new messages can be
downloaded and displayed from a
connected device.
NOTE
For e-mail, 20 messages for each account can
be downloaded.
(Automatic downloading)
The“Auto Download Email”(E-mail) or
“Auto Download Text Message”(SMS)
setting must be on. A message is
downloaded automatically when the
Bluetooth
®unit is connected to the
device.
Refer to Communication Settings on page
5-107.
(Manually downloading)
When the“Auto Download Email”(E-
mail) or“Auto Download Text Message”
(SMS) setting is off, the message is
downloaded using the following
procedure.
1. Select the
icon on the home screen
and display the Communication screen.
2. Select
orto display
the Inbox.
3. Select
.
4. Download will be started from the
mobile phone.
Interior Features
Bluetooth®
5-103
Mazda6_8EA2-EA-14K_Edition2 Page389
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K
Page 421 of 614
Black plate (421,1)
6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information ................................................................... 6-2
Introduction ............................................................................... 6-2
Scheduled Maintenance ................................................................ 6-4
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico) .... 6-4
Scheduled Maintenance (Mexico) ........................................... 6-13
Maintenance Monitor .............................................................. 6-20
Owner Maintenance ................................................................... 6-22
Owner Maintenance Precautions ............................................. 6-22
Hood ....................................................................................... 6-24
Engine Compartment Overview .............................................. 6-26
Engine Oil ............................................................................... 6-27
Engine Coolant ....................................................................... 6-29
Brake/Clutch Fluid .................................................................. 6-31
Washer Fluid ........................................................................... 6-31
Body Lubrication .................................................................... 6-32
Wiper Blades ........................................................................... 6-33
Battery ..................................................................................... 6-36
Key Battery Replacement ....................................................... 6-38
Tires ........................................................................................ 6-40
Light Bulbs ............................................................................. 6-46
Fuses ....................................................................................... 6-56
Appearance Care ........................................................................ 6-62
Exterior Care ........................................................................... 6-62
Interior Care ............................................................................ 6-67
6-1
Mazda6_8EA2-EA-14K_Edition2 Page421
Saturday, January 10 2015 3:26 PM
Form No.8EA2-EA-14K
Page 446 of 614
Black plate (446,1)

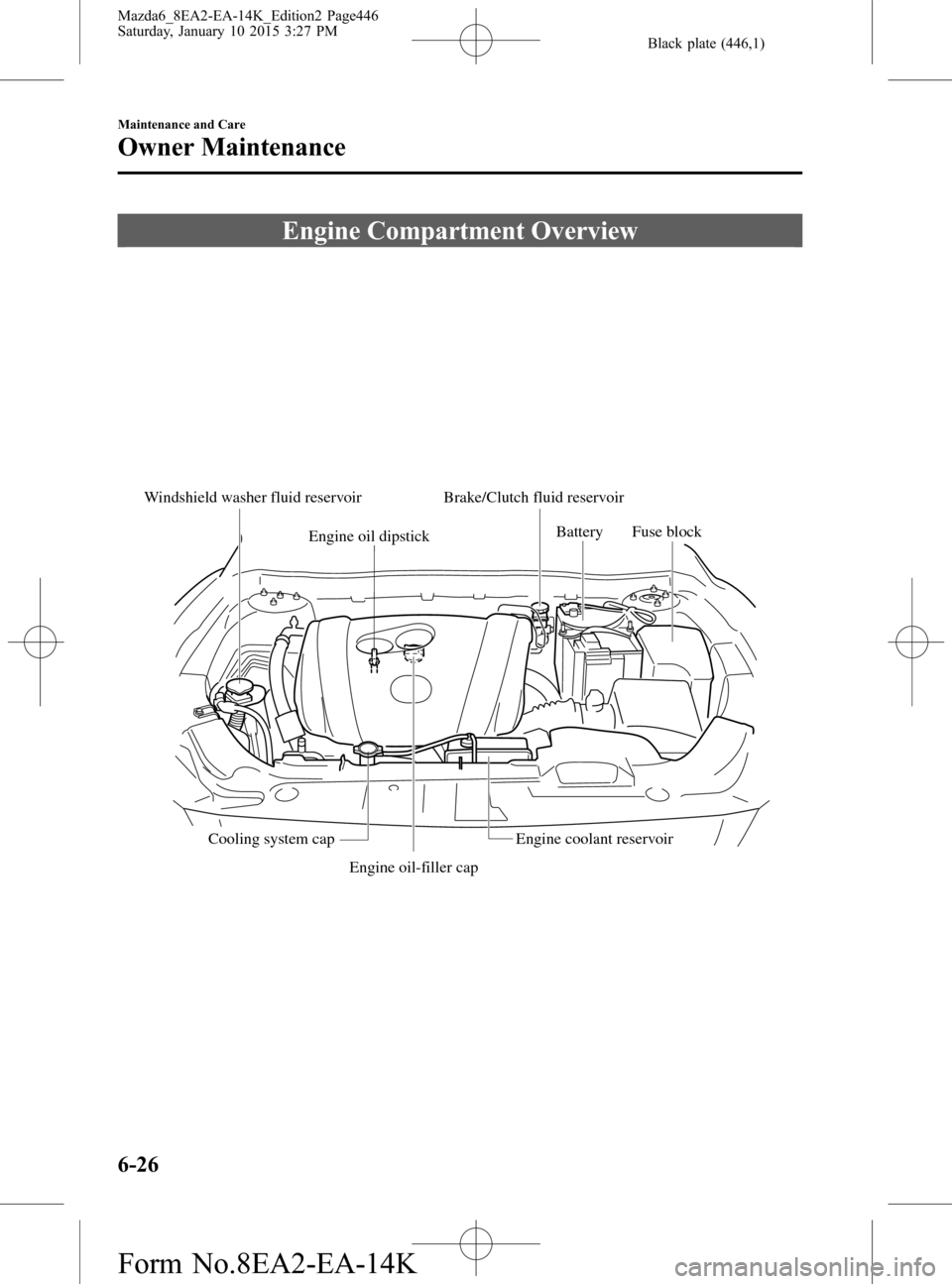

Engine Compartment Overview
Windshield washer fluid reservoir Brake/Clutch fluid reservoir
Engine oil dipstickBattery Fuse block
Cooling system cap Engine coolant reservoir
Engine oil-filler cap
6-26
Maintenance and Care
Owner Maintenance
Mazda6_8EA2-EA-14K_Edition2 Page446
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K
Page 476 of 614
Black plate (476,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
6-56
Maintenance and Care
Owner Maintenance
Mazda6_8EA2-EA-14K_Edition2 Page476
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K
Page 477 of 614
Black plate (477,1)
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.
6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that
it is securely installed.
Maintenance and Care
Owner Maintenance
6-57
Mazda6_8EA2-EA-14K_Edition2 Page477
Saturday, January 10 2015 3:27 PM
Form No.8EA2-EA-14K
