key MAZDA MODEL 6 2016 Smart Start Guide (in English)

3
ADVANCED KEYLESS ENTRY SYSTEM (if equipped)
This system allows you to lock and unlock the doors without taking
the key out.
While Carrying the Advanced Key…
• Unlock the driver’s door by
pushing the driver’s door request
switch once.
• Unlock all doors by pushing
the driver’s door request switch
once or twice (depending on
personalization setting)
OR by pushing the passenger’s
door request switch once.
• Lock all doors (and lif tgate) by
pushing any request switch once.
• Open the trunk by pushing
the trunk switch once (switch
is located a little to the right of
the center of vehicle).
NOTE: Vehicles equipped with the Advanced Keyless Entry System and the Keyless
Entry System both use the same type of keyless entry transmitter. However, only vehicles
equipped with the Advanced Keyless Entry System allow you to lock and unlock the
doors with the door request switches (without taking the key out of your purse or pocket).
Vehicles equipped with the Keyless Entry System do not have request switches on
the doors/trunk. To lock and unlock the doors, the corresponding transmitter button
must be pushed.
Key
Advanced Key
Lock
Unlock
Panic Alarm Tr u n k
Door Request Switch
CAUTION: RED KEY indicator lightmay illuminate if advance key
is placed in the cup holder. The key
can sometimes not be detected in
the cup holder.
CAUTION:
• Make sure vehicle is OFF and
take the keyless entry system key
with you when leaving the vehicle.
• When locking doors using inside
door switches or inside door
lock knobs, be careful not to
leave the key inside the vehicle.Electric Trunk
Lid Opener
NOTE: Refer to your Owner’s
Manual for additional details about
“Personalization Features”.
1945220_16d_Mazda6_SSG_061815.indd 36/18/15 11:56 AM

4
Emergency Engine Stop
Pushing and holding the START/STOP button or repeatedly pushing the
button while the engine is running will turn the engine OFF. Use only in case
of an emergency.
If the START/STOP ENGINE button indicator light flashes AMBER, this
could indicate a problem with the engine starting system. You may not
be able to start the engine or switch the ignition to ACC or ON. Have your
vehicle inspected at an Authorized Mazda Dealer as soon as possible.
NOTE: The engine may not start if the key cannot be detected. The Key
Indicator Light may flash RED or “Key not detected” may be displayed if the key
is placed in the cup holder.
Starting The Engine
STARTING THE ENGINE WITH
ACCELERATED WARM-UP SYSTEM (AWS)
The Mazda6 is equipped with SKYACTIV combustion technology.
This technology includes AWS (Accelerated Warm-up System) for
optimal emission performance during cold starting conditions.
NOTE: Yo u can drive the vehicle during AWS activation, no need to wait.
While Carrying the Key…
• Start the engine by pushing the START/STOP
ENGINE button while pushing the clutch pedal
(M/ T) or the brake pedal (A / T).
• What you will notice? On start-up, the engine
speed and sound are higher (1500 RPM) for less
than 1 minute to quickly bring the catalyst to efficient
operating temperature. The RPM will reduce to idle
once the temperature is achieved. This is normal
engine operation under cold start conditions.
• What this does? This heats up the catalytic converter faster to reduce
emissions and allows Mazda to use an exhaust header on the engine (to
improve efficiency and horsepower).
• Shut the engine OFF by making sure the vehicle in park (A / T) and
setting the parking brake, then push the START/STOP ENGINE button.
• Activate Accessories (ACC ) by pushing the START/STOP ENGINE
button once without pushing the clutch or brake pedal.
• Turn the ignition to the ON position by pushing the START/STOP
ENGINE button twice without pushing the clutch or brake pedal.START/STOP
Indicator Light
1945220_16d_Mazda6_SSG_061815.indd 46/18/15 11:56 AM
www.MazdaUSA.com

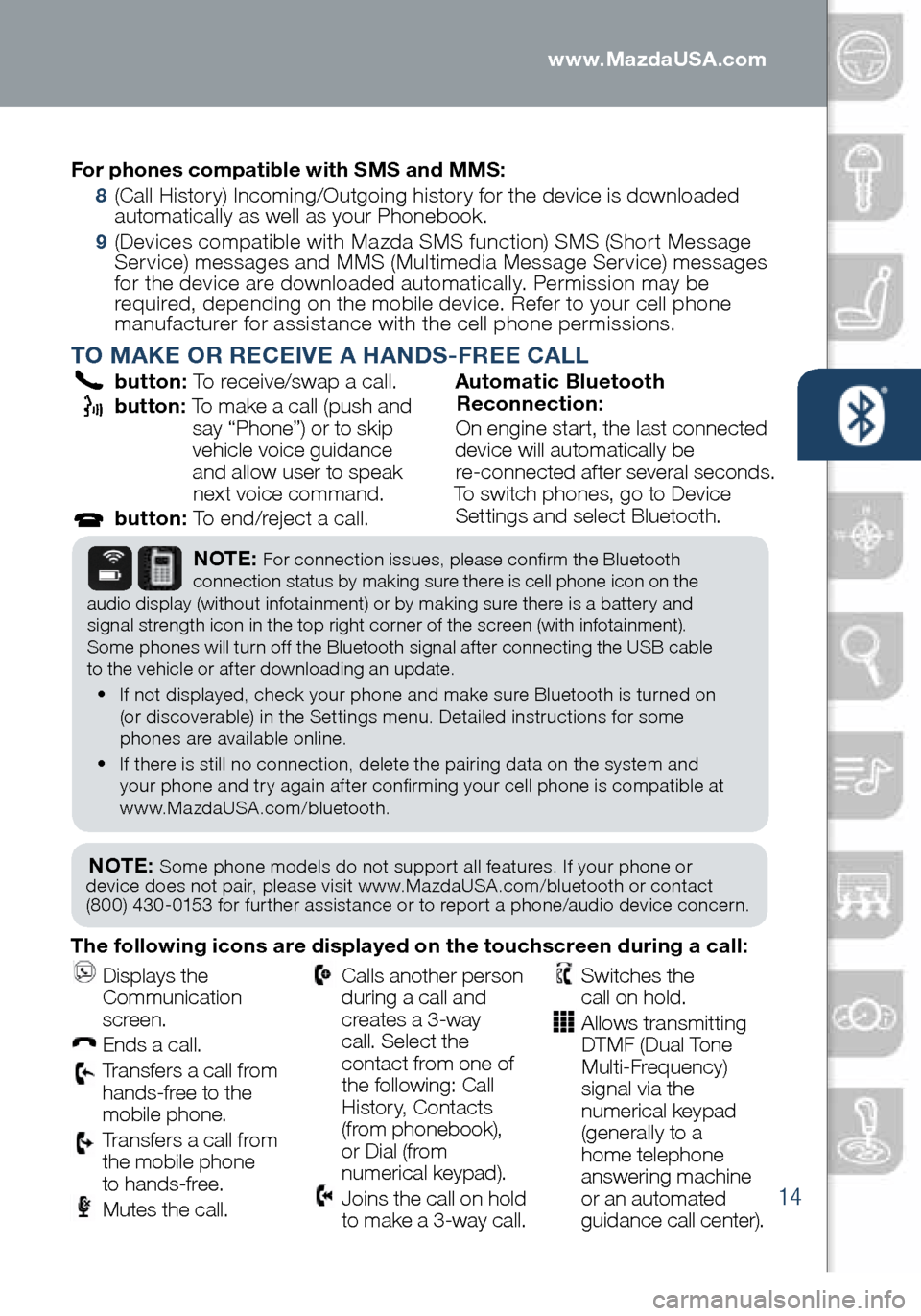

14
PAIRING YOUR BLUETOOTH® PHONE OR AUDIO DEVICE
TO MAKE OR RECEIVE A HANDS-FREE CALL
button: To receive/swap a call.
button: To make a call (push and
say “Phone”) or to skip
vehicle voice guidance
and allow user to speak next voice command.
button: To end/reject a call. Automatic Bluetooth
Reconnection:
On engine start, the last connected
device will automatically be
re-connected after several seconds.
To switch phones, go to Device
Settings and select Bluetooth.
NOTE: Some phone models do not support all features. If your phone or
device does not pair, please visit www.MazdaUSA.com/bluetooth or contact
(800) 430-0153 for further assistance or to report a phone/audio device concern.
NOTE: For connection issues, please confirm the Bluetooth
connection status by making sure there is cell phone icon on the
audio display (without infotainment) or by making sure there is a battery and
signal strength icon in the top right corner of the screen (with infotainment).
Some phones will turn off the Bluetooth signal after connecting the USB cable
to the vehicle or after downloading an update.
• If not displayed, check your phone and make sure Bluetooth is turned on
(or discoverable) in the Settings menu. Detailed instructions for some
phones are available online.
• If there is still no connection, delete the pairing data on the system and
your phone and try again after confirming your cell phone is compatible at
www.MazdaUSA.com/bluetooth.
The following icons are displayed on the touchscreen during a call:
Displays the
Communication
screen.
Ends a call.
Transfers a call from
hands‐free to the
mobile phone.
Transfers a call from
the mobile phone
to hands‐free.
Mutes the call.
Calls another person
during a call and
creates a 3‐way
call. Select the
contact from one of
the following: Call
History, Contacts
(from phonebook),
or Dial (from
numerical keypad).
Joins the call on hold
to make a 3‐way call.
Switches the
call on hold.
Allows transmitting
DTMF (Dual Tone
Multi‐Frequency)
signal via the
numerical keypad
(generally to a
home telephone
answering machine
or an automated
guidance call center).
For phones compatible with SMS and MMS:
8
(Call History) Incoming/Outgoing history for the device is downloaded
automatically as well as your Phonebook.
9 (Devices compatible with Mazda SMS function) SMS (Short Message
Service) messages and MMS (Multimedia Message Service) messages
for the device are downloaded automatically. Permission may be
required, depending on the mobile device . Refer to your cell phone
manufacturer for assistance with the cell phone permissions.
1945220_16d_Mazda6_SSG_061815.indd 146/18/15 11:56 AM
www.MazdaUSA.com

34
TYPE B INSTRUMENT CLUSTER
WARNING LIGHTS ONLY. These warnings are displayed as text in the
Type A Information display.
Automatic Transaxle Warning
Blind Spot Monitoring OFF
(BSM) (p. 23)
KEY Warning RED
KEY Indicator GREEN
Door Ajar
Trunk Lid Ajar
Low Washer Fluid Level
Warning
Check Fuel Cap
Perform Maintenance
SPORT Mode On
Lane Departure Warning
System (LDWS) ON ( AMBER)
Lane Detected ( GREEN)
3 ( p. 21)
Lane Departure Warning
System (LDWS) OFF
(
AMBER )3 Brake Pedal Operation
Demand
DASHBOARD ILLUMINATION/
DIMMER1/TRIP METER2
1 • Rotate the knob to adjust the brightness of the
instrument cluster and other dashboard illuminations.
2 • Push to toggle between trip meter (A & B).
• When a trip meter is selected, push and hold to
reset to zero.
3 • Indicator is also displayed in Type A Cluster
Information Display.
FUEL
GAUGE
SPEEDOMETER
ENGINE COOLANT TEMP LIGHTS
Since this vehicle does not use an
engine coolant temperature gauge, red
and blue engine coolant temperature
lights are used to indicate high
and low coolant temperature.
Red Coolant Temp Light
Flashing : Engine is starting
to run hot. Drive slowly to
reduce engine load.
On: Engine is overheating. Safely pull
over to the side of the road and turn
the engine off. Refer to the Owner’s
Manual for more information.
Blue Coolant Temp Light On: Engine coolant is cold
and no warm air is available
for heater/defroster.
Off: Engine coolant is warm and
warm air is available for heater/
defroster. The light may stay on for a
few minutes after start-up when the
engine is cold, but the vehicle can
be driven with the light on or off.
INFORMATION D I S P L AY
TYPE B CLUSTER
INFORMATION D I S P L AYSee page 7 or the
Owner’s Manual for
further information.
1945220_16d_Mazda6_SSG_061815.indd 346/18/15 11:57 AM
www.MazdaUSA.com

Customer Delivery Checklist
SCHEDULED MAINTENANCE:
When replacing or topping off engine oil, use Mazda Genuine oil. For optimal engine performance,
use SAE 0W-20 engine oil. Please consult an Authorized Mazda Dealer for additional information.
Driver’s View ........................ 1
• Location of Switches and Control
Advanced Keyless Entry* .......... 3
• Door Request Switch*
Starting the Engine ................. 4
• Accelerated Warm-Up System (AWS)
• Emergency Engine Stop
Electric Parking Brake ............. 5
Fuel Economy ....................... 5
Tire Pressure Monitor System ....6
• Initialize TPMS before delivery
Information Display ................ 7
Seats and Mirrors .................. 8
Mazda Connect* .................... 9
Mazda Connect Settings* ........10
Commander / Voice Control* ....11
Bluetooth®* ......................... 13
• Pair Phone
• Make/Receive Call
• Toll-Free Customer
Service 800-430-0153
Navigation System* ............... 15
• SD Card
• Planning a Route
*if equipped
SALES CONSULTANT DAT ECUSTOMER DAT E
All items in the Customer Deliver y Checklist have been reviewed with the
customer and the first maintenance appointment has been scheduled:
Signed copy must be placed in dealer jacket.
VEHICLE PRESENTATION:
Refer to the Smart Start Guide during presentation
ESSENTIAL INFORMATION
SAFETY & TECHNOLOGY INFORMATION
GENERAL INFORMATION
Mazda Radar Cruise Control* ... 17
Smart City Brake Support
(SCBS)* ............................. 19
Smart Brake Support (SBS)* .....20
Lane Departure
Warning System (LDWS)* ........ 21
Distance Recognition
Support System (DRSS)* ......... 22
Blind Spot Monitoring (BSM)* ... 23
Rear Cross Traffic Alert* ......... 24
Lights ............................... 25
Wiper/Washer ......................26
Adaptive Front
Lighting System (AFS)* ........... 27
High Beam Control* ............... 28
Audio Controls ..................... 29 • Bluetooth Audio
Audio USB & AUX Inputs ......... 31
Automatic Climate Control* ......32
Instrument Cluster ................ 33 • Review of Warning and Indicator
Light Function and Location
Active Driving Display ............ 35
Transmission ....................... 36
i-ELOOP ............................. 37
