MAZDA MODEL 6 2017 Owners Manual (in English)

5–87
Interior Features
Interior Equipment
*Some models.
Ambient Light*
An ambient light continuously turn on
when the ignition is switched ON.
An ambient light dim when the parking
lights or headlights are turned on.
Ambient light
NOTE
 An ambient light turn on or off in
conjunction with the illuminated entry
system when the ignition is switched
OFF.
 The ambient light illumination level can
be changed while the parking lights or
headlights are turned on.
Refer to Personalization Features on
page 9-10.
Illuminated Entry System
When the illuminated entry system
operates, the overhead lights, the courtesy
lights, and an ambient light
* turn on in the
following conditions:
 The driver's door is unlocked after the
ignition is switched OFF.
 The ignition is switched OFF with all
doors closed.
NOTE
 (Overhead lights)
The illuminated entry system operates
when the overhead light switch is in the
DOOR position.
 The illumination time differs depending
on the operation.
 Battery saver
If an interior light is left on with the
ignition switched OFF, the light is
turned off automatically after about 30
minutes to prevent battery depletion.
 The operation of the illuminated entry
system can be changed.
Refer to Personalization Features on
page 9-10.
Mazda6_8FH2-EA-16F_Edition2.indb 872016/07/07 13:46:04

5–88
Interior Features
Interior Equipment
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition must be switched to ACC or
ON.
Center
The accessory sockets can be used
regardless of whether the ignition is on or
off.
CAUTION
 To prevent accessory socket damage or
electrical failure, pay attention to the
following:
 Do not use accessories that require
more than 120 W (DC 12 V, 10 A).
 Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
 Close the cover when the accessory
socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket.
 Correctly insert the plug into the
accessory socket.
 Do not insert the cigarette lighter into
the accessory socket.
 Noise may occur on the audio playback
depending on the device connected to
the accessory socket.
 Depending on the device connected
to the accessory socket, the vehicle's
electrical system may be affected,
which could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem
is resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off. If the
problem is not resolved, consult an
Authorized Mazda Dealer.
NOTE
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.
Mazda6_8FH2-EA-16F_Edition2.indb 882016/07/07 13:46:04

5–89
Interior Features
Interior Equipment
Connecting the accessory socket
1. Open the lid.
2. Pass the connection plug cord through
the cutout of the console and insert the
plug into the accessory socket.
Plug
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot
liquids while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders: Putting objects other than cups
or drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be
hit and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
Mazda6_8FH2-EA-16F_Edition2.indb 892016/07/07 13:46:04

5–90
Interior Features
Interior Equipment
Front
To use the cup holder, slide the cover and
open it.
Rear
The rear cup holder is on the rear center
armrest.
Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Mazda6_8FH2-EA-16F_Edition2.indb 902016/07/07 13:46:05

5–91
Interior Features
Interior Equipment
Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
Do not put articles in storage spaces
with no lid: Putting articles in storage spaces with
no lid is dangerous as they could be
thrown around the cabin if the vehicle
is suddenly accelerated and cause
injury depending on how the article is
stored.
CAUTION
Do not leave lighters or eyeglasses
in the storage boxes while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.
Overhead Console
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
Storage Pocket
To use, open the lid.
Mazda6_8FH2-EA-16F_Edition2.indb 912016/07/07 13:46:05

5–92
Interior Features
Interior Equipment
Glove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment,
firmly press in the center of the glove
compartment lid.
Center Console
To open, pull the lower release handle.
Rear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist
grips or coat hooks is dangerous as
they can fly off and hit an occupant
in the cabin if a curtain air bag was to
deploy, which could result in serious
injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
Mazda6_8FH2-EA-16F_Edition2.indb 922016/07/07 13:46:06

6–1
6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information ........................................................................\
6-2
Introduction ........................................................................\
........... 6-2
Scheduled Maintenance ..................................................................... 6-4

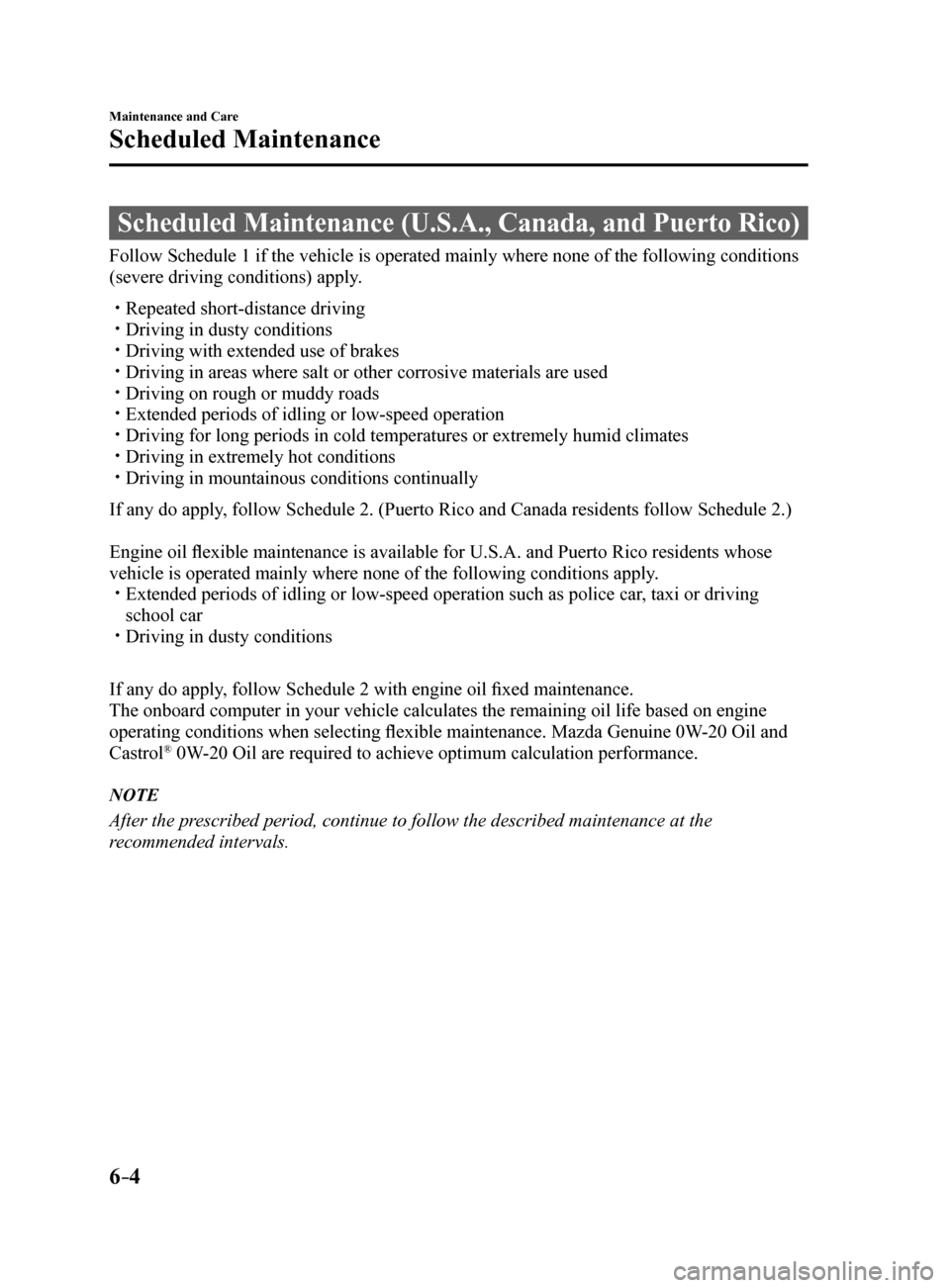

Scheduled Maintenance (U.S.A., Canada, and Puerto Rico) ........ 6-4
Scheduled Maintenance (Mexico) ..............................................6-11
Maintenance Monitor .................................................................. 6-18
Owner Maintenance ........................................................................\
. 6-20
Owner Maintenance Precautions ................................................ 6-20
Hood ........................................................................\
.................... 6-23
Engine Compartment Overview ................................................. 6-25
Engine Oil ........................................................................\
........... 6-26
Engine Coolant ........................................................................\
.... 6-29
Brake/Clutch Fluid ...................................................................... 6-31
Washer Fluid ........................................................................\
....... 6-31
Body Lubrication ........................................................................\
6-32
Wiper Blades ........................................................................\
....... 6-33
Battery ........................................................................\
................. 6-35
Key Battery Replacement ........................................................... 6-38
Tires ........................................................................\
..................... 6-40
Light Bulbs ........................................................................\
.......... 6-45
Fuses ........................................................................\
................... 6-57
Appearance Care ........................................................................\
...... 6-64
Exterior Care ........................................................................\
....... 6-64
Interior Care ........................................................................\
........ 6-70
Mazda6_8FH2-EA-16F_Edition2.indb 12016/07/07 13:46:06

6–2
Maintenance and Care
Essential Information
Introduction
Be careful not to hurt yourself when inspecting your vehicle, replacing a tire, or doing some
kind of maintenance such as car washing.
In particular, wear thick work gloves such as cotton gloves when touching areas that \
are difficult to see while inspecting or working on your vehicle. Doing inspections or
procedures with your bare hands could cause injury.
If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for y\
our vehicle.
Without this expertise and the parts that have been designed and made esp\
ecially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
To continue warranty eligibility and to protect your investment, it is yo\
ur responsibility to
properly maintain your vehicle according to factory recommended schedule\
s outlined in this
manual. As part of this you must keep your maintenance records, receipts, repair\
orders and
any other documents as evidence this maintenance was performed. You must present these
documents, should any warranty coverage disagreement occur. Failure to do so can result in
your warranty being voided either in whole or in part.
This evidence may consist of the following:
 The Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.
 Original copies of repair orders or other receipts that include the mile\
age and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.
 For self maintenance, a statement that you completed the maintenance you\
rself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany this
statement.
Mazda6_8FH2-EA-16F_Edition2.indb 22016/07/07 13:46:06

6–3
Maintenance and Care
Essential Information
NOTE
If you elect to perform maintenance yourself or have your vehicle servic\
ed at a location
other than an Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials
must meet Mazda standards for durability and performance as described in this manual.
Claims against the warranty resulting from lack of maintenance, as oppos\
ed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Selecting “Maintenance Monitor” enables the system to notify you of your vehicle's
approaching inspection/servicing period (page 6-18).
The malfunction diagnosis connector is designed exclusively for connecti\
ng the specially
designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed malfunction\
diagnosis devices
for servicing. If any device other than the malfunction diagnosis device\
is connected, it may
affect the vehicle's electrical devices or lead to damage such as battery \
depletion.
Malfunction
diagnosis
connector
Mazda6_8FH2-EA-16F_Edition2.indb 32016/07/07 13:46:06

6–4
Maintenance and Care
Scheduled Maintenance
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico)
Follow Schedule 1 if the vehicle is operated mainly where none of the fo\
llowing conditions
(severe driving conditions) apply.
 Repeated short-distance driving Driving in dusty conditions Driving with extended use of brakes Driving in areas where salt or other corrosive materials are used Driving on rough or muddy roads Extended periods of idling or low-speed operation Driving for long periods in cold temperatures or extremely humid climate\
s Driving in extremely hot conditions Driving in mountainous conditions continually
If any do apply, follow Schedule 2. (Puerto Rico and Canada residents follow Schedule 2.)
Engine oil flexible maintenance is available for U.S.A. and Puerto Rico residents whose
vehicle is operated mainly where none of the following conditions apply.
 Extended periods of idling or low-speed operation such as police car, taxi or driving
school car
 Driving in dusty conditions
If any do apply, follow Schedule 2 with engine oil fixed maintenance.
The onboard computer in your vehicle calculates the remaining oil life b\
ased on engine
operating conditions when selecting flexible maintenance. Mazda Genuine 0W-20 Oil and
Castrol
® 0W-20 Oil are required to achieve optimum calculation performance.
NOTE
After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
Mazda6_8FH2-EA-16F_Edition2.indb 42016/07/07 13:46:06
