ECU MAZDA MODEL 6 2017 (in English) Owner's Guide

4–8
When Driving
Start/Stop Engine
NOTE
 After starting the engine, the push
button start indicator light (amber)
turns off and the ignition switches to the
ON position.
 After pressing the push button start and
before the engine starts, the operation
sound of the fuel pump motor from near
the fuel tank can be heard, however, this
does not indicate a malfunction.
8. After starting the engine, let it idle for
about ten seconds.
NOTE
 Whether the engine is cold or warm, it
should be started without the use of the
accelerator.
 If the engine does not start the first
time, refer to Starting a Flooded Engine
under Emergency Starting. If the engine
still does not start, have your vehicle
inspected by an Authorized Mazda
Dealer (page 7-16).
Engine Start Function When Key
Battery is Dead
CAUTION
When starting the engine by holding
the transmitter over the push button
start due to a dead key battery or a
malfunctioning key, be careful not
to allow the following, otherwise the
signal from the key will not be received
correctly and the engine may not start.
 Metal parts of other keys or metal
objects touch the key.

 Spare keys or keys for other vehicles
equipped with an immobilizer
system touch or come near the key.

 Devices for electronic purchases,
or security passage touch or come
near the key.
Mazda6_8FH2-EA-16F_Edition2.indb 82016/07/07 13:44:33

4–36
When Driving
Instrument Cluster and Display
*Some models.
Indication/Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
SignalIndicator Page
Front Passenger Air Bag Deactivation Indicator Light*12-56
(White/Green)KEY Indication/Indicator Light
4-5
Security Indicator Light*13-41
Wrench Indication/Indicator Light*14-38
(Blue)
*Low Engine Coolant Temperature Indicator Light4-38
Shift Position Indication 4-45
Lights-On Indication/Indicator Light4-53
Headlight High-Beam Indicator LightHeadlight High-
Low Beam 4-56,
Flashing the Headlights 4-56
Turn Signal/Hazard Warning Indicator Lights Turn and Lane-
Change Signals 4-59,
Hazard Warning Flasher4-65
Brake Pedal Operation demand Indicator Light 4-71
Mazda6_8FH2-EA-16F_Edition2.indb 362016/07/07 13:44:47

4–72
When Driving
Brake
When applying the electric parking
brake
The electric parking brake can be applied
regardless of the ignition switch position.
Securely depress the brake pedal and pull
up the electric parking brake switch.
The electric parking brake is applied and
the brake system warning light and the
electric parking brake switch indicator
light turn on.
Refer to Warning/Indicator Lights on page
4-32.
When releasing the electric parking
brake
The electric parking brake can be released
while the ignition is switched ON or
the engine is running. When the electric
parking brake is released, the brake system
warning light and the electric parking
brake switch indicator light turn off.Electric parking brake manual release
Securely depress the brake pedal and press
down the electric parking brake switch.
Firmly depress the brake pedal and press
the electric parking brake switch.
If the electric parking brake switch is
pressed without depressing the brake
pedal, the display or indicator light in the
instrument cluster notifies the driver that
the brake is not depressed.
(Type A instrument cluster)
A message is displayed on the multi-
information display in the instrument
cluster.
Refer to Message Indicated in Multi-
information Display on page 7-35.
(Type B instrument cluster)
The brake pedal operation demand
indicator light in the instrument cluster
turns on.
Mazda6_8FH2-EA-16F_Edition2.indb 722016/07/07 13:45:00

5–44
Interior Features
Audio System
How to connect USB port/
Auxiliary jack
USB port Auxiliary jack
Connecting a device
1. Open the console lid.
2. Connect the connector on the device to
the USB port.
Connecting with a connector cable
1. Open the console lid.
2. Connect the device plug/connector
cable to the auxiliary jack/USB port.
Pass the device plug/connector cable
through the notch in the console and
connect.
WARNING
Do not allow the connection plug cord
to get tangled with the shift lever:
Allowing the plug cord to become
tangled with the shift lever is
dangerous as it could interfere with
driving, resulting in an accident.
CAUTION
Do not place objects or apply force to
the auxiliary jack/USB port with the
plug connected.
NOTE
 Insert the plug into the auxiliary jack/
USB port securely.
 Insert or pull out the plug with the plug
perpendicular to the auxiliary jack/USB
port hole.
 Insert or remove the plug by holding its
base.
Mazda6_8FH2-EA-16F_Edition2.indb 442016/07/07 13:45:45

5–82
Interior Features
Bluetooth®
NOTE
 When the OS of the device is updated, the pairing information may be del\
eted. If this
happens, reprogram the pairing information to the Bluetooth® unit. If you pair your phone which has already been paired to your vehicle more than once in
the past, you need to delete “Mazda” on your mobile device. Then, \
execute the Bluetooth®
search on your mobile device once again, and pair to a newly detected “Ma\
zda”.
 Before you pair your device, make sure that Bluetooth® is “ON”, both on your phone and
on the vehicle.
 If Bluetooth®-enabled devices are used in the following locations or conditions,
connection via Bluetooth® may not be possible.
 The device is in a location hidden from the center display such as behind or under a
seat, or inside the glove compartment.
 The device contacts or is covered by a metal object or body. The device is set to power-saving mode.
 Different Bluetooth®-enabled devices can be used for Bluetooth® Hands-Free and
Bluetooth® audio. For example, device A can be connected as a Bluetooth® Hands-
Free device and device B can be connected as a Bluetooth® audio device. However, the
following may occur when they are used at the same time.
 The Bluetooth® connection of the device is disconnected. Noise occurs in the Hands-Free audio. Hands-Free operates slowly.
Voice recognition related problems
Symptom CauseSolution method
Poor voice recognition
Excessive, slow speech.  Excessive, forceful speech
(shouting).
 Speaking before the beep sound
has ended.
 Loud noise (speaking or noise from
outside/inside vehicle).
 Airflow from A/C is blowing
against the microphone.
 Speaking in off-standard
expressions (dialect). Regarding the causes indicated
on the left, be careful with how
you speak. In addition, when
numbers are spoken in a sequence,
recognition ability will improve
if no stop is placed between the
numbers.
False recognition of numbers
Poor voice recognition There is a malfunction in the
microphone.A poor connection or malfunction
with the microphone may have
occurred. Consult an Authorized
Mazda Dealer.
Phone-related voice recognition is
disabled There is a problem with the
connection between the Bluetooth
®
unit and the device. If there is any malfunction after
checking the pairing situation, check
for device pairing or connection
problems.
Mazda6_8FH2-EA-16F_Edition2.indb 822016/07/07 13:46:02

6–23
Maintenance and Care
Owner Maintenance
Hood
WARNING
Always check that the hood is closed
and securely locked:A hood that is not closed and securely
locked is dangerous as it could fly open
while the vehicle is moving and block
the driver's vision which could result in
a serious accident.
Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.

Release handle
2. Insert your hand into the hood opening,
slide the latch lever to the right, and lift
up the hood.

Le ver
NOTE
The lever is located a little to the left of
center when facing the vehicle.
3. Grasp the support rod in the padded
area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.

Pad
Clip
Clip
Support rod
Mazda6_8FH2-EA-16F_Edition2.indb 232016/07/07 13:46:08

6–24
Maintenance and Care
Owner Maintenance
Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and all
loose items (e.g. tools, oil containers,
etc.) have been removed.
2. Lift the hood, grasp the padded area on
the support rod, and secure the support
rod in the clip. Verify that the support
rod is secured in the clip before closing
the hood.

ClipClip
Clip
3. Lower the hood slowly to a height of
about 20 cm (7.9 in) above its closed
position and then let it drop.
CAUTION
When closing the hood, do not push
it excessively such as by applying your
weight. Otherwise, the hood could be
deformed.
Mazda6_8FH2-EA-16F_Edition2.indb 242016/07/07 13:46:08

6–30
Maintenance and Care
Owner Maintenance
NOTE
Changing the coolant should be done by
an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year—at the beginning of the
winter season—and before traveling where
temperatures may drop below freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the F and L marks
on the coolant reservoir when the engine
is cool.
If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the coolant reservoir tank
cap after adding coolant.
CAUTION
 Radiator coolant will damage paint.
Rinse it off quickly if spilled.
 Use only soft (demineralized) water in
the coolant mixture. Water that contains
minerals will cut down on the coolant's
effectiveness.
 Do not add only water. Always add a
proper coolant mixture.
 The engine has aluminum parts and
must be protected by an ethylene-glycol-
based coolant to prevent corrosion and
freezing.
 DO NOT USE coolants Containing
Alcohol, methanol, Borate or Silicate.
These coolants could damage the
cooling system.
 DO NOT MIX alcohol or methanol with
the coolant. This could damage the
cooling system.
 Do not use a solution that contains more
than 60% antifreeze.
This would reduce effectiveness.
 If the “FL22” mark is shown on or near
the cooling system cap, use of FL-22 is
recommended when replacing engine
coolant. Using engine coolant other
than FL-22 may cause serious damage to
the engine and cooling system.
If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
Mazda6_8FH2-EA-16F_Edition2.indb 302016/07/07 13:46:10

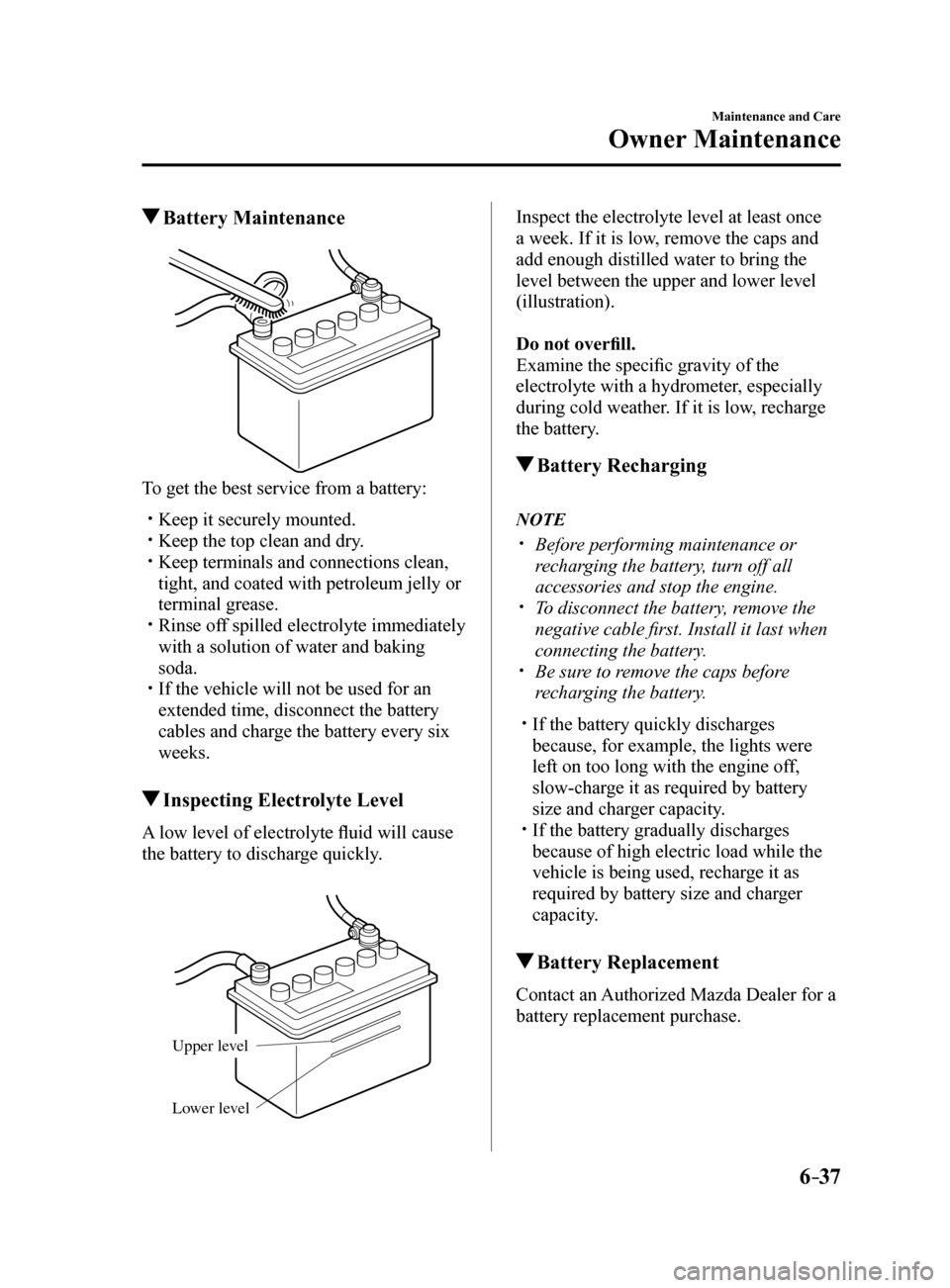

6–37
Maintenance and Care
Owner Maintenance
Battery Maintenance
To get the best service from a battery:
 Keep it securely mounted. Keep the top clean and dry. Keep terminals and connections clean,
tight, and coated with petroleum jelly or
terminal grease.
 Rinse off spilled electrolyte immediately
with a solution of water and baking
soda.
 If the vehicle will not be used for an
extended time, disconnect the battery
cables and charge the battery every six
weeks.
Inspecting Electrolyte Level
A low level of electrolyte fluid will cause
the battery to discharge quickly.
Upper le vel
Lo wer le vel
Inspect the electrolyte level at least once
a week. If it is low, remove the caps and
add enough distilled water to bring the
level between the upper and lower level
(illustration).
Do not overfill.
Examine the specific gravity of the
electrolyte with a hydrometer, especially
during cold weather. If it is low, recharge
the battery.
Battery Recharging
NOTE
 Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.
 To disconnect the battery, remove the
negative cable first. Install it last when
connecting the battery.
 Be sure to remove the caps before
recharging the battery.
 If the battery quickly discharges
because, for example, the lights were
left on too long with the engine off,
slow-charge it as required by battery
size and charger capacity.
 If the battery gradually discharges
because of high electric load while the
vehicle is being used, recharge it as
required by battery size and charger
capacity.
Battery Replacement
Contact an Authorized Mazda Dealer for a
battery replacement purchase.
Mazda6_8FH2-EA-16F_Edition2.indb 372016/07/07 13:46:13

6–58
Maintenance and Care
Owner Maintenance
6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new one of the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse and
multiplex slow blow fuse by yourself.
Have an Authorized Mazda Dealer
perform the replacement:
Replacing these fuses by yourself is
dangerous because they are high
current fuses. Incorrect replacement
could cause an electrical shock or a
short circuit resulting in a fire.
4. Reinstall the cover and make sure that
it is securely installed.
Mazda6_8FH2-EA-16F_Edition2.indb 582016/07/07 13:46:21
