Maintenance and Care
Owner Maintenance
Light Bulbs
Overhead lights/
Front map lights
V anity mirror
lights
Headlights (Low beam)
Headlights (High beam) Daytime running lights/
P arking lights
Headlights (Lo w beam)
Headlights (High beam)/
Daytime running lights
Front turn signal lights/
Front side-marker lights
P arking lights Brake lights/T
aillights
Rear side-marker lights
Rear turn signal lights
T
aillights (T runk lid side)
Re
verse lights
High-mount
brake light
License plate lights
T
runk light
Rear map lights
Side turn signal lights Courtesy lights
Ov erhead lights/
Front map lights Side turn signal lights Courtesy lights
With LED Headlights
With Halogen Headlights
V anity mirror
lights
F og lights
Some models.
Brake lights Brake lights/T aillights
T aillights
Rear side-marker lights
Rear turn signal lights
T
aillights (T runk lid side)
Re
verse lights
High-mount
brake light
License plate lights
T
runk light
Rear map lights
Signature wing illumination
F
og lights
Front turn signal lights/
Front side-marker lights
Mazda6_8FH2-EA-16F_Edition2.indb 452016/07/07 13:46:16

6–46
Maintenance and Care
Owner Maintenance
WARNING
Never touch the glass portion of a
halogen bulb with your bare hands
and always wear eye protection when
handling or working around the bulbs:When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it will
explode and serious injuries could be
caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Always keep halogen bulbs out of the
reach of children: Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
CAUTION
When removing the lens or lamp unit
using a flathead screwdriver, make
sure that the flathead screwdriver does
not contact the interior terminal. If
the flathead screwdriver contacts the
terminal, a short circuit may occur.
NOTE
 To replace the bulb, contact an
Authorized Mazda Dealer.
 If the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
 Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.
Replacing Exterior Light Bulbs
Headlights (With LED headlights)
Low/High beam bulbs
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized Mazda
Dealer when the replacement is necessary.
Headlights (With halogen headlights)
Low-beam bulbs
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.
3. Pull the center of each plastic retainer
and remove the retainers.
Remova l
Installation
Mazda6_8FH2-EA-16F_Edition2.indb 462016/07/07 13:46:16

6–47
Maintenance and Care
Owner Maintenance

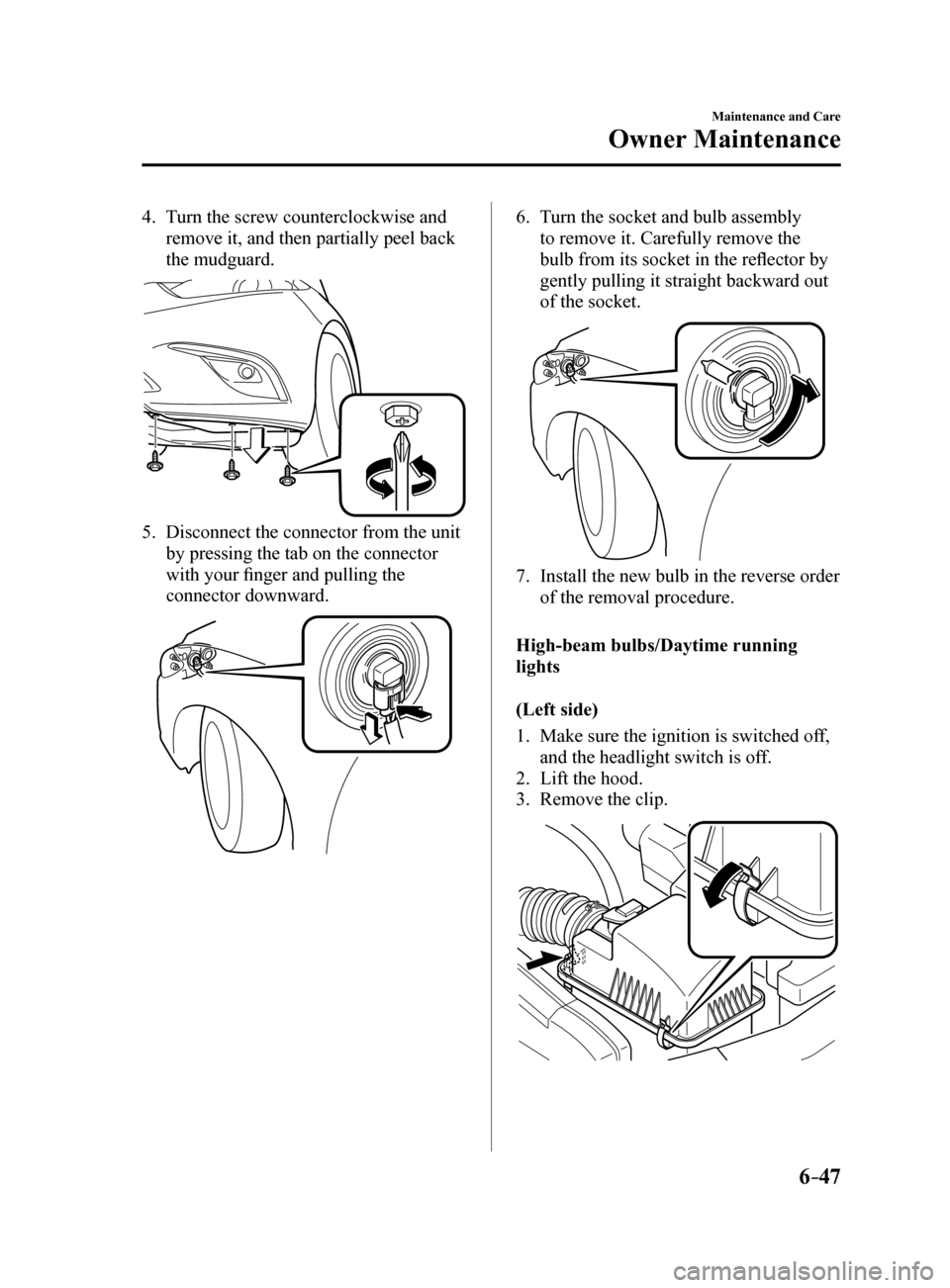

4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.
5. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
6. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.
7. Install the new bulb in the reverse order
of the removal procedure.
High-beam bulbs/Daytime running
lights
(Left side)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Remove the clip.
Mazda6_8FH2-EA-16F_Edition2.indb 472016/07/07 13:46:17

6–48
Maintenance and Care
Owner Maintenance
4. Move the air cleaner cover and create a
space large enough to work in.
5. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
6. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.
7. Install the new bulb in the reverse order
of the removal procedure.
(Right side)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Disconnect the clip.
Clip
Mazda6_8FH2-EA-16F_Edition2.indb 482016/07/07 13:46:17

6–49
Maintenance and Care
Owner Maintenance
*Some models.
4. Remove the windshield washer fluid
reservoir and bolts.
Windshield washer
fluid reserv oirBolt
Guide
5. Remove the guide.
Guide
6. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
7. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.
8. Install the new bulb in the reverse order
of the removal procedure.
Daytime running lights/Parking lights
(With LED headlights), Signature wing
illumination
*
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized Mazda
Dealer when the replacement is necessary.
Mazda6_8FH2-EA-16F_Edition2.indb 492016/07/07 13:46:18

6–50
Maintenance and Care
Owner Maintenance
*Some models.
Front turn signal lights/Front side-
marker lights, Parking lights (With
halogen headlights)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.
3. Pull the center of each plastic retainer
and remove the retainers.
Remova l
Installation
4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.
5. Turn the socket and bulb assembly
counterclockwise and remove it.
6. Disconnect the bulb from the socket.
Front turn signal lights/Front side-
marker lights
Parking lights (With halogen
headlights)
7. Install the new bulb in the reverse order
of the removal procedure.
Fog lights (With LED headlights)
*
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized Mazda
Dealer when the replacement is necessary.
Mazda6_8FH2-EA-16F_Edition2.indb 502016/07/07 13:46:18

6–51
Maintenance and Care
Owner Maintenance
*Some models.
Fog lights (With halogen headlights)*
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.
3. Pull the center of each plastic retainer
and remove the retainers.
Remova l
Installation
4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.
5. Disconnect the connector from the unit
by pressing the tab on the connector
with your finger and pulling the
connector downward.
6. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reflector
by gently pulling it straight out of the
socket.
7. Install the new bulb in the reverse order
of the removal procedure.
Mazda6_8FH2-EA-16F_Edition2.indb 512016/07/07 13:46:18

6–52
Maintenance and Care
Owner Maintenance
Brake lights, Taillights, High-mount
brake light, Side-turn signal lights,
Rear side-marker lights (With LED
headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized Mazda
Dealer when the replacement is necessary.
Rear turn signal lights, Rear side-
marker lights (With halogen headlights)
1. Make sure the ignition is switched off,
and the turn signal switch is off.
2. Lift the trunk mat. 3.
(Left side)
Pull the center of each plastic retainer
and remove the retainers and the
pocket.
(Right side)
Remove the pocket.
(Left side)
Remova l
Installation
(Right side)
Mazda6_8FH2-EA-16F_Edition2.indb 522016/07/07 13:46:18

6–53
Maintenance and Care
Owner Maintenance
4. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.
Remova l
Installation
5. Pull the center of each plastic retainer
and remove the retainers and the trunk
side trim.
6. Turn the socket and bulb assembly
counterclockwise and remove it.
7. Disconnect the bulb from the socket.
Rear turn signal lights
Rear side-marker lights
8. Install the new bulb in the reverse order
of the removal procedure.
Taillights (Trunk lid side) (With LED
headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized Mazda
Dealer when the replacement is necessary.
Mazda6_8FH2-EA-16F_Edition2.indb 532016/07/07 13:46:19

6–54
Maintenance and Care
Owner Maintenance
Taillights (Trunk lid side) (With halogen
headlights), Reverse lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Pull the center of each plastic retainer
and remove the retainers and the trunk
lid trim.
Remova l
Installation
3. (Reverse lights)
Disconnect the electrical connector
from the bulb by pressing the tab on the
connector with your finger and pulling
the connector.
4. Turn the socket and bulb assembly
counterclockwise and remove it. 5.
Disconnect the bulb from the socket.
Taillights (Trunk lid side)
Reverse lights
6. Install the new bulb in the reverse order
of the removal procedure.
