1–2
Pictorial Index
Interior Overview
Interior Equipment (View A)
Door-lock knob ........................................................................\
............................. page 3-19
Lighting control ........................................................................\
............................. page 4-53
Turn and lane-change signal ........................................................................\
......... page 4-59
Wiper and washer lever ........................................................................\
................. page 4-60
Tire pressure monitoring system set switch ........................................................ page 4-162
DSC OFF switch ........................................................................\
........................... page 4-79
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF
switch ........................................................................\
.......................................... page 4-129
Outside mirror switch ........................................................................\
.................... page 3-31
Door-lock switch ........................................................................\
........................... page 3-16
Power window lock switch ........................................................................\
........... page 3-36
Power window switches ........................................................................\
................ page 3-34
The equipment and installation position varies by vehicle
Mazda6_8FH2-EA-16F_Edition2.indb 22016/07/07 13:44:07

1–5
Pictorial Index
Interior Overview
Interior Equipment (View C)
Seat belts ........................................................................\
....................................... page 2-15
SRS air bag ........................................................................\
.................................... page 2-40
Bottle holder ........................................................................\
.................................. page 5-90
Sunvisor ........................................................................\
........................................ page 5-84
Vanity mirror ........................................................................\
................................. page 5-84
Overhead lights ........................................................................\
............................. page 5-85
Moonroof switch ........................................................................\
........................... page 3-37
Rearview mirror ........................................................................\
............................ page 3-32
Cup holders ........................................................................\
................................... page 5-89
External input terminal ........................................................................\
.................. page 5-43
Accessory sockets ........................................................................\
......................... page 5-88
Front seat ........................................................................\
......................................... page 2-5
Center console ........................................................................\
............................... page 5-92
Rear seat ........................................................................\
........................................ page 2-11
Seat warmer switches ........................................................................\
...................... page 2-7
The equipment and installation position varies by vehicle
Mazda6_8FH2-EA-16F_Edition2.indb 52016/07/07 13:44:09

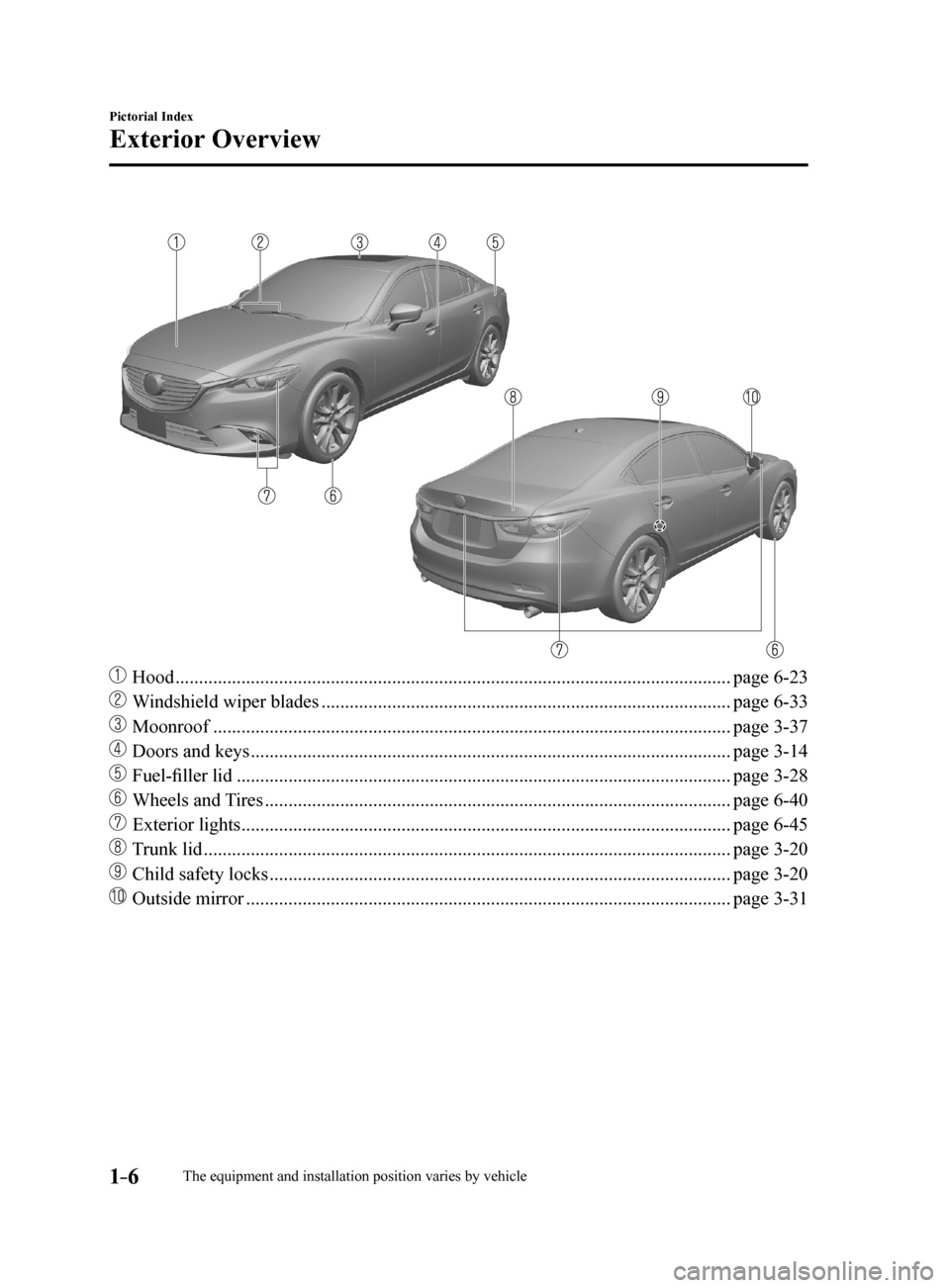

1–6
Pictorial Index
Exterior Overview
Hood ........................................................................\
..............................................page 6-23
Windshield wiper blades ........................................................................\
............... page 6-33
Moonroof ........................................................................\
...................................... page 3-37
Doors and keys ........................................................................\
.............................. page 3-14
Fuel-filler lid ........................................................................\
................................. page 3-28
Wheels and Tires ........................................................................\
........................... page 6-40
Exterior lights ........................................................................\
................................ page 6-45
Trunk lid ........................................................................\
........................................ page 3-20
Child safety locks ........................................................................\
.......................... page 3-20
Outside mirror ........................................................................\
............................... page 3-31
The equipment and installation position varies by vehicle
Mazda6_8FH2-EA-16F_Edition2.indb 62016/07/07 13:44:09

3–1*Some models.
3Before Driving
Use of various features, including keys, doors, mirrors and windows.
Keys ...................................................... 3-2
Keys ............................................... 3-2
Keyless Entry System .................... 3-3
Advanced Keyless Entry System ..... 3-10
Advanced Keyless Entry

System .......................................... 3-10
Operational Range ....................... 3-11
Doors and Locks ................................ 3-12
Door Locks ................................... 3-12
Trunk Lid ..................................... 3-20
Inside Trunk Release Lever
* ........ 3-23
Fuel and Emission ............................. 3-25
Fuel and Engine Exhaust

Precautions ................................... 3-25
Fuel-Filler Lid and Cap ................ 3-28
Steering Wheel ................................... 3-30
Steering Wheel ............................. 3-30
Mirrors ............................................... 3-31
Mirrors ......................................... 3-31
Windows ............................................. 3-34
Power Windows ........................... 3-34
Moonroof
* ................................... 3-37Security System .................................
3-40
Modification and Add-On

Equipment .................................... 3-40
Immobilizer System ..................... 3-40
Theft-Deterrent System
* ............... 3-42
Driving Tips ....................................... 3-44
Break-In Period ............................ 3-44
Saving Fuel and Protection of the
Environment ................................. 3-44
Hazardous Driving ....................... 3-45
Floor Mat ..................................... 3-45
Rocking the Vehicle ..................... 3-46
Winter Driving ............................. 3-46
Driving In Flooded Area ..............3-48
Overloading .................................. 3-48
Driving on Uneven Road ............. 3-49
Towing ................................................ 3-50
Trailer Towing .............................. 3-50
Recreational Towing .................... 3-50
Mazda6_8FH2-EA-16F_Edition2.indb 12016/07/07 13:44:21

3–31
Before Driving
Mirrors
Mirrors
Before driving, adjust the inside and
outside mirrors.
Outside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:Changing lanes without taking
into account the actual distance of
the vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.
To adjust:
1. Rotate the mirror switch to the left
or
right
to choose the left or right side
mirror.
2. Press the mirror switch in the
appropriate direction.
Mirror switchCenter position
After adjusting the mirror, lock the
control by rotating the switch in the center
position.
Mazda6_8FH2-EA-16F_Edition2.indb 312016/07/07 13:44:28

3–32
Before Driving
Mirrors
*Some models.
Folding mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving:Driving with the outside mirrors folded
in is dangerous. Your rear view will
be restricted, and you could have an
accident.
Manually fold the outside mirror rearward
until it is flush with the vehicle.
Driver's side auto-dimming door
mirror*
The movement of the auto-dimming
door mirror is interlocked with the auto-
dimming rearview mirror in the interior
to automatically reduce glare from rear
on-coming vehicles.
Refer to Rearview Mirror on page 3-32.
NOTE
The front passenger-side door mirror does
not have the auto-dimming feature.
Rearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks: Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror, which
might cause you to hit another car
when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.
Mazda6_8FH2-EA-16F_Edition2.indb 322016/07/07 13:44:28

3–33
Before Driving
Mirrors
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.
Night
Day Day/Night le
ver
Auto-dimming mirror
The auto-dimming mirror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.
Press the OFF button (
) to cancel the
auto-dimming function. The indicator light
will turn off.
To reactivate the auto-dimming function,
press the ON button (
). The indicator
light will illuminate.
Indicator lightOFF b utton
ON button
NOTE
 Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity
will be affected and may not operate
normally.

Light sensor
 For information regarding the 3 buttons
(
,,) on the auto-dimming
mirror.
Refer to HomeLink Wireless Control
System on page 4-66.
 The auto-dimming function is canceled
when the ignition is switched ON and
the shift/selector lever is in reverse (R).
Mazda6_8FH2-EA-16F_Edition2.indb 332016/07/07 13:44:29

3–46
Before Driving
Driving Tips
Rocking the Vehicle
WARNING
Do not spin the wheels at more than
56 km/h (35 mph), and do not allow
anyone to stand behind a wheel when
pushing the vehicle:When the vehicle is stuck, spinning the
wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries.
CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and tire
damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever
from 1 (D) to R.
Winter Driving
Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag of
sand or salt.
Ask an Authorized Mazda Dealer to check
the following:
 Have the proper ratio of antifreeze in the
radiator.
Refer to Engine Coolant on page
6-29.
 Inspect the battery and its cables. Cold
reduces battery capacity.
 Use an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-26).
 Inspect the ignition system for damage
and loose connections.
 Use washer fluid made with antifreeze—
but do not use engine coolant antifreeze
for washer fluid (page 6-31).
NOTE
 Remove snow before driving. Snow left
on the windshield is dangerous as it
could obstruct vision.
 Do not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.
 Never use warm or hot water for
removing snow or ice from windows and
mirrors as it could result in the glass
cracking.
 Drive slowly. Braking performance
can be adversely affected if snow or
ice adheres to the brake components. If
this situation occurs, drive the vehicle
slowly, releasing the accelerator pedal
and lightly applying the brakes several
times until the brake performance
returns to normal.
Mazda6_8FH2-EA-16F_Edition2.indb 462016/07/07 13:44:31

4–29
When Driving
Instrument Cluster and Display
*Some models.
Active Driving Display*
Combiner
Optical receiver
Mirror
WARNING
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as
doing so could distract your attention from the road ahead and lead to an accident.
CAUTION
 Do not try to adjust the angle or open/close the active driving display manually.
Fingerprints on the display will make it difficult to view and using excessive force when
operating it could cause damage.
 Do not place objects in the vicinity of the active driving display. The active driving display
may not operate or any interference with its operation could cause damage.
 Do not place beverages near the active driving display. If water or other liquids are splashed
on the active driving display, it could cause damage.
 Do not place objects above the active driving display screen or apply stickers to the
combiner as they will cause interference.
 A sensor is integrated to control the display's luminosity. If the optical receiver is covered,
the display's luminosity will lower making the display difficult to view.
 Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.
Mazda6_8FH2-EA-16F_Edition2.indb 292016/07/07 13:44:41

4–64
When Driving
Switches and Controls
*Some models.
CAUTION
Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defogger grid inside the window.
NOTE
 This defogger is not designed
for melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defogger.
 The rear window defogger setting
can be changed. After changing the
setting, the rear window defogger
stops automatically after 15 minutes
have elapsed and when the ambient
temperature is high. When the ambient
temperature is low, it continues to
operate until the switch is pressed
again.
Refer to Personalization Features on
page 9-10.
Mirror Defogger*
The mirror defoggers defrost the outside
mirrors.
The mirror defoggers operate in
conjunction with the rear window
defogger.
To turn on the mirror defoggers, switch
the ignition ON and press the rear window
defogger switch (page 4-63).
Manual Climate Control
Indicator light
Fully Automatic Climate Control
Indicator light
Mazda6_8FH2-EA-16F_Edition2.indb 642016/07/07 13:44:58
