Mazda6_8FH2-EA-16F_Edition2.indb 22016/07/07 13:44:07

3–41
Before Driving
Security System
NOTE
 The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.
 Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
 If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
Operation
NOTE
 The engine may not start and security
indicator light may illuminate or flash
if the key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard or in
the glove compartment. Move the key
to a location within the signal range,
switch the ignition off, and then restart
the engine.
 Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the
ignition is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after
3 or more tries, contact an Authorized
Mazda Dealer.
NOTE
 If the security indicator light flashes
continuously while you are driving,
do not shut off the engine. Go to an
Authorized Mazda Dealer and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
 Because the electronic codes are
reset when the immobilizer system
is repaired, the keys are needed.
Make sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.
Mazda6_8FH2-EA-16F_Edition2.indb 412016/07/07 13:44:31

4–1*Some models.
4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine ................................4-4
Ignition Switch ............................... 4-4
Starting the Engine ......................... 4-5
Turning the Engine Off ................ 4-10
Instrument Cluster and Display ...... 4-12
Meters and Gauges ....................... 4-12
Multi-Information Display and INFO
Switch
* ......................................... 4-21
Active Driving Display* ............... 4-29
Warning/Indicator Lights .............4-32
Manual Transaxle Operation ........... 4-39
Manual Transaxle Shift Pattern .... 4-39
Automatic Transaxle ......................... 4-42
Automatic Transaxle Controls ..... 4-42
Shift-Lock System .......................4-43
Transaxle Ranges ......................... 4-44
Manual Shift Mode ...................... 4-45
Direct Mode ................................. 4-51
Driving Tips ................................. 4-52Switches and Controls ......................
4-53
Lighting Control ........................... 4-53
Fog Lights
* ................................... 4-58
Turn and Lane-Change Signals .... 4-59
Windshield Wipers and Washer ...4-60
Rear Window Defogger ...............4-63
Horn ............................................. 4-65
Hazard Warning Flasher ............... 4-65
HomeLink Wireless Control

System* ......................................... 4-66
Brake .................................................. 4-70
Brake System ............................... 4-70
Hill Launch Assist (HLA) ............ 4-74
ABS/TCS/DSC ................................... 4-76
Antilock Brake System (ABS) .....4-76
Traction Control System (TCS) ... 4-77
Dynamic Stability Control

(DSC) ........................................... 4-78
i-ELOOP ............................................ 4-80
i-ELOOP
* ..................................... 4-80
Mazda6_8FH2-EA-16F_Edition2.indb 12016/07/07 13:44:32

4–8
When Driving
Start/Stop Engine
NOTE
 After starting the engine, the push
button start indicator light (amber)
turns off and the ignition switches to the
ON position.
 After pressing the push button start and
before the engine starts, the operation
sound of the fuel pump motor from near
the fuel tank can be heard, however, this
does not indicate a malfunction.
8. After starting the engine, let it idle for
about ten seconds.
NOTE
 Whether the engine is cold or warm, it
should be started without the use of the
accelerator.
 If the engine does not start the first
time, refer to Starting a Flooded Engine
under Emergency Starting. If the engine
still does not start, have your vehicle
inspected by an Authorized Mazda
Dealer (page 7-16).
Engine Start Function When Key
Battery is Dead
CAUTION
When starting the engine by holding
the transmitter over the push button
start due to a dead key battery or a
malfunctioning key, be careful not
to allow the following, otherwise the
signal from the key will not be received
correctly and the engine may not start.
 Metal parts of other keys or metal
objects touch the key.

 Spare keys or keys for other vehicles
equipped with an immobilizer
system touch or come near the key.

 Devices for electronic purchases,
or security passage touch or come
near the key.
Mazda6_8FH2-EA-16F_Edition2.indb 82016/07/07 13:44:33

4–33
When Driving
Instrument Cluster and Display
*Some models.
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
Signal WarningPage
Brake System Warning Light*1*27-22
ABS Warning Light*1
Electronic
Brake Force Distribution
System Warning 7-22,
ABS warning 7-25
Charging System Warning Light*17-22
Engine Oil Warning Light*17-22
(Red)
*High Engine Coolant Temperature Warning Indication/
Warning Light*17-22
Power Steering Malfunction Indication/Malfunction
Indicator Light*17-22
Master Warning Indication/Warning Light*17-25
Electric Parking Brake Warning Light 7-25
Check Engine Light*17-25
Automatic Transaxle Warning Indication/Warning Light*17-25
Air Bag/Front Seat Belt Pretensioner System Warning
Light*17-25
Tire Pressure Monitoring System Warning Light*1
Flashing
7-25,
Illuminate 7-29
(Amber)
*KEY Warning Indication 7-25
Mazda6_8FH2-EA-16F_Edition2.indb 332016/07/07 13:44:44

4–35
When Driving
Instrument Cluster and Display
*Some models.
SignalWarningPage
*Door-Ajar Warning Indication 7-29
*Trunk lid-Ajar Warning Indication7-29
*Door-Ajar Warning Light7-29
*1 The light turns on when the ignition is switched on for an operation che\
ck, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains tur\
ned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
Mazda6_8FH2-EA-16F_Edition2.indb 352016/07/07 13:44:46

4–36
When Driving
Instrument Cluster and Display
*Some models.
Indication/Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
SignalIndicator Page
Front Passenger Air Bag Deactivation Indicator Light*12-56
(White/Green)KEY Indication/Indicator Light
4-5
Security Indicator Light*13-41
Wrench Indication/Indicator Light*14-38
(Blue)
*Low Engine Coolant Temperature Indicator Light4-38
Shift Position Indication 4-45
Lights-On Indication/Indicator Light4-53
Headlight High-Beam Indicator LightHeadlight High-
Low Beam 4-56,
Flashing the Headlights 4-56
Turn Signal/Hazard Warning Indicator Lights Turn and Lane-
Change Signals 4-59,
Hazard Warning Flasher4-65
Brake Pedal Operation demand Indicator Light 4-71
Mazda6_8FH2-EA-16F_Edition2.indb 362016/07/07 13:44:47

4–37
When Driving
Instrument Cluster and Display
*Some models.
SignalIndicator Page
TCS/DSC Indicator Light*1
(Flashes)
Traction Control System (TCS) 4-77,
Dynamic
Stability Control (DSC)4-78
(Turns on) 7-25
DSC OFF Indicator Light*14-79
*Select Mode Indication 4-86
(Green)
*High Beam Control System (HBC) Indicator Light4-93
(White)
*Mazda Radar Cruise Control (MRCC) Main Indication4-118
(Green)
*Mazda Radar Cruise Control (MRCC) Set Indication4-118
(White/Green)
*Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) Indication 4-129
*Smart City Brake Support (SCBS) Indication
4-141
(Red)
*Smart City Brake Support (SCBS) Indicator Light4-141
*Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator
Light*1
Smart City
Brake Support
(SCBS) System 4-141,
Smart Brake
Support (SBS) System4-145
*Lane-keep Assist System (LAS) & Lane Departure Warning System
(LDWS) OFF Indicator Light*14-134
Mazda6_8FH2-EA-16F_Edition2.indb 372016/07/07 13:44:49

4–38
When Driving
Instrument Cluster and Display
*Some models.
SignalIndicator Page
*Blind Spot Monitoring (BSM) OFF Indicator Light*14-99
(Green)*i-ELOOP Indication Light 4-82
(White)
*Cruise Main Indication4-156
(Green)
*Cruise Set Indication4-156
*1 The light turns on when the ignition is switched on for an operation che\
ck, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains tur\
ned on, have the vehicle inspected at an
Authorized Mazda Dealer.

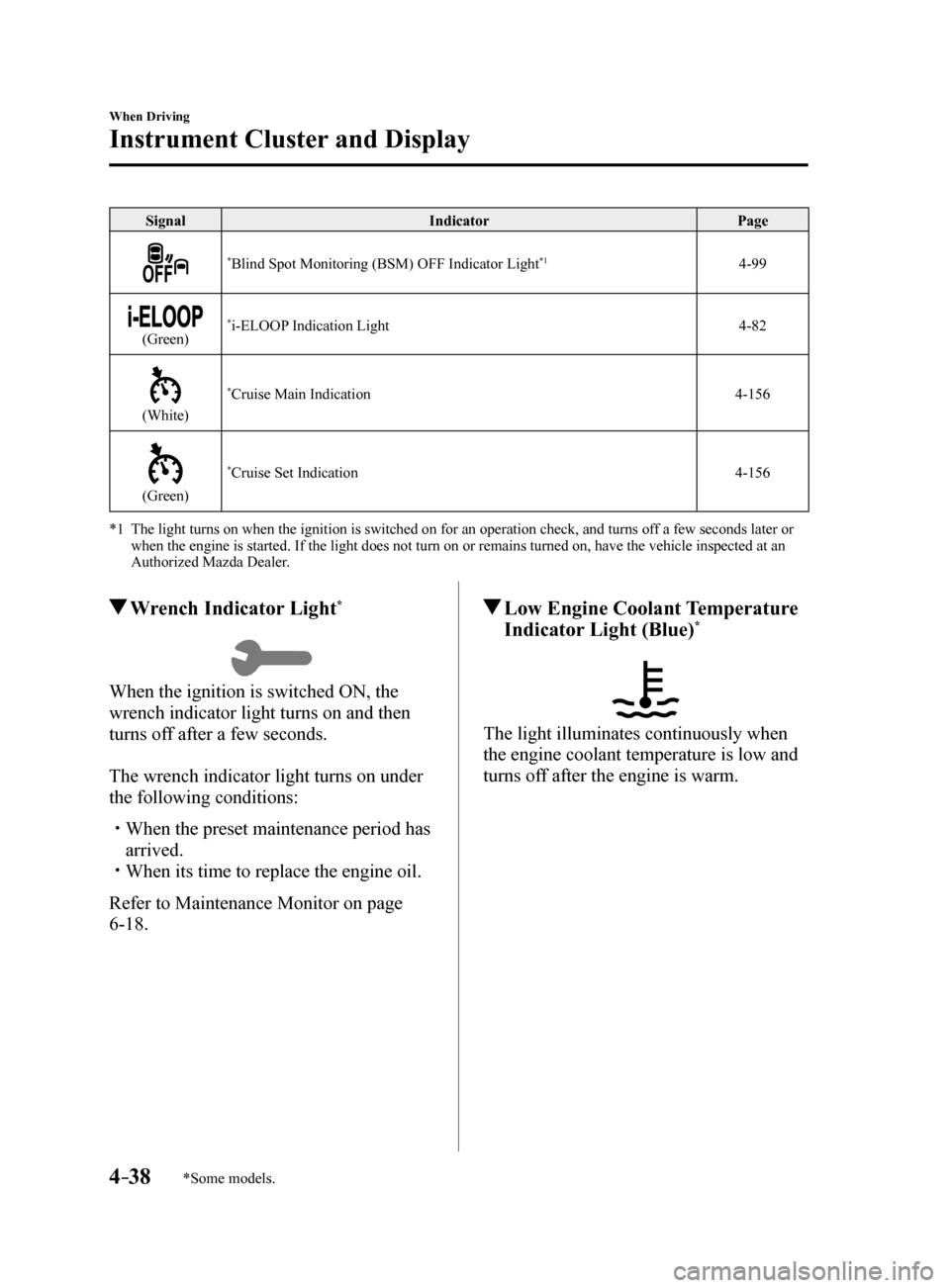

Wrench Indicator Light*
When the ignition is switched ON, the
wrench indicator light turns on and then
turns off after a few seconds.
The wrench indicator light turns on under
the following conditions:
 When the preset maintenance period has
arrived.
 When its time to replace the engine oil.
Refer to Maintenance Monitor on page
6-18.
Low Engine Coolant Temperature
Indicator Light (Blue)*
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
Mazda6_8FH2-EA-16F_Edition2.indb 382016/07/07 13:44:50

4–46
When Driving
Automatic Transaxle
*Some models.
Indicators
Manual shift mode indication
In manual shift mode, the “M” of the shift
position indication in the instrument panel
illuminates.
Gear position indication
The numeral for the selected gear
illuminates.
Manual shift mode indicator
Gear position indicator
NOTE
 If the gears cannot be shifted down
when driving at higher speeds, the gear
position indication will flash twice to
signal that the gears cannot be shifted
down (to protect the transaxle).
 If the automatic transaxle fluid (ATF)
temperature becomes too high, there
is the possibility that the transaxle
will switch to automatic shift mode,
canceling manual shift mode and
turning off the gear position indication
illumination. This is a normal function
to protect the AT. After the ATF
temperature has decreased, the gear
position indication illumination turns
back on and driving in manual shift
mode is restored.
Manually Shifting Up
You can shift gears up by operating
the selector lever or the steering shift
switches
*.
M1 → M2 → M3 → M4 → M5 → M6
Using selector lever
To shift up to a higher gear, tap the
selector lever back
once.
Using steering shift switch*
To shift up to a higher gear with the
steering shift switches, pull the UP switch
(
) toward you once with your
fingers.
UP switch (+/OFF)
Mazda6_8FH2-EA-16F_Edition2.indb 462016/07/07 13:44:52
