MAZDA MODEL 6 2019 (in English) User Guide

Front
ƒWindshield wiper blades....................................................................................... page 6-30
„ Moonroof...............................................................................................................page 3- 32
… Window......................................................... ........................................................ page 3-29
† Fuel-filler lid......................................................................................................... page 3 -22
‡ Request switch...................................................................................................... page 3-12
ˆ Door........................................................... ............................................................page 3-10
Pictorial Index
Exterior Overview
The equipment and installation position varies by vehicle1-7
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Rear
ƒTrunk Lid...............................................................................................................page 3 -16
„ Outside mirror....................................................................................................... page 3-24
… Request switch...................................................................................................... page 3-12
† Electric trunk lid opener........................................................................................ page 3-16
Pictorial Index
Exterior Overview
1-8The equipment and installatio n position varies by vehicle
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

2Essential Safety Equipment
Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.
Seats.................................................... 2-2 Seat Precautions............................2-2
Front Seat......................................2-5
Rear Seat.....................................2-15
Head Restraints...........................2-17
Seat Warmer/Seat Ventilation/Heated
Steering Wheel................................. 2-19 Seat Warmer
*.............................. 2-19
Seat Ventilation
*......................... 2-20
Heated Steering Wheel
*............. 2-21
Seat Belt Systems...... ....................... 2-22
Seat Belt Precautions.................. 2-22
Seat Belt......................................2-25
Seat Belt Warning Systems.........2-26
Front Seat Belt Pretensioner and
Load Limiting Systems...............2-26
Seat Belt Extender...................... 2-28
Child Restraint................................ 2-30 Child-Restraint Precautions........ 2-30
Child-Restraint System
Installation.................................. 2-35
Child-Restraint System Suitability
for Various Seat Positions
Table........................................... 2-37
Installing Child-Restraint
Systems....................................... 2-40
SRS Air Bags....................................2-52
Supplemental Restraint System
(SRS) Precautions.......................2-52
Supplemental Restraint System
Components................................ 2-58
How the SRS Air Bags Work..... 2-60
SRS Air Bag Deployment
Criteria........................................ 2-64
Limitations to SRS Air Bag........2-65
Front Passenger Occupant
Classification System
*................2-67
Constant Monitoring...................2-71
*Some models.2-1
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Seat Precautions
WA R N I N G
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop
or collision, the seat or seatback could move, causing injury. Make sure the adjustable
components of the seat are locked in place by attempting to slide the seat forward and
backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a child's
hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can a llow passengers to be ejected or thrown around
and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After
adjusting the seatback at any time, even when there are no other passengers, rock the
seatback to make sure it is locked in place.
Adjust a seat only when the vehicle is stopped:
If the seat is adjusted while the vehicle is being driven, the seating posture may become
unstable and the seat could move unexpectedly resulting in injury.
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts
is dangerous. The front seats contain air bag components essential to the supplemental
restraint system. Such modifications could damage the supplemental restraint system and
result in serious injury. Consult an Authorized Mazda Dealer if there is any need to remove or
reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats, such as se at cushions torn or damaged down to the
urethane, is dangerous. A collision, even one not strong enough to
inflate the air bags, could
damage the front seats which contain essential air bag components. If there was a
subsequent collision, an air bag may not deploy which could lead to injuries. Always have an
Authorized Mazda Dealer inspect the front seats, front seat belt pretensioners and air bags
after a collision.
Essential Safety Equipment
Seats
2-2
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do not get
the full protection from seat belts. During sudden braking or a collision, you can slide under
the lap belt and suffer serious internal injuri es. For maximum protection, sit well back and
upright.
Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, wh ich could result in a serious accident, injury or
death.
Do not place objects under the seat:
The object could get stuck and cause the seat to not be fixed securely, and result in an
accident.
Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden
braking or a collision, objects can fly around and become projectiles that may hit and injure
passengers.
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during sudden
braking or a collision and cause injury.
Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving:
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up on
the folded seatback while the vehicle is moving is particularly dangerous. In a sudden stop or
even a minor collision, a child not in a proper seat or child-restraint system and seat belt could
be thrown forward, back or even out of the vehi cle resulting in serious injuries or death. The
child in the baggage area could be thrown into other occupants and cause serious injury.
Never give the car keys to children and do not allow them to play in the vehicle:
Playing with the folding rear seats is dangerous . Once the seatbacks are back up, a child in
the trunk would not be able to get out the way they had entered. If you have small children,
keep the seatbacks locked.
Essential Safety Equipment
Seats
2-3
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Always leave your car locked and keep the car keys safely away from children:
Leaving your car unlocked or the keys in reach of children is dangerous. Children who find
their way into the trunk through an unlocked rear seatback or an open trunk can become
accidentally locked in the trunk. This could result in death or brain damage from heat
prostration, particularly in the summer. Always lock the doors and the trunk, and as an added
measure, keep the rear seatbacks locked, whether you have children in your home or not.
CAUTION
 When operating a seat, be careful not to put yo ur hands or fingers near the moving parts of
the seat or on the side trim to prevent injury.
 When moving the seats, make sure there is no cargo in the surrounding area. If the cargo
gets caught it could damage the cargo.
 (Manual Seat)
When moving the seats forward and rearward or returning a rear-reclined seatback to its
upright position, make sure you hold onto the seatback with your hand while operating. If
the seatback is not held, the seat will move suddenly and could cause injury.
 When inserting your hand under the seat to clean the cabin or pick up something you
dropped under the seat, be careful not to hurt yourself. If you contact the moving parts of
the seat rail or seat frame, it could result in injury.
NOTE
When returning a rear seat to its original position, place the seat belt in its normal
position. Verify that the seat belt pulls out and retracts.
(Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended operation
because excessive use can damage the motors.
To prevent the battery from running down, avoid using the power adjustment when the
engine is stopped. The adjuster uses a large amount of electrical power.
Do not use the switch to make more than one adjustment at a time.
Essential Safety Equipment
Seats
2-4
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Front Seat
▼Adjusting the Driver's Seat
Using the driving position set up procedure recommended by Mazd
a allows you to maintain
a relaxed posture, drive the vehicle for longer periods without feeling tired, and make quick
operations naturally.
Also, you can be assured of a clear view in the forward directi on to help you drive more
safely and comfortably.
The adjustments for the driving position recommended by Mazda a re done using the
following procedures.
1. Moving the steering wheel and seat to their default positions .
2. Adjusting the seatback angle.
3. Adjusting the seat position forward and back.
4. Adjusting the seat height.
5. Adjusting the steering wheel position.
6. Adjusting the head restraint position.
Power operation
Seat Slide
(Manual Seat)
To move a seat forward or backward, raise the lever and slide t he seat to the desired position
and release the lever.
Essential Safety Equipment
Seats
2-5
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
(Power Seat)
To slide the seat, move the slide lifter switch on the outside of the seat to the front or back
and hold it. Release the switch at the desired position.
Height Adjustment
(Manual Seat)
To adjust the seat height, move the lever up or down.
(Power Seat)
To adjust the seat height, move the slide lifter switch up or down.
Height Adjustment for Front Edge of Seat Bottom (Power Seat)*
To adjust the front height of th e seat bottom, raise or lower the front of the slide lifter
switch.
Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raisi ng the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to i ts original position and the seatback is locked in place by
attempting to push it forward and backward.
(Power Seat)
To change the seatback angle, pr ess the front or rear side of the reclining switch. Release the
switch at the de sired position.
Lumbar Support Adjustment
(Manual Seat)
To increase the seat firmness, move the lever downward. Move th e lever upward to decrease
firmness.
(Power Seat)
To increase the seat firmness, press and hold the front part of the switch to the desired
position, then release it.
Press the rear part of the switch to decrease firmness.
Essential Safety Equipment
Seats
2-6*Some models.
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

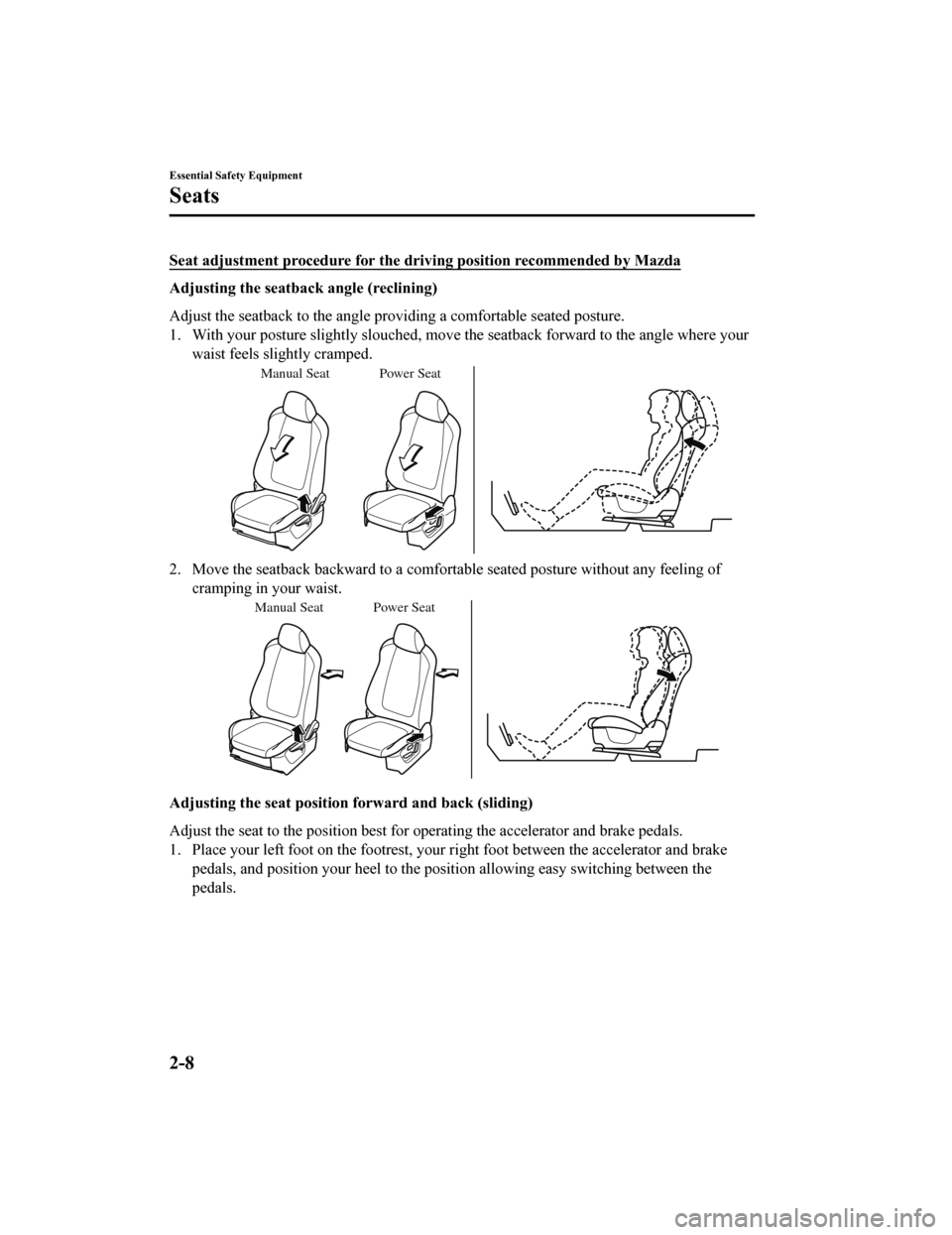

Before making adjustments to the driving position recommended by Mazda
Before making adjustments, move the steering wheel and seat to their default positions.
How to move the steering wh eel to its default position
WA R N I N G
Never adjust the steering wheel while the vehicle is moving:
Adjusting the steering wheel while the vehicle is moving is dangerous. Moving it can very
easily cause the driver to abruptly turn to the left or right. This can lead to loss of control or an
accident.
After adjusting the steering wheel position, make sure it is securely locked by trying to move it
up and down:
Driving with the steering wheel not securely lock ed in position is dangerous. If the steering
wheel moves unexpectedly while driving, you coul d lose control of the steering resulting in an
accident.
Lower the lever, move the steerin g wheel to the lowest position, and then push it down and
all the way back.
Lock release lever
How to move a driver’s seat to its default position
1. Slide the seat all the way back.
2. Lower the seat to its lowest height.
3. Sit squarely in the seat and rest your back against the seatb ack.
Essential Safety Equipment
Seats
2-7
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06

Seat adjustment procedure for the driving position recommended by Mazda
Adjusting the seatback angle (reclining)
Adjust the seatback to the angle providing a comfortable seated posture.
1. With your posture slightly slouched, move the seatback forward to the angle where your waist feels slightly cramped.
Manual Seat Power Seat
2. Move the seatback backward to a comfortable seated posture wi thout any feeling of
cramping in your waist.
Manual Seat Power Seat
Adjusting the seat position forward and back (sliding)
Adjust the seat to the position best for operating the accelera tor and brake pedals.
1. Place your left foot on the fo otrest, your right foot between the accelerator and brake
pedals, and position your heel to the position allowing easy sw itching between the
pedals.
Essential Safety Equipment
Seats
2-8
Mazda6_8HK6-EA-19A_Edition1 2018-11-15 9:36:06
