6. Insert the jack lever and attach the lugwrench to tire jack.

7. Turn the jack handle clockwise andraise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.

WARNING
Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could result
in death or serious in jury if the vehicle
were to fall off the jack.
8. Remove the lug nuts by turning them counterclockwise; then remove the
wheel and center cap.
If Trouble Arises
Flat Tire
7-10
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Locking Lug Nuts
If your Mazda is equipped with the
optional antitheft whe
el lug nuts, a special
key must be used to unlock the locking lug
nut for each wheel. The key is stored in
the glove compartmen t, center console
storage, storage box, or trunk. Register the
key and lug nuts with the lock
manufacturer by filling out the registration
card and mailing it in using the
accompanying envelope. If the key is lost,
consult an Authorized Mazda Dealer or
use the lock manufacturer’s order form to
order a new key.
Antitheft wheel lug nuts cannot be
installed on a steel wheel spare tire. When
installing a temporary spare tire, use one
of the original lug nuts in place of the
locking lug nut. The original lug nuts are
stored inside your Mazda.
Special key
Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
To install the antitheft lug nut
1. Place the special key on top of the nut, and be sure to hold the key square to it.
If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.
2. Place the lug wrench on top of the
special key, apply pressure, and turn it
clockwise.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108―147 (12―14,
80―108)
If Trouble Arises
Flat Tire
7-11
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.

WARNING
Make sure the mounting surfaces of the
wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire, not
removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
2. Mount the spare tire.
3. Install the lug nuts with the beveled edge inward; tighten them by hand.

WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident. In
addition, lug nuts and bolts could be
damaged if tightened more than
necessary.
4. Turn the lug wrench counterclockwise and lower the vehicle.
5. Use the lug wrench to tighten the nuts in the order shown.

If Trouble Arises
Flat Tire
7-12
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108―147 (12―14,
80―108)
WA R N I N G
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result in
loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident.
6. (Without flat tire belt)
Store the damaged tire in the trunk.
(With flat tire belt)
Open the trunk mat.
7. Remove the belt for securing the flat tire.
8. Put the flat tire into the trunk on the
left and toward the back.

9. Fold the seat back f orward on the right
side of the rear seat.
10. Thread the belt thro ugh the rear seat as
shown in the figure.

11. Thread the buckle through the wheel as
shown in the figure and secure it so
that the buckle does not contact the
wheel.

If Trouble Arises
Flat Tire
7-13
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

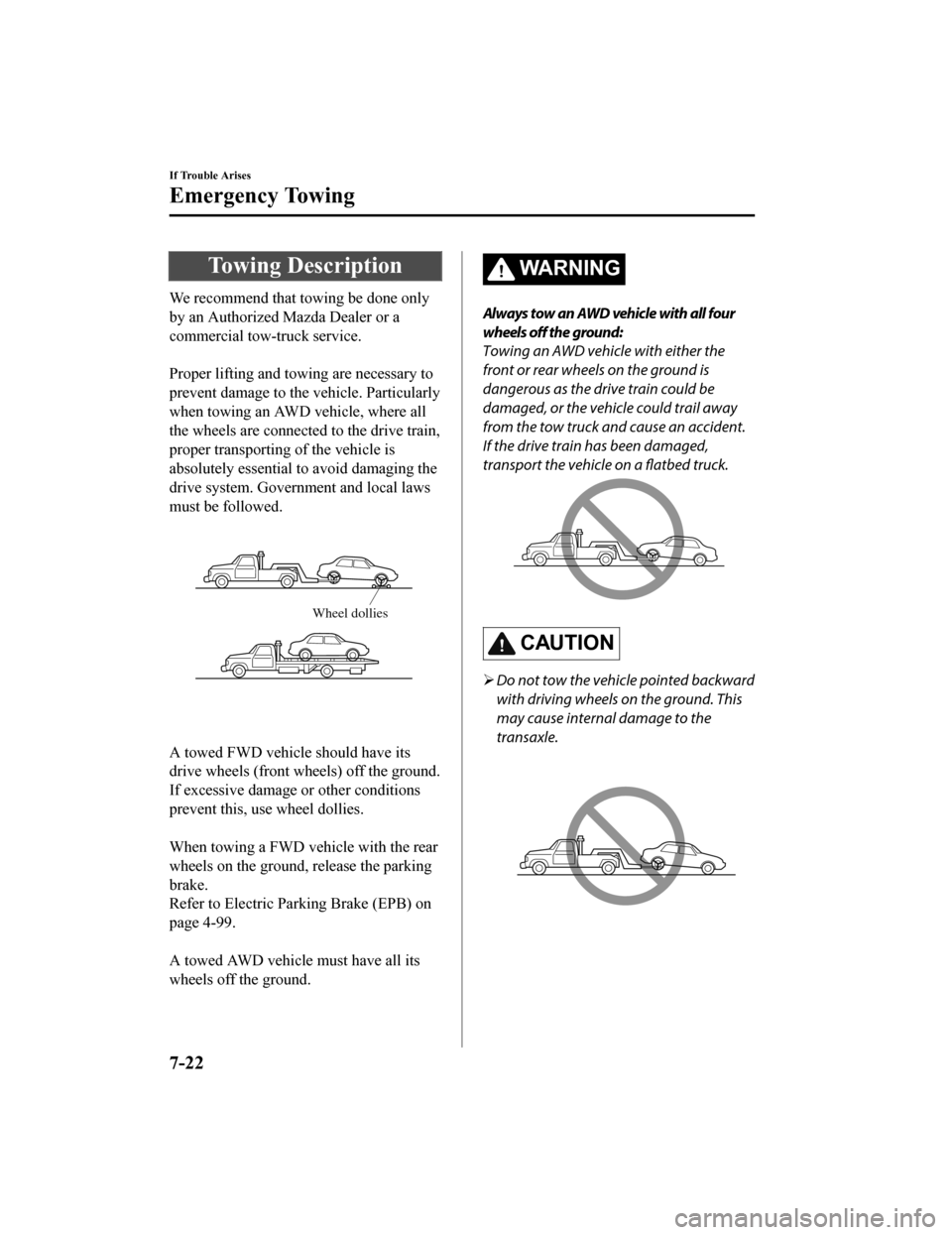

Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.

Proper lifting and towing are necessary to
prevent damage to the vehicle. Particularly
when towing an AWD vehicle, where all
the wheels are connected to the drive train,
proper transporting of the vehicle is
absolutely essential to avoid damaging the
drive system. Government and local laws
must be followed.
Wheel dollies

A towed FWD vehicle should have its
drive wheels (front wheels) off the ground.
If excessive damage or other conditions
prevent this, use wheel dollies.

When towing a FWD vehicle with the rear
wheels on the ground, release the parking
brake.
Refer to Electric Parking Brake (EPB) on
page 4-99.

A towed AWD vehicle must have all its
wheels off the ground.
WA R N I N G
Always tow an AWD vehicle with all four
wheels off the ground:
Towing an AWD vehicle with either the
front or rear wheels on the ground is
dangerous as the drive train could be
damaged, or the vehicle could trail away
from the tow truck and cause an accident.
If the drive train has been damaged,
transport the vehicle on a flatbed truck.
CAUTION
 Do not tow the vehicle pointed backward
with driving wheels on the ground. This
may cause internal damage to the
transaxle.
If Trouble Arises
Emergency Towing
7-22
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Do not tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or
flatbed equipment.

If the parking brake cannot be released
when towing the vehicle, transport the
vehicle with all front and rear wheels
raised
off the ground as shown in the
figure. If the vehicle is towed without
raising the wheels off the ground, the
brake system could be damaged.
Wheel dollies
Tiedown Hooks*
CAUTION
Do not use the front and rear tiedown
eyelets for towing the vehicle.
They have been designed only for securing
the vehicle to a transport vessel during
shipping.
Using the eyelets for any other purpose
could result in the vehicle being damaged.
▼ Tiedown Hooks
1. Remove the tiedown eyelet and the lug
wrench from the luggage compartment
(page 7-3).
2. Wrap a flathead screwdriver or similar
tool with a soft c loth to prevent
damage to a painted bumper, and open
the cap located on the front or rear
bumper.
Front
If Trouble Arises
Emergency Towing
*Some models.7-23
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SignalWarning
Brake System Warning
Indication/Warning Light This warning has the following functions:
Parking brake warning/Warning light inspection
The light illuminates when the parking brake is applied with th
e ignition switched to
START or ON. It turns off when the parking brake is released.
When the light turns on
If the brake system warning light remains turned on even though the parking brake is
released, the brake fluid may be low or there could be a problem with the brake sys‐
tem. Park the vehicle in a safe place immediately and contact a n Authorized Mazda
Dealer.
When the light is flashing
The light flashes if the Electric Parking Brake (EPB) has a mal function.
If the light remains flashing ev en if the Electric Parking Brake (EPB) switch is oper‐
ated, consult an Authorized Maz da Dealer as soon as possible.
WARNING
Do not drive with the brake system warning light illuminated. Contact an Authorized
Mazda Dealer to have the brakes inspected as soon as possible:
Driving with the brake system warning light illuminated is dangerous. It indicates that
your brakes may not work at all or that they could completely fail at any time. If this
light remains illuminated, after checking that the parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the brakin g may diminish so you may need to depress
the brake pedal more strongly than normal to stop the vehicle.
Electronic Brake Force Distribution System Wa r n i n g If the electronic brake force di
stribution control unit determines that some compo‐
nents are operating incorrectly , the control unit may illuminate the brake system
warning light and the ABS warni ng light simultaneously. The problem is likely to be
the electronic brake force distribution system.
WARNING
Do not drive with both the ABS warning light and brake warning light illuminated.
Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as
soon as possible:
Driving when the brake system warning li ght and ABS warning light are illuminated
simultaneously is dangerous.
When both lights are illuminate d, the rear wheels could lock more quickly in an emer‐
gency stop than under normal circumstances.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-26
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SignalWarning
Power Steering Mal‐
function Indication*
The message is displayed if the electric power steering has a m alfunction.
If the message is displayed, st op the vehicle in a safe place a nd do not operate the
steering wheel. There is no problem if the message in the displ ay turns off after a
while. Contact an Authorized Mazda Dealer if the message is dis played continuously.
NOTE
If the message is displayed, the power steering will not operate normally. In this
case, the steering wheel can still be operated, however, the operation may feel
heavy compared to normal, or the stee ring wheel could vibrate when turning.
Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the po wer steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and wait several minutes for the system to
return to normal.
Power Steering Mal‐ function Indicator
Light
*
The light illuminates/flashes if the electric power steering ha s a malfunction.
If the light illuminates/flashes, stop the vehicle in a safe pl ace and do not operate the
steering wheel. There is no problem if the light turns off afte r a while. Contact an Au‐
thorized Mazda Dealer if the lig ht illuminates/flashes continuously.
NOTE
If the indicator light illuminates/flashes , the power steering will not operate nor ‐
mally. If this happens, th e steering wheel can still be operated, however, the opera ‐
tion may feel heavy compared to normal, or the steering wheel could vibrate when
turning.
Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the po wer steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and wait several minutes for the system to
return to normal.
▼ Contact Authorized Mazda Deal
er and Have Vehicle Inspected
If any of the following warning lights o r the indicator light turns on/flashes, the system may
have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.
SignalWarning
ABS Warning LightIf the ABS warning light stays
on while you're driving, the ABS control unit has detected
a system malfunction. If this occurs, your brakes will function normally as if the vehicle
had no ABS.
Should this happen, consult an A uthorized Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
The brake assist system does not operate while the ABS warning light is illuminated.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-28*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SignalWarning
Selective Catalytic
Reduction (SCR)
Warning Light
*
If the light turns on
The amount of Diesel Exhaust Flui d (DEF) is low or too much was added. Check the mes‐
sage indicated on the display a nd consult an Authorized Mazda D ealer.
NOTE
If the vehicle continues to be driven while the SCR warning light is turned on, the vehi ‐
cle's speed may be restricted.
If the light is flashing
There is a problem with the SCR sy stem or the remaining amount of DEF is extremely
low. Check the message indicated on the display and have the vehicle inspected by an Au‐
thorized Mazda Dealer.
CAUTION
If the vehicle continues to be driven while th e SCR warning light is flashing, the vehicle may
stop running. If the SCR warnin g light flashes, have the vehicle inspected immediately at an
Authorized Mazda Dealer.
Automatic Trans‐
axle Warning Indi‐ cation/Warning
Light
*
The indication/light illuminates when the transaxle has a problem.
CAUTION
If the automatic transaxle warning indication/ light illuminates, the transaxle has an electri‐
cal problem. Continuing to drive your Mazda in this condition could cause damage to your
transaxle. Consult an Authorized Mazda Dealer as soon as possible.
AWD Warning Indi‐
cation*
“4WD System Malfunction” is displayed
The indication is displayed under the following conditions. The system may have a mal‐
function. Have the vehicle checked at an Authorized Mazda Deale r.
When there is a malfunction in the AWD system.When there is a large difference between the tire size of the front and rear wheels.
“4WD System High Load” is displayed
The indication is displayed unde r the following conditions. Park the vehicle in a safe place
and check that the warning indi cation light turns off, and then drive the vehicle. Contact
an Authorized Mazda Dealer if th e indication is continuously displayed.
When the differential oil temp erature is excessively high.When there is a large difference between the front and rear whe el rotation, such as
when trying to remove the vehicle from mud.
(Turns on)
TCS/DSC Indicator Light If the light stays on, the TCS, DSC or the brake assist system may have a malfunction and
they may not operate correctly.
Take your vehicle to an Authori zed Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-31
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SignalWarning
Blind Spot Monitor‐
ing (BSM) Warning
Indication
*
The Warning indication turns on i f there is any malfunction in the Blind Spot Monitoring
(BSM). Have your vehicle inspect ed by an Authorized Mazda Deale r.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause. How ever, it does not indicate a malfunction.
Blind Spot Monitor‐
ing (BSM) OFF In‐
dicator Light
*
A problem in the system may be indicated under the following co nditions.
Have your vehicle inspected at an Authorized Mazda Dealer.
The light does not tur n on when the ignition is switched ON.The light remains on even when the Blind Spot Monitoring (BSM) system can be oper‐
ated.
It turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause (The Blin d Spot Monitoring (BSM) OFF indicator light
in the instrument cluster illuminates). Ho wever, it does not indicate a malfunction.
(Amber)
Mazda Radar Cruise Control with Stop & Go function
(MRCC with Stop & Go function)
Warning Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect‐
ed at an Authorized Mazda Dealer.
Lane-keep Assist System (LAS) & Lane Departure
Wa r n i n g S y s t e m
(LDWS) Warning
Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect‐
ed at an Authorized Mazda Dealer.
The system does not operate when the warning message is displayed.
CAUTION
Always use tires for all wheels that are of the specified size, and the same manufacture,
brand, and tread pattern. In addition, do no t use tires with significantly different wear
patterns on the same vehicle. If such improper tires are used, the system may not operate
normally.
 When an emergency spare tire is used, the system may not operate normally.
LED Headlight
Warning Light This light illuminates if there
is a malfunction in the LED hea dlight. Have your vehicle
inspected by an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-34*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
