Action to be taken
Inspect the tires and adjust to the specified inflation pressur e (page 6-48).
CAUTION
When replacing/repairing the tires or wheels or both, have the work done by an Authorized Mazda Dealer, or the
tire pressure sens ors may be damaged.
NOTE
Perform tire pressure adjustment when the tires are cold . Tire pressure will vary according to the tire temper‐
ature, therefore let the vehicle stand for 1 hour or only drive it 1.6 km (1 mile) or less before adjusting the
tire pressures. When pressure is adjusted on hot tires to the cold inflation pressure, the TPMS warning light/
beep may turn on after the tires cool and pressure drops below specification.
Also, an illuminated TPMS warning light, resulting from the tire air pressure dropping due to cold ambient
temperature, may turn off if the ambient temperature rises. In this case, it will also be necessary to adjust the
tire air pressures. If the TPMS warnin g light illuminates due to a drop in tire air pressure, make sure to check
and adjust the tire air pressures.
After adjusting the tire air pressures, it may require some time for the TPMS warning light to turn off. If the
TPMS warning light remains illuminate d, drive the vehicle at a speed of at least 25 km/h (16 mph) for 10
minutes, and then verify that it turns off.
Tires lose air naturally over time and the TPMS cannot tell if the tires are getting too soft over time or you
have a flat. However, when you find one low tire in a set of four-that is an indication of trouble; you should
have someone drive the vehicle slowly forward so you can inspect any low tire for cuts and any metal objects
sticking through tread or sidewall. Put a few drops of water in the valve stem to see if it bubbles indicating a
bad valve. Leaks need to be addr essed by more than simply refilling the trouble tire as leaks are dangerous
― take it to an Authorized Mazda Dealer which has all the equipment to fix tires, TPMS systems and order
the best replacement tire for your vehicle.
If the warning light illuminates again even after the tire pressures are adjusted, there may be a tire puncture.

If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-39
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Uniform Tire Quality Grading System (UTQGS)
This information relates to the tire grading system developed by the U.S. National Highway
Traffic Safety Administration fo r grading tires by tread wear, traction, and temperature
performance.
▼ Tr e a d We a r
The tread wear grade is a compara
tive rating based on the wear rate of the tire when tested
under controlled conditions on a specified government test cour se.
For example, a tire graded 150 would wear one-and-a-half times as well on the government
course as a tire graded 100.

The relative performance of tires depends upon the actual condi tions of their use, however,
and may depart significantly from the norm because of variations in driving habits, service
practices and differences in road characteristics and climate.
▼ Traction-AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B, and
C. These grades represent the
tire's ability to stop on wet pavement as measured under contro lled conditions on specified
government test surfaces of asphalt and concrete. A tire marked C may have poor traction
performance.
WA R N I N G
The traction grade assigned to th is tire is based on braking (straight ahead) traction tests and
does not include acceleration cornering (t urning), hydroplaning, or peak traction
characteristics.
▼ Temperature-A, B, C
The temperature grades A (the highest), B, and C, represent the
tire's resistance to the
generation of heat and its ability to dissipate heat when teste d under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire t o degenerate and reduce tire
life, and excessive temperatures can lead to sudden tire failure.

Grade C corresponds to a level of performance which all passeng er vehicle tires must meet
under the Federal Motor Vehicle S afety Standard No. 109. Grades B and A represent higher
levels of performance on the laboratory test wheel than the min imum required by law.
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
8-24
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rati ng. Note that the tire size and
load index rating may be different from the example.
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
NOTE
If your tire size does not begin with a letter this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire Manufacturing
Association).
215
“215” is the nominal w idth of the tire in millimeters. This thr ee-digit number gives the
width in millimeters o f the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
65
“65” is the aspect ratio. This t wo-digit number indicates the t ire's ratio of height to width.
R
“R” is the tire construction symbol. R indicates “Radial ply co nstruction”.
15
“15” is the wheel rim diameter in inches.
95
“95” is the Load Index. This two-or three-digit number indicate s how much weight each tire
can support.
H
“H” is the speed rating. The speed rating denotes the maximum speed for which the use of
the tire is rated.
Letter Rating Speed Rating
Q9 9 m ph
R 106 mph
S 112 mph
T 118 mph
U 124 mph
H 130 mph
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-27
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Traction: The traction grades, from highest to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pavement as measure d under controlled conditions
on specified government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Temperature: The temperature grades are A (the highest), B and C, represent ing the tire's
resistance to the generation of h eat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory test wheel.
Snow Tires
In some heavy snow areas, local governments may require true sn ow tires, those with very
deeply cut tread. These tires should only be used in pairs or p laced on all four wheels. Make
sure you purchase snow tires that are the same size and constru ction type as the other tires
on your vehicle.
SAFETY WARNING
The following safety warning appears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:
EXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-MATCH
TIRE DIAMETER TO RIM DIAMETER; NEVER EXCEED 40 psi (275 kPa) TO SEAT
BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT TIRES.
TIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/
DAMAGE-FOLLOW OWNER'S MANUAL AND PLACARD IN
VEHICLE-FREQUENTLY CHECK INFLATION PRESSURE AND INSPECT FOR
DAMAGE.
▼ Information on Temporary Tires
Please refer to the sample below.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-29
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

1. Temporary tires
2. Nominal width of tire in millimeters
3. Ratio of height to width (aspect ratio)
4. Diagonal
5. Rim diameter code
6. Load index & speed symbol
T115/70D16 90M is an example of a tire size and load index rating. Here is an explanation
of the various components of tha t tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
T
Indicates a tire that may be ins talled on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
11 5
“115” is the nominal width of the tire in millimeters. This thr ee-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
70
“70” is the aspect ratio. This two-digit number indicates the t ire's ratio of height to width.
D
“D” is the tire construction symbol. D indicates “diagonal ply construction”.
16
“16” is the wheel rim diameter in inches.
90
“90” is the Load Index. This two-or three-digit number indicate s how much weight each tire
can support.
M
“M” is the speed rating. The speed rating denotes the maximum s peed for which the use of
the tire is rated.
Letter Rating Speed Rating
M8 1 m ph
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-30
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Original Equipment (OE): Describes components originally equipped on the vehicle.
Vehicle Load Limit: The maximum value of the combination weight of occupants and
cargo.
Bead Area of the Tire: Area of the tire next to the rim.
Sidewall Area of the Tire: Area between the bead area and the tread.
Tread Area of the Tire: Area on the perimeter of the t ire that contacts the road when it's
mounted on the vehicle.

Seating capacity means the total allowable numbe r of vehicle occupants. Seating capacity
is described on the tire label.

Production options weight is the combination weight of installed regular production
options weighing over 2.3 kilograms in excess of the standard i tems which they replace, and
not previously considered in the curb weight or accessory weigh t, including heavy duty
brakes, ride levelers, roof rack, heavy duty battery, and speci al trim.

Rim is the metal support (wheel) for a tire or a tire and tube ass embly upon which the tire
beads are seated.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-33
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Tire Maintenance
Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are
some important maintenance points:
▼ Tire Inflation Pressure
Inspect all tire pressure monthl
y (including the spare) when th e tires are cold. Maintain
recommended pressures for the best ride, top handling, and mini mum tire wear. Use the
pressures specified on the vehicle tire information placard or tire label for optimum service.
▼Tire Rotation
To equalize tread wear, rotate the tires every 12,000 km (7,500
miles) at the latest or sooner
if irregular wear develops. Mazda recommends to rotate every 8, 000 km (5,000 miles) to
help increase tire life and distribute wear more evenly.
Do not include (TEMPORARY USE ONLY)
spare tire in rotation. Forward
Inspect the tires for
uneven wear and damage. Abnormal wear is usually caused by one or a
combination of the following:
Incorrect tire pressure
Improper wheel alignment
Out-of-balance wheel
Severe braking
After rotation, inflate all tire pressures to specification (pa ge 9-9) and inspect the lug nuts
for tightness.
CAUTION
Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern or studs
only from front to rear, not from side to side . Tire performance will be weakened if rotated
from side to side.

Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-34
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

ItemCapacity
Fuel tank FWD
62.0 L (16.4 US gal, 13.6 Imp gal)
AWD 52.0 L (13.7 US gal, 11.4 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
Item
Vehicle specification
Overall length Without license plate holder
4,865 mm (191.5 in)
With license plate holder 4,895 mm (192.7 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,450 mm (57.1 in)
Front tread 17 inch wheel vehicle
1,585 mm (62.4 in)
19 inch wheel vehicle 1,595 mm (62.8 in)
Rear tread 17 inch wheel vehicle
1,575 mm (62.0 in)
19 inch wheel vehicle 1,585 mm (62.4 in)
Wheelbase 2,830 mm (111.4 in)
▼We i g h t s
U.S.A. and Canada
SKYACTIV-G 2.5
Item We i g h t
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,977 kg (4,358 lbs) 2,029 kg (4,473 lbs)
GAWR (Gross Axle Weight Rating) Front 1,023 kg (2,255 lbs) 1,078 kg (2,377 lbs)
Rear 959 kg (2,114 lbs)
957 kg (2,110 lbs)
SKYACTIV-G 2.5T
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,065 kg (4,552 lbs)
GAWR (Gross Axle Weight Rating) Front
1,107 kg (2,440 lbs)
Rear 963 kg (2,123 lbs)
SKYACTIV-D 2.2
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,185 kg (4,817 lbs)
GAWR (Gross Axle Weight Rating) Front
1,166 kg (2,571 lbs)
Rear 1,024 kg (2,258 lbs)
Specifications
Specifications
9-6
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

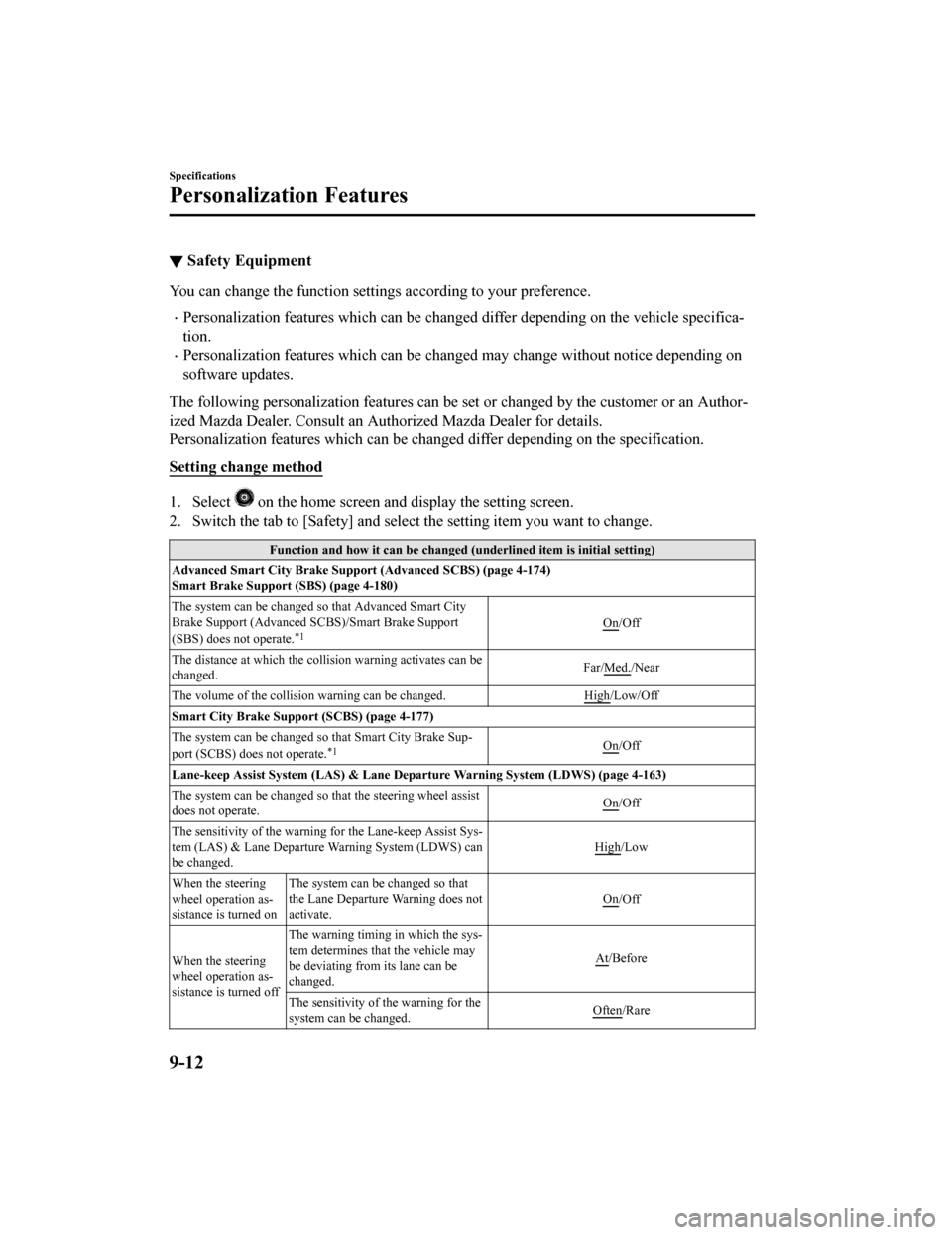

▼Safety Equipment
You can change the function settings according to your preferen
ce.
Personalization features which can be changed differ depending on the vehicle specifica‐
tion.
Personalization features which can be changed may change withou t notice depending on
software updates.
The following personalization feat ures can be set or changed by the customer or an Author‐
ized Mazda Dealer. Consult an Authorized Mazda Dealer for detai ls.
Personalization features which can be changed differ depending on the specification.
Setting change method
1. Select on the home screen and display the setting screen.
2. Switch the tab to [Safety] and select the setting item you want to change.
Function and how it can be changed (underlined item is initial setting)
Advanced Smart City Brake Support (Advanced SCBS) (page 4-174)
Smart Brake Support (SBS) (page 4-180)
The system can be changed so that Advanced Smart City
Brake Support (Advanced SCBS)/Smart Brake Support
(SBS) does not operate.
*1On/Off
The distance at which the collis ion warning activates can be
changed. Far/Med.
/Near
The volume of the collision wa rning can be changed. High
/Low/Off
Smart City Brake Support (SCBS) (page 4-177)
The system can be changed so that Smart City Brake Sup‐
port (SCBS) does not operate.
*1On/Off
Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS) (page 4-163)
The system can be changed so that the steering wheel assist
does not operate. On
/Off
The sensitivity of the warning for the Lane-keep Assist Sys‐
tem (LAS) & Lane Departure Warning System (LDWS) can
be changed. High
/Low
When the steering
wheel operation as‐
sistance is turned on The system can be changed so that
the Lane Departure Warning does not
activate.
On
/Off
When the steering
wheel operation as‐
sistance is turned off The warning timing in which the sys‐
tem determines that the vehicle may
be deviating from
its lane can be
changed. At
/Before
The sensitivity of th e warning for the
system can be changed. Often
/Rare
Specifications
Personalization Features
9-12
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17

Index
E
Electric parking brake (EPB)............ 4-99
Electric Parking Brake (EPB) Warning
Beep...................................................7-47
Emergency StartingPush-starting................................ 7-18
Running out of fuel (SKYACTIV-D
2.2)............................................... 7-19
Starting a Flooded Engine
(SKYACTIV-G 2.5 and SKYACTIV-
G 2.5T)........................................ 7-18
Emergency Towing Tiedown hooks......... ................... 7-23
Towing description...................... 7-22
Emission Control System (SKYACTIV-
D 2.2)................................................ 3-24
Emission Control System (SKYACTIV-
G 2.5, SKYACTIV-G 2.5T).............. 3-23
Ending Screen Display.................... 4-115
Engine Coolant.........................................6-29
Engine compartment overview.... 6-23
Exhaust gas.................................. 3-26
Hood release............................ .... 6-21
Oil................................................ 6-25
Starting...........................................4-5
Essential Information.......................... 6-2
Event Data Recorder......................... 8-22
Excessive Speed Warning................. 7-49
Exterior Care..................................... 6-63 Aluminum wheel maintenance.... 6-68
Bright-metal maint enance........... 6-67
Maintaining the finish................. 6-64
Plastic part maintenance.............. 6-68
F
Flasher Hazard warning........................... 4-89
Headlights.................................... 4-78
Flat Tire............................................... 7-3
Mounting the spare tire............... 7-12
Removing a flat tire...................... 7-8
Floor Mat.......................................... 3-45
Fluid
Brake/Clutch................................ 6-31
Washer......................................... 6-32
Fluids Classification................................. 9-5
Foot Brake.........................................4-98
Forward Sensing Camera (FSC)..... 4-210
Fuel Filler lid and cap......................... 3-27
Requirements (SKYACTIV-D
2.2)............................................... 3-22
Requirements (SKYACTIV-G 2.5,
SKYACTIV-G 2.5T)....................3-21
Tank capacity.................................9-5
Fuel Consumption Display..............4-114
Fuel Economy Monitor. .................. 4-113
Control Status Display...............4-115
Ending screen display................4-115
Ending Screen Display.............. 4-115
Fuel consumption display.......... 4-114
Fuel Consumption Display........ 4-114
Fuses.................................................. 6-56 Panel description......................... 6-58
Replacement................................ 6-56
G
Gauges............................................... 4-13
Glove Compartment.......................... 5-93
H
Hazardous Driving............................ 3-45
Hazard Warning Flasher....................4-89
HeadlightsComing home light......................4-81
Control......................................... 4-78
Flashing....................................... 4-81
10-4
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
