MAZDA MODEL 6 2020 (in English) Owner's Guide

Before making adjustments to the driving position recommended by Mazda
Before making adjustments, move the steering wheel and seat to their default positions.
How to move the steering wh eel to its default position
WA R N I N G
Never adjust the steering wheel while the vehicle is moving:
Adjusting the steering wheel while the vehicle is moving is dangerous. Moving it can very
easily cause the driver to abruptly turn to the left or right. This can lead to loss of control or an
accident.
After adjusting the steering wheel position, make sure it is securely locked by trying to move it
up and down:
Driving with the steering wheel not securely lock ed in position is dangerous. If the steering
wheel moves unexpectedly while driving, you coul d lose control of the steering resulting in an
accident.
Lower the lever, move the steerin g wheel to the lowest position, and then push it down and
all the way back.
Lock release lever
How to move a driver’s seat to its default position
1. Slide the seat all the way back.
2. Lower the seat to its lowest height.
3. Sit squarely in the seat and rest your back against the seatb ack.
Essential Safety Equipment
Seats
2-7
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Seat adjustment procedure for the driving position recommended by Mazda
Adjusting the seatback angle (reclining)
Adjust the seatback to the angle providing a comfortable seated posture.
1. With your posture slightly slouched, move the seatback forward to the angle where your waist feels slightly cramped.
Manual Seat Power Seat
2. Move the seatback backward to a comfortable seated posture wi thout any feeling of
cramping in your waist.
Manual Seat Power Seat
Adjusting the seat position forward and back (sliding)
Adjust the seat to the position best for operating the accelera tor and brake pedals.
1. Place your left foot on the fo otrest, your right foot between the accelerator and brake
pedals, and position your heel to the position allowing easy sw itching between the
pedals.
Essential Safety Equipment
Seats
2-8
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

2. With your heel set on the floor, set your right foot on the brake pedal and move the seat
forward as far as possible until you feel a slight cramping in your ankle.
Manual Seat Power Seat
3. With your right foot set on th e brake pedal, move the seat back until you no longer feel
cramping in your ankle.
4. With your heel set on the floor, make sure you can move your foot between the brake
pedal and accelerator pedal smoothly.
5. Depress the accelerator pedal completely with your heel set on the floor and make sure that your ankle does not feel over-stretched.
Manual Seat Power Seat
Adjusting the seat height
Adjust the seat height to a position where you have a clear for ward view and you can drive
the vehicle easily.
1. With your back resting against the seatback, raise the seat to the height where you can see the rear edge area of the hood surface from the windshield.
Essential Safety Equipment
Seats
2-9
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

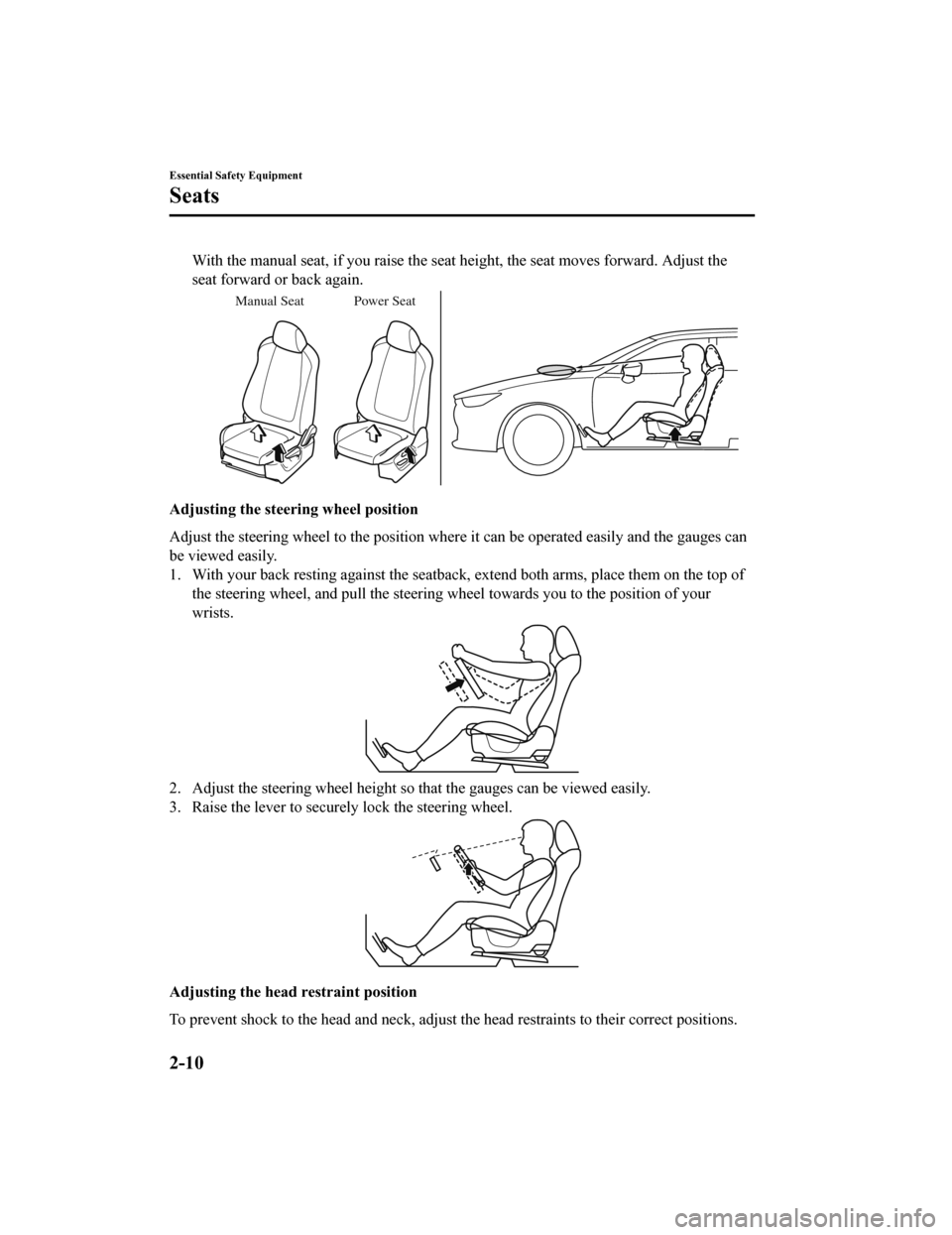

With the manual seat, if you raise the seat height, the seat moves forward. Adjust the
seat forward or back again.
Manual Seat Power Seat
Adjusting the steering wheel position
Adjust the steering wheel to the position where it can be opera ted easily and the gauges can
be viewed easily.
1. With your back resting against the seatback, extend both arms , place them on the top of
the steering wheel, and pull the steering wheel towards you to the position of your
wrists.
2. Adjust the steering wheel height so that the gauges can be vi ewed easily.
3. Raise the lever to securely lock the steering wheel.
Adjusting the head r estraint position
To prevent shock to the head and neck, adjust the head restrain ts to their correct positions.
Essential Safety Equipment
Seats
2-10
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Refer to Height Adjustment on page 2-17.
â–¼Driving Position Memory*
The desired driving position can be called
up after programming the position.
The following driving positions can be
programmed.
Driver’s seat position (seat slide, height
adjustment, front edge of seat bottom,
seat recline)
Refer to Adjusting the Driver's Seat on
page 2-5.
ï‚·Active driving display (display position,
brightness level, display information)
Refer to Active Driving Display on page
4-63.
CAUTION
Do not place fingers or hands around the
bottom of the seat while the seat memory
function is operatin
g. The seat moves
automatically while the seat memory
function is operating and fingers or hands
could get pinched and injured.
SET button
1
2
A driving position can be programmed or
operated using the buttons on the side of
the seat or the key.
NOTE
ï‚·Lumbar support adjustment cannot be
programmed.
ï‚·A driving position can be programmed
to the buttons on the side of the seat and
the key in use for driving the vehicle.
ï‚·If the vehicle has been serviced and the
battery cables disconnected, the
programmed seat positions will have
been erased. Re-program the seat
positions.
Programming
1. Make sure the parking brake is on.
2. (Automatic transaxle)
Make sure the selector lever is in the P
position.
3. Start the engine.
4. Adjust the seat and the active driving display to the desired driving position.
5. Press the SET button on the seat until a beep sound is heard 1 time.
6. Perform one of the following settings
within 5 seconds of completing step 5
above:
ï‚·Programming using a button on
the side of the seat
Press the button you want to
program, either bu tton 1 or 2, until a
beep sound is heard 1 time.
ï‚·Programming using the key
Press the key unlock button until a
beep sound is heard 1 time.
NOTE
If a beep sound is heard 3 times, the
operation is canceled.
Essential Safety Equipment
Seats
*Some models.2-11
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

To move the driving position to a
programmed position
(Using a button on the side of the seat)
1. Make sure the parking brake is on.
2.(Automatic transaxle)
Make sure the selector lever is in the P
position.
3. Start the engine.
4. Press the programming button for the driving position you want to call up
(button 1 or 2).
5. A beep sound is heard when the
driving position adjustment is
completed.
NOTE
ï‚·If the driving position movement is not
changed, only the beep sounds.
ï‚·A seat position can be called up even
with the engine not running.
ï‚·The driving position adjustment is
canceled in the following cases:
ï‚·Any of the seat adjustment switches is
operated.
ï‚·The SET button is pressed.
ï‚·Programming button 1 or 2 is pressed.
ï‚·The key lock button or unlock button
is operated.
ï‚·The vehicle starts moving.
ï‚·The active driving display is adjusted.
(Using a programmed key)
1. Unlock the doors by pressing a request switch or the key unlock button.
2. After unlocking the doors, the seatposition adjustment begins within 40
seconds of opening the driver's door,
and a beep sounds when the operation
is finished.
3. Make sure the parking brake is on.
4. (Automatic transaxle)
Make sure the selector lever is in the P
position.
5. Start the engine.
6. The active driving display adjustment begins.
NOTE
ï‚·If there is no driving position movement,
a beep is not heard.
ï‚·The driving position adjustment is
canceled in the following cases:
ï‚·Any of the seat adjustment switches is
operated.
ï‚·The SET button is pressed.
ï‚·Programming button 1 or 2 is pressed.
ï‚·The key lock button or unlock button
is operated.
ï‚·The vehicle starts moving.
ï‚·The active driving display is adjusted.
Erasing programmed driving positions
(Erasing the driving positions
programmed to the key)
1. Switch the ignition OFF.
2. Press the SET button on the side of the seat until a beep sound is heard 1 time.
3. After the beep sounds, press the key
lock button within 5 seconds until a
beep sound is heard 1 time.
NOTE
If a beep sound is heard 3 times, the
operation is canceled.
Essential Safety Equipment
Seats
2-12
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

â–¼Adjusting the Fron
t Passenger's Seat
Power operation
Seat Slide
(Manual Seat)
To move a seat forward or backward, raise the lever and slide t he seat to the desired position
and release the lever.
Make sure the lever returns to i ts original position and the seat is locked in place by
attempting to push it forward and backward.
(Power Seat)
To slide the seat, move the slide lifter switch on the outside of the seat to the front or back
and hold it. Release the sw itch at the desired position.
Height Adjustment
(Manual Seat)
To adjust the seat height, move the lever up or down.
(Power Seat)
To adjust the seat height, move the slide lifter switch up or down.
Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raisi ng the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to i ts original position and the seatback is locked in place by
attempting to push it forward and backward.
Essential Safety Equipment
Seats
2-13
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

(Power Seat)
To change the seatback angle, press the front or rear side of the reclining switch. Release the
switch at the de sired position.
Essential Safety Equipment
Seats
2-14
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Rear Seat
By lowering the rear seatbacks the luggage
compartment space can be expanded.
WA R N I N G
Do not drive the vehicle with occupants on
folded down seatbacks or in the luggage
compartment.
Putting occupants in the luggage
compartment is dangerous because seat
belts cannot be fastened which could lead
to serious injury or death during sudden
braking or a collision.
Do not allow children to play inside the
vehicle with the seatbacks lowered.
Allowing children to play in the vehicle
with the seatbacks folded down is
dangerous. If a child enters the luggage
compartment and the seatbacks were
raised back up, the child may become
trapped in the luggage compartment
which could lead to an accident.
Tightly secure cargo in the luggage
compartment when it is transported with
the seatbacks folded down.
Driving without tightly securing cargo and
luggage is dangerous as it could move and
become an obstruction to driving during
emergency braking or a collision resulting
in an unexpected accident.
When transporting cargo, do not allow the
cargo to exceed the height of the
seatbacks.
Transporting cargo stacked higher than
the seatbacks is dangerous as visibility to
the rear and sides of the vehicle is reduced
which could interfere with driving
operations and lead to an accident.
Lowering the seatbacks
CAUTION
Check the position of a front seat before
folding a rear seatback.
Depending on the position of a front seat, it
may not be possible to fold a rear seatback
all the way down because it may hit the
seatback of the front seat which could
scratch or damage the front seat or its
pocket. Lower or remove the head restraint
on the rear outboard seat if necessary.
1.(With rear seat warmer)
Turn the rear seat warmer switch off.
Refer to Seat Warm er on page 2-19.
2. Open the trunk lid and pull the lever of
the seatback you want to fold down.

3. Open a rear door an d fold the rear seat
forward.
Essential Safety Equipment
Seats
2-15
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

To return the seatback to its upright
position:
WA R N I N G
When returning a seatback to its upright
position, make sure the 3-point seat belt is
not caught in the seatback and the 3-point
seat belt is not twisted.
If the seat belt is used while it is twisted and
caught in the seatback, the seat belt
cannot function at its full capacity, which
could cause serious injury or death.
Press the seatback rearward and lock it in
place. After returning the seatback to its
upright position, mak e sure it is securely
locked.
â–¼ Armrest
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.

WA R N I N G
Never put your hands and
fingers around
the moving parts of the seat and armrest:
Putting your hands and fingers around the
moving parts of the seat and armrest is
dangerous as they could get injured.
Essential Safety Equipment
Seats
2-16
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
