Use of any tire or wheel other than those specified for your Mazda (page 9-9) is
dangerous. Use of such wheels will prevent the vehicle's accident detections system from
accurately detecting a collision or roll-over accident resulting in incorrect or unexpected air
bag deployment and the possibility of serious injuries.
 Do not overload your vehicle:
Overloading your vehicle is dangerous as it could prevent the air bag crash sensor system
from accurately detecting a collision or roll-over accident resulting in incorrect or
unexpected air bag deployment and the possibility of serious injuries. The gross axle weight
rating (GAWR) and the gross vehicle weight rati ng (GVWR) for your vehicle are on the Motor
Vehicle Safety Standard Label on the driver's door frame. Do not exceed these ratings.
 Do not drive the vehicle off-road:
Driving your Mazda off-road is dangerous beca use the vehicle has not been designed to do
so. Driving the vehicle off-road could prev ent the air bag crash sensor system from
accurately detecting a collision or roll-over acci dent resulting in incorrect or unexpected air
bag deployment and the possibility of serious injuries.
Do not modify a front door or leave any damage unrepaired. Always have an Authorized
Mazda Dealer inspect a damaged front door:
Modifying a front door or leaving any damage unrepaired is dangerous. Each front door has a
side crash sensor as a component of the supplemental restraint system. If holes are drilled in a
front door, a door speaker is le ft removed, or a damaged door is left unrepaired, the sensor
could be adversely affected causing it to not detect the pressure of an impact correctly during
a side collision. If a sensor does not detect a side impact correctly, the side and curtain air
bags and the front seat belt pretensioner may not operate normally which could result in
serious injury to occupants.
Do not modify the supplemental restraint system:
Modifying the components or wiri ng of the supplemental restraint system is dangerous. You
could accidentally activate it or make it inoperable. Do not make any modifications to the
supplemental restraint system. This includes inst alling trim, badges, or anything else over the
air bag modules. It also includes installing extra electrical equipment on or near system
components or wiring. An Authorized Mazda Dealer can provide the special care needed in
the removal and installation of front seats. It is important to protect the air bag wiring and
connections to assure that the bags do not accidentally deploy, and that the front passenger
occupant classification system and the seats retain an undamaged air bag connection.
Do not place luggage or other objects under the front seats:
Placing luggage or other objects under th e front seats is dangerous. The components
essential to the supplemental restraint system could be damaged, and in the event of a side
collision, the appropriate air bags may not de ploy, which could result in death or serious
injury. To prevent damage to the components essential to the supplemental restraint system,
do not place luggage or other objects under the front seats.
Essential Safety Equipment
SRS Air Bags
2-57
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Do not operate a vehicle with damaged air bag/seat belt pretensioner system components:
Expended or damaged air bag/seat belt pretensioner system components must be replaced
after any collision which caused them to depl oy or damage them. Only a trained Authorized
Mazda Dealer can fully evaluate these systems to see that they will work in any subsequent
accident. Driving with an expended or damage d air bag or pretensioner unit will not afford
you the necessary protection in the event of any subsequent accident which could result in
serious injury or death.
Do not remove interior air bag parts:
Removing any components such as the front se ats, front dashboard, the steering wheel or
parts on the front and rear window pillars and along the roof edge, containing air bag parts
or sensors is dangerous. These parts contain essential air bag components. The air bag could
accidentally activate and cause serious injuri es. Always have an Authorized Mazda Dealer
remove these parts.
Properly dispose of the air bag system:
Improper disposal of an air bag or a vehicle with live air bags in it can be extremely
dangerous. Unless all safety procedures are foll owed, injury could result. Have an Authorized
Mazda Dealer safely dispose of the air bag sy stem or scrap an air bag equipped vehicle.
NOTE
If it becomes necessary to have the components or wiring system for the supplementary
restraint system modified to accommodate a person with certain medical conditions in
accordance with a certified physician, contact an Authorized Mazda Dealer, refer to
“Customer Assistance (U.S.A.)” (page 8-2).
When an air bag deploys, a loud inflation noise can be heard and some smoke will be
released. Neither is likely to cause injury, however, the text ure of the air bags may cause
light skin injuries on body parts not covered with clothing through friction.
Should you sell your Mazda, we urge you to tell the new owner of its air bag systems and
that familiarization with all instructions about them, from the Owner's Manual, is
important.
This highly-visible label is displayed wh ich warns against the use of a rear-facing
child-restraint system on the front passenger seat.

(Except Mexico) (Mexico)
Essential Safety Equipment
SRS Air Bags
2-58
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Supplemental Restraint System Components
(With Front Passenger Occupant Classification System)

(Without Front Passenger Occupant Classification System)

Essential Safety Equipment
SRS Air Bags
2-59
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Driver/Front passenger inflators and air bags
Roll-over sensor*, crash sensors, and diagnostic module (SAS unit)
Seat belt pretensioners (page 2-27)
Front air bag sensors
Side crash sensors
Air bag/front seat belt pretensioner system warning light (page 7-28)
Side and curtain inflators and air bags
Front passenger air bag deactivation indicator light* (page 2-68)
Front passenger occupant classification sensor* (page 2-68)
Front passenger occupant classification module*
Essential Safety Equipment
SRS Air Bags
2-60*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

How the SRS Air Bags Work
Your Mazda is equipped with the following types of SRS air bags. SRS air bags are
designed to work together with the seat belts to help to reduce injuries during an accident.
The SRS air bags are designed to provide further protection for passengers in addition to the
seat belt functions. Be sure to wear seat belts properly.
▼ Front Seat Belt Pretensioners
The front seat belt pretensioners are designed to deploy in mod
erate or severe frontal, near
frontal collisions.
In addition, the pretensioners ope rate when a side collision or a roll-over accident is
detected. The pretensioners operate differently depending on wh at types of air bags are
equipped. For more det ails about seat belt pretensioner operati on, refer to the SRS Air Bag
Deployment Criteria (page 2-65).
▼ Driver Air Bag
The driver's air bag is mounted in the steering wheel.
When air bag crash sensors detect a frontal impact of greater than moderate force, the
driver's air bag inflates quickly
helping to reduce injury mainly to the driver's head or chest
caused by directly hitting the steering wheel.
For more details about air bag deployment, refer to "SRS Air Ba g Deployment Criteria"
(page 2-65).
(With Front Passenger Occupa nt Classification System)
The driver's dual-stage air bag controls air bag inflation in two energy stages. During an
impact of moderate severity, the driver's air bag deploys with lesser energy, whereas during
more severe impacts, it deploys with more energy.
Essential Safety Equipment
SRS Air Bags
2-61
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Front Passenger Air Bag
The front passenger air bag is mounted in the front passenger d
ashboard.
The inflation mechanism for the front passenger air bag is the same as the driver's air bag.
For more details about air bag de ployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-65).
(With Front Passenger Occupa nt Classification System)
In addition, the front passenger air bag is designed to only de ploy when the front passenger
occupant classification sensor detects a passenger sitting on t he front passenger's seat. For
details, refer to the front passenger occupant classification s ystem (page 2-68).
▼Side Air Bags
The side air bags are mounted in the outboard sides of the fron
t seatbacks.
When the air bag crash sensors detect a side impact of greater than moderate force, the
system inflates the side air bag only on the side in which the vehicle was hit. The side air
bag inflates quickly to reduce injury to the driver or front pa ssenger's chest caused by
directly hitting interior pa rts such as a door or window.
For more details about air bag de ployment, refer to "SRS Air Bag Deployment Criteria"
(page 2-65).
(With Front Passenger Occupa nt Classification System)
In addition, the front passenger side air bag is designed to on ly deploy when the front
passenger occupant classification sensor detects a passenger si tting on the front passenger's
seat. For details, refer to the f ront passenger occupant classification system (page 2-68).

Essential Safety Equipment
SRS Air Bags
2-62
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

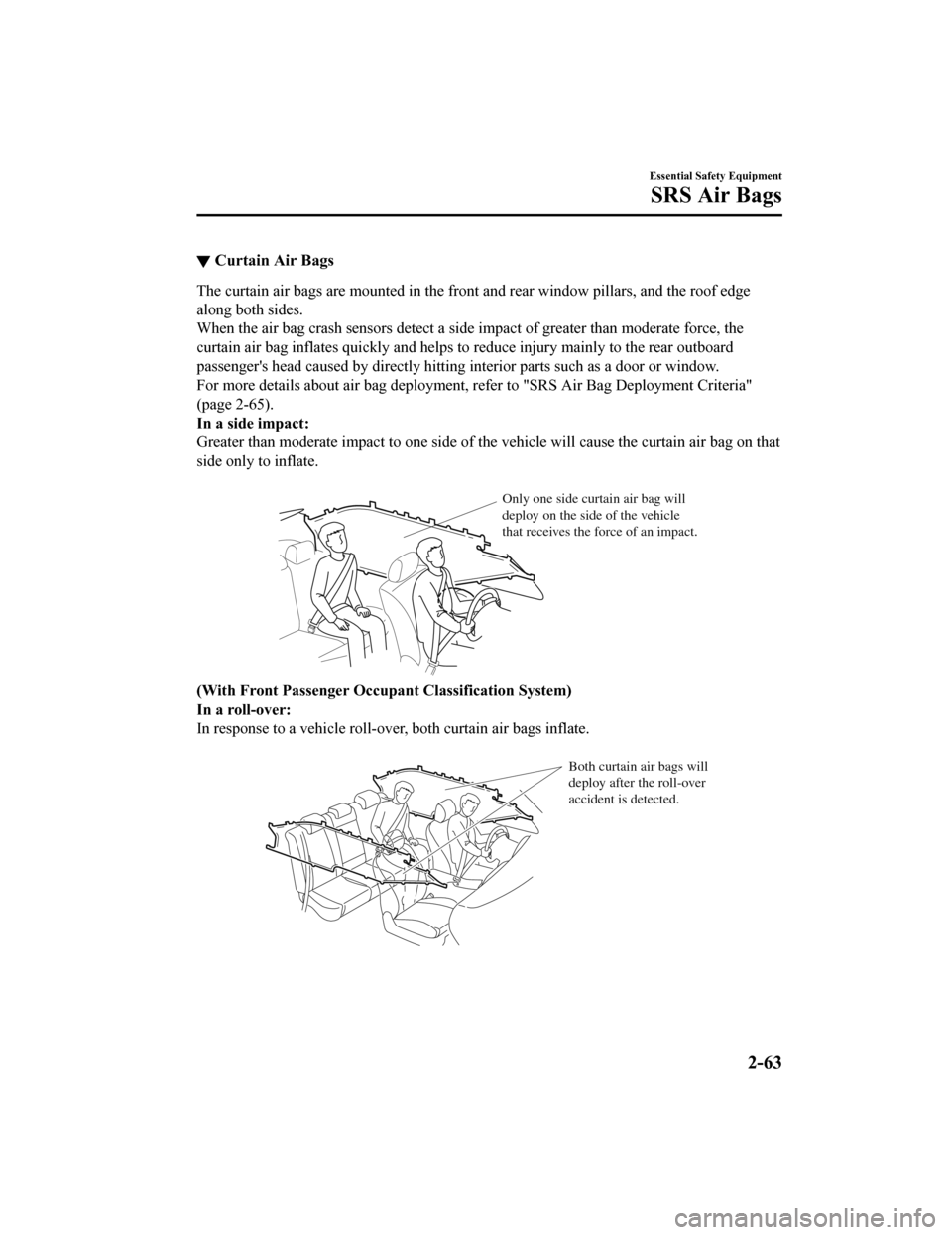

▼Curtain Air Bags
The curtain air bags are mounted in the front and rear window p
illars, and the roof edge
along both sides.
When the air bag crash sensors detect a s ide impact of greater than moderate force, the
curtain air bag inflates quickly and helps to reduce injury mainly to the rear outboard
passenger's head caused by directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to "SRS Air Ba g Deployment Criteria"
(page 2-65).
In a side impact:
Greater than moderate impact to one side of the vehicle will cause the curtain air bag on that
side only to inflate.

Only one side curtain air bag will
deploy on the side of the vehicle
that receives the force of an impact.
(With Front Passenger Occupa nt Classification System)
In a roll-over:
In response to a vehicle roll-over, both curtain air bags infla te.

Both curtain air bags will
deploy after the roll-over
accident is detected.
Essential Safety Equipment
SRS Air Bags
2-63
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

▼Warning Light/Beep
A system malfunction or operation conditions are indicated by a
warning.
Refer to Contact Authorized Mazda Dealer and Have Vehicle Inspected on page 7-28.
Refer to Warning Sound is Activated on page 7-45.
Essential Safety Equipment
SRS Air Bags
2-64
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

SRS Air Bag Deployment Criteria
This chart indicates the applicable SRS equipment that will deploy depending on the type of
collision.
(The illustrations are the representative cases of collisions.)
SRS equip‐ ment Types of collision
A severe frontal/near frontal colli‐ sion A severe side colli‐
sion A roll-over/near
roll-over
*2A rear collision
Front seat
belt preten‐ sioner X*1 (both sides) X*1 (both sides) X*1 (both sides)
No air bag and
front seat belt pre‐
tensioner will be
activated in a rear
collision.
Driver air
bag X
Front pas‐ senger air bag X
*1
Side air bag
X*1 (impact side
only)
Curtain air bag X (impact side on‐
ly) X (both sides)
X: The SRS air bag equipment is d
esigned to deploy in a collision.*1(With Front Passenger Occupa nt Classification System)
The front passenger front and side air bags and the seat belt pretensioner are designed to deploy when the front
passenger occupant classificati on sensor detects a passenger si tting on the front passenger's seat.
*2(With Front Passenger Occupa nt Classification System)
In a roll-over accident, the seat belt pretensioners and the cu rtain air bags deploy.
NOTE
In a frontal offset collision, the equipped air bags and pretensioners may all deploy
depending on the direction, angle, and rate of impact.
Essential Safety Equipment
SRS Air Bags
2-65
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Limitations to SRS Air Bag
In severe collisions such as those described previously in "SRS Air Bag Deployment
Criteria", the applicable SRS air bag equipment will deploy. Ho wever, in some accidents,
the equipment may not deploy depending on the type of collision and its severity.

Limitations to front/near front collision detection:
The following illustrations are e xamples of front/near front collisions that may not be
detected as severe enough to deploy the SRS air bag equipment.

Impacts involving trees or poles Frontal offset impact to the vehicle

Rear-ending or running under a truck's tail gate
Essential Safety Equipment
SRS Air Bags
2-66
Mazda6_8HX3-EA-19I_Edition1_old
2019-6-18 9:25:17
