warning light MAZDA MODEL 6 2020 Owner's Manual (in English)

Interior Equipment (View A)
Æ’Lighting control.....................................................................................................page 4-78
„ Turn and lane-change sig nal..................................................................................page 4-83
… Audio control switches......................................... ...................................................page 5-9
† INFO switch.................................................... ................................... page 4-15, 4-33, 4-55
‡ Cruise control switche s........................................ ................................... page 4-154, 4-221
ˆ Wiper and washer lever......................................... ................................................ page 4-84
‰ DSC OFF switch................................................................................................. page 4-112
Å  Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS) OFF
switch.................................................................................................................. page 4 -171
‹ Parking sensor switch......................................................................................... page 4-246
Œ 360° View Monitor switch..................................................................................page 4-189
 Outside mirror switch.......................................... ..................................................page 3-29
Ž Door-lock switch................................................................................................... page 3-16
 Power window switches........................................................................................ page 3-34
 Power window lock switch................................................................................... page 3-34
‘ Door-lock knob..................................................................................................... page 3-16
Pictorial Index
Interior Overview
1-2The equipment and installatio n position varies by vehicle
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Seat Belt Warning Systems
If it detects that the occupant seat belt is
unfastened, the warning light or beep
alerts the occupant.
Refer to Taking Action on page 7-35.
Refer to Seat Belt Warning Beep on page
7-45.

Seat belt indicator light (rear seat)
(green)
The light turns on when the ignition is
switched ON and a rear seat belt is
fastened, and then it turns off after about
60 seconds.
Front Seat Belt
Pretensioner and Load Limiting Systems
For optimum protectio n, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems. For both these systems to work
properly you must wear the seat belt
properly.

Pretensioners:
When a collision is detected, the
pretensioners deploy simultaneously with
the air bags.
For vehicles with the front passenger
occupant classification system, the
pretensioners deploy simultaneously with
the air bags when a roll-over is also
detected.
For deployment details, refer to the SRS
Air Bag Deployment Criteria (page
2-65).
The front seat belt retractors remove slack
quickly as the air bags are expanding. Any
time the air bags and seat belt
pretensioners have fired they must be
replaced.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Taking Action on page 7-35.
Refer to Air Bag/Front Seat Belt
Pretensioner System Warning Beep on
page 7-45.
Essential Safety Equipment
Seat Belt Systems
2-27
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Do not use an improper extender:
Using a seat belt extender that is for
another person or a different vehicle or seat
is dangerous. The seat belt will not provide
adequate protection and the user could be
seriously injured in an accident. Only use
the extender provided for you and for the
particular vehicle and seat. NEVER use the
extender in a different vehicle or seat. If you
sell your Mazda, do not leave your seat belt
extender in the vehicle. It could be used
accidentally by the new owner of the
vehicle. After removing the seat belt
extender, discard it. Never use the seat belt
extender in any other vehicle you may own
in the future.
Do not use an extender that is too long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accide nt, the seat belt will
not provide adequate protection and you
could be seriously injured. Do not use the
extender or choose one shorter in length if
the distance between the extender's buckle
and the center of the user's body is less
than 15 cm (6 in).Do not leave a seat belt extender
connected to the buckle:
Leaving a seat belt extender connected to
the buckle without using the seat belt is
dangerous. When the seat belt extender is
connected to the driver's seat belt buckle
(or front passenger's seat belt buckle), the
SRS driver's (or front passenger's) air bag
system will determine that the driver (or
front passenger) is wearing the seat belt
even if the driver (or front passenger) is not
wearing it. This condition could cause the
driver's (or front passenger's) air bag to not
activate correctly and result in death or
serious injury in the event of collision.
Always wear the seat belt with the seat belt
extender.
Do not use the seat belt extender when
installing a child-restraint system on the
front or rear passenger seat:
Using a seat belt extender to fasten a
child-restraint system on any seat is
dangerous. Always follow the
child-restraint system manufacturer's
installation instructions and never use a
seat belt extender.
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If the
seat belt extender is left connected, the
seat belt extender might get damaged as it
will not retract with the rest of the seat belt
and can easily fall out of the door when
not in use and be damaged. In addition,
the seat belt warning light will not
illuminate and function properly.
Essential Safety Equipment
Seat Belt Systems
2-30
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Driver/Front passenger inflators and air bags
Roll-over sensor*, crash sensors, and diagnostic module (SAS unit)
Seat belt pretensioners (page 2-27)
Front air bag sensors
Side crash sensors
Air bag/front seat belt pretensioner system warning light (page 7-28)
Side and curtain inflators and air bags
Front passenger air bag deactivation indicator light* (page 2-68)
Front passenger occupant classification sensor* (page 2-68)
Front passenger occupant classification module*
Essential Safety Equipment
SRS Air Bags
2-60*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

â–¼Warning Light/Beep
A system malfunction or operation conditions are indicated by a
warning.
Refer to Contact Authorized Mazda Dealer and Have Vehicle Inspected on page 7-28.
Refer to Warning Sound is Activated on page 7-45.
Essential Safety Equipment
SRS Air Bags
2-64
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Front Passenger Occupant Classification System*
First, please read "Supplemental Restraint System (SRS) Precaut ions" (page 2-53) carefully.
â–¼Front Passenger Occupant Classification Sensor
Your vehicle is equipped with a front passenger occupant classi
fication sensor as a part of
the supplemental restraint system. This sensor is equipped in the front passenger's seat
cushion. This sensor measures the electrostatic capacity of the front passenger's seat. The
SAS unit is designed to prevent the front passenger front and side air bags and seat belt
pretensioner system from deploying if the front passenger air b ag deactivation indicator
light turns on.
To reduce the chance of injuries caused by deployment of the fr ont passenger air bag, the
system deactivates the front passenger front and side air bags and also the seat belt
pretensioner system when the front passenger air bag deactivati on indicator light turns on.
Refer to the following table fo r the front passenger air bag de activation indicator light
illumination conditions.

This system shuts off the front passenger front and side air bags and seat belt pretensioner
system, so make sure the front passenger air bag deactivation i ndicator light turns on
according to the following table.

The air bag/front seat belt pretensioner system warning light f lashes and the front passenger
air bag deactivation indicator li ght illuminates if the sensors have a possible malfunction. If
this happens, the front passenger front and side air bags and s eat belt pretensioner system
will not deploy.
Front passenger air bag de activation indicator light
This indicator light turns on to remind you that the front pass enger front and side air bags
and seat belt pretensioner wil l not deploy during a collision.
Essential Safety Equipment
SRS Air Bags
2-68*Some models.
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

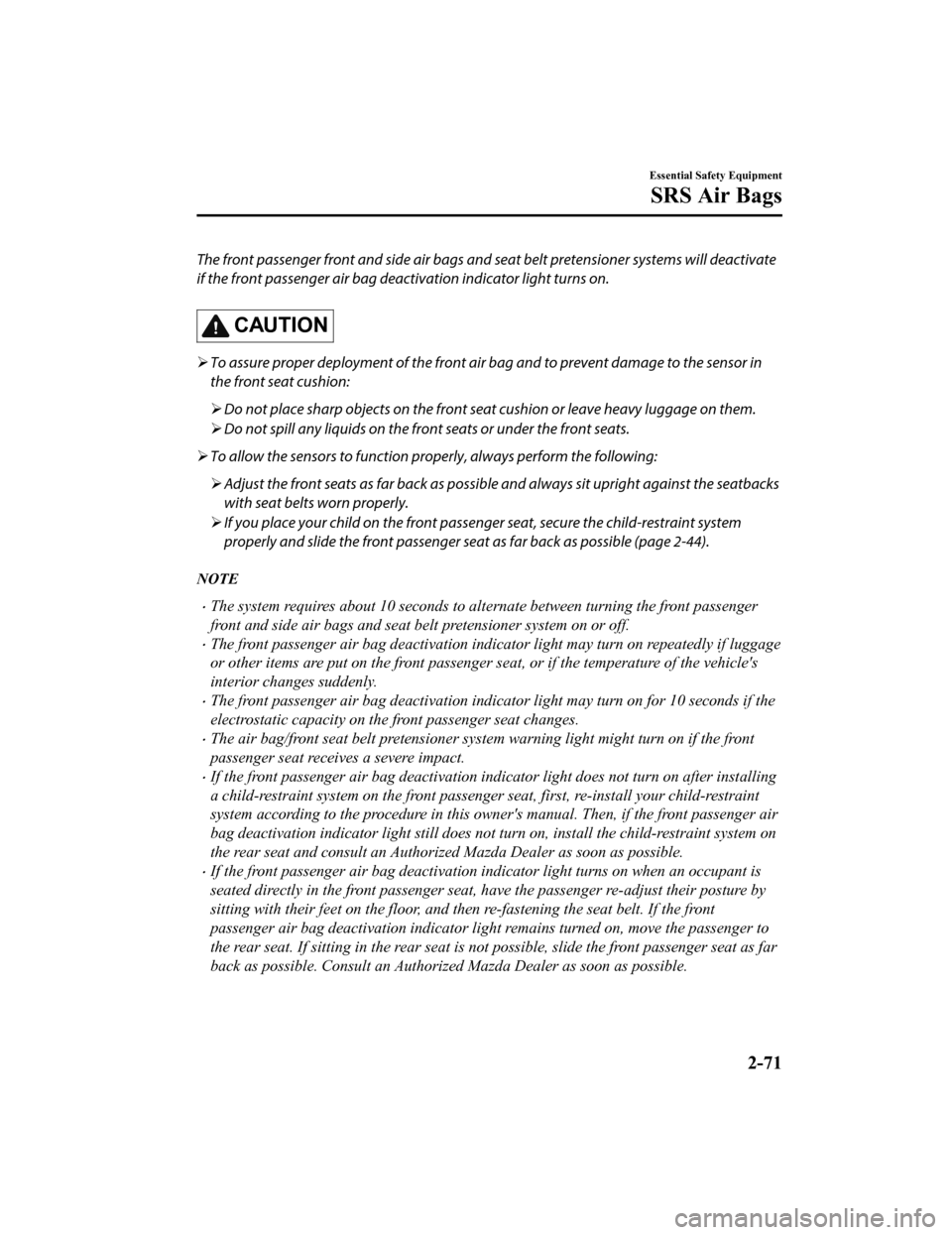

The front passenger front and side air bags and seat belt pretensioner systems will deactivate
if the front passenger air bag deactivation indicator light turns on.
CAUTION
 To assure proper deployment of the front air bag and to prevent damage to the sensor in
the front seat cushion:
 Do not place sharp objects on the front seat cushion or leave heavy luggage on them.
 Do not spill any liquids on the fr ont seats or under the front seats.
 To allow the sensors to function pr operly, always perform the following:
 Adjust the front seats as far back as possibl e and always sit upright against the seatbacks
with seat belts worn properly.
 If you place your child on the front passe nger seat, secure the child-restraint system
properly and slide the front passenger seat as far back as possible (page 2-44).
NOTE
ï‚·The system requires about 10 seconds to alternate between turning the front passenger
front and side air bags and seat belt pretensioner system on or off.
ï‚·The front passenger air bag deactivation indicator light may turn on repeatedly if luggage
or other items are put on the front passenger se at, or if the temperature of the vehicle's
interior changes suddenly.
ï‚·The front passenger air bag deactivation indicator light may turn on for 10 seconds if the
electrostatic capacity on the front passenger seat changes.
ï‚·The air bag/front seat belt pr etensioner system warning light might turn on if the front
passenger seat receives a severe impact.
ï‚·If the front passenger air bag deactivation indicator light does not turn on after installing
a child-restraint system on the front passenger seat, first, re-install your child-restraint
system according to the procedure in this owner's manual. Then, if the front passenger air
bag deactivation indicator light still does not turn on, install the child-restraint system on
the rear seat and consult an Authorized Mazda Dealer as soon as possible.
ï‚·If the front passenger air bag deactivation indicator light turns on when an occupant is
seated directly in the front passenger seat , have the passenger re-adjust their posture by
sitting with their feet on the floor, and then re-fastening the seat belt. If the front
passenger air bag deactivation indicator light remains turned on, move the passenger to
the rear seat. If sitting in the rear seat is not possible, slide the front passenger seat as far
back as possible. Consult an Authorized Mazda Dealer as soon as possible.
Essential Safety Equipment
SRS Air Bags
2-71
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Constant Monitoring
The following components of the air bag systems are monitored by a diagnostic system:

ï‚·Front air bag sensors
ï‚·Crash sensors, and diagnostic module (SAS unit)
ï‚·Side crash sensors
ï‚·Air bag modules
ï‚·Front seat belt pretensioners
ï‚·Air bag/Front seat belt pret ensioner system warning light
ï‚·Related wiring
(With Front Passenger Occupa nt Classification System)
ï‚·Front passenger occupant classification sensor
ï‚·Front passenger occupant classification module
ï‚·Front passenger air bag deactivation indicator light

The diagnostic module continuously monitors the system's readiness. This begins when the
ignition is switched ON and continues while the vehicle is bein g driven.
Essential Safety Equipment
SRS Air Bags
2-72
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors, and
opens the trunk lid.
The system can start the engine without
having to take the key out of your purse or
pocket.
It can also help you s ignal for attention or
help.
Operating the theft-deterrent system is
also possible on theft-deterrent
system-equipped vehicles.

System malfunctions or warnings are
indicated by the fo llowing warning lights
or beeps.
For vehicles with t he type A/type B
instrument cluster, check the displayed
message for more i nformation and, if
necessary, have the vehicle inspected at an
Authorized Mazda Dealer, according to
the indication.
ï‚·KEY Warning Light (Red)
Refer to Contact Authorized Mazda
Dealer and Have Vehicle Inspected on
page 7-28.
Refer to Taking Action on page 7-35.
ï‚·Ignition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-46.
ï‚·Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-46.
If you have a problem with the key,
consult an Authorized Mazda Dealer.

If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make the
lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed by
laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
NOTE
ï‚·The keyless entry system operation may
vary due to local conditions.
ï‚·The keyless entry system is fully
operational (door lock/unlock) when the
ignition is switched off. The system does
not operate if the ignition is switched to
any position other than off.
ï‚·If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new battery,
refer to Key Battery Replacement (page
6-44).
Before Driving
Keys
3-4
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17

ï‚·Battery life is about 1 year. Replace the
battery with a new one if the KEY
indicator light (green) flashes in the
instrument cluster (for vehicles with a
type A/type B instrument cluster (page
4-14, 4-32), messages are displayed
in the instrument cluster). Replacing the
battery about once a year is
recommended because the KEY warning
light/indicator light may not illuminate
or flash depending on the rate of battery
depletion.
ï‚·Additional keys can be obtained at an
Authorized Mazda Dealer. Up to 6 keys
can be used with the keyless functions
per vehicle. Bring all keys to the
Authorized Mazda Dealer when
additional keys are required.
â–¼Tr a n s m i t t e r
Ty p e A
Operation
buttons
Operation indicator light
Ty p e B
Operation
buttons
Operation indicator light
NOTE
ï‚·(With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-42.
ï‚·(With the advanced
keyless function)
A beep sound can be heard for
confirmation when the doors are locked/
unlocked using the key. If you prefer, the
beep sound can be turned off.
The volume of the beep sound can also
be changed.
Refer to Other Equipment/Functions on
page 9-15.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors , press the lock button
and the hazard warning lights will flash
once.
(With the advanced k eyless function)
A beep sound will be heard once.

Before Driving
Keys
3-5
Mazda6_8HX3-EA-19I_Edition1_old 2019-6-18 9:25:17
