sensor MAZDA MODEL 6 HATCHBACK 2004 Owners Manual (in English)

Black plate (60,1)
WARNING
Hot Air Bag Inflators:
Hot air bag inflators are dangerous. Immediately after inflation, the inflators in the
steering wheel, dashboard, seatbacks, or the front and rear window pillars and along
the roof edge are very hot. You could get burned. Don't touch the internal components
of the air bag modules after the bags have inflated.
Installation of Front-End Equipment:
Installation of front-end equipment, such as frontal protection bar (kangaroo bar, bull
bar, push bar, etc.), snowplow, or winches, is dangerous. The air bag crash sensor
system could be affected. This could cause air bags to inflate unexpectedly, or it could
prevent the air bags from inflating during an accident. Front occupants could be
seriously injured. Never install any front-end equipment to your vehicle.
Suspension Adjustment:
Adjusting the vehicle suspension is dangerous. If the vehicle's height or the
suspension is changed, the vehicle will be unable to accurately detect a collision
resulting in incorrect or unexpected air bag deployment and the possibility of serious
injuries.
Modification of the Supplemental Restraint System:
Modifying the components or wiring of the supplemental restraint system is
dangerous. You could accidentally activate it or make it inoperable. Don't make any
modifications to the supplemental restraint system. This includes installing trim,
badges, or anything else over the air bag modules. It also includes installing extra
electrical equipment on or near system components or wiring. An Authorized Mazda
Dealer can provide the special care needed in the removal and installation of front
seats. It is important to protect the side and curtain air bag wiring and connections to
assure that the bags do not accidentally deploy and that the seats retain an
undamaged air bag connection.
CAUTION
To prevent damage to the side and curtain air bag wiring, don't place luggage or other
objects under the front seats.
2-46
Essential Safety Equipment
SRS Air Bags
Mazda6_8T12-EA-03K_Edition1 Page60
Friday, December 5 2003 8:54 AM
Form No.8T12-EA-03K

Black plate (62,1)
Air Bag System Description
The supplemental restraint systems (SRS) have two basic subsystems:
lThe air bag system with inflators and air bags.
lThe electrical system with crash sensors and diagnostic module.
The air bags are mounted in the following locations: the center of the steering wheel, the
passenger-side of the dashboard, in the outboard sides of the front seatbacks and the front
and rear window pillars, along the roof edge. They are out of sight until activated.
Dual stage inflators and air bags*3
Front air bag sensor
Crash sensors and
diagnostic module
(SAS unit)Seat belt buckle switches*2
Side and curtain air bag
crash sensor (Some models.) Seat slide position sensor
(only for driver's seat)*1
Inflators and air bagsSide and curtain air bag crash
sensor (Some models.)Inflators and air bags
*1 The driver's seat slide position sensor determines whether the driver's seat is fore or aft
of a reference position. The sensor is designed to control the deployment of the driver's
air bag depending on how close the driver's seat is to the steering wheel.
*2 The buckle switches on the front seat belts determine whether or not the front seat belts
are securely fastened and further control the deployment of the air bags on the front
seats.
*3 The front, dual stage air bags control air bag inflation in two energy stages. During an
impact of moderate severity the front air bags deploy with lesser energy, whereas
during more severe impacts, they deploy with more energy.
Deployment of the front air bags may differ between the driver and the front passenger
depending on the driver's seat position and front seat belt usage, which allow for further
controlling of the system.
2-48
Essential Safety Equipment
SRS Air Bags
Mazda6_8T12-EA-03K_Edition1 Page62
Friday, December 5 2003 8:54 AM
Form No.8T12-EA-03K

Black plate (63,1)
qHow the Air Bags Work
When air bag crash sensors detect a frontal or side impact of greater than moderate force,
an electrical current is sent to the inflators.
Gases are produced to inflate the air bags and after the inflation, the air bags quickly
deflate.
The air bags will function only once. After that,the air bags will not work again and
must be replaced.
Only an Authorized Mazda Dealer can replace the systems.
The front air bags will deploy only
in a frontal or frontal offset impact.
The curtain air bag will deploy only on the side
the vehicle receives the force of the impact.The side air bag will deploy only on the side
the vehicle receives the force of the impact.
Essential Safety Equipment
SRS Air Bags
2-49
Mazda6_8T12-EA-03K_Edition1 Page63
Friday, December 5 2003 8:54 AM
Form No.8T12-EA-03K

Black plate (67,1)
Non-activation of side and curtain air bagsí
The side and curtain air bags will not normally inflate in the following cases:
Collision from the front, but it may deploy
the front air bags. Collision from the rear.
qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unit
lFront air bag sensor
lAir bag modules
lSide and curtain air bag crash sensorí
lFront seat belt pretensioners
lRelated wiring
lDriver's seat slide position sensor
lFront seat belt buckle switches
A diagnostic module continuously
monitors the systems' readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
qAir Bag/Front Seat Belt
Pretensioner Systems Warning
Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out.
A system malfunction is indicated when
the warning light constantly flashes,
illuminates or doesn't illuminate at all
when the ignition switch is turned to the
ON position. If any of these occur, consult
an Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident.
Essential Safety Equipment
SRS Air Bags
2-53íSome models. Mazda6_8T12-EA-03K_Edition1 Page67
Friday, December 5 2003 8:54 AM
Form No.8T12-EA-03K

Black plate (68,1)
WARNING
Self-Servicing the Air Bag/Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
performs all servicing and repairs.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light
remains off when the ignition switch is
turned to the ON position.
lThe air bags inflate.
WARNING
Damaged Air Bag Sensors:
Driving with damaged air bag sensors
is dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the sensors. If there was
a subsequent collision, a damaged
sensor would not inflate the air bags.
Always have an Authorized Mazda
Dealer inspect the air bag systems
after a collision.
Removing Interior Parts:
Removing any components such as the
front seat, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along the
roof edge, containing air bag parts or
sensors is dangerous. These parts
contain essential air bag parts. The air
bag could accidentally activate and
cause serious injuries. Always have an
Authorized Mazda Dealer remove
these parts.
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury can
result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
2-54
Essential Safety Equipment
SRS Air Bags
Mazda6_8T12-EA-03K_Edition1 Page68
Friday, December 5 2003 8:54 AM
Form No.8T12-EA-03K

Black plate (104,1)
NOTE
lDo not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity
will be affected and may not operate
normally.
Light sensor
Light sensor
lFor information regarding the 3
buttons (,,) on the auto-
dimming mirror, refer to HomeLink
Wireless Control System (page
5-44).
3-36
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda6_8T12-EA-03K_Edition1 Page104
Friday, December 5 2003 8:55 AM
Form No.8T12-EA-03K

Black plate (106,1)

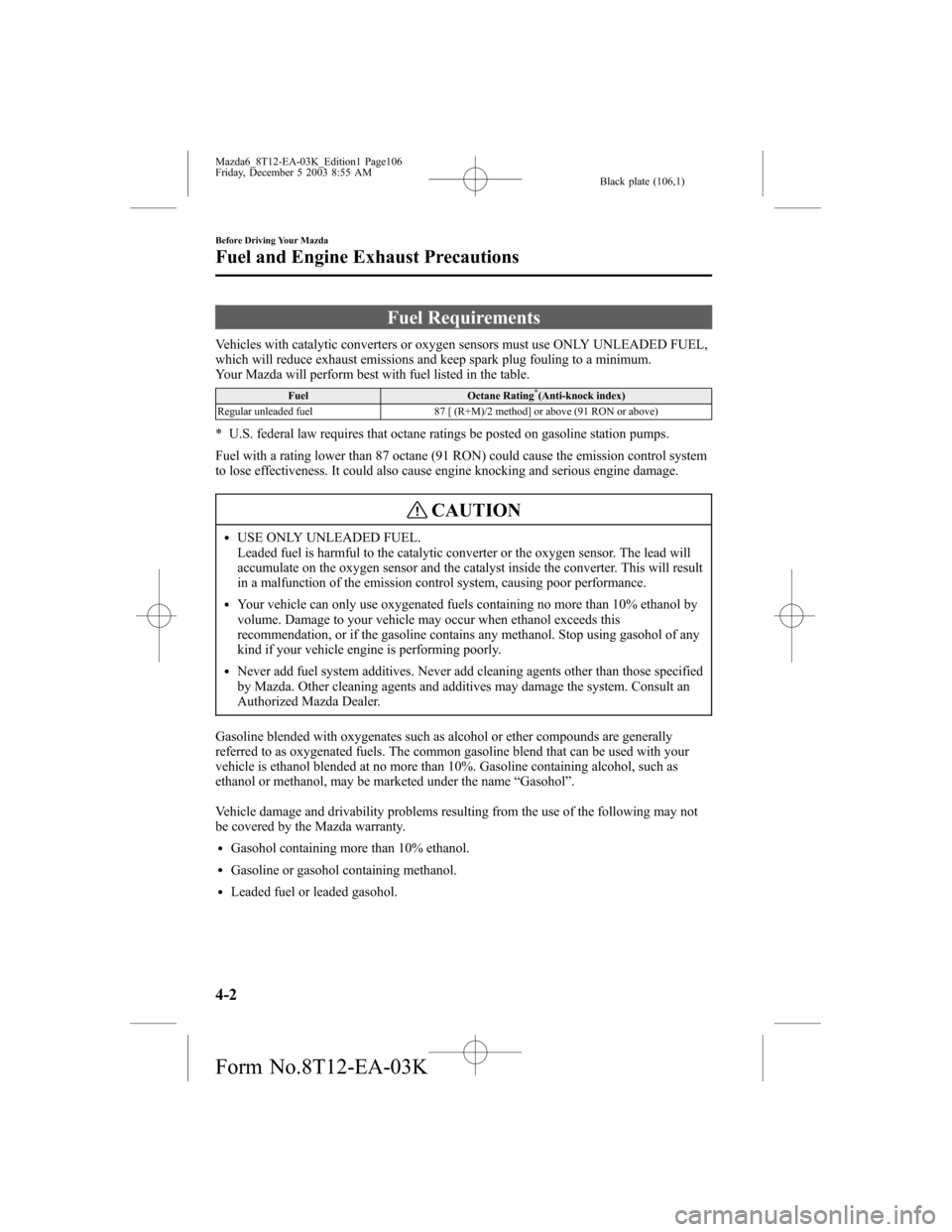

Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
Fuel Octane Rating*(Anti-knock index)
Regular unleaded fuel 87 [ (R+M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION
lUSE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter or the oxygen sensor. The lead will
accumulate on the oxygen sensor and the catalyst inside the converter. This will result
in a malfunction of the emission control system, causing poor performance.
lYour vehicle can only use oxygenated fuels containing no more than 10% ethanol by
volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of any
kind if your vehicle engine is performing poorly.
lNever add fuel system additives. Never add cleaning agents other than those specified
by Mazda. Other cleaning agents and additives may damage the system. Consult an
Authorized Mazda Dealer.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name“Gasohol”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10% ethanol.
lGasoline or gasohol containing methanol.
lLeaded fuel or leaded gasohol.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda6_8T12-EA-03K_Edition1 Page106
Friday, December 5 2003 8:55 AM
Form No.8T12-EA-03K

Black plate (178,1)
To turn off the system, press the OFF
switch.
NOTE
lFor an optimal cabin temperature, set
the temperature close to 25.0°C
(77.0°F). Adjust to the desired
temperature if necessary.
lSetting the temperature to maximum
high or low will not provide the
desired temperature at a faster rate.
lTo prevent cool air blowing from the
vents when heating right after
starting the engine, the amount of
airflow is reduced until the air warms
up.
qWindshield Defrosting and
Defogging
Press the windshield defroster switch.
In this position, theposition is
automatically selected, and the air
conditioner automatically turned on
(however, the indicator light does not
illuminate). The air conditioner will direct
dehumidified air to the front windshield
and side windows (page 6-4). Airflow
amount will be increased.
WARNING
Foggy Windshield:
Using theposition with the
temperature control set to the cold
position will cause the outside of the
windshield to fog up. Your vision will
be hampered, which could lead to a
serious accident. Set the temperature
control to hot or warm position when
using the
position.
NOTE
Use the temperature control dial to
increase the air flow temperature and
defog the windshield more quickly.
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and sunlight. It then sets
temperatures inside the passenger
compartment accordingly. Don't obstruct
the sensor.
Sunlight sensor
6-14
Interior Comfort
Climate Control System
Mazda6_8T12-EA-03K_Edition1 Page178
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K

Black plate (179,1)
Interior temperature sensor
Interior Comfort
Climate Control System
6-15
Mazda6_8T12-EA-03K_Edition1 Page179
Friday, December 5 2003 8:56 AM
Form No.8T12-EA-03K

Black plate (282,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIP-
TIONFUSE
RAT-
INGPROTECTED
COMPONENT
1 SPARE 20A—
2 SPARE 15A—
3 SPARE 10A—
4—— —
5—— —
6 INJ 15A Injector
7ENG
BAR10A
*1Air flow sensor, EGR control
valve
15A*2
8ENG
BAR2*115A O2 sensor
ENG
BB
*25A Cooling fan
9HEAD
LR10A Headlight-low beam (Right)
10HEAD
LL10A Headlight-low beam (Left)
DESCRIP-
TIONFUSE
RAT-
INGPROTECTED
COMPONENT
11HEAD
HL10A Headlight-high beam (Left)
12HEAD
HR10A Headlight-high beam (Right)
13ETC 7.5A Accelerator position sensor
14 HAZARD10A Turn signal lights
15STOP 15A Brake/Taillights
16TCM*110A TCM
IG1*215A O2 sensor
17 ENGB7.5A PCM, TCM
18FUEL
PUMP15A Fuel pump
19IG KEY 40AWindshield wiper and washer,
Engine control unit, Lighter
20P.WIND 30A Power window
21—— —
22—— —
8-40
Maintenance and Care
Owner Maintenance
Mazda6_8T12-EA-03K_Edition1 Page282
Friday, December 5 2003 8:59 AM
Form No.8T12-EA-03K
