MAZDA MODEL 6 SPORT WAGON 2006 Owner's Manual

Black plate (21,1)

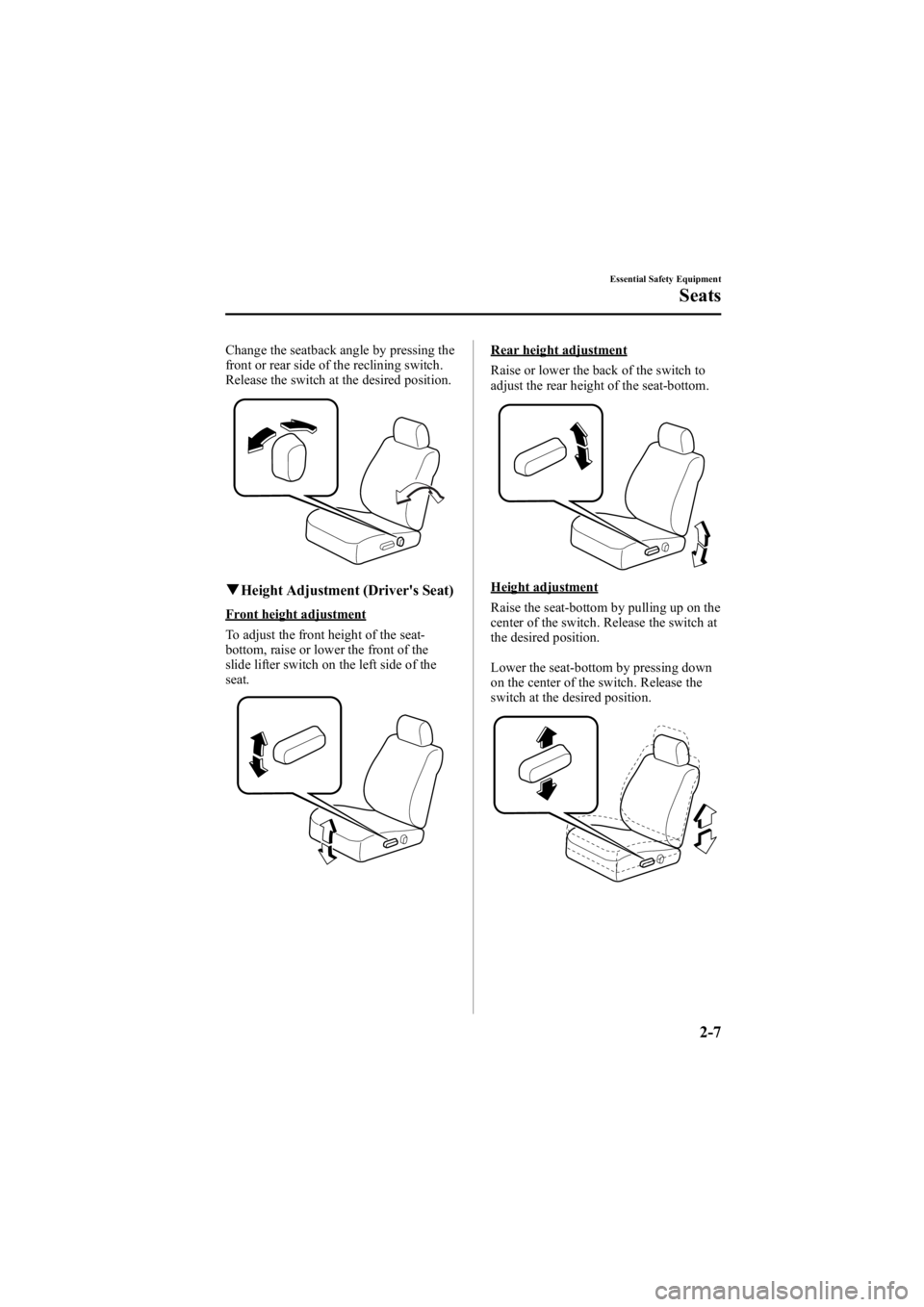

Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment (Driver's Seat)
Front height adjustment
To adjust the front height of the seat-
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear height adjustment
Raise or lower the back of the switch to
adjust the rear height of the seat-bottom.
Height adjustment
Raise the seat-bottom by pulling up on the
center of the switch. Release the switch at
the desired position.
Lower the seat-bottom by pressing down
on the center of the switch. Release the
switch at the desired position.
Essential Safety Equipment
Seats
2-7
Mazda6_8V40-EA-05L_Edition1 Page21
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (22,1)

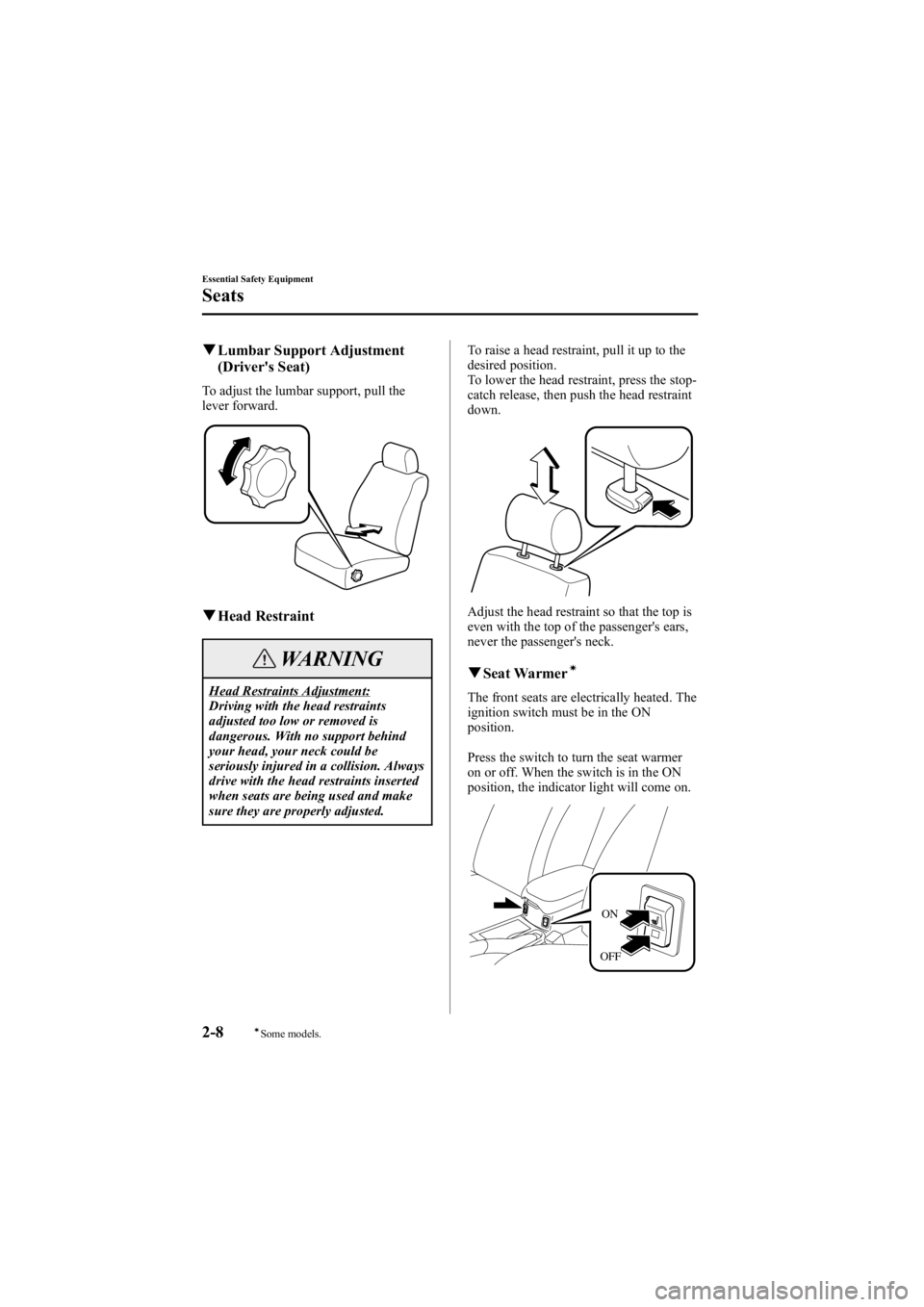

qLumbar Support Adjustment
(Driver's Seat)
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision. Always
drive with the head restraints inserted
when seats are being used and make
sure they are properly adjusted. To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
q
Seat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
2-8
Essential Safety Equipment
íSome models.
Seats
Mazda6_8V40-EA-05L_Edition1 Page22
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (23,1)

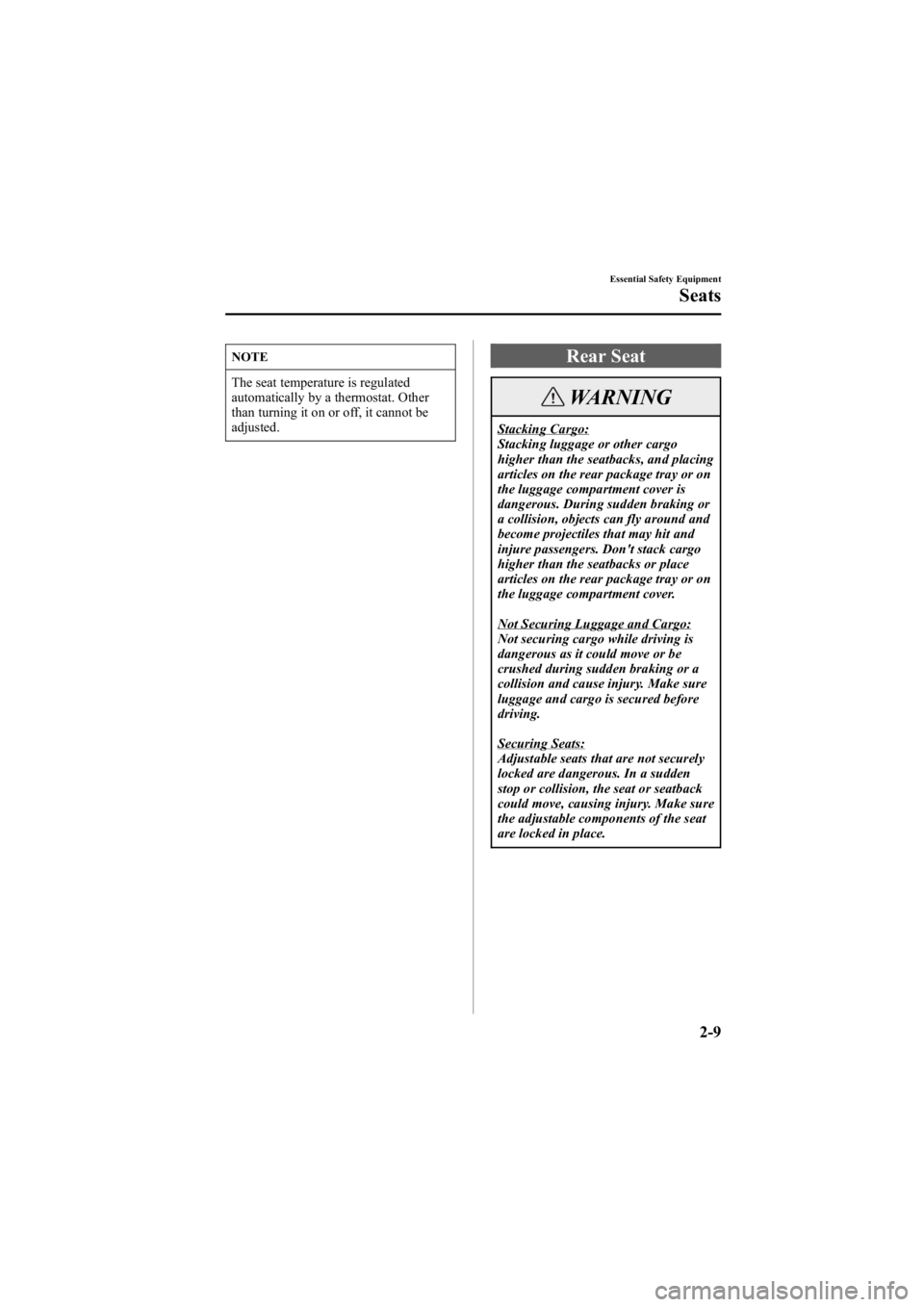

NOTE
The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.
Rear Seat
WARNING
Stacking Cargo:
Stacking luggage or other cargo
higher than the seatbacks, and placing
articles on the rear package tray or on
the luggage compartment cover is
dangerous. During sudden braking or
a collision, objects can fly around and
become projectiles that may hit and
injure passengers. Don't stack cargo
higher than the seatbacks or place
articles on the rear package tray or on
the luggage compartment cover.
Not Securing Luggage and Cargo:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury. Make sure
luggage and cargo is secured before
driving.
Securing Seats:
Adjustable seats that are not securely
locked are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury. Make sure
the adjustable components of the seat
are locked in place.
Essential Safety Equipment
Seats
2-9
Mazda6_8V40-EA-05L_Edition1 Page23
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (24,1)

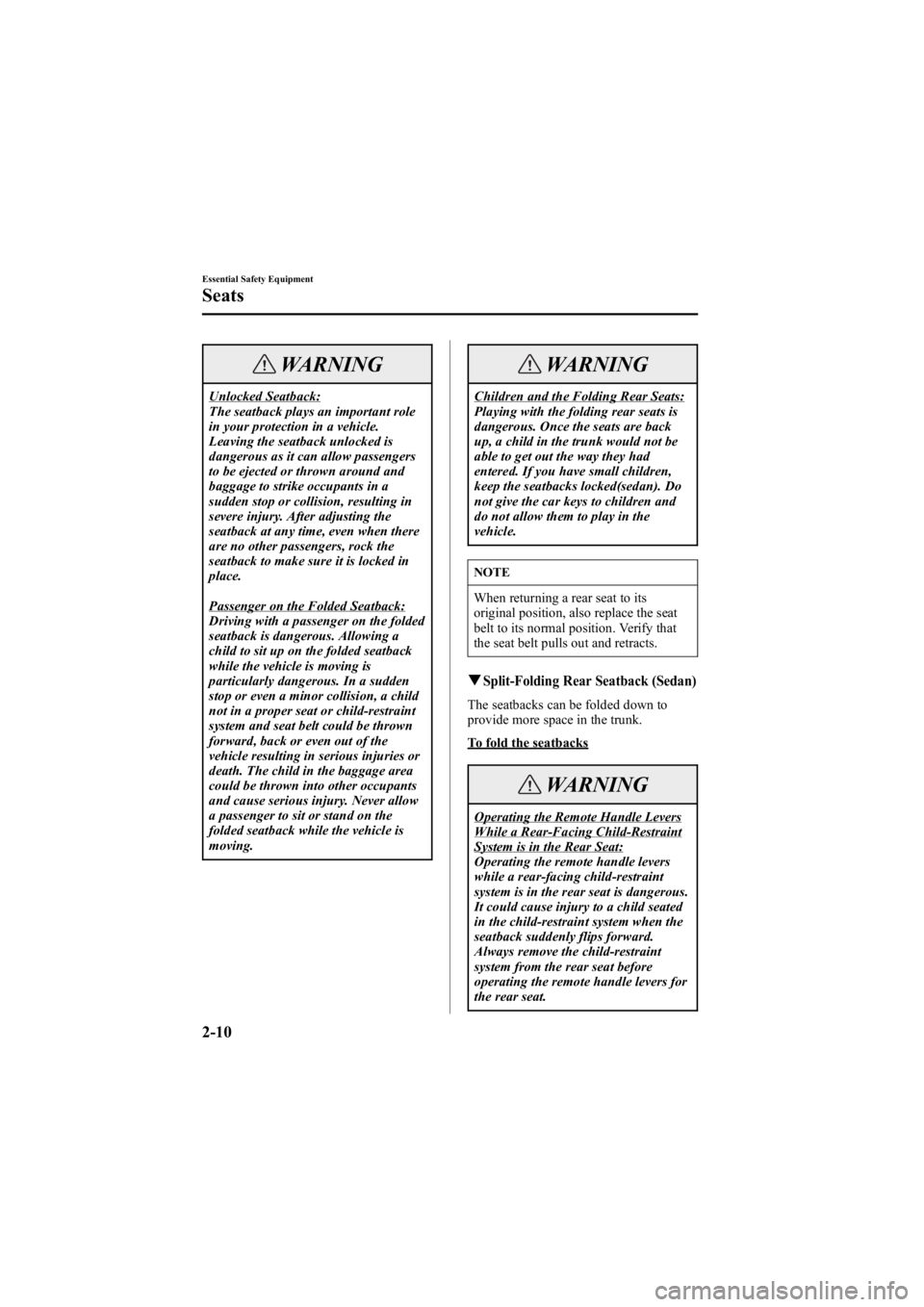

WARNING
Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Passenger on the Folded Seatback:
Driving with a passenger on the folded
seatback is dangerous. Allowing a
child to sit up on the folded seatback
while the vehicle is moving is
particularly dangerous. In a sudden
stop or even a minor collision, a child
not in a proper seat or child-restraint
system and seat belt could be thrown
forward, back or even out of the
vehicle resulting in serious injuries or
death. The child in the baggage area
could be thrown into other occupants
and cause serious injury. Never allow
a passenger to sit or stand on the
folded seatback while the vehicle is
moving.
WARNING
Children and the Folding Rear Seats:
Playing with the folding rear seats is
dangerous. Once the seats are back
up, a child in the trunk would not be
able to get out the way they had
entered. If you have small children,
keep the seatbacks locked(sedan). Do
not give the car keys to children and
do not allow them to play in the
vehicle.
NOTE
When returning a rear seat to its
original position, also replace the seat
belt to its normal position. Verify that
the seat belt pulls out and retracts.
qSplit-Folding Rear Seatback (Sedan)
The seatbacks can be folded down to
provide more space in the trunk.
To fold the seatbacks
WARNING
Operating the Remote Handle LeversWhile a Rear-Facing Child-RestraintSystem is in the Rear Seat:
Operating the remote handle levers
while a rear-facing child-restraint
system is in the rear seat is dangerous.
It could cause injury to a child seated
in the child-restraint system when the
seatback suddenly flips forward.
Always remove the child-restraint
system from the rear seat before
operating the remote handle levers for
the rear seat.
2-10
Essential Safety Equipment
Seats
Mazda6_8V40-EA-05L_Edition1 Page24
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (25,1)

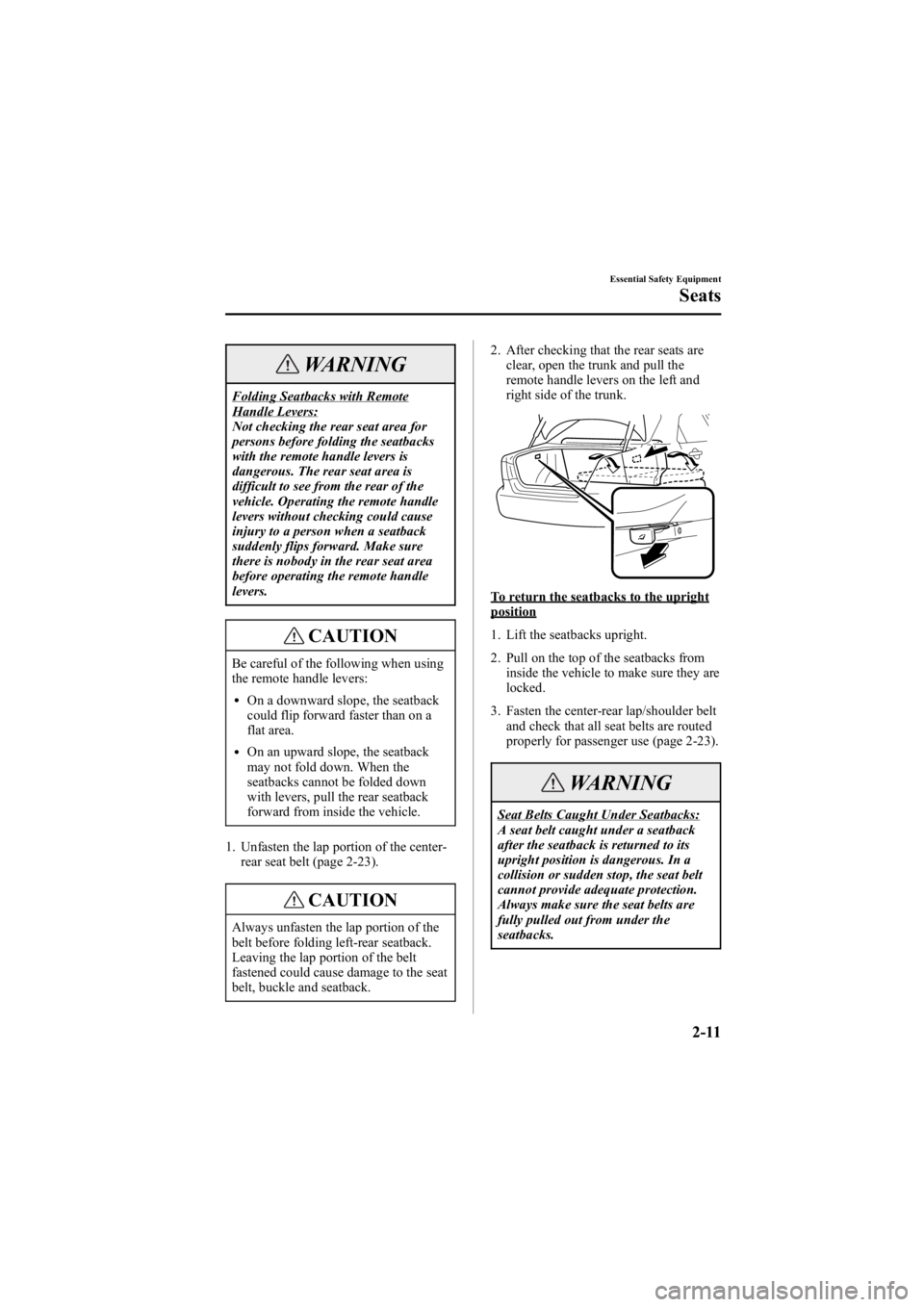

WARNING
Folding Seatbacks with RemoteHandle Levers:
Not checking the rear seat area for
persons before folding the seatbacks
with the remote handle levers is
dangerous. The rear seat area is
difficult to see from the rear of the
vehicle. Operating the remote handle
levers without checking could cause
injury to a person when a seatback
suddenly flips forward. Make sure
there is nobody in the rear seat area
before operating the remote handle
levers.
CAUTION
Be careful of the following when using
the remote handle levers:
lOn a downward slope, the seatback
could flip forward faster than on a
flat area.
lOn an upward slope, the seatback
may not fold down. When the
seatbacks cannot be folded down
with levers, pull the rear seatback
forward from inside the vehicle.
1. Unfasten the lap portion of the center- rear seat belt (page 2-23).
CAUTION
Always unfasten the lap portion of the
belt before folding left-rear seatback.
Leaving the lap portion of the belt
fastened could cause damage to the seat
belt, buckle and seatback. 2. After checking that the rear seats are
clear, open the trunk and pull the
remote handle levers on the left and
right side of the trunk.
To return the seatbacks to the uprightposition
1. Lift the seatbacks upright.
2. Pull on the top of the seatbacks frominside the vehicle to make sure they are
locked.
3. Fasten the center-rear lap/shoulder belt and check that all seat belts are routed
properly for passenger use (page 2-23).
WARNING
Seat Belts Caught Under Seatbacks:
A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
Always make sure the seat belts are
fully pulled out from under the
seatbacks.
Essential Safety Equipment
Seats
2-11
Mazda6_8V40-EA-05L_Edition1 Page25
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (26,1)

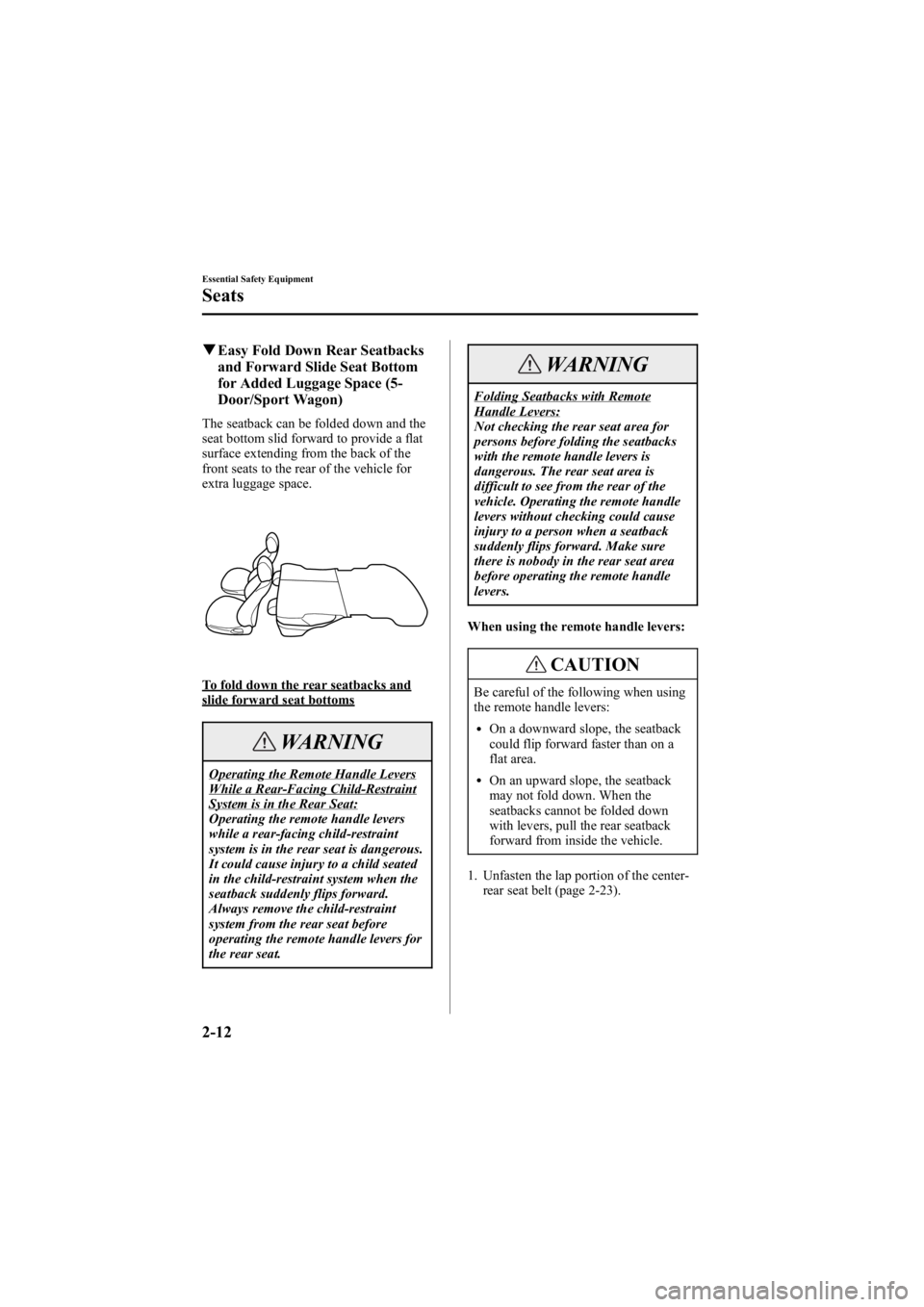

qEasy Fold Down Rear Seatbacks
and Forward Slide Seat Bottom
for Added Luggage Space (5-
Door/Sport Wagon)
The seatback can be folded down and the
seat bottom slid forward to provide a flat
surface extending from the back of the
front seats to the rear of the vehicle for
extra luggage space.
To fold down the rear seatbacks andslide forward seat bottoms
WARNING
Operating the Remote Handle LeversWhile a Rear-Facing Child-RestraintSystem is in the Rear Seat:
Operating the remote handle levers
while a rear-facing child-restraint
system is in the rear seat is dangerous.
It could cause injury to a child seated
in the child-restraint system when the
seatback suddenly flips forward.
Always remove the child-restraint
system from the rear seat before
operating the remote handle levers for
the rear seat.
WARNING
Folding Seatbacks with RemoteHandle Levers:
Not checking the rear seat area for
persons before folding the seatbacks
with the remote handle levers is
dangerous. The rear seat area is
difficult to see from the rear of the
vehicle. Operating the remote handle
levers without checking could cause
injury to a person when a seatback
suddenly flips forward. Make sure
there is nobody in the rear seat area
before operating the remote handle
levers.
When using the remote handle levers:
CAUTION
Be careful of the following when using
the remote handle levers:
lOn a downward slope, the seatback
could flip forward faster than on a
flat area.
lOn an upward slope, the seatback
may not fold down. When the
seatbacks cannot be folded down
with levers, pull the rear seatback
forward from inside the vehicle.
1. Unfasten the lap portion of the center- rear seat belt (page 2-23).
2-12
Essential Safety Equipment
Seats
Mazda6_8V40-EA-05L_Edition1 Page26
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (27,1)

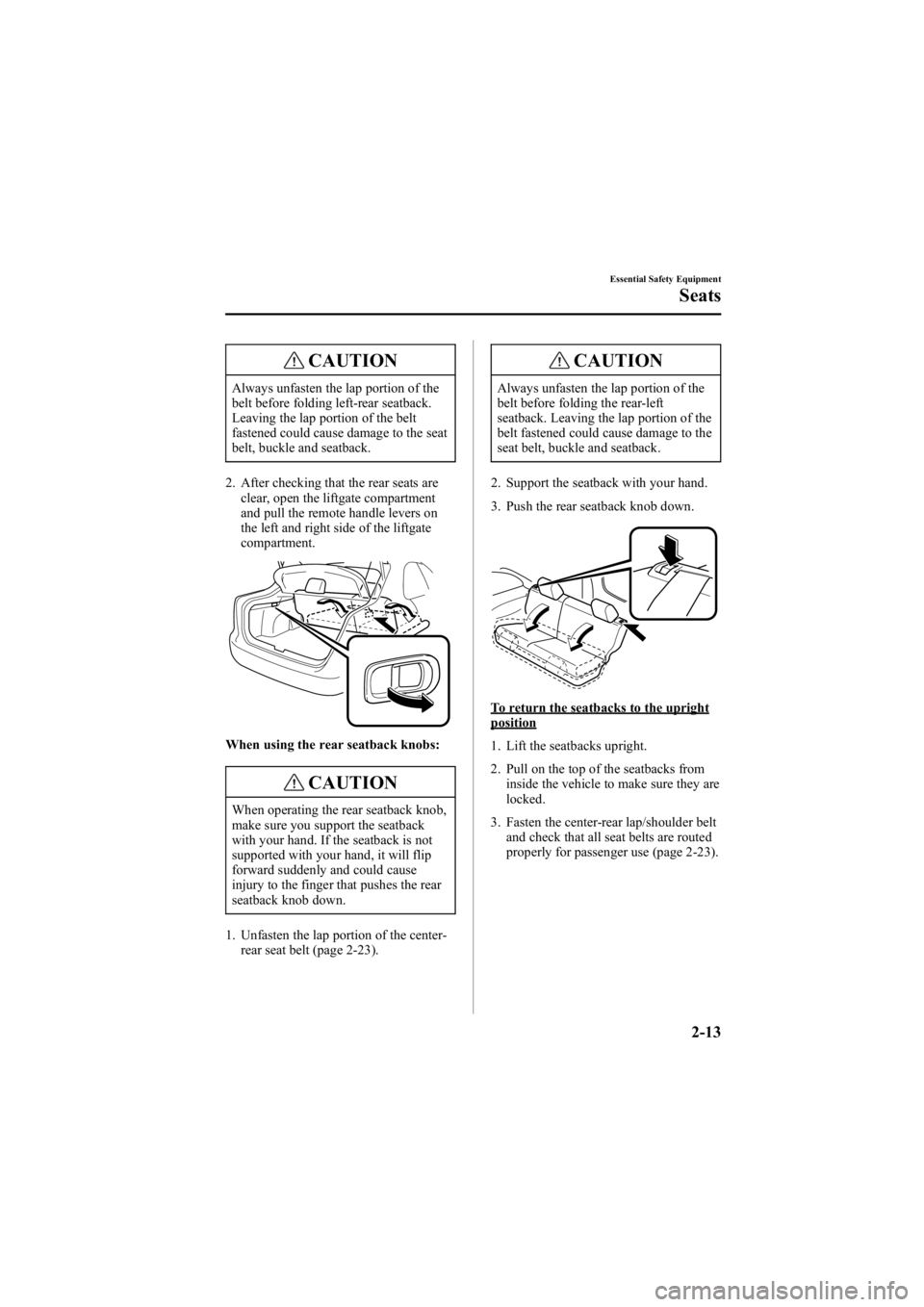

CAUTION
Always unfasten the lap portion of the
belt before folding left-rear seatback.
Leaving the lap portion of the belt
fastened could cause damage to the seat
belt, buckle and seatback.
2. After checking that the rear seats are clear, open the liftgate compartment
and pull the remote handle levers on
the left and right side of the liftgate
compartment.
When using the rear seatback knobs:
CAUTION
When operating the rear seatback knob,
make sure you support the seatback
with your hand. If the seatback is not
supported with your hand, it will flip
forward suddenly and could cause
injury to the finger that pushes the rear
seatback knob down.
1. Unfasten the lap portion of the center- rear seat belt (page 2-23).
CAUTION
Always unfasten the lap portion of the
belt before folding the rear-left
seatback. Leaving the lap portion of the
belt fastened could cause damage to the
seat belt, buckle and seatback.
2. Support the seatback with your hand.
3. Push the rear seatback knob down.
To return the seatbacks to the uprightposition
1. Lift the seatbacks upright.
2. Pull on the top of the seatbacks from inside the vehicle to make sure they are
locked.
3. Fasten the center-rear lap/shoulder belt and check that all seat belts are routed
properly for passenger use (page 2-23).
Essential Safety Equipment
Seats
2-13
Mazda6_8V40-EA-05L_Edition1 Page27
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (28,1)

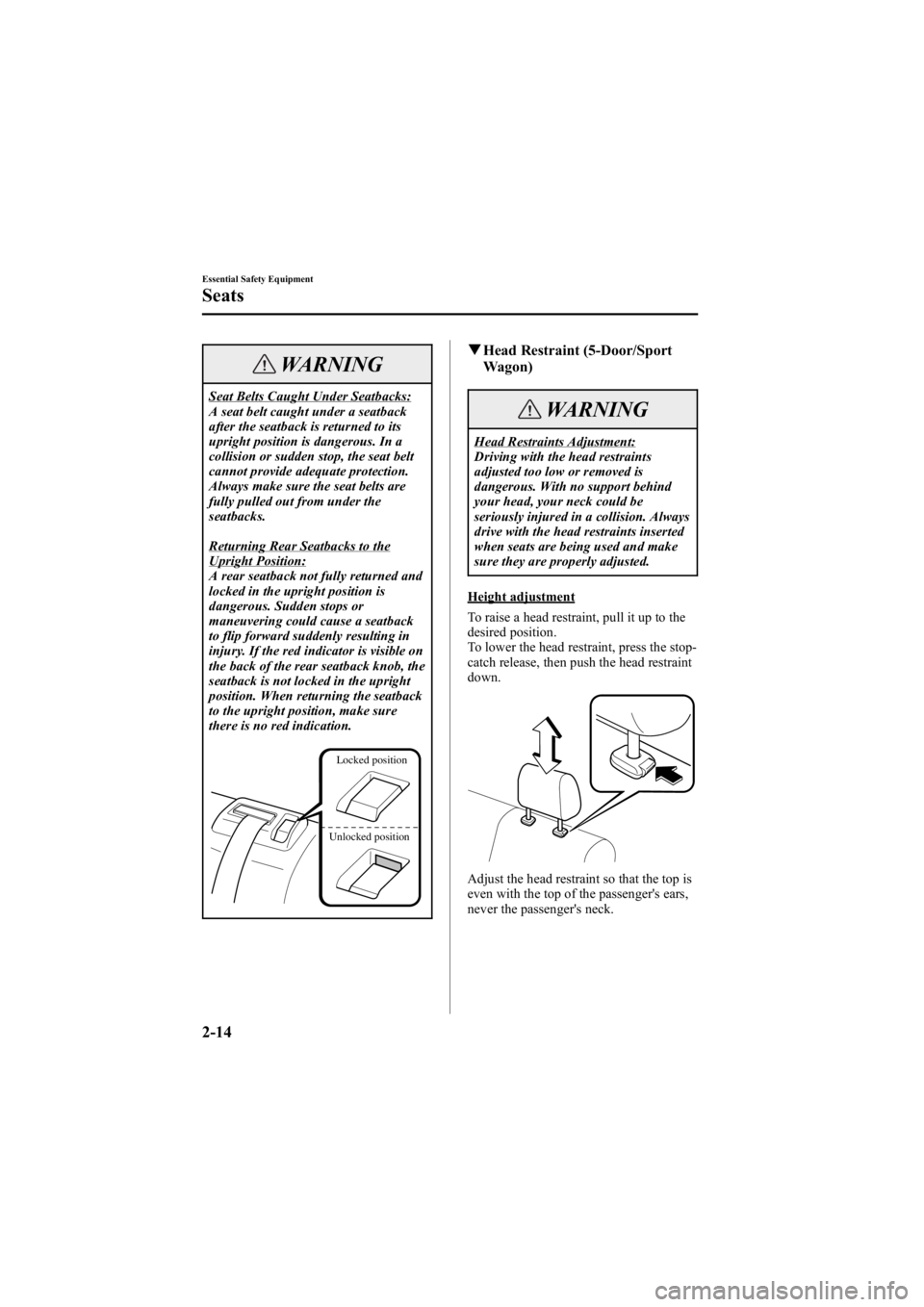

WARNING
Seat Belts Caught Under Seatbacks:
A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
Always make sure the seat belts are
fully pulled out from under the
seatbacks.
Returning Rear Seatbacks to theUpright Position:
A rear seatback not fully returned and
locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob, the
seatback is not locked in the upright
position. When returning the seatback
to the upright position, make sure
there is no red indication.
Unlocked positionLocked position
q
Head Restraint (5-Door/Sport
Wagon)
WARNING
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision. Always
drive with the head restraints inserted
when seats are being used and make
sure they are properly adjusted.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
2-14
Essential Safety Equipment
Seats
Mazda6_8V40-EA-05L_Edition1 Page28
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (29,1)

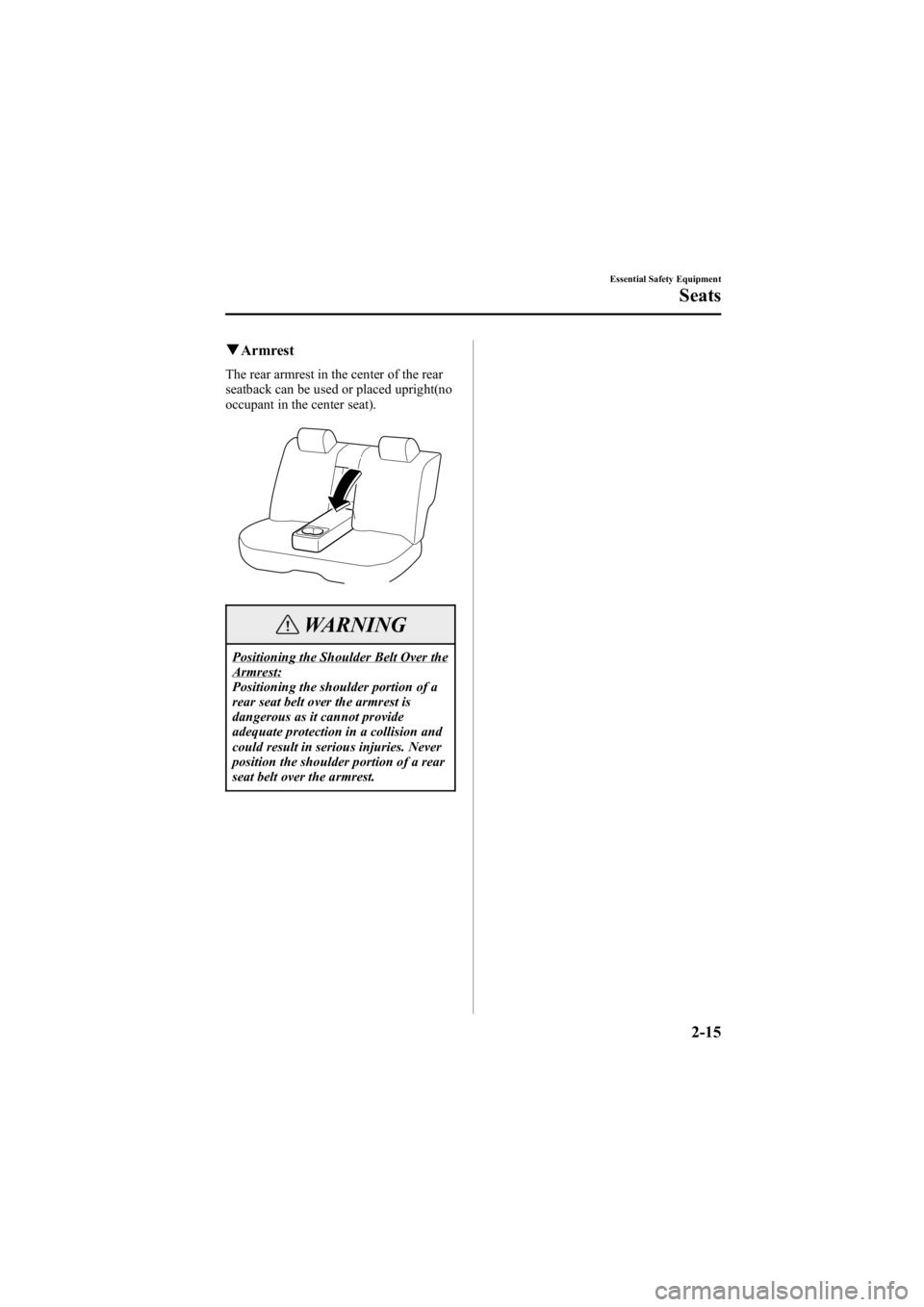

qArmrest
The rear armrest in the center of the rear
seatback can be used or placed upright(no
occupant in the center seat).
WARNING
Positioning the Shoulder Belt Over theArmrest:
Positioning the shoulder portion of a
rear seat belt over the armrest is
dangerous as it cannot provide
adequate protection in a collision and
could result in serious injuries. Never
position the shoulder portion of a rear
seat belt over the armrest.
Essential Safety Equipment
Seats
2-15
Mazda6_8V40-EA-05L_Edition1 Page29
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L

Black plate (30,1)

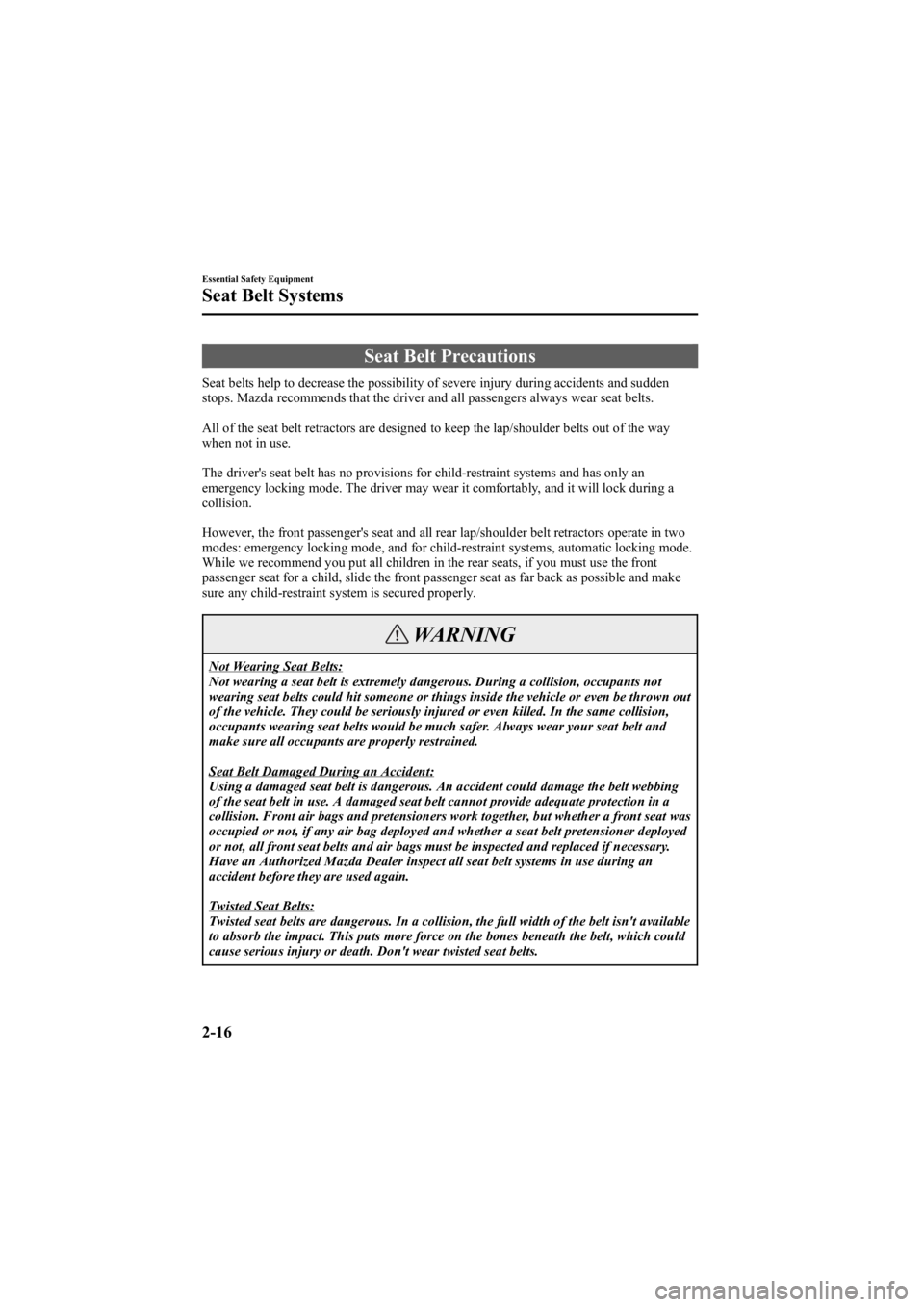

Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
WARNING
Not Wearing Seat Belts:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out
of the vehicle. They could be seriously injured or even killed. In the same collision,
occupants wearing seat belts would be much safer. Always wear your seat belt and
make sure all occupants are properly restrained.
Seat Belt Damaged During an Accident:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Front air bags and pretensioners work together, but whether a front seat was
occupied or not, if any air bag deployed and whether a seat belt pretensioner deployed
or not, all front seat belts and air bags must be inspected and replaced if necessary.
Have an Authorized Mazda Dealer inspect all seat belt systems in use during an
accident before they are used again.
Twisted Seat Belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt isn't available
to absorb the impact. This puts more force on the bones beneath the belt, which could
cause serious injury or death. Don't wear twisted seat belts.
2-16
Essential Safety Equipment
Seat Belt Systems
Mazda6_8V40-EA-05L_Edition1 Page30
Monday, November 28 2005 6:9 PM
Form No.8V40-EA-05L
