Page 71 of 384
Black plate (71,1)
CAUTION
lTo assure proper deployment of the front air bag and to prevent damage to the sensors
in the front seat bottoms:
lDo not place sharp objects on the front seat bottoms or leave heavy luggage on
them.
lDo not spill any liquids on the front seats or under the front seats.
lTo allow the sensors to function properly, always perform the following:
lAdjust the front seats as far back as possible and always sit upright against the
seatbacks with seat belts worn properly.
lIf you place your child on the front passenger seat, secure the child-restraint system
properly and slide the front passenger seat as far back as possible (page 2-39).
NOTE
lThe system requires about 10 seconds to alternate between turning the front passenger
front and side air bags and seat belt pretensioner system on or off.
lThe front passenger air bag deactivation indicator light may illuminate repeatedly if
luggage or other items are put on the front passenger seat, or if the temperature of the
vehicle's interior changes suddenly.
lThe front passenger air bag deactivation indicator light may illuminate for 10 seconds
if the total seated weight on the front passenger seat changes.
lIf the front passenger air bag deactivation indicator light does not illuminate after
installing a child-restraint system on the front passenger seat, install the child-restraint
system on the rear seat and consult an Authorized Mazda Dealer as soon as possible.
Driver and front passenger buckle switches
The buckle switches on the front seat belts detect whether or not the front seat belts are
securely fastened and further control the deployment of the air bags.
Essential Safety Equipment
SRS Air Bags
2-57
Mazda6_8W89-EA-06K_Edition1 Page71
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K
Page 72 of 384
Black plate (72,1)
qHow the Side and Curtain Air Bags Work
When air bag crash sensors detect a side impact of greater than moderate force, an
electrical current is sent to the inflators.
Gases are produced to inflate the side and curtain air bags and after the inflation, the side
and curtain air bags quickly deflate.
The side and curtain air bags will function only once. After that, the side and curtain air
bags will not work again and must be replaced. Only an Authorized Mazda Dealer can
replace the systems.
The side and curtain air bag will deploy only
on the side the vehicle receives the force of
the impact.
WARNING
Do not place luggage or other objects under the front seats:
Placing luggage or other objects under the front seats is dangerous. The side and
curtain air bag wiring could be damaged, and in the event of a side collision, the side
and curtain air bags may not deploy, which could result in death or serious injury. To
prevent damage to the side and curtain air bag wiring, do not place luggage or other
objects under the front seats.
q Air Bag Activation/Deactivation
NOTE
If the front passenger seat weight sensors detect a total seated weight on the front
passenger seat is less than approximately 42 kg (93 lb), the front passenger front and side
air bags and seat belt pretensioner may not deploy (page 2-53), but the curtain air bags
may deploy.
2-58
Essential Safety Equipment
SRS Air Bags
Mazda6_8W89-EA-06K_Edition1 Page72
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K
Page 73 of 384
Black plate (73,1)
Front air bag activation
The front air bags will inflate if the
severity of impact is above the designed
threshold level.
lHitting a solid wall straight on at
greater than about 22 km/h (14 mph).
lHitting a curb, pavement edge or hard
object.
lLanding hard or the vehicle falling.
lFrontal impact within about a 30
degree range from head-on to the
vehicle.
lDriving into a big hole or hitting the far
side of a hole.
Limitations to front air bag activation
Depending on the severity of impact, the
front air bags may not inflate in the
following cases:
lImpacts involving trees or poles cause
severe cosmetic damage but may not
have enough stopping force to activate
the air bag.
lFrontal offset impact to the vehicle
may not provide the stopping force
necessary for air bag deployment.
Essential Safety Equipment
SRS Air Bags
2-59
Mazda6_8W89-EA-06K_Edition1 Page73
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K
Page 74 of 384
Black plate (74,1)
lRear-ending or running under a truck's
tail gate may not provide the stopping
force necessary for air bag deployment.
Non-activation of front air bags
Front air bags will not normally inflate in
the following cases:
lCollision from the rear.
lImpact to the side, but it may deploy
the side and curtain air bags.
lVehicle roll-over, may deploy the side
and curtain air bags but not the front air
bags.
Side and curtain air bag activation
The severity of impact above the designed
threshold level to one side of the vehicle
(driver or passenger side areas) will cause
the side and curtain air bags on that side
to inflate, but it will not normally deploy
the front air bags.
Limitations to side and curtain air bagactivation
Depending on the severity of impact, the
side and curtain air bags may not inflate in
the following cases:
lFrontal offset impact may not provide
enough side impact to deploy the side
and curtain air bags.
lSide impacts involving trees or poles
can cause severe cosmetic damage but
may not have enough impact force to
activate the side and curtain air bags.
2-60
Essential Safety Equipment
SRS Air Bags
Mazda6_8W89-EA-06K_Edition1 Page74
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

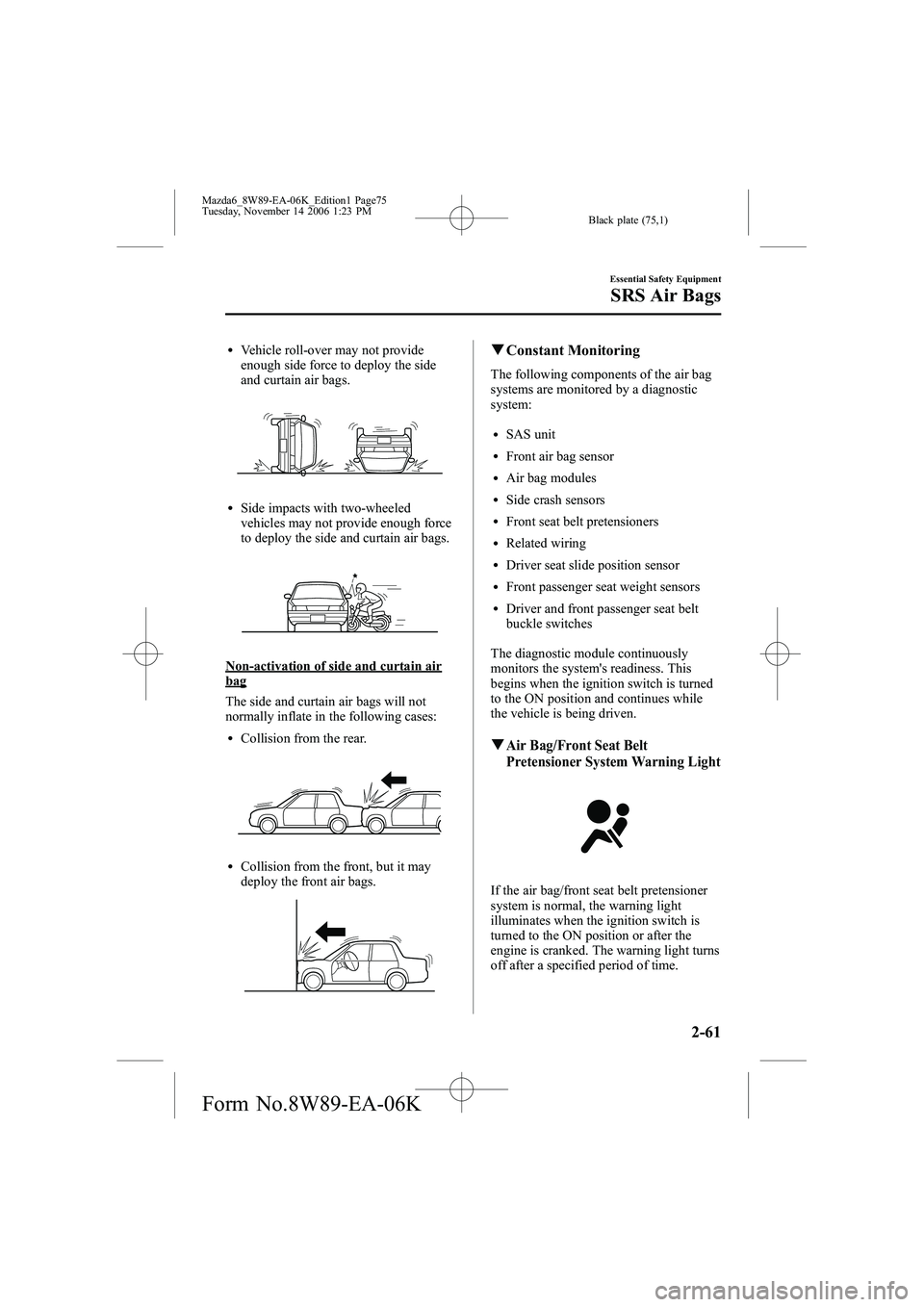

Page 75 of 384
Black plate (75,1)
lVehicle roll-over may not provide
enough side force to deploy the side
and curtain air bags.
lSide impacts with two-wheeled
vehicles may not provide enough force
to deploy the side and curtain air bags.
Non-activation of side and curtain airbag
The side and curtain air bags will not
normally inflate in the following cases:
lCollision from the rear.
lCollision from the front, but it may
deploy the front air bags.
qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unit
lFront air bag sensor
lAir bag modules
lSide crash sensors
lFront seat belt pretensioners
lRelated wiring
lDriver seat slide position sensor
lFront passenger seat weight sensors
lDriver and front passenger seat belt
buckle switches
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
Essential Safety Equipment
SRS Air Bags
2-61
Mazda6_8W89-EA-06K_Edition1 Page75
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K
Page 76 of 384
Black plate (76,1)
A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Never tamper with the air bag/pretensioner systems and always havean Authorized Mazda Dealer performall servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
lThe air bags have deployed.
lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to “Front passenger
seat weight sensors ”(page 2-53).
WARNING
Do not operate a vehicle with damagedair bag/seat belt pretensioner systemcomponents:
Expended or damaged air bag/seat
belt pretensioner system components
must be replaced after any collision
which caused them to deploy or
damage them. Only a trained
Authorized Mazda Dealer can fully
evaluate these systems to see that they
will work in any subsequent accident.
Driving with an expended or damaged
air bag or pretensioner unit will not
afford you the necessary protection in
the event of any subsequent accident
which could result in serious injury or
death.
Do not remove interior air bag parts:
Removing any components such as the
front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along the
roof edge, containing air bag parts or
sensors is dangerous. These parts
contain essential air bag components.
The air bag could accidentally activate
and cause serious injuries. Always
have an Authorized Mazda Dealer
remove these parts.
2-62
Essential Safety Equipment
SRS Air Bags
Mazda6_8W89-EA-06K_Edition1 Page76
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K
Page 77 of 384
Black plate (77,1)
WARNING
Dispose of the air bag properly:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury can
result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person with
certain medical conditions in
accordance with a certified physician,
contact an Authorized Mazda Dealer,
refer to“Customer Assistance (U.S.A.) ”
(page 9-2).
Essential Safety Equipment
SRS Air Bags
2-63
Mazda6_8W89-EA-06K_Edition1 Page77
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K
Page 78 of 384
Black plate (78,1)
2-64
Mazda6_8W89-EA-06K_Edition1 Page78
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K
Page 79 of 384
Black plate (79,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2Keys .......................................................................................... 3-2
Keyless Entry System ............................................................... 3-3
Door Locks ............................................................................... 3-9
Hatch (5-Door) ........................................................................ 3-12
Liftgate (Sport Wagon) ........................................................... 3-14
Trunk Lid (Sedan) ................................................................... 3-20
Inside Trunk Release Lever (Sedan) ....................................... 3-22
Power Windows ...................................................................... 3-23
Fuel-Filler Lid and Cap ........................................................... 3-30
Hood ....................................................................................... 3-32
Moonroof
í............................................................................. 3-33
Security System ........................................................................... 3-35 Immobilizer System ................................................................ 3-35
Theft-Deterrent System
í........................................................ 3-38
Steering Wheel and Mirrors ...................................................... 3-40 Steering Wheel ........................................................................ 3-40
Mirrors .................................................................................... 3-40
3-1íSome models.
Mazda6_8W89-EA-06K_Edition1 Page79
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K
Page 80 of 384
Black plate (80,1)
Keys
WARNING
Do not leave the keys in your vehiclewith children and keep them in a placewhere your children will not find orplay with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. These new kinds of keys are
fascinating to children. They could
play with power windows or other
controls, or even make the vehicle
move.
NOTE
lRefer to Immobilizer System (page
3-35) for information regarding keys
and engine starting.
l(With theft-deterrent system)
Refer to Theft-Deterrent System
(page 3-38) for information
regarding keys and the prevention of
vehicle and vehicle contents theft.
The keys operate all locks.
Key code number plate
Retractable
type key
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
NOTE
Write down the code number and keep
it in a separate safe and convenient
place, but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer and have
your code number ready.
Key extend/retract method (Retractabletype key)
To extend the key, press the release
button.
3-2
Knowing Your Mazda
Doors and Locks
Mazda6_8W89-EA-06K_Edition1 Page80
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K
