MAZDA MODEL 6 WAGON 2007 Owner's Guide

Black plate (31,1)
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out
of the vehicle. They could be seriously injured or even killed. In the same collision,
occupants wearing seat belts would be much safer.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. The front air bags and seat belt pretensioners deploy simultaneously
regardless of whether the driver or a front seat passenger is seated during a collision.
Therefore, both front seat belts must be inspected after a collision and replaced if
necessary. Have an Authorized Mazda Dealer inspect all seat belt systems in use
during an accident before they are used again.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way cannot spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time and always operate the vehicle with each occupant properly
restrained.
CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep them
clean. For more details about cleaning the seat belts, refer to“Cleaning the Lap/Shoulder
Belt Webbing ”(page 8-59).
Essential Safety Equipment
Seat Belt Systems
2-17
Mazda6_8W89-EA-06K_Edition1 Page31
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (32,1)
qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return to the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-29).
2-18
Essential Safety Equipment
Seat Belt Systems
Mazda6_8W89-EA-06K_Edition1 Page32
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (33,1)
Seat Belt (Except Center-
Rear Position)
NOTE
When using the center-rear seat belt,
refer to“Center-Rear Position Seat
Belt ”(page 2-23).
q Fastening the Seat Belts
1. Grasp the tongue.
2. Slowly pull out the lap/shoulder belt.
TongueBelt
3. Insert the tongue into the buckle until
you hear a click.
Buckle Tongue
WARNING
Positioning the Shoulder Portion ofthe Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Position the lap belt as low as possible, not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.
Keep low on
hip bone
Too high
Take up slack
WARNING
Positioning the Lap Portion of theSeat Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
Essential Safety Equipment
Seat Belt Systems
2-19
Mazda6_8W89-EA-06K_Edition1 Page33
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (34,1)
qUnfastening the Seat Belts
Depress the button on the buckle. If the
belt does not fully retract, pull it out and
check for kinks or twists. Then make sure
it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it
for kinks and twists. If it is still not
retracting properly, have it inspected at
an Authorized Mazda Dealer.
qShoulder Belt Adjusterí
Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
To raise the shoulder belt adjuster, push
the adjuster up. To lower the shoulder belt
adjuster, pull the button and slide it down.
Make sure the adjuster is locked.
WARNING
Positioning the Shoulder Portion ofthe Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
2-20
Essential Safety Equipment
íSome models.
Seat Belt Systems
Mazda6_8W89-EA-06K_Edition1 Page34
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (35,1)
Front Seat Belt Pretensioner
and Load Limiting Systems
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems.
In moderate or severe frontal or near-
frontal accidents, the front air bag and
pretensioner systems deploy
simultaneously. The front seat belt
retractors remove slack quickly as the air
bags are expanding. The seat belt
pretensioner system cannot provide
adequate protection in an accident if the
seat belt is not fastened properly. The load
limiting system releases belt webbing in a
controlled manner to reduce belt force on
the occupant's chest.
WARNING
Wear seat belts only as recommendedin this owner's manual:
Incorrect positioning of the driver and
front passenger seat belts is
dangerous. Without proper
positioning, the pretensioner and load
limiting systems cannot provide
adequate protection in an accident
and this could result in serious injury.
For more details about wearing seat
belts, refer to“Fastening the seat
belts ”(page 2-19).
WARNING
Do not use seat belts with expendedpretensioners:
One or both front air bags may deploy,
and the corresponding pretensioner(s)
will also deploy at the same time. Use
of front seat belts with the
pretensioner system expended is
dangerous. Like the air bags, the seat
belt pretensioners will only function
once. After they are expended, they
will not function again and must be
replaced immediately. If the seat belt
pretensioners are not replaced, the
risk of injury in a collision will
increase. Always have an Authorized
Mazda Dealer inspect the seat belt
pretensioners and air bags after any
collision. Expended seat belt
pretensioners and air bags must be
replaced after any collision which
caused them to deploy. Additionally,
the load limiter will only limit loads on
the chest once in a collision and this is
another reason to have the front seat
belts inspected.
Do not modify the components orwiring, or use electronic testingdevices on the pretensioner system:
Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable which
would prevent it from activating in an
accident. The occupants or repairers
could be seriously injured.
Essential Safety Equipment
Seat Belt Systems
2-21
Mazda6_8W89-EA-06K_Edition1 Page35
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

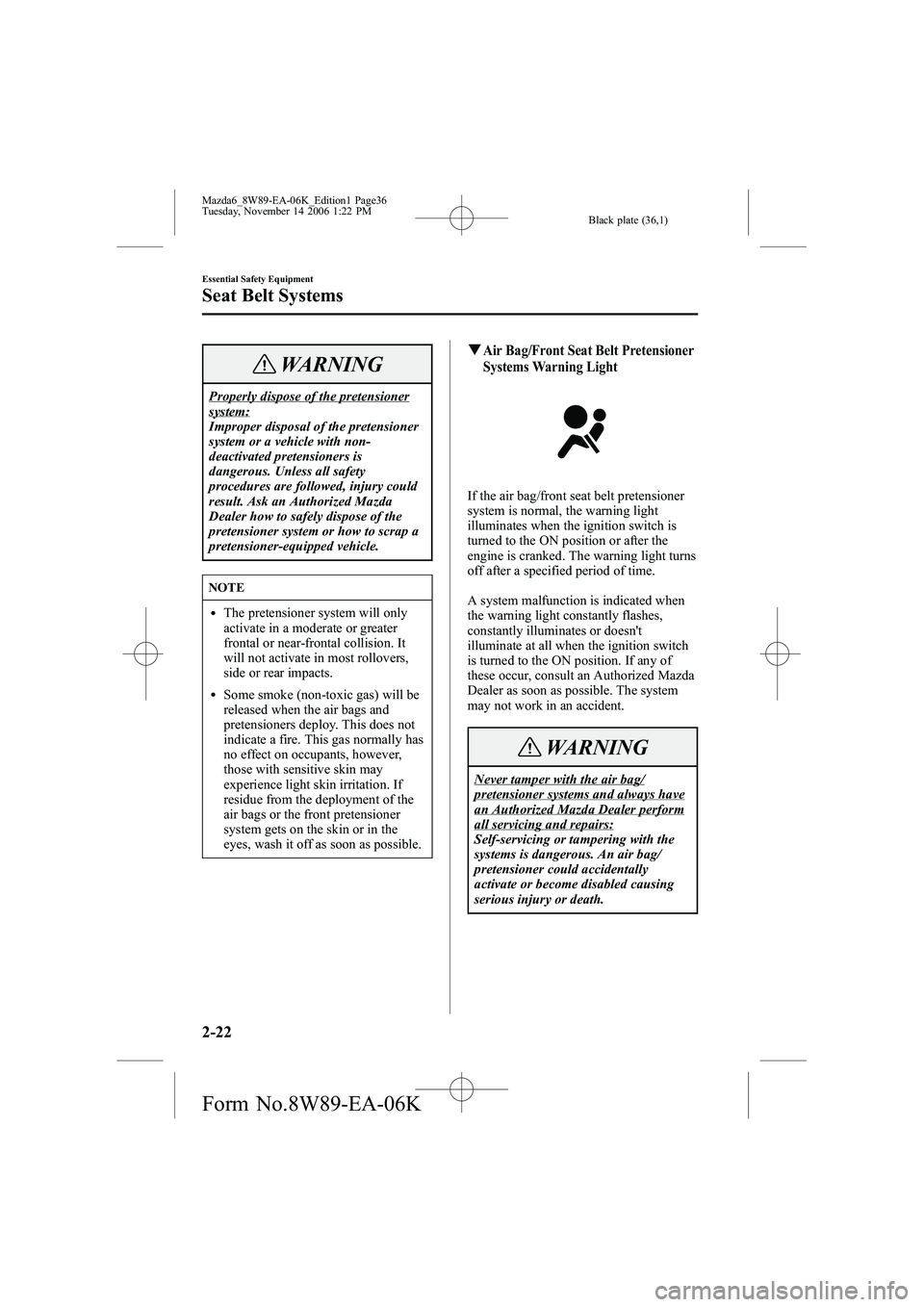

Black plate (36,1)
WARNING
Properly dispose of the pretensionersystem:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will only
activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in most rollovers,
side or rear impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally has
no effect on occupants, however,
those with sensitive skin may
experience light skin irritation. If
residue from the deployment of the
air bags or the front pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.
qAir Bag/Front Seat Belt Pretensioner
Systems Warning Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Never tamper with the air bag/pretensioner systems and always havean Authorized Mazda Dealer performall servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
2-22
Essential Safety Equipment
Seat Belt Systems
Mazda6_8W89-EA-06K_Edition1 Page36
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (37,1)
Center-Rear Position Seat
Belt
Before using the center-rear lap/shoulder
belt make sure tongue (A) and anchor
buckle (B) are fastened.
(A)
(B)
q Fastening the Seat Belt
1. Grasp the tongue (C).
2. Slowly pull out the lap/shoulder belt.
3. Insert the tongue (C) into the buckle
(D) until you hear a click.
(C)
(D) (B)
(A)
WARNING
Fastening the Center-Rear Seat Beltwith Only One Buckle:
Fastening the center-rear seat belt
with only one buckle is dangerous. If
only one pair of seat belt tongue and
buckle, either tongue (A) and anchor
buckle (B) or tongue (C) and anchor
buckle (D), is fastened, the seat belt
cannot provide full protection. In a
sudden stop or collision, the user
could slide under the belt and suffer
serious injuries. Always make sure
that both pairs of seat belt tongues and
buckles are fastened properly.
Positioning the Shoulder Portion ofthe Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Position the lap belt as low as possible, not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.
Essential Safety Equipment
Seat Belt Systems
2-23
Mazda6_8W89-EA-06K_Edition1 Page37
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (38,1)
WARNING
Positioning the Lap Portion of theSeat Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
qUnfastening the Seat Belt
Depress the button on the buckle. If the
belt does not fully retract, pull it out and
check for kinks or twists. Then make sure
it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it
for kinks and twists. If it is still not
retracting properly, have it inspected at
an Authorized Mazda Dealer.
qUnfastening the Lap Portion of
the Seat Belt
Insert a small object such as a key in the
anchor buckle (B) slot.
(B)
(A)
CAUTION
Always unfasten the lap portion of the
belt before folding the left-rear
seatback. Leaving the lap portion of the
belt fastened could cause damage to the
seat belt, buckle and seatback.
NOTE
To encourage rear seat passengers to
wear their seat belts, we suggest leaving
the center-rear lap position of the belt
fastened at all times except when
folding the rear seat forward.
2-24
Essential Safety Equipment
Seat Belt Systems
Mazda6_8W89-EA-06K_Edition1 Page38
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (39,1)
qFastening the Lap Portion of the
Seat Belt
Grasp tongue (A) and insert it into the
anchor buckle (B) until you hear a click. It
is now secure for passenger use.
NOTE
After returning the left-rear seatback to
its upright position, fasten the lap
portion of the belt.
qStowing and pulling out the
Center-Rear Position Seat Belt
The center-rear position seat belt can be
stowed using the following procedure.
CAUTION
When stowing the seat belt, make sure
the belt is locked securely into the
recess. If the seat belt is not locked
securely, it could fall down suddenly
and cause injury.
Sedan/5-Door
To stow the seat belt, retract the belt, put
tongues (A) and (C) together and insert
them into the recess. Sedan (Behind head restraint on left
side)
(A)
(C)
5-Door (Left side of luggage
compartment)
(A)(C)
To pull out the seat belt, slide tongues
with your finger, and slowly pull out the
seat belt from the recess.
Essential Safety Equipment
Seat Belt Systems
2-25
Mazda6_8W89-EA-06K_Edition1 Page39
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (40,1)
Sport Wagon
To stow the seat belt, retract the belt, put
tongues (A) and (C) together and insert
them into the ceiling recess.
(A)(C)
Ceiling recess
To pull out the seat belt, slide tongue (A)
with your finger while moving it
downward, and slowly pull out the seat
belt from the ceiling recess.
Seat Belt Extender
If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.
WARNING
Do not use a seat belt extender unlessit is necessary:
Using a seat belt extender when not
necessary is dangerous. The seat belt
will be too long and not fit properly. In
an accident, the seat belt will not
provide adequate protection and you
could be seriously injured. Only use
the extender when it is required to
fasten the seat belt properly.
Do not use an improper extender:
Using a seat belt extender that is for
another person or a different vehicle
or seat is dangerous. The seat belt will
not provide adequate protection and
the user could be seriously injured in
an accident. Only use the extender
provided for you and for the particular
vehicle and seat. NEVER use the
extender in a different vehicle or seat.
2-26
Essential Safety Equipment
Seat Belt Systems
Mazda6_8W89-EA-06K_Edition1 Page40
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K
