MAZDA MODEL 626 2001 Owners Manual

Form No. 8P95-EA-00G
Driving Your Mazda
5-107
76Y032-005
 Stopping
Press the power/volume knob to stop
MD play.
76Y032-032 Changing the MD display
To change the MD display during MD
play, press and hold the display button
for about half a second to advance
through each of the following
displays:
Song title Disc title No displayNOTEIf there is no song or disc title
recorded on the MD, “NO TITLE”
will be displayed.Long disc or song titles
When disc or song titles exceed 10
letters or numerals, press the display
button to display the remaining part of
the title.

Form No. 8P95-EA-00G
76Y032-033Ejecting the MD
Press the MD eject button to eject the
MD.Driving Your Mazda5-108

Error Indications
If you see an error indication on the
display, find the cause in the chart. If
you cannot clear the error indication,
take the vehicle to an Authorized
Mazda Dealer.Indication
Cause
Solution
CHECKMD
MD is inserted
upside down
Insert the MD properly. If the code does not disappear, consult an
Authorized Mazda Dealer
MD
MD is defective
Check the MD for scratches and/or soiling

Form No. 8P95-EA-00G
*Some models.Driving Your Mazda
5-109

Operating the Compact Disc
(CD) Player*/In-Dash CD
Changer*
To operate the CD player/in-dash CD
changer, turn the ignition switch to the
ACC or ON position.
 Inserting the CD (CD player)
Insert the CD into the slot, label-side
up. The auto-loading mechanism will
set the CD and begin play. There will
be a short lapse before play begins
while the player reads the digital
signals on the CD.
The disc in indicator will illuminate
and the track number will be
displayed.
Inserting the CD
(In-dash CD changer)
The CD must be label-side up when
inserting. The auto-loading
mechanism will set the CD and begin
play. There will be a short lapse before
play begins while the player reads the
digital signals on the CD.
The disc number and the track number
will be displayed.
NOTEA CD cannot be inserted while the
display reads “WAIT.” A beeping
sound can be heard during this
waiting time. Simultaneously
pressing the power/volume knob
and the load button for about 2
seconds will turn this beeping
sound ON or OFF.

Form No. 8P95-EA-00G
Driving Your Mazda5-11076Y032-012ANormal insertion
1. Press the load button.
2. When “In” is displayed, insert the
CD. Multiple insertion
1. Press and hold the load button for
about 2 seconds until a beep is
heard.
2. When “In” is displayed, insert the
CD.
3. When “In” is displayed again,
insert the next CD.
NOTEThe first-inserted CD will be
played automatically when:
• No CD is inserted within 15
seconds after “In” is displayed.
• The CD trays are full.

Form No. 8P95-EA-00G
Driving Your Mazda
5-111
Inserting CDs into desired tray
number
1. Press and hold the load button forabout 2 seconds until a beep is
heard.
2. Press the channel preset button for the desired tray number within 5
seconds after the beep is heard.
3. When “In” is displayed, insert the
CD.
NOTEThe CD can not be inserted to the
desired tray number if the number
is already occupied.
76Y032-013 Playing
Press the CD play button to start
playing when a CD is in the unit.

Form No. 8P95-EA-00G
Driving Your Mazda5-11276Y032-014Repeat play
This feature makes it possible to listen
to a selection repeatedly.
Press the repeat button during play.
The current selection will be repeated
(“RPT” will be displayed). Press the repeat button once again to
cancel repeat play.
76Y032-015
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button during play.
The next selection will be randomly
selected (“RDM” will be displayed).

Form No. 8P95-EA-00G
Driving Your Mazda
5-113

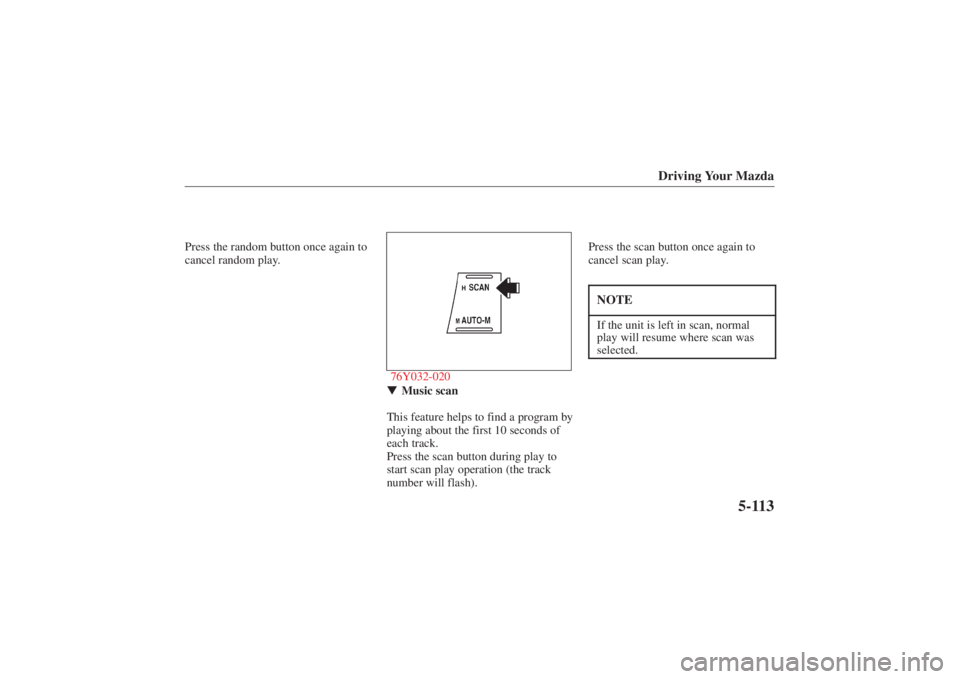

Press the random button once again to
cancel random play.
76Y032-020Music scan
This feature helps to find a program by
playing about the first 10 seconds of
each track.
Press the scan button during play to
start scan play operation (the track
number will flash). Press the scan button once again to
cancel scan play.
NOTEIf the unit is left in scan, normal
play will resume where scan was
selected.

Form No. 8P95-EA-00G

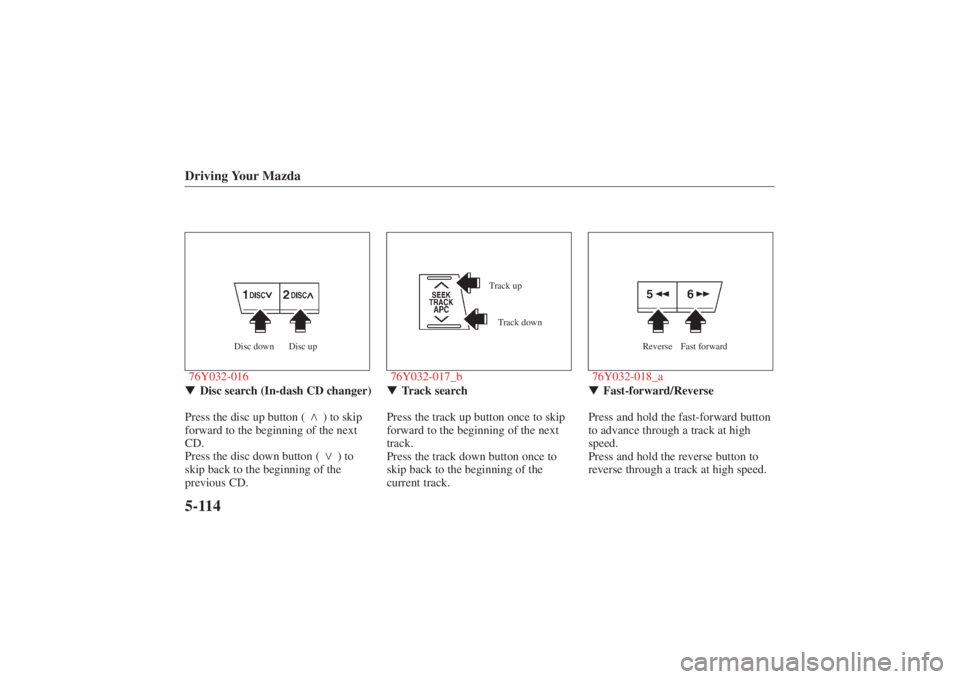

Driving Your Mazda5-11476Y032-016
Disc down Disc up
Disc search (In-dash CD changer)
Press the disc up button (
) to skip
forward to the beginning of the next
CD.
Press the disc down button (  ) to
skip back to the beginning of the
previous CD.
76Y032-017_b
Track up
Track down
 Track search
Press the track up button once to skip
forward to the beginning of the next
track.
Press the track down button once to
skip back to the beginning of the
current track.
76Y032-018_a
Reverse Fast forward
 Fast-forward/Reverse
Press and hold the fast-forward button
to advance through a track at high
speed.
Press and hold the reverse button to
reverse through a track at high speed.

Form No. 8P95-EA-00G
Driving Your Mazda
5-115
76Y032-005
 Stopping
Press the power/volume knob to stop
CD play.
76Y032-019 Ejecting the CD (CD player)
Press the CD eject button to eject the
CD.
Ejecting the CD
(In-dash CD changer)
Normal ejection
1. Press the CD eject button. The disc number and “OUT” will
be displayed.
2. Pull out the CD.

Form No. 8P95-EA-00G

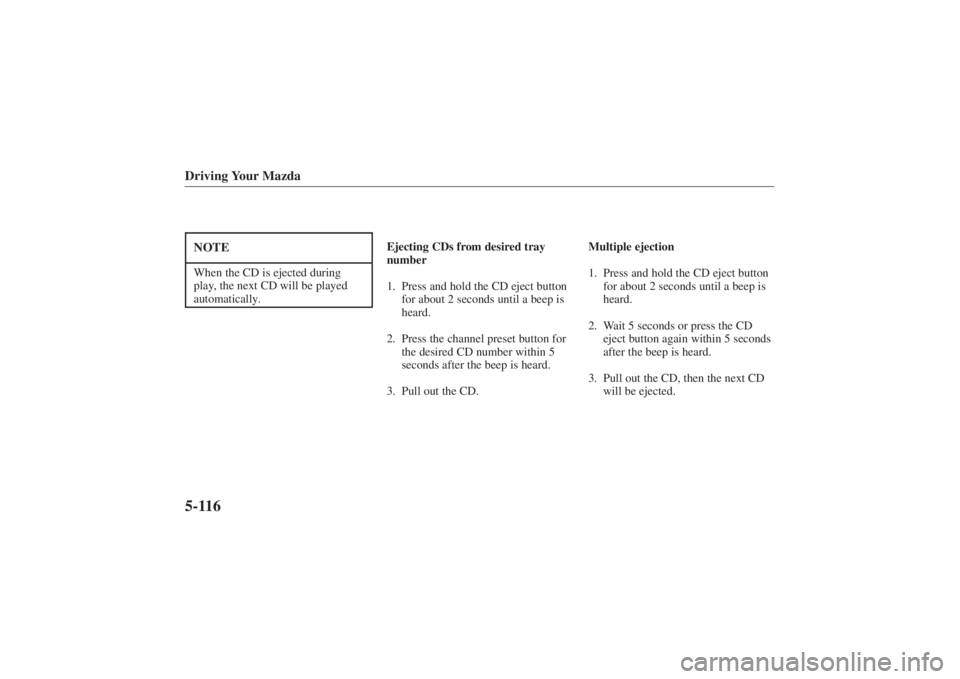

Driving Your Mazda5-116NOTEWhen the CD is ejected during
play, the next CD will be played
automatically.
Ejecting CDs from desired tray
number
1. Press and hold the CD eject buttonfor about 2 seconds until a beep is
heard.
2. Press the channel preset button for the desired CD number within 5
seconds after the beep is heard.
3. Pull out the CD. Multiple ejection
1. Press and hold the CD eject button
for about 2 seconds until a beep is
heard.
2. Wait 5 seconds or press the CD eject button again within 5 seconds
after the beep is heard.
3. Pull out the CD, then the next CD will be ejected.
