engine MAZDA MODEL 626 2001 Workshop Manual

Form No. 8P95-EA-00G
O/D
OFF
*Some models.
TCS
OFF
Driving Your Mazda
5-43

053-27AE
 O/D OFF Indicator Light
(Automatic Transaxle)
This light comes on when the
overdrive has been turned off.
CAUTION
!
If the overdrive-off indicator light
flashes, the transaxle has an
electrical problem. Continuing to
drive your Mazda in this
coondition could cause damage to
your transaxle. Consult an
Authorized Mazda Dealer as soon
as possible.
053-28DE
 Cruise Set Indicator
Light*
This light comes on when a cruising
speed is set.

053-54A1E
 Traction Control System
(TCS) OFF Indicator
Light*
This light comes on when the ignition
switch is turned to the ON position. It
goes off when the engine is started.
The light also comes on when you
switch off the TCS. If the TCS has
malfunction, the TCS OFF indicator
light will come on. If it comes on
while you’re driving, consult an
Authorized Mazda Dealer.

Form No. 8P95-EA-00G
Driving Your Mazda5-52NOTETo prevent discharging the battery,
don’t use the socket for long
periods with the engine off or
idling.
J94S5020
 Front Accessory Socket
The front accessory socket is in the
center panel. The front accessory socket can be used
for a lighter.
If a lighter is needed, one can be
purchased from your Authorized
Mazda Dealer.
After you have used the socket for
other plug-in accessories, the socket
may become unsuitable for the lighter.
Before using the lighter, have the
socket checked by your Authorized
Mazda Dealer.

Form No. 8P95-EA-00G
*Some models.
Driving Your Mazda5-60

Q067-1GE
Vanity Mirrors*Type A
Vanity mirrorJ94S5024
Cover
(Type A)
To use the vanity mirror, lower the
sunvisor and pull the mirror cover up.

Q067-1GE
Cover
Type B
J94S5025
Vanity mirror
(Type B)
To use the vanity mirror, lower the
sunvisor and pull the mirror cover up.
The vanity mirror light will come on
when you pull the cover up.
Climate Control System
Operating Tips
 Operating the climate control
system
Operate the climate control system
with the engine running.
 Foggy windows
The windows may fog up easily in
humid weather. Use the climate
control system to defrost the windows.

Form No. 8P95-EA-00G

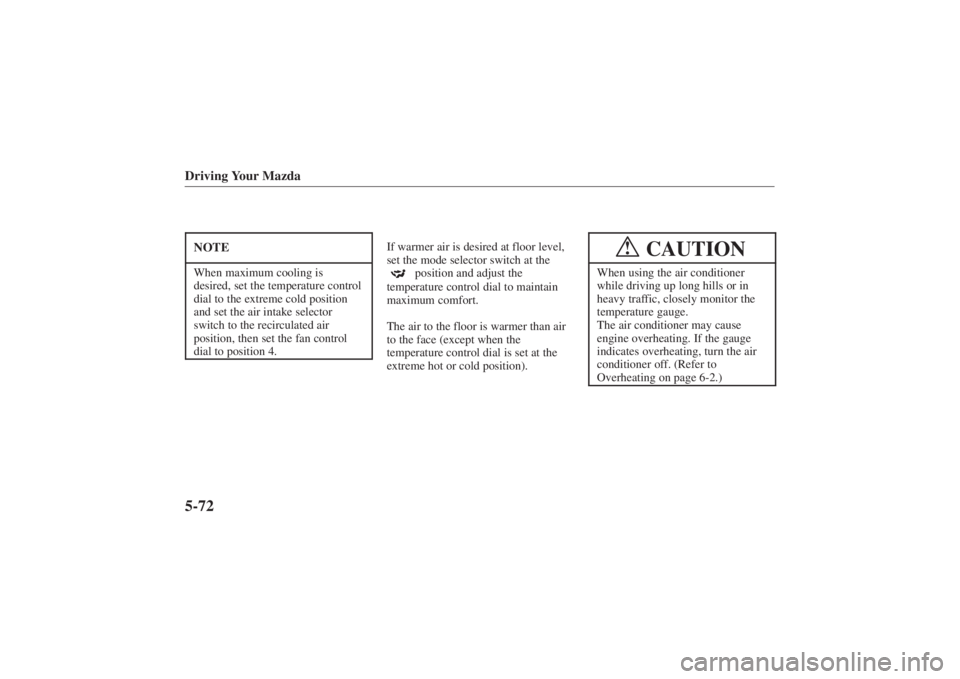

Driving Your Mazda5-72NOTEWhen maximum cooling is
desired, set the temperature control
dial to the extreme cold position
and set the air intake selector
switch to the recirculated air
position, then set the fan control
dial to position 4.
If warmer air is desired at floor level,
set the mode selector switch at the
position and adjust the
temperature control dial to maintain
maximum comfort.
The air to the floor is warmer than air
to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
CAUTION
!
When using the air conditioner
while driving up long hills or in
heavy traffic, closely monitor the
temperature gauge.
The air conditioner may cause
engine overheating. If the gauge
indicates overheating, turn the air
conditioner off. (Refer to
Overheating on page 6-2.)

Form No. 8P95-EA-00G
Driving Your Mazda5-8476Y032-005

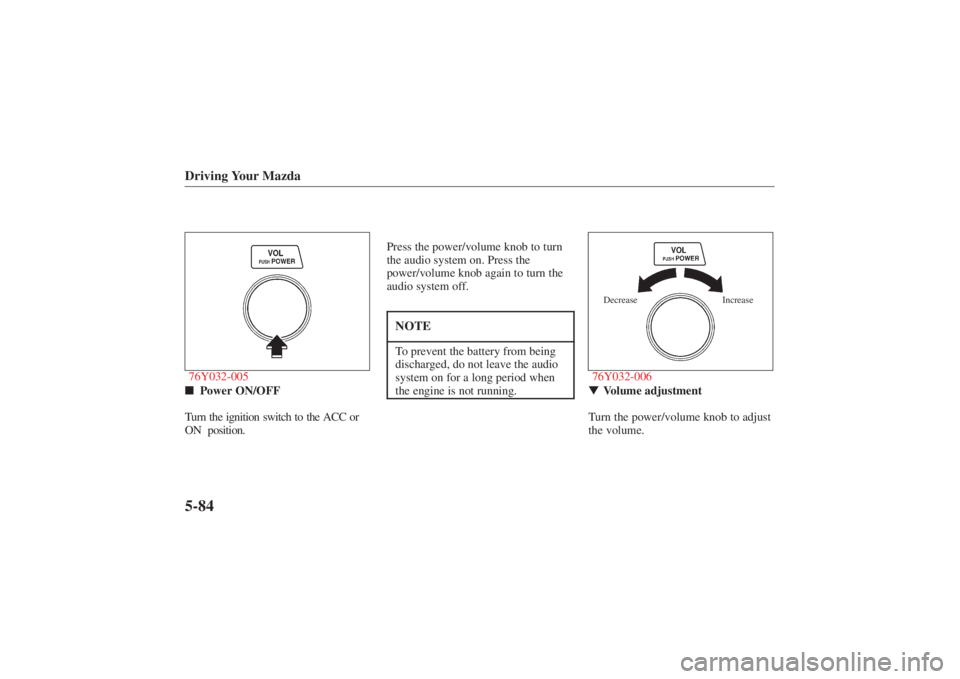

Power ON/OFF
Turn the ignition switch to the ACC or
ON position. Press the power/volume knob to turn
the audio system on. Press the
power/volume knob again to turn the
audio system off.
NOTETo prevent the battery from being
discharged, do not leave the audio
system on for a long period when
the engine is not running.
76Y032-006
Increase
Decrease
 Volume adjustment
Turn the power/volume knob to adjust
the volume.

Form No. 8P95-EA-00G

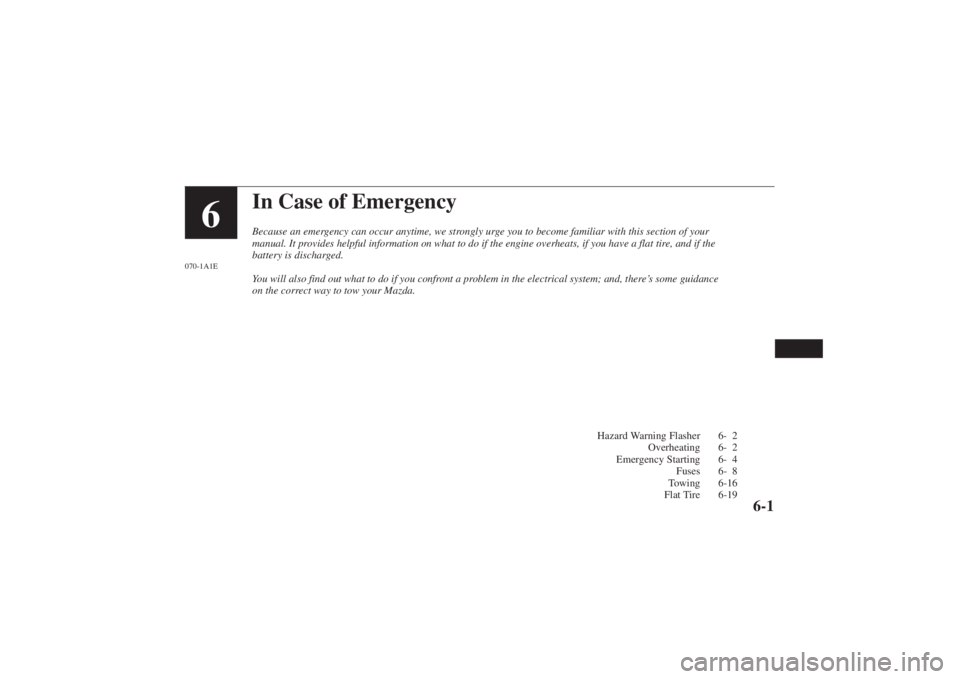

In Case of EmergencyBecause an emergency can occur anytime, we strongly urge you to become familiar with this section of your
manual. It provides helpful information on what to do if the engine overheats, if you have a flat tire, and if the
battery is discharged.
You will also find out what to do if you confront a problem in the electrical system; and, there’s some guidance
on the correct way to tow your Mazda.Hazard Warning Flasher 6- 2Overheating 6- 2
Emergency Starting 6- 4 Fuses 6- 8
Towing 6-16
Flat Tire 6-19
6
6-1
070-1A1E

Form No. 8P95-EA-00G
In Case of Emergency6-2
071-1A1E

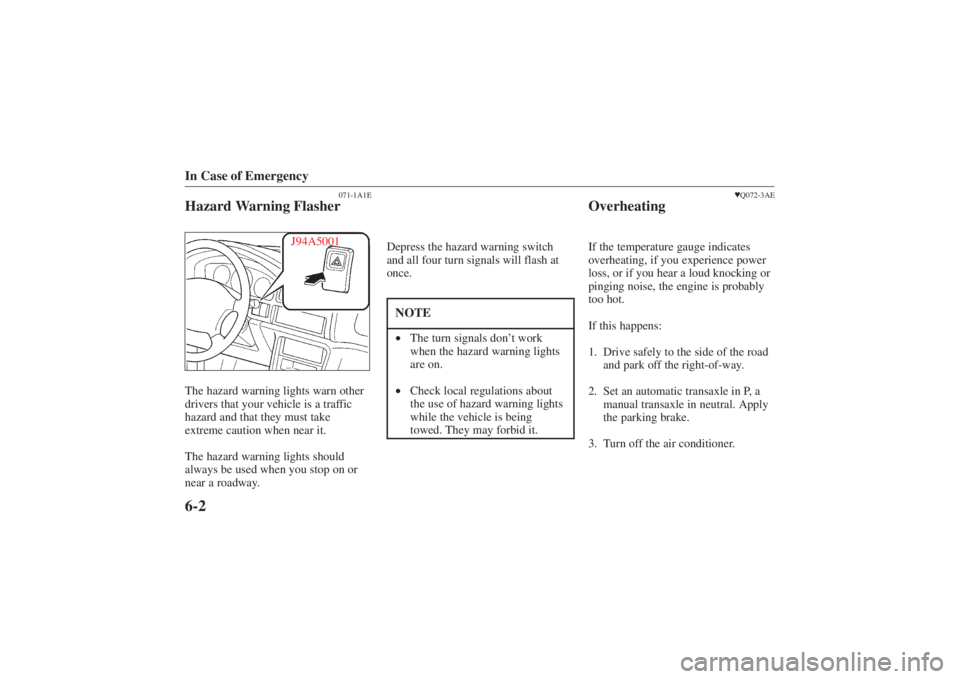

Hazard Warning Flasher
J94A5001
The hazard warning lights warn other
drivers that your vehicle is a traffic
hazard and that they must take
extreme caution when near it.
The hazard warning lights should
always be used when you stop on or
near a roadway.Depress the hazard warning switch
and all four turn signals will flash at
once.
NOTE•
The turn signals don’t work
when the hazard warning lights
are on.
• Check local regulations about
the use of hazard warning lights
while the vehicle is being
towed. They may forbid it.

Q072-3AE
OverheatingIf the temperature gauge indicates
overheating, if you experience power
loss, or if you hear a loud knocking or
pinging noise, the engine is probably
too hot.
If this happens:
1. Drive safely to the side of the road
and park off the right-of-way.
2. Set an automatic transaxle in P, a manual transaxle in neutral. Apply
the parking brake.
3. Turn off the air conditioner.

Form No. 8P95-EA-00G
In Case of Emergency
6-3
WARNING
!
Steam from Overheated Engine:Steam from an overheated engine
is dangerous. The escaping steam
could seriously burn you. Open
the hood ONLY after steam is no
longer escaping from the engine.4. Check whether coolant or steam isescaping from the hood or from the
engine compartment.
If steam is coming from the engine
compartment, don’ t go near the
front of the vehicle. Stop the
engine. Then turn the ignition
switch to the ON position without
starting the engine. The radiator cooling fans will start to cool the
engine.
If neither coolant nor steam is
escaping, open the hood and idle
the engine until it cools. If this
doesn’
t lower the temperature, stop
the engine and let it cool.
5. Check the coolant level. If it’ s low, look for leaks in the
radiator hoses and connections,
heater hoses and connections,
radiator, and water pump.
If you find a leak or other damage,
or if coolant is still leaking, stop the
engine and call an Authorized
Mazda Dealer. If you find no problems, the engine
is cool, and no leaks are obvious,
carefully add coolant as required
(page 8-21).

Form No. 8P95-EA-00G
In Case of Emergency6-4
072-2CE
WARNING
!
Cooling System Caps:When the engine and radiator are
hot, scalding coolant and steam
may shoot out under pressure and
cause serious injury. Don’t
remove either cooling system cap
when the engine and radiator are
hot.
CAUTION
!
If the engine continues to overheat
or frequently overheats, have the
cooling system inspected. The
engine could be seriously damaged
unless repairs are made.

073-1A2E
Emergency Starting Jump-Starting
Jump-starting is dangerous if done
incorrectly. So follow the procedure
carefully. If you feel unsure about
jump-starting, we strongly recommend
that you have a competent service
technician do the work.
CAUTION
!
Use only a 12-volt booster system.
You can damage a 12-volt starter
motor, ignition system, and other
electrical parts beyond repair with
a 24-volt power supply (two
12-volt batteries in series or a
24-volt motor generator set).
WARNING
!
Battery-Related Explosion:Flames and sparks near open
battery cells are dangerous.
Hydrogen gas, produced during
normal battery operation, could
ignite and cause the battery to
explode. An exploding battery can
cause serious burns and injuries.
Keep all flames, including
cigarettes, and sparks away from
open battery cells.

Form No. 8P95-EA-00G
In Case of Emergency
6-5
WARNING
!
Jump-Starting:Jump-starting a frozen battery or
one with a low fluid level is
dangerous. It may rupture or
explode, causing serious injury.
Don’t jump-start a frozen battery
or one with a low fluid level.

073-2A3E
(+)
(+)
(–)
(–)
Connect cables in
numerical order
and disconnect in
reverse order.
Booster
battery
Jumper cables
Discharged
battery
2.0-liter engine
94S060–0031. Make sure the booster battery is 12
volts and that its negative terminal is
grounded.
(+) (+)
(–)
(–)
Connect cables in
numerical order
and disconnect in
reverse order.
Booster
battery
Jumper cables
Discharged
battery
2.5-liter engine
94S060–002
CAUTION
!
If the booster battery is in another
vehicle, don’ t allow the vehicles to
touch. A short could be created.
