Page 113 of 365
Form No. 8P95-EA-00G
Protecting Your Mazda
4-7
WARNING
!
Snow Blocking the Exhaust Gas:Running the engine when a
vehicle is stopped in deep snow is
dangerous. The exhaust pipe
could be blocked by the snow,
allowing exhaust gas to enter the
cabin. Because exhaust gas
contains poisonous carbon
monoxide, anyone in the cabin
could be injured or killed. Clear
the snow from underneath and
around your vehicle before
starting the engine.
034-1AE
Before DrivingBefore Getting In
• Be sure the windows, outside
mirror(s), and outside lights are
clean.
• Inspect inflation pressures and
condition of tires.
• Look under the vehicle for any sign
of a leak.
• If you plan to back up, make sure
nothing will be in your way.
034-2AE
NOTEEngine oil, engine coolant,
brake/clutch fluid, washer fluid,
and other fluid levels should be
inspected daily, weekly, or at
refueling, depending on the fluid.
See Maintenance, Section 8.
Page 115 of 365
Form No. 8P95-EA-00G
Protecting Your Mazda
4-9
036-1AE
Money-Saving SuggestionsHow you operate your Mazda
determines how far it will travel on a
tank of fuel. Use these suggestions to
help save money on fuel and repairs.
•Avoid long warm-ups. Once the
engine runs smoothly, begin
driving.
• Avoid fast starts.
• Keep the engine tuned. Follow the
maintenance schedule (page 8-3)
and have an Authorized Mazda
Dealer perform inspections and
servicing.
• Use the air conditioner only when
necessary. •
Slow down on rough roads.
• Keep the tires properly inflated.
• Don’ t carry unnecessary weight.
• Don’ t rest your foot on the brake
pedal while driving.
• Keep the wheels in correct
alignment.
• Keep windows closed at high
speeds.
• Slow down when driving in
crosswinds and headwinds.
036-2AE
WARNING
!
Coasting:Turning off the engine to coast
down a hill can be dangerous.
This causes the loss of power
steering and power brake control.
Any loss of steering or braking
control could cause an accident.
Never turn off the engine and
coast down a hill.
Page 118 of 365
Form No. 8P95-EA-00G
Protecting Your Mazda4-12
Q037-7IE
Winter Driving
• Carry emergency gear, including
tire chains, window scraper, flares,
a small shovel, jumper cables, and
a small bag of sand or salt.
• Have the proper ratio of antifreeze
in the radiator (page 8-22).
• Inspect the battery and its cables.
Cold reduces battery capacity.
• Use only cold-weather engine oil
(page 8-16).
• Inspect the ignition system for
damage and loose connections. •
Use washer fluid made with
antifreeze—but don’ t use engine
coolant antifreeze for washer fluid
(page 8-33).
• Don’ t use the parking brake if it
might freeze. Instead, shift to P
with an automatic transaxle and to
1 or R with a manual. Block the
rear wheels.
037-8H1E
Snow tires
Your vehicle is originally equipped
with all season radials designed to be
used all year around. In some extreme
climates you may find it necessary to
replace them with snow tires during
the winter months to further improve
traction on snow and ice covered roads.
Use snow tires on all four wheels.
Don’ t go faster than 120 km/h (75
mph). Inflate snow tires 28 kPa (0.3
kgf/cm
2, 4 psi) more than
recommended on the tire pressure
label (driver ’s door), but never more
than the maximum cold-tire pressure
shown on the tires.
Page 248 of 365
Form No. 8P95-EA-00G
In Case of EmergencyBecause an emergency can occur anytime, we strongly urge you to become familiar with this section of your
manual. It provides helpful information on what to do if the engine overheats, if you have a flat tire, and if the
battery is discharged.
You will also find out what to do if you confront a problem in the electrical system; and, there’s some guidance
on the correct way to tow your Mazda.Hazard Warning Flasher 6- 2Overheating 6- 2
Emergency Starting 6- 4 Fuses 6- 8
Towing 6-16
Flat Tire 6-19
6
6-1
070-1A1E
Page 266 of 365
Form No. 8P95-EA-00G
In Case of Emergency
6-19
076-1B1E
Flat Tire Tire, Jack, and Lug Wrench
Tool bag Jack
Spare tire (page 6-27)
J94S6013
Page 268 of 365
Form No. 8P95-EA-00G
In Case of Emergency
6-21
076-6A3E
Changing a Flat TireNOTEIf the following occurs while
driving, it could indicate a flat tire.
•Steering becomes difficult.
• The vehicle begins to vibrate
excessively.
• The vehicle pulls in one
direction.If you have a flat tire, drive slowly to a
level spot that is well off the road and
out of the way of traffic to change the
tire. Stopping in traffic or on the
shoulder of a busy road is dangerous.
WARNING
!
Jacking a Vehicle:Changing a tire can be
dangerous. The vehicle can slip
off the jack and seriously injure
someone.
Be sure to follow the directions
for changing a tire, and never get
under a vehicle that is supported
only by a jack.
076-31AE
To change a flat tire, follow procedure
1 through 15 carefully.
Q076-7A1E
Wheel block Flat tireJ94A50161. Park on a level surface off the
right-of-way and firmly set the
parking brake.
2. Shift an automatic transaxle to P or shift a manual transaxle to R, and
turn off the engine.
Page 269 of 365
Form No. 8P95-EA-00G
In Case of Emergency6-22
076-8B2E

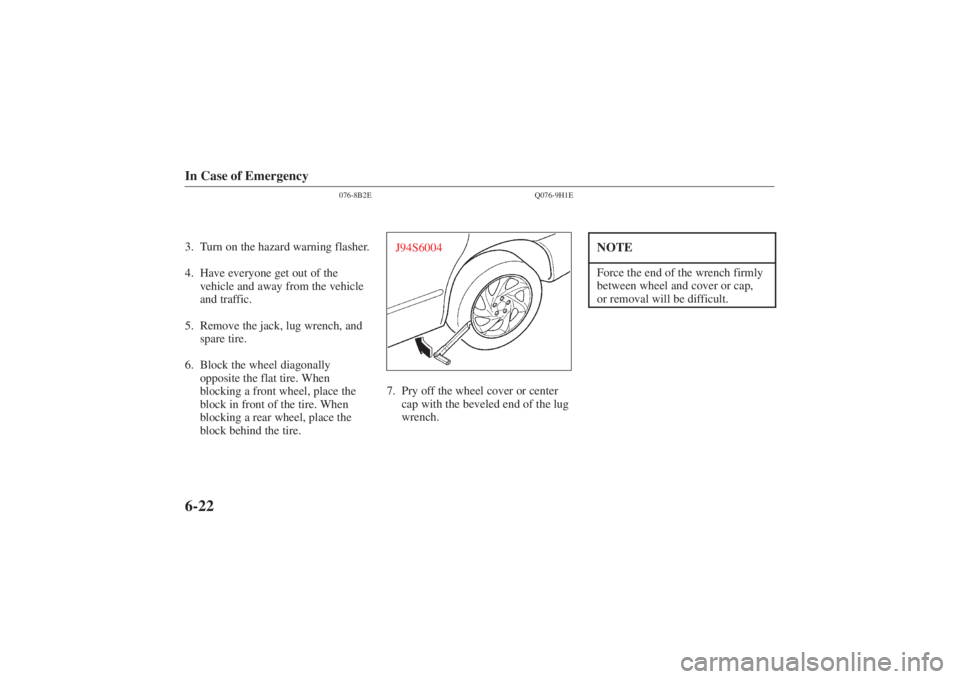

3. Turn on the hazard warning flasher.
4. Have everyone get out of thevehicle and away from the vehicle
and traffic.
5. Remove the jack, lug wrench, and spare tire.
6. Block the wheel diagonally opposite the flat tire. When
blocking a front wheel, place the
block in front of the tire. When
blocking a rear wheel, place the
block behind the tire.
Q076-9H1E
J94S60047. Pry off the wheel cover or centercap with the beveled end of the lug
wrench.
NOTEForce the end of the wrench firmly
between wheel and cover or cap,
or removal will be difficult.
Page 297 of 365
Form No. 8P95-EA-00G
I: Inspect and repair, clean, adjust, or replace if necessary
L : Lubricate
Maintenance
8-9
Schedule 2 (Cont ’d)
MAINTENANCE
INTERVALS
Number of months or miles (kilometers), whichever comes first
INTERVALS
Months
4
8
12
16
20
24
28
32
36
40
44
48
MAINTENANCE
1000 km
8
16
24
32
40
48
56
64
72
80
88
96
MAINTENANCE
ITEM
( 1000 miles)
(5)
(10)
(15)
(20)
(25)
(30)
(35)
(40)
(45)
(50)
(55)
(60)
Brake and clutch fluid level
I
I
I
I
I
I
I
I
I
I
I
I
Drum brakes
I
I
Disc brakes
I
I
I
I
Tire inflation pressure and tire wear
I
I
I
I
I
I
I
I
I
I
I
I
Steering operation and linkages
I
I
Power steering fluid level
I
I
I
I
I
I
I
I
I
I
I
I
Front suspension ball joints
I
I
Driveshaft dust boots
I
I
Bolts and nuts on chassis and body
I
I
I
I
Exhaust system heat shields
I
I
All locks and hinges
L
L
L
L
L
L
L
L
L
L
L
L
Page 299 of 365
Form No. 8P95-EA-00G
Maintenance
8-11
083-1AE
Owner MaintenanceOwner Maintenance Schedule
The owner or a qualified service
technician should make these vehicle
inspections at the indicated intervals to
ensure safe and dependable operation.
Bring any problem to the attention of
an Authorized Mazda Dealer or
qualified service technician as soon as
possible.
When refueling
• Brake and clutch fluid level
(page 8-25) •
Engine coolant level
(page 8-21)
• Engine oil level
(page 8-17)
• Washer fluid level
(page 8-33)
At least monthly
• Tire inflation pressures
(page 8-41)
083-46A1E
At least twice a year
(for example, every spring and
fall)
• Automatic transaxle fluid level
(page 8-29)
• Power steering fluid level
(page 8-27)
You can do the following scheduled
maintenance items if you have some
mechanical ability and a few basic
tools and if you closely follow the
directions in this manual.
• Air filter
(page 8-34)
Page 328 of 365
Form No. 8P95-EA-00G
Maintenance8-40•Keep terminals and connections
clean, tight, and coated with
petroleum jelly or terminal grease.
• Rinse off spilled electrolyte
immediately with a solution of
water and baking soda.
• If the vehicle will not be used for
an extended time, disconnect the
battery cables.
083-33A4E
Tires
For reasons of proper performance,
safety, and better fuel economy,
always maintain recommended tire
inflation pressures and stay within the
recommended load limits and weight
distribution.
WARNING
!
Using Different Tire Types:Driving your vehicle with
different types of tires is
dangerous. It could cause poor
handling and poor braking;
leading to loss of control. Except
when using the temporary spare
tire, use only the same type tires
(radial, bias-belted, bias-type) on
all four wheels.
