MAZDA MODEL 626 2002 Owners Manual
Manufacturer: MAZDA, Model Year: 2002, Model line: MODEL 626, Model: MAZDA MODEL 626 2002Pages: 250, PDF Size: 4.83 MB
Page 241 of 250
10-3
Identification Numbers
Form No. 8Q50-EA-01G

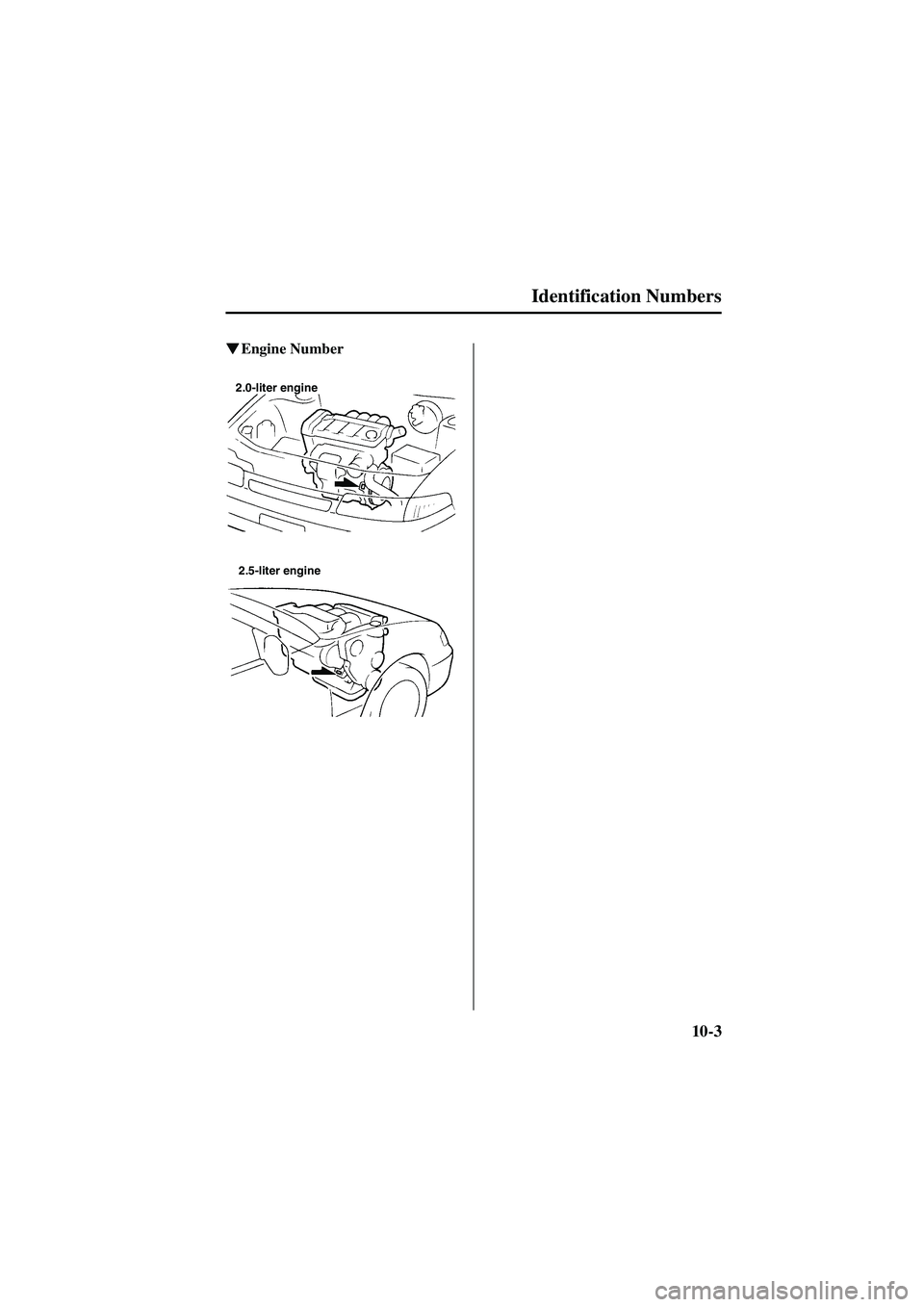

Engine Number
2.0-liter engine
2.5-liter engine
J94S.book Page 3 Saturday, June 23, 2001 1:04 PM
Page 242 of 250
10-4
Form No. 8Q50-EA-01G
Specifications
Engine
Electrical System
*1Manual transaxle*2Automatic transaxle
Lubricant Quality
*Refer to the recommended SAE viscosity numbers on 8-10.
Specifications
Model
Item 2.0-liter engine 2.5-liter engine
Type DOHC-16V in-line, 4-cyl DOHC-24V V6 6-cyl
Bore ×Stroke 83.0 × 92.0mm (3.27 × 3.62 in) 84.5 × 74.2mm (3.33 × 2.92 in)
Displacement 1,991 ml (1,991 cc , 121.5 cu in) 2,496 ml (2,496 cc , 152.3 cu in)
Compression ratio 9.19.5
Model
Item 2.0 liter engine
2.5-liter engine
Battery Maintenance-free 12V-48AH/5HR
Alternator 12V-80A12V-90A
Starter 12V-1.0 kW
12V-1.7 kW
*1, 12V-1.6 kW *2
Spark-plug
numberNGK BKR5E-11, BKR6E-11
—
DENSO K16PR-U11, K20PR-U11 PKJ16CR8, PKJ20CR8
Spark-plug gap 1.0 —1.1 mm (0.040 —0.043 in) 0.7 —0.8 mm (0.028 —0.031 in)
Lubricant Classification
Engine oil
*
API Service ILSAC
SG (Energy Conserving II) —
SH (Energy Conserving II) GF-I
SJ GF-II
SL GF-III
Manual transaxle oil Any temperature
API Service GL-4 or GL-5
(SAE 75W-90)
Above 50
°F (10 °C)
API Service GL-4 or GL-5
(SAE 80W-90)
Automatic transaxle fluid 2.0-liter engine ATF M-III or equivalent (e.g. Mercon
®)
2.5-liter engine ATF M-III or equivalent (e.g. Dexron ® III)
Power steering fluid ATF M-III or equivalent (e.g. Dexron® II)
Brake/clutch fluid SAE J1703 or FMVSS116 DOT-3
J94S.book Page 4 Saturday, June 23, 2001 1:04 PM
Page 243 of 250
10-5
Specifications
Form No. 8Q50-EA-01G
Capacities
(Approximate Quantities)
*The indicated engine oil capacities are for general reference purposes only. When adding
or changing oil, verify the engine oil level with the oil dipstick.
Dimensions
Unit: mm (in)
We i g h t s
Unit: kg (lb)
GVWR: Gross Vehicle Weight Rating
GAWR: Gross Axle Weight Rating
Unit
Item L US qt Imp qt
Engine oil
*
2.0-liter engine with oil filter
replacement
3.5 3.7 3.1
without oil filter
replacement 3.3 3.5 2.9
2.5-liter engine with oil filter
replacement
4.0 4.2 3.5
without oil filter
replacement 3.7 3.9 3.3
Coolant 7.5 7.9 6.6
Transaxle oil Manual transaxle 2.7 2.9 2.4
Automatic
transaxle
2.0-liter engine 8.86 9.37 7.80
2.5-liter engine 8.0 8.5 7.0
Fuel tank L US gal Imp gal
64.0 16.9 14.1
Overall length 4,760 (187.4)
Overall width 1,760 (69.3)
Overall height 1,400 (55.1)
Front tread 1,500 (59.1)
Rear tread 1,490 (58.7)
Wheelbase 2,670 (105.1) Model
Item 2.0-liter engine 2.5-liter engine
GVWR 1,771 (3,904) 1,827 (4,028)
GAWR Front 959 (2,114) 1,004 (2,214)
Rear 812 (1,790) 823 (1,814)
J94S.book Page 5 Saturday, June 23, 2001 1:04 PM
Page 244 of 250
10-6
Specifications
Form No. 8Q50-EA-01G
Air Conditioner
Light Bulbs
Tires
Standard tire
Temporary spare tire
Fuses ................................................................................................................ Refer to 8-35
Gas complies with SAE J639 R-134a
Maximum operating charge 0.75 kg (26.5 oz)
Light bulb Wattage
Headlights 60/55
Front turn signal/Parking lights 27/8
Rear-turn signal lights 27
Brake lights/Taillights 27/7
High-mount brake lights 27
Reverse lights 18
License plate lights 5
Trunk light 5
Interior lights 10
Map light 5
Courtesy lights 5
Item
Ty p e Tire size
Inflation pressure kgf/cm
2(psi or lb/po 2)
Front Rear
2.0-liter engine P205/60R15 90H 2.2 (32)1.8 (26)
2.5-liter engine P205/60R15 90H
P205/55R16 89H 2.0 (29)
Tire size Inflation pressure kPa (psi)
T125/70D15 420 (60)
J94S.book Page 6 Saturday, June 23, 2001 1:04 PM
Page 245 of 250
11-1
Form No. 8Q50-EA-01G

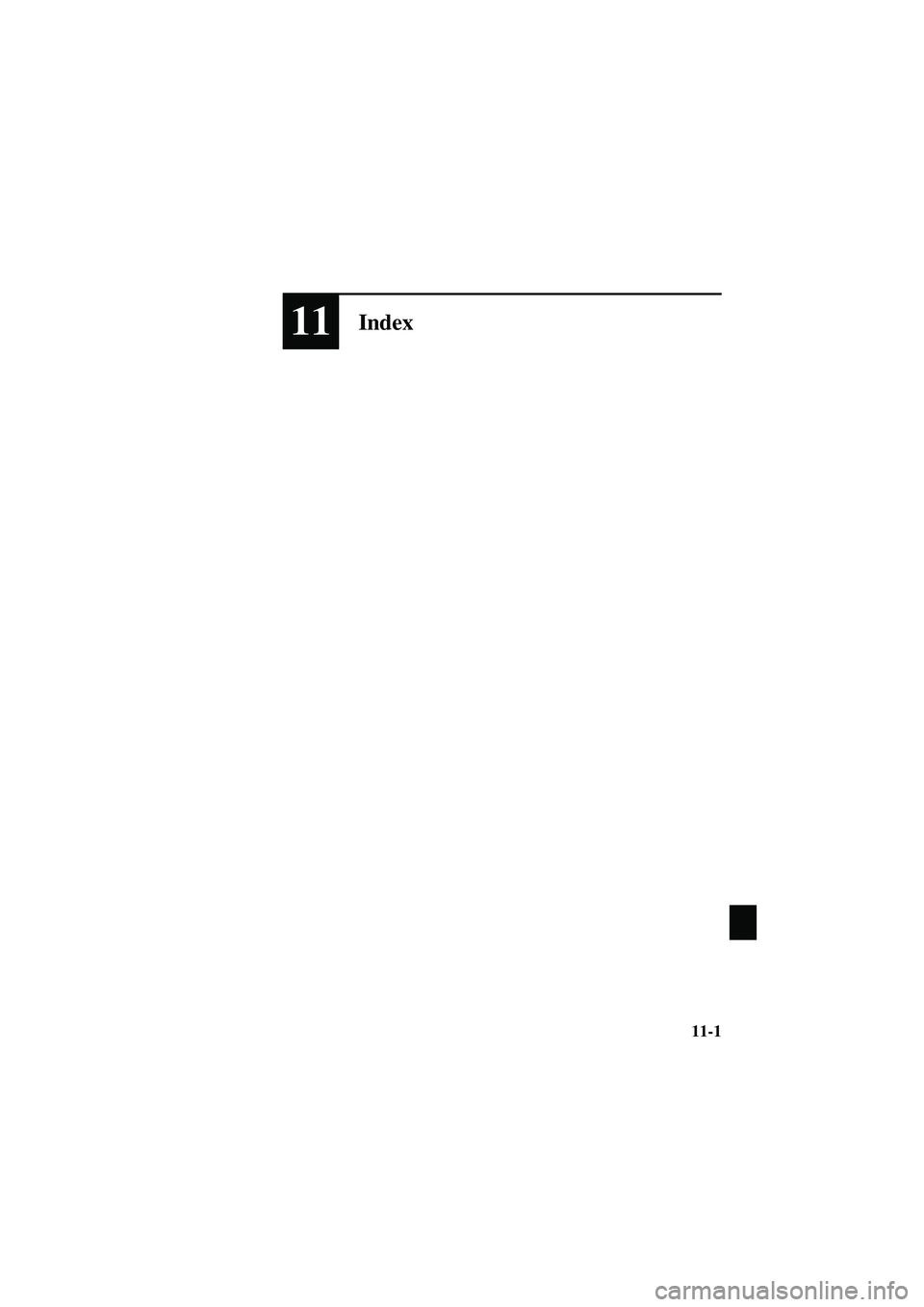

11Index
J94S.book Page 1 Saturday, June 23, 2001 1:04 PM
Page 246 of 250
11-2
Form No. 8Q50-EA-01G
Index
A
Accessory Socket ............................. 6-38
Add-On Non-Genuine Parts and
Accessories
...................................... 9-10
Air Bag Systems
.............................. 2-25
Air Filter
.......................................... 8-21
Antenna
............................................ 6-11
Anti-Lock Brake System (ABS)
........ 5-6
Warning light
.............................. 5-7
Appearance Care
.............................. 8-40
Audio System
................................... 6-11
Audio set
................................... 6-19
Operating tips for
audio system
............................. 6-11
Safety certification
.................... 6-36
Automatic Transaxle Driving tips
............................... 5-12
Fluid
.......................................... 8-18
Overdrive
.................................. 5-11
Shift-lock system
...................... 5-10
Transaxle ranges
......................... 5-9
B
Battery Emergency starting
................... 7-12
Maintenance
............................. 8-24
Specifications
........................... 10-4
Beeps Ignition key reminder
............... 5-31
Lights-on reminder
................... 5-31
Before Starting the Engine
................. 4-6
After getting in
........................... 4-6
Before getting in
......................... 4-6
Body Lubrication
............................. 8-21
Brake/Clutch Fluid
.......................................... 8-15
B
BrakesAnti-lock brake system (ABS)
.... 5-6
Foot brake
................................... 5-4
Pad wear indicator
...................... 5-7
Parking brake
.............................. 5-5
Warning light
.............................. 5-5
Break-In Period
.................................. 4-7
Bulb Replacement
............................ 8-29
C
Capacities ......................................... 10-5
Carbon Monoxide
.............................. 4-5
Catalytic Converter
............................ 4-4
Cell Phones
...................................... 9-11
Center Console
................................. 6-43
Center Pocket
................................... 6-42
Child Restraint Child restraint precautions
........ 2-18
Installing child-restraint
systems
...................................... 2-21
Child Safety Lock for Rear Door
....... 3-5
Climate Control System
..................... 6-2
Gas specifications
..................... 10-6
Courtesy Light
.................................. 6-38
Cruise Control
.................................. 5-13
Cup Holders
..................................... 6-40
Customer Assistance
.......................... 9-2
D
Dashboard Illumination .................... 5-22
Daytime Running Lights
.................. 5-33
Defroster Rear window
............................. 5-35
Dimensions
....................................... 10-5
Door Locks
......................................... 3-3
Driving In Flooded Area
.................. 4-10
J94S.book Page 2 Saturday, June 23, 2001 1:04 PM
Page 247 of 250
11-3
Index
Form No. 8Q50-EA-01G
D
Driving Tips ....................................... 4-7
Automatic transaxle
.................. 5-12
Break-in period
........................... 4-7
Driving in flooded area
............. 4-10
Hazardous driving
....................... 4-8
Money-saving suggestions
.......... 4-7
Rocking the vehicle
.................... 4-8
Trailer towing
........................... 4-11
Winter driving
............................. 4-9
E
Emergency Starting .......................... 7-12
Flooded engine
.......................... 7-12
Jump-starting
............................ 7-12
Push-starting
............................. 7-14
Emergency Towing
.......................... 7-15
Emission Control System
................... 4-4
Engine Coolant
...................................... 8-13
Exhaust gas
................................. 4-5
Hood release
............................... 3-9
Oil
............................................. 8-10
Overheating
............................... 7-10
Starting
........................................ 5-3
Engine Compartment Overview
........ 8-9
Engine Coolant Overheating
............................... 7-10
Engine Coolant Temperature
Gauge
............................................... 5-21
Exhaust Gas
....................................... 4-5
Exterior Care
.................................... 8-42
Eyeglass Holder
............................... 6-41
F
Flasher Hazard warning
.........................5-36
Headlights
.................................5-32
Flat Tire
..............................................7-3
Changing
.....................................7-5
Spare tire and tool storage
...........7-3
Fluids Classification
.............................10-4
Owner maintenance
.....................8-7
Foot Brake
..........................................5-4
Front seats
..........................................2-2
Fuel Filler lid and cap
.......................3-14
Gauge
........................................5-22
Requirements
..............................4-2
Tank capacity
............................10-5
Fuses
.................................................8-35
Panel description
.......................8-37
Replacement
..............................8-35
G
Gauges ..............................................5-19
Glove Box
........................................6-42
H
Hazard Warning Flasher ...................5-36
Hazardous Driving
.............................4-8
Headlights Control
......................................5-32
Flashing
.....................................5-32
High-low beam
..........................5-32
On reminder
..............................5-32
Hood Release
......................................3-9
Horn
..................................................5-36
J94S.book Page 3 Saturday, June 23, 2001 1:04 PM
Page 248 of 250
11-4
Index
Form No. 8Q50-EA-01G
I
IgnitionKeys
............................................ 3-2
Switch
......................................... 5-2
Illuminated Entry System
................ 6-37
Immobilizer System
......................... 3-17
In Case of Emergency
........................ 7-1
Indicator Lights
................................ 5-23
Cruise set
.................................. 5-30
Headlight high-beam
................ 5-29
O/D OFF
................................... 5-30
Security
..................................... 5-29
TCS OFF
.................................. 5-30
Instrument Cluster
........................... 5-19
Interior Care
..................................... 8-45
Interior Lights
.................................. 6-37
J
Jump-Starting ................................... 7-12
K
Keyless Entry System ........................ 3-5
Keys
................................................... 3-2
L
Label Information ............................ 10-2
Lane-Change Signals
....................... 5-33
Light Bulbs Replacement
............................. 8-29
Specifications
........................... 10-6
Lighting Control
.............................. 5-32
Lubricant Quality
............................. 10-4
M
Maintenance ....................................... 8-1 Introduction
................................. 8-2
Owner maintenance
precautions
.................................. 8-8
Owner maintenance schedule
..... 8-7
Scheduled
.................................... 8-3
Manual Transaxle Operation
.............. 5-8
Map Lights
....................................... 6-37
Meters and Gauges
........................... 5-19
Mirrors Outside mirrors
......................... 3-21
Rearview mirror
........................ 3-22
Money-Saving Suggestions
................ 4-7
O
Odometer and Trip Meter ................ 5-20
Outside Mirrors
................................ 3-21
Overhead light
.................................. 6-37
Overheating
...................................... 7-10
Overloading
...................................... 4-11
P
Paint Damage ................................... 8-40
Parking Brake
..................................... 5-5
Parking in an Emergency
................... 7-2
Power Door Locks
............................. 3-4
Power Steering
................................. 5-12
Fluid
.......................................... 8-17
Power Windows
................................. 3-7
Push-Starting
.................................... 7-14
J94S.book Page 4 Saturday, June 23, 2001 1:04 PM
Page 249 of 250
11-5
Index
Form No. 8Q50-EA-01G
R
Rear Door Child Safety Lock ............ 3-5
Rear Seat
............................................ 2-6
Rear Window Defroster
................... 5-35
Rear-Armrest Box
............................ 6-43
Rearview Mirror
............................... 3-22
Recreational Towing
........................ 7-16
Rocking the Vehicle
........................... 4-8
S
Safety Defects, Reporting ................ 9-14
Seat Belt System 3-point type
............................... 2-12
Automatic locking
.................... 2-11
Emergency locking
................... 2-10
Extender
.................................... 2-16
Pregnant women
....................... 2-10
Rear-center lap/shoulder
........... 2-14
Seat belt precautions
................... 2-9
Warning light/beep
................... 2-17
Seats Front seat
.................................... 2-2
Rear seat
...................................... 2-6
Security System Immobilizer system
.................. 3-17
Theft-deterrent system
.............. 3-19
Service Publications
......................... 9-15
Spare Tire and Tool Storage
.............. 7-3
Specifications
................................... 10-4
Speedometer
..................................... 5-20
SRS Air Bags Air bag system description
....... 2-29
Supplemental restraint systems
precautions
................................ 2-25
Warning light
............................ 2-34
Starting the Engine
............................. 5-3
Steering Wheel
................................. 3-21
Horn
.......................................... 5-36
S
Storage Compartments .....................6-41
Storage Pocket
..................................6-42
Sunroof
.............................................3-15
Sunshade
...........................................3-16
Sunvisors
..........................................6-44
T
Tachometer .......................................5-21
Temporary Spare Tire
......................8-28
Theft-Deterrent System
....................3-19
Tiedown Hook
..........................................7-16
Tires Flat tire
........................................7-3
Inflation pressure
.......................8-26
Replacement
..............................8-27
Rotation
.....................................8-27
Snow tires
....................................4-9
Spare tire and tool storage
...........7-3
Specifications
............................10-6
Tire chains
.................................4-10
Uniform tire quality grading
system (UTQGS)
.......................9-12
Tool
....................................................7-3
Towing Description
................................7-15
Emergency towing
....................7-15
Recreational towing
..................7-16
Trailer towing
............................4-11
Traction Control System (TCS)
.......5-16
Indicator light
............................5-17
Switch
........................................5-17
Warning light
............................5-17
Trailer Towing
..................................4-11
Trip Meter
........................................5-20
Trunk Lid
..........................................3-10
Trunk Light
......................................3-11
J94S.book Page 5 Saturday, June 23, 2001 1:04 PM
Page 250 of 250
11-6
Index
Form No. 8Q50-EA-01G
T
Trunk Release Handle ...................... 3-12
Turn and Lane-Change Signals
....... 5-33
V
Vanity Mirrors ................................. 6-44
Vehicle Information Labels
............. 10-2
W
Warning Lights ................................ 5-23
ABS
.......................................... 5-28
Air bag system
.......................... 5-28
Brake system
............................ 5-25
Charging system
....................... 5-26
Check engine
............................ 5-27
Door-ajar
................................... 5-28
Engine oil pressure
................... 5-26
Immobilizer system
.................. 5-29
Low fuel
.................................... 5-27
Low washer fluid level
............. 5-27
Seat belt
.................................... 5-25
TCS
........................................... 5-27
Warranty
............................................ 9-8
Washer Fluid
.................................... 8-20
Weights
............................................ 10-5
Wheel Replacement
......................... 8-28
Windows Power windows
.......................... 3-7
Windshield Washer
.......................... 5-35
Windshield Wipers
.......................... 5-34
Blades replacement
................... 8-22
Winter Driving
................................... 4-9
J94S.book Page 6 Saturday, June 23, 2001 1:04 PM
