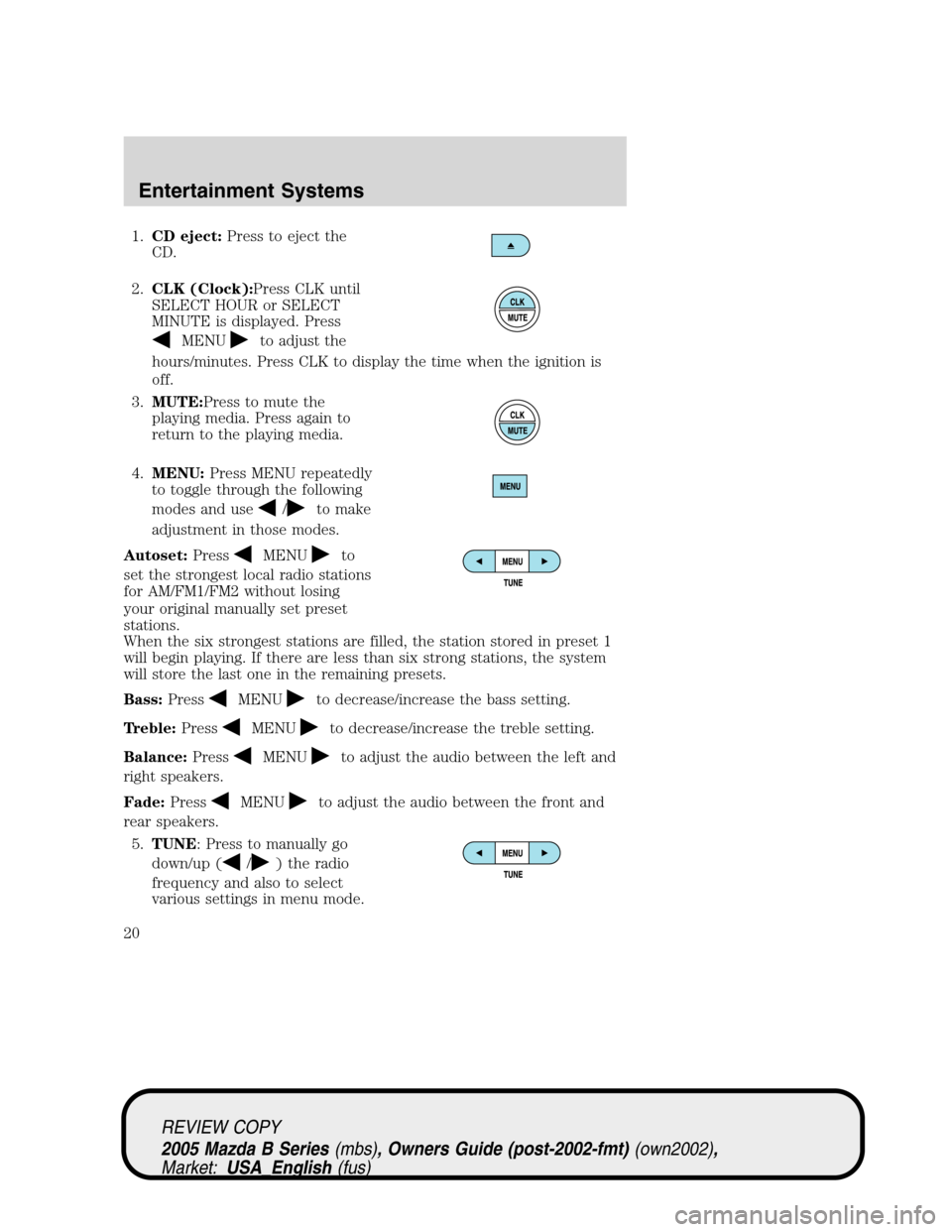

1.CD eject:Press to eject the
CD.
2.CLK (Clock):Press CLK until
SELECT HOUR or SELECT
MINUTE is displayed. Press
MENUto adjust the
hours/minutes. Press CLK to display the time when the ignition is
off.
3.MUTE:Press to mute the
playing media. Press again to
return to the playing media.
4.MENU:Press MENU repeatedly
to toggle through the following
modes and use
/to make
adjustment in those modes.
Autoset:Press
MENUto
set the strongest local radio stations
for AM/FM1/FM2 without losing
your original manually set preset
stations.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Bass:Press
MENUto decrease/increase the bass setting.
Treble:Press
MENUto decrease/increase the treble setting.
Balance:Press
MENUto adjust the audio between the left and
right speakers.
Fade:Press
MENUto adjust the audio between the front and
rear speakers.
5.TUNE: Press to manually go
down/up (
/) the radio
frequency and also to select
various settings in menu mode.
REVIEW COPY
2005 Mazda B Series(mbs), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Entertainment Systems
20

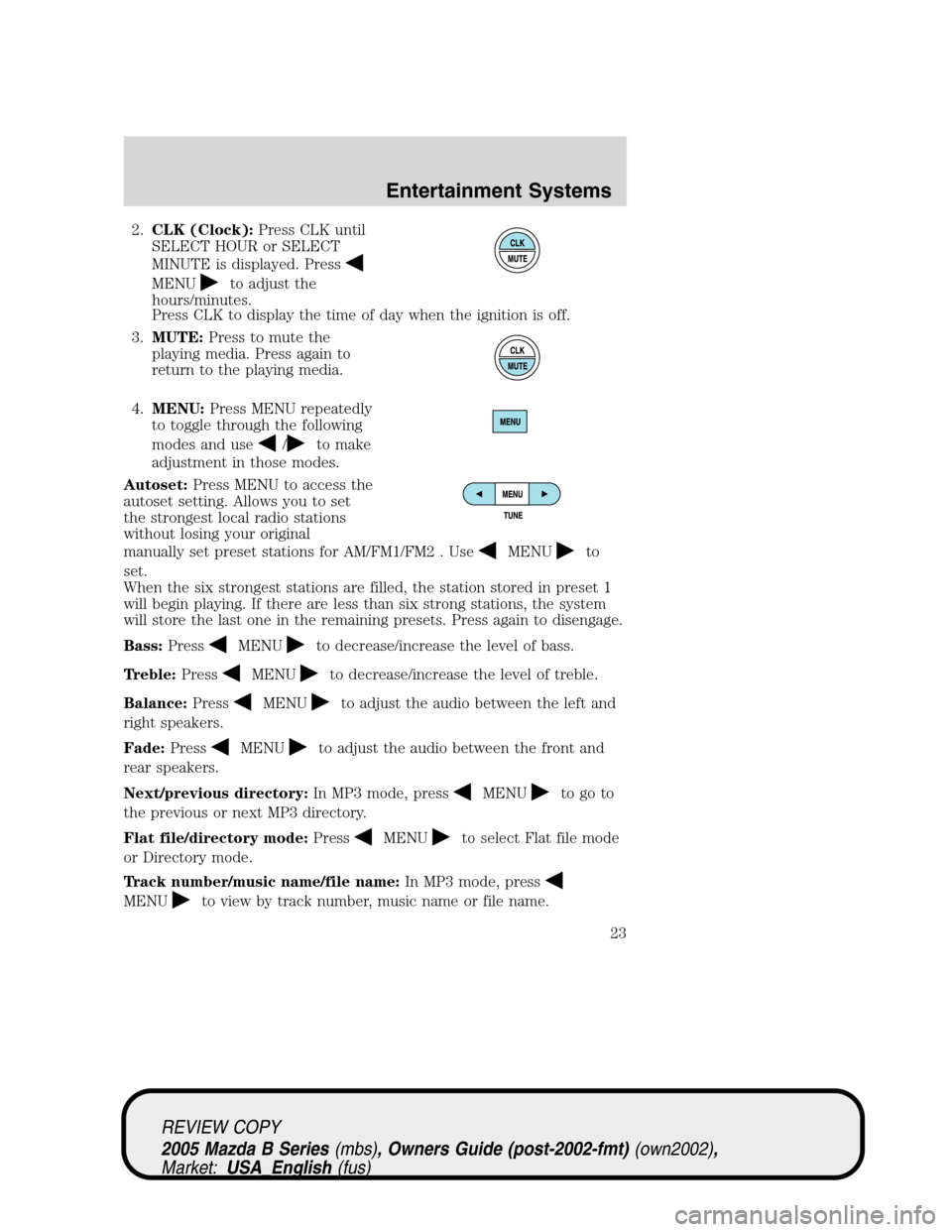

2.CLK (Clock):Press CLK until
SELECT HOUR or SELECT
MINUTE is displayed. Press
MENUto adjust the
hours/minutes.
Press CLK to display the time of day when the ignition is off.
3.MUTE:Press to mute the
playing media. Press again to
return to the playing media.
4.MENU:Press MENU repeatedly
to toggle through the following
modes and use
/to make
adjustment in those modes.
Autoset:Press MENU to access the
autoset setting. Allows you to set
the strongest local radio stations
without losing your original
manually set preset stations for AM/FM1/FM2 . Use
MENUto
set.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets. Press again to disengage.
Bass:Press
MENUto decrease/increase the level of bass.
Treble:Press
MENUto decrease/increase the level of treble.
Balance:Press
MENUto adjust the audio between the left and
right speakers.
Fade:Press
MENUto adjust the audio between the front and
rear speakers.
Next/previous directory:In MP3 mode, press
MENUto go to
the previous or next MP3 directory.
Flat file/directory mode:Press
MENUto select Flat file mode
or Directory mode.
Track number/music name/file name:In MP3 mode, press
MENUto view by track number, music name or file name.
REVIEW COPY
2005 Mazda B Series(mbs), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Entertainment Systems
23

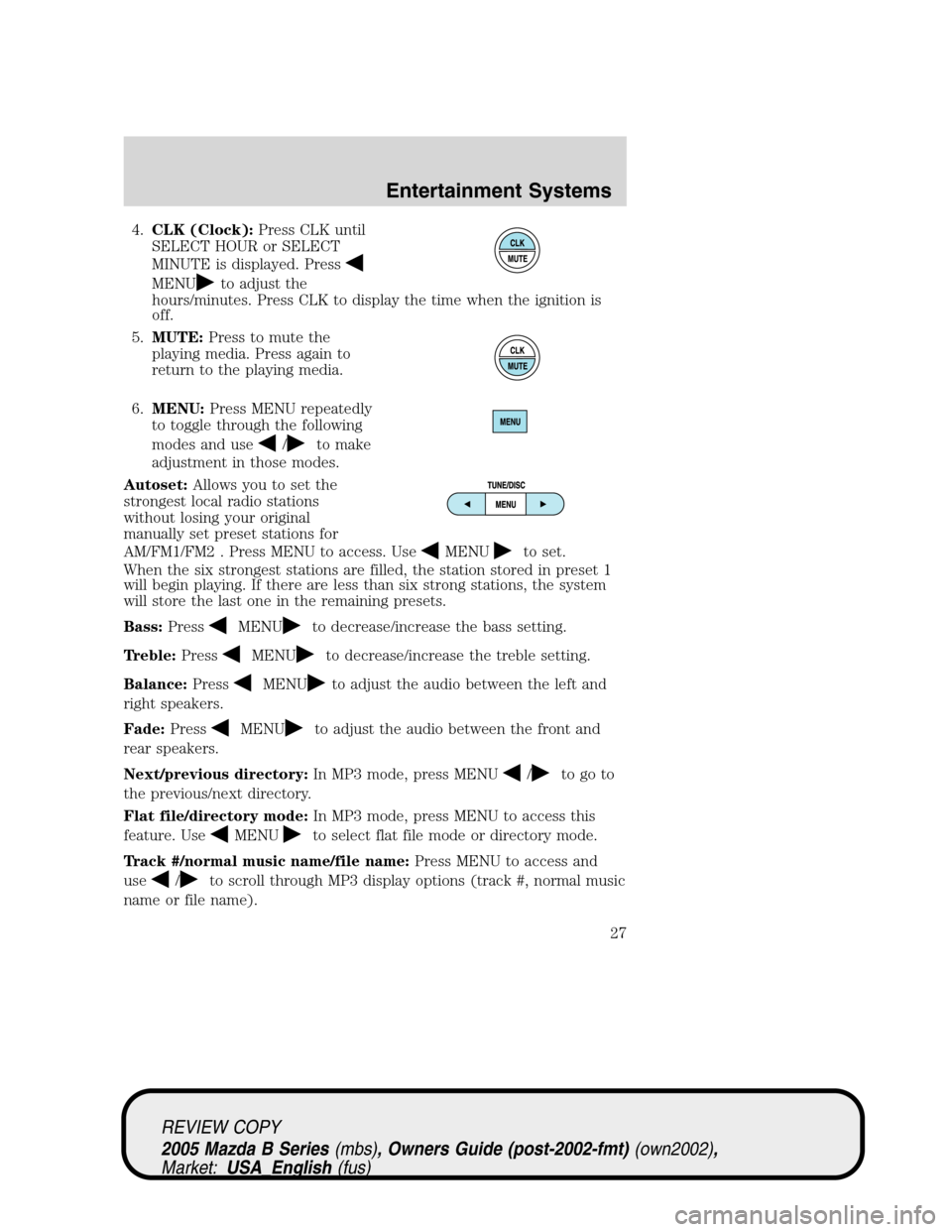

4.CLK (Clock):Press CLK until
SELECT HOUR or SELECT
MINUTE is displayed. Press
MENUto adjust the
hours/minutes. Press CLK to display the time when the ignition is
off.
5.MUTE:Press to mute the
playing media. Press again to
return to the playing media.
6.MENU:Press MENU repeatedly
to toggle through the following
modes and use
/to make
adjustment in those modes.
Autoset:Allows you to set the
strongest local radio stations
without losing your original
manually set preset stations for
AM/FM1/FM2 . Press MENU to access. Use
MENUto set.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Bass:Press
MENUto decrease/increase the bass setting.
Treble:Press
MENUto decrease/increase the treble setting.
Balance:Press
MENUto adjust the audio between the left and
right speakers.
Fade:Press
MENUto adjust the audio between the front and
rear speakers.
Next/previous directory:In MP3 mode, press MENU
/to go to
the previous/next directory.
Flat file/directory mode:In MP3 mode, press MENU to access this
feature. Use
MENUto select flat file mode or directory mode.
Track #/normal music name/file name:Press MENU to access and
use
/to scroll through MP3 display options (track #, normal music
name or file name).
REVIEW COPY
2005 Mazda B Series(mbs), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Entertainment Systems
27

2. Put the gearshift lever in P (Park), turn off all accessories and start
the engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven to relearn the idle and fuel trim
strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
When the battery is disconnected or a new battery installed, the
transmission must relearn its adaptive strategy. As a result of this, the
transmission may shift firmly. This operation is considered normal and
will not affect function or durability of the transmission. Over time the
adaptive learning process will fully update transmission operation to its
optimum shift feel.
If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
Your engine’s cooling system has been factory-filled with a 50/50 mixture
of distilled water and Mazda Genuine Engine Coolant, or an equivalent
premium engine coolant that meets Mazda specification.
LEAD
RETURN
RECYCLE
REVIEW COPY
2005 Mazda B Series(mbs), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
216

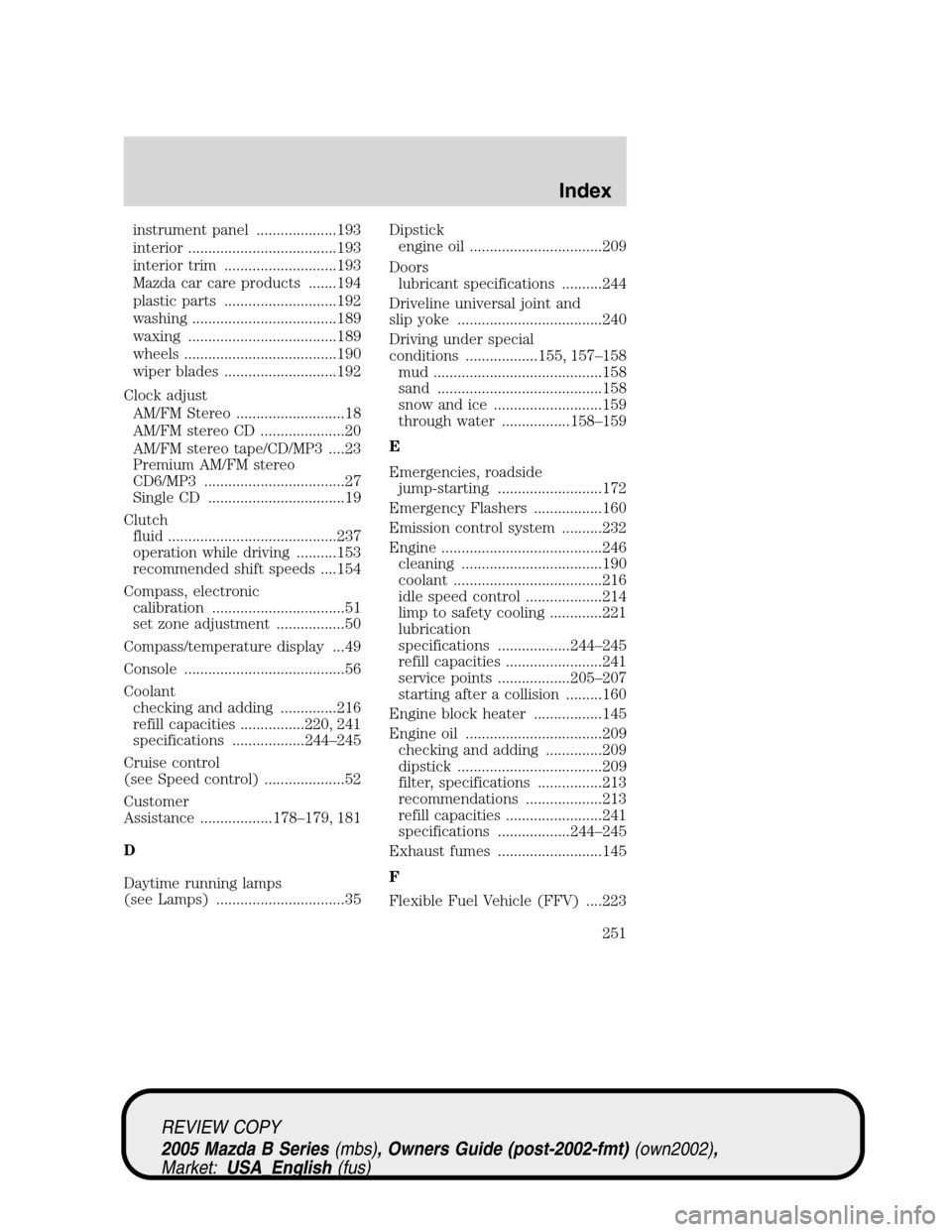

instrument panel ....................193
interior .....................................193
interior trim ............................193
Mazda car care products .......194
plastic parts ............................192
washing ....................................189
waxing .....................................189
wheels ......................................190
wiper blades ............................192
Clock adjust
AM/FM Stereo ...........................18
AM/FM stereo CD .....................20
AM/FM stereo tape/CD/MP3 ....23
Premium AM/FM stereo
CD6/MP3 ...................................27
Single CD ..................................19
Clutch
fluid ..........................................237
operation while driving ..........153
recommended shift speeds ....154
Compass, electronic
calibration .................................51
set zone adjustment .................50
Compass/temperature display ...49
Console ........................................56
Coolant
checking and adding ..............216
refill capacities ................220, 241
specifications ..................244–245
Cruise control
(see Speed control) ....................52
Customer
Assistance ..................178–179, 181
D
Daytime running lamps
(see Lamps) ................................35Dipstick
engine oil .................................209
Doors
lubricant specifications ..........244
Driveline universal joint and
slip yoke ....................................240
Driving under special
conditions ..................155, 157–158
mud ..........................................158
sand .........................................158
snow and ice ...........................159
through water .................158–159
E
Emergencies, roadside
jump-starting ..........................172
Emergency Flashers .................160
Emission control system ..........232
Engine ........................................246
cleaning ...................................190
coolant .....................................216
idle speed control ...................214
limp to safety cooling .............221
lubrication
specifications ..................244–245
refill capacities ........................241
service points ..................205–207
starting after a collision .........160
Engine block heater .................145
Engine oil ..................................209
checking and adding ..............209
dipstick ....................................209
filter, specifications ................213
recommendations ...................213
refill capacities ........................241
specifications ..................244–245
Exhaust fumes ..........................145
F
Flexible Fuel Vehicle (FFV) ....223
REVIEW COPY
2005 Mazda B Series(mbs), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
251

Safety belts (see Safety
restraints) ..................64, 66–67, 69
Safety defects, reporting ..........188
Safety restraints ..............64, 66–69
belt minder ...............................71
extension assembly ..................70
for adults .............................66–67
for children .........................88–89
safety belt maintenance ...........75
warning light and chime ..........71
Safety restraints - LATCH
anchors ......................................100
Safety restraints - tether
anchors ........................................97
Safety seats for children ............93
Seat belts
(see Safety restraints) ...............64
Seats ............................................62
child safety seats ......................93
Servicing your vehicle ..............203
Setting the clock
AM/FM stereo ...........................18
AM/FM stereo CD .....................20
AM/FM stereo tape/CD/MP3 ....23
Premium AM/FM stereo
CD6/MP3 ...................................27
Snowplowing .................................7
Spark plugs, specifications .......246
Special notice
ambulance conversions ..............7
utility-type vehicles ....................6
Specification chart,
lubricants ...........................244–245
Speed control ..............................52
Starting a flex fuel vehicle .......144
Starting your
vehicle ........................141–142, 144jump starting ..........................172
Steering wheel
tilting .........................................47
Stereo
Single CD ..................................19
T
Tether anchors ............................97
Tilt steering wheel ......................47
Tires ...........................106–107, 112
alignment ................................123
care ..........................................121
changing ..........................112–113
checking the pressure ............109
inspecting and inflating .........109
label .........................................121
replacing ..................................111
rotating ....................................124
safety practices .......................122
sidewall information ...............117
snow tires and chains ............125
spare tire .................................112
terminology .............................107
tire grades ...............................107
treadwear ........................106, 121
Towing .......................................131
recreational towing .................139
trailer towing ..........................131
wrecker ....................................177
Traction-lok rear axle ...............149
Transfer case
fluid checking .........................240
Transmission
automatic operation ...............150
brake-shift interlock (BSI) ....150
fluid, checking and adding
(manual) .................................239
fluid, refill capacities ..............241
lubricant specifications ..244–245
REVIEW COPY
2005 Mazda B Series(mbs), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
254
