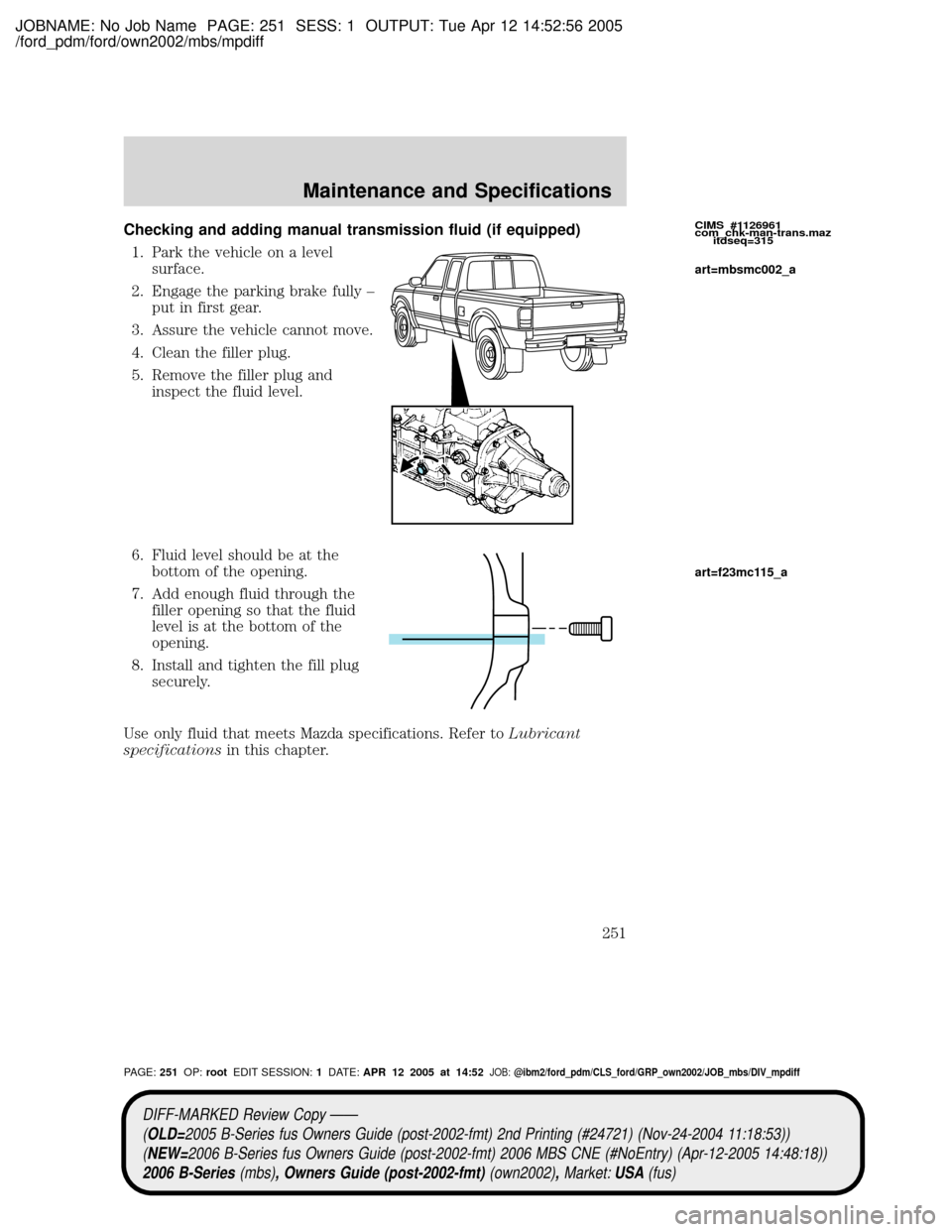

Checking and adding manual transmission fluid (if equipped)
1. Park the vehicle on a level
surface.
2. Engage the parking brake fully ±
put in first gear.
3. Assure the vehicle cannot move.
4. Clean the filler plug.
5. Remove the filler plug and
inspect the fluid level.
6. Fluid level should be at the
bottom of the opening.
7. Add enough fluid through the
filler opening so that the fluid
level is at the bottom of the
opening.
8. Install and tighten the fill plug
securely.
Use only fluid that meets Mazda specifications. Refer toLubricant
specificationsin this chapter.CIMS #1126961
com_chk-man-trans.maz
itdseq=315
art=mbsmc002_a
art=f23mc115_a
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:251OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Maintenance and Specifications
251

JOBNAME: No Job Name PAGE: 252 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff
TRANSFER CASE FLUID (IF EQUIPPED)
1. Park the vehicle on a level
surface.
2. Engage the parking brake fully ±
put in first gear.
3. Assure the vehicle cannot move.
4. Clean the filler plug.
5. Remove the filler plug and
inspect the fluid level.
6. Fluid level should be at the
bottom of the opening.
7. Add enough fluid through the
filler opening so that the fluid
level is at the bottom of the
opening.
8. Install and tighten the fill plug
securely.
Use only fluid that meets Mazda specifications. Refer toLubricant
specificationsin this chapter.
DRIVELINE UNIVERSAL JOINT AND SLIP YOKE
Your vehicle may be equipped with universal joints that require
lubrication. If the original universal joints are replaced with universal
joints equipped with grease fittings, lubrication will also be necessary.CIMS #918861
com_check-add-tcase.mbs
itdseq=316
CIMS #918862
com_serv-shaft-yoke.mbs
itdseq=317
art=ranmc128_b
art=f12mc022_a
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:252OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Maintenance and Specifications
252

JOBNAME: No Job Name PAGE: 253 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff

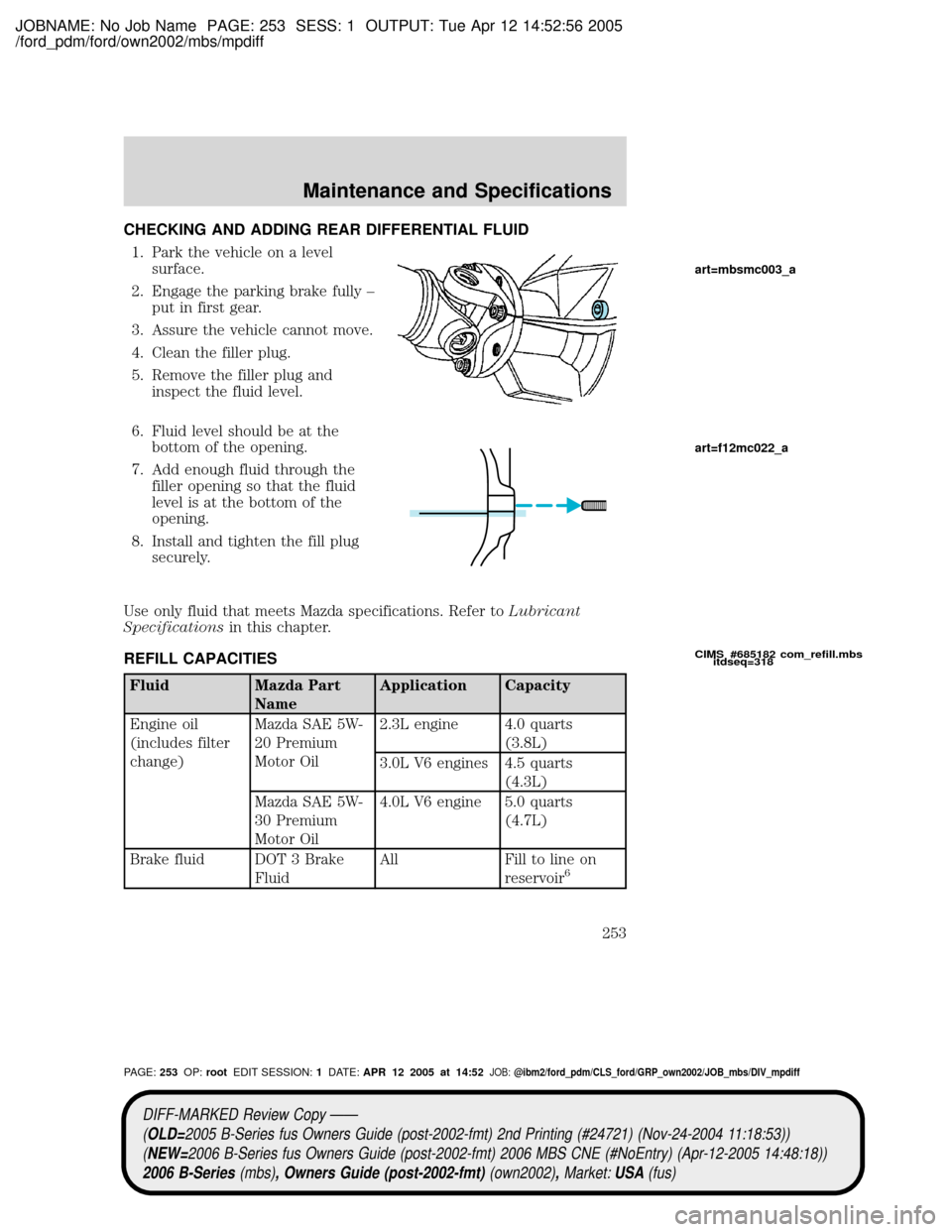

CHECKING AND ADDING REAR DIFFERENTIAL FLUID
1. Park the vehicle on a level
surface.
2. Engage the parking brake fully ±
put in first gear.
3. Assure the vehicle cannot move.
4. Clean the filler plug.
5. Remove the filler plug and
inspect the fluid level.
6. Fluid level should be at the
bottom of the opening.
7. Add enough fluid through the
filler opening so that the fluid
level is at the bottom of the
opening.
8. Install and tighten the fill plug
securely.
Use only fluid that meets Mazda specifications. Refer toLubricant
Specificationsin this chapter.
REFILL CAPACITIES
Fluid Mazda Part
NameApplication Capacity
Engine oil
(includes filter
change)Mazda SAE 5W-
20 Premium
Motor Oil2.3L engine 4.0 quarts
(3.8L)
3.0L V6 engines 4.5 quarts
(4.3L)
Mazda SAE 5W-
30 Premium
Motor Oil4.0L V6 engine 5.0 quarts
(4.7L)
Brake fluid DOT 3 Brake
FluidAll Fill to line on
reservoir
6
CIMS #685182 com_refill.mbs
itdseq=318
art=mbsmc003_a
art=f12mc022_a
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:253OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Maintenance and Specifications
253

JOBNAME: No Job Name PAGE: 254 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff

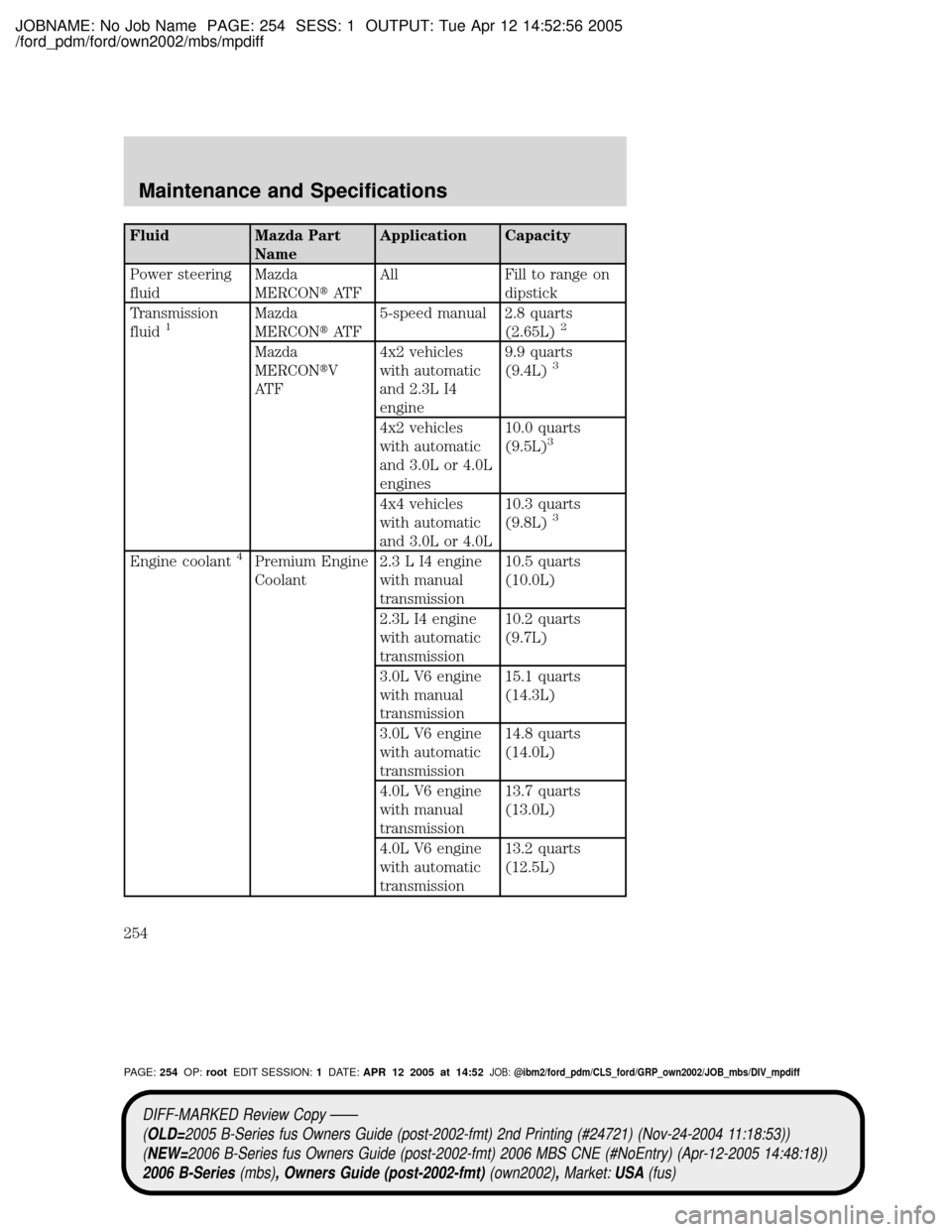

Fluid Mazda Part
NameApplication Capacity
Power steering
fluidMazda
MERCONtAT FAll Fill to range on
dipstick
Transmission
fluid
1Mazda
MERCONtAT F5-speed manual 2.8 quarts
(2.65L)2
Mazda
MERCONtV
AT F4x2 vehicles
with automatic
and 2.3L I4
engine9.9 quarts
(9.4L)3
4x2 vehicles
with automatic
and 3.0L or 4.0L
engines10.0 quarts
(9.5L)3
4x4 vehicles
with automatic
and 3.0L or 4.0L10.3 quarts
(9.8L)3
Engine coolant4Premium Engine
Coolant2.3 L I4 engine
with manual
transmission10.5 quarts
(10.0L)
2.3L I4 engine
with automatic
transmission10.2 quarts
(9.7L)
3.0L V6 engine
with manual
transmission15.1 quarts
(14.3L)
3.0L V6 engine
with automatic
transmission14.8 quarts
(14.0L)
4.0L V6 engine
with manual
transmission13.7 quarts
(13.0L)
4.0L V6 engine
with automatic
transmission13.2 quarts
(12.5L)
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:254OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Maintenance and Specifications
254

JOBNAME: No Job Name PAGE: 255 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff

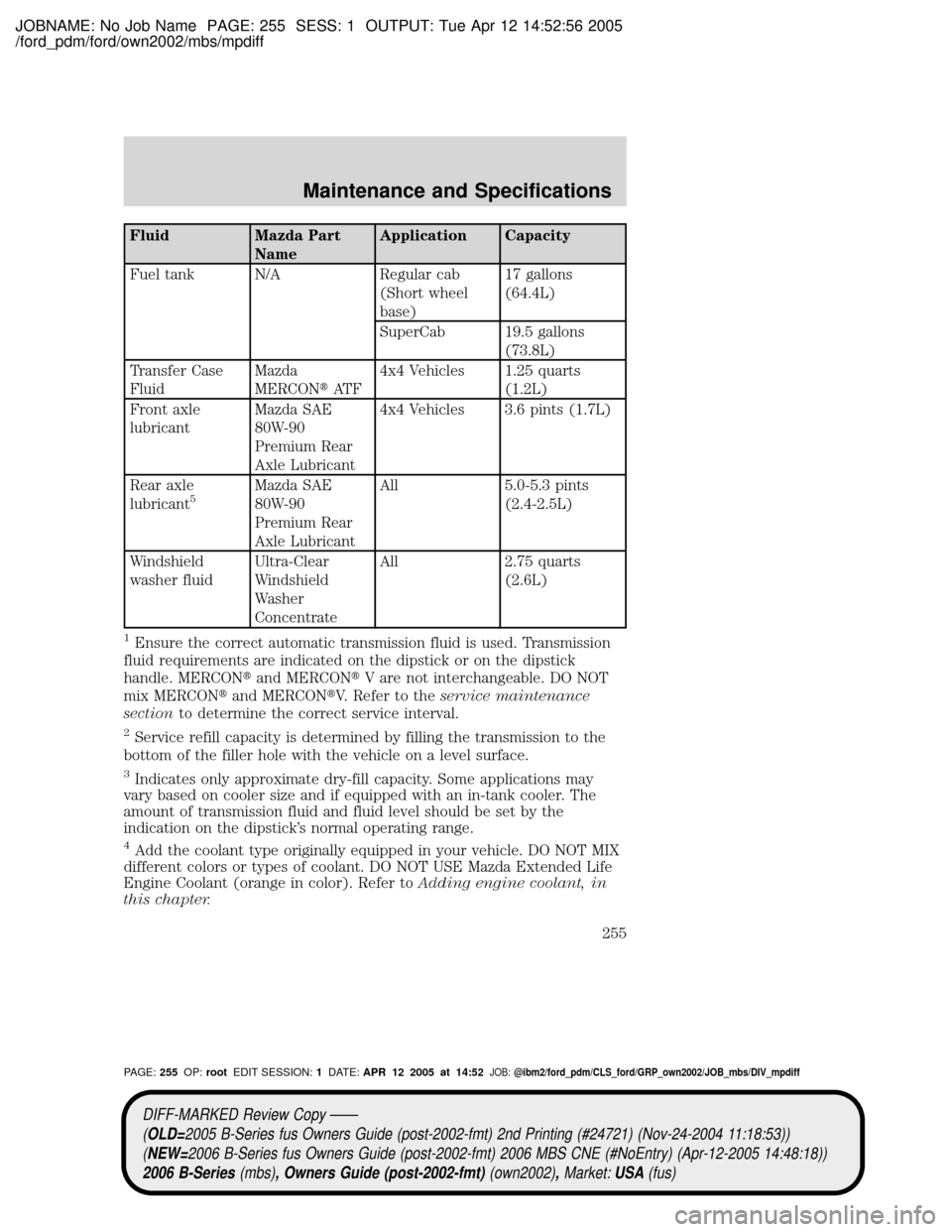

Fluid Mazda Part
NameApplication Capacity
Fuel tank N/A Regular cab
(Short wheel
base)17 gallons
(64.4L)
SuperCab 19.5 gallons
(73.8L)
Transfer Case
FluidMazda
MERCONtAT F4x4 Vehicles 1.25 quarts
(1.2L)
Front axle
lubricantMazda SAE
80W-90
Premium Rear
Axle Lubricant4x4 Vehicles 3.6 pints (1.7L)
Rear axle
lubricant
5Mazda SAE
80W-90
Premium Rear
Axle LubricantAll 5.0-5.3 pints
(2.4-2.5L)
Windshield
washer fluidUltra-Clear
Windshield
Washer
ConcentrateAll 2.75 quarts
(2.6L)
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONtand MERCONtV are not interchangeable. DO NOT
mix MERCONtand MERCONtV. Refer to theservice maintenance
sectionto determine the correct service interval.
2Service refill capacity is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface.
3Indicates only approximate dry-fill capacity. Some applications may
vary based on cooler size and if equipped with an in-tank cooler. The
amount of transmission fluid and fluid level should be set by the
indication on the dipstick's normal operating range.
4Add the coolant type originally equipped in your vehicle. DO NOT MIX
different colors or types of coolant. DO NOT USE Mazda Extended Life
Engine Coolant (orange in color). Refer toAdding engine coolant, in
this chapter.
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:255OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Maintenance and Specifications
255

JOBNAME: No Job Name PAGE: 256 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff

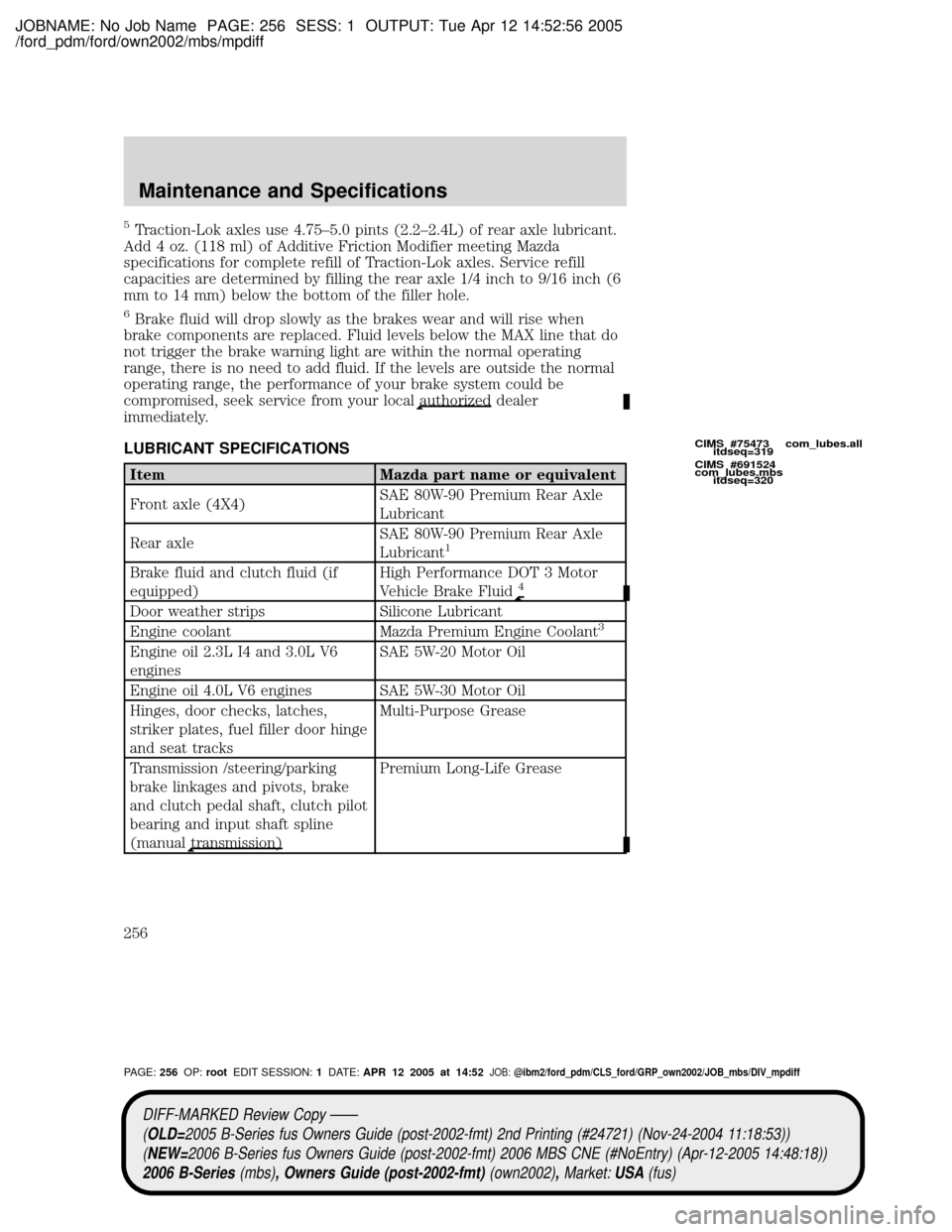

5Traction-Lok axles use 4.75±5.0 pints (2.2±2.4L) of rear axle lubricant.
Add 4 oz. (118 ml) of Additive Friction Modifier meeting Mazda
specifications for complete refill of Traction-Lok axles. Service refill
capacities are determined by filling the rear axle 1/4 inch to 9/16 inch (6
mm to 14 mm) below the bottom of the filler hole.
6Brake fluid will drop slowly as the brakes wear and will rise when
brake components are replaced. Fluid levels below the MAX line that do
not trigger the brake warning light are within the normal operating
range, there is no need to add fluid. If the levels are outside the normal
operating range, the performance of your brake system could be
compromised, seek service from your local
authorized dealer
immediately.
LUBRICANT SPECIFICATIONS
Item Mazda part name or equivalent
Front axle (4X4)SAE 80W-90 Premium Rear Axle
Lubricant
Rear axleSAE 80W-90 Premium Rear Axle
Lubricant
1
Brake fluid and clutch fluid (if
equipped)High Performance DOT 3 Motor
Vehicle Brake Fluid4
Door weather strips Silicone Lubricant
Engine coolant Mazda Premium Engine Coolant3
Engine oil 2.3L I4 and 3.0L V6
enginesSAE 5W-20 Motor Oil
Engine oil 4.0L V6 engines SAE 5W-30 Motor Oil
Hinges, door checks, latches,
striker plates, fuel filler door hinge
and seat tracksMulti-Purpose Grease
Transmission /steering/parking
brake linkages and pivots, brake
and clutch pedal shaft, clutch pilot
bearing and input shaft spline
(manual
transmission)
Premium Long-Life Grease
CIMS #75473 com_lubes.all
itdseq=319
CIMS #691524
com_lubes.mbs
itdseq=320
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:256OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Maintenance and Specifications
256

JOBNAME: No Job Name PAGE: 257 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff

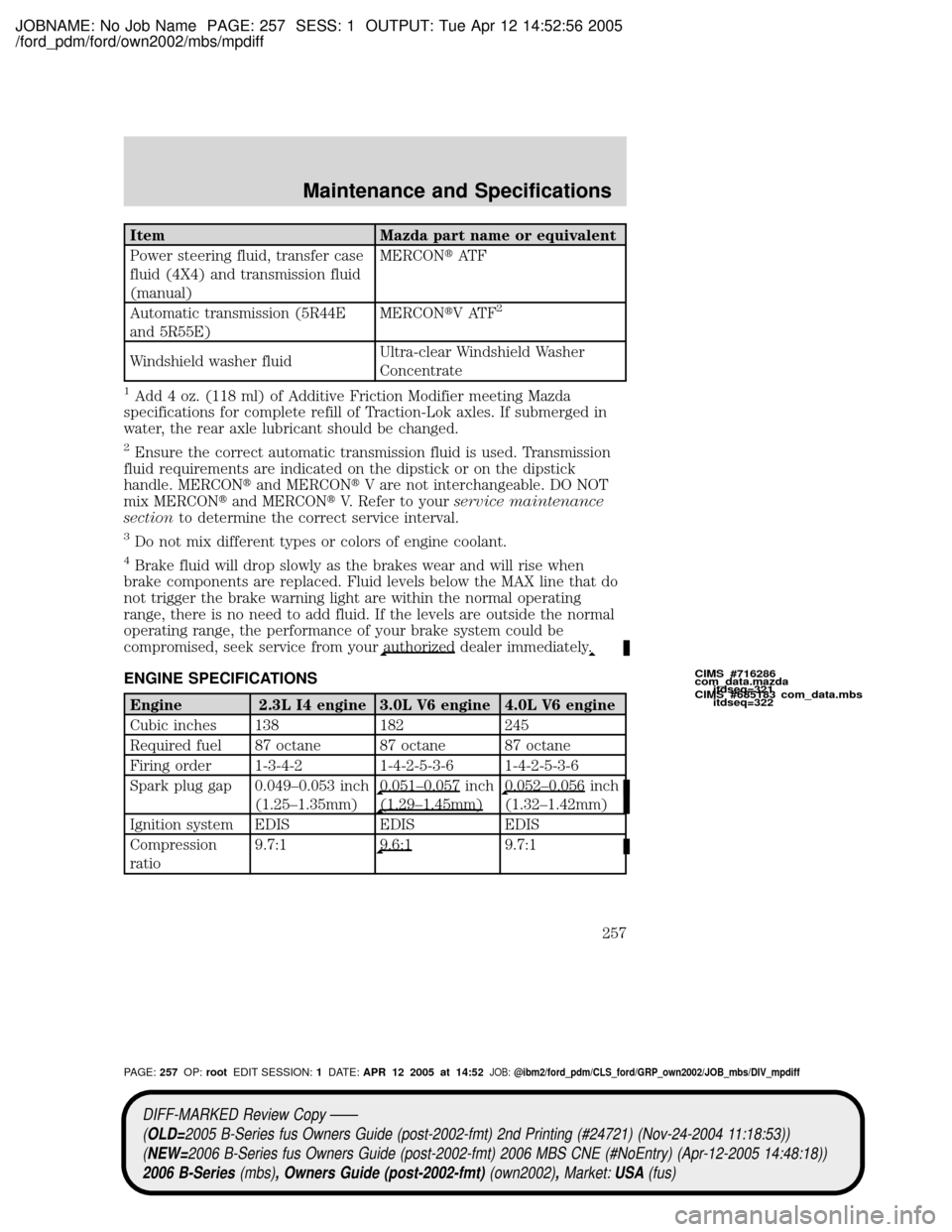

Item Mazda part name or equivalent
Power steering fluid, transfer case
fluid (4X4) and transmission fluid
(manual)MERCONtAT F
Automatic transmission (5R44E
and 5R55E)MERCONtVATF
2
Windshield washer fluidUltra-clear Windshield Washer
Concentrate
1Add 4 oz. (118 ml) of Additive Friction Modifier meeting Mazda
specifications for complete refill of Traction-Lok axles. If submerged in
water, the rear axle lubricant should be changed.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONtand MERCONtV are not interchangeable. DO NOT
mix MERCONtand MERCONtV. Refer to yourservice maintenance
sectionto determine the correct service interval.
3Do not mix different types or colors of engine coolant.
4Brake fluid will drop slowly as the brakes wear and will rise when
brake components are replaced. Fluid levels below the MAX line that do
not trigger the brake warning light are within the normal operating
range, there is no need to add fluid. If the levels are outside the normal
operating range, the performance of your brake system could be
compromised, seek service from your
authorized dealer immediately.
ENGINE SPECIFICATIONS
Engine 2.3L I4 engine 3.0L V6 engine 4.0L V6 engine
Cubic inches 138 182 245
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap 0.049±0.053 inch
(1.25±1.35mm)
0.051±0.057 inch
(1.29±1.45mm)
0.052±0.056 inch
(1.32±1.42mm)
Ignition system EDIS EDIS EDIS
Compression
ratio9.7:1
9.6:19.7:1
CIMS #716286
com_data.mazda
itdseq=321
CIMS #685183 com_data.mbs
itdseq=322
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:257OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Maintenance and Specifications
257

JOBNAME: No Job Name PAGE: 258 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff

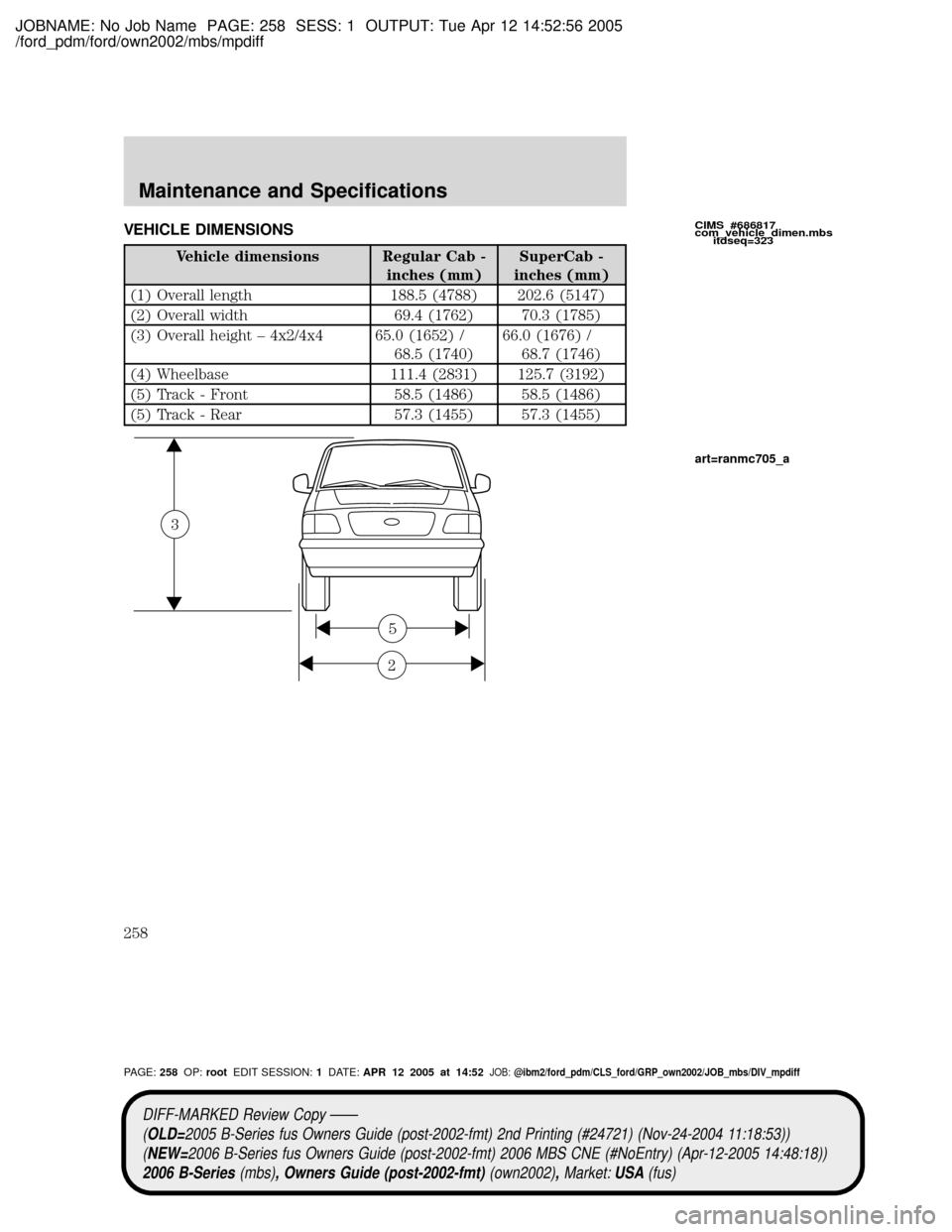

VEHICLE DIMENSIONS
Vehicle dimensions Regular Cab -
inches (mm)SuperCab -
inches (mm)
(1) Overall length 188.5 (4788) 202.6 (5147)
(2) Overall width 69.4 (1762) 70.3 (1785)
(3) Overall height ± 4x2/4x4 65.0 (1652) /
68.5 (1740)66.0 (1676) /
68.7 (1746)
(4) Wheelbase 111.4 (2831) 125.7 (3192)
(5) Track - Front 58.5 (1486) 58.5 (1486)
(5) Track - Rear 57.3 (1455) 57.3 (1455)
2
5
3
CIMS #686817
com_vehicle_dimen.mbs
itdseq=323
art=ranmc705_a
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:258OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Maintenance and Specifications
258

JOBNAME: No Job Name PAGE: 259 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification
Label
The National Highway Traffic Safety Administration Regulations require
that a Safety Compliance Certification Label be affixed to a vehicle and
prescribe where the Safety Compliance Certification Label may belocated. The Safety Compliance CertificationLabel is located on the
structure by the trailing edge of the driver's door or the edge of the
driver's door.
1
4
1
4
CIMS #52653
com_vehicle-info.01
itdseq=324
CIMS #606356
com_vinplate.j14
itdseq=325
art=ranmc706_a
art=ranmc707_a
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:259OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Maintenance and Specifications
259

JOBNAME: No Job Name PAGE: 260 SESS: 1 OUTPUT: Tue Apr 12 14:52:56 2005
/ford_pdm/ford/own2002/mbs/mpdiff

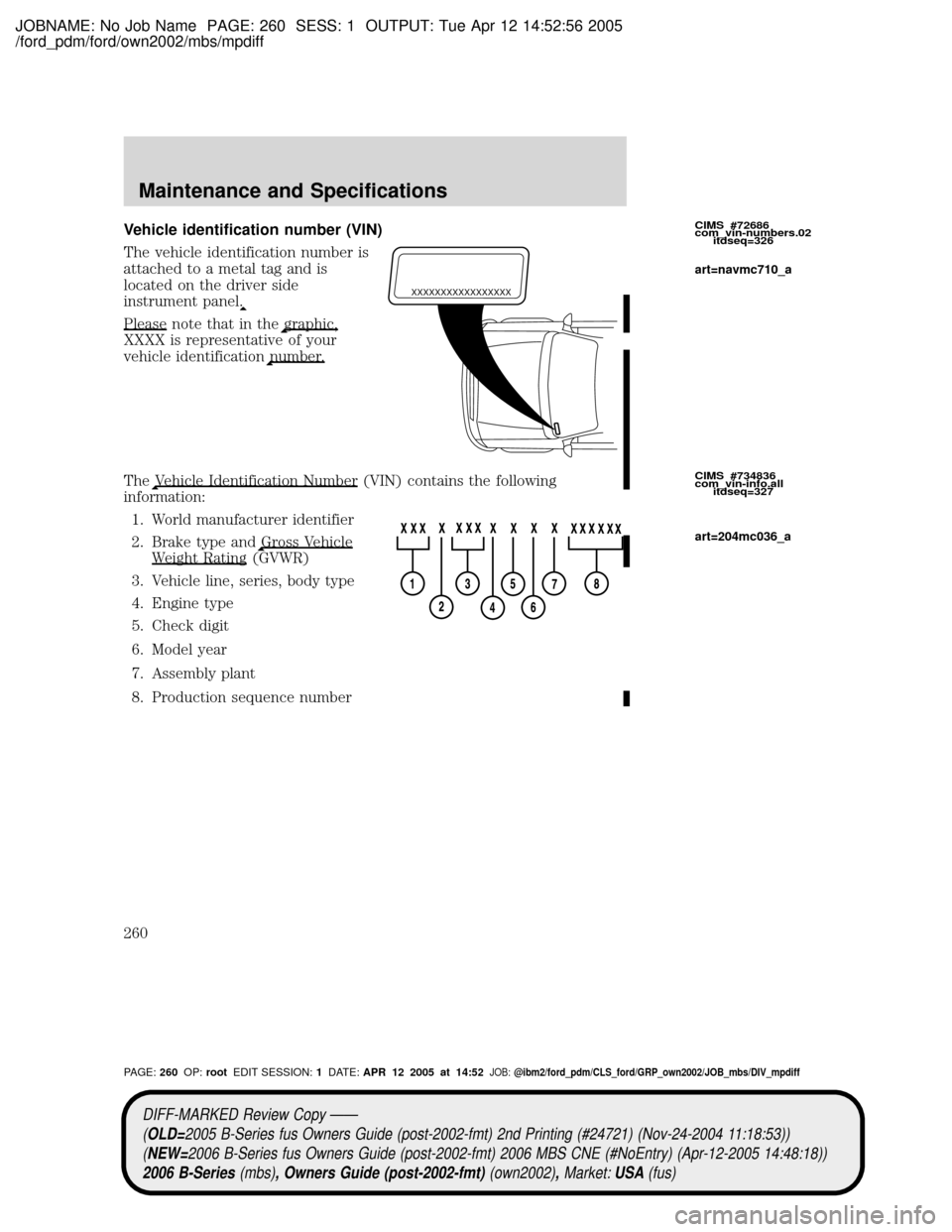

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in thegraphic,
XXXX is representative of your
vehicle identification
number.
TheVehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and
Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
CIMS #72686
com_vin-numbers.02
itdseq=326
CIMS #734836
com_vin-info.all
itdseq=327
art=navmc710_a
art=204mc036_a
DIFF-MARKED Review Copy ÐÐ
(OLD=2005 B-Series fus Owners Guide (post-2002-fmt) 2nd Printing (#24721) (Nov-24-2004 11:18:53))
(NEW=2006 B-Series fus Owners Guide (post-2002-fmt) 2006 MBS CNE (#NoEntry) (Apr-12-2005 14:48:18))
2006 B-Series(mbs), Owners Guide (post-2002-fmt)(own2002),Market:USA(fus)
PAGE:260OP:rootEDIT SESSION:1DATE:APR 12 2005 at 14:52JOB:@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_mpdiff
Maintenance and Specifications
260
