MAZDA MODEL B3000 TRUCK 2007 Owners Manual

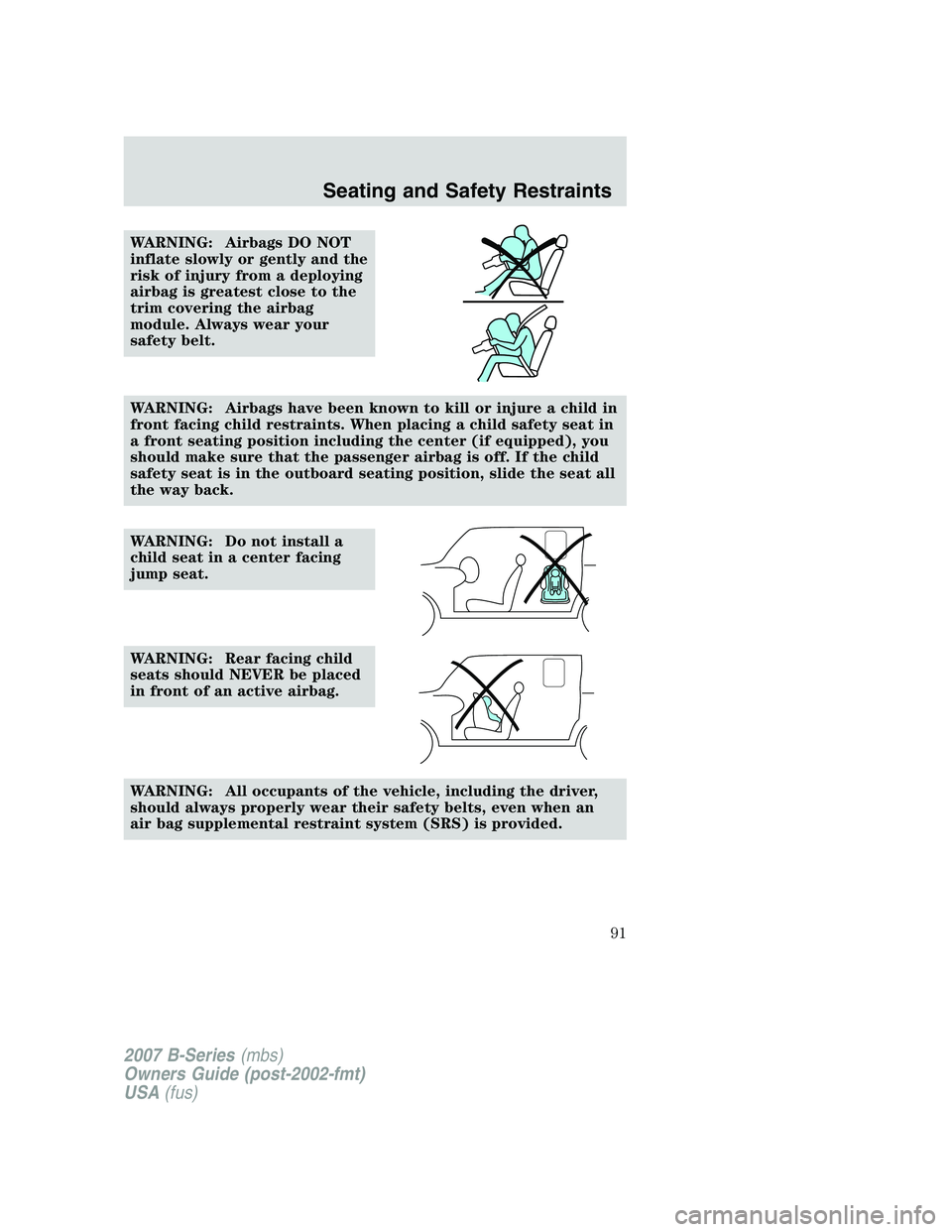

WARNING: Airbags DO NOT
inflate slowly or gently and the
risk of injury from a deploying
airbag is greatest close to the
trim covering the airbag
module. Always wear your
safety belt.
WARNING: Airbags have been known to kill or injure a child in
front facing child restraints. When placing a child safety seat in
a front seating position including the center (if equipped), you
should make sure that the passenger airbag is off. If the child
safety seat is in the outboard seating position, slide the seat all
the way back.
WARNING: Do not install a
child seat in a center facing
jump seat.
WARNING: Rear facing child
seats should NEVER be placed
in front of an active airbag.
WARNING: All occupants of the vehicle, including the driver,
should always properly wear their safety belts, even when an
air bag supplemental restraint system (SRS) is provided.
2007 B-Series(mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
91

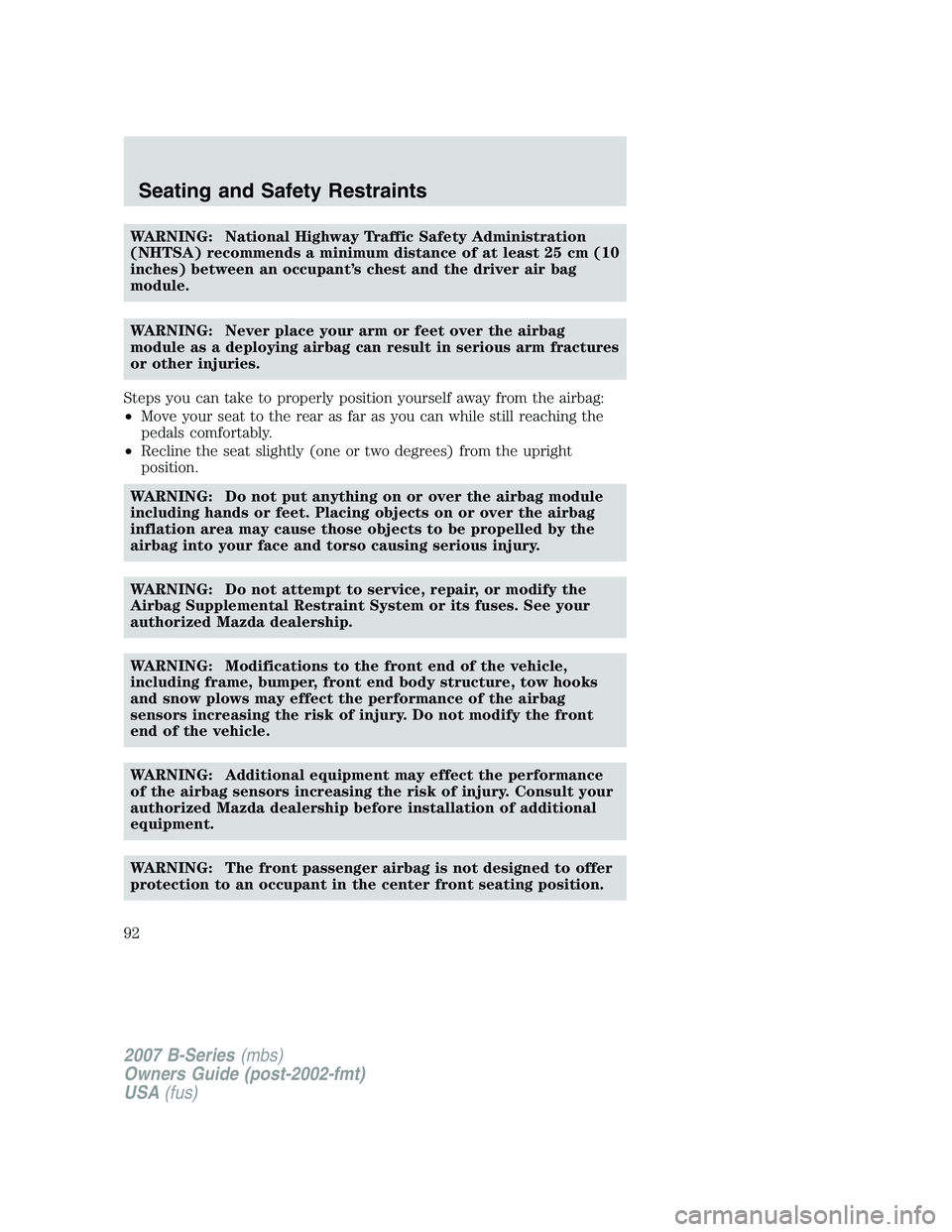

WARNING: National Highway Traffic Safety Administration
(NHTSA) recommends a minimum distance of at least 25 cm (10
inches) between an occupant’s chest and the driver air bag
module.
WARNING: Never place your arm or feet over the airbag
module as a deploying airbag can result in serious arm fractures
or other injuries.
Steps you can take to properly position yourself away from the airbag:
• Move your seat to the rear as far as you can while still reaching the
pedals comfortably.
• Recline the seat slightly (one or two degrees) from the upright
position.
WARNING: Do not put anything on or over the airbag module
including hands or feet. Placing objects on or over the airbag
inflation area may cause those objects to be propelled by the
airbag into your face and torso causing serious injury.
WARNING: Do not attempt to service, repair, or modify the
Airbag Supplemental Restraint System or its fuses. See your
authorized Mazda dealership.
WARNING: Modifications to the front end of the vehicle,
including frame, bumper, front end body structure, tow hooks
and snow plows may effect the performance of the airbag
sensors increasing the risk of injury. Do not modify the front
end of the vehicle.
WARNING: Additional equipment may effect the performance
of the airbag sensors increasing the risk of injury. Consult your
authorized Mazda dealership before installation of additional
equipment.
WARNING: The front passenger airbag is not designed to offer
protection to an occupant in the center front seating position.
2007 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
92

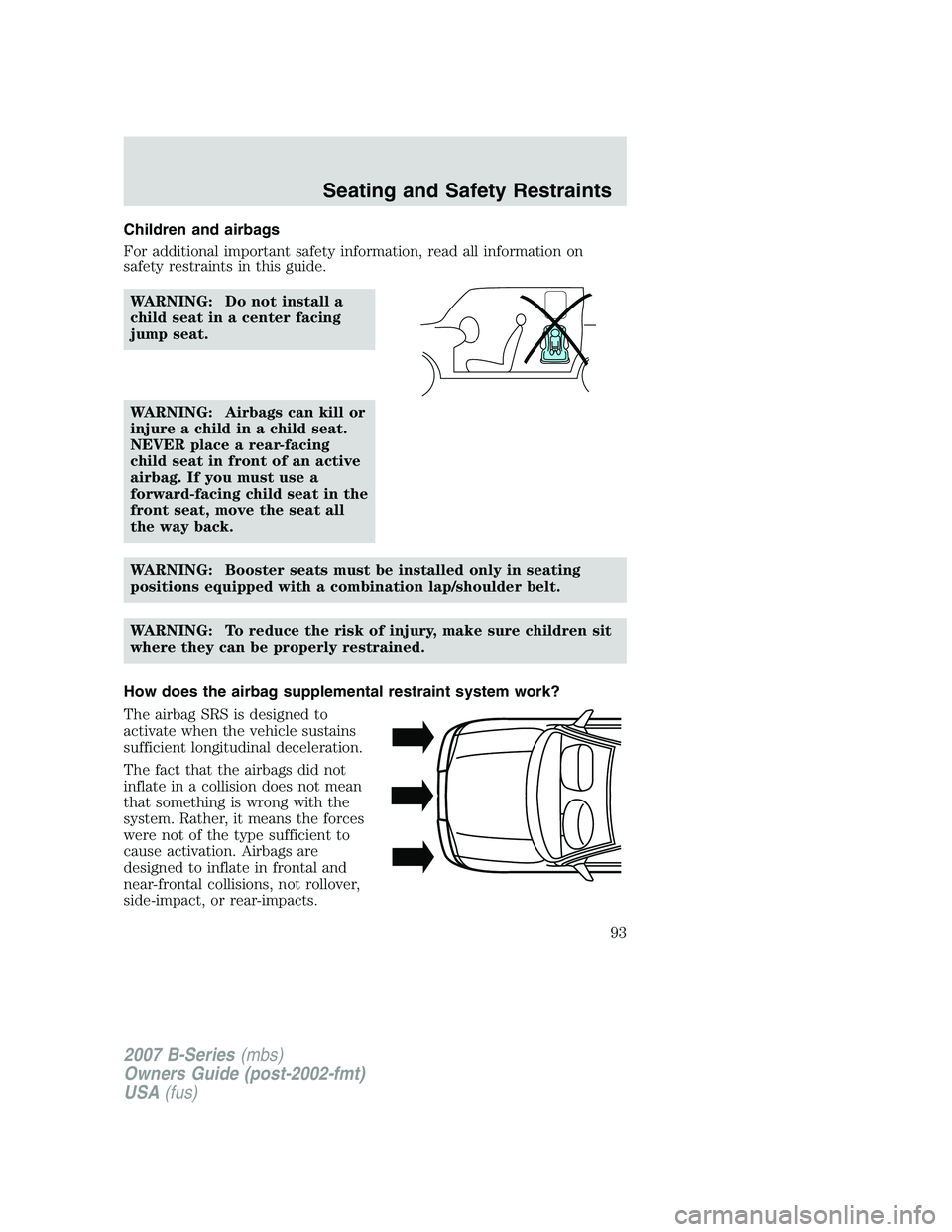

Children and airbags
For additional important safety information, read all information on
safety restraints in this guide.WARNING: Do not install a
child seat in a center facing
jump seat.
WARNING: Airbags can kill or
injure a child in a child seat.
NEVER place a rear-facing
child seat in front of an active
airbag. If you must use a
forward-facing child seat in the
front seat, move the seat all
the way back.
WARNING: Booster seats must be installed only in seating
positions equipped with a combination lap/shoulder belt.
WARNING: To reduce the risk of injury, make sure children sit
where they can be properly restrained.
How does the airbag supplemental restraint system work?
The airbag SRS is designed to
activate when the vehicle sustains
sufficient longitudinal deceleration.
The fact that the airbags did not
inflate in a collision does not mean
that something is wrong with the
system. Rather, it means the forces
were not of the type sufficient to
cause activation. Airbags are
designed to inflate in frontal and
near-frontal collisions, not rollover,
side-impact, or rear-impacts.
2007 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
93

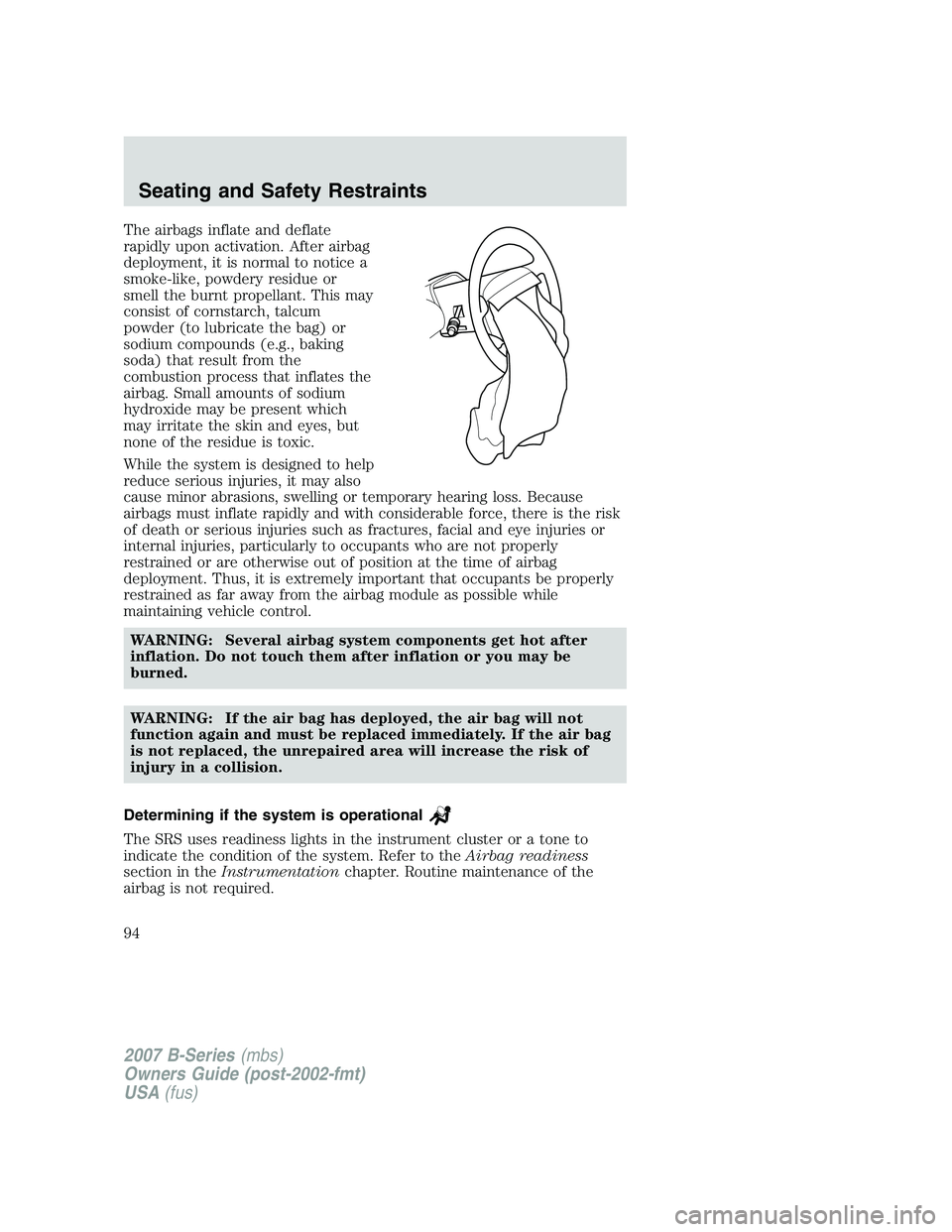

The airbags inflate and deflate
rapidly upon activation. After airbag
deployment, it is normal to notice a
smoke-like, powdery residue or
smell the burnt propellant. This may
consist of cornstarch, talcum
powder (to lubricate the bag) or
sodium compounds (e.g., baking
soda) that result from the
combustion process that inflates the
airbag. Small amounts of sodium
hydroxide may be present which
may irritate the skin and eyes, but
none of the residue is toxic.
While the system is designed to help
reduce serious injuries, it may also
cause minor abrasions, swelling or temporary hearing loss. Because
airbags must inflate rapidly and with considerable force, there is the risk
of death or serious injuries such as fractures, facial and eye injuries or
internal injuries, particularly to occupants who are not properly
restrained or are otherwise out of position at the time of airbag
deployment. Thus, it is extremely important that occupants be properly
restrained as far away from the airbag module as possible while
maintaining vehicle control.WARNING: Several airbag system components get hot after
inflation. Do not touch them after inflation or you may be
burned.
WARNING: If the air bag has deployed, the air bag will not
function again and must be replaced immediately. If the air bag
is not replaced, the unrepaired area will increase the risk of
injury in a collision.
Determining if the system is operational
The SRS uses readiness lights in the instrument cluster or a tone to
indicate the condition of the system. Refer to the Airbag readiness
section in the Instrumentation chapter. Routine maintenance of the
airbag is not required.
2007 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
94

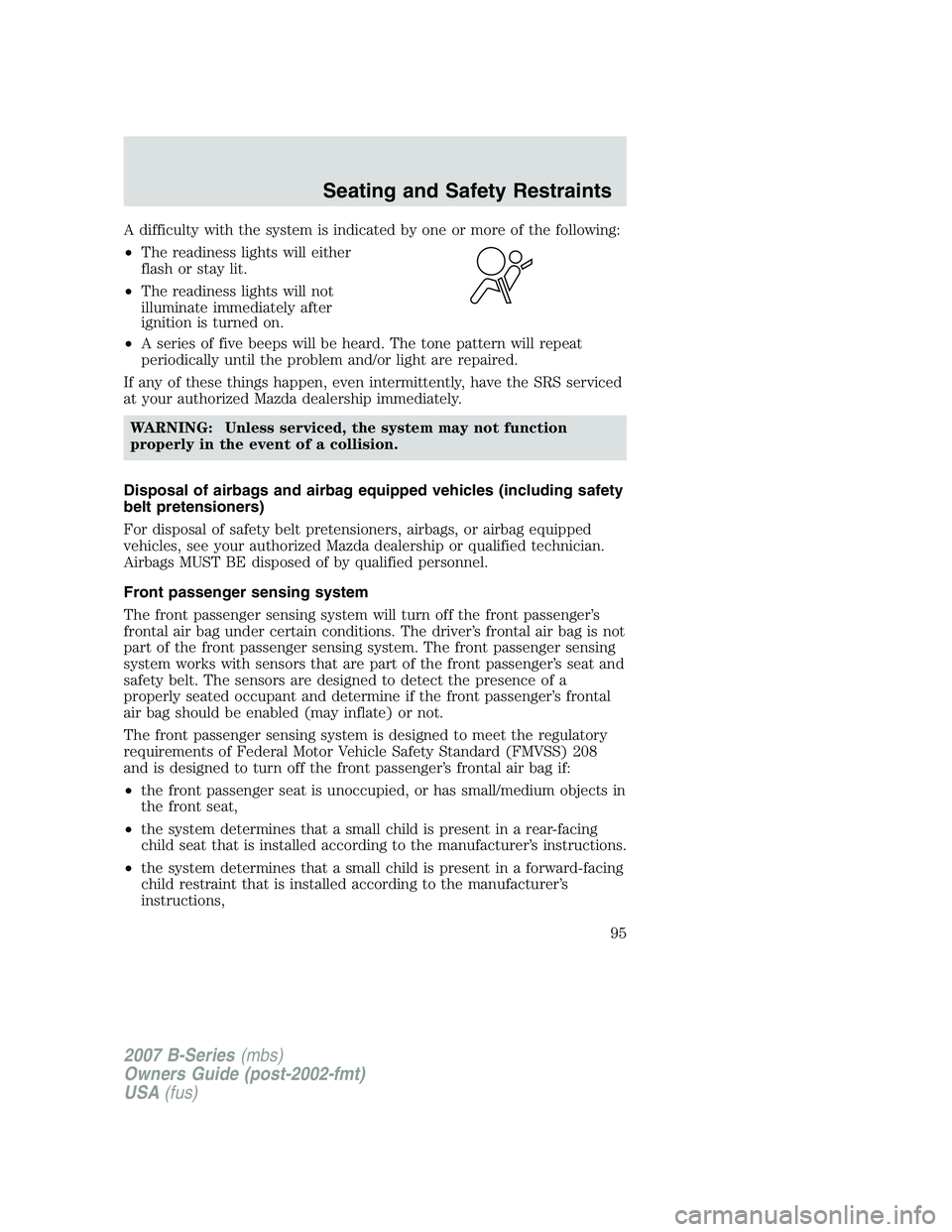

A difficulty with the system is indicated by one or more of the following:
•The readiness lights will either
flash or stay lit.
• The readiness lights will not
illuminate immediately after
ignition is turned on.
• A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and/or light are repaired.
If any of these things happen, even intermittently, have the SRS serviced
at your authorized Mazda dealership immediately.
WARNING: Unless serviced, the system may not function
properly in the event of a collision.
Disposal of airbags and airbag equipped vehicles (including safety
belt pretensioners)
For disposal of safety belt pretensioners, airbags, or airbag equipped
vehicles, see your authorized Mazda dealership or qualified technician.
Airbags MUST BE disposed of by qualified personnel.
Front passenger sensing system
The front passenger sensing system will turn off the front passenger’s
frontal air bag under certain conditions. The driver’s frontal air bag is not
part of the front passenger sensing system. The front passenger sensing
system works with sensors that are part of the front passenger’s seat and
safety belt. The sensors are designed to detect the presence of a
properly seated occupant and determine if the front passenger’s frontal
air bag should be enabled (may inflate) or not.
The front passenger sensing system is designed to meet the regulatory
requirements of Federal Motor Vehicle Safety Standard (FMVSS) 208
and is designed to turn off the front passenger’s frontal air bag if:
• the front passenger seat is unoccupied, or has small/medium objects in
the front seat,
• the system determines that a small child is present in a rear-facing
child seat that is installed according to the manufacturer’s instructions.
• the system determines that a small child is present in a forward-facing
child restraint that is installed according to the manufacturer’s
instructions,
2007 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
95

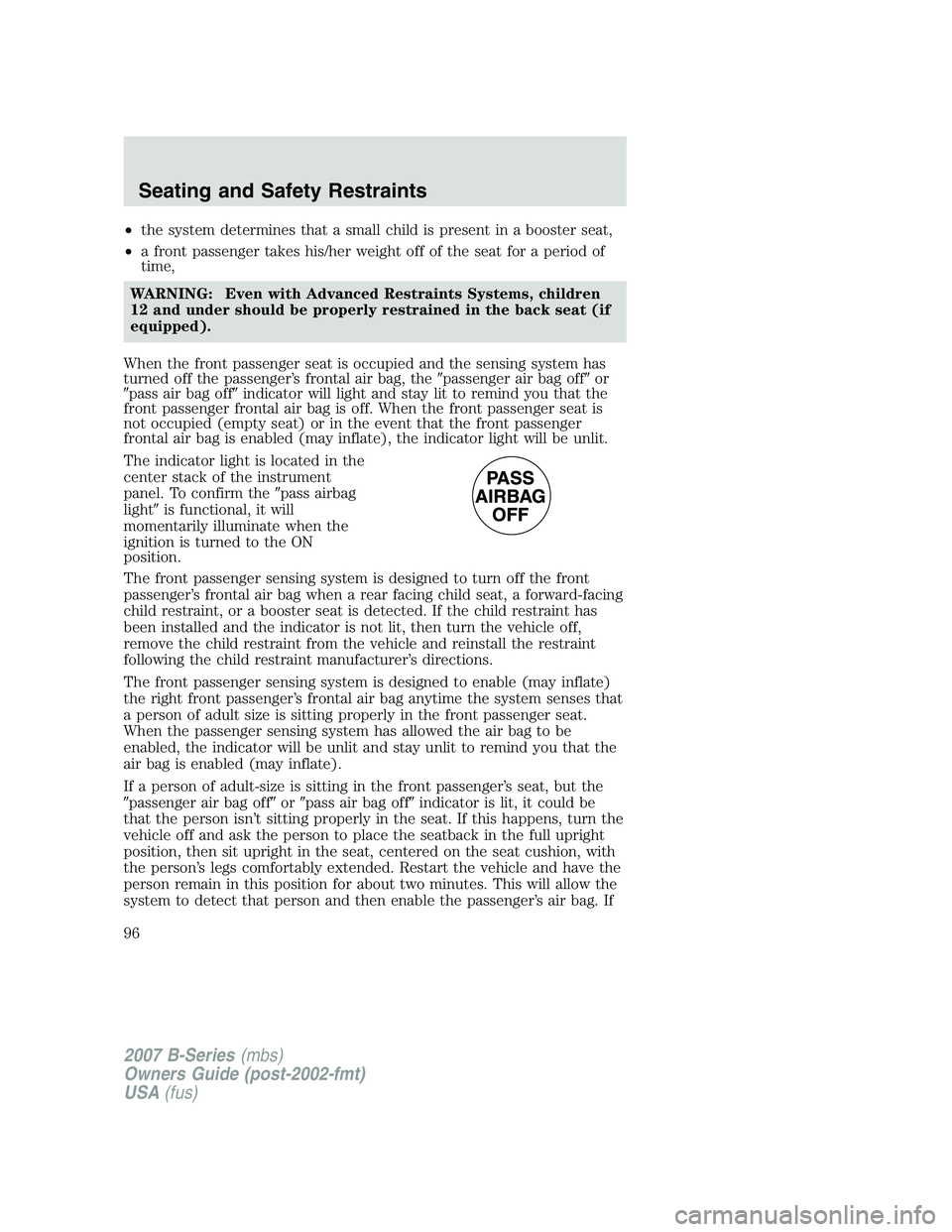

•the system determines that a small child is present in a booster seat,
• a front passenger takes his/her weight off of the seat for a period of
time,
WARNING: Even with Advanced Restraints Systems, children
12 and under should be properly restrained in the back seat (if
equipped).
When the front passenger seat is occupied and the sensing system has
turned off the passenger’s frontal air bag, the passenger air bag offor
pass air bag off indicator will light and stay lit to remind you that the
front passenger frontal air bag is off. When the front passenger seat is
not occupied (empty seat) or in the event that the front passenger
frontal air bag is enabled (may inflate), the indicator light will be unlit.
The indicator light is located in the
center stack of the instrument
panel. To confirm the pass airbag
light is functional, it will
momentarily illuminate when the
ignition is turned to the ON
position.
The front passenger sensing system is designed to turn off the front
passenger’s frontal air bag when a rear facing child seat, a forward-facing
child restraint, or a booster seat is detected. If the child restraint has
been installed and the indicator is not lit, then turn the vehicle off,
remove the child restraint from the vehicle and reinstall the restraint
following the child restraint manufacturer’s directions.
The front passenger sensing system is designed to enable (may inflate)
the right front passenger’s frontal air bag anytime the system senses that
a person of adult size is sitting properly in the front passenger seat.
When the passenger sensing system has allowed the air bag to be
enabled, the indicator will be unlit and stay unlit to remind you that the
air bag is enabled (may inflate).
If a person of adult-size is sitting in the front passenger’s seat, but the
passenger air bag off or pass air bag off indicator is lit, it could be
that the person isn’t sitting properly in the seat. If this happens, turn the
vehicle off and ask the person to place the seatback in the full upright
position, then sit upright in the seat, centered on the seat cushion, with
the person’s legs comfortably extended. Restart the vehicle and have the
person remain in this position for about two minutes. This will allow the
system to detect that person and then enable the passenger’s air bag. If
2007 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
96

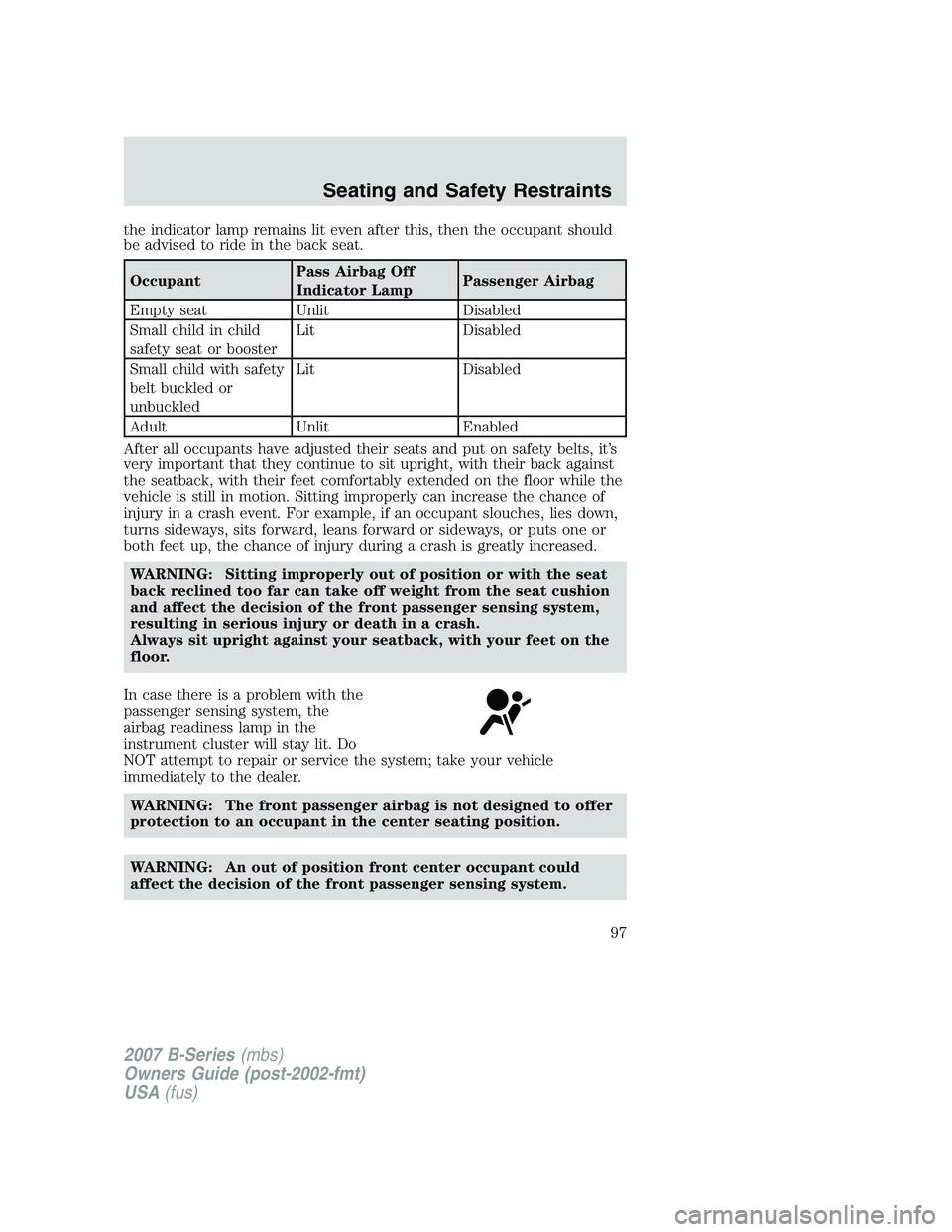

the indicator lamp remains lit even after this, then the occupant should
be advised to ride in the back seat.
OccupantPass Airbag Off
Indicator LampPassenger Airbag
Empty seat UnlitDisabled
Small child in child
safety seat or booster Lit
Disabled
Small child with safety
belt buckled or
unbuckled Lit
Disabled
Adult UnlitEnabled
After all occupants have adjusted their seats and put on safety belts, it’s
very important that they continue to sit upright, with their back against
the seatback, with their feet comfortably extended on the floor while the
vehicle is still in motion. Sitting improperly can increase the chance of
injury in a crash event. For example, if an occupant slouches, lies down,
turns sideways, sits forward, leans forward or sideways, or puts one or
both feet up, the chance of injury during a crash is greatly increased.
WARNING: Sitting improperly out of position or with the seat
back reclined too far can take off weight from the seat cushion
and affect the decision of the front passenger sensing system,
resulting in serious injury or death in a crash.
Always sit upright against your seatback, with your feet on the
floor.
In case there is a problem with the
passenger sensing system, the
airbag readiness lamp in the
instrument cluster will stay lit. Do
NOT attempt to repair or service the system; take your vehicle
immediately to the dealer. WARNING: The front passenger airbag is not designed to offer
protection to an occupant in the center seating position.
WARNING: An out of position front center occupant could
affect the decision of the front passenger sensing system.
2007 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
97

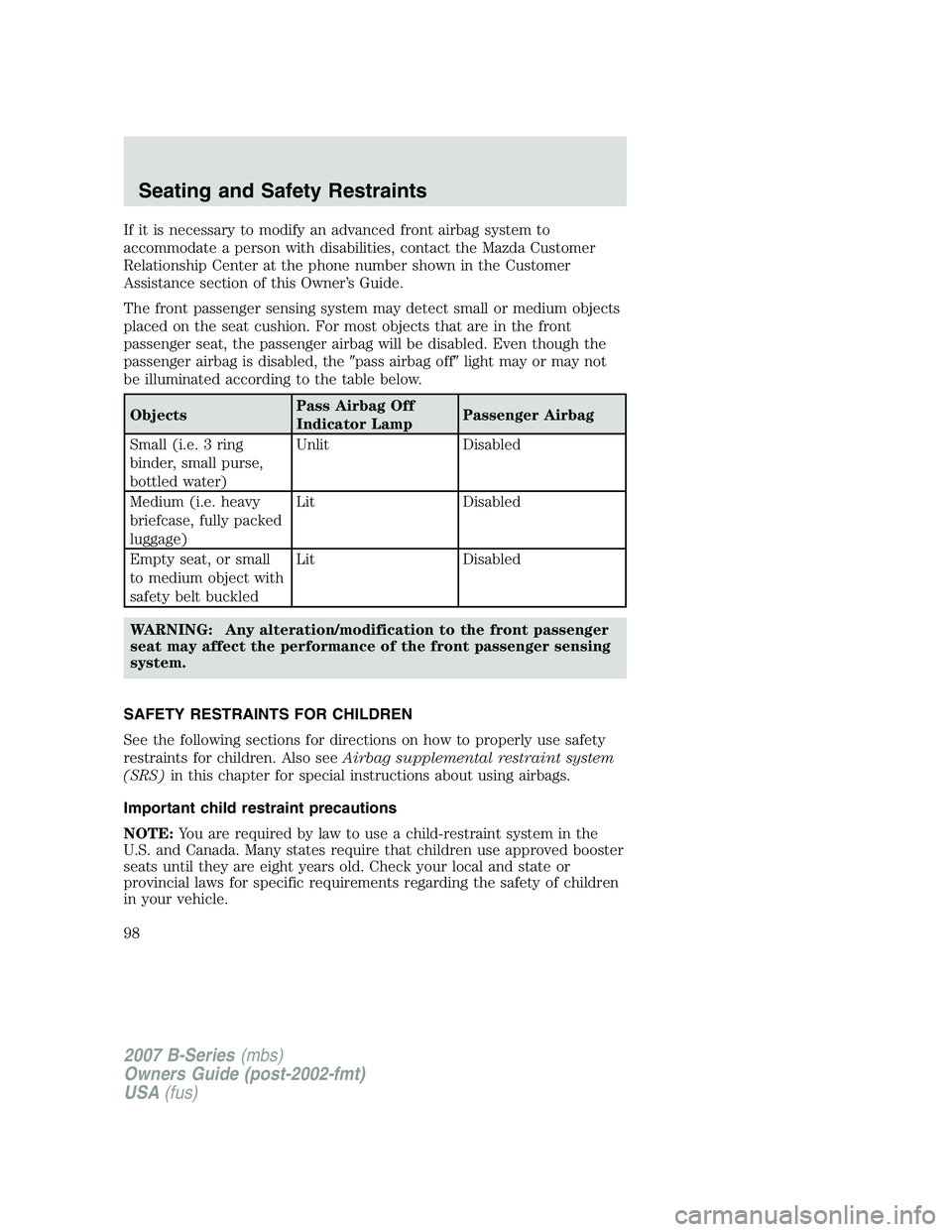

If it is necessary to modify an advanced front airbag system to
accommodate a person with disabilities, contact the Mazda Customer
Relationship Center at the phone number shown in the Customer
Assistance section of this Owner’s Guide.
The front passenger sensing system may detect small or medium objects
placed on the seat cushion. For most objects that are in the front
passenger seat, the passenger airbag will be disabled. Even though the
passenger airbag is disabled, thepass airbag offlight may or may not
be illuminated according to the table below.
Objects Pass Airbag Off
Indicator LampPassenger Airbag
Small (i.e. 3 ring
binder, small purse,
bottled water) Unlit
Disabled
Medium (i.e. heavy
briefcase, fully packed
luggage) Lit
Disabled
Empty seat, or small
to medium object with
safety belt buckled Lit
Disabled
WARNING: Any alteration/modification to the front passenger
seat may affect the performance of the front passenger sensing
system.
SAFETY RESTRAINTS FOR CHILDREN
See the following sections for directions on how to properly use safety
restraints for children. Also see Airbag supplemental restraint system
(SRS) in this chapter for special instructions about using airbags.
Important child restraint precautions
NOTE: You are required by law to use a child-restraint system in the
U.S. and Canada. Many states require that children use approved booster
seats until they are eight years old. Check your local and state or
provincial laws for specific requirements regarding the safety of children
in your vehicle.
2007 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
98

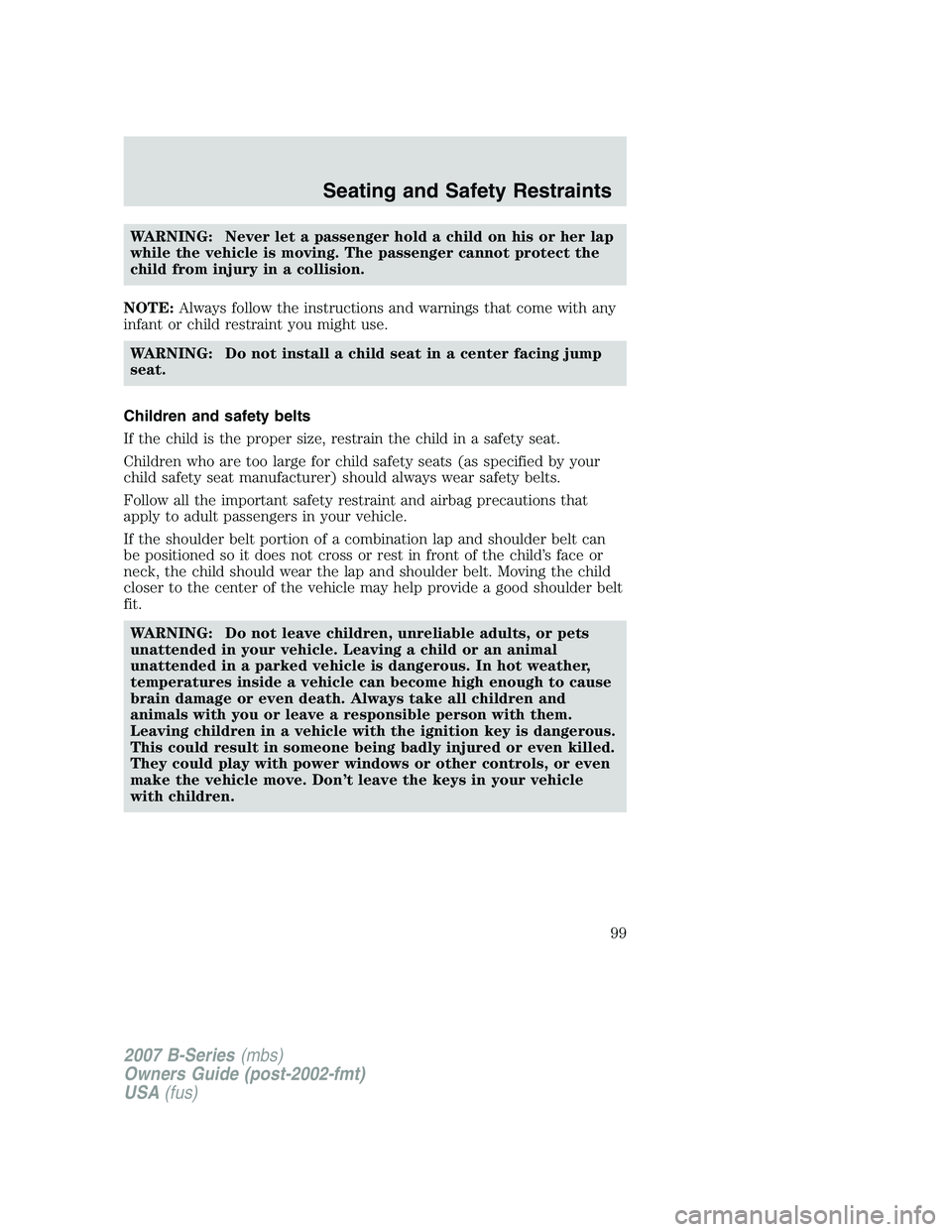

WARNING: Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the
child from injury in a collision.
NOTE: Always follow the instructions and warnings that come with any
infant or child restraint you might use.
WARNING: Do not install a child seat in a center facing jump
seat.
Children and safety belts
If the child is the proper size, restrain the child in a safety seat.
Children who are too large for child safety seats (as specified by your
child safety seat manufacturer) should always wear safety belts.
Follow all the important safety restraint and airbag precautions that
apply to adult passengers in your vehicle.
If the shoulder belt portion of a combination lap and shoulder belt can
be positioned so it does not cross or rest in front of the child’s face or
neck, the child should wear the lap and shoulder belt. Moving the child
closer to the center of the vehicle may help provide a good shoulder belt
fit. WARNING: Do not leave children, unreliable adults, or pets
unattended in your vehicle. Leaving a child or an animal
unattended in a parked vehicle is dangerous. In hot weather,
temperatures inside a vehicle can become high enough to cause
brain damage or even death. Always take all children and
animals with you or leave a responsible person with them.
Leaving children in a vehicle with the ignition key is dangerous.
This could result in someone being badly injured or even killed.
They could play with power windows or other controls, or even
make the vehicle move. Don’t leave the keys in your vehicle
with children.
2007 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
99

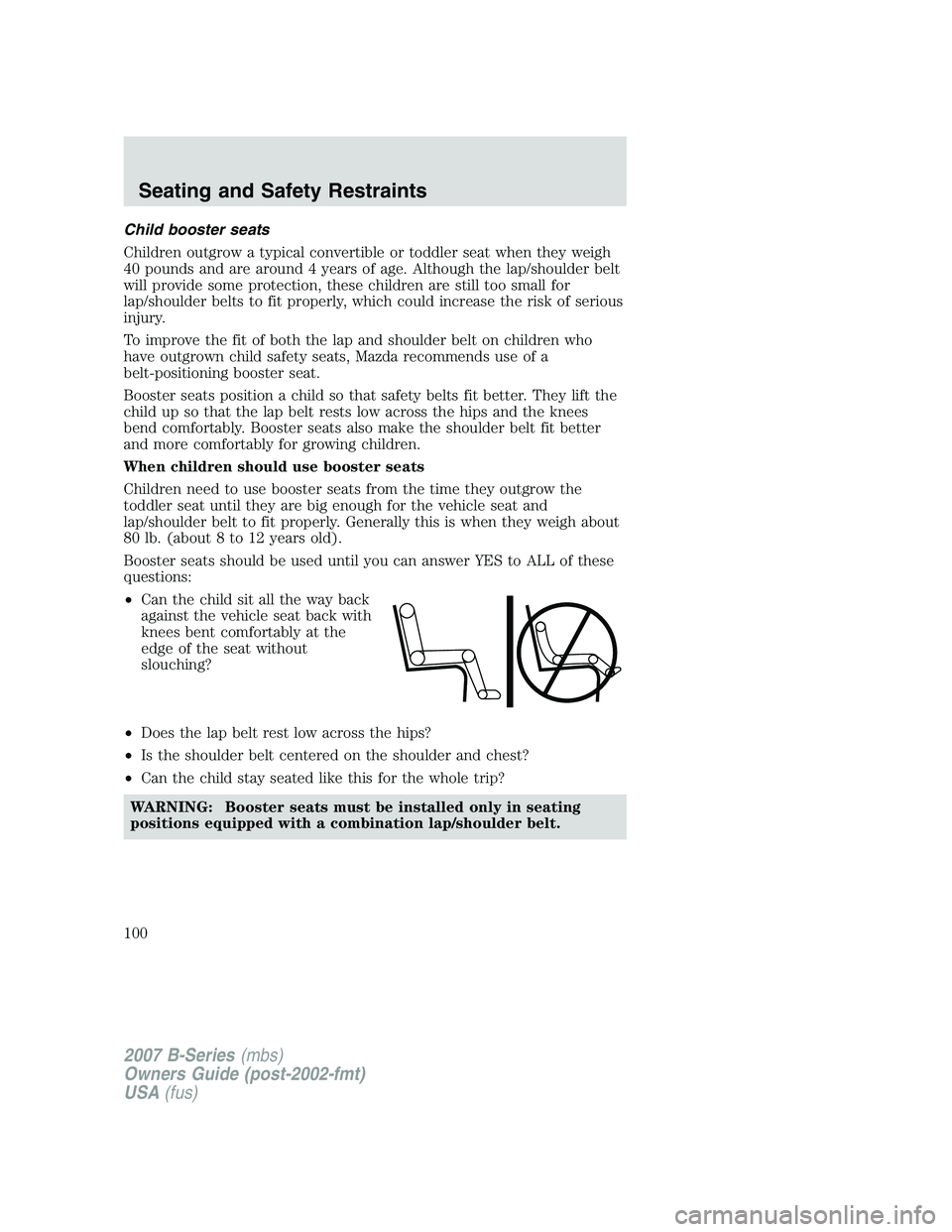

Child booster seats
Children outgrow a typical convertible or toddler seat when they weigh
40 pounds and are around 4 years of age. Although the lap/shoulder belt
will provide some protection, these children are still too small for
lap/shoulder belts to fit properly, which could increase the risk of serious
injury.
To improve the fit of both the lap and shoulder belt on children who
have outgrown child safety seats, Mazda recommends use of a
belt-positioning booster seat.
Booster seats position a child so that safety belts fit better. They lift the
child up so that the lap belt rests low across the hips and the knees
bend comfortably. Booster seats also make the shoulder belt fit better
and more comfortably for growing children.
When children should use booster seats
Children need to use booster seats from the time they outgrow the
toddler seat until they are big enough for the vehicle seat and
lap/shoulder belt to fit properly. Generally this is when they weigh about
80 lb. (about 8 to 12 years old).
Booster seats should be used until you can answer YES to ALL of these
questions:
•Can the child sit all the way back
against the vehicle seat back with
knees bent comfortably at the
edge of the seat without
slouching?
• Does the lap belt rest low across the hips?
• Is the shoulder belt centered on the shoulder and chest?
• Can the child stay seated like this for the whole trip?
WARNING: Booster seats must be installed only in seating
positions equipped with a combination lap/shoulder belt.
2007 B-Series (mbs)
Owners Guide (post-2002-fmt)
USA (fus)
Seating and Safety Restraints
100
