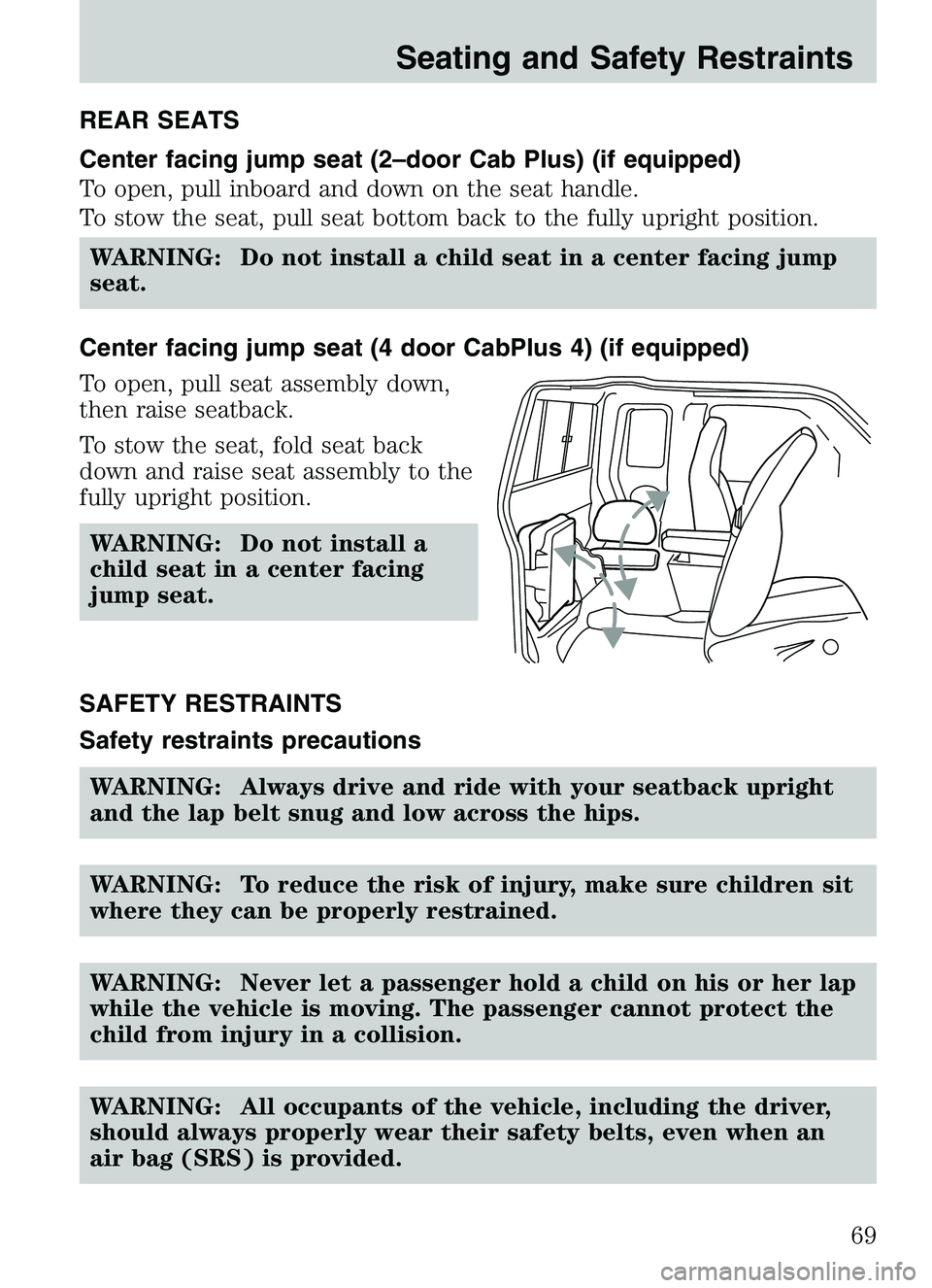

REAR SEATS
Center facing jump seat (2–door Cab Plus) (if equipped)
To open, pull inboard and down on the seat handle.
To stow the seat, pull seat bottom back to the fully upright position.WARNING: Do not install a child seat in a center facing jump
seat.
Center facing jump seat (4 door CabPlus 4) (if equipped)
To open, pull seat assembly down,
then raise seatback.
To stow the seat, fold seat back
down and raise seat assembly to the
fully upright position. WARNING: Do not install a
child seat in a center facing
jump seat.
SAFETY RESTRAINTS
Safety restraints precautions WARNING: Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING: To reduce the risk of injury, make sure children sit
where they can be properly restrained.
WARNING: Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the
child from injury in a collision.
WARNING: All occupants of the vehicle, including the driver,
should always properly wear their safety belts, even when an
air bag (SRS) is provided.
2003 Mazda B Series (mbs)
New Owners Guide own2002 (own2002)
USA English (fus)
Seating and Safety Restraints
69

Insert the tongue into the correct
buckle (the buckle closest to the
direction the tongue is coming
from). To lengthen the belt, turn the
tongue at a right angle to the belt
and pull across your lap until it
reaches the buckle.
To tighten the belt, pull the loose
end of the belt through the tongue
until it fits snugly across the hips.
Shorten and fasten the belt when not in use to keep the belt
away from door openings and available after unfolding the seats.
Adjusting the rear center facing jump seat lap belt (if equipped)
The center facing rear jump seat lap belt will adjust automatically. To
fasten, grasp the tongue, and with a continuous motion, pull out enough
webbing to buckle the tongue into the correct buckle. If you did not pull
out enough webbing to reach the buckle, allow the tongue to retract fully
before trying to pull it out again.WARNING: The lap belts should fit snugly and as low as
possible around the hips, not around the waist. Failure to
position the lap belt correctly may cause serious injury in an
accident.
If you need to lengthen the belt, unfasten it and repeat the procedure
above.
To unfasten the belt, push in the release button prior to opening the rear
door.
Seating and Safety Restraints
75

Center seating location 60/40 seats with folding armrest
When installing a child safety seat in the center position, route the tether
strap over the center arm rest and clip it to the center anchor.
See next page for center seating location of vinyl 60/40 seat.WARNING: If the tether strap is clipped incorrectly, the child
safety seat may not be retained properly in the event of a
collision.
Seating and Safety Restraints
105
