Chart symbols
I: Inspect, and if necessary correct, clean or replace
A: Adjust
R: Replace
L: Lubricate
Normal driving service intervals – perform at the months or distances
shown, whichever occurs first.
Maintenance ItemMaintenance Interval (Number of months or km (miles),
whichever comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
x 1000 Miles 5 10 15 20 25 30 35 40 45 50 55 60 (x 1000 km) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
ENGINE
Engine oil —every 6 months RRRRRRRRRRRR
Oil filter—every 6 months RRRRRRRRRRRR
PCV valve
AIR CLEANER
Air cleaner filter RR
IGNITION SYSTEM
Spark plugs *4
COOLING SYSTEM
Engine Coolant (green) Replace at first 45,000 miles (72,000 km) or 36
months, after that, every 30,000 miles (48,000 km) or 24 months
Coolant condition and protection,
hoses and clamps — annually —prior
to cold weather every 12 months IIII
CHASSIS AND BODY
Wheel lug nut torque *1IIIIIIIIIIII
Inspect tires for wear and rotate
(X = recommended interval for
optimal tire life) IXIXXIXXIXXI
Clutch reservoir fluid level IIIIII
Front wheel bearings (4x2) L
Disc brake system IIII
Caliper slide rails LLLL
Maintenance and Specifications
225

5. The California Air Resources Board has determined that the failureto perform this maintenance item will not nullify the emission
warranty nor limit recall liability prior to completion of the vehicle’s
useful life.
Maintenance Item Maintenance Interval (Number of months or Miles (km),
whichever comes first)
Months 52 56 60 64 68 72 76 80 84 88 92 96
x 1000 Miles 65 70 75 80 85 90 95 100 105 110 115 120 (x 1000 km) (104) (112) (121) (128) (136) (144) (152) (160) (168) (176) (184) (192)
ENGINE
Engine oil —every 6 months RRRRRRRRRRRR
Oil filter—every 6 months RRRRRRRRRRRR
PCV valve R
AIR CLEANER
Air cleaner filter RR
IGNITION SYSTEM
Spark plugs *4 R
COOLING SYSTEM
Engine Coolant (green) Replace at first 45,000 miles (72,000 km) or 36 months, after that, every 30,000 miles (48,000 km) or 24 months
Coolant condition and
protection, hoses and clamps
— annually —prior to cold
weather every 12 months IIII
CHASSIS AND BODY
Wheel lug nut
torque *1IIIIIIIIIIII
Inspect tires for wear and
rotate (X = recommended
interval for optimal tire life) XXIXXIXXIXXI
Clutch reservoir fluid level IIIIII
Front wheel bearings (4x2) L
Disc brake system IIII
Caliper slide rails LLLL
Drum brake system, lines and
hoses IIII
Maintenance and Specifications
227

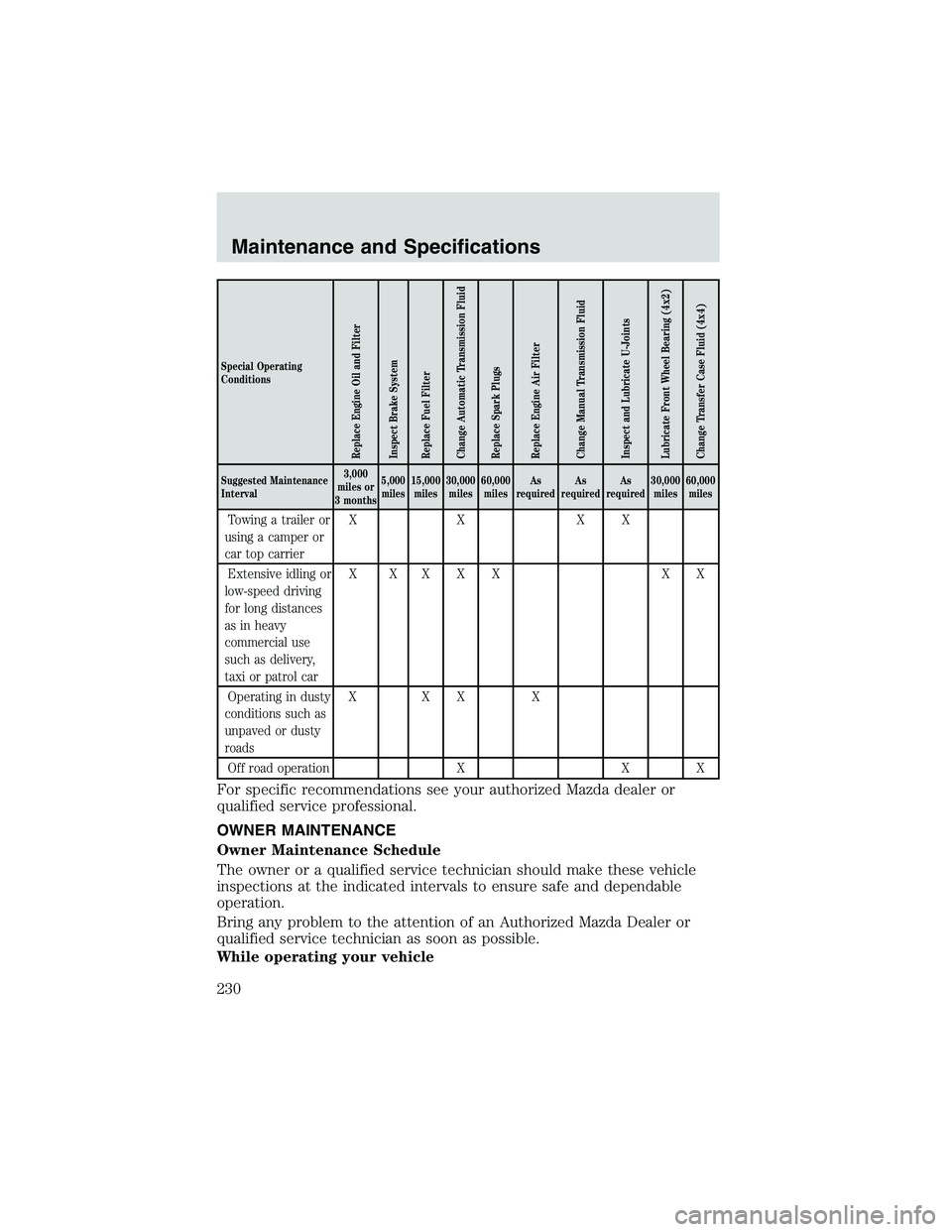

Special Operating
Conditions
Replace Engine Oil and Filter
Inspect Brake System
Replace Fuel Filter
Change Automatic Transmission Fluid
Replace Spark Plugs
Replace Engine Air Filter
Change Manual Transmission Fluid
Inspect and Lubricate U-Joints
Lubricate Front Wheel Bearing (4x2)
Change Transfer Case Fluid (4x4)
Suggested Maintenance
Interval3,000
miles or
3 months 5,000
miles 15,000
miles 30,000
miles 60,000
miles As
required As
required As
required 30,000
miles 60,000
miles
Towing a trailer or
using a camper or
car top carrier X
X XX
Extensive idling or
low-speed driving
for long distances
as in heavy
commercial use
such as delivery,
taxi or patrol car X XXXX
XX
Operating in dusty
conditions such as
unpaved or dusty
roads X XX X
Off road operation XXX
For specific recommendations see your authorized Mazda dealer or
qualified service professional.
OWNER MAINTENANCE
Owner Maintenance Schedule
The owner or a qualified service technician should make these vehicle
inspections at the indicated intervals to ensure safe and dependable
operation.
Bring any problem to the attention of an Authorized Mazda Dealer or
qualified service technician as soon as possible.
While operating your vehicle
Maintenance and Specifications
230

Mirrorsautomatic dimming rearview
mirror ........................................86
cleaning ...................................221
side view mirrors (power) .......89
Motorcraft parts ........................255
O
Octane rating ............................254
Odometer .....................................20
Oil (see Engine oil) ..................238
Overdrive .....................................93
P
Panic alarm feature, remote
entry system ..............................100
Parking brake ............................155
Power distribution box
(see Fuses) ...............................188
Power door locks ........................97
Power point .................................84
Power steering ..........................156 fluid, checking and adding ....261
fluid, refill capacity ................272
fluid, specifications .........275–276
Power Windows ...........................85
Preparing to drive your
vehicle ........................................157
R
Radio ................................21, 45, 53
Radio reception .....................66–67
Relays ........................................183
Remote entry system .........97, 100 illuminated entry ......................98
locking/unlocking doors .....97–99
panic alarm .............................100
replacement/additional
transmitters .............................101
replacing the batteries ...........100
Roadside assistance ..................181
S
Safety belts (see Safety
restraints) ....................17, 107–111
Safety defects, reporting ..........217
Safety restraints ................107–111 belt minder .............................115
cleaning the safety belts ........118
extension assembly ................114
for adults .........................108–110
for children .....................131–132
lap belt ....................................113
warning light and
chime ...........................14, 17, 114
Safety restraints - LATCH
anchors ......................................145
Safety restraints - tether
anchors ......................................140
Safety seats for children ..........135
Seat belts (see Safety
restraints) ..................................107
Seats ..........................................105 child safety seats ....................135
SecuriLock passive anti-theft
system ................................102–103
Servicing your vehicle ..............232
Snowplowing .................................7
Spare tire (see Changing the
Tire) ...........................................195
Spark plugs, specifications .......276
