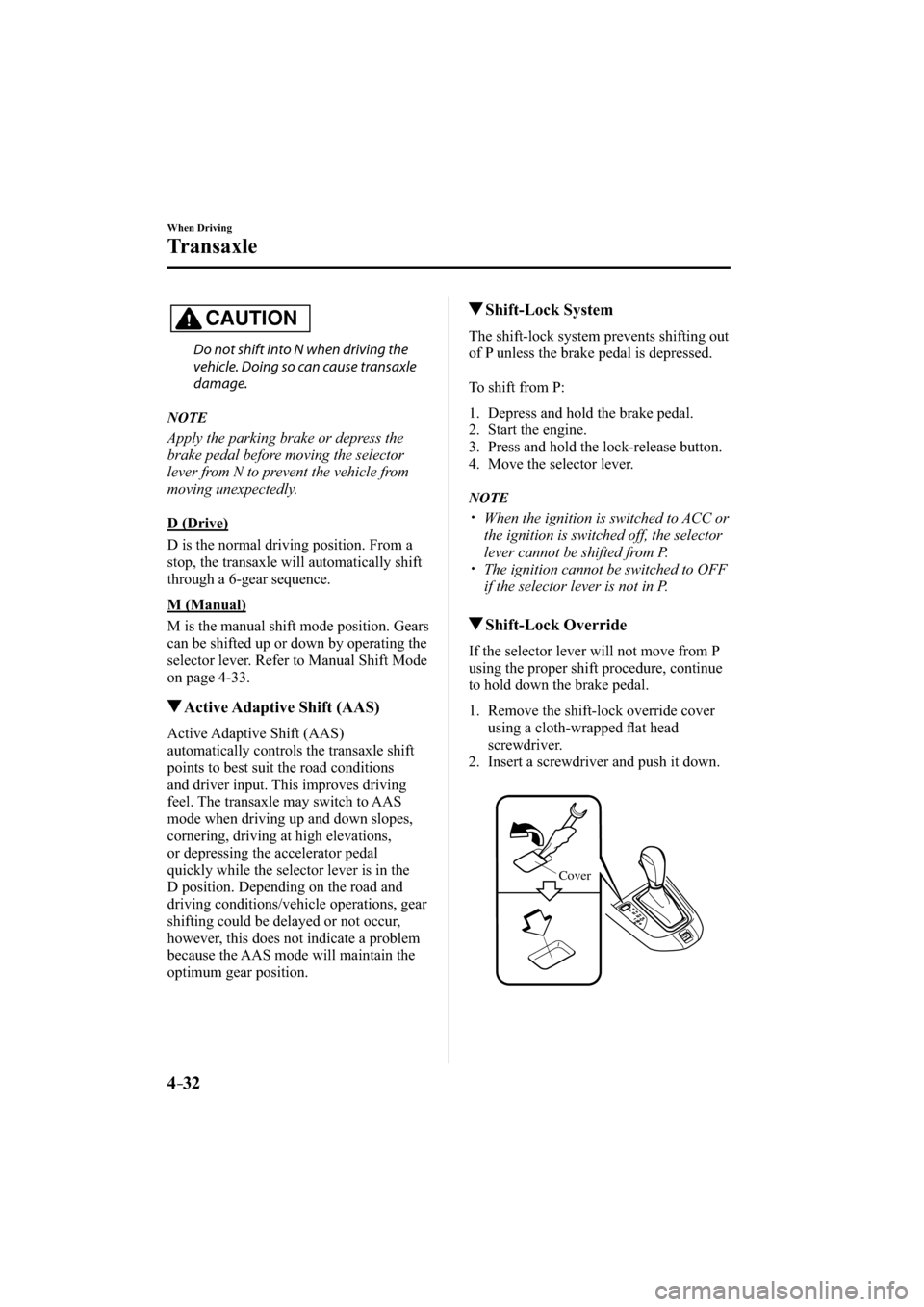

4–32
When Driving
Transaxle
CAUTION
Do not shift into N when driving the
vehicle. Doing so can cause transaxle
damage.
NOTE
Apply the parking brake or depress the
brake pedal before moving the selector
lever from N to prevent the vehicle from
moving unexpectedly.
D (Drive)
D is the normal driving position. From a
stop, the transaxle will automatically shift
through a 6-gear sequence.
M (Manual)
M is the manual shift mode position. Gears
can be shifted up or down by operating the
selector lever. Refer to Manual Shift Mode
on page 4-33 .
Active Adaptive Shift (AAS)
Active Adaptive Shift (AAS)
automatically controls the transaxle shift
points to best suit the road conditions
and driver input. This improves driving
feel. The transaxle may switch to AAS
mode when driving up and down slopes,
cornering, driving at high elevations,
or depressing the accelerator pedal
quickly while the selector lever is in the
D position. Depending on the road and
driving conditions/vehicle operations, gear
shifting could be delayed or not occur,
however, this does not indicate a problem
because the AAS mode will maintain the
optimum gear position.
Shift-Lock System
The shift-lock system prevents shifting out
of P unless the brake pedal is depressed.
To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Press and hold the lock-release button.
4. Move the selector lever.
NOTE



y When the ignition is switched to ACC or
the ignition is switched off, the selector
lever cannot be shifted from P.



y The ignition cannot be switched to OFF
if the selector lever is not in P.
Shift-Lock Override
If the selector lever will not move from P
using the proper shift procedure, continue
to hold down the brake pedal.
1. Remove the shift-lock override cover
using a cloth-wrapped fl at head
screwdriver.
2. Insert a screwdriver and push it down.
Cover
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–28
Interior Features
Audio System
Operating the Radio
Band selector buttonChannel preset buttons
Scan button
Auto memory button
Tuning buttonAudio display
Radio ON
Press a band selector button (
) to
turn the radio on.
Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1
:FM2
:AM.
The selected mode will be indicated.
NOTE
If the FM broadcast signal becomes weak,
reception automatically changes from
STEREO to MONO for reduced noise.
Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning
Select the station by pressing the tuning
button (
,) lightly. Seek tuning
Automatic search for radio stations starts
when the tuning button (
,) is pressed
until a beep sound is heard. The search
stops when a station is found.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
Scan tuning
Press and hold the scan button (
) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press and hold
the scan button (
) again during this
interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel fi rst select AM, FM1,
or FM2. Tune to the desired station.
2. Press a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number or station
frequency will be displayed. The
station is now held in the memory.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–30
Interior Features
Audio System
Operating the Compact Disc (CD) Player
CD eject button CD slotMedia/Scan buttonFolder down button Folder up button Play/Pause button
Random button Repeat button
Audio display Text button
Track down/
Reverse button
Track up/
Fast-forward button
Type Playable data
Music/MP3/WMA/
AAC CD player
y Music data (CD-DA) y MP3/WMA/AAC fi le
NOTE
If a disc has both music data (CD-DA)
and MP3/WMA/AAC fi les, playback of the
two or three fi le types differs depending on
how the disc was recorded.
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play.
NOTE
There will be a short lapse before play
begins while the player reads the digital
signals on the CD.
Ejecting the CD
Press the CD eject button (
) to eject the
CD.
Playback
Press the media button (
) to switch
to CD mode and start playback.
NOTE
The CD mode cannot be selected if a CD
has not been inserted.
Pause
To stop playback, press the Play/Pause
button ( 4 ).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button (
)
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–60
Interior Features
Audio System
How to use USB mode (Type A)
Media/Scan button
Folder down button Folder up button Play/Pause button Random button
Repeat buttonAudio display
Text button
Track down/Reverse button
Track up/Fast-forward button
Type Playable data
USB mode MP3/WMA/AAC fi le
This unit does not support a USB 3.0
device. In addition, other devices may not
be supported depending on the model or
OS version.
Playback
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the
audio system on.
3. Press the media button (
) to
switch to the USB mode and start
playback.
NOTE



y Some devices such as smart phones
may require a setting change to allow
operation using a USB connection.



y When the USB device is not connected,
the mode does not switch to USB mode.



y When there is no playable data in the
USB device, “ NO CONTENTS ”is
fl ashed.



y Playback of the USB device is in the
order of the folder numbers. Folders
which have no MP3/WMA/AAC fi les are
skipped.



y Do not remove the USB device while
in the USB mode. The data may be
damaged.
Pause
To stop playback, press the play/pause
button ( 4 ).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button (
)
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–64
Interior Features
Audio System
How to use iPod mode (Type A)
Media/Scan buttonList down button List up button Play/Pause button
Random button
Repeat buttonAudio display
Text button
Track down/Reverse button
Track up/Fast-forward buttonCategory down button
Category up button
An iPod may not be compatible depending
on the model or OS version. In this case,
an error message is displayed.
NOTE
The iPod functions on the iPod cannot
be operated while it is connected to the
unit because the unit controls the iPod
functions.
Playback
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the
audio system on.
3. Press the media button (
) to
switch to the iPod mode and start
playback.
NOTE



y When an iPod is not connected, the
mode does not switch to the iPod mode.



y When there is no playable data in the
iPod, “ NO CONTENTS ” is fl ashed.



y Do not remove the iPod while in the
iPod mode. Otherwise, the data could
be damaged.
Pause
To stop playback, press the play/pause
button ( 4 ).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button (
)
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.
Track search
Press the track up button (
) once to skip
forward to the beginning of the next track.
Press the track down button (
) within a
few seconds (depends on iPod software
version) after playback begins to track
down to the beginning of the previous
track.
Press the track down button (
) after a
few seconds (depends on iPod software
version) have elapsed to start playback
from the beginning of the current track.
Category search
Press the category down button ( 5 ) to
select the previous category and press the
category up button ( 6 ) to select the next
category.
NOTE
The types of categories include Playlist,
Artist, Album, Song, Podcast, Genre,
Composer, and Audio book.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.5–73
Interior Features
Bluetooth®
Bluetooth ®*
Bluetooth ® Hands-Free outline
When a Bluetooth
® device (mobile phone) is connected to the vehicle's Bluetooth ® unit via
radio wave transmission, a call can be made or received by pressing the talk button, pick-
up button, or hang-up button on the audio remote control switch, or by operating the center
display. For example, even if a device (mobile phone) is in your coat pocket, a call can be
made without taking the device (mobile phone) out and operating it directly.
Bluetooth
® audio outline
When a portable audio unit equipped with the Bluetooth
® communication function is paired
to the vehicle, you can listen to music stored on the paired portable audio device from the
vehicle's speakers. It is not necessary to connect the portable audio device to the vehicle's
external input terminal. After programming, operate the vehicle audio control panel to play/
stop the audio.
NOTE



y For your safety, a device can be paired only when the vehicle is parked. If the vehicle
starts to move, the pairing procedure will end. Park the vehicle in a safe place before
pairing.



y The communication range of a Bluetooth ® equipped device is about 10 meters (32 ft) or
less.



y Basic audio operation is available using voice commands even if Bluetooth ® is not
connected.
CAUTION
Some Bluetooth ® mobile devices are not compatible with the vehicle. Consult an
Authorized Mazda Dealer, Mazda's call center or Web support center for information
regarding Bluetooth
® mobile device compatibility:




¾ U.S.A.
 Phone: 800-430-0153
 Web: www.MazdaUSA.com/bluetooth



¾ Canada
 Phone: 800-430-0153
 Web: www.mazdahandsfree.ca



¾ Mexico
 Center of Attention to Client (CAC)
 Phone: 01-800-01-MAZDA
 Web:
 www.mazdamexico.com.mx
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–112
Interior Features
Bluetooth®
3. Press the media button () to
switch to the Bluetooth ® audio mode
and start playback.
If the current device version is lower
than AVRCP Ver. 1.3: “ BT Audio ” is
displayed.
If the current device is AVRCP Ver. 1.3:
The playback time is displayed.
NOTE



y If the Bluetooth ® audio device does not
begin playback, press the Play/Pause
button (4).



y If a call is received on a hands-free
mobile phone during playback from the
Bluetooth
® audio device, the playback is
stopped. Playback from the Bluetooth ®
audio device resumes after the call
ends.
Playback
1. To listen to a Bluetooth
® audio device
over the vehicle's speaker system,
switch the mode to Bluetooth
®
audio mode. (Refer to “Switching to
Bluetooth® audio mode”)
2. To stop playback, press the Play/Pause
button (4).
3. Press the button again to resume
playback.
Selecting a fi le (track)
Selects the next fi le (track)
Short-press the track up button (
).
Selects the beginning of the current fi le
(track)
Short-press the track down button (
).
Fast-forward/Reverse (AVRCP Ver. 1.3)
Fast-forward
Press and hold the fast-forward button
(
).
Reverse
Press and hold the reverse down button
(
).
Switching the display (only AVRCP Ver.
1.3)
The information displayed on the audio
display changes as follows each time the
text button ( 3 ) is pressed during playback.
Button Information displayed
on audio display
Elapsed time
Album name
Song name
Artist name
NOTE



y If title information is not available, “ NO
TITLE ” is displayed.



y This unit cannot display some
characters. Characters which cannot be
displayed are indicated by an asterisk
(
).
Display scroll
Only 13 characters can be displayed at one
time. To display the rest of the characters
of a long title, press and hold the text
button (3). The display scrolls the next 13
characters. Press and hold the text button
(3) again after the last 13 characters have
been displayed to return to the beginning
of the title.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC
