Page 551 of 580
8–45
Customer Information and Reporting Safety Defects
Declaration of Conformity
Bluetooth ® Hands-Free
Type A
U.S.A. and Canada
FCC ID: CB2MBLUEC09 IC:279B-MBLUEC09
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
WARNING
Changes or modifi cations not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The term “IC: ” before the radio certifi cation number only signifi es that Industry Canada
technical specifi cations were met.
The antenna used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter. End-users and installers must be provided with
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
Mazda Bluetooth
® Hands-Free Customer Service
y U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.MazdaUSA.com/bluetooth
y Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 552 of 580
8–46
Customer Information and Reporting Safety Defects
Declaration of Conformity
Mexico
y Brief description: Bluetooth module for Hands-free telephone and streaming audio
y Name and address of the importer: Refer to "MEXICO" (page 8-12 ) in Importer/
Distributor section.
y Brand name of the product: Johnson Controls Inc.
y Model name of the product: MAZ
y Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-12 ) in Importer/Distributor section.
y Names and addresses of where to acquire spare parts, consumables and accessories: Refer
to "MEXICO" (page 8-12 ) in Importer/Distributor section.
y Warranty period, items covered by the warranty and its possible limitations or exceptions:
Refer to the Warranty Booklet for detailed warranty information.
y Warranty procedure:
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx
y Electrical specifi cations:
Voltage: 9-16V, Frequency: 2.4Ghz, Current: 270mA(Typ)
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 553 of 580
8–47
Customer Information and Reporting Safety Defects
Declaration of Conformity

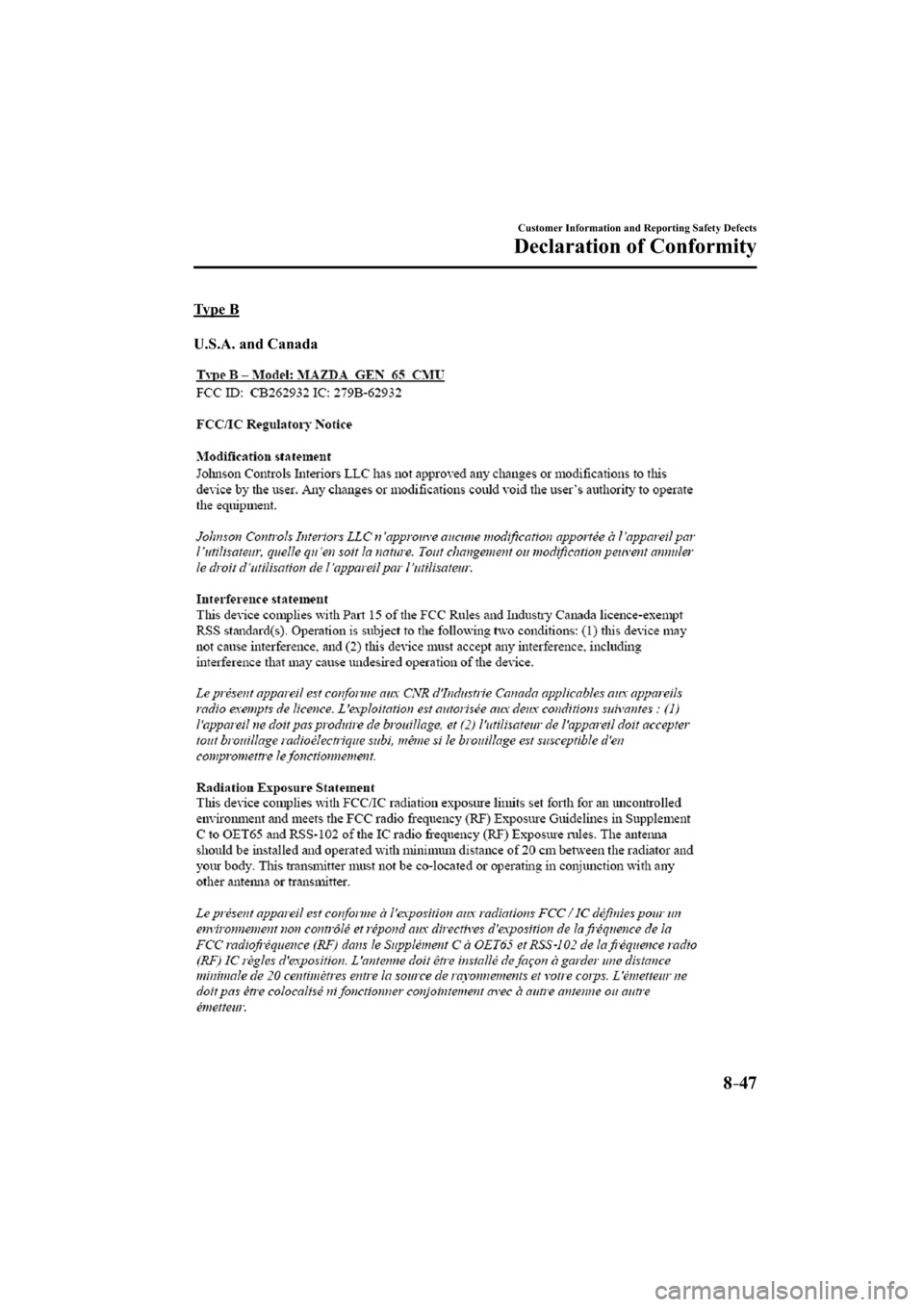

Type B
U.S.A. and Canada
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 554 of 580
8–48
Customer Information and Reporting Safety Defects
Declaration of Conformity
Mexico
Smart Brake Support (SBS)/Mazda Radar Cruise Control (MRCC)/Distance
Recognition Support System (DRSS)
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 555 of 580
8–49
Customer Information and Reporting Safety Defects
Service Publications
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-073B-16 2016 WORKSHOP MANUAL (English)
9999-MX-073B-16 2016 WORKSHOP MANUAL (Spanish)
9999-95-053G-16 2016 WIRING DIAGRAM (English)
9999-MX-053G-16 2016 WIRING DIAGRAM (Spanish)
9999-95-003C-16 2016 OWNER'S MANUAL (English)
9999-EC-003C-16 2016 OWNER'S MANUAL (French)
9999-PR-003C-16 2016 OWNER'S MANUAL (Spanish)
9999-95-083F-16 2016 SERVICE HIGHLIGHTS
9999-95-078C-16NAV 2016 NAVIGATION SYSTEM OWNER'S MANUAL
(English)
9999-EC-078C-16NAV 2016 NAVIGATION SYSTEM OWNER'S MANUAL
(English and French)
9999-PR-078C-16NAV 2016 NAVIGATION SYSTEM OWNER'S MANUAL
(Spanish)
WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
WIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical system.
OWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
SERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 556 of 580
8–50
Customer Information and Reporting Safety Defects
Service Publications
NAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use of the navigation
system. This is not a technician's manual.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 557 of 580
9–1
9Specifi cations
Technical information about your Mazda.
Identifi cation Numbers ...................................................................... 9-2
Vehicle Information Labels ........................................................... 9-2
Specifi cations ...................................................................................... 9-4
Specifi cations ................................................................................ 9-4
Personalization Features ................................................................. 9-10
Personalization Features ............................................................. 9-10
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 558 of 580
9–2
Specifi cations
Identifi cation Numbers
Vehicle Information Labels
Vehicle Identifi cation Number
The vehicle identifi cation number legally
identifi es your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
Chassis Number
Open the cover shown in the fi gure to
check the chassis number.
Vehicle Emission Control
Information Label (U.S.A. and
Canada)
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 559 of 580
9–3
Specifi cations
Identifi cation Numbers
Tire Pressure Label
Engine Number
Forward
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 560 of 580
9–4
Specifi cations
Specifi cations
Specifi cations
Engine
Item Specifi cation
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement 1,997.6 ml (1,997.6 cc)
Compression ratio 13.0
Electrical System
Item Classifi cation
Battery 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1 PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer for
details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fi ne particulate coating on
the iridium alloy and platinum tips could be damaged.
Lubricant Quality
Lubricant Classifi cation
Engine oil Refer to Recommended Oil on page 6-27 .
Coolant FL-22 type
Automatic transaxle fl uid Mazda Genuine ATF FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake fl uid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2 ) for owner's responsibility in protecting your investment.
