Capacities
(Approximate Quantities)
Item Capacity
Engine oil With oil fi lter replacement 4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil fi lter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
Coolant U.S.A. and Canada 5.8 L (6.1 US qt, 5.1 Imp qt)
Mexico 6.1 L (6.4 US qt, 5.4 Imp qt)
Automatic transaxle fl uid 7.8 L (8.2 US qt, 6.9 Imp qt)
Transfer case oil 0.40 L (0.42 US qt, 0.35 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank 2WD 48.0 L (12.7 US gal, 10.6 Imp gal)
AWD U.S.A. and Canada 45.0 L {11.9 US gal, 9.90 Imp gal}
Mexico 44.0 L (11.6 US gal, 9.68 Imp gal)
Check oil and fl uid levels with dipsticks or reservoir gauges.
Dimensions
U.S.A. and Canada
Item Vehicle specifi cation
Overall length 4,275 mm (168.3 in)
Overall width 1,765 mm (69.5 in)
Overall height 1,550 mm (61.0 in)
Front tread 1,525 mm (60.0 in)
Rear tread 1,520 mm (59.8 in)
Wheelbase 2,570 mm (101.2 in)
Mexico
Item Vehicle specifi cation
Overall length 4,275 mm (168.3 in)
Overall width 1,765 mm (69.5 in)
Overall height 1,545 mm (60.8 in)
Front tread 1,525 mm (60.0 in)
Rear tread 1,520 mm (59.8 in)
Wheelbase 2,570 mm (101.2 in)
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










9–6
Specifi cations
Specifi cations
Weights
U.S.A. and Canada
Item Weight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 1,742 kg (3,840 lbs) 1,810 kg (3,990 lbs)
GAWR (Gross Axle Weight Rating) Front 933 kg (2,057 lbs) 958 kg (2,112 lbs)
Rear 812 kg (1,790 lbs) 860 kg (1,896 lbs)
Mexico
Item Weight
2WD AWD
GVW (Gross Vehicle Weight) Total 1,742 kg (3,840 lbs) 1,807 kg (3,984 lbs)
Front 910 kg (2,006 lbs) 929 kg (2,048 lbs)
Rear 832 kg (1,834 lbs) 878 kg (1,936 lbs)
GAW (Permissible axle load) Front 930 kg (2,050 lbs) 952 kg (2,099 lbs)
Rear 887 kg (1,955 lbs) 931 kg (2,052 lbs)
Air Conditioner
The type of refrigerant used is indicated on a label attached to the inside of the engine
compartment. Check the label before recharging the refrigerant. Refer to Climate Control
System on page 5-2 .
Item Classifi cation
Refrigerant Type HFC134a (R-134a)
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.9–7
Specifi cations
Specifi cations
Light Bulbs
Exterior light
Light bulb Category
Wattage UNECE *1 (SAE)
Headlights Halogen headlights
High beam 65 HB3 (9005)
Low beam 55 H11 (H11)
LED headlights High beam LED
*2 — (—)
Low beam LED *2 — (—)
Daytime running lights With halogen headlights 65 HB3 (9005)
With LED headlights LED
*2 — (—)
Front side-maker lights/Parking lights With halogen headlights 5 W5W (—)
With LED headlights LED
*2 — (—)
Front turn signal lights U.S.A. and Canada 27 — (1156NA)
Mexico 21 PY21W (—)
Fog lights
* LED *2 — (—)
Side turn signal lights * LED *2 — (—)
High-mount brake light LED *2 — (—)
Rear turn signal lights 21 WY21W (7443NA)
Rear side-maker lights With halogen headlights 5 W5W (—)
With LED headlights LED
*2 — (—)
Brake lights/Taillights With halogen headlights 21/5 W21/5W (7443)
With LED headlights LED
*2 — (—)
Taillights (With LED headlights) LED *2 — (—)
Reverse lights 18 W16W (921)
License plate lights 5 W5W (—)
*1 UNECE stands for United Nations Economic Commission for Europe.
*2 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wattage UNECE *1
Overhead light (Front)/Map lights 8 —
Overhead light (Rear) 10 —
Luggage compartment light 5 —
*1 UNECE stands for United Nations Economic Commission for Europe.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










9–8
Specifi cations
Specifi cations

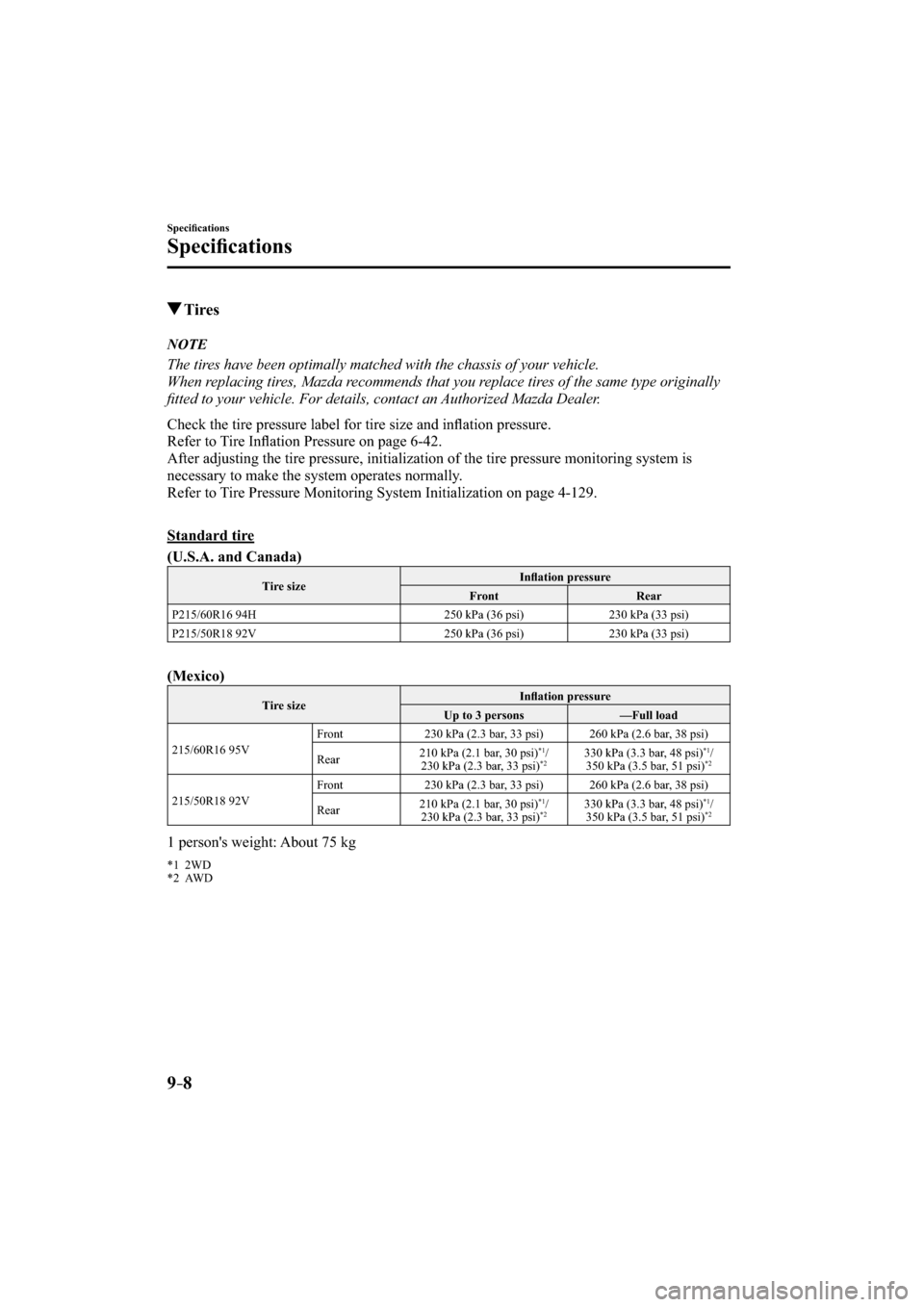

Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fi tted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and infl ation pressure.
Refer to Tire Infl ation Pressure on page 6-42 .
After adjusting the tire pressure, initialization of the tire pressure m\
onitoring system is
necessary to make the system operates normally.
Refer to Tire Pressure Monitoring System Initialization on page 4-129 .
Standard tire
(U.S.A. and Canada)
Tire size Infl
ation pressure
Front Rear
P215/60R16 94H 250 kPa (36 psi) 230 kPa (33 psi)
P215/50R18 92V 250 kPa (36 psi) 230 kPa (33 psi)
(Mexico)
Tire size Infl
ation pressure
Up to 3 persons —Full load
215/60R16 95V Front 230 kPa (2.3 bar, 33 psi) 260 kPa (2.6 bar, 38 psi)
Rear
210 kPa (2.1 bar, 30 psi)
*1 /
230 kPa (2.3 bar, 33 psi) *2 330 kPa (3.3 bar, 48 psi) *1 /
350 kPa (3.5 bar, 51 psi) *2
215/50R18 92V Front 230 kPa (2.3 bar, 33 psi) 260 kPa (2.6 bar, 38 psi)
Rear
210 kPa (2.1 bar, 30 psi) *1 /
230 kPa (2.3 bar, 33 psi) *2 330 kPa (3.3 bar, 48 psi) *1 /
350 kPa (3.5 bar, 51 psi) *2
1 person's weight: About 75 kg
*1 2WD
*2 AWD
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










9–9
Specifi cations
Specifi cations
Temporary spare tire
(U.S.A. and Canada)
Tire size Infl ation pressure
T125/90D16 98M 420 kPa (60 psi)
(Mexico)
Tire size Infl ation pressure
185/60R16 86M 300 kPa (3.0 bar, 44 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108—147 N·m (12—14 kgf·m, 80—108 ft·lbf)
Fuses
Refer to Fuses on page 6-53 .
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










9–10
Specifi cations
Personalization Features
Personalization Features
The following personalization features can be set or changed by an Authorized Mazda
Dealer. Consult an Authorized Mazda Dealer for details.
Additionally, some of the personalization features can be changed by the customer
depending on the feature.
Personalization features which can be changed differ depending on the market and
specifi cation.
Settings can be changed by operating the center display screen.
Settings can be changed by operating the vehicle switches.
Settings can be changed by an Authorized Mazda Dealer.
Item Feature Factory
Setting Available
Settings Settings change method
Safety Smart City
Brake Support
(SCBS)
Refer to
Smart City
Brake Support
(SCBS) on
page 4-104 . The system can be
changed so that Smart
City Brake Support
(SCBS) does not
operate.
*1
On On/Off Refer to
Settings
on page
5-53 .
Refer to
Stopping
The Smart
City Brake
Support
(SCBS)
System
Operation on
page 4-108 . —
Smart Brake
Support (SBS)
Refer to Smart
Brake Support
(SBS) on page
4-109 . The system can be
changed so that Smart
Brake Support (SBS)
does not operate.
*1
On On/Off Refer to
Settings
on page
5-53 . —
The distance at which
the collision warning
activates can be
changed. Near Near/Far Refer to
Settings
on page
5-53 . —
The volume of the
collision warning can be
changed. High High/Low/
Off Refer to
Settings
on page
5-53 . —
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










9–11
Specifi cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method
Safety Lane Departure
Warning
System
(LDWS)
Refer to Lane
Departure
Warning
System
(LDWS) on
page 4-74 . The warning sound
for the Lane Departure
Warning System
(LDWS) can be
changed.
*2
Beep Beep/
Rumbl. Refer to
Settings
on page
5-53 . —
The volume
of the
warning
sound for
the Lane
Departure
Warning
System
(LDWS) can
be changed. Rumbl. High High/Mid/
Low Refer to
Settings
on page
5-53 . —
Beep High High/Low Refer to
Settings
on page
5-53 . —
The sensitivity of the
warning for the Lane
Departure Warning
System (LDWS) can be
changed. Low High/Low Refer to
Settings
on page
5-53 . —
The warning timing
in which the Lane
Departure Warning
System (LDWS)
determines that
the vehicle may be
deviating from its lane
can be changed. Before At/Before
Refer to
Settings
on page
5-53 . —
Blind Spot
Monitoring
(BSM) system
Refer to
Blind Spot
Monitoring
(BSM) System
on page 4-80 . The volume of the BSM
warning beep can be
changed.
*3 High High/
Low/
Off Refer to
Settings
on page
5-53 . —
Distance
Recognition
Support System
(DRSS)
Refer to
Distance
Recognition
Support System
(DRSS) on
page 4-87 . The system can be
changed so that
Distance Recognition
Support System (DRSS)
does not operate.
*1
On On/Off Refer to
Settings
on page
5-53 . —
The distance at which
the vehicle ahead
indicator in the display
fl ashes can be changed. Near Far/
Medium/
Near Refer to
Settings
on page
5-53 . —
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










9–12
Specifi cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method
Vehicle Power door
lock
Refer to Auto
Lock/Unlock
Function on
page 3-15 . Changes the auto
lock/unlock function
setting for all the doors
according to the vehicle
speed, the vehicle
power supply condition,
and the selector lever
position. Lock:
When
Driving
Unlock:
IGN Off Lock:
When
Driving
Unlock: In
Park/
Lock: Out
of Park
Unlock: In
Park/
Lock:
Shifting
Out of
Park/
Lock:
When
Driving
Unlock:
IGN Off/
Lock:
When
Driving/
Off
Refer to
Settings
on page
5-53 . Refer to
Auto Lock/
Unlock
Function on
page 3-15 .
Keyless entry
system
Refer to
Keyless Entry
System on page
3-3 . The method for
unlocking the doors
using the transmitter
can be changed. Driver's:
Once, All
Doors:
Twice All Doors:
Once/
Driver's:
Once, All
Doors:
Twice
Refer to
Settings
on page
5-53 . Refer to
Transmitter
on page 3-4 .
The time required for
the doors to relock
automatically after
unlocking with the
transmitter can be
changed. 60 seconds 90 seconds/
60 seconds/
30 seconds
Refer to
Settings
on page
5-53 . —
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










9–13
Specifi cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method
Vehicle Advanced
keyless entry
system
Refer to
Advanced
Keyless Entry
System on page
3-8 . The method for
unlocking the doors
using the request
switch/transmitter can
be changed. Driver's:
Once, All
Doors:
Twice All Doors:
Once/
Driver's:
Once, All
Doors:
Twice
Refer to
Settings
on page
5-53 .
Refer to
Locking,
Unlocking
with Request
Switch (With
the advanced
keyless
function) on
page 3-12 .
Refer to
Transmitter
on page 3-4 .
The volume of the
answer-back beep
during advanced keyless
entry system operation
can be changed. Medium High/
Medium/
Low/
Off Refer to
Settings
on page
5-53 .
Refer to
Locking,
Unlocking
with Request
Switch (With
the advanced
keyless
function) on
page 3-12 .
The function to
automatically lock the
doors when leaving the
vehicle while carrying
the key can be changed. Off On/Off Refer to
Settings
on page
5-53 . —
The time required
for the doors to
relock automatically
after unlocking with
the request switch/
transmitter can be
changed. 60 seconds 90 seconds/
60 seconds/
30 seconds
Refer to
Settings
on page
5-53 . —
Illumination
entry
Refer to
Illuminated
Entry System
on page 5-132 . The time required for
the interior lamp to turn
off automatically can
be changed (prevents
battery depletion when
a door is open/ajar). 30 minutes 60 minutes/
30 minutes/
10 minutes
Refer to
Settings
on page
5-53 . —
The time required for
the interior lamp to turn
off automatically after
all doors are closed can
be changed. 15 seconds 60 seconds/
30 seconds/
15 seconds/
7.5 seconds Refer to
Settings
on page
5-53 . —
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










9–14
Specifi cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method
Vehicle Auto-wiper
control
Refer to
Windshield
Wipers and
Washer on page
4-47 . The auto-wiper control
function can be
changed. On On/Off
*4 Refer to
Settings
on page
5-53 . —
Daytime
running lights
Refer to
Daytime
Running Lights
on page 4-45 . The function of the
daytime running lights
can be changed. On On/
Off
Refer to
Settings
on page
5-53 . —
Auto headlight
off *5
Refer to
Headlights on
page 4-41 . The time required
for headlights to turn
off after ignition is
switched off can be
changed. 30 seconds
120 seconds/ 90 seconds/
60 seconds/
30 seconds/
Off
*6
Refer to
Settings
on page
5-53 . —
Auto-light
control
Refer to
Headlights on
page 4-41 . The headlight
illumination on/
off timing based on
surrounding lightness/
darkness can be
changed. Medium High/
Med. High/
Medium/
Med. Low/
Low Refer to
Settings
on page
5-53 . —
High Beam
Control System
(HBC)
Refer to High
Beam Control
System (HBC)
on page 4-71 . The High Beam Control
System (HBC) function
can be changed.
*1 On On/Off Refer to
Settings
on page
5-53 . —
Adaptive
Front Lighting
System (AFS)
Refer to
Adaptive
Front Lighting
System (AFS)
on page 4-70 . The Adaptive Front
Lighting System
(AFS) function can be
changed.
*1
On On/Off Refer to
Settings
on page
5-53 . —
Lights-on
reminder*7
Refer to Lights-
On Reminder
on page 7-39 . The volume of the
lights-on reminder
warning alarm can be
changed. Off High/Low/
Off Refer to
Settings
on page
5-53 . —
Coming home
light system
Refer to
Coming Home
Light System
on page 4-44 . The time required for
the headlights to turn
off after closing all
of the doors can be
changed. 30 seconds 120 seconds/ 90 seconds/
60 seconds/
30 seconds/
Off Refer to
Settings
on page
5-53 . —
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC
