Page 211 of 580
4–95
When Driving
i-ACTIVSENSE
NOTE
y The Mazda Radar Cruise Control (MRCC) system operates when all of the following
conditions are met.
y The vehicle speed is about 30 km/h (19 mph) to 145 km/h (90 mph).
y The Mazda Radar Cruise Control (MRCC) system is turned on.
y The parking brake is not applied.
y The Smart Brake Support (SBS) is not malfunctioning.
y The Dynamic Stability Control (DSC) is operating normally.
y The selector lever is in the drive (D) position or manual (M) position (manual mode).
y In the following cases, the warnings may not activate even if your vehicle starts closing in
on the vehicle ahead.
y You are driving at the same speed as the vehicle ahead.
y Directly after the Mazda Radar Cruise Control (MRCC) system has been set.
y When the accelerator pedal is depressed or directly after the accelerator pedal is
released.
y Another vehicle cuts into the driving lane.
y The following are not detected as physical objects.
y Vehicles approaching in the opposite direction
y Pedestrians
y Stationary objects (stopped vehicles, obstructions)
y If a vehicle ahead is traveling at an extremely low speed, the system may not detect it
correctly.
y During headway control travel, do not set the system on two-wheeled vehicles such as
motorcycles and bicycles.
y Do not use the Mazda Radar Cruise Control (MRCC) system under conditions in which
the close proximity warnings are frequently activated.
y During headway control travel, the system accelerates and decelerates your vehicle in
conjunction with the speed of the vehicle ahead. However, if it is necessary to accelerate
for a lane change or if the vehicle ahead brakes suddenly causing you to close in on the
vehicle rapidly, accelerate using the accelerator pedal or decelerate using the brake
pedal depending on the conditions.
y While the Mazda Radar Cruise Control (MRCC) system is in use, it does not cancel
even if the selector lever is operated and any intended engine braking will not occur. If
deceleration is required, lower the vehicle speed setting or depress the brake pedal.
y The brake lights are illuminated while the Mazda Radar Cruise Control (MRCC)
automatic braking is operating.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 215 of 580
4–99
When Driving
i-ACTIVSENSE
How to Set the Distance Between
Vehicles During Headway Control
The distance between vehicles is set to a
shorter distance each time the
switch is
pressed. The distance between vehicles is
set to a longer distance by pressing the
switch. The distance-between-vehicles can
be set to 4 levels; Long, medium, short,
and extremely short distance.
Distance-between-
vehicles guideline
(at 80 km/h (50 mph)
vehicle speed) Indication on display
Long (about 50 m (164
ft))
Medium (about 40 m
(131 ft))
Short (about 30 m (98
ft))
Extremely short (about
25 m (82 ft))
NOTE
y The distance between vehicles differs
depending on the vehicle speed, and the
slower the vehicle speed, the shorter the
distance.
y When the ignition is switched to ACC
or OFF and then the engine is started
again, the system automatically sets
the distance between vehicles to the
previous setting.
Changing the Set Vehicle Speed
Changing the set vehicle speed using the
SET switch
Press the SET
switch to accelerate.
Press the SET
switch to decelerate.
The set vehicle speed changes as follows
each time the SET switch is pressed.
Short press 1 km/h (1 mph)
Long press 10 km/h (5 mph)
NOTE
For example, the set vehicle speed is
changed by pressing the SET switch four
times as follows:
The vehicle speed accelerates or
decelerates by 4 km/h (4 mph).
To accelerate using the accelerator
pedal
Depress the accelerator pedal and press
and release the SET
or SET switch at
the desired speed. If a switch cannot be
operated, the system returns to the set
speed when you release your foot from the
accelerator pedal.
CAUTION
The warnings and brake control do not
operate while the accelerator pedal is
depressed.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 217 of 580
4–101
When Driving
i-ACTIVSENSE
NOTE
y The Mazda Radar Cruise Control
(MRCC) system may be canceled during
rain, fog, snow or other inclement
weather conditions, or the front surface
of the radiator grille is dirty.
y If you have temporarily canceled the
Mazda Radar Cruise Control (MRCC),
you can return to your previously set
speed by pressing the RES switch and
after all of the operation conditions
have been met.
y If the OFF switch is pressed to cancel
the Mazda Radar Cruise Control
(MRCC), the system does not return to
the previously set speed even if the RES
switch is pressed.
Cruise Control Function
While this function is operating, the
headway control operation is canceled and
only the cruise control function operates.
The vehicle speed can be set more than
about 25 km/h (16 mph).
Use the cruise control function on
expressways and other highways which do
not require a lot of repeated acceleration
and deceleration.
WARNING
Do not use the cruise control function in
the following locations:
Otherwise, it could lead to an accident.
¾ Roads with sharp curves and where
vehicle traffi c is heavy and there is
insuffi cient space between vehicles.
(Driving under these conditions
using the cruise control function is
not possible)
¾ Steep down slopes (Set speed may
be exceeded because suffi cient
engine braking cannot be applied)
¾ Slippery roads such as ice or snow-
bound roads (Tires could spin
causing you to lose vehicle control)
Always drive carefully:
The warnings and brake control
will not operate after the headway
control function is canceled and the
system is switched to only the cruise
control function. Depress the brake
pedal to decelerate according to the
surrounding conditions while keeping
a safer distance from the vehicle ahead
and always driving carefully.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 222 of 580
4–106
When Driving
i-ACTIVSENSE
CAUTION
¾ When driving off -road in areas where there is grass or forage, it is recommended that the
Smart City Brake Support (SCBS) system be turned off .
¾ Always use tires for all wheels that are of the specifi ed size, and the same manufacturer,
brand, and tread pattern. In addition, do not use tires with signifi cantly diff erent wear
patterns on the same vehicle as the Smart City Brake Support (SCBS) system may not
operate normally.
¾ The laser sensor (front) includes a function for detecting a soiled windshield and informing
the driver, however, depending on the conditions, it may not detect plastic shopping bags,
ice or snow on the windshield. In such cases, the system cannot accurately determine a
vehicle ahead and may not be able to operate normally. Always drive carefully and pay
attention to the road ahead.
NOTE
y The Smart City Brake Support (SCBS) system will not operate if the driver is deliberately
performing driving operations (accelerator pedal and steering wheel).
y The Smart City Brake Support (SCBS) system will operate under the following conditions.
y The engine is running.
y The Smart City Brake Support (SCBS) warning light (amber) does not illuminate.
y The vehicle speed is between about 4 to 30 km/h (2 to 18 mph).
y The Smart City Brake Support (SCBS) system is not turned off.
y The DSC is not malfunctioning.
y The Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a near-infrared
laser beam and receiving the beam refl ected off the refl ector of the vehicle ahead, and
then using it for the measurement. Consequently, the Smart City Brake Support (SCBS)
may not operate under the following conditions:
y Refl ection of the laser is poor due to the shape of the vehicle ahead.
y The vehicle ahead is signifi cantly dirty.
y Under bad weather condition, such as rain, fog and snow.
y The window washer is being used or the windshield wipers are not used when it's
raining.
y The windshield is dirty.
y The steering wheel is turned completely left or right, or the vehicle is accelerated
rapidly and comes close to the vehicle ahead.
y Trucks with low loading platforms and vehicles with an extremely low or high profi le.
y Vehicles with certain shapes such as a vehicle carrier.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 224 of 580
4–10 8
When Driving
i-ACTIVSENSE
Smart City Brake Support (SCBS)
Indicator Light (Red)
If the Smart City Brake Support (SCBS) is
operating, the indicator light (red) fl ashes.
Automatic Brake Operation
Display (Vehicles With Active
Driving Display)
“SCBS Automatic Brake” is displayed in
the active driving display while the SCBS
brakes or the brake assist (SCBS brake
assist) is operating.
NOTE
y The collision warning beep sounds
intermittently while the SCBS brake
or brake assist (SCBS brake assist) is
operating.
y If the vehicle is stopped by the SCBS
operation and the brake pedal is not
depressed, the warning beep sounds
one time after about 2 seconds and the
SCBS brake is automatically released.
Stopping the Smart City Brake
Support (SCBS) System Operation
The Smart City Brake Support (SCBS)
system can be temporarily deactivated.
When the Smart City Brake Support
(SCBS) system is turned off, the Smart
City Brake Support (SCBS) OFF indicator
light turns on.
When the engine is restarted, the system
becomes operational.
Without SCBS OFF switch
Refer to Personalization Features on page
9-10 .
With SCBS OFF switch
Press the SCBS OFF switch to turn
off the system. The Smart City Brake
Support (SCBS) OFF indicator light in the
instrument cluster will illuminate.
Press the switch again to turn the system
back on. The Smart City Brake Support
(SCBS) OFF indicator light will turn off.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 227 of 580
4–111
When Driving
i-ACTIVSENSE
Smart Brake Support (SBS)
Indicator Light (Red)
If the Smart Brake Support (SBS) is
operating, the indicator light (red) fl ashes.
Collision Warning
If there is the possibility of a collision
with a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the active driving display.
Stopping The Smart Brake
Support (SBS) System Operation
The Smart Brake Support (SBS) system
can be temporarily deactivated.
Refer to Personalization Features on page
9-10 .
When the Smart Brake Support (SBS)
system is turned off, the Smart Brake
Support (SBS) OFF indicator light turns
on.
When the engine is restarted, the system
becomes operational.
NOTE
If the Smart Brake Support (SBS) system
operation is turned off, the Smart City
Brake Support (SCBS) system operation is
turned off simultaneously.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C

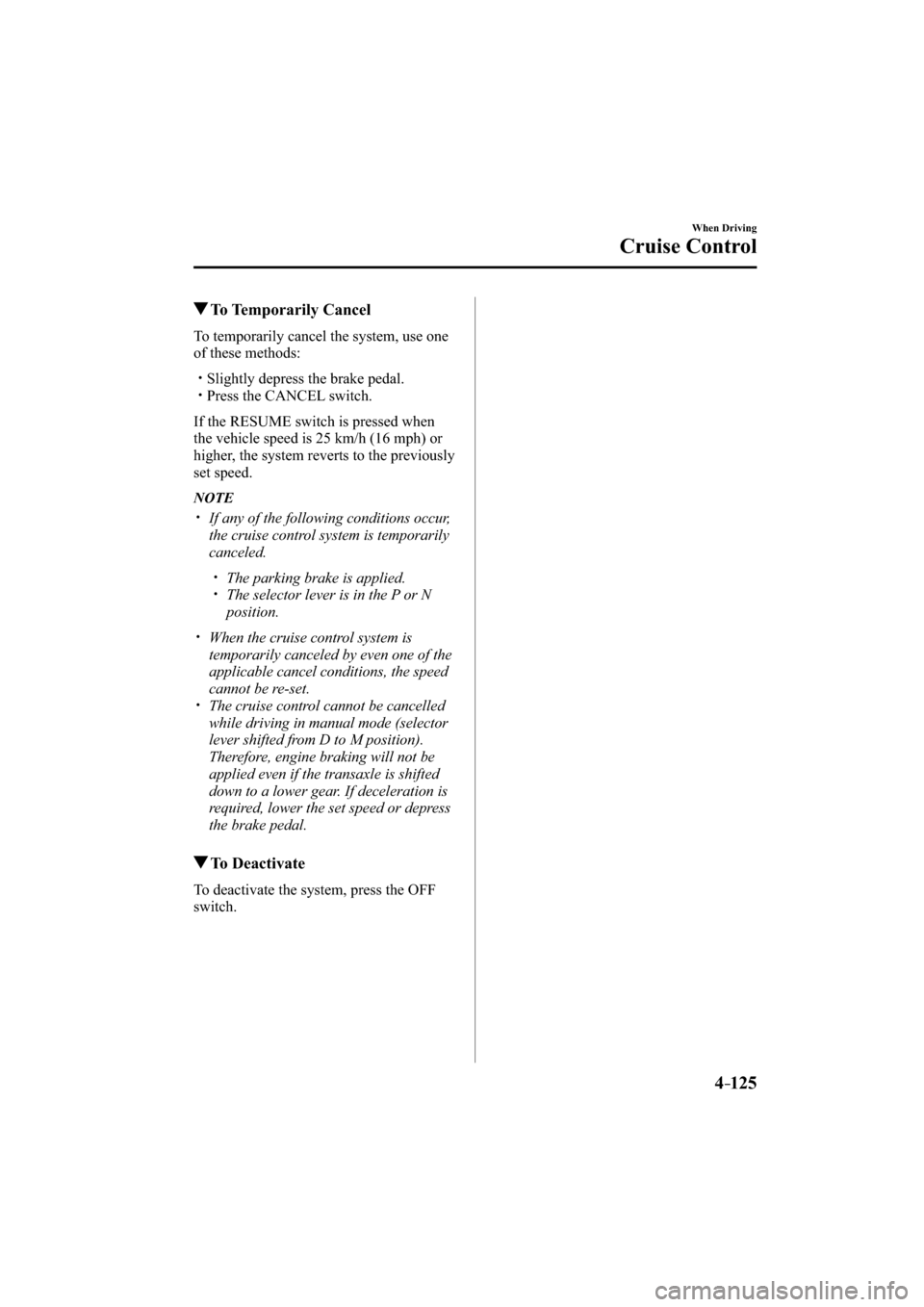

Page 241 of 580
4–125
When Driving
Cruise Control
To Temporarily Cancel
To temporarily cancel the system, use one
of these methods:
y Slightly depress the brake pedal.
y Press the CANCEL switch.
If the RESUME switch is pressed when
the vehicle speed is 25 km/h (16 mph) or
higher, the system reverts to the previously
set speed.
NOTE
y If any of the following conditions occur,
the cruise control system is temporarily
canceled.
y The parking brake is applied.
y The selector lever is in the P or N
position.
y When the cruise control system is
temporarily canceled by even one of the
applicable cancel conditions, the speed
cannot be re-set.
y The cruise control cannot be cancelled
while driving in manual mode (selector
lever shifted from D to M position).
Therefore, engine braking will not be
applied even if the transaxle is shifted
down to a lower gear. If deceleration is
required, lower the set speed or depress
the brake pedal.
To Deactivate
To deactivate the system, press the OFF
switch.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 256 of 580
5–2
Interior Features
Climate Control System
Operating Tips
y Operate the climate control system with
the engine running.
y To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine is
not running.
y Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system effi ciency.
y Use the climate control system to defog
the windows and dehumidify the air.
y The recirculate mode should be used
when driving through tunnels or while in
a traffi c jam, or when you would like to
shut off outside air for quick cooling of
the interior.
y Use the outside air position for
ventilation or windshield defrosting.
y If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the climate control system.
y Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
y Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
effi cient.
The refrigerant specifi cations are
indicated on a label attached to the
inside of the engine compartment. Check
the label before refi lling the refrigerant.
If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.
For details, consult an Authorized
Mazda Dealer.
Label
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 261 of 580
5–7
Interior Features
Climate Control System
Air intake selector (Type B)
This lever controls the source of air
entering the vehicle.
It is recommended that under normal
conditions the switch be kept in the
outside air position.
Recirculated air position (
)
Outside air is shut off. Air within the
vehicle is recirculated.
Outside air position (
)
Outside air is taken into the vehicle. Use
this position for normal ventilation and
heating.
WARNING
Do not use the position in cold or
rainy weather:
Using the
position in cold or rainy
weather is dangerous as it will cause
the windows to fog up. Your vision will
be hampered, which could lead to a
serious accident.
Heating
1. Set the mode selector dial to the
position.
2. (Type A)
Set the air intake selector to the outside
air position.
(Type B)
Set the air intake selector to the
position.
3. Set the temperature control dial to the
hot position.
4. Set the fan control dial to the desired
speed.
5. If dehumidifi ed heating is desired, turn
on the air conditioner.
NOTE
y If the windshield fogs up easily, set the
mode selector dial to the
position.
y If cooler air is desired at face level, set
the mode selector dial to the
position
and adjust the temperature control dial
to maintain maximum comfort.
y The air to the fl oor is warmer than air
to the face (except when the temperature
control dial is set at the extreme hot or
cold position).
Cooling (With air conditioner)
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
cold position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner by pressing
the A/C switch.
5. After cooling begins, adjust the fan
control dial and temperature control
dial as needed to maintain maximum
comfort.
CAUTION
If the air conditioner is used while
driving up long hills or in heavy
traffi c, monitor the engine coolant
temperature warning light to see if it is
illuminated or fl ashing (page 4-24 ).
The air conditioner may cause engine
overheating. If the warning light is
illuminated or fl ashing, turn the air
conditioning off (page 7-22 ).
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
Page 265 of 580
5–11
Interior Features
Climate Control System
Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
The fan has seven speeds.
AUTO position
The amount of airfl ow will be
automatically controlled in accordance
with the set temperature.
Except AUTO position
The airfl ow amount can be adjusted to the
desired level by turning the dial.
0 position
To turn off the system, set the dial to 0
position.
Mode selector dial
Turn the mode selector dial to select
airfl ow mode (page 5-4 ).
AUTO position
The airfl ow mode automatically adjusts to
the selected temperature.
Except AUTO position
The desired airfl ow position can be
selected by turning the dial.
NOTE
y With the airfl ow mode set to the
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and air
at a comparably lower temperature will
fl ow through the central, left and right
vents.
y When the fan control dial is ON, and the
mode selector dial is in the
or
position, the air conditioner is
automatically turned on and the outside
air position is automatically selected to
defrost the windshield. In the
or
position, the outside air position cannot
be changed to the recirculated air
position.
A/C switch
The air conditioning (cooling/
dehumidifying functions) can be turned on
or off by pressing the switch while the fan
control dial is at a position other than 0.
The indicator light turns on while the air
conditioning is operating.
NOTE
The air conditioner may not function when
the outside temperature approaches 0 °C
(32 °F).
Air intake selector
Outside or recirculated air positions can be
selected. Press the switch to select outside/
recirculated air positions.
Recirculated air position (indicator light
illuminated)
Outside air is shut off. Use this position
when going through tunnels, driving in
congested traffi c (high engine exhaust
areas) or when quick cooling is desired.
$ 9 @ & ) & " # @ & E J U J P O J O E C $ 9 @ & ) & " # @ & E J U J P O J O E C
