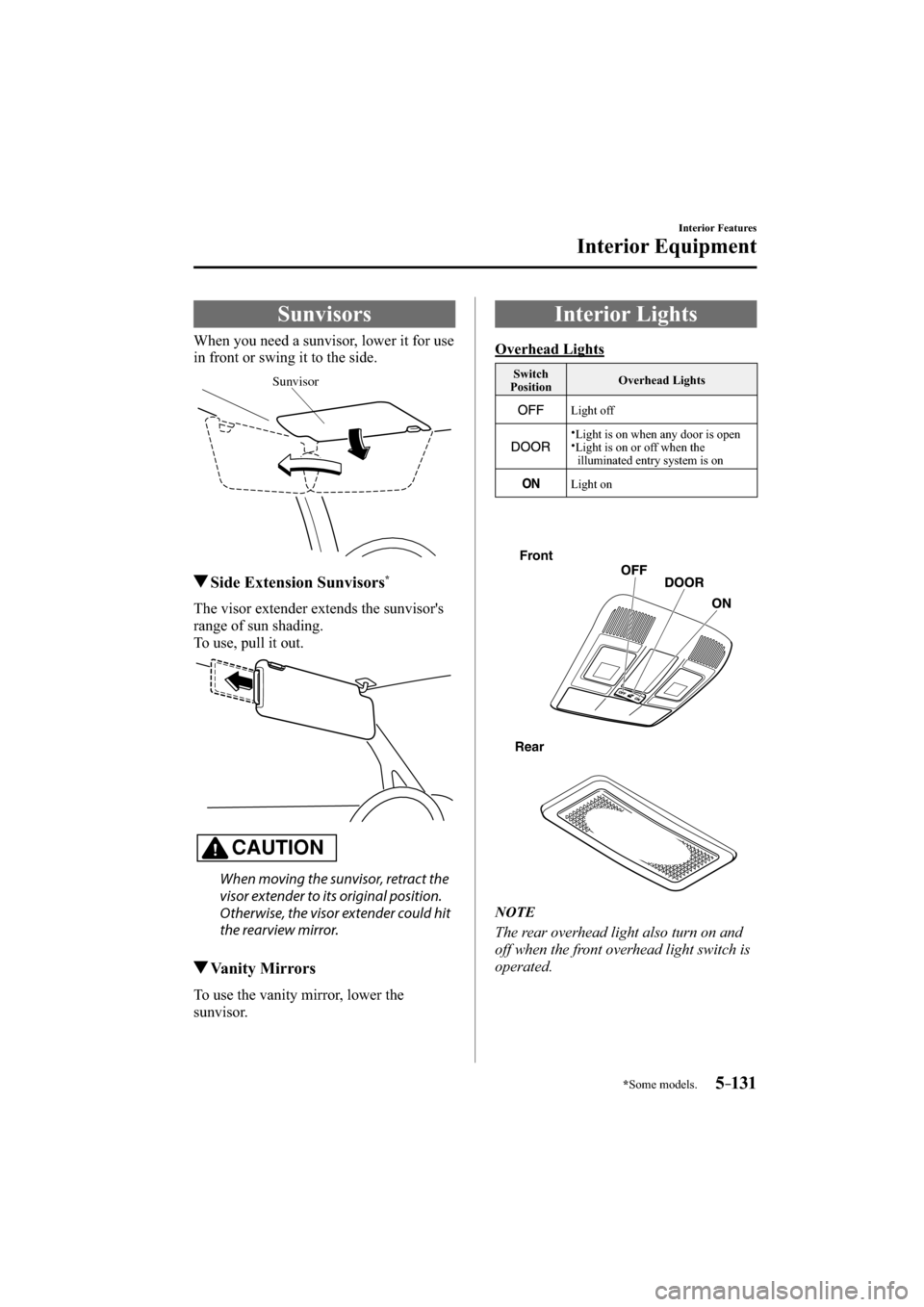

*Some models.5–131
Interior Features
Interior Equipment
Sunvisors
When you need a sunvisor, lower it for use
in front or swing it to the side.
Sunvisor
Side Extension Sunvisors *
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, retract the
visor extender to its original position.
Otherwise, the visor extender could hit
the rearview mirror.
Vanity Mirrors
To use the vanity mirror, lower the
sunvisor.
Interior Lights
Overhead Lights
Switch
Position Overhead Lights
Light off
y Light is on when any door is open y Light is on or off when the
illuminated entry system is on
Light on
Front
Rear
NOTE
The rear overhead light also turn on and
off when the front overhead light switch is
operated.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–132
Interior Features
Interior Equipment
Map Lights
When the overhead light switch is in the
door or off position, press the lens to
illuminate the map lights, and then press
the lens again to turn them off.
NOTE
The map lights will not turn off even if the
lens is pressed in the following cases:



y The overhead light switch is in the ON
position.



y The overhead light switch is in the door
position with the door open.



y The illuminated entry system is on.
Luggage Compartment Lights
Switch
Position Luggage Compartment Light
Light off
Light on when the liftgate is open
Illuminated Entry System
The overhead lights turn on when any
of the following operations is done with
the overhead light switch in the DOOR
position and the ignition switched off.



y Turn on for about 30 seconds when the
driver's door is unlocked.



y Turn on for about 15 seconds when a
door is opened with a key left in the
vehicle and then the door is closed.



y Turn on for about 5 seconds when a
door is opened from the outside with a
key being carried and then the door is
closed.
The overhead lights turn on for about 15
seconds when the ignition is switched
off with the overhead light switch in the
DOOR position.
The overhead lights turn off immediately
in the following cases:



y The ignition is switched on and all doors
are closed.



y The driver's door is locked.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










5–133
Interior Features
Interior Equipment
NOTE



y Battery saver
 If any door is left open with the
overhead light switch in the DOOR
position, or the liftgate is left open, the
overhead light or luggage compartment
light turns off after about 30 minutes to
prevent battery depletion.



y To prevent battery depletion, if the
interior lights remain turned on (the
interior light switch is in the ON
position or an interior light is turned
on by pressing the lens of the interior
light), they turn off automatically under
the following conditions:



y No operations are done for about 30
minutes after the ignition is switched
off.



y When the LOCK button on the key
is pressed or the request switch
is pressed to lock the doors on
vehicles with the advanced keyless
function after the ignition is switched
off (interior lights turn off a few
seconds).
  In addition, if the following operations
are performed after turning the interior
lights off, they will turn on again.



y The ignition is switched to a position
other than OFF.



y A door is opened.



y A door is unlocked.




y The operation of the illuminated entry
system can be changed.
  Refer to Personalization Features on
page 9-10 .
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
The ignition must be switched to ACC or
ON.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–9
Maintenance and Care
Scheduled Maintenance
Schedule 2
U.S.A. (severe driving conditions) and Puerto Rico residents
Maintenance Interval Number of months or kilometers (miles), whichever comes fi rst.
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I
Engine oil & fi lter Flexible
*1 Replace when wrench indicator light is ON. (Max interval: 12
months/16,000 km (10,000 miles))
Fixed R R R R R R R R R R R R
COOLING SYSTEM
Engine coolant
*2 Replace at fi rst 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant level I I I I I I I I I I I I
FUEL SYSTEM
Air fi lter U.S.A.
(severe
driving
conditions) R
Puerto Rico R R
Fuel lines and hoses
*3 I I
Hoses and tubes for emission
*3 I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles).
ELECTRICAL SYSTEM
Function of all lights I I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake and clutch fl uid level I I I I I I I I I I I I
Disc brakes I I I I
Tire (Rotation)
*4 Rotate every 8,000 km (5,000 miles).
Tire infl ation pressure and tire wear *4 I I I I I I I I I I I I
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial play I I
Rear differential oil
*5*6
Transfer oil *6
Driveshaft dust boots I I
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–11
Maintenance and Care
Scheduled Maintenance
Canada residents
Maintenance Interval Number of months or kilometers (miles), whichever comes fi rst.
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I
Engine oil & fi lter R R R R R R R R R R R R
COOLING SYSTEM
Engine coolant
*1 Replace at fi rst 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant level I I I I I I I I I I I I
FUEL SYSTEM
Air fi lter I I I I I I R I I I I I
Fuel lines and hoses
*2 I I
Hoses and tubes for emission
*2 I
IGNITION SYSTEM
Spark plugs Replace every 120,000 km (75,000 miles).
ELECTRICAL SYSTEM
Function of all lights I I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake and clutch fl uid level I I I I I I I I I I I I
Disc brakes I I I I
Tire (Rotation)
*3 Rotate every 8,000 km (5,000 miles).
Tire infl ation pressure and tire wear *3 I I I I I I I I I I I I
Steering operation and linkages I I
Front and rear suspension, ball joints and wheel
bearing axial play I I
Rear differential oil
*4*5
Transfer oil *5
Driveshaft dust boots I I
Bolts and nuts on chassis and body T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years.
All locks and hinges L L L L L L L L L L L L
Washer fl uid level I I I I I I I I I I I I
AIR CONDITIONER SYSTEM
Cabin air fi lter Replace every 40,000 km (25,000 miles) or 2 years.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–16
Maintenance and Care
Scheduled Maintenance
Schedule 2
Maintenance Interval Number of months or kilometers, whichever comes fi rst
Months 3 6 9 12 15 18 21 24 27 30 33 36
×1000 km 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I
Engine oil & fi lter R R R R R R R R R R R R
COOLING SYSTEM
Cooling system I
Engine coolant
*1 Replace at fi rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
Engine coolant level I I I I I I I I I I I I
FUEL SYSTEM
Air fi lter C R C R C R
Fuel lines and hoses I
*2
Hoses and tubes for emission I *2
Fuel fi lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs Replace every 120,000 km
ELECTRICAL SYSTEM
Function of all lights I I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch fl uid level I I I I I
Brake fl uid R
Disc brakes I I I I I I
Tire (Rotation)
*3 Rotate every 10,000 km
Tire infl ation pressure and tire wear
*3 I I I I I I
Steering operation and linkages I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*4*5
Transfer oil *5
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
All locks and hinges L L L L L L
Washer fl uid level I I I I I I
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–18
Maintenance and Care
Scheduled Maintenance
(Cont.)
Maintenance Interval Number of months or kilometers, whichever comes fi rst
Months 39 42 45 48 51 54 57 60 63 66 69 72
×1000 km 65 70 75 80 85 90 95
100 105 110 115 120
ENGINE
Drive belts I I
Engine oil & fi lter R R R R R R R R R R R R
COOLING SYSTEM
Cooling system I I
Engine coolant
*1 Replace at fi rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
Engine coolant level I I I I I I I I I I I I
FUEL SYSTEM
Air fi lter C R C R C R
Fuel lines and hoses I
*2 I
Hoses and tubes for emission I
*2 I
Fuel fi lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs Replace every 120,000 km
ELECTRICAL SYSTEM
Function of all lights I I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch fl uid level I I I I
Brake fl uid R R
Disc brakes I I I I I I
Tire (Rotation)
*3 Rotate every 10,000 km
Tire infl ation pressure and tire wear
*3 I I I I I I
Steering operation and linkages I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*4*5
Transfer oil *5
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
All locks and hinges L L L L L L
Washer fl uid level I I I I I I
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–46
Maintenance and Care
Owner Maintenance
Light Bulbs
With LED Headlights
With Halogen Headlights
Overhead lights (Front)/Map lights
Overhead lights (Rear)Overhead lights (Front)/Map lights
Headlights (High beam)/
Daytime running lights Headlights (Low beam)
Daytime running lights/
Parking lightsSide turn signal lights
Fog lights
Front side-marker lights/
Parking lights Front side-marker lights/
Parking lights
Front turn signal lights
Luggage compartment light
License plate lights
Reverse lights
Taillights Rear turn signal lights Rear side-marker lights
Brake lights/TaillightsHigh-mount brake light
Some models.
Side turn signal lights
Headlights (High beam) Headlights (Low beam)
Fog lights
Front turn signal lights
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–47
Maintenance and Care
Owner Maintenance
WARNING
Never touch the glass portion of a
halogen bulb with your bare hands
and always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it will
explode and serious injuries could be
caused by the fl ying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.

Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
CAUTION
When removing the lens or lamp unit
using a fl athead screwdriver, make
sure that the fl athead screwdriver does
not contact the interior terminal. If
the fl athead screwdriver contacts the
terminal, a short circuit may occur.
NOTE



y To replace the bulb, contact an
Authorized Mazda Dealer.



y If the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.



y Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.
Replacing Exterior Light Bulbs
Headlights (With LED headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized Mazda
Dealer when the replacement is necessary.
Headlights/Daytime running lights
(With halogen headlights)
High-beams bulbs/Daytime running
lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Disconnect the connector from the unit
by pressing the tab on the connector
with your fi nger and pulling the
connector downward.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










6–48
Maintenance and Care
Owner Maintenance
4. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the refl ector by
gently pulling it straight backward out
of the socket.
5. Install the new bulb in the reverse order
of the removal procedure.
Low-beam bulbs
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Disconnect the connector from the unit
by pressing the tab on the connector
with your fi nger and pulling the
connector downward.
4. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the refl ector by
gently pulling it straight backward out
of the socket.
5. Install the new bulb in the reverse order
of the removal procedure.
Daytime running lights/Parking lights/
Front side-marker lights (With LED
headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized Mazda
Dealer when the replacement is necessary.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC
