MAZDA MODEL CX-3 2017 Owner's Manual - RHD (UK, Australia) (in English)

5–31
Interior Features
Audio Set [Type A (non-touchscreen)]
Programme-type information (PTY)
Some FM stations transmit programme-
type codes. This code enables alternative
stations transmitting the same programme-
type code to be found quickly.

Press the programme-type information
button (
, ) while in FM mode. The
programme-type code and “ PTY ” will be
displayed during reception. If there is no
programme-type code, “ None ” will be
displayed.
(To choose a programme-type:)
1. Press the Programme-type information
button (
, ) when the programme-
type code is displayed.
2. Operate any one of the following:



 Press the pre-programmed channel
preset button ( 1 to 6 ).



 Press the Programme-type
information button (
, ).
(To scan for programme-type
information:)
1. Press the Programme-type information
button (
, ) when the programme-
type code is displayed.
2. Press the Programme-type information
button (
, ) until the beep sounds.
The unit will scan for broadcasts, if
none are found, “ Nothing ” will be
displayed and the unit will return to the
previously tuned band.

(To store programme types in the
channel preset buttons:)
1. Press the Programme-type information
button (
, ) when the programme-
type code is displayed.
2. Press the Programme-type information
button (
, ) and select the programme
type.
3. While the programme type is displayed,
press a channel preset button for about
2 seconds.

Emergency broadcast
If an emergency broadcast is received,
the emergency broadcast intercedes even
while using other functions (FM, CD,
USB device, AUX, or BT audio), and
“ Alarm! ” is displayed.

When the emergency broadcast ends, the
system will return to the previous mode.

5–32
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.
Operating the Compact Disc (CD) Player *

CD eject button CD slotMedia/Scan buttonFolder down button Folder up button Play/Pause button
Random button Repeat button
Audio display Text button
Track down/
Reverse button
Track up/
Fast-forward button

Type Playable data
Music/MP3/WMA/
AAC CD player
Music data (CD-DA)
MP3/WMA/AAC ¿ le

NOTE
If a disc has both music data (CD-
DA) and MP3/WMA/AAC ¿ les,
playback of the two or three ¿ le types
differs depending on how the disc was
recorded.
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play.
NOTE
There will be a short lapse before play
begins while the player reads the digital
signals on the CD.
Ejecting the CD
Press the CD eject button (
) to eject the
CD.

5–33
Interior Features
Audio Set [Type A (non-touchscreen)]

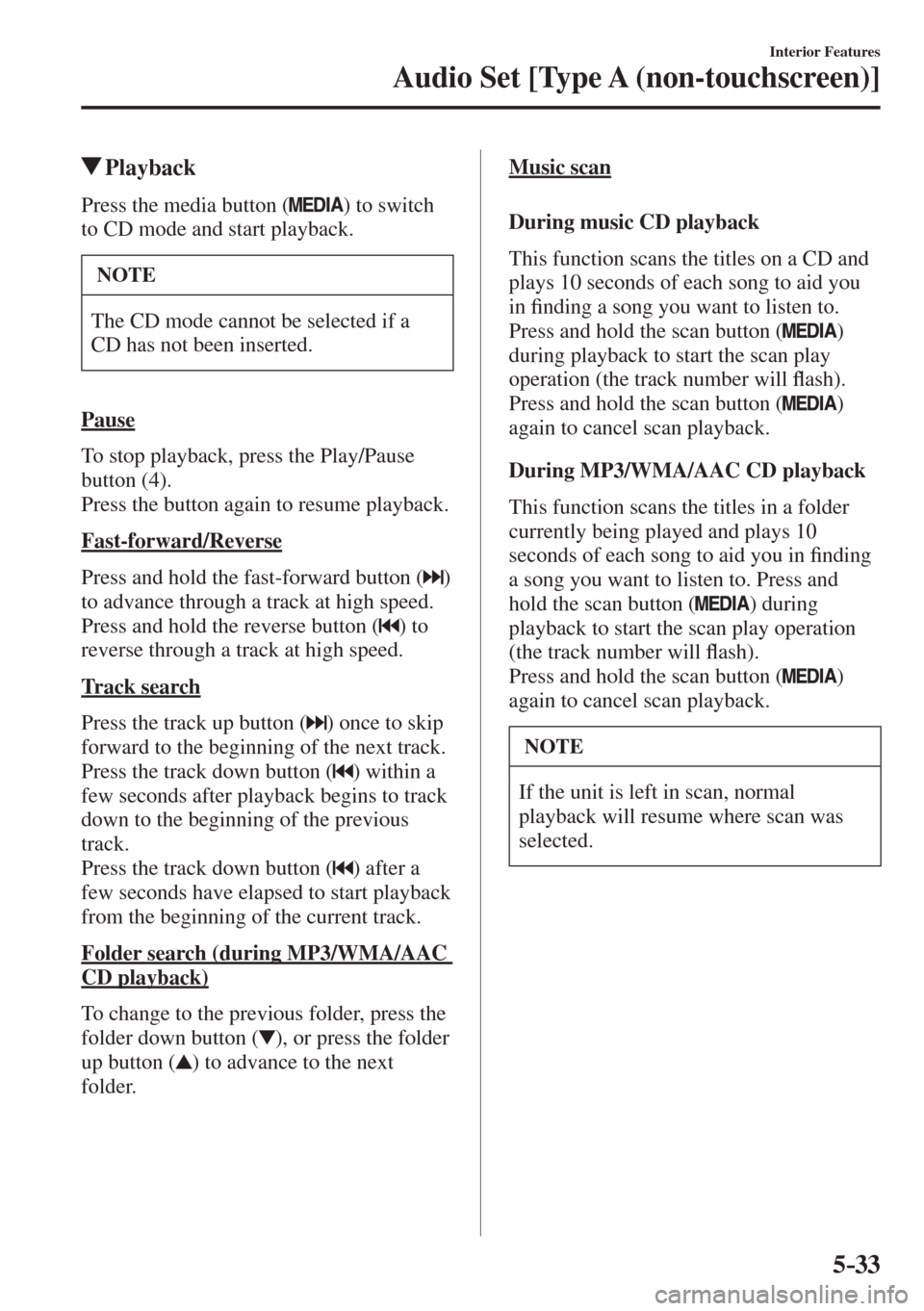

Playback
Press the media button ( ) to switch
to CD mode and start playback.
NOTE
The CD mode cannot be selected if a
CD has not been inserted.
Pause
To stop playback, press the Play/Pause
button ( 4 ).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button (
)
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.
Track search
Press the track up button (
) once to skip
forward to the beginning of the next track.
Press the track down button (
) within a
few seconds after playback begins to track
down to the beginning of the previous
track.
Press the track down button (
) after a
few seconds have elapsed to start playback
from the beginning of the current track.
Folder search (during MP3/WMA/AAC
CD playback)
To change to the previous folder, press the
folder down button (
), or press the folder
up button (
) to advance to the next
folder.
Music scan
During music CD playback
This function scans the titles on a CD and
plays 10 seconds of each song to aid you
in ¿ nding a song you want to listen to.
Press and hold the scan button (
)
during playback to start the scan play
operation (the track number will À ash).
Press and hold the scan button (
)
again to cancel scan playback.
During MP3/WMA/AAC CD playback
This function scans the titles in a folder
currently being played and plays 10
seconds of each song to aid you in ¿ nding
a song you want to listen to. Press and
hold the scan button (
) during
playback to start the scan play operation
(the track number will À ash).
Press and hold the scan button (
)
again to cancel scan playback.
NOTE
If the unit is left in scan, normal
playback will resume where scan was
selected.

5–34
Interior Features
Audio Set [Type A (non-touchscreen)]

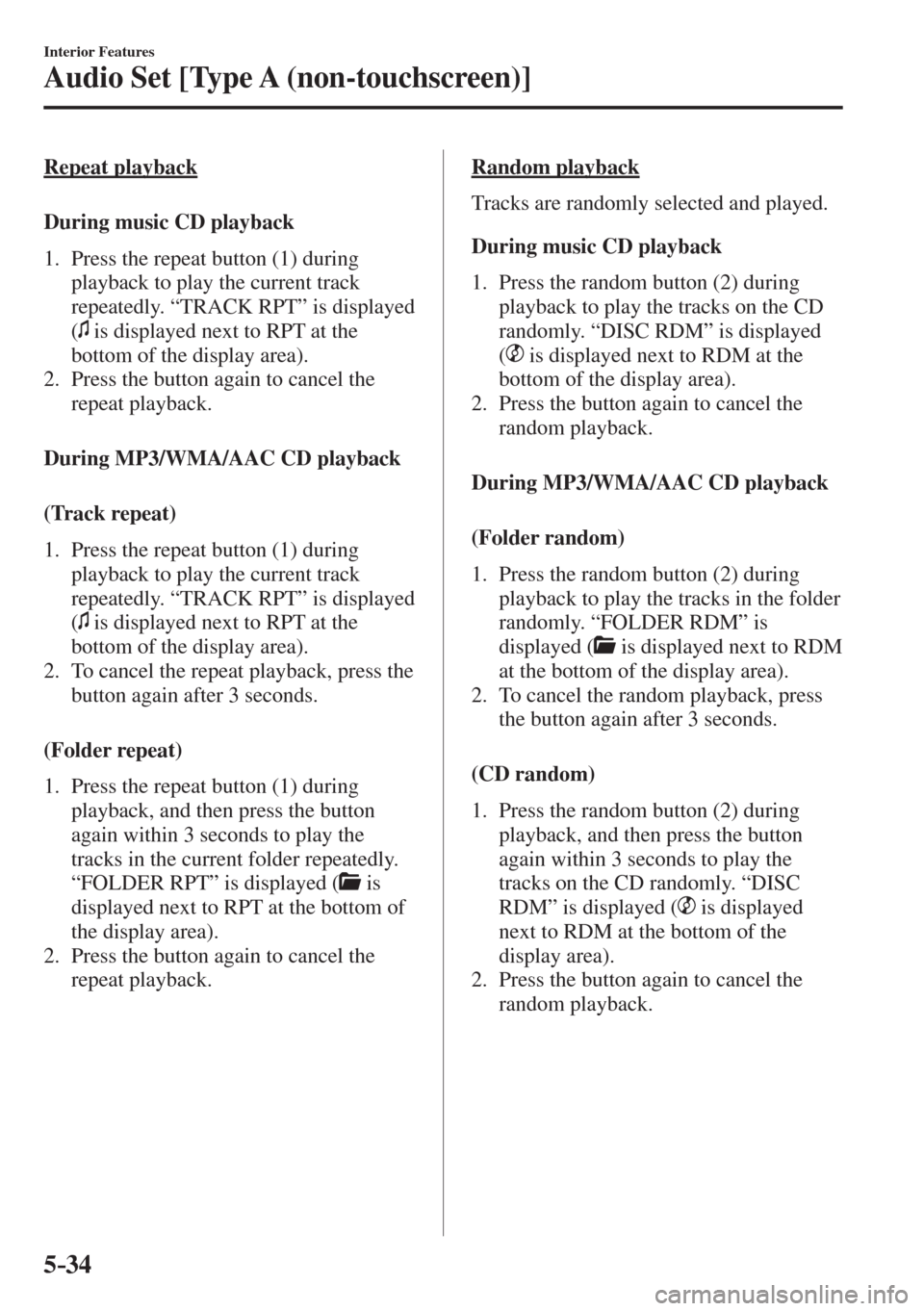

Repeat playback
During music CD playback
1. Press the repeat button ( 1 ) during
playback to play the current track
repeatedly. “ TRACK RPT ” is displayed
(
is displayed next to RPT at the
bottom of the display area).
2. Press the button again to cancel the
repeat playback.

During MP3/WMA/AAC CD playback
(Track repeat)
1. Press the repeat button ( 1 ) during
playback to play the current track
repeatedly. “ TRACK RPT ” is displayed
(
is displayed next to RPT at the
bottom of the display area).
2. To cancel the repeat playback, press the
button again after 3 seconds.

(Folder repeat)
1. Press the repeat button ( 1 ) during
playback, and then press the button
again within 3 seconds to play the
tracks in the current folder repeatedly.
“ FOLDER RPT ” is displayed (
is
displayed next to RPT at the bottom of
the display area).
2. Press the button again to cancel the
repeat playback.

Random playback
Tracks are randomly selected and played.
During music CD playback
1. Press the random button ( 2 ) during
playback to play the tracks on the CD
randomly. “ DISC RDM ” is displayed
(
is displayed next to RDM at the
bottom of the display area).
2. Press the button again to cancel the
random playback.

During MP3/WMA/AAC CD playback
(Folder random)
1. Press the random button ( 2 ) during
playback to play the tracks in the folder
randomly. “ FOLDER RDM ” is
displayed (
is displayed next to RDM
at the bottom of the display area).
2. To cancel the random playback, press
the button again after 3 seconds.

(CD random)
1. Press the random button ( 2 ) during
playback, and then press the button
again within 3 seconds to play the
tracks on the CD randomly. “ DISC
RDM ” is displayed (
is displayed
next to RDM at the bottom of the
display area).
2. Press the button again to cancel the
random playback.

5–35
Interior Features
Audio Set [Type A (non-touchscreen)]
Switching the display
The information displayed on the audio
display changes as follows each time the
text button ( 3 ) is pressed during playback.
Music CD
Button Information displayed
on audio display

Track number/Elapsed
time
Track number
Track name
Album name
Artist name

MP3/WMA/AAC CD
Button Information displayed
on audio display

File number/Elapsed
time
Folder number/File
number
File name
Folder name
Album name
Song name
Artist name

NOTE
  The information viewable in the
display is only CD information (such
as artist name, song title) which has
been recorded to the CD.
  This unit cannot display some
characters. Characters which cannot
be displayed are indicated by an
asterisk (
).
Display scroll
Only 13 characters can be displayed at one
time. To display the rest of the characters
of a long title, press and hold the text
button ( 3 ). The display scrolls the next 13
characters. Press and hold the text button
( 3 ) again after the last 13 characters have
been displayed to return to the beginning
of the title.
NOTE
The number of characters which can be
displayed is restricted.

5–36
Interior Features
Audio Set [Type A (non-touchscreen)]
How to use AUX mode
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the
audio system on.
3. Press the media button (
) of the
audio unit to change to the AUX mode.


NOTE
  When the device is not connected to
the auxiliary jack, the mode does not
switch to the AUX mode.
  Adjust the audio volume using the
portable audio device or audio unit.
  Audio adjustments other than audio
volume can only be done using the
portable audio device.
  If the connection plug is pulled out
from the auxiliary jack while in AUX
mode, noise may occur.

MEMO
5–37

5–38
Interior Features
Audio Set [Type A (non-touchscreen)]

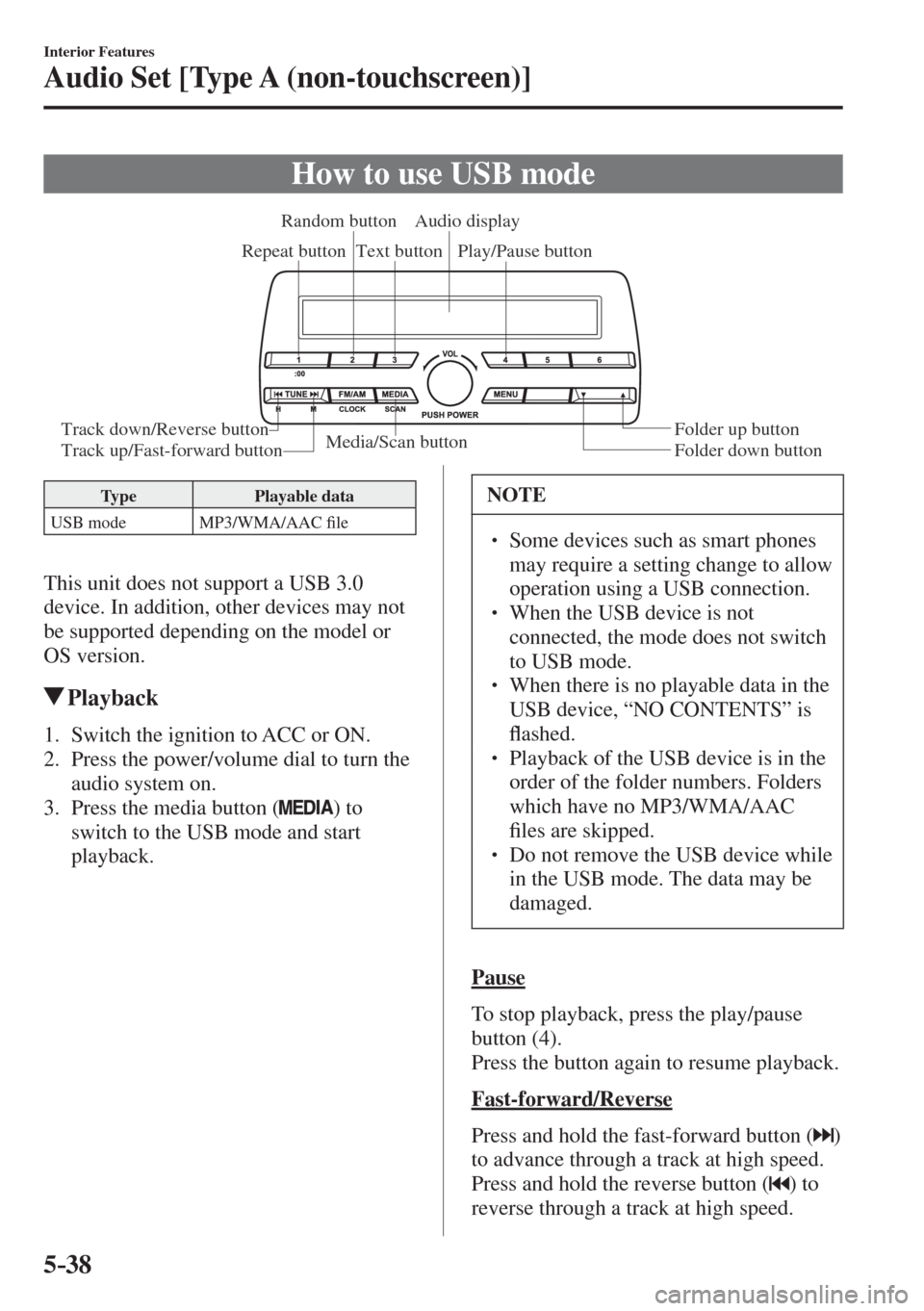

How to use USB mode
Media/Scan button
Folder down button Folder up button Play/Pause button Random button
Repeat buttonAudio display
Text button
Track down/Reverse button
Track up/Fast-forward button
Type Playable data
USB mode MP3/WMA/AAC ¿ le

This unit does not support a USB 3.0
device. In addition, other devices may not
be supported depending on the model or
OS version.
Playback
1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the
audio system on.
3. Press the media button (
) to
switch to the USB mode and start
playback.

NOTE
  Some devices such as smart phones
may require a setting change to allow
operation using a USB connection.
  When the USB device is not
connected, the mode does not switch
to USB mode.
  When there is no playable data in the
USB device, “ NO CONTENTS ” is
À ashed.

 Playback of the USB device is in the
order of the folder numbers. Folders
which have no MP3/WMA/AAC
¿ les are skipped.

 Do not remove the USB device while
in the USB mode. The data may be
damaged.
Pause
To stop playback, press the play/pause
button ( 4 ).
Press the button again to resume playback.
Fast-forward/Reverse
Press and hold the fast-forward button (
)
to advance through a track at high speed.
Press and hold the reverse button (
) to
reverse through a track at high speed.

5–39
Interior Features
Audio Set [Type A (non-touchscreen)]

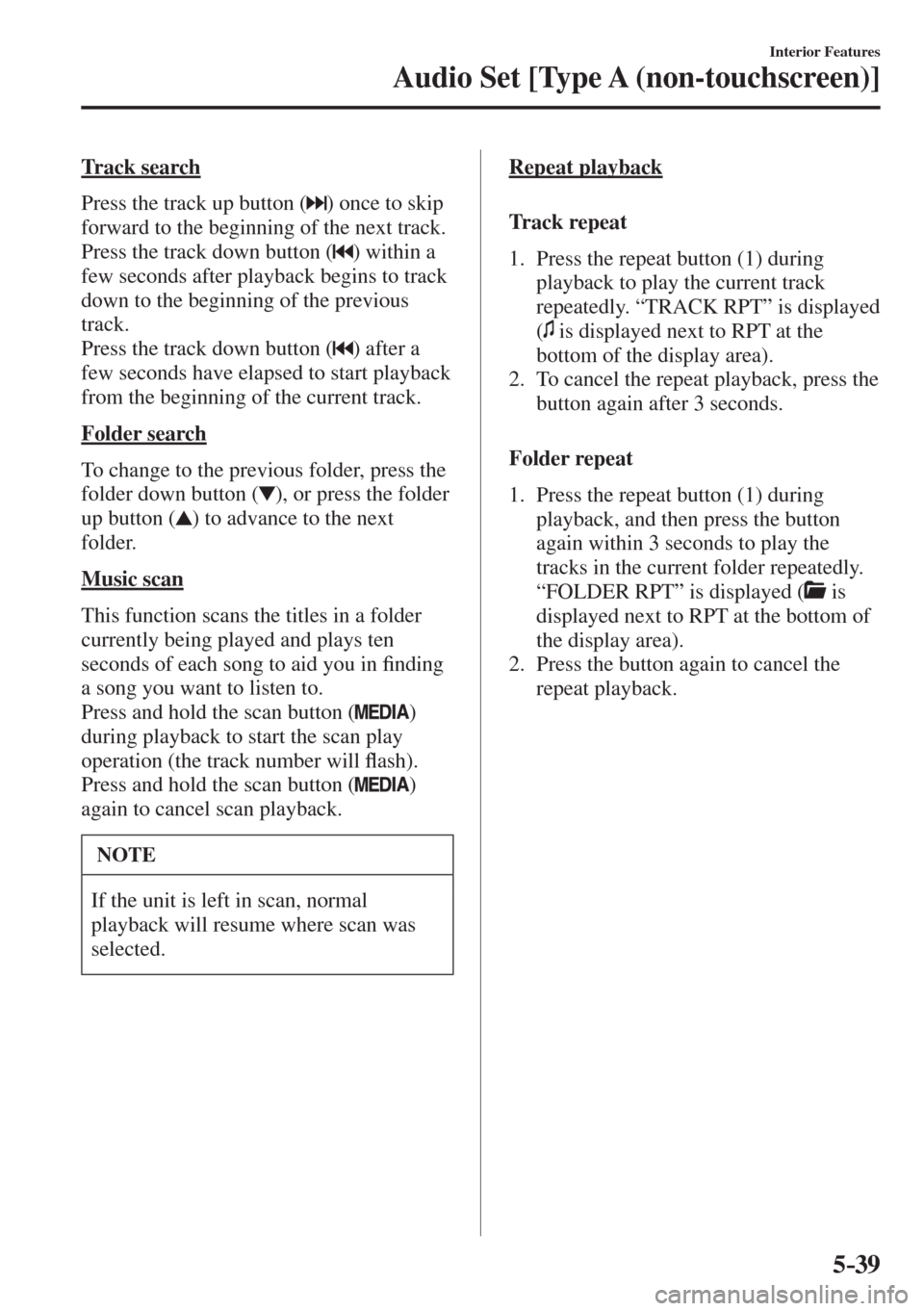

Track search
Press the track up button (
) once to skip
forward to the beginning of the next track.
Press the track down button (
) within a
few seconds after playback begins to track
down to the beginning of the previous
track.
Press the track down button (
) after a
few seconds have elapsed to start playback
from the beginning of the current track.
Folder search
To change to the previous folder, press the
folder down button (
), or press the folder
up button (
) to advance to the next
folder.
Music scan
This function scans the titles in a folder
currently being played and plays ten
seconds of each song to aid you in ¿ nding
a song you want to listen to.
Press and hold the scan button (
)
during playback to start the scan play
operation (the track number will À ash).
Press and hold the scan button (
)
again to cancel scan playback.
NOTE
If the unit is left in scan, normal
playback will resume where scan was
selected.
Repeat playback
T r a c k r e p e a t
1. Press the repeat button ( 1 ) during
playback to play the current track
repeatedly. “ TRACK RPT ” is displayed
(
is displayed next to RPT at the
bottom of the display area).
2. To cancel the repeat playback, press the
button again after 3 seconds.

Folder repeat
1. Press the repeat button ( 1 ) during
playback, and then press the button
again within 3 seconds to play the
tracks in the current folder repeatedly.
“ FOLDER RPT ” is displayed (
is
displayed next to RPT at the bottom of
the display area).
2. Press the button again to cancel the
repeat playback.

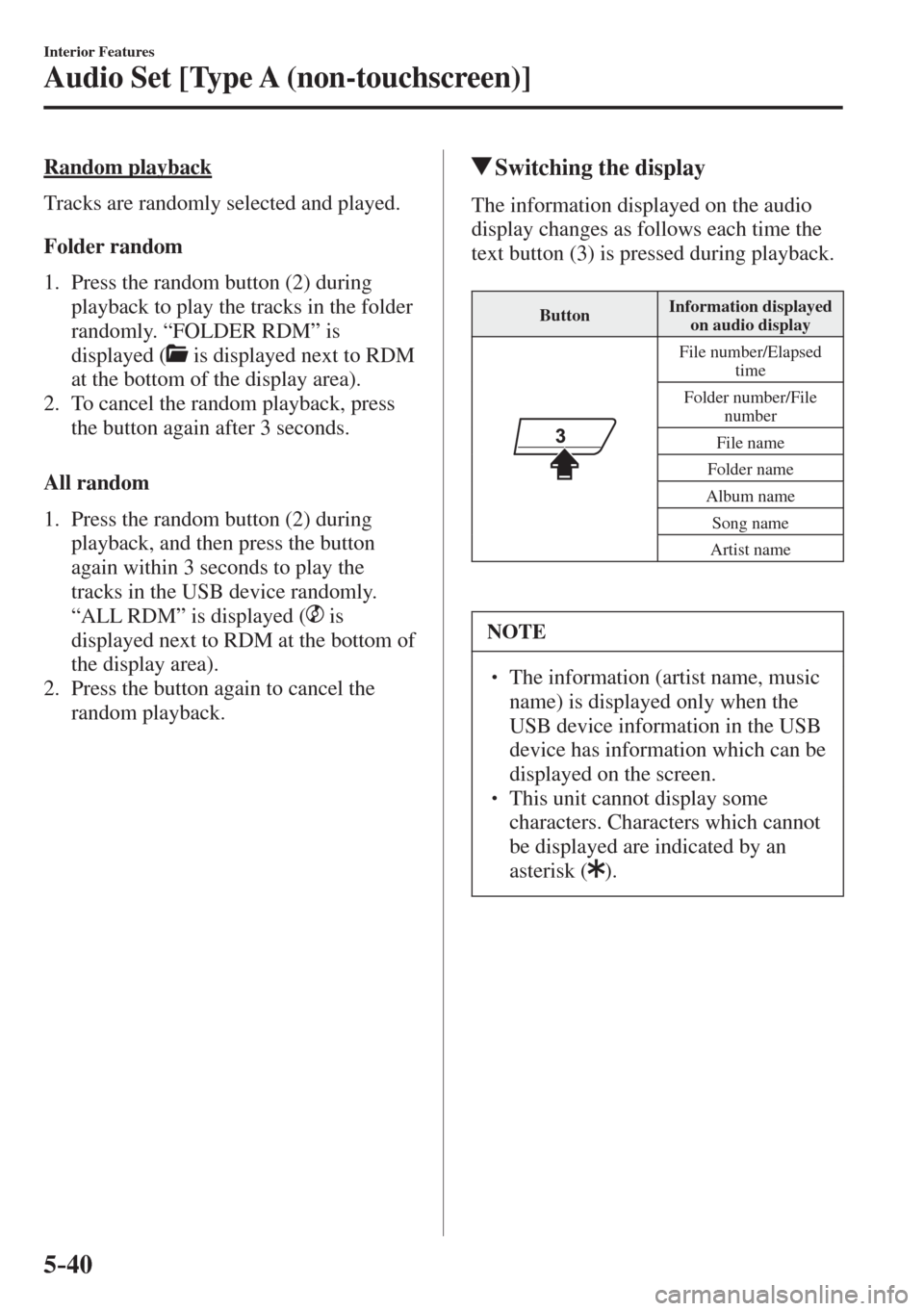

5–40
Interior Features
Audio Set [Type A (non-touchscreen)]
Random playback
Tracks are randomly selected and played.
Folder random
1. Press the random button ( 2 ) during
playback to play the tracks in the folder
randomly. “ FOLDER RDM ” is
displayed (
is displayed next to RDM
at the bottom of the display area).
2. To cancel the random playback, press
the button again after 3 seconds.

All random
1. Press the random button ( 2 ) during
playback, and then press the button
again within 3 seconds to play the
tracks in the USB device randomly.
“ ALL RDM ” is displayed (
is
displayed next to RDM at the bottom of
the display area).
2. Press the button again to cancel the
random playback.

Switching the display
The information displayed on the audio
display changes as follows each time the
text button ( 3 ) is pressed during playback.

Button Information displayed
on audio display

File number/Elapsed
time
Folder number/File
number
File name
Folder name
Album name
Song name
Artist name

NOTE
  The information (artist name, music
name) is displayed only when the
USB device information in the USB
device has information which can be
displayed on the screen.
  This unit cannot display some
characters. Characters which cannot
be displayed are indicated by an
asterisk (
).
