Interior Features
Before Using the Audio System
NOTE
  This mode may not be usable
depending on the portable audio
device to be connected.
  Before using the auxiliary jack/USB
port, refer to the instruction manual
for the portable audio device.
  Use a commercially-available,
non-impedance (3.5
) stereo mini
plug for connecting the portable
audio unit to the auxiliary jack.
Before using the auxiliary jack, read
the manufacturer's instructions for
connecting a portable audio unit to
the auxiliary jack.
  To prevent discharging of the battery,
do not use the auxiliary input for
long periods with the engine off or
idling.
  When connecting a device to the
auxiliary jack or USB port, noise
may occur depending on the
connected device. If the device is
connected to the vehicle's accessory
socket, the noise can be reduced by
unplugging it from the accessory
socket.

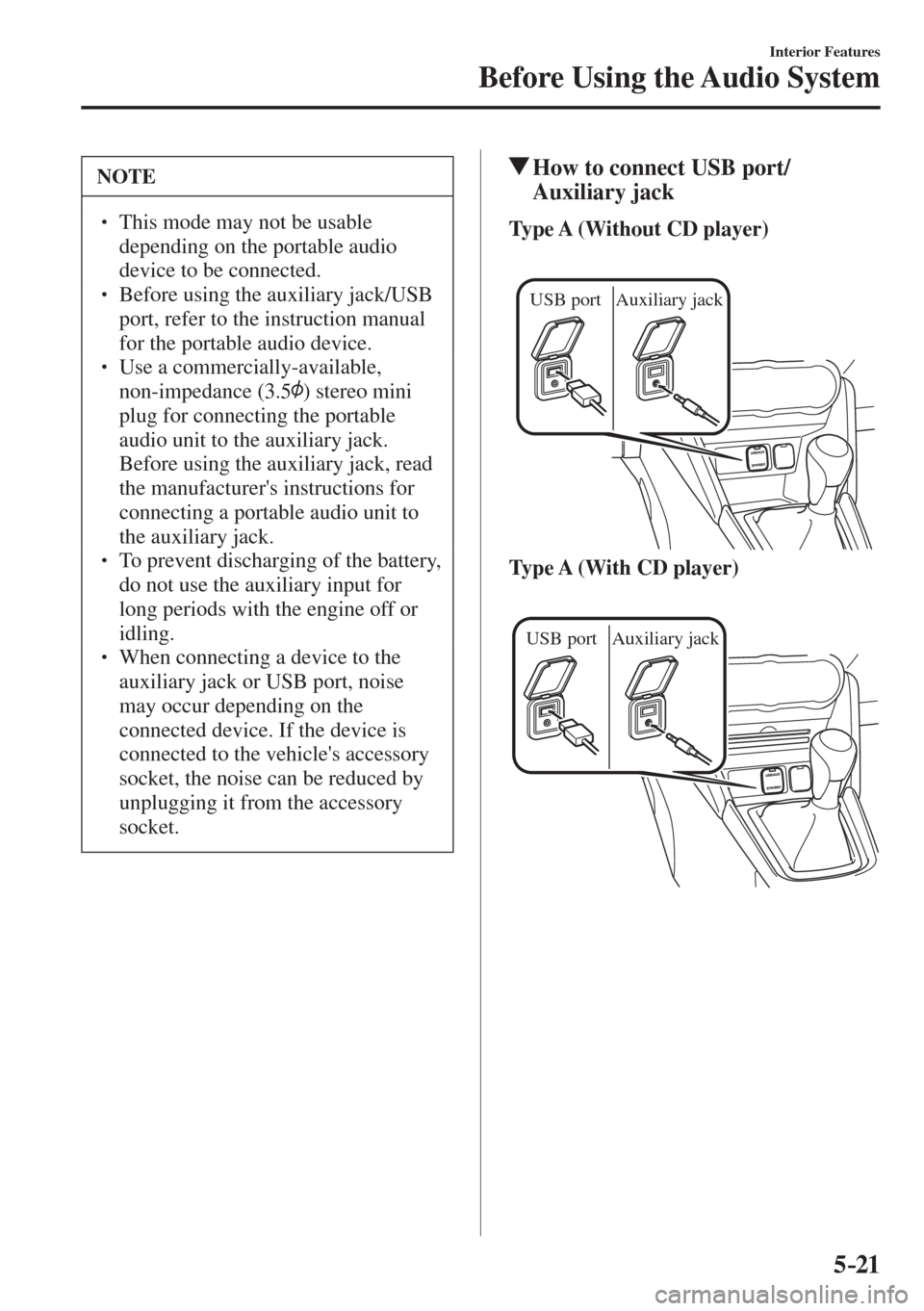

How to connect USB port/
Auxiliary jack
Type A (Without CD player)


USB port Auxiliary jack

Type A (With CD player)


USB port Auxiliary jack

5–22
Interior Features
Before Using the Audio System

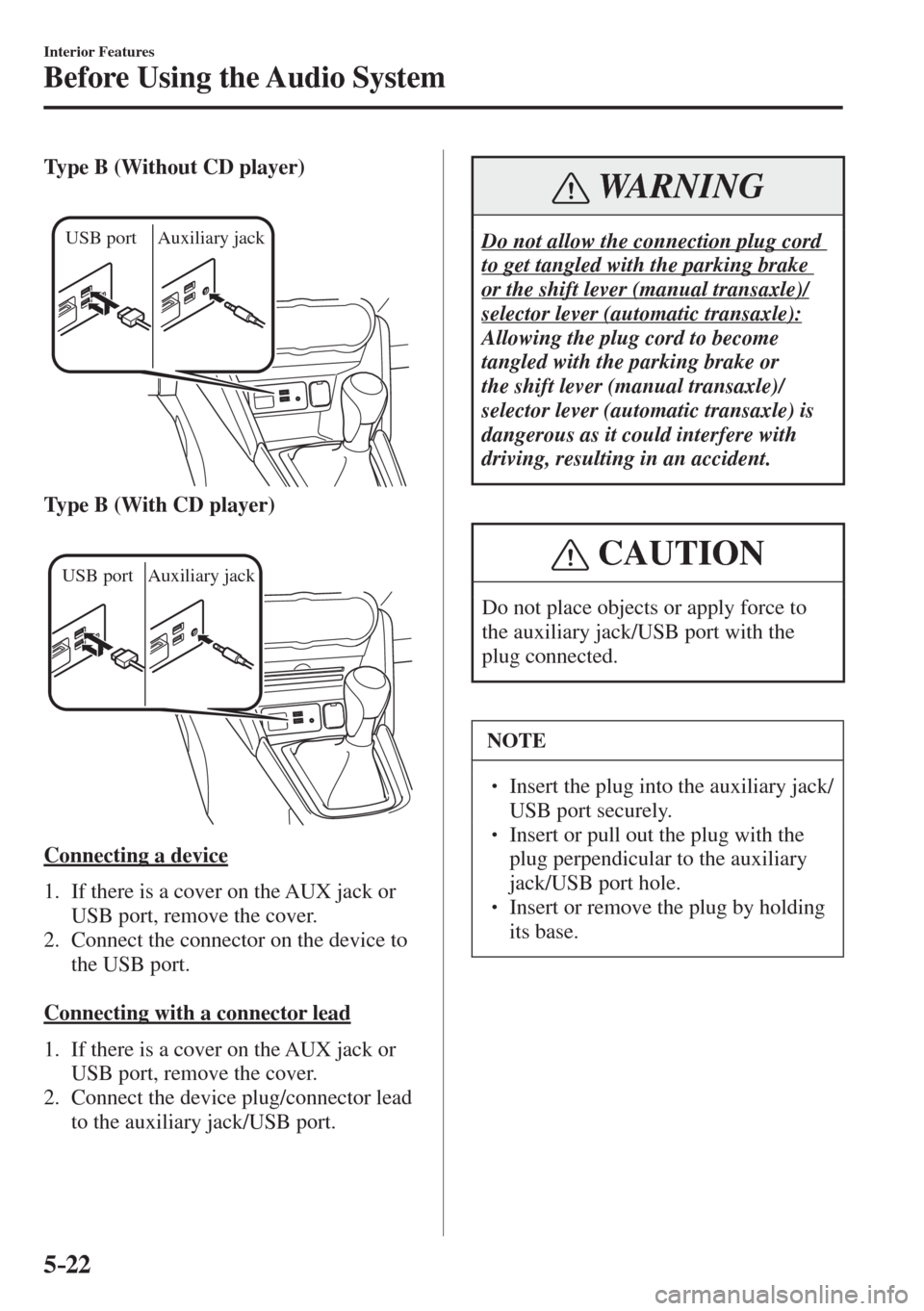

Type B (Without CD player)


USB port Auxiliary jack

Type B (With CD player)


USB port Auxiliary jack

Connecting a device
1. If there is a cover on the AUX jack or
USB port, remove the cover.
2. Connect the connector on the device to
the USB port.

Connecting with a connector lead
1. If there is a cover on the AUX jack or
USB port, remove the cover.
2. Connect the device plug/connector lead
to the auxiliary jack/USB port.

WARNING
Do not allow the connection plug cord
to get tangled with the parking brake
or the shift lever (manual transaxle)/
selector lever (automatic transaxle):
Allowing the plug cord to become
tangled with the parking brake or
the shift lever (manual transaxle)/
selector lever (automatic transaxle) is
dangerous as it could interfere with
driving, resulting in an accident.
CAUTION
Do not place objects or apply force to
the auxiliary jack/USB port with the
plug connected.
NOTE
  Insert the plug into the auxiliary jack/
USB port securely.
  Insert or pull out the plug with the
plug perpendicular to the auxiliary
jack/USB port hole.
  Insert or remove the plug by holding
its base.

5–23
Interior Features
Before Using the Audio System
*Some models.

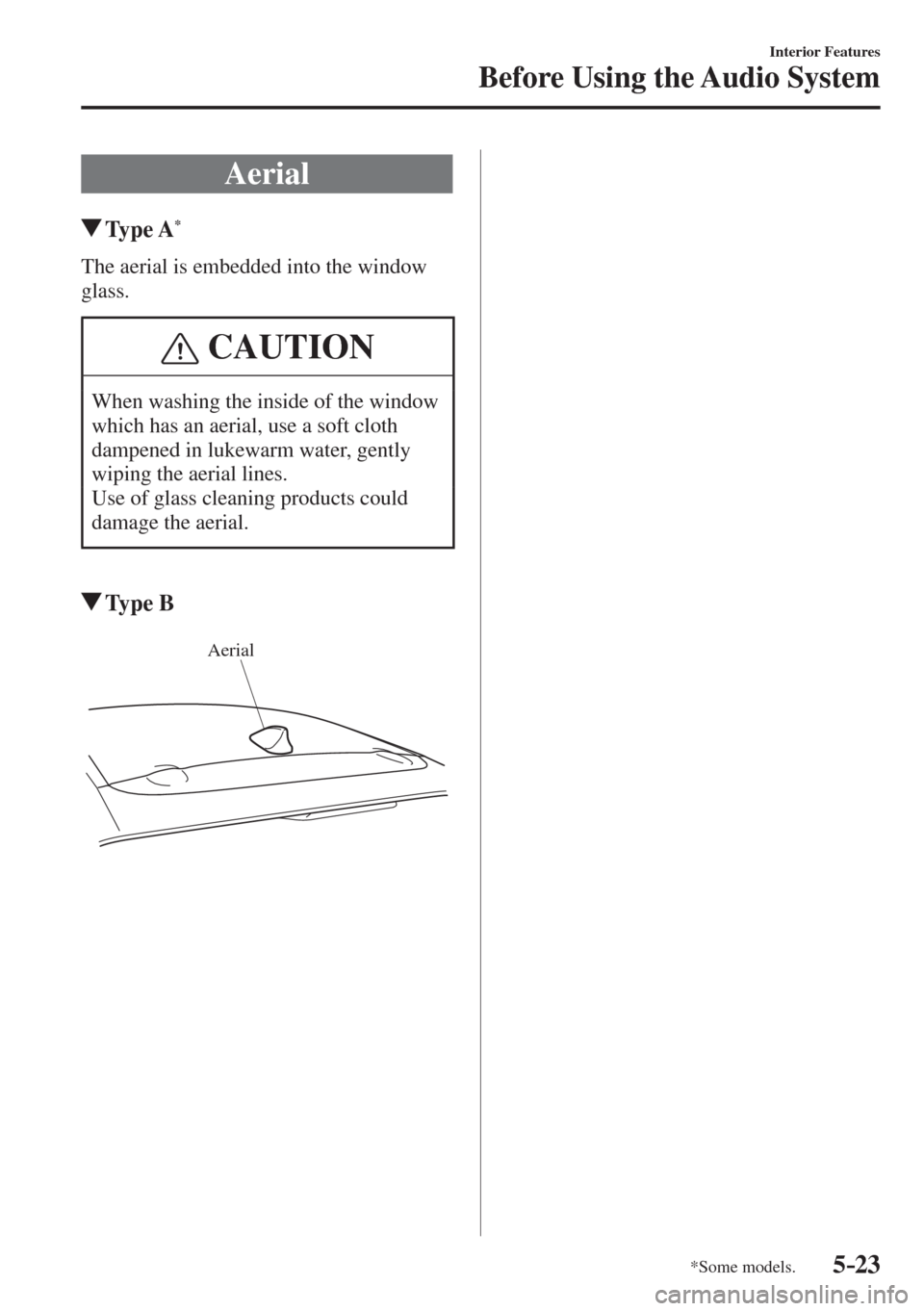

Aerial
Type A *
The aerial is embedded into the window
glass.
CAUTION
When washing the inside of the window
which has an aerial, use a soft cloth
dampened in lukewarm water, gently
wiping the aerial lines.
Use of glass cleaning products could
damage the aerial.
Ty p e B

Aerial

5–24
Interior Features

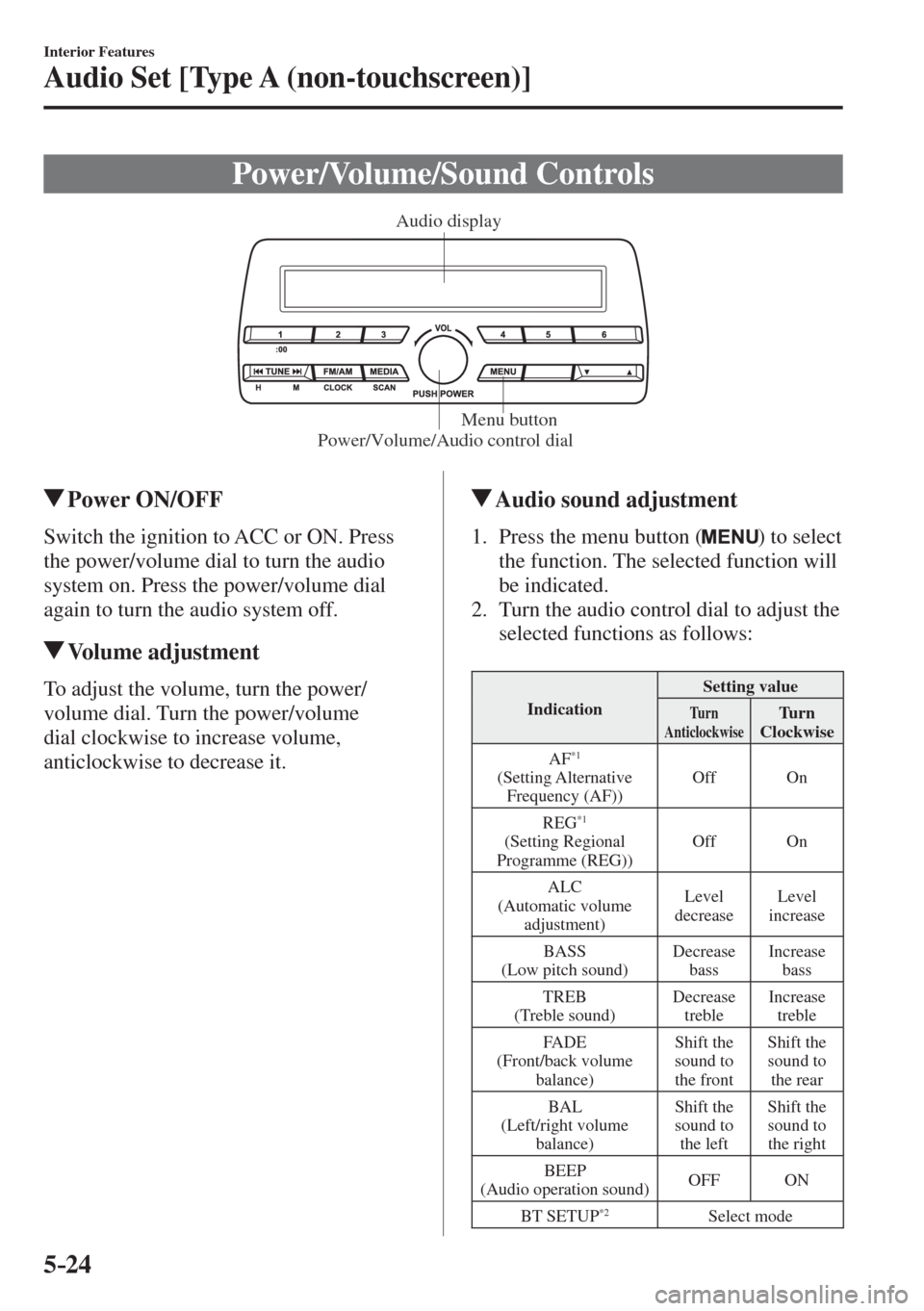

Audio Set [Type A (non-touchscreen)]
Power/Volume/Sound Controls
Power/Volume/Audio control dialMenu button Audio display
Power ON/OFF
Switch the ignition to ACC or ON. Press
the power/volume dial to turn the audio
system on. Press the power/volume dial
again to turn the audio system off.
Volume adjustment
To adjust the volume, turn the power/
volume dial. Turn the power/volume
dial clockwise to increase volume,
anticlockwise to decrease it.
Audio sound adjustment
1. Press the menu button ( ) to select
the function. The selected function will
be indicated.
2. Turn the audio control dial to adjust the
selected functions as follows:

Indication Setting value Tu r n
Anticlockwise Tu r n
Clockwise
A F
*1
(Setting Alternative
Frequency (AF)) Off On
R E G
*1
(Setting Regional
Programme (REG)) Off On
A L C
(Automatic volume
adjustment) Level
decrease Level
increase
BASS
(Low pitch sound) Decrease
bass Increase
bass
TREB
(Treble sound) Decrease
treble Increase
treble
FADE
(Front/back volume
balance) Shift the
sound to
the front Shift the
sound to
the rear
B A L
(Left/right volume
balance) Shift the
sound to
the left Shift the
sound to
the right
BEEP
(Audio operation sound) OFF ON
BT SETUP
*2 Select mode

5–25
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.

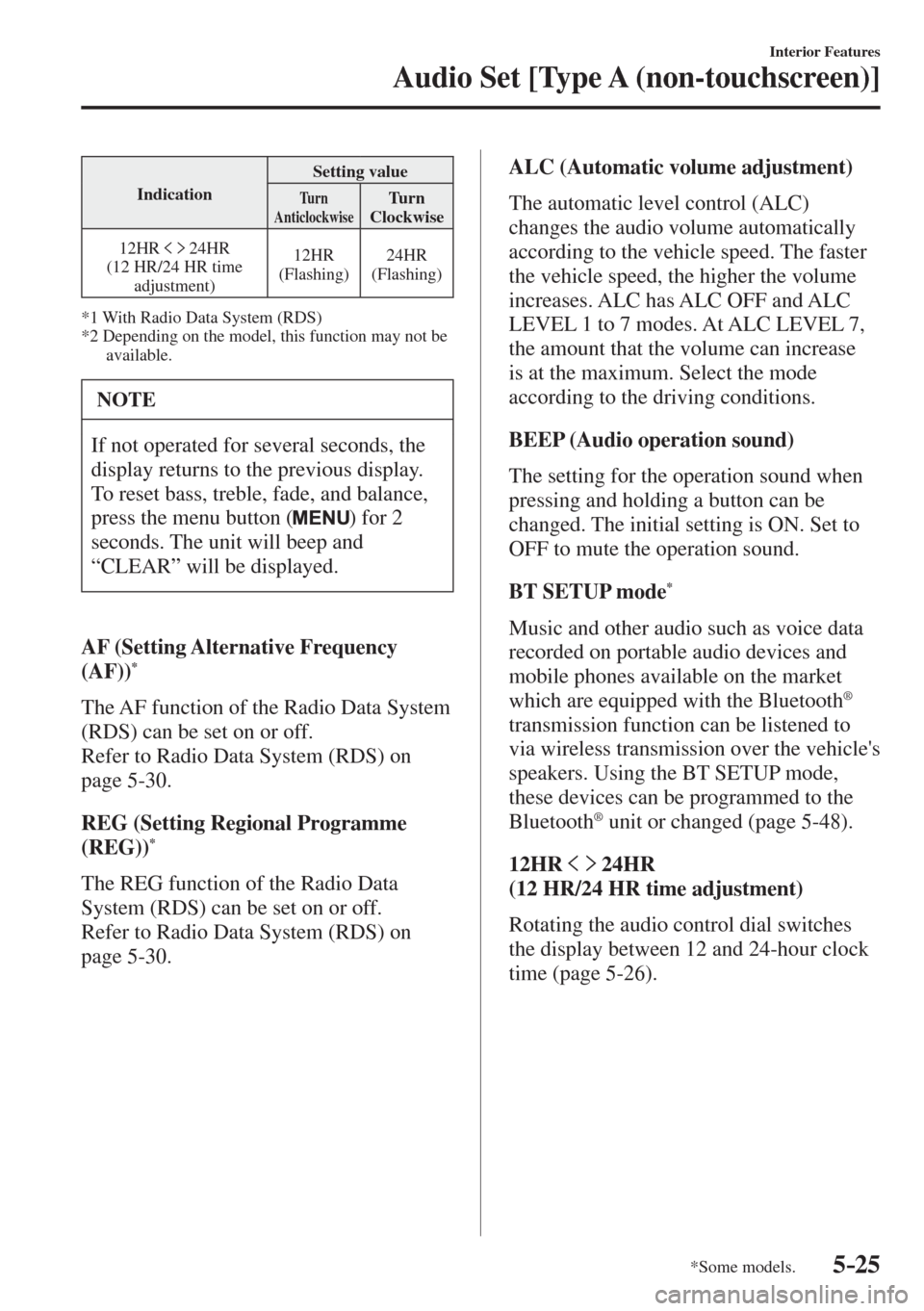

Indication Setting value Tu r n
Anticlockwise Tu r n
Clockwise
12HR
24HR
(12 HR/24 HR time
adjustment) 12HR
(Flashing) 24HR
(Flashing)
*1 With Radio Data System (RDS)
*2 Depending on the model, this function may not be
available.
NOTE
If not operated for several seconds, the
display returns to the previous display.
To reset bass, treble, fade, and balance,
press the menu button (
) for 2
seconds. The unit will beep and
“ CLEAR ” will be displayed.
AF (Setting Alternative Frequency
(AF))
*
The AF function of the Radio Data System
(RDS) can be set on or off.
Refer to Radio Data System (RDS) on
page 5-30 .
REG (Setting Regional Programme
(REG))
*
The REG function of the Radio Data
System (RDS) can be set on or off.
Refer to Radio Data System (RDS) on
page 5-30 . ALC (Automatic volume adjustment)
The automatic level control (ALC)
changes the audio volume automatically
according to the vehicle speed. The faster
the vehicle speed, the higher the volume
increases. ALC has ALC OFF and ALC
LEVEL 1 to 7 modes. At ALC LEVEL 7,
the amount that the volume can increase
is at the maximum. Select the mode
according to the driving conditions.
BEEP (Audio operation sound)
The setting for the operation sound when
pressing and holding a button can be
changed. The initial setting is ON. Set to
OFF to mute the operation sound.
BT SETUP mode
*
Music and other audio such as voice data
recorded on portable audio devices and
mobile phones available on the market
which are equipped with the Bluetooth
®
transmission function can be listened to
via wireless transmission over the vehicle's
speakers. Using the BT SETUP mode,
these devices can be programmed to the
Bluetooth
® unit or changed (page 5-48 ).
1 2 H R
24HR
(12 HR/24 HR time adjustment)
Rotating the audio control dial switches
the display between 12 and 24-hour clock
time (page 5-26 ).

5–26
Interior Features
Audio Set [Type A (non-touchscreen)]

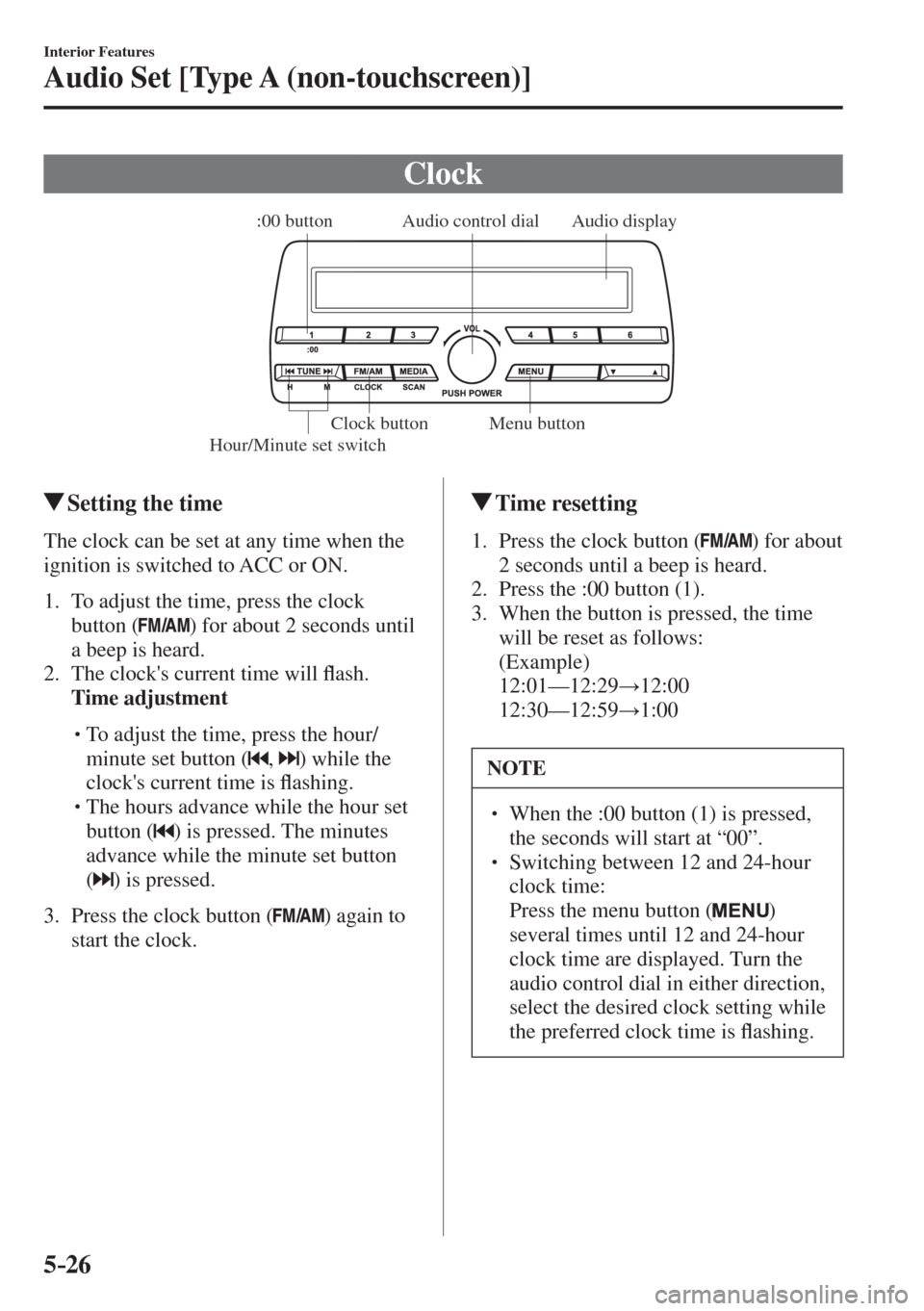

Clock

Audio display Audio control dial
Hour/Minute set switch:00 button
Menu button Clock button

Setting the time
The clock can be set at any time when the
ignition is switched to ACC or ON.

1. To adjust the time, press the clock
button (
) for about 2 seconds until
a beep is heard.
2. The clock's current time will À ash.
Time adjustment




 To adjust the time, press the hour/
minute set button (
, ) while the
clock's current time is À ashing.




 The hours advance while the hour set
button (
) is pressed. The minutes
advance while the minute set button
(
) is pressed.
3. Press the clock button ( ) again to
start the clock.

Time resetting
1. Press the clock button ( ) for about
2 seconds until a beep is heard.
2. Press the :00 button ( 1 ).
3. When the button is pressed, the time
will be reset as follows:
(Example)
12:01—12:29
:12:00
12:30—12:59
:1:00

NOTE

 When the :00 button ( 1 ) is pressed,
the seconds will start at “ 00 ”.

 Switching between 12 and 24-hour
clock time:
 Press the menu button ( )
several times until 12 and 24-hour
clock time are displayed. Turn the
audio control dial in either direction,
select the desired clock setting while
the preferred clock time is À ashing.

MEMO
5–27

5–28
Interior Features
Audio Set [Type A (non-touchscreen)]

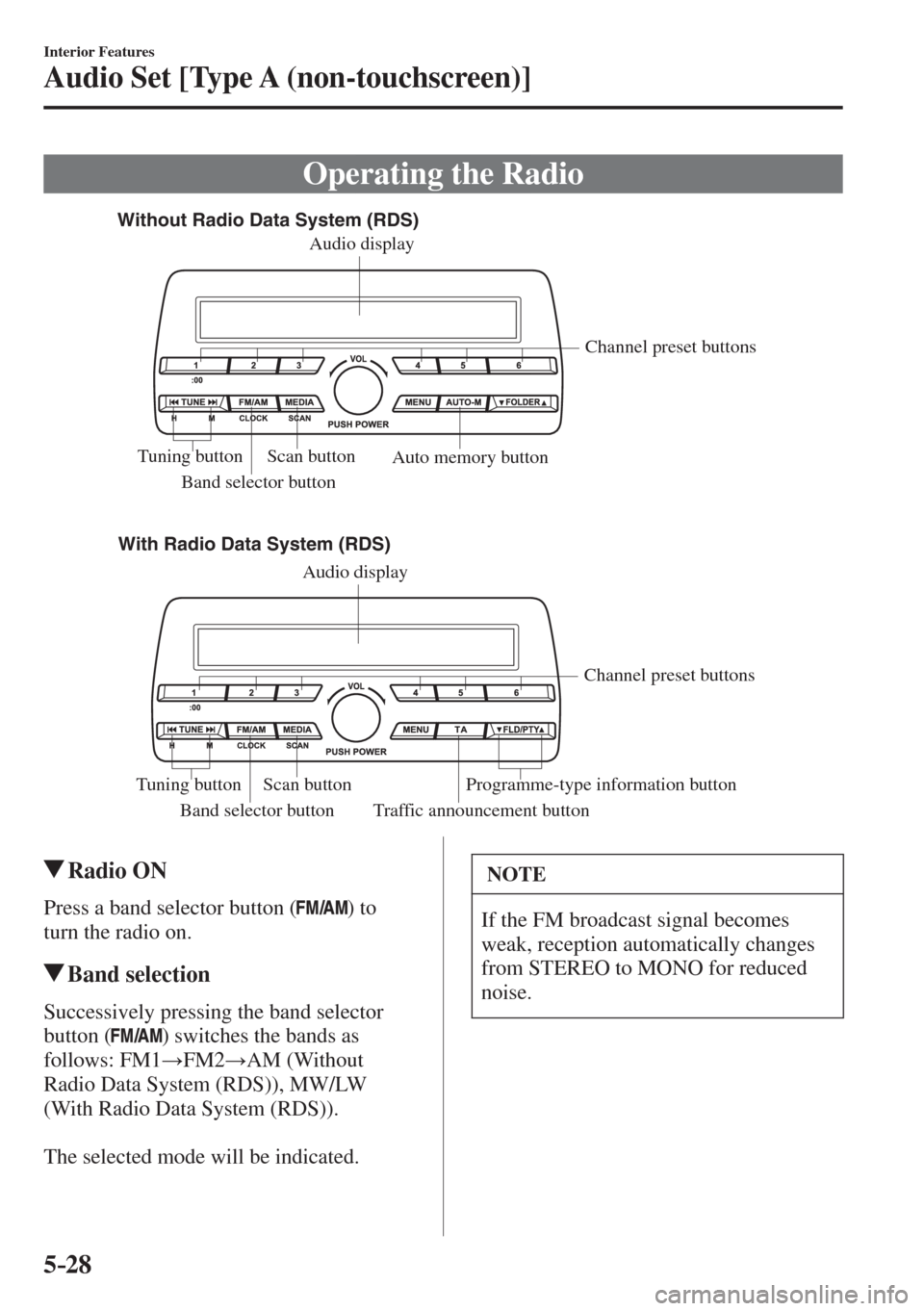

Operating the Radio

Without Radio Data System (RDS)
With Radio Data System (RDS)
Band selector button Traffic announcement buttonChannel preset buttons
Scan button
Tuning button Programme-type information buttonAudio display
Band selector buttonChannel preset buttons
Scan button
Auto memory button
Tuning buttonAudio display

Radio ON
Press a band selector button ( ) to
turn the radio on.
Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1
:FM2
:AM (Without
Radio Data System (RDS)), MW/LW
(With Radio Data System (RDS)).

The selected mode will be indicated.
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise.

5–29
Interior Features
Audio Set [Type A (non-touchscreen)]

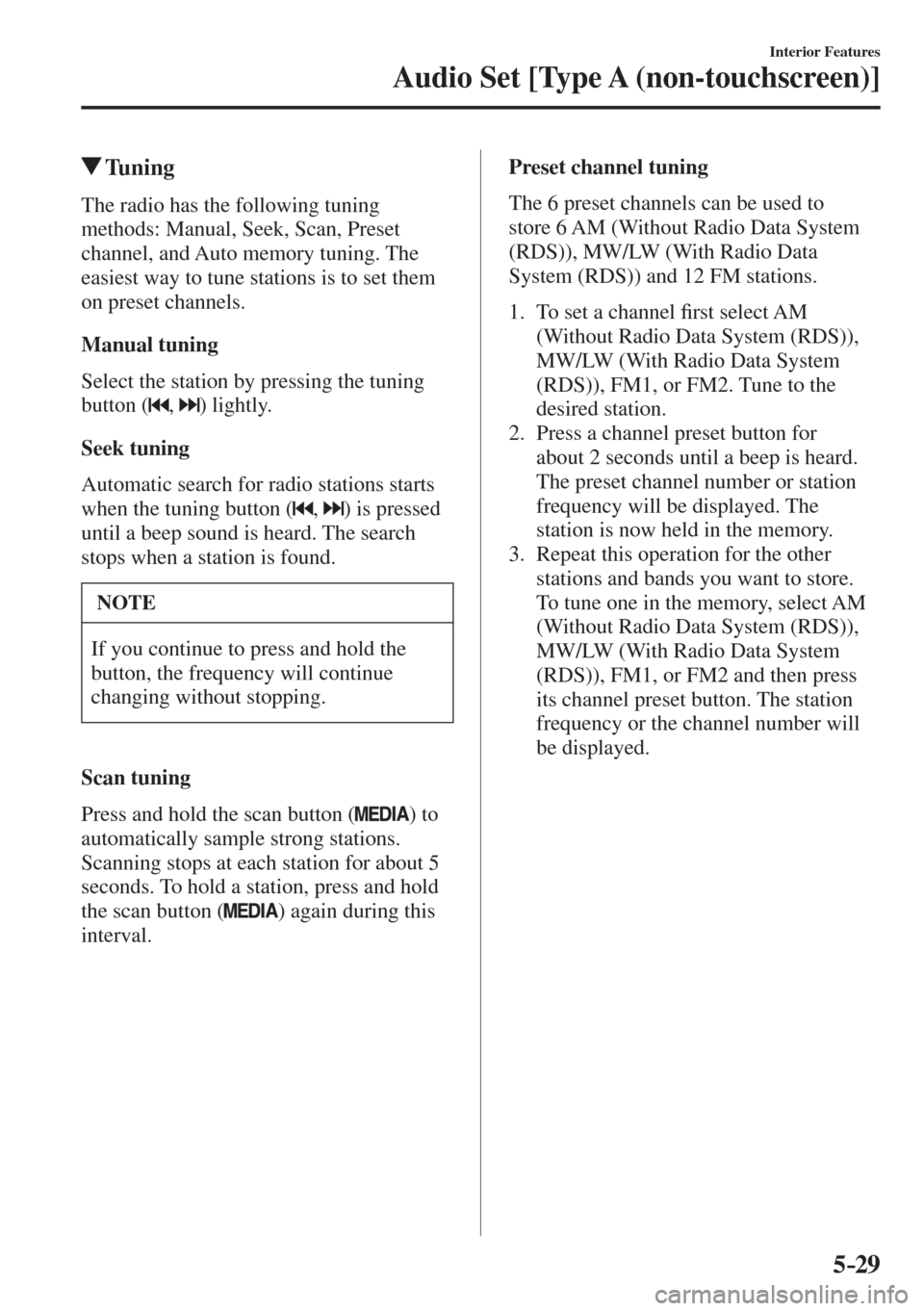

Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
Manual tuning
Select the station by pressing the tuning
button (
, ) lightly.
Seek tuning
Automatic search for radio stations starts
when the tuning button (
, ) is pressed
until a beep sound is heard. The search
stops when a station is found.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
Scan tuning
Press and hold the scan button (
) to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press and hold
the scan button (
) again during this
interval. Preset channel tuning
The 6 preset channels can be used to
store 6 AM (Without Radio Data System
(RDS)), MW/LW (With Radio Data
System (RDS)) and 12 FM stations.

1. To set a channel ¿ rst select AM
(Without Radio Data System (RDS)),
MW/LW (With Radio Data System
(RDS)), FM1, or FM2. Tune to the
desired station.
2. Press a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number or station
frequency will be displayed. The
station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM
(Without Radio Data System (RDS)),
MW/LW (With Radio Data System
(RDS)), FM1, or FM2 and then press
its channel preset button. The station
frequency or the channel number will
be displayed.

5–30
Interior Features
Audio Set [Type A (non-touchscreen)]
*Some models.

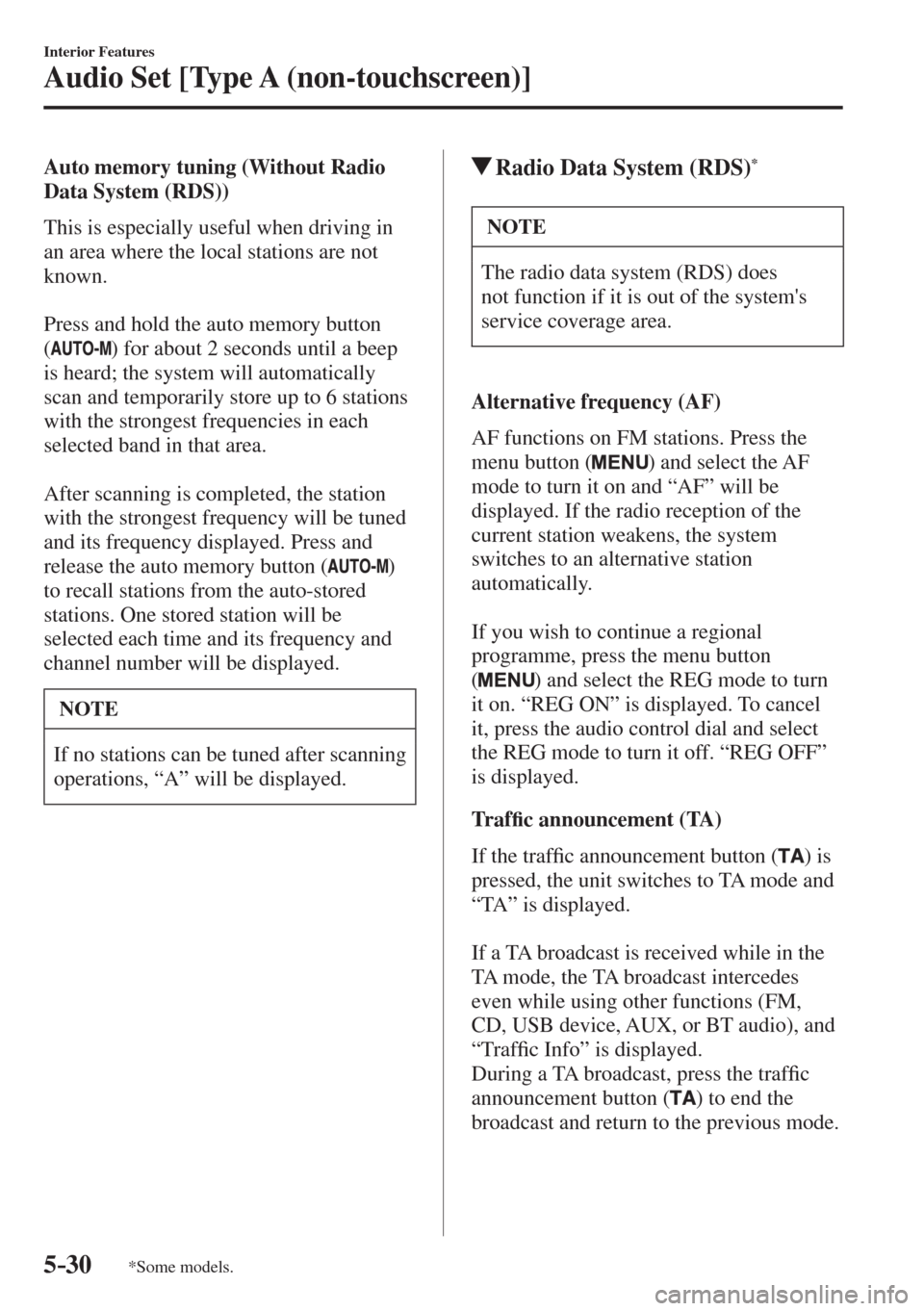

Auto memory tuning (Without Radio
Data System (RDS))
This is especially useful when driving in
an area where the local stations are not
known.

Press and hold the auto memory button
(
) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.

After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed. Press and
release the auto memory button (
)
to recall stations from the auto-stored
stations. One stored station will be
selected each time and its frequency and
channel number will be displayed.
NOTE
If no stations can be tuned after scanning
operations, “ A ” will be displayed.
Radio Data System (RDS) *
NOTE
The radio data system (RDS) does
not function if it is out of the system's
service coverage area.
Alternative frequency (AF)
AF functions on FM stations. Press the
menu button (
) and select the AF
mode to turn it on and “ AF ” will be
displayed. If the radio reception of the
current station weakens, the system
switches to an alternative station
automatically.

If you wish to continue a regional
programme, press the menu button
(
) and select the REG mode to turn
it on. “ REG ON ” is displayed. To cancel
it, press the audio control dial and select
the REG mode to turn it off. “ REG OFF ”
is displayed.
T r a f¿ c announcement (TA)
If the traf¿ c announcement button (
) is
pressed, the unit switches to TA mode and
“ TA ” is displayed.

If a TA broadcast is received while in the
TA mode, the TA broadcast intercedes
even while using other functions (FM,
CD, USB device, AUX, or BT audio), and
“ Traf¿ c Info ” is displayed.
During a TA broadcast, press the traf¿ c
announcement button (
) to end the
broadcast and return to the previous mode.
