2–35
Essential Safety Equipment
Child Restraint
i-Size child-restraint systems
Vehicles with the
mark indicated on the front surface of a rear seatback are i-Size child-
restraint certi¿ ed.
When installing a child-restraint system to the rear seat, refer to the child-restraint system
manufacturer's instructions and the Using ISOFIX Anchor on page 2-38 .
Marking location


An i-Size child-restraint system can be installed to the speci¿ ed seat as follows:
Front passenger seat Rear seat (outboard) Rear seat (centre)
i-Size child-restraint
systems X i-U X
Key of letters to be inserted in the above table:
i-U = Suitable for i-Size “universal” child-restraint systems forward and rearward facing.
X = Seating position not suitable for i-Size “universal” child-restraint systems.

NOTE
  An i-Size child-restraint system refers to a child-restraint system which has acquired
i-Size category certi¿ cation for the UNECE 129 regulation.

 Vehicles with the mark indicated on the front surface of a rear seatback are not
i-Size child-restraint certi¿ ed.

2–36
Essential Safety Equipment
Child Restraint
Seat belt-secured child-restraint systems
System
group Age group Weight
group Child-
restraint
system
type Front passenger seat
Rear seat (outboard)
Rear
seat
(centre) Without
air bag
deactivation
switch With air bag
deactivation switch
O N
(Air bag
enabled)

OFF
(Air bag
disabled)
GROUP
0 Up to
approximately
9 months old Less than
10 kg
(less than
22 lb) Baby seat X X U U X
GROUP
0
Up to
approximately
2 years old Less than
13 kg
(less than
29 lb) Baby seat X X U U X
GROUP
1 Approximately
8 months to
4 years old 9 kg —
18 kg (20
lb — 40
lb) Child seat UF UF U U X
GROUP
2 Approximately
3 to 7 years old 15 kg —
25 kg (33
lb — 55
lb) Junior seat UF UF U U X
GROUP
3 Approximately
6 to 12 years
old 22 kg —
36 kg (48
lb — 79
lb) Junior seat UF UF U U X
Key of letters to be inserted in the above table:
U = Suitable for “universal” category restraints approved for use in this mass group.
UF = Suitable for forward-facing “universal” category restraints approved for use in this mass group.
X = Seat position not suitable for children in this mass group.

(Other countries)
Please comply with the legal regulations concerning the use of child-restraint systems in your country.

2–37
Essential Safety Equipment
Child Restraint

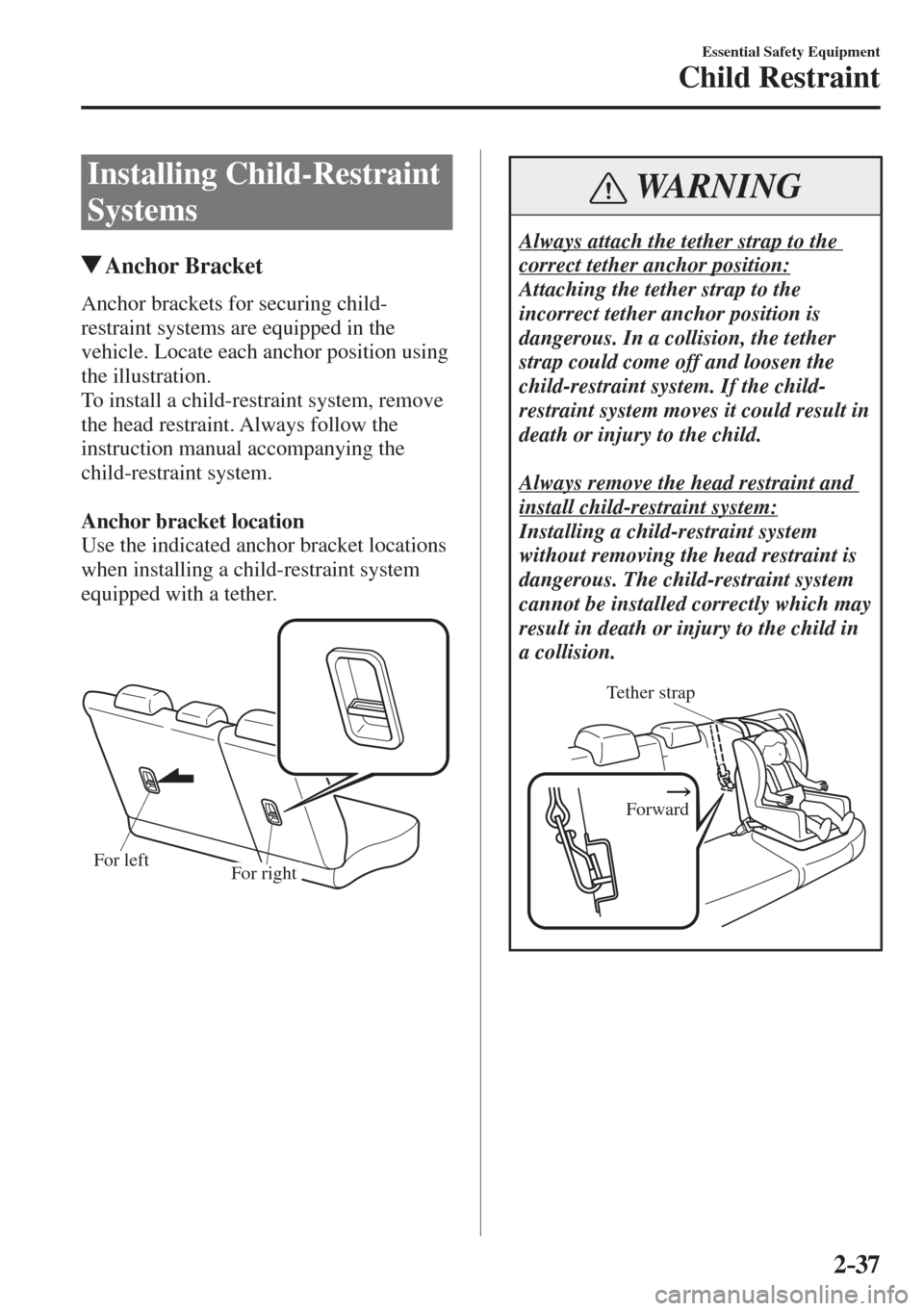

Installing Child-Restraint
Systems
Anchor Bracket
Anchor brackets for securing child-
restraint systems are equipped in the
vehicle. Locate each anchor position using
the illustration.
To install a child-restraint system, remove
the head restraint. Always follow the
instruction manual accompanying the
child-restraint system.

Anchor bracket location
Use the indicated anchor bracket locations
when installing a child-restraint system
equipped with a tether.

For leftFor right

WARNING
Always attach the tether strap to the
correct tether anchor position:
Attaching the tether strap to the
incorrect tether anchor position is
dangerous. In a collision, the tether
strap could come off and loosen the
child-restraint system. If the child-
restraint system moves it could result in
death or injury to the child.

Always remove the head restraint and
install child-restraint system:
Installing a child-restraint system
without removing the head restraint is
dangerous. The child-restraint system
cannot be installed correctly which may
result in death or injury to the child in
a collision.
Tether strap
Forward

2–38
Essential Safety Equipment
Child Restraint

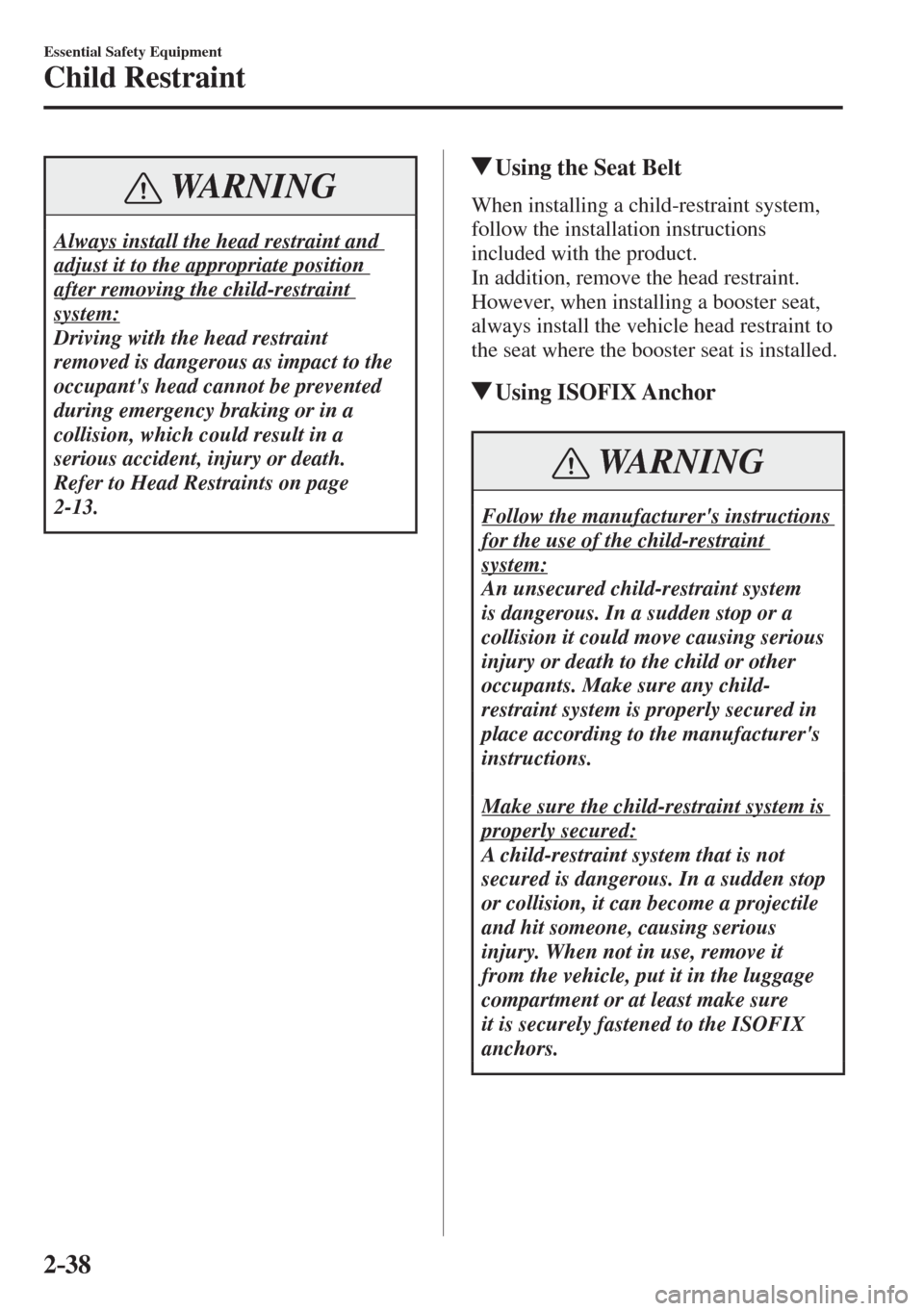

WARNING
Always install the head restraint and
adjust it to the appropriate position
after removing the child-restraint
system:
Driving with the head restraint
removed is dangerous as impact to the
occupant's head cannot be prevented
during emergency braking or in a
collision, which could result in a
serious accident, injury or death.
Refer to Head Restraints on page
2-13 .
Using the Seat Belt
When installing a child-restraint system,
follow the installation instructions
included with the product.
In addition, remove the head restraint.
However, when installing a booster seat,
always install the vehicle head restraint to
the seat where the booster seat is installed.
Using ISOFIX Anchor
WARNING
Follow the manufacturer's instructions
for the use of the child-restraint
system:
An unsecured child-restraint system
is dangerous. In a sudden stop or a
collision it could move causing serious
injury or death to the child or other
occupants. Make sure any child-
restraint system is properly secured in
place according to the manufacturer's
instructions.

Make sure the child-restraint system is
properly secured:
A child-restraint system that is not
secured is dangerous. In a sudden stop
or collision, it can become a projectile
and hit someone, causing serious
injury. When not in use, remove it
from the vehicle, put it in the luggage
compartment or at least make sure
it is securely fastened to the ISOFIX
anchors.

2–39
Essential Safety Equipment
Child Restraint

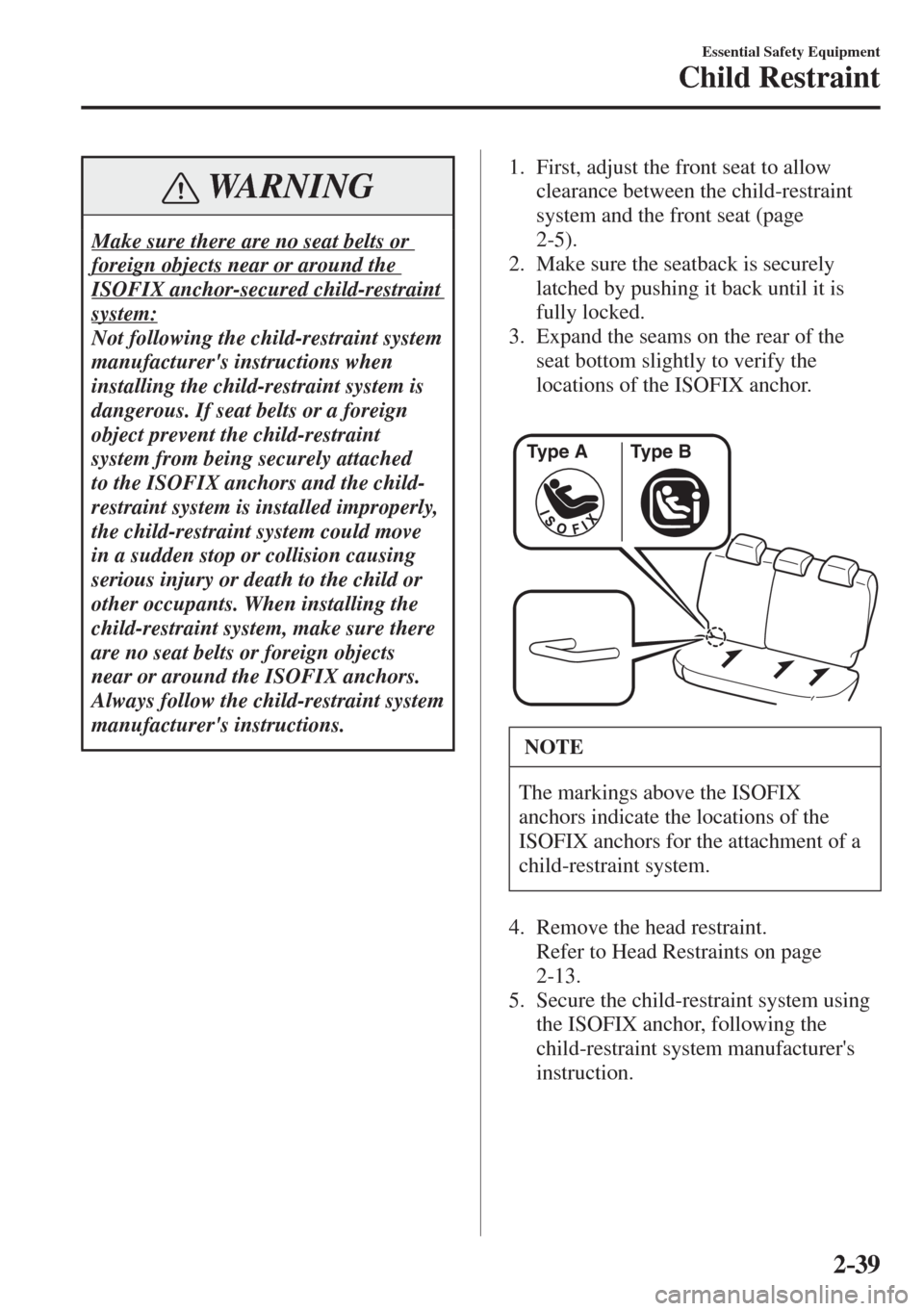

WARNING
Make sure there are no seat belts or
foreign objects near or around the
ISOFIX anchor-secured child-restraint
system:
Not following the child-restraint system
manufacturer's instructions when
installing the child-restraint system is
dangerous. If seat belts or a foreign
object prevent the child-restraint
system from being securely attached
to the ISOFIX anchors and the child-
restraint system is installed improperly,
the child-restraint system could move
in a sudden stop or collision causing
serious injury or death to the child or
other occupants. When installing the
child-restraint system, make sure there
are no seat belts or foreign objects
near or around the ISOFIX anchors.
Always follow the child-restraint system
manufacturer's instructions. 1. First, adjust the front seat to allow
clearance between the child-restraint
system and the front seat (page
2-5 ).
2. Make sure the seatback is securely
latched by pushing it back until it is
fully locked.
3. Expand the seams on the rear of the
seat bottom slightly to verify the
locations of the ISOFIX anchor.


Type A Type B

NOTE
The markings above the ISOFIX
anchors indicate the locations of the
ISOFIX anchors for the attachment of a
child-restraint system.
4. Remove the head restraint.
Refer to Head Restraints on page
2-13 .
5. Secure the child-restraint system using
the ISOFIX anchor, following the
child-restraint system manufacturer's
instruction.

2–40
Essential Safety Equipment
Child Restraint

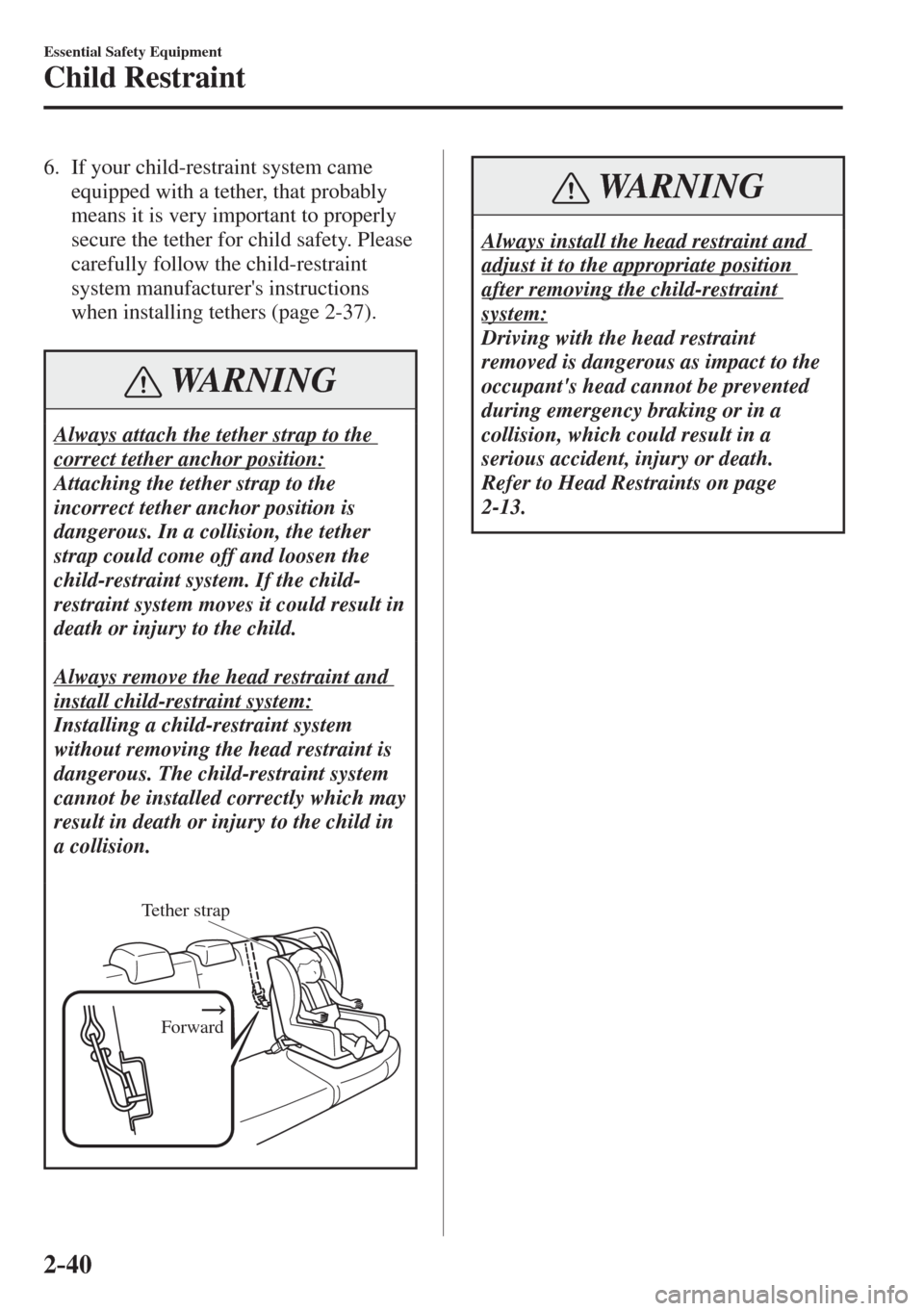

6. If your child-restraint system came
equipped with a tether, that probably
means it is very important to properly
secure the tether for child safety. Please
carefully follow the child-restraint
system manufacturer's instructions
when installing tethers (page 2-37 ).

WARNING
Always attach the tether strap to the
correct tether anchor position:
Attaching the tether strap to the
incorrect tether anchor position is
dangerous. In a collision, the tether
strap could come off and loosen the
child-restraint system. If the child-
restraint system moves it could result in
death or injury to the child.

Always remove the head restraint and
install child-restraint system:
Installing a child-restraint system
without removing the head restraint is
dangerous. The child-restraint system
cannot be installed correctly which may
result in death or injury to the child in
a collision.

Tether strap
Forward

WARNING
Always install the head restraint and
adjust it to the appropriate position
after removing the child-restraint
system:
Driving with the head restraint
removed is dangerous as impact to the
occupant's head cannot be prevented
during emergency braking or in a
collision, which could result in a
serious accident, injury or death.
Refer to Head Restraints on page
2-13 .

2–41
Essential Safety Equipment
SRS Air Bags
*Some models.
Supplementary Restraint System (SRS) Precautions
The front and side supplementary restraint systems (SRS) include different types of air bags.
Please verify the different types of air bags which are equipped on your vehicle by
locating the “SRS AIRBAG” location indicators. These indicators are visible in the area
where the air bags are installed.
The air bags are installed in the following locations:



 The steering wheel hub (driver air bag)



 The front passenger instrument panel (front passenger air bag)



 The outboard sides of the front seatbacks (side air bags) *



 The front and rear window pillars, and the roof edge along both sides (curtain air bags) *

The air bag supplementary restraint systems are designed to provide supplementary
protection in certain situations so seat belts are always important in the following ways:

Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:



 Keep the occupant from being thrown into an inÀ ating air bag.



 Reduce the possibility of injuries during an accident that is not designed for air bag
inÀ ation, such as roll-over or rear impact.




 Reduce the possibility of injuries in frontal, near frontal or side collisions that are not
severe enough to activate the air bags.



 Reduce the possibility of being thrown from your vehicle.



 Reduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts of the body.



 Hold the driver in a position which allows better control of the vehicle.

A child who is too small to use a seat belt must be properly secured using a child-restraint
system (page 2-22 ).

Carefully consider which child-restraint system is necessary for your child and follow
the installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.

2–42
Essential Safety Equipment
SRS Air Bags
WARNING
Seat belts must be worn in air bag equipped vehicles:
Depending only on the air bags for protection during an accident is dangerous. Alone,
air bags may not prevent serious injuries. The appropriate air bags can be expected to
inÀ ate only in the ¿ rst accident, such as frontal, near frontal or side collisions that are
at least moderate. Vehicle occupants should always wear seat belts.

Children should not ride in the front passenger seat:
Placing a child, 12 years or under, in the front seat is dangerous. The child could be hit
by a deploying air bag and be seriously injured or even killed. A sleeping child is more
likely to lean against the door and be hit by the side air bag in moderate collision to the
front-passenger side of the vehicle. Whenever possible, always secure a child 12 years
and under on the rear seats with an appropriate child-restraint system for the child's
age and size.

Extreme Hazard! Never use a rear-facing child-restraint system on the front passenger
seat with an air bag that could deploy:
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE
AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.
Even in a moderate collision, the child-restraint system can be hit by a deploying air
bag and moved violently backward resulting in serious injury or death to the child. If
your vehicle is equipped with a front passenger air bag deactivation switch, always set
the switch to the OFF position when installing a rear-facing child-restraint system on
the front passenger seat.


Do not sit too close to the driver and front passenger air bags:
Sitting too close to the driver and front passenger air bag modules or placing hands or
feet on them is extremely dangerous. The driver and front passenger air bags inÀ ate
with great force and speed. Serious injuries could occur if someone is too close. The
driver should always hold onto only the rim of the steering wheel. The front seat
passenger should keep both feet on the À oor. Front seat occupants should adjust their
seats as far back as possible and always sit upright against the seatbacks with seat belts
worn properly.

2–43
Essential Safety Equipment
SRS Air Bags
WARNING
Sit in the centre of the seat and wear seat belts properly:
Sitting too close to the side air bag modules or placing hands on them, or sleeping up
against the door or hanging out the windows is extremely dangerous. The side and
curtain air bags inÀ ate with great force and speed directly expanding along the door on
the side the car is hit. Serious injury could occur if someone is sitting too close to the
door or leaning against a window, or if rear seat occupants grab the sides of the front
seatbacks. Give the side and curtain air bags room to work by sitting in the centre of the
seat while the vehicle is moving with seat belts worn properly.

Do not attach objects on or around the area where driver and front passenger air bags
deploy:
Attaching an object to the driver and front passenger air bag modules or placing
something in front of them is dangerous. In an accident, an object could interfere with
air bag inÀ ation and injure the occupants.

Do not attach objects on or around the area where a side air bag deploys:
Attaching objects to the front seat in such a way as to cover the outboard side of the seat
in any way is dangerous. In an accident the object could interfere with the side air bag,
which inÀ ates from the outboard side of the front seats, impeding the added protection
of the side air bag system or redirecting the air bag in a way that is dangerous.
Furthermore, the bag could be cut open releasing the gas.
Do not hang net bags, map pouches or backpacks with side straps on the front seats.
Never use seat covers on the front seats. Always keep the side air bag modules in your
front seats free to deploy in the event of a side collision.

Do not attach objects on or around the area where a curtain air bag deploys:
Attaching objects to the areas where the curtain air bag activates such as on the
windscreen glass, side door glass, front and rear window pillars and along the roof edge
and assist grips is dangerous. In an accident the object could interfere with the curtain
air bag, which inÀ ates from the front and rear window pillars and along the roof edge,
impeding the added protection of the curtain air bag system or redirecting the air bag in
a way that is dangerous. Furthermore, the bag could be cut open releasing the gas.
Do not place hangers or any other objects on the assist grips. When hanging clothes,
hang them on the coat hook directly. Always keep the curtain air bag modules free to
deploy in the event of a side collision.

2–44
Essential Safety Equipment
SRS Air Bags
WARNING
Do not touch the components of the supplementary restraint system after the air bags
have inÀ ated:
Touching the components of the supplementary restraint system after the air bags have
inÀ ated is dangerous. Immediately after inÀ ation, they are very hot. You could get
burned.

Never install any front-end equipment to your vehicle:
Installation of front-end equipment, such as frontal protection bar (kangaroo bar,
bull bar, push bar, or other similar devices), snowplow, or winches, is dangerous. The
air bag crash sensor system could be affected. This could cause air bags to inÀ ate
unexpectedly, or it could prevent the air bags from inÀ ating during an accident. Front
occupants could be seriously injured.

Do not modify the suspension:
Modifying the vehicle suspension is dangerous. If the vehicle's height or the suspension
is modi¿ ed, the vehicle will be unable to accurately detect a collision resulting in
incorrect or unexpected air bag deployment and the possibility of serious injuries.

Do not modify a front door or leave any damage unrepaired. Always have an expert
repairer, we recommend an Authorised Mazda Repairer inspect a damaged front door:
Modifying a front door or leaving any damage unrepaired is dangerous. Each front
door has a side crash sensor as a component of the supplementary restraint system.
If holes are drilled in a front door, a door speaker is left removed, or a damaged door
is left unrepaired, the sensor could be adversely affected causing it to not detect the
pressure of an impact correctly during a side collision. If a sensor does not detect a side
impact correctly, the side and curtain air bags and the front seat belt pretensioner may
not operate normally which could result in serious injury to occupants.

Do not modify the supplementary restraint system:
Modifying the components or wiring of the supplementary restraint system is
dangerous. You could accidentally activate it or make it inoperable. Do not make any
modi¿ cations to the supplementary restraint system. This includes installing trim,
badges, or anything else over the air bag modules. It also includes installing extra
electrical equipment on or near system components or wiring. An expert repairer, we
recommend an Authorised Mazda Repairer can provide the special care needed in the
removal and installation of front seats. It is important to protect the air bag wiring
and connections to assure that the bags do not accidentally deploy, and that the driver
seat slide position sensor is not damaged and the seats retain an undamaged air bag
connection.
