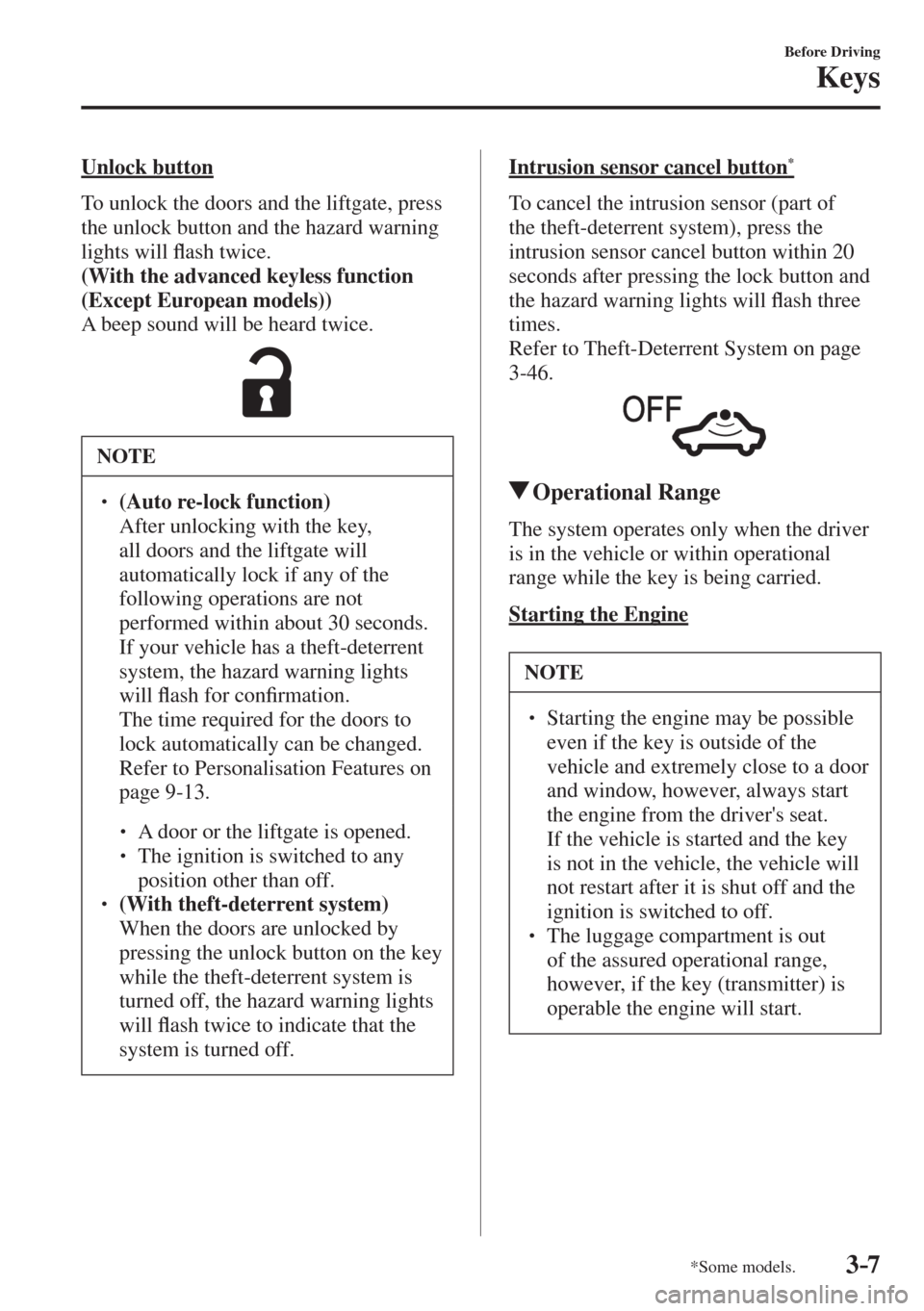

3–7
Before Driving
Keys
*Some models.
Unlock button
To unlock the doors and the liftgate, press
the unlock button and the hazard warning
lights will À ash twice.
(With the advanced keyless function
(Except European models))
A beep sound will be heard twice.


NOTE
  (Auto re-lock function)  After unlocking with the key,
all doors and the liftgate will
automatically lock if any of the
following operations are not
performed within about 30 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights
will À ash for con¿ rmation.
 The time required for the doors to
lock automatically can be changed.
 Refer to Personalisation Features on
page 9-13 .



 A door or the liftgate is opened.



 The ignition is switched to any
position other than off.


 (With theft-deterrent system)  When the doors are unlocked by
pressing the unlock button on the key
while the theft-deterrent system is
turned off, the hazard warning lights
will À ash twice to indicate that the
system is turned off.
Intrusion sensor cancel button *
To cancel the intrusion sensor (part of
the theft-deterrent system), press the
intrusion sensor cancel button within 20
seconds after pressing the lock button and
the hazard warning lights will À ash three
times.
Refer to Theft-Deterrent System on page
3-46 .


Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Starting the Engine
NOTE
  Starting the engine may be possible
even if the key is outside of the
vehicle and extremely close to a door
and window, however, always start
the engine from the driver's seat.
 If the vehicle is started and the key
is not in the vehicle, the vehicle will
not restart after it is shut off and the
ignition is switched to off.
  The luggage compartment is out
of the assured operational range,
however, if the key (transmitter) is
operable the engine will start.

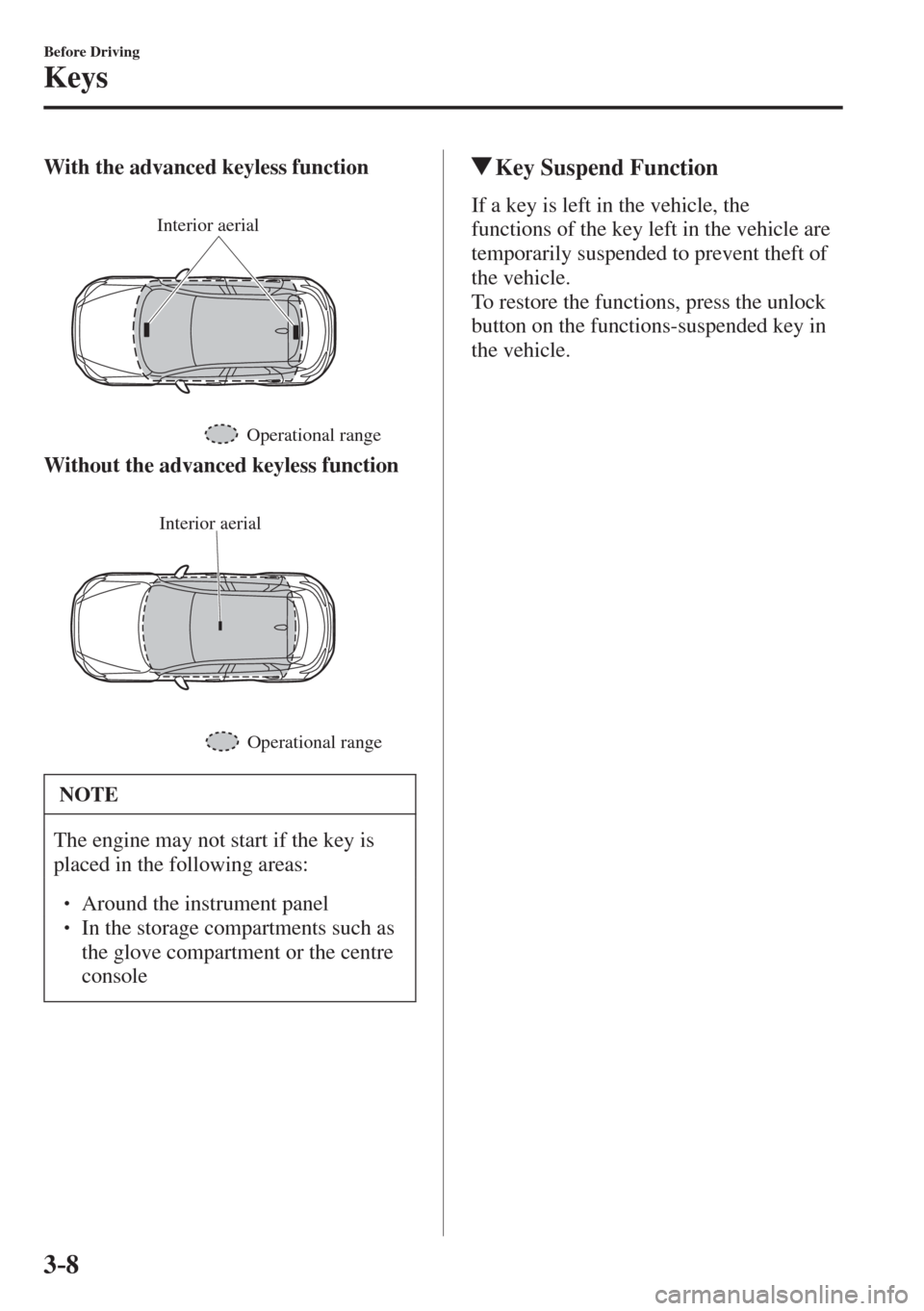

3–8
Before Driving
Keys
With the advanced keyless function


Interior aerial
Operational range

Without the advanced keyless function


Interior aerial
Operational range

NOTE
The engine may not start if the key is
placed in the following areas:

 Around the instrument panel
 In the storage compartments such as
the glove compartment or the centre
console
Key Suspend Function
If a key is left in the vehicle, the
functions of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
To restore the functions, press the unlock
button on the functions-suspended key in
the vehicle.

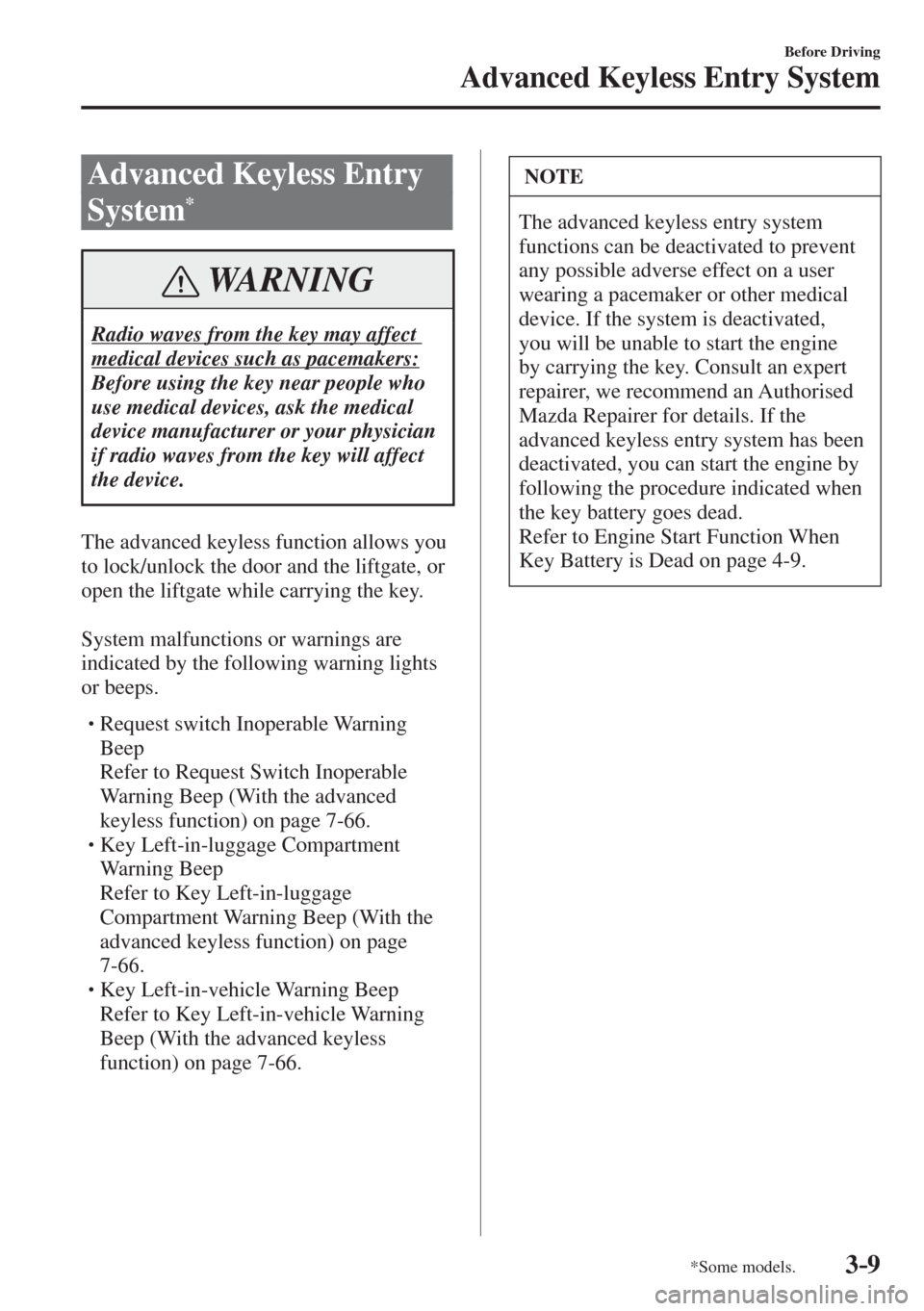

3–9
Before Driving
Advanced Keyless Entry System
*Some models.
Advanced Keyless Entry
System
*
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your physician
if radio waves from the key will affect
the device.
The advanced keyless function allows you
to lock/unlock the door and the liftgate, or
open the liftgate while carrying the key.

System malfunctions or warnings are
indicated by the following warning lights
or beeps.







 Request switch Inoperable Warning
Beep
  Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-66 .



 Key Left-in-luggage Compartment
Warning Beep
  Refer to Key Left-in-luggage
Compartment Warning Beep (With the
advanced keyless function) on page
7-66 .



 Key Left-in-vehicle Warning Beep
 Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-66 .

NOTE
The advanced keyless entry system
functions can be deactivated to prevent
any possible adverse effect on a user
wearing a pacemaker or other medical
device. If the system is deactivated,
you will be unable to start the engine
by carrying the key. Consult an expert
repairer, we recommend an Authorised
Mazda Repairer for details. If the
advanced keyless entry system has been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-9 .

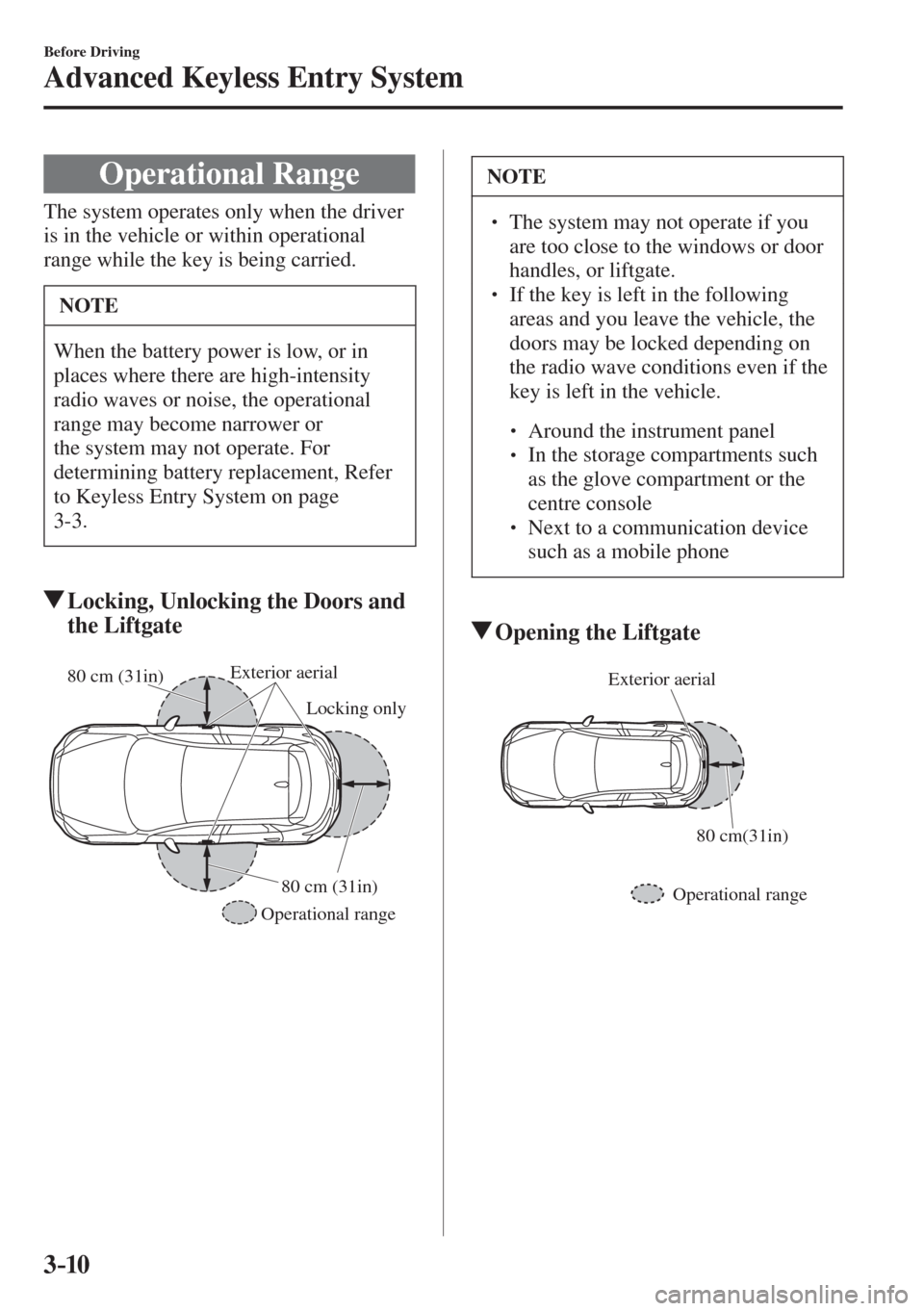

3–10
Before Driving
Advanced Keyless Entry System
Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
NOTE
When the battery power is low, or in
places where there are high-intensity
radio waves or noise, the operational
range may become narrower or
the system may not operate. For
determining battery replacement, Refer
to Keyless Entry System on page
3-3 .
Locking, Unlocking the Doors and
the Liftgate

Exterior aerial
Locking only
Operational range80 cm (31in) 80 cm (31in)

NOTE
  The system may not operate if you
are too close to the windows or door
handles, or liftgate.
  If the key is left in the following
areas and you leave the vehicle, the
doors may be locked depending on
the radio wave conditions even if the
key is left in the vehicle.



 Around the instrument panel



 In the storage compartments such
as the glove compartment or the
centre console



 Next to a communication device
such as a mobile phone
Opening the Liftgate

Exterior aerial
80 cm(31in)
Operational range

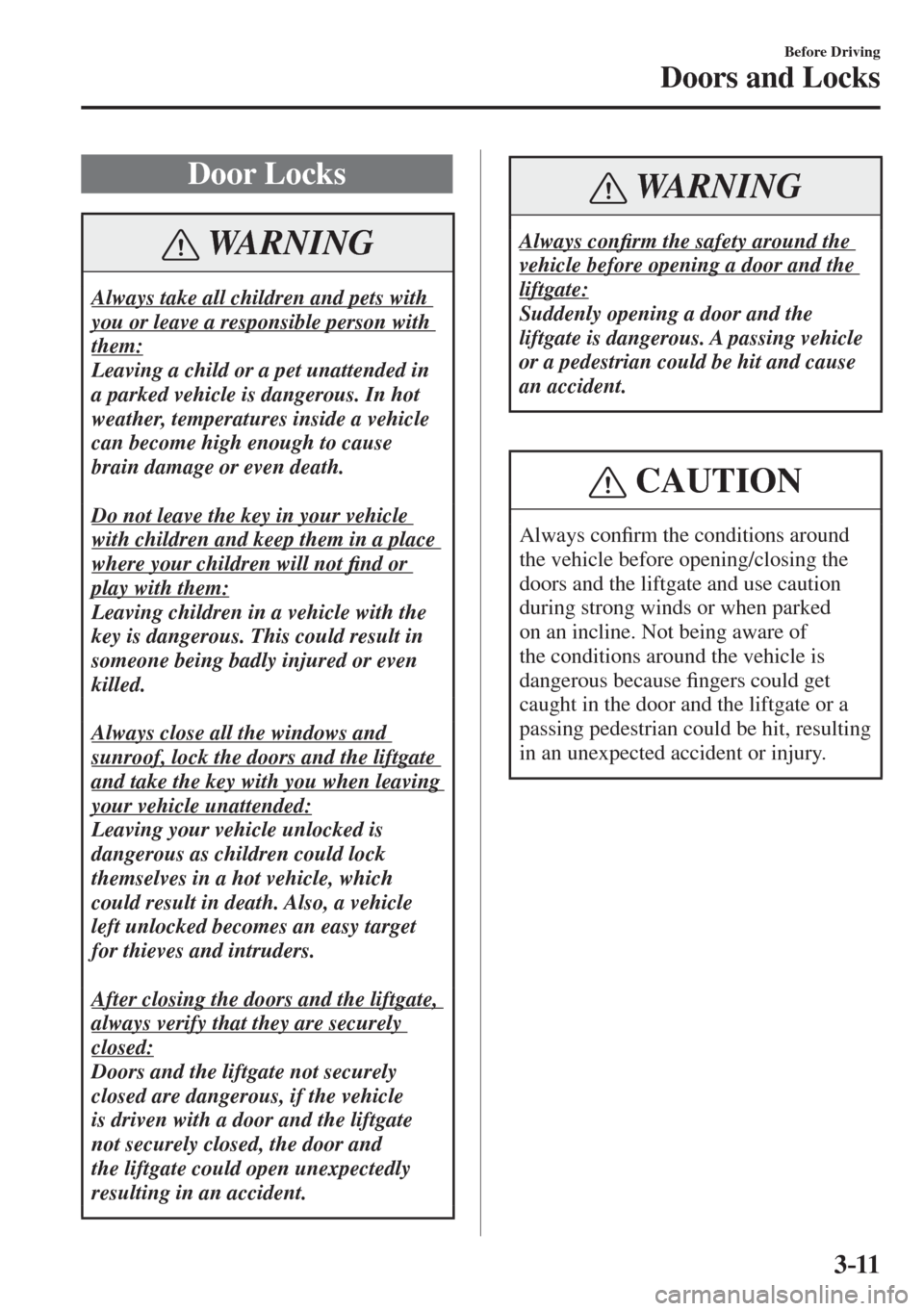

3–11
Before Driving
Doors and Locks
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended in
a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle
can become high enough to cause
brain damage or even death.

Do not leave the key in your vehicle
with children and keep them in a place
where your children will not ¿ nd or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.

Always close all the windows and
sunroof, lock the doors and the liftgate
and take the key with you when leaving
your vehicle unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.

After closing the doors and the liftgate,
always verify that they are securely
closed:
Doors and the liftgate not securely
closed are dangerous, if the vehicle
is driven with a door and the liftgate
not securely closed, the door and
the liftgate could open unexpectedly
resulting in an accident.

WARNING
Always con¿ rm the safety around the
vehicle before opening a door and the
liftgate:
Suddenly opening a door and the
liftgate is dangerous. A passing vehicle
or a pedestrian could be hit and cause
an accident.
CAUTION
Always con¿ rm the conditions around
the vehicle before opening/closing the
doors and the liftgate and use caution
during strong winds or when parked
on an incline. Not being aware of
the conditions around the vehicle is
dangerous because ¿ ngers could get
caught in the door and the liftgate or a
passing pedestrian could be hit, resulting
in an unexpected accident or injury.

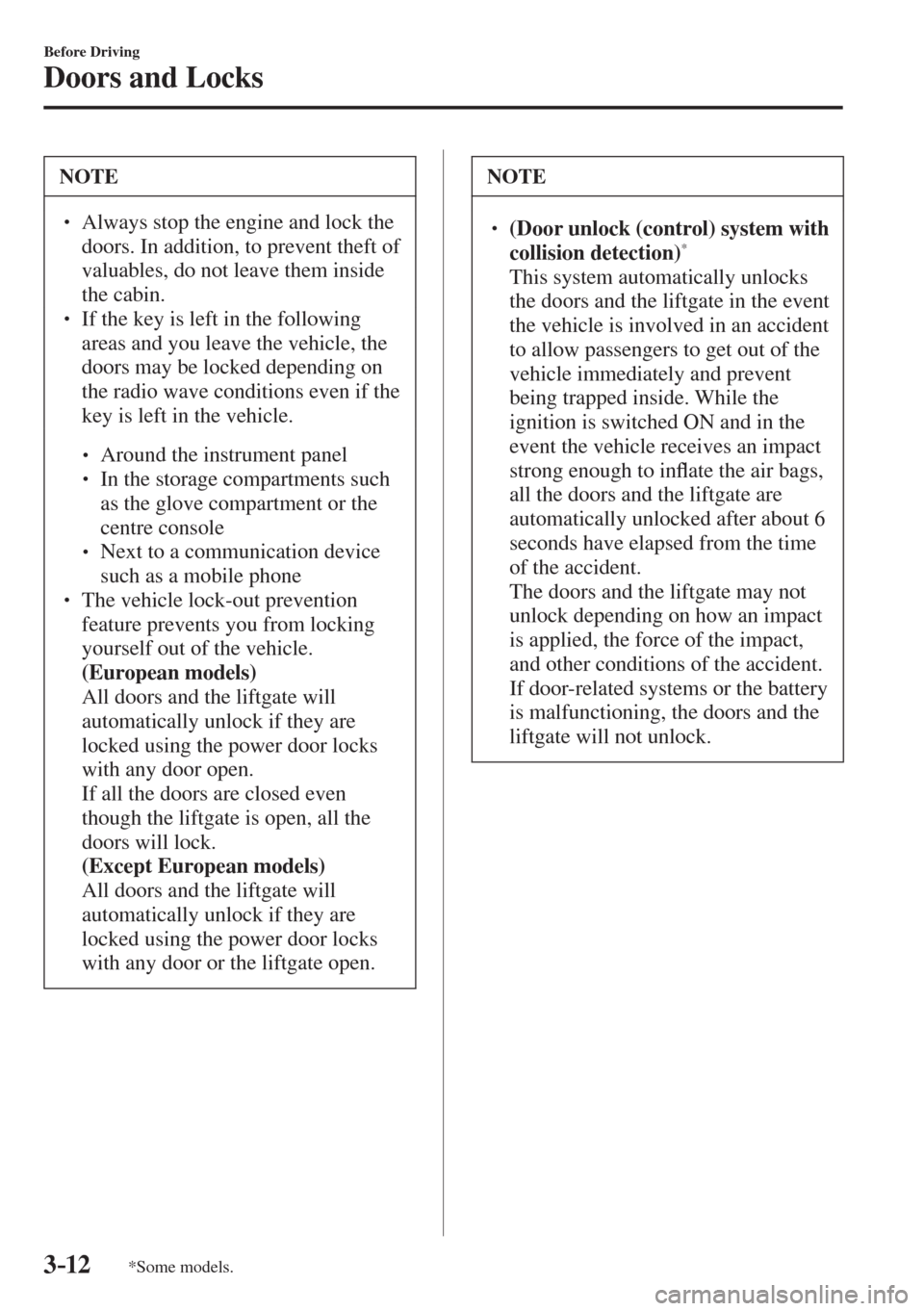

3–12
Before Driving
Doors and Locks
*Some models.
NOTE
  Always stop the engine and lock the
doors. In addition, to prevent theft of
valuables, do not leave them inside
the cabin.
  If the key is left in the following
areas and you leave the vehicle, the
doors may be locked depending on
the radio wave conditions even if the
key is left in the vehicle.



 Around the instrument panel



 In the storage compartments such
as the glove compartment or the
centre console



 Next to a communication device
such as a mobile phone

 The vehicle lock-out prevention
feature prevents you from locking
yourself out of the vehicle.
 (European models)  All doors and the liftgate will
automatically unlock if they are
locked using the power door locks
with any door open.
 If all the doors are closed even
though the liftgate is open, all the
doors will lock.
 (Except European models)  All doors and the liftgate will
automatically unlock if they are
locked using the power door locks
with any door or the liftgate open.
NOTE

 (Door unlock (control) system with
collision detection) *  This system automatically unlocks
the doors and the liftgate in the event
the vehicle is involved in an accident
to allow passengers to get out of the
vehicle immediately and prevent
being trapped inside. While the
ignition is switched ON and in the
event the vehicle receives an impact
strong enough to inÀ ate the air bags,
all the doors and the liftgate are
automatically unlocked after about 6
seconds have elapsed from the time
of the accident.
 The doors and the liftgate may not
unlock depending on how an impact
is applied, the force of the impact,
and other conditions of the accident.
 If door-related systems or the battery
is malfunctioning, the doors and the
liftgate will not unlock.

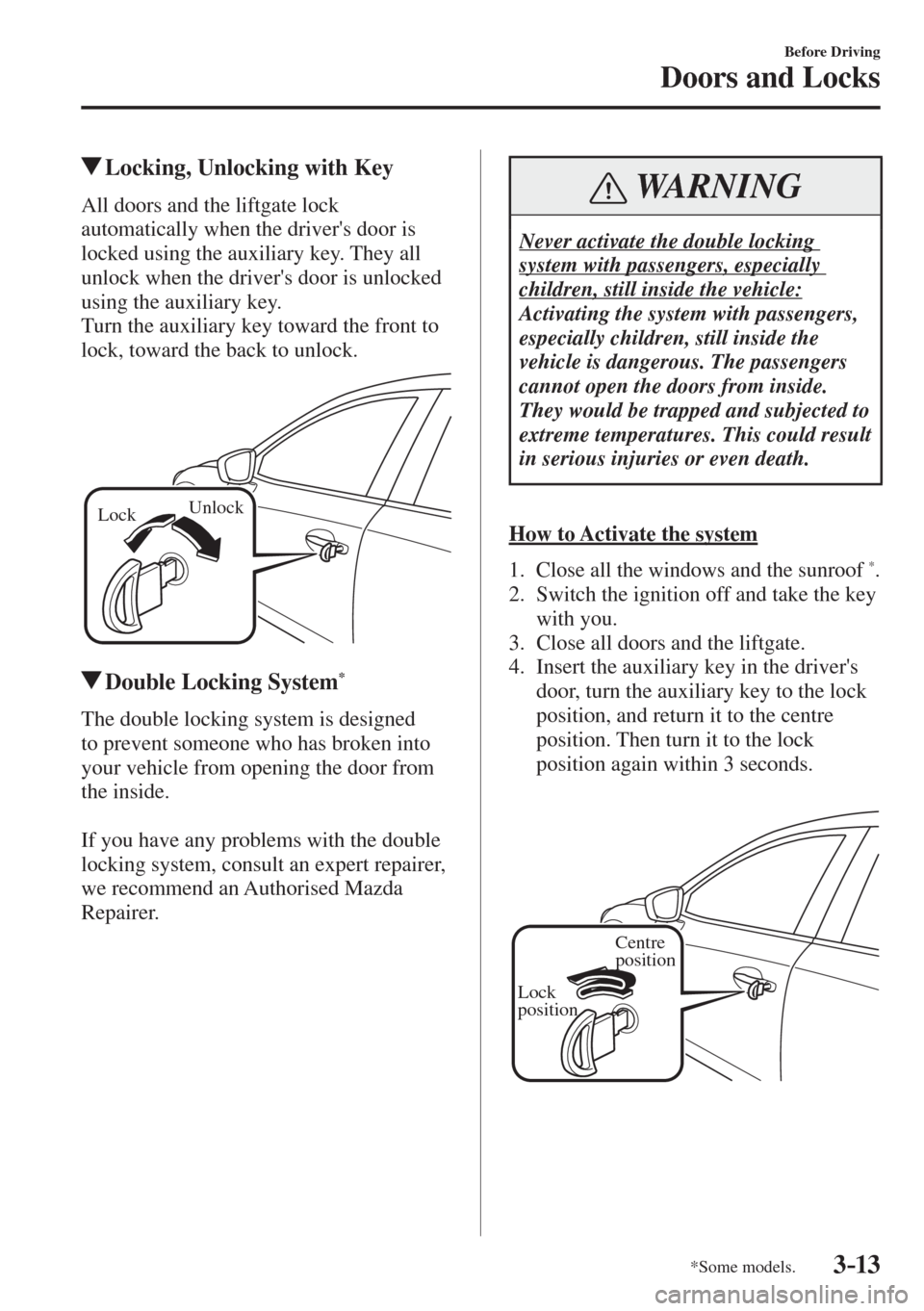

3–13
Before Driving
Doors and Locks
*Some models.
Locking, Unlocking with Key
All doors and the liftgate lock
automatically when the driver's door is
locked using the auxiliary key. They all
unlock when the driver's door is unlocked
using the auxiliary key.
Turn the auxiliary key toward the front to
lock, toward the back to unlock.

LockUnlock

Double Locking System *
The double locking system is designed
to prevent someone who has broken into
your vehicle from opening the door from
the inside.

If you have any problems with the double
locking system, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
WARNING
Never activate the double locking
system with passengers, especially
children, still inside the vehicle:
Activating the system with passengers,
especially children, still inside the
vehicle is dangerous. The passengers
cannot open the doors from inside.
They would be trapped and subjected to
extreme temperatures. This could result
in serious injuries or even death.
How to Activate the system
1 .
Close all the windows and the sunroof * .
2. Switch the ignition off and take the key
with you.
3. Close all doors and the liftgate.
4. Insert the auxiliary key in the driver's
door, turn the auxiliary key to the lock
position, and return it to the centre
position. Then turn it to the lock
position again within 3 seconds.


Centre
position
Lock
position

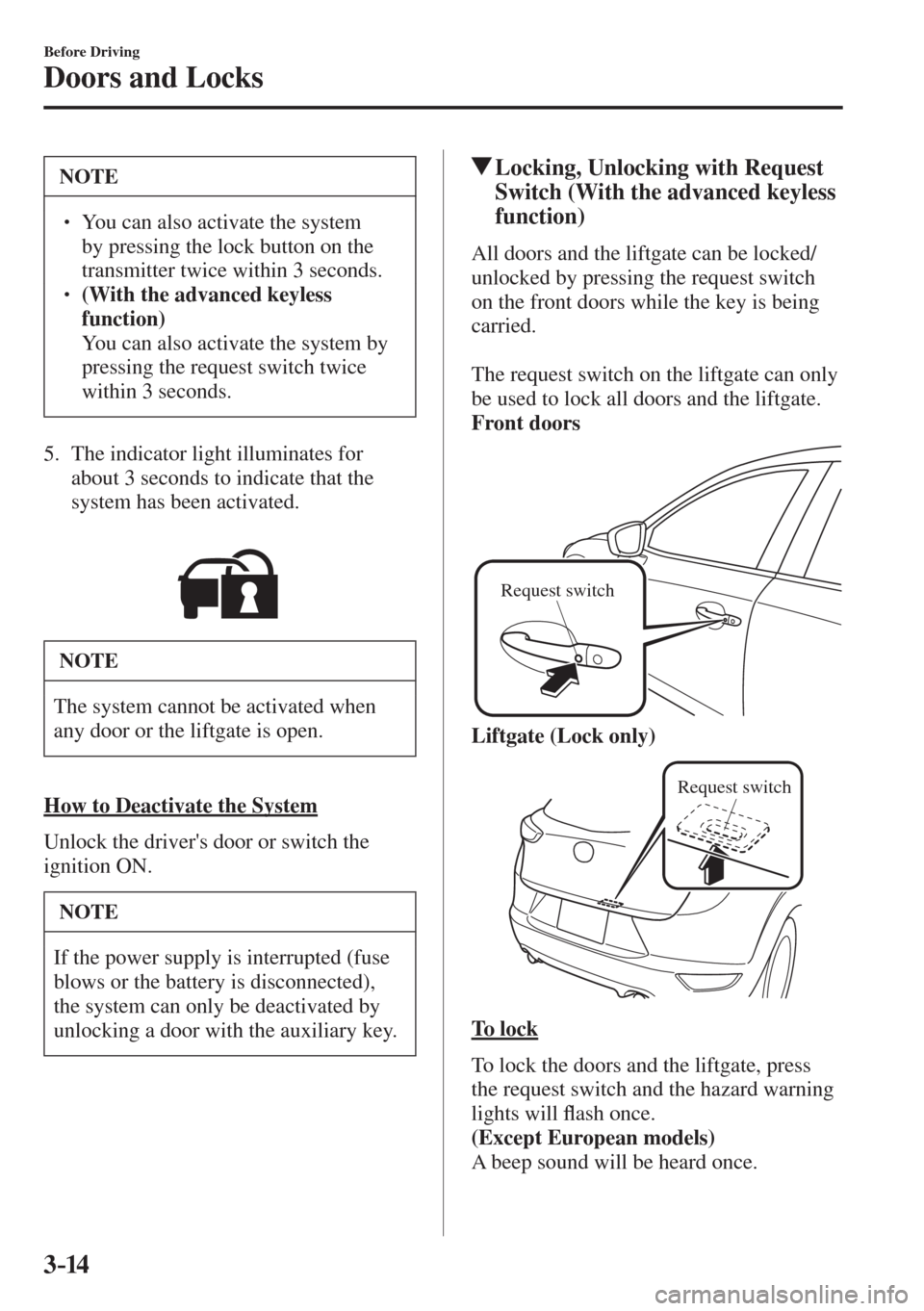

3–14
Before Driving
Doors and Locks
NOTE
  You can also activate the system
by pressing the lock button on the
transmitter twice within 3 seconds.
  (With the advanced keyless
function)
 You can also activate the system by
pressing the request switch twice
within 3 seconds.
5. The indicator light illuminates for
about 3 seconds to indicate that the
system has been activated.



NOTE
The system cannot be activated when
any door or the liftgate is open.
How to Deactivate the System
Unlock the driver's door or switch the
ignition ON.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the system can only be deactivated by
unlocking a door with the auxiliary key.
Locking, Unlocking with Request
Switch (With the advanced keyless
function)
All doors and the liftgate can be locked/
unlocked by pressing the request switch
on the front doors while the key is being
carried.

The request switch on the liftgate can only
be used to lock all doors and the liftgate.
Front doors

Request switch

Liftgate (Lock only)

Request switch

To lock
To lock the doors and the liftgate, press
the request switch and the hazard warning
lights will À ash once.
(Except European models)
A beep sound will be heard once.

3–15
Before Driving
Doors and Locks

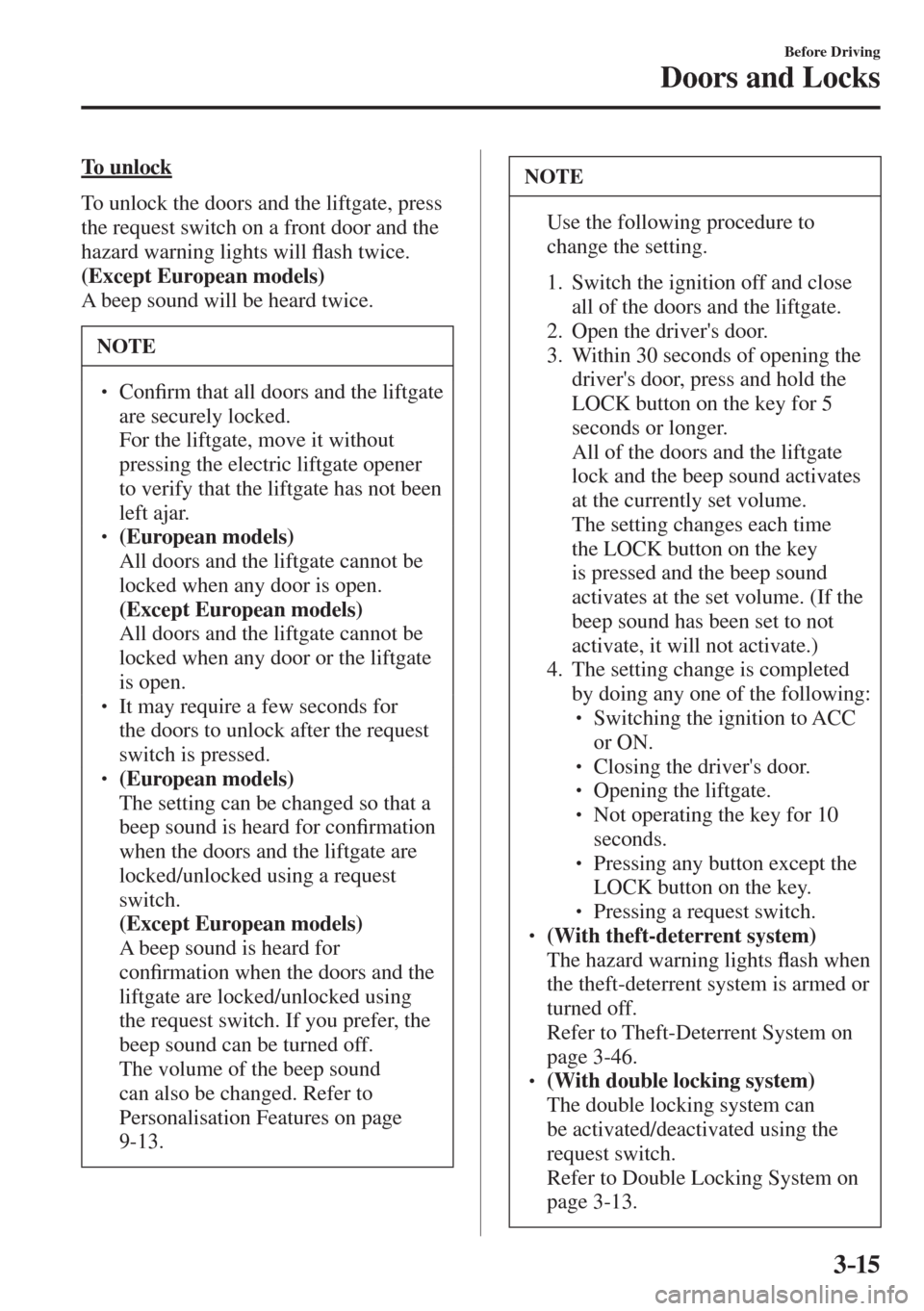

To unlock
To unlock the doors and the liftgate, press
the request switch on a front door and the
hazard warning lights will À ash twice.
(Except European models)
A beep sound will be heard twice.
NOTE
  Con¿ rm that all doors and the liftgate
are securely locked.
 For the liftgate, move it without
pressing the electric liftgate opener
to verify that the liftgate has not been
left ajar.
  (European models)  All doors and the liftgate cannot be
locked when any door is open.
 (Except European models)  All doors and the liftgate cannot be
locked when any door or the liftgate
is open.
  It may require a few seconds for
the doors to unlock after the request
switch is pressed.
  (European models)  The setting can be changed so that a
beep sound is heard for con¿ rmation
when the doors and the liftgate are
locked/unlocked using a request
switch.
 (Except European models)  A beep sound is heard for
con¿ rmation when the doors and the
liftgate are locked/unlocked using
the request switch. If you prefer, the
beep sound can be turned off.
 The volume of the beep sound
can also be changed. Refer to
Personalisation Features on page
9-13 .
NOTE
 Use the following procedure to
change the setting.

1. Switch the ignition off and close
all of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the
driver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
All of the doors and the liftgate
lock and the beep sound activates
at the currently set volume.
The setting changes each time
the LOCK button on the key
is pressed and the beep sound
activates at the set volume. (If the
beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed
by doing any one of the following:



 Switching the ignition to ACC
or ON.



 Closing the driver's door.



 Opening the liftgate.



 Not operating the key for 10
seconds.



 Pressing any button except the
LOCK button on the key.



 Pressing a request switch.



 (With theft-deterrent system)  The hazard warning lights À ash when
the theft-deterrent system is armed or
turned off.
 Refer to Theft-Deterrent System on
page 3-46 .
  (With double locking system)  The double locking system can
be activated/deactivated using the
request switch.
 Refer to Double Locking System on
page 3-13 .

3–16
Before Driving
Doors and Locks

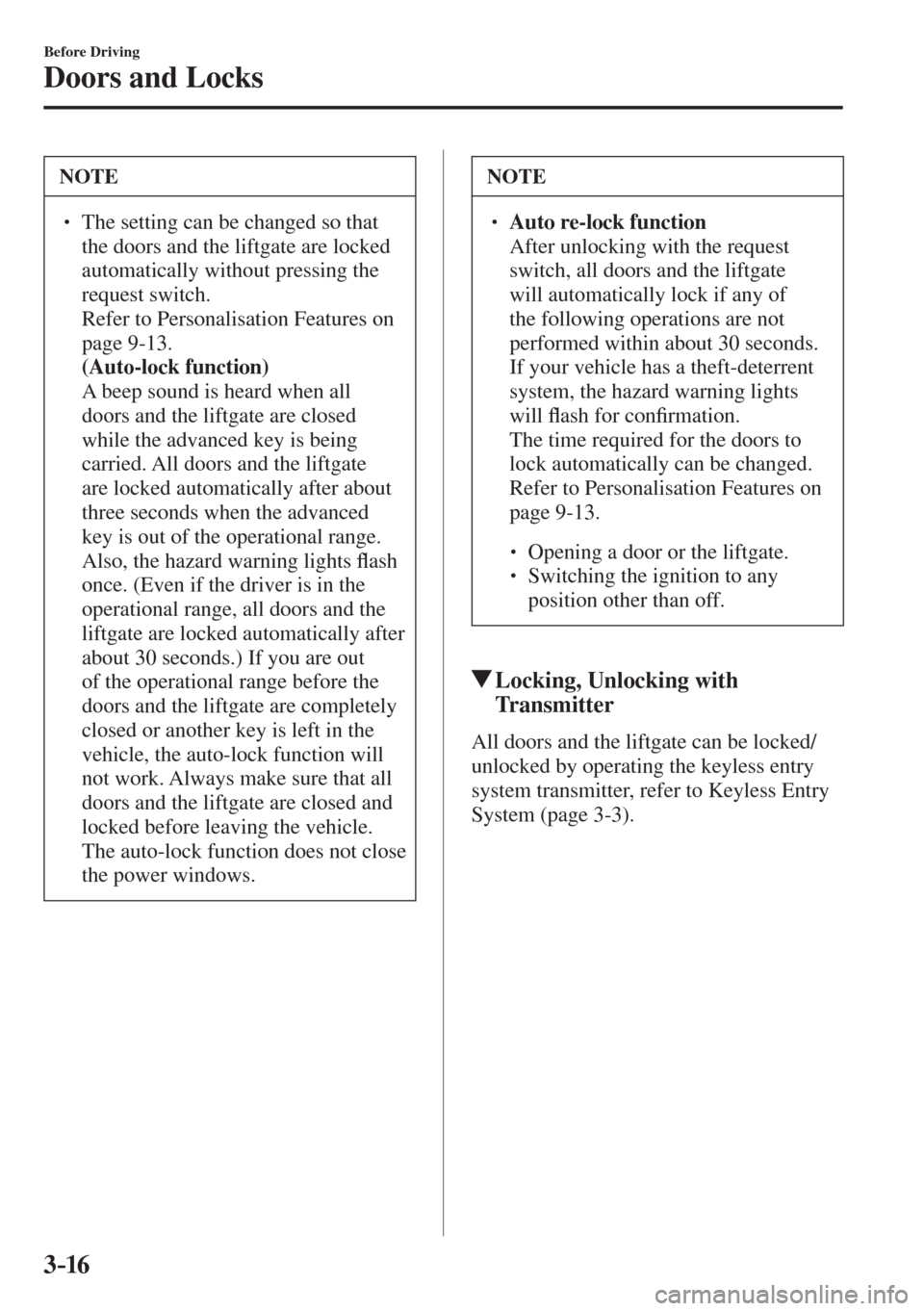

NOTE
  The setting can be changed so that
the doors and the liftgate are locked
automatically without pressing the
request switch.
 Refer to Personalisation Features on
page 9-13 .
 (Auto-lock function)  A beep sound is heard when all
doors and the liftgate are closed
while the advanced key is being
carried. All doors and the liftgate
are locked automatically after about
three seconds when the advanced
key is out of the operational range.
Also, the hazard warning lights À ash
once. (Even if the driver is in the
operational range, all doors and the
liftgate are locked automatically after
about 30 seconds.) If you are out
of the operational range before the
doors and the liftgate are completely
closed or another key is left in the
vehicle, the auto-lock function will
not work. Always make sure that all
doors and the liftgate are closed and
locked before leaving the vehicle.
The auto-lock function does not close
the power windows.
NOTE
  Auto re-lock function  After unlocking with the request
switch, all doors and the liftgate
will automatically lock if any of
the following operations are not
performed within about 30 seconds.
If your vehicle has a theft-deterrent
system, the hazard warning lights
will À ash for con¿ rmation.
 The time required for the doors to
lock automatically can be changed.
 Refer to Personalisation Features on
page 9-13 .



 Opening a door or the liftgate.



 Switching the ignition to any
position other than off.
Locking, Unlocking with
Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-3 ).
