3–46
Before Driving
Security System
*Some models.

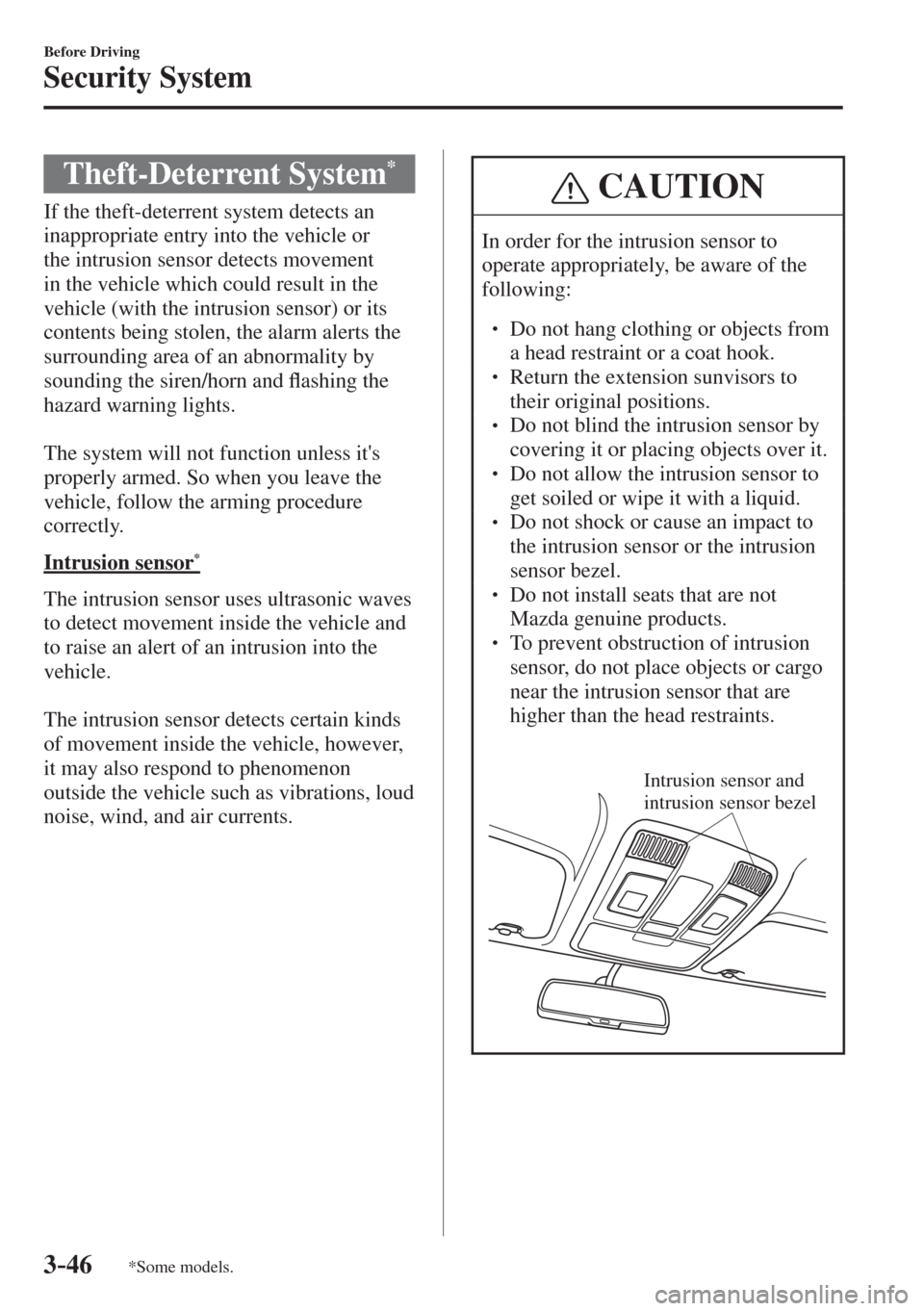

Theft-Deterrent System *
If the theft-deterrent system detects an
inappropriate entry into the vehicle or
the intrusion sensor detects movement
in the vehicle which could result in the
vehicle (with the intrusion sensor) or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the siren/horn and À ashing the
hazard warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Intrusion sensor
*
The intrusion sensor uses ultrasonic waves
to detect movement inside the vehicle and
to raise an alert of an intrusion into the
vehicle.

The intrusion sensor detects certain kinds
of movement inside the vehicle, however,
it may also respond to phenomenon
outside the vehicle such as vibrations, loud
noise, wind, and air currents.
CAUTION
In order for the intrusion sensor to
operate appropriately, be aware of the
following:

 Do not hang clothing or objects from
a head restraint or a coat hook.
  Return the extension sunvisors to
their original positions.
  Do not blind the intrusion sensor by
covering it or placing objects over it.
  Do not allow the intrusion sensor to
get soiled or wipe it with a liquid.
  Do not shock or cause an impact to
the intrusion sensor or the intrusion
sensor bezel.
  Do not install seats that are not
Mazda genuine products.
  To prevent obstruction of intrusion
sensor, do not place objects or cargo
near the intrusion sensor that are
higher than the head restraints.

Intrusion sensor and
intrusion sensor bezel

3–47
Before Driving
Security System
Operation
Siren/Horn triggering conditions
The siren/horn sounds intermittently and
the hazard warning lights À ash for about
30 seconds when the system is triggered
by any one of the following:



 Unlocking a door with the auxiliary key
or an inside door-lock knob.



 Forcing open a door, the bonnet or the
liftgate.



 Opening the bonnet by operating the
bonnet release handle.



 Switching the ignition ON without using
the push button start.



 (With the intrusion sensor)
 The intrusion sensor detects a movement
in the vehicle.

The system will be triggered again (up to
10 times) if one of the above conditions
remains.



 (With the intrusion sensor)
 Disconnecting the battery terminal (the
hazard warning lights do not À ash).

The system will be triggered about 10 times.
NOTE

 The liftgate does not open while the
theft-deterrent system is operating.
  If the battery goes dead while the
theft-deterrent system is armed,
the siren/horn will activate and the
hazard warning lights will À ash when
the battery is charged or replaced.
How to Arm the System
1. Close the windows securely.
NOTE
(With the intrusion sensor)
Even with a window open, the system
can be armed, however, leaving the
windows even partially open can invite
theft, and wind blowing into the vehicle
could trigger the alarm.
The intrusion sensor function can also
be cancelled.
Refer to Cancelling the Intrusion Sensor
(With Intrusion Sensor) on page 3-48 .
2. Switch the ignition OFF.
3. Make sure the bonnet, the doors, and
the liftgate are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will À ash
once.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster À ashes twice per
second for 20 seconds.



5. After 20 seconds, the system is fully
armed.

3–48
Before Driving
Security System
*Some models.
NOTE
  The theft-deterrent system can also
be armed by activating the auto
relock function with all the doors, the
liftgate and the bonnet closed.
 Refer to Transmitter on page 3-5 .   The system will disarm if one of
the following operations takes place
within 20 seconds after pressing the
lock button:



 Unlocking any door.



 Opening any door.



 Opening the bonnet.



 Switching the ignition ON.
 To rearm the system, do the arming
procedure again.
  When the doors are locked by
pressing the lock button on the
transmitter or using the auxiliary key
while the theft-deterrent system is
armed, the hazard warning lights will
À ash once to indicate that the system
is armed.
Cancelling the Intrusion Sensor
(With Intrusion Sensor)
If the theft deterrent system has been
armed while any of the following
conditions are present, cancel the intrusion
sensor to prevent the alarm from triggering
unnecessarily.



 Leaving the vehicle with a movable
object, passengers or pets remaining
inside.



 Leaving an object inside the vehicle
that can roll around, such as when the
vehicle is placed on a tilting, unstable
surface when being shipped.



 Hanging small objects/accessories in
the vehicle, hanging clothing on a coat
hook, or placing other items which can
move easily inside the vehicle.



 Parking in an area where there is strong
vibration or loud noise.



 When using a high pressure or automatic
car wash.



 Continuous shock and vibration
from hail or thunder and lightning is
transmitted to the vehicle.



 Doors are locked with a window or the
sunroof * left open.


 An accessory heater or device that
produces moving air and vibration
operates while the theft deterrent system
is armed.

NOTE
If any door or the liftgate remains closed
for 30 seconds, all the doors and the
liftgate automatically re-lock and the
theft deterrent system arms even if a
window and the sunroof
* is left open.

3–49
Before Driving
Security System
To cancel the intrusion sensor, press
the intrusion sensor cancel button on
the transmitter within 20 seconds after
pressing the lock button.
The hazard warning lights will À ash three
times.
NOTE
  To reactivate the intrusion sensor,
turn off the armed theft-deterrent
system and then rearm it.
  The intrusion sensor is operational
when the theft-deterrent system
is armed. To cancel the intrusion
sensor, press the intrusion sensor
cancel button each time the theft-
deterrent system is armed.
To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:



 Pressing the unlock button on the
transmitter.



 Starting the engine with the push button
start.



 (With the advanced keyless function)



 Pressing a request switch on the doors.

The hazard warning lights will À ash twice.
NOTE
When the doors are unlocked by
pressing the unlock button on the
transmitter while the theft-deterrent
system is turned off, the hazard warning
lights will À ash twice to indicate that the
system is turned off.
To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:



 Pressing the unlock button on the
transmitter.



 Starting the engine with the push button
start.



 (With the advanced keyless function)



 Pressing a request switch on the doors.



 Pressing the electric liftgate opener
while the key is being carried.


The hazard warning lights will À ash twice.

4–30
When Driving
Instrument Cluster and Display
*Some models.
Outside Temperature Warning *
When the outside temperature is low, the
indication À ashes and a beep sound is
heard to warn the driver of the possibility
of icy roads.
If the outside temperature is lower than
about 4 °C (39 °F), the outside temperature
display and the
mark À ashes for about
ten seconds and a beep sound is heard
once.
NOTE
If the outside temperature is lower than
-20 °C (-4 °F), the beep sound does not
operate. However, the
mark
illuminates.
Cruise Control Set Vehicle Speed
Display *
The vehicle speed preset using the cruise
control is displayed.



Adjustable Speed Limiter (ASL)
Display *
The setting status of the adjustable speed
limiter (ASL) is displayed.




Trip Computer and INFO Switch
The following information can be selected
by pressing the INFO switch with the
ignition switched ON.



 Distance-to-empty mode



 Average fuel economy mode



 Current fuel economy mode



 Average vehicle speed mode



 Vehicle speed alarm mode *
If you have any problems with your trip
computer, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.

The distance-to-empty will be calculated
and displayed every second.
(European model)


(Except European model)

4–32
When Driving
Instrument Cluster and Display
*Some models.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance travelled.

Current fuel economy will be calculated
and displayed every 2 seconds.
(European model)


(Except European model)
Type A
Type B

When you have slowed the vehicle to
about 5 km/h (3 mph), - - - L/100 km
(- - - mpg) or - - - km/L will be displayed.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time travelled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.
(European model)


(Except European model)


To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - - km/h
(- - - mph) will be displayed for about
1 minute before the vehicle speed is
recalculated and displayed.

Vehicle speed alarm mode *
In this mode, the current setting for the
vehicle speed alarm is displayed. You can
change the vehicle speed setting at which
the warning is triggered.
NOTE
The vehicle speed alarm display is
activated at the same time the beep
sound is heard. The set vehicle speed
À ashes several times.


The vehicle speed alarm can be set using
the centre display.
NOTE
  Always set the vehicle speed
according to the laws and regulations
of the country/city in which the
vehicle is driven. In addition, always
verify the speed of the vehicle using
the speedometer.
  The vehicle speed alarm function can
be set between 30 and 250 km/h (20
and 150 mph).

4–39
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Lights Page

Security Indicator Light *1 3-45

* Glow Indicator Light *1 4-43

* Diesel Particulate Filter Indicator Light *1 4-202

Wrench Indicator Light *1 4-42


(Blue) Low Engine Coolant Temperature Indicator Light 4-43


(Green) * i-stop Indicator Light 4-18


(Green) * i-ELOOP Indicator Light 4-90

* Vehicle Speed Alarm Indication 4-30

Shift Position Indication 4-50

Lights-On Indicator Light 4-59

Headlight High-Beam Indicator Light Headlight High-
Low Beam
4-64
Flashing the
Headlights
4-64

Direction Indicator/Hazard Warning Indicator Lights Turn and Lane-
Change Signals
4-69
Hazard Warning
Flasher
4-77

* Front Fog Light Indicator Light 4-67

4–130
When Driving
i-ACTIVSENSE
NOTE
  The excessive speed warning is initially set to inoperable. If you want to activate the
excessive speed warning, change the setting in the personalisation features.



 Off: The excessive speed warning is not activated.



 Warning display only: The area around the speed limit sign À ashes 3 times in amber,
and if the vehicle speed continues to exceed the displayed speed limit sign, the
indication stops À ashing and remains on.




 Warning display warning sound: The area around the speed limit sign À ashes 3
times in amber, and if the vehicle speed continues to exceed the displayed speed
limit sign, the indication stops À ashing and remains on and the warning sound is
activated.

 In the following cases, the excessive speed warning stops operating.



 The vehicle speed is less than the speed of the displayed speed limit sign. (If the
activation timing for the excessive speed warning is changed in the personalisation
features, the excessive speed warning stops operating when the vehicle speed is less
than the changed vehicle speed.



 A speed limit sign indication has been updated and the conditions for activating the
excessive speed warning are not met.



 Display of the speed limit sign stops.

 The warning indication is displayed at the same time the excessive speed warning
sound is activated if the vehicle speed exceeds the speed indicated on the speed limit
sign.
 Refer to Warning Sound is Activated on page 7-64 .   The Traf¿ c Sign Recognition System (TSR) can recognise a speed limit sign with an
auxiliary sign and display it, but it cannot determine the indication on the auxiliary
sign (such as time restrictions, turning restrictions, end of section). Therefore, the
excessive speed warning is activated when the vehicle speed exceeds the displayed
speed limit sign even if the conditions indicated on the auxiliary sign do not apply to
the vehicle.
  If the Forward Sensing Camera (FSC) displays a speed limit sign which was
recognised incorrectly, the excessive speed alarm is activated even if the vehicle is
driven at the legal speed.
  The following settings can be changed for the excessive speed warning.



 Warning sound and indication pattern



 Timing at which the warning is activated
 Refer to Personalisation Features on page 9-13 .

5–31
Interior Features
Audio Set [Type A (non-touchscreen)]
Programme-type information (PTY)
Some FM stations transmit programme-
type codes. This code enables alternative
stations transmitting the same programme-
type code to be found quickly.

Press the programme-type information
button (
, ) while in FM mode. The
programme-type code and “ PTY ” will be
displayed during reception. If there is no
programme-type code, “ None ” will be
displayed.
(To choose a programme-type:)
1. Press the Programme-type information
button (
, ) when the programme-
type code is displayed.
2. Operate any one of the following:



 Press the pre-programmed channel
preset button ( 1 to 6 ).



 Press the Programme-type
information button (
, ).
(To scan for programme-type
information:)
1. Press the Programme-type information
button (
, ) when the programme-
type code is displayed.
2. Press the Programme-type information
button (
, ) until the beep sounds.
The unit will scan for broadcasts, if
none are found, “ Nothing ” will be
displayed and the unit will return to the
previously tuned band.

(To store programme types in the
channel preset buttons:)
1. Press the Programme-type information
button (
, ) when the programme-
type code is displayed.
2. Press the Programme-type information
button (
, ) and select the programme
type.
3. While the programme type is displayed,
press a channel preset button for about
2 seconds.

Emergency broadcast
If an emergency broadcast is received,
the emergency broadcast intercedes even
while using other functions (FM, CD,
USB device, AUX, or BT audio), and
“ Alarm! ” is displayed.

When the emergency broadcast ends, the
system will return to the previous mode.

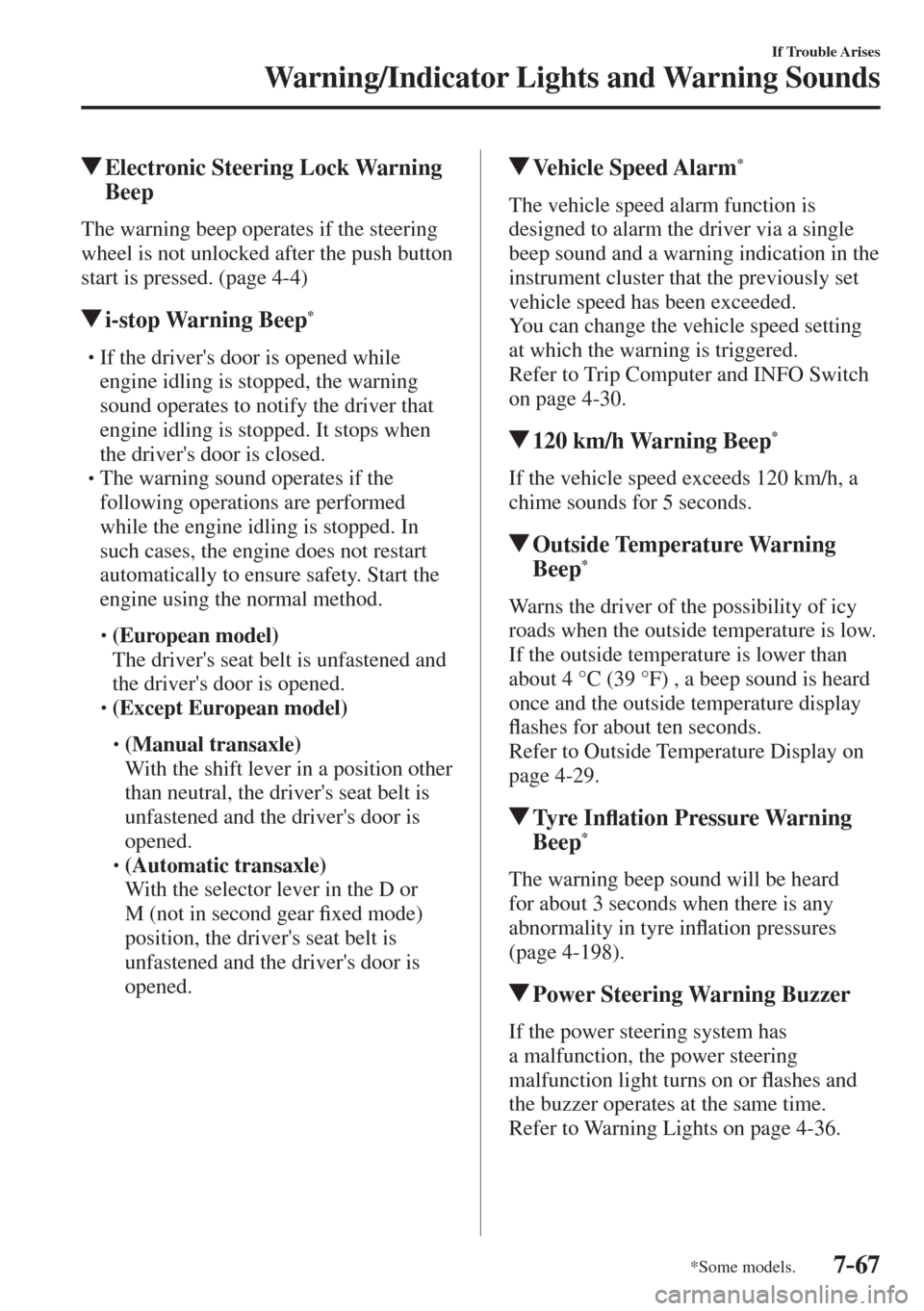

7–67
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Electronic Steering Lock Warning
Beep
The warning beep operates if the steering
wheel is not unlocked after the push button
start is pressed. (page 4-4 )
i-stop Warning Beep *
















 If the driver's door is opened while
engine idling is stopped, the warning
sound operates to notify the driver that
engine idling is stopped. It stops when
the driver's door is closed.



 The warning sound operates if the
following operations are performed
while the engine idling is stopped. In
such cases, the engine does not restart
automatically to ensure safety. Start the
engine using the normal method.



 (European model)
 The driver's seat belt is unfastened and
the driver's door is opened.



 (Except European model)



 (Manual transaxle)
 With the shift lever in a position other
than neutral, the driver's seat belt is
unfastened and the driver's door is
opened.



 (Automatic transaxle)
 With the selector lever in the D or
M (not in second gear ¿ xed mode)
position, the driver's seat belt is
unfastened and the driver's door is
opened.



Vehicle Speed Alarm *
The vehicle speed alarm function is
designed to alarm the driver via a single
beep sound and a warning indication in the
instrument cluster that the previously set
vehicle speed has been exceeded.
You can change the vehicle speed setting
at which the warning is triggered.
Refer to Trip Computer and INFO Switch
on page 4-30 .
120 km/h Warning Beep *
If the vehicle speed exceeds 120 km/h, a
chime sounds for 5 seconds.
Outside Temperature Warning
Beep *
Warns the driver of the possibility of icy
roads when the outside temperature is low.
If the outside temperature is lower than
about 4 °C (39 °F) , a beep sound is heard
once and the outside temperature display
À ashes for about ten seconds.
Refer to Outside Temperature Display on
page 4-29 .
Ty r e I nÀ ation Pressure Warning
Beep *
The warning beep sound will be heard
for about 3 seconds when there is any
abnormality in tyre inÀ ation pressures
(page 4-198 ).
Power Steering Warning Buzzer
If the power steering system has
a malfunction, the power steering
malfunction light turns on or À ashes and
the buzzer operates at the same time.
Refer to Warning Lights on page 4-36 .
