Page 423 of 582
6–27
Maintenance and Care
Owner Maintenance
Engine Oil
N O T E
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction (page 6-2 ) for
owner's responsibility in protecting your
investment.
Recommended Oil
U.S.A., Canada, and Puerto Rico
Use SAE 0W-20 engine oil.
Mazda Genuine Oil is used in your
Mazda vehicle. Mazda Genuine 0W-20
Oil is required to achieve optimum fuel
economy.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
® (U.S.A. only).
(ILSAC)
Only use SAE 0W-20 oil “Certi ¿ ed For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International Lubricant
Standardization and Approval Committee
(ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
80
60
40 20
0 –40 –20
30
100
40 20
10 0
–10 –20
–30 –40
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 424 of 582
6–28
Maintenance and Care
Owner Maintenance
Except U.S.A., Canada, and Puerto Rico
Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine friction.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
® (Mexico only).
(ILSAC)
(Mexico)
Use SAE 5W-30 engine oil. If SAE 5W-30
engine oil is not available, use SAE 5W-20
engine oil.
The quality designation SM, or ILSAC
must be on the label.
80
60
40 20
0 –40 –20
30
100
40 20
10 0
–10 –20
–30 –40
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 425 of 582
6–29
Maintenance and Care
Owner Maintenance
Vehicle Engine Control Unit Reset Procedure
N O T E
This procedure is intended for vehicles with the engine oil À exible maintenance setting
selected.
After replacing the engine oil, have a repair shop such as an Authorized Mazda Dealer
perform the initialization (engine oil data resetting) of the recorded value. If the value
recorded by the computer is not initialized, the wrench indicator light may not turn off or it
may turn on earlier than normal.
N O T E
The initialization (engine oil data resetting) of the recorded value can be performed using
the following procedure:
1. Switch the ignition OFF.
2. Switch the ignition ON with the selector pressed, and press and hold the selector for
about 5 seconds until the master warning light
À ashes.
Selector
3. After the master warning light
À ashes for several seconds, the initialization is
completed.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 426 of 582
6–30
Maintenance and Care
Owner Maintenance
Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes
for the oil to return to the oil pan.
4. Pull out the dipstick, wipe it clean, and
reinsert it fully.
MAX
MINOK
5. Pull it out again and examine the level.
The level is normal if it is between the
MIN and MAX marks.
If it is near or below MIN, add enough
oil to bring the level to MAX.
CAUTION
Do not overfi ll the engine oil. This may
cause engine damage.
6. Make sure the O-ring on the dipstick is
positioned properly before reinserting
the dipstick.
7. Reinsert the dipstick fully.
Engine Coolant
Inspecting Coolant Level
WARNING
Do not use a match or live fl ame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before attempting
to work near the cooling fan:
Working near the cooling fan when it
is running is dangerous. The fan could
continue running indefi nitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either cooling
system cap when the engine and
radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 427 of 582
6–31
Maintenance and Care
Owner Maintenance
N O T E
Changing the coolant should be done by
an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year—at the beginning of the
winter season—and before traveling where
temperatures may drop below freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the F and L marks
on the coolant reservoir when the engine
is cool.
Cooling system cap Coolant reservoir
Cooling fan
If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the coolant reservoir tank
cap after adding coolant.
CAUTION
¾ Radiator coolant will damage paint.
Rinse it off quickly if spilled.
¾ Use only soft (demineralized) water in
the coolant mixture. Water that contains
minerals will cut down on the coolant's
eff ectiveness.
¾ Do not add only water. Always add a
proper coolant mixture.
¾ The engine has aluminum parts and
must be protected by an ethylene-glycol-
based coolant to prevent corrosion and
freezing.
¾ DO NOT USE coolants Containing
Alcohol, methanol, Borate or Silicate.
These coolants could damage the
cooling system.
¾ DO NOT MIX alcohol or methanol with
the coolant. This could damage the
cooling system.
¾ Do not use a solution that contains more
than 60% antifreeze.
This would reduce eff ectiveness.
¾ If the “FL22” mark is shown on or near
the cooling system cap, use of FL-22 is
recommended when replacing engine
coolant. Using engine coolant other
than FL-22 may cause serious damage to
the engine and cooling system.
If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 429 of 582
6–33
Maintenance and Care
Owner Maintenance
Inspect À uid level in the washer À uid
reservoir; add À uid if necessary.
E
Use plain water if washer À uid is
unavailable.
But use only washer À uid in cold weather
to prevent it from freezing.
N O T E
Front and rear washer À uid is supplied
from the same reservoir.
Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D

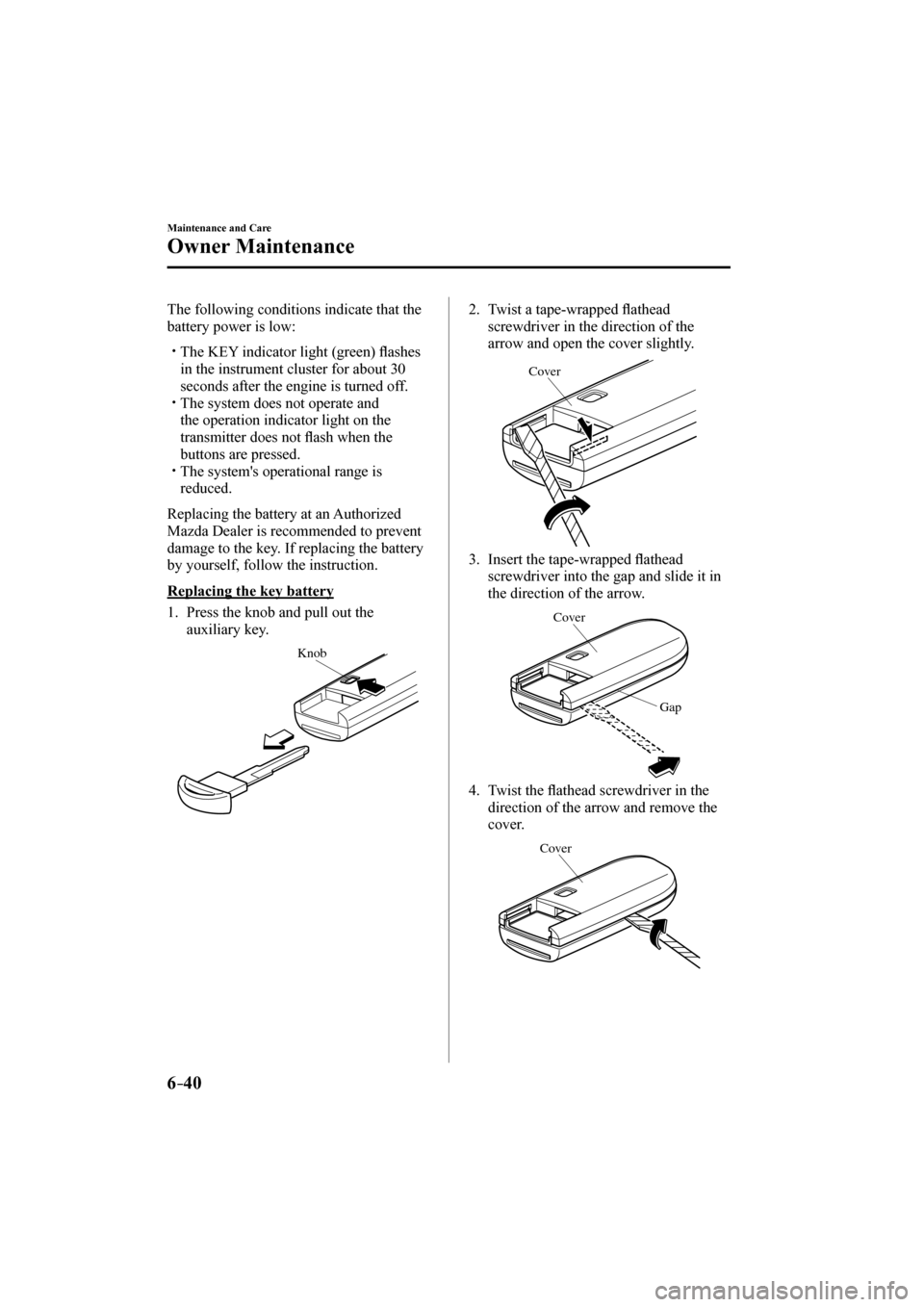

Page 436 of 582
6–40
Maintenance and Care
Owner Maintenance
The following conditions indicate that the
battery power is low:
y The KEY indicator light (green) À ashes
in the instrument cluster for about 30
seconds after the engine is turned off.
y The system does not operate and
the operation indicator light on the
transmitter does not À ash when the
buttons are pressed.
y The system's operational range is
reduced.
Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the key. If replacing the battery
by yourself, follow the instruction.
Replacing the key battery
1. Press the knob and pull out the
auxiliary key.
Knob
2. Twist a tape-wrapped À athead
screwdriver in the direction of the
arrow and open the cover slightly.
Cover
3. Insert the tape-wrapped À athead
screwdriver into the gap and slide it in
the direction of the arrow.
Cover
Gap
4. Twist the À athead screwdriver in the
direction of the arrow and remove the
cover.
Cover
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 450 of 582
6–54
Maintenance and Care
Owner Maintenance
3. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it ¿ ts tightly. If
it does not ¿ t tightly, have an expert
install it. We recommend an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.
6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new one of the
same amperage rating .
Normal
Blown
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 452 of 582
6–56
Maintenance and Care
Owner Maintenance
*Some models.
Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 C/U IG1 15 A For protection of various circuits
2 ENGINE IG1 7.5 A Engine control system
3 SUNROOF 10 A Moonroof
*
4 INTERIOR 15 A Overhead light
5
7.5 A Engine control system
6 AUDIO2 15 A Audio system
7 METER1 10 A Instrument cluster
8 SRS1 7.5 A Air bag
9 METER2 7.5 A Instrument cluster
*
10 RADIO 7.5 A Audio system
11 ENGINE3 15 A Engine control system
12 ENGINE1 15 A Engine control system
13 ENGINE2 15 A Engine control system
14 AUDIO1 25 A Audio system
15 A/C MAG 7.5 A Air conditioner
*
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 453 of 582
6–57
Maintenance and Care
Owner Maintenance
*Some models.
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
16 AT PUMP 15 A Transaxle control system
*
17 AT 15 A Transaxle control system *
18 D.LOCK 25 A Power door locks
19 H/L RH 20 A Headlight (RH)
20
7.5 A Engine control system
21 TAIL 20 A Taillights, License plate lights, Parking lights
22 — — —
23 ROOM 25 A Overhead light
24 FOG 15 A Fog lights
*
25 H/CLEAN 20 A —
26 STOP 10 A Brake lights
27 HORN 15 A Horn
28 H/L LH 20 A Headlight (LH)
29 ABS/DSC S 30 A ABS, Dynamic stability control system
*
30 HAZARD 15 A Hazard warning À ashers, Turn signal lights
31 FUEL PUMP 15 A Fuel system
32 FUEL WARM 25 A —
33 WIPER 20 A Front window wiper
34
50 A For protection of various circuits
35 FAN2 30 A —
36 FUEL PUMP 30 A —
37 ABS/DSC M 50 A ABS, Dynamic stability control system
*
38 EVVT 20 A Engine control system *
39 — — —
40 FAN1 30 A —
41 FAN3 40 A Cooling fan
42 ENG.MAIN 40 A Engine control system
43 EPS 60 A —
44 DEFOG 40 A Rear window defogger
45 IG2 30 A For protection of various circuits
46 INJECTOR 30 A Engine control system
47 HEATER 40 A Air conditioner
48 P.WINDOW1 30 A Power windows
49 DCDC DE 40 A —
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
