Page 457 of 582
6–61
Maintenance and Care
Appearance Care
Maintaining the Finish
W a s h i n g
CAUTION
¾ When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
¾ If the windshield above the rain
sensor is touched or wiped with a
cloth.
¾ If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windshield when the wiper lever is in the
position and the ignition is
switched ON as fi ngers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.
¾ Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.
¾ When washing and waxing the vehicle,
be careful not to apply excessive force to
any single area of the vehicle roof or the
antenna. Otherwise, you could dent the
vehicle or damage the antenna.
To help protect the ¿ nish from rust
and deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface when:
y The vehicle is washed without ¿ rst
rinsing off dirt and other foreign matter.
y The vehicle is washed with a rough, dry,
or dirty cloth.
y The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.
y Cleansers or wax containing abrasives
are used.
N O T E
y Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.
y Scratches are more noticeable on
vehicles with darker paint ¿ nishes.
To minimize scratches on the vehicle's
paint ¿ nish:
y Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.
y Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
y Rub gently when washing or drying the
vehicle.
y Take your vehicle only to a car wash
that keeps its brushes well maintained.
y Do not use abrasive cleansers or wax
that contain abrasives.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D

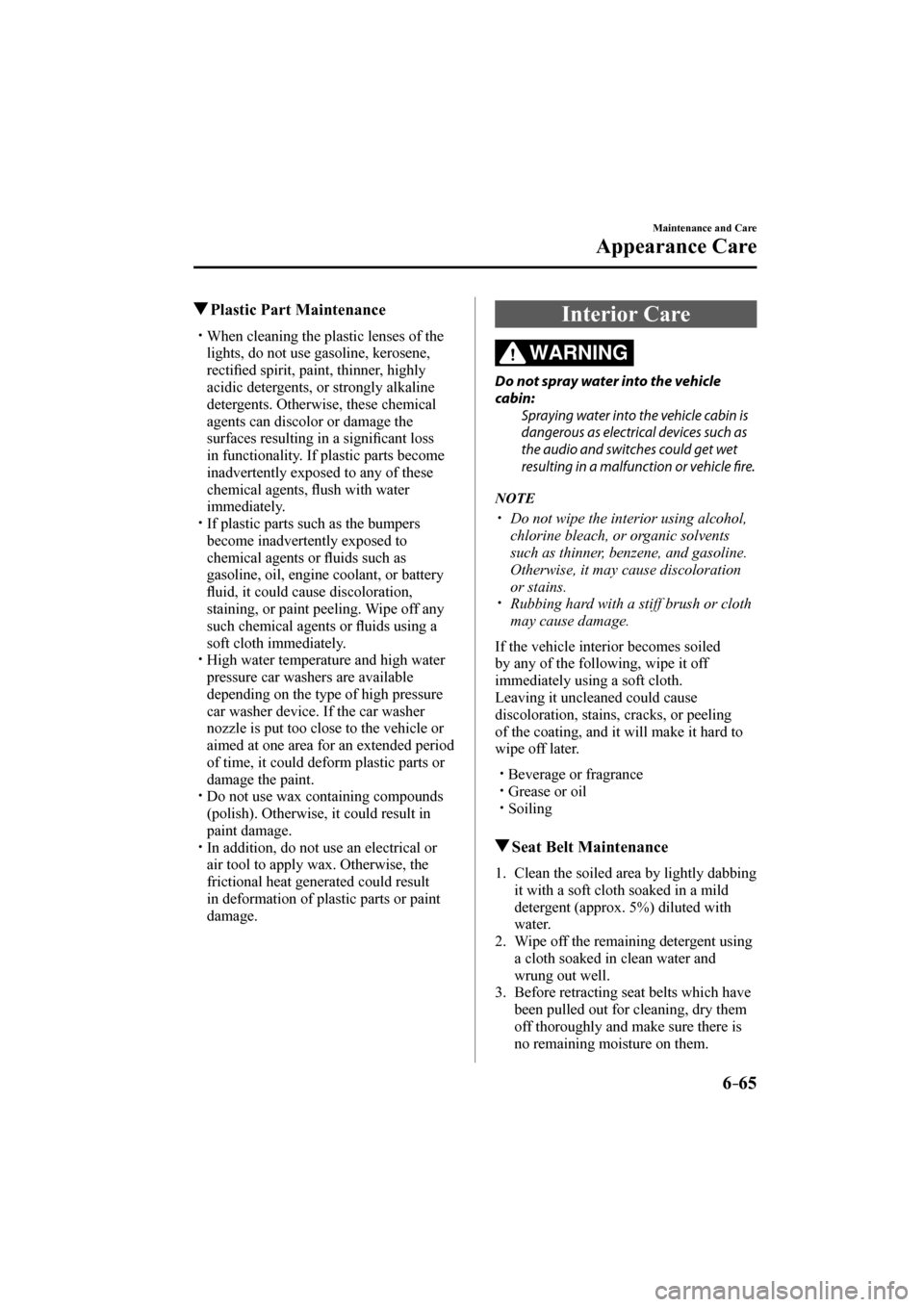

Page 461 of 582
6–65
Maintenance and Care
Appearance Care
Plastic Part Maintenance
y When cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
recti ¿ ed spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a signi ¿ cant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, À ush with water
immediately.
y If plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or À uids such as
gasoline, oil, engine coolant, or battery
À uid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or À uids using a
soft cloth immediately.
y High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended period
of time, it could deform plastic parts or
damage the paint.
y Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
y In addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result
in deformation of plastic parts or paint
damage.
Interior Care
WARNING
Do not spray water into the vehicle
cabin:
Spraying water into the vehicle cabin is
dangerous as electrical devices such as
the audio and switches could get wet
resulting in a malfunction or vehicle fi re.
N O T E
y Do not wipe the interior using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, and gasoline.
Otherwise, it may cause discoloration
or stains.
y Rubbing hard with a stiff brush or cloth
may cause damage.
If the vehicle interior becomes soiled
by any of the following, wipe it off
immediately using a soft cloth.
Leaving it uncleaned could cause
discoloration, stains, cracks, or peeling
of the coating, and it will make it hard to
wipe off later.
y Beverage or fragrance
y Grease or oil
y Soiling
Seat Belt Maintenance
1. Clean the soiled area by lightly dabbing
it with a soft cloth soaked in a mild
detergent (approx. 5%) diluted with
water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
3. Before retracting seat belts which have
been pulled out for cleaning, dry them
off thoroughly and make sure there is
no remaining moisture on them.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 465 of 582
7–1*Some models.
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency .................................................................. 7-2
Parking in an Emergency .............................................................. 7-2
Flat Tire............................................................................................... 7-3
Spare Tire and Tool Storage .......................................................... 7-3
Changing a Flat Tire ...................................................................... 7-9
Battery Runs Out ............................................................................. 7-18
Jump-Starting .............................................................................. 7-18
Emergency Starting ......................................................................... 7-21
Starting a Flooded Engine ........................................................... 7-21
Push-Starting ............................................................................... 7-21
Overheating ...................................................................................... 7-22
Overheating ................................................................................. 7-22
Emergency Towing ........................................................................... 7-24
Towing Description ..................................................................... 7-24
Tiedown Hooks
* .......................................................................... 7-25
Warning/Indicator Lights and Warning Sounds ........................... 7-27
If a Warning Light Turns On or Flashes...................................... 7-27
Message Indicated on Display
* ................................................... 7-37
Warning Sound is Activated ........................................................ 7-39
When Liftgate Cannot be Opened .................................................. 7-44
When Liftgate Cannot be Opened ............................................... 7-44
Active Driving Display Does Not Operate
*
.................................... 7-45
If the Active Driving Display does not operate .......................... 7-45
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 473 of 582
7–9
If Trouble Arises
Flat Tire
Changing a Flat Tire
N O T E
If the following occurs while driving, it
could indicate a À at tire.
y Steering becomes dif ¿ cult.
y The vehicle begins to vibrate
excessively.
y The vehicle pulls in one direction.
If you have a À at tire, drive slowly to a
level spot that is well off the road and out
of the way of traf ¿ c to change the tire.
Stopping in traf ¿ c or on the shoulder of a
busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
N O T E
Make sure the jack is well lubricated
before using it.
1. Park on a level surface off the right-of-
way and ¿ rmly set the parking brake.
2. Shift into Park (P) and turn off the
engine.
3. Turn on the hazard warning À asher.
4. Have everyone get out of the vehicle
and away from the vehicle and traf ¿ c.
5. Remove the jack, tool, and spare tire
(page 7-3 ).
6. Block the wheel diagonally opposite
the À at tire. When blocking a wheel,
place a tire block both in front and
behind the tire.
N O T E
When blocking a tire, use rocks or wood
blocks of suf ¿ cient size if possible to hold
the tire in place.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 476 of 582
7–12
If Trouble Arises
Flat Tire
7. Insert the jack lever and attach the lug
wrench to tire jack.
8. Turn the jack handle clockwise and
raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is ¿ rmly in position and that it
cannot slip or move.
WARNING
Do not jack up the vehicle higher than is
necessary:
Jacking up the vehicle higher than
is necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking
the vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.
Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
9. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel and center cap.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 482 of 582
7–18
If Trouble Arises
Battery Runs Out
J u m p - S t a r t i n g
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Do not allow the positive ( ) terminal to contact any other metal object that
could cause sparks:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a battery, do
not allow metal tools to contact the positive (
) or negative ( ) terminal of the battery.
Keep all fl ames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Do not jump-start a frozen battery or one with a low fl uid level:
Jump-starting a frozen battery or one with a low fl uid level is dangerous. It may rupture
or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 484 of 582
7–20
If Trouble Arises
Battery Runs Out
1. Remove the battery cover.
2. Make sure the booster battery is 12
V and that its negative terminal is
grounded.
3. If the booster battery is in another
vehicle, do not allow both vehicles
to touch. Turn off the engine of the
vehicle with the booster battery and
all unnecessary electrical loads in both
vehicles.
4. Connect the jumper cables in the exact
sequence as in the illustration.
y
Connect one end of a cable to the
positive terminal on the discharged
battery (1).
y
Attach the other end to the positive
terminal on the booster battery (2).
y
Connect one end of the other cable to
the negative terminal of the booster
battery (3).
y
Connect the other end to the ground
point indicated in the illustration
away from the discharged battery (4).
5. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
6. When ¿ nished, carefully disconnect the
cables in the reverse order described in
the illustration. 7. If the battery cover has been removed,
install it in the reverse order of
removal.
N O T E
Verify that the covers are securely
installed.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 485 of 582
7–21
If Trouble Arises
Emergency Starting
Starting a Flooded Engine
If the engine fails to start, it may be
À ooded (excessive fuel in the engine).
Follow this procedure:
1. If the engine does not start within
¿ ve seconds on the ¿ rst try, wait ten
seconds and try again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and
hold it there.
4. Depress the brake pedal, then press the
push button start. If the engine starts,
release the accelerator immediately
because the engine will suddenly rev
up.
5. If the engine fails to start, crank it
without depressing the accelerator.
If the engine still does not start using
the above procedure, have your vehicle
inspected by an Authorized Mazda Dealer.
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be injured.
N O T E
You cannot start a vehicle with an
automatic transaxle by pushing it.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 486 of 582
7–22
If Trouble Arises
Overheating
O v e r h e a t i n g
If the high engine coolant temperature
warning light turns on, the vehicle loses
power, or you hear a loud knocking or
pinging noise, the engine is probably too
hot.
WARNING
Pull over to a safe location, then
switch the ignition off and make sure
the fan is not running before attempting
to work near the cooling fan:
Working near the cooling fan when it
is running is dangerous. The fan could
continue running indefi nitely even if
the engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either cooling
system cap when the engine and
radiator are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury.
Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the high engine coolant temperature
warning light turns on:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Shift into park (P).
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.
If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.
6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 487 of 582
7–23
If Trouble Arises
Overheating
If you ¿ nd a leak or other damage, or if
coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
Cooling system cap Coolant reservoir
Cooling fan
If you ¿ nd no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
6-30 ).
CAUTION
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
