Page 111 of 582
3–39
Before Driving
Security System
*Some models.
Theft-Deterrent System *
If the theft deterrent system detects an
inappropriate entry into the vehicle,
which could result in the vehicle or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and À ashing the hazard
warning lights.
The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights À ash for about 30
seconds when the system is triggered by
any one of the following:
y Unlocking a door with the key, door
lock switch, or an inside door-lock knob.
y Forcing open a door, the hood or the
liftgate.
y Opening the hood by operating the hood
release handle.
y Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activate until the driver's
door or the liftgate is unlocked with the
transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
N O T E
y The liftgate does not open while the
theft-deterrent system is operating.
y If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights
will À ash when the battery is charged or
replaced.
How to Arm the System
1. Close the windows and the moonroof *
securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the
liftgate are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will À ash
once.
The following method will also arm the
theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.
The security indicator light in the
instrument panel À ashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully
armed.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 112 of 582
3–40
Before Driving
Security System
N O T E
y The theft deterrent system can also be
armed by activating the auto relock
function with all the doors, the liftgate
and the hood closed.
Refer to Transmitter on page 3-4 .
y The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:
y Unlocking any door.
y Opening any door.
y Opening the hood.
y Switching the ignition ON.
y (With the advanced keyless
function)
Pressing the electric liftgate opener
while the key is being carried.
To rearm the system, do the arming
procedure again.
y When the doors are locked by pressing
the lock button on the transmitter
or using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will À ash once to
indicate that the system is armed.
To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
y Pressing the unlock button on the
transmitter.
y Starting the engine with the push button
start.
y (With the advanced keyless function)
y
Pressing a request switch on the doors.
The hazard warning lights will À ash twice.
NOTE
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will À ash twice to
indicate that the system is turned off.
To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:
y Pressing the unlock button on the
transmitter.
y Starting the engine with the push button
start.
y (With the advanced keyless function)
y
Pressing a request switch on the doors.
y
Pressing the electric liftgate opener
while the key is being carried.
The hazard warning lights will À ash twice.
Theft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you af ¿ x it to the
lower rear corner of a front door window.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 113 of 582
3–41
Before Driving
Driving Tips
Break-In Period
No special break-in is necessary, but a
few precautions in the ¿ rst 1,000 km
(600 miles) may add to the performance,
economy, and life of the vehicle.
y Do not race the engine.
y Do not maintain one constant speed,
either slow or fast, for a long period of
time.
y Do not drive constantly at full-throttle or
high engine rpm for extended periods of
time.
y Avoid unnecessary hard stops.
y Avoid full-throttle starts.
Saving Fuel and
Protection of the
Environment
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save fuel and
reduce CO2.
y Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
y Avoid fast starts.
y Drive at lower speeds.
y Anticipate when to apply the brakes
(avoid sudden braking).
y Follow the maintenance schedule
(page 6-4 ) and have an Authorized
Mazda Dealer perform inspections and
servicing.
y Use the air conditioner only when
necessary.
y Slow down on rough roads.
y Keep the tires properly in À ated.
y Do not carry unnecessary weight.
y Do not rest your foot on the brake pedal
while driving.
y Keep the wheels in correct alignment.
y Keep windows closed at high speeds.
y Slow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going down
a hill:
Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause damage
to the drivetrain. Any loss of steering
or braking control could cause an
accident.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 114 of 582
3–42
Before Driving
Driving Tips
Hazardous Driving
WARNING
Be extremely careful if it is necessary to
downshift on slippery surfaces:
Downshifting into lower gear
while driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid. This
could lead to loss of vehicle control
and an accident.
When driving on ice or in water, snow,
mud, sand, or similar hazards:
y Be cautious and allow extra distance for
braking.
y Avoid sudden braking and sudden
maneuvering.
y Do not pump the brakes. Continue to
press down on the brake pedal.
Refer to Antilock Brake System (ABS)
on page 4-58 .
y If you get stuck, select a lower gear and
accelerate slowly. Do not spin the front
wheels.
y For more traction in starting on slippery
surfaces such as ice or packed snow,
use sand, rock salt, chains, carpeting, or
other nonslip material under the front
wheels.
N O T E
Use snow chains only on the front wheels.
Floor Mat
We recommend the use of Genuine
Mazda À oor mats.
WARNING
Make sure the fl oor mats are hooked on
the retention pins to prevent them from
bunching up under the foot pedals:
Using a fl oor mat that is not secured is
dangerous as it will interfere with the
accelerator and brake pedal operation,
which could result in an accident.
Do not install two fl oor mats, one on top
of the other, on the driver's side:
Installing two fl oor mats, one on top
of the other, on the driver's side is
dangerous as the retention pins can
only keep one fl oor mat from sliding
forward.
If using an all weather mat for winter
use always remove the original fl oor
mat.
Loose fl oor mat(s) will interfere with
the foot pedal and could result in an
accident.
When setting a À oor mat, position the À oor
mat so that its grommets are inserted over
the pointed end of the retention posts.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 115 of 582
3–43
Before Driving
Driving Tips
Rocking the Vehicle
WARNING
Do not spin the wheels at more than
56 km/h (35 mph), and do not allow
anyone to stand behind a wheel when
pushing the vehicle:
When the vehicle is stuck, spinning the
wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries.
CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and tire
damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever
from D to R.
Winter Driving
Carry emergency gear, including tire
chains, window scraper, À ares, a small
shovel, jumper cables, and a small bag of
sand or salt.
Ask an Authorized Mazda Dealer to check
the following:
y Have the proper ratio of antifreeze in the
radiator.
Refer to Engine Coolant on page
6-30 .
y Inspect the battery and its cables. Cold
reduces battery capacity.
y Use an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-27 ).
y Inspect the ignition system for damage
and loose connections.
y Use washer À uid made with antifreeze—
but do not use engine coolant antifreeze
for washer À uid (page 6-32 ).
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 116 of 582
3–44
Before Driving
Driving Tips
N O T E
y Do not use the parking brake in freezing
weather as it may freeze. Instead, shift
to P and block the rear wheels.
y Remove snow before driving. Snow left
on the windshield is dangerous as it
could obstruct vision.
y Do not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.
y Never use warm or hot water for
removing snow or ice from windows and
mirrors as it could result in the glass
cracking.
y Drive slowly. Braking performance
can be adversely affected if snow or
ice adheres to the brake components. If
this situation occurs, drive the vehicle
slowly, releasing the accelerator pedal
and lightly applying the brakes several
times until the brake performance
returns to normal.
Snow Tires
Use snow tires on all four wheels
Do not go faster than 120 km/h (75 mph)
while driving with snow tires. In À ate snow
tires 30 kPa (0.3 kgf/cm
2 , 4.3 psi) more
than recommended on the tire pressure
label (driver's door frame), but never
more than the maximum cold-tire pressure
shown on the tires.
Except Mexico
The vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates you
may ¿ nd it necessary to replace them with
snow tires during the winter months to
further improve traction on snow and ice
covered roads.
Mexico
The vehicle is originally equipped with
summer tires designed for optimum
traction on wet and dry roads. If your
vehicle is to be used on snow and ice
covered roads, Mazda recommends that
you replace the tires originally equipped
on your vehicle with snow tires during the
winter months.
WARNING
Use only the same size and type tires
(snow, radial, or non-radial) on all four
wheels:
Using tires diff erent in size or type is
dangerous. Your vehicle's handling
could be greatly aff ected and result in
an accident.
CAUTION
Check local regulations before using
studded tires.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 117 of 582
3–45
Before Driving
Driving Tips

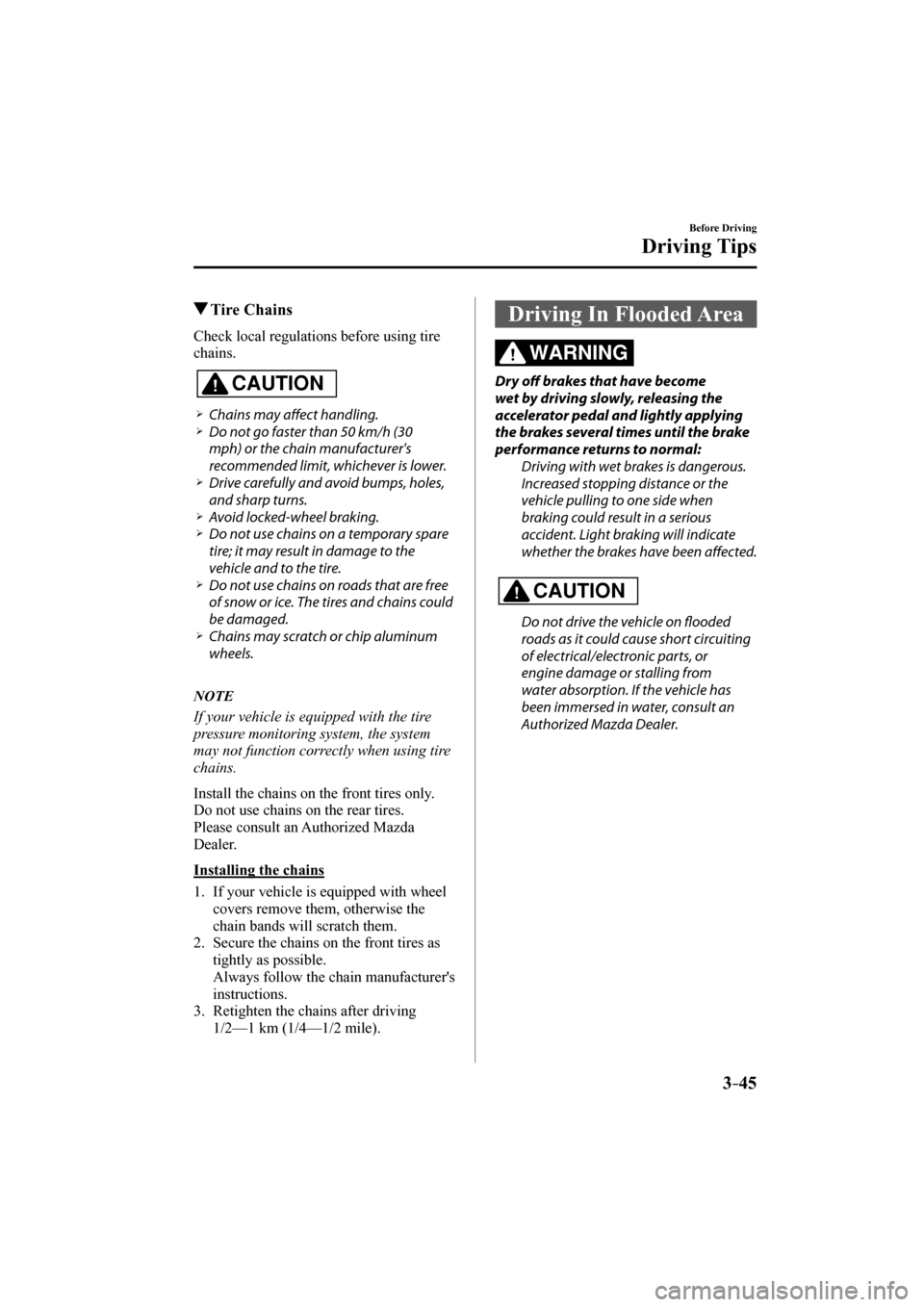

Tire Chains
Check local regulations before using tire
chains.
CAUTION
¾ Chains may aff ect handling.
¾ Do not go faster than 50 km/h (30
mph) or the chain manufacturer's
recommended limit, whichever is lower.
¾ Drive carefully and avoid bumps, holes,
and sharp turns.
¾ Avoid locked-wheel braking.
¾ Do not use chains on a temporary spare
tire; it may result in damage to the
vehicle and to the tire.
¾ Do not use chains on roads that are free
of snow or ice. The tires and chains could
be damaged.
¾ Chains may scratch or chip aluminum
wheels.
N O T E
If your vehicle is equipped with the tire
pressure monitoring system, the system
may not function correctly when using tire
chains.
Install the chains on the front tires only.
Do not use chains on the rear tires.
Please consult an Authorized Mazda
Dealer.
Installing the chains
1. If your vehicle is equipped with wheel
covers remove them, otherwise the
chain bands will scratch them.
2. Secure the chains on the front tires as
tightly as possible.
Always follow the chain manufacturer's
instructions.
3. Retighten the chains after driving
1/2—1 km (1/4—1/2 mile).
Driving In Flooded Area
WARNING
Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been aff ected.
CAUTION
Do not drive the vehicle on fl ooded
roads as it could cause short circuiting
of electrical/electronic parts, or
engine damage or stalling from
water absorption. If the vehicle has
been immersed in water, consult an
Authorized Mazda Dealer.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 118 of 582
3–46
Before Driving
Driving Tips
Overloading
WARNING
Be careful not to overload your vehicle:
The gross axle weight rating (GAWR)
and the gross vehicle weight rating
(GVWR) of the vehicle are on the
Motor Vehicle Safety Standard Label
on the driver's door frame. Exceeding
these ratings can cause an accident
or vehicle damage. You can estimate
the weight of the load by weighing the
items (or people) before putting them
in the vehicle.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 119 of 582
3–47
Before Driving
Driving Tips
Driving on Uneven Road
Your vehicle's suspension and underbody can be damaged if driven on rough/uneven roads
or over speed bumps at excessive speeds. Use care and reduce speed when traveling on
rough/uneven roads or over speed bumps.
Use care not to damage the vehicle's underbody, bumpers or muf À er(s) when driving under
the following conditions:
y Ascending or descending a slope with a sharp transition angle
y Ascending or descending a driveway or trailer ramp with a sharp transition angle
This vehicle is equipped with low pro ¿ le tires allowing class-leading performance and
handling. As a result, the sidewall of the tires are very thin and the tires and wheels can be
damaged if driven through potholes or on rough/uneven roads at excessive speeds. Use care
and reduce speed when traveling on rough/uneven roads or through potholes.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 120 of 582
3–48
Before Driving
Towing
Trailer Towing
Your Mazda is not designed for towing.
Never tow a trailer with your Mazda.
Recreational Towing
An example of "recreational towing" is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer
to "Towing Description" (page 7-24 )
and "Tiedown Hooks" (page 7-25 ) and
carefully follow the instructions.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
