Page 131 of 582
4–11
When Driving
Start/Stop Engine
N O T E
y The cooling fan in the engine
compartment could turn on for a few
minutes after the ignition is switched
from ON to OFF, whether or not the
A/C is on or off, to cool the engine
compartment quickly.
y When the push button start is pressed
from ON to ACC or OFF, the KEY
indicator light (green) may À ash for
approximately 30 seconds indicating
that the remaining battery power of the
key is low.
Replace with a new battery before the
key becomes unusable.
Refer to Key Battery Replacement on
page 6-39 .
y If the engine is turned off while the
selector lever is in a position other than
P, the ignition switches to ACC.
Emergency Engine Stop
Continuously pressing the push button
start or quickly pressing it any number of
times while the engine is running or the
vehicle is being driven will turn the engine
off immediately. The ignition switches to
ACC.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 132 of 582
4–12
When Driving
Instrument Cluster and Display
M e t e r s a n d G a u g e s
Type A
Type B
Type C
Steering Switch (Digital Speedometer Type)
(Analog Speedometer Type (With Tachometer))
(Analog Speedometer Type (Without Tachometer))
Instrument Cluster
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 133 of 582
4–13
When Driving
Instrument Cluster and Display
Speedometer .......................................................................................................... page 4-14
Odometer, Trip Meter and Trip Meter Selector .................................................... page 4-14
Tachometer ............................................................................................................ page 4-18
Fuel Gauge ............................................................................................................ page 4-18
Dashboard Illumination......................................................................................... page 4-19
Outside Temperature Display ................................................................................ page 4-19
Cruise Control Set Vehicle Speed Display ............................................................ page 4-20
Active Driving Display ......................................................................................... page 4-22
Trip Computer and INFO Switch .......................................................................... page 4-20
Speed Unit Selector ............................................................................................... page 4-14
Odometer, Trip Meter, Trip Computer and Trip Meter Selector ........................... page 4-16
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 134 of 582
4–14
When Driving
Instrument Cluster and Display
*Some models.
Speedometer
The speedometer indicates the speed of the
vehicle.
N O T E
(Analog speedometer type)
If a few seconds have elapsed after
switching the ignition off, the needle may
deviate. However, this does not indicate a
problem.
Speed Unit Selector (Digital
Speedometer)
In some countries, you may have to
change the speed units between km/h and
mph.
Press the speed unit selector for 1.5
seconds or more.
The speed units for the speedometer will
change between km/h and mph.
Speedometer
Speed unit selector
Odometer, Trip Meter and Trip
Meter Selector *
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector while one of them is displayed.
The selected mode will be displayed.
Press the selector Press the selector
Press the selector Odometer
Trip meter A
Trip meter BSelector
N O T E
When the ignition is switched to ACC or
off, the odometer or trip meters cannot be
displayed, however, pressing the selector
can inadvertently switch the trip meters or
reset them during an approximate ten-
minute period in the following cases:
y After the ignition is switched to off from
ON.
y After the driver's door is opened.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 135 of 582
4–15
When Driving
Instrument Cluster and Display
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.
For instance, trip meter A can record the
distance from the point of origin, and
trip meter B can record the distance from
where the fuel tank is ¿ lled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter
is again reset. Return it to “0.0” by
depressing and holding the selector for
one second or more. Use this meter to
measure trip distances and to compute fuel
consumption. N O T E
y (Vehicles with type B audio)
If the fuel economy data is reset using
the fuel economy monitor, or trip A
is reset using the trip meter when the
function which synchronizes the fuel
economy monitor and the trip meter is
on, the fuel economy data and trip A are
reset simultaneously.
Refer to Fuel Economy Monitor on page
4-62 .
y Only the trip meters record tenths of
kilometers (miles).
y The trip record will be erased when:
y The power supply is interrupted
(blown fuse or the battery is
disconnected).
y The vehicle is driven over 9999.9 km
(mile).
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 136 of 582
4–16
When Driving
Instrument Cluster and Display
*Some models.
Odometer, Trip Meter, Trip
Computer and Trip Meter
Selector
*
T h e d i s p l a y m o d e c a n b e c h a n g e d
between trip meter A and trip meter B by
pressing the selector while one of them
is displayed. The selected mode will be
displayed.
Selector
Current fuel economy modeDistance-to-empty modeTrip meter B
Trip meter AOdometer
N O T E
When the ignition is switched to ACC or
off, the odometer or trip meters cannot be
displayed, however, pressing the selector
can inadvertently switch the trip meters or
reset them during an approximate ten-
minute period in the following cases:
y After the ignition is switched to off from
ON.
y After the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.
For instance, trip meter A can record the
distance from the point of origin, and
trip meter B can record the distance from
where the fuel tank is ¿ lled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to “0.0” by holding
the selector depressed for 1 second
or more. Use this meter to measure
trip distances and to compute fuel
consumption.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 137 of 582
4–17
When Driving
Instrument Cluster and Display
N O T E
y (Vehicles with type B audio)
If the fuel economy data is reset using
the fuel economy monitor, or trip A
is reset using the trip meter when the
function which synchronizes the fuel
economy monitor and the trip meter is
on, the fuel economy data and trip A are
reset simultaneously.
Refer to Fuel Economy Monitor on page
4-62 .
y Only the trip meters record tenths of
kilometers (miles).
y The trip record will be erased when:
y The power supply is interrupted
(blown fuse or the battery is
disconnected).
y The vehicle is driven over 9999.9 km
(mile).
Trip Computer
The following information can be selected
by pressing the selector with the ignition
switched ON.
y Approximate distance you can travel on
the available fuel
y Current fuel economy
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.
N O T E
y Even though the distance-to-empty
display may indicate a suf ¿ cient amount
of remaining driving distance before
refueling is required, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.
y The display may not change unless you
add more than approximately 9 L
(2.3 US gal, 1.9 Imp gal) of fuel.
y The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
indicating the remaining fuel supply
disappear.
y If there is no past fuel economy
information such as after ¿ rst
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance traveled.
Current fuel economy will be calculated
and displayed every 2 seconds.
When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) will be
displayed.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 138 of 582
4–18
When Driving
Instrument Cluster and Display
Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
Type A
*1The range varies depending on the type
of gauge.*
1Striped zone
*
1Red zone
Type B
*1The range varies depending on the type
of gauge.*
1Striped zone
*
1Red zone
N O T E
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.
Fuel Gauge
The fuel gauge shows approximately
how much fuel is remaining in the tank
when the ignition is switched ON. We
recommend keeping the tank over 1/4 full.
Full
1/4 Full
Empty
If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Warning Lights on page 4-25 .
N O T E
y After refueling, it may require some
time for the indicator to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve since
the fuel moves in the tank.
y The display indicating a quarter or less
remaining fuel has more segments to
show the remaining fuel level in greater
detail.
y The direction of the arrow ( ) indicates
that the fuel- ¿ ller lid is on the left side
of the vehicle.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 139 of 582
4–19
When Driving
Instrument Cluster and Display

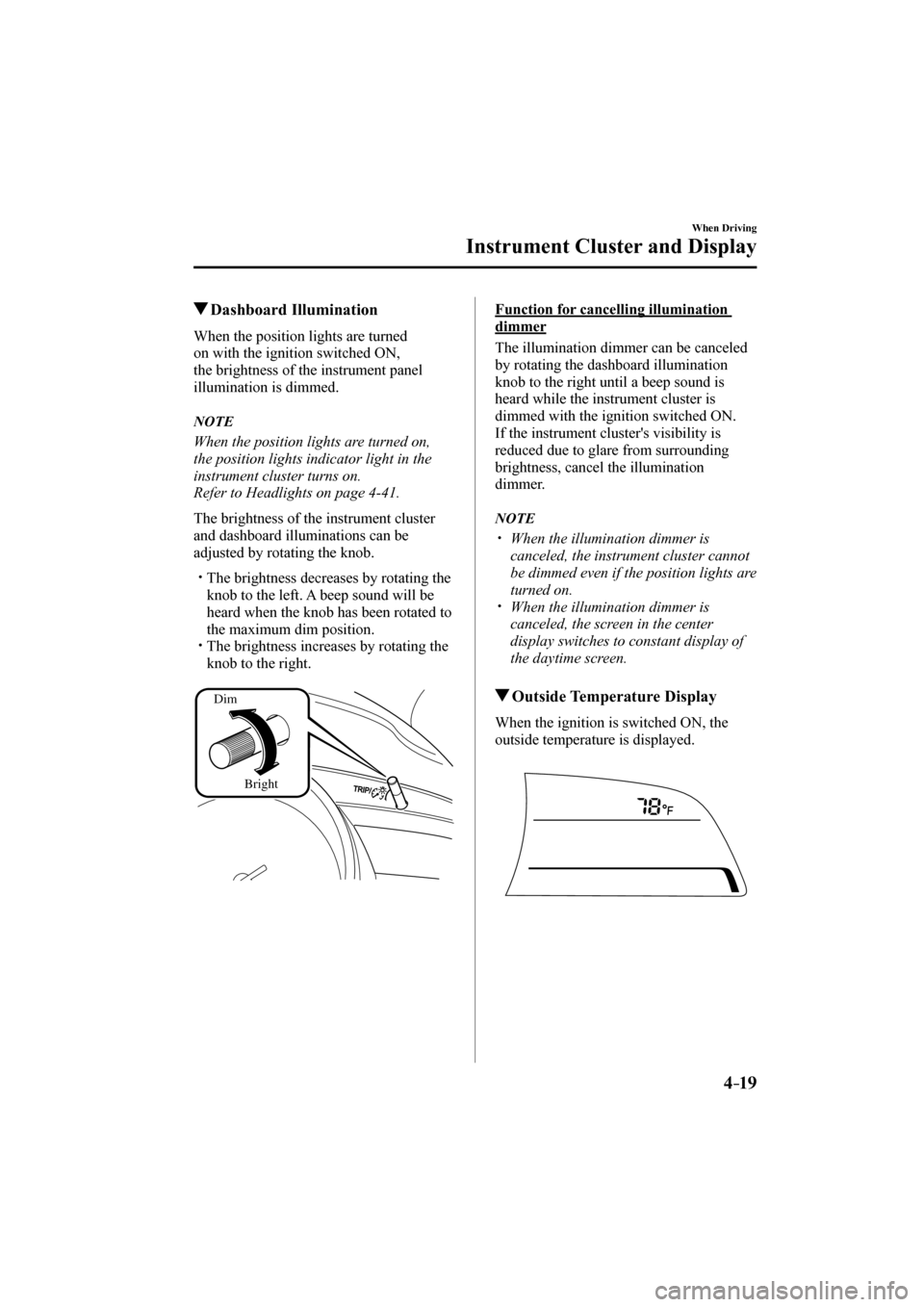

Dashboard Illumination
When the position lights are turned
on with the ignition switched ON,
the brightness of the instrument panel
illumination is dimmed.
N O T E
When the position lights are turned on,
the position lights indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-41 .
The brightness of the instrument cluster
and dashboard illuminations can be
adjusted by rotating the knob.
y The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.
y The brightness increases by rotating the
knob to the right.
Dim
Bright
Function for cancelling illumination
dimmer
The illumination dimmer can be canceled
by rotating the dashboard illumination
knob to the right until a beep sound is
heard while the instrument cluster is
dimmed with the ignition switched ON.
If the instrument cluster's visibility is
reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.
N O T E
y When the illumination dimmer is
canceled, the instrument cluster cannot
be dimmed even if the position lights are
turned on.
y When the illumination dimmer is
canceled, the screen in the center
display switches to constant display of
the daytime screen.
Outside Temperature Display
When the ignition is switched ON, the
outside temperature is displayed.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
Page 140 of 582
4–20
When Driving
Instrument Cluster and Display
*Some models.
N O T E
Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and vehicle
conditions:
y Signi ¿ cantly cold or hot temperatures.
y Sudden changes in outside temperature.
y The vehicle is parked.
y The vehicle is driven at low speeds.
The outside temperature unit can be
switched between Celsius and Fahrenheit
using the following procedure.
1. Press the INFO button with the ignition
switched off and continue pressing the
INFO button for 5 seconds or longer
while switching the ignition ON. The
outside temperature display À ashes.
2. Press the up
or down part of the
INFO switch to change the outside
temperature unit.
3. Press and hold the INFO button for 3
seconds or longer while the outside
temperature display is À ashing. The
outside temperature display illuminates.
Cruise Control Set Vehicle Speed
Display *
The vehicle speed preset using the cruise
control is displayed.
Trip Computer and INFO Switch *
The following information can be selected
by pressing the up
or down part of the
steering switch with the ignition switched
ON.
y Distance-to-empty
y Average fuel economy
y Current fuel economy
y Average vehicle speed
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.
% : A ( * ' # ' A ' F K V K Q P K P F D % : A ( * ' # ' A ' F K V K Q P K P F D
