▼Rearview Mirror
WA R N I N G
Do not stack cargo or objects higher than
the seatbacks:
Cargo stacked higher than the seatbacks is
dangerous. It can block your view in the
rearview mirror, which might cause you to
hit another car when changing lanes.
Rearview mirror adjustment
Before driving, adjust
the rearview mirror
to center on the scene through the rear
window.

NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.

Day/Night lever
Day
Night
Auto-dimming mirror
The auto-dim ming mirror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.
NOTE
•Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity will
be affected and may not operate
normally.

Light sensor
•The auto-dimming function is canceled
when the ignition is switched ON and
the selector lever is in reverse (R).
Before Driving
Mirrors
3-32
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Power Windows
The windows can be opened/closed by
operating the power window switches.
WA R N I N G
Make sure the opening is clear before
closing a window:
Closing a power window is dangerous. A
person's hands, head, or even neck could
be caught by the window and result in
serious injury or even death. This warning
applies especially to children.
Never allow children to play with power
window switches:
Power window switches that are not locked
with the power window lock switch would
allow children to operate power windows
unintentionally, which could result in
serious injury if a child's hands, head or
neck becomes caught by the window.
Make sure nothing bloc ks the w indow just
before it reaches the fully closed position or
while holding up the power window switch:
Blocking the power window just before it
reaches the fully closed position or while
holding up the power window switch is
dangerous.
In this case, the jam-safe function cannot
prevent the window from closing all the
way. If fingers are caught, serious injuries
could occur.
NOTE
When driving with only 1 of the rear
windows open, your ears might experience
a resonating sound. However, this does not
indicate a problem. The sound can be
reduced by slightly opening a front
window or by changing the size of the rear
window opening.
Before Driving
Windows
3-33
CX-3_8GR7-EA-18B_Edition12017-12-20 16:18:14

▼Opening/Closing Windows
The window opens while the switch is pressed and it closes whil
e the switch is pulled up
with the ignition switched ON. Do not open or close three or mo re windows at the same
time.
The front passenger's side and rear windows can be opened/close d when the power window
lock switch on the driver's door is in the unlock position. Kee p this switch in the locked
position while children are in the vehicle.

Close
Open
Left rear
window
Right rear window Front
passenger's
window
Driver's
window
Close
Open
Locked position
Unlocked position Front passenger's
window s
witch
Rear window s witches
Master control s
witches
NOTE
•A power window may no longer open/close if you continue to press the switch after fully
opening/closing the power window. If the po wer window does not open/close, wait a
moment and then operate the switch again.
•The passenger windows may be opened or closed using the master control switches on the
driver's door.
•The power window can be operated for about 40 seconds after the ignition is switched
from ON to ACC or off with all doors closed. If any door is opened, the power window
will stop operating.
For engine-off operation of the power window, the switch must be held up firmly
throughout window closure because the aut o-closing function will be inoperable.
Before Driving
Windows
3-34
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Auto-opening/Closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.

To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
This function is only equipped on the
driver's side.
NOTE
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically.
The power window auto function will only
resume on a power window that has been
reset.
1. Switch the
ignition ON.
2. Make sure that the power window lock switch located on the driver's door is
not depressed.
3. Press the switch and fully open the window.
4. Pull up the switch to fully close the window and continue holding the
switch for about 2 seconds after the
window fully closed.
5. Make sure that the power windows
operate correctly using the door
switches.
▼Jam-safe Window
If foreign matter is detected between the
window and the window frame while the
window is closing automatically (refer to
Auto-opening/Closing on page 3-35), the
window stops closing and automatically
opens partway.
NOTE
•The jam-safe function may operate
under the following conditions:
•A strong impact is detected while the
window is closing automatically.
•Window is closing automatically in
very low temperatures.
•In the event the
jam-safe function
activates and the power window cannot
be closed automatically, pull and hold
the switch and the window will close.
•The jam-safe window function does not
operate until the system has been reset.
Before Driving
Windows
3-35
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Moonroof*
The moonroof can be opened or closed
when operating the overhead tilt/slide
switch at the front seats.
WA R N I N G
Do not let passengers stand up or extend
part of the body through the open
moonroof while the vehicle is moving:
Extending the head, arms, or other parts of
the body through the moonroof is
dangerous. The head or arms could hit
something while the vehicle is moving. This
could cause serious injury or death.
Never allow children to play with the tilt/
slide switch:
The tilt/slide switch would allow children to
operate the moonroof unintentionally,
which could result in serious injury if a
child's hands, head or neck becomes
caught by the moonroof.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in it as it
closes, causing serious injury or even death.
CAUTION
Do not sit on or put heavy items on the
area where the moonroof opens and
closes. Otherwise, the moonroof could be
damaged.
Do not open or close the moonroof
forcefully during freezing temperatures
or snowfall. Otherwise, the moonroof
could be damaged.
 The sunshade does not tilt. To avoid
damaging the sunshade, do not push it
up.
 Do not close the sunshade while the
moonroof is opening. Trying to force the
sunshade closed could damage it.
▼ Tilt/Slide Operation
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
•Before leaving the vehicle or washing
your Mazda, make sure the moonroof is
completely closed so that water does not
get inside the cabin area.
•After washing your Mazda or after it
rains, wipe the water off the moonroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.
Tilt/Slide switch
Before Driving
Windows
3-36*Some models.
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

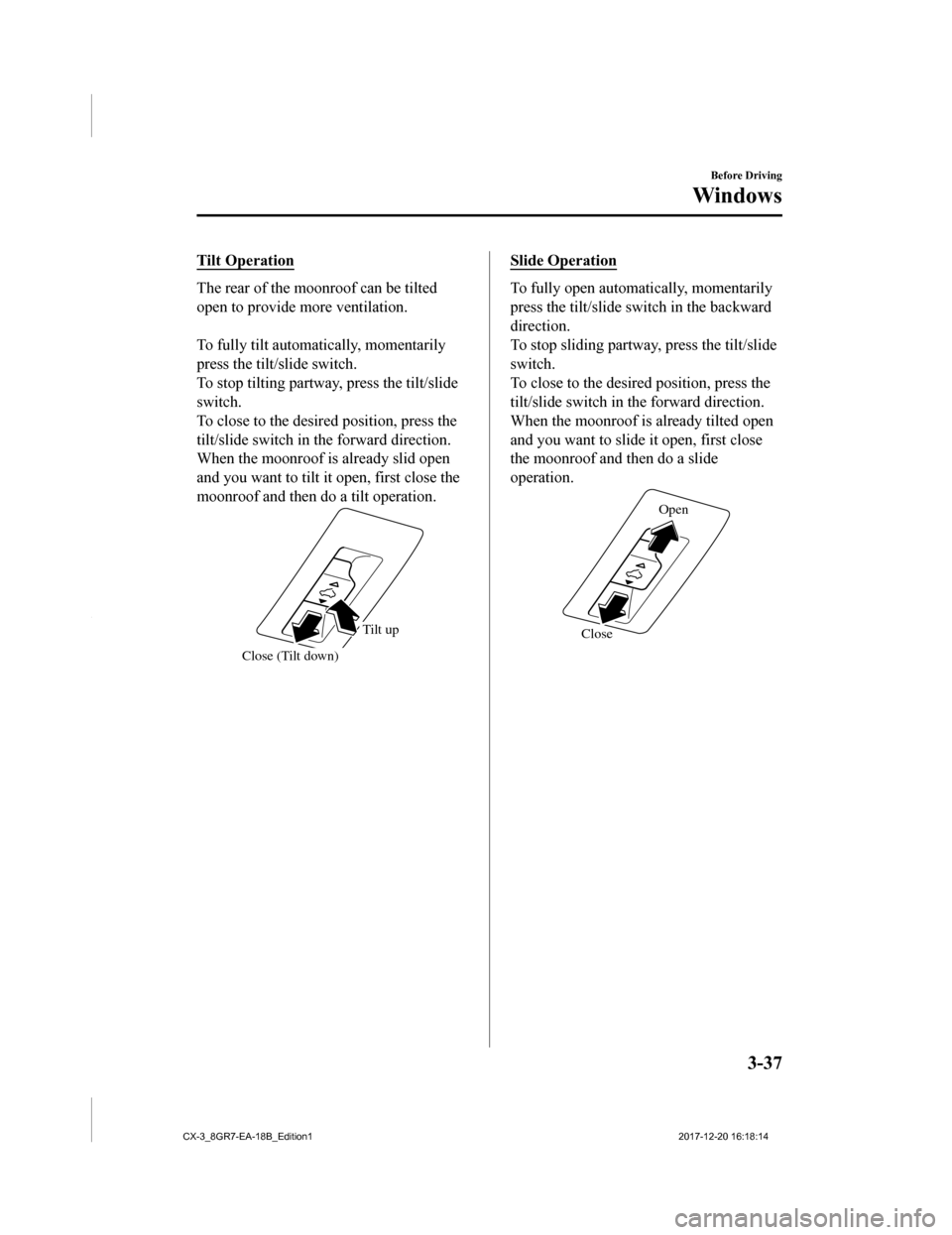

Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.

To fully tilt automatically, momentarily
press the tilt/slide switch.
To stop tilting partway, press the tilt/slide
switch.
To close to the desired position, press the
tilt/slide switch in the forward direction.
When the moonroof is already slid open
and you want to tilt it open, first close the
moonroof and then do a tilt operation.
Close (Tilt down)
Tilt up
Slide Operation
To fully open automatically, momentarily
press the tilt/slide sw itch in the backward
direction.
To stop sliding partway, press the tilt/slide
switch.
To close to the desired position, press the
tilt/slide switch in the forward direction.
When the moonroof is already tilted open
and you want to slide it open, first close
the moonroof and then do a slide
operation.
Close Open
Before Driving
Windows
3-37
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

NOTE
If the moonroof does not operate normally,
do the following procedure:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tiltopen the rear of the moonroof.
3. Repeat Step 2. The rear of the
moonroof tilts open to the fully open
position, then closes a little.
If the reset procedure is performed while
the moonroof is in the slide position
(partially open) it will close before the
rear tilt opens.
▼ Sunshade
The sunshade can be opened and closed by
hand.

The sunshade opens at the same time as
the moonroof slides open, but it must be
closed by hand.
Sunshade
Before Driving
Windows
3-38
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry in to the vehicle, which
could result in the veh icle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
▼ Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:
•Unlocking a door with the auxiliary key,
door lock switch, or an inside door-lock
knob.
•Forcing open a door, the hood or the
liftgate.
•Opening the hood by operating the hood
release handle.
•Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activat e until the driver's
door or the liftgate is unlocked with the
transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
•The liftgate does not open while the
theft-deterrent system is operating.
•If the battery goes dead while the
theft-deterrent system is armed, the horn
will activate and the hazard warning
lights will flash when the battery is
charged or replaced.
▼ How to Arm the System
1. Close the windows and the moonroof*
securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the liftgate are closed.
4. Press the lock button on the transmitter or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
The following method will also arm
the theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully armed.
Before Driving
Security System
*Some models.3-41
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of the vehicle.
•Do not race the engine.
•Do not maintain one constant speed,
either slow or fast, for a long period of
time.
•Do not drive constantly at full-throttle or
high engine rpm for extended periods of
time.
•Avoid unnecessary hard stops.
•Avoid full-throttle starts.
Saving Fuel and Protection of the Environment
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save fuel and
reduce CO
2.
•Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
•Avoid fast starts.
•Drive at lower speeds.
•Anticipate when to apply the brakes
(avoid sudden braking).
•Follow the maintenance schedule (page
6-4) and have an Authorized Mazda
Dealer perform inspections and
servicing.
•Use the air conditioner only when
necessary.
•Slow down on rough roads.
•Keep the tires properly inflated.
•Do not carry unnecessary weight.
•Do not rest your foot on the brake pedal
while driving.
•Keep the wheels in correct alignment.
•Keep windows closed at high speeds.
•Slow down when driving in crosswinds
and headwinds.
WA R N I N G
Never stop the engine when going down a
hill:
Stopping the engine when going down a
hill is dangerous. This causes the loss of
power steering and power brake control,
and may cause damage to the drivetrain.
Any loss of steering or braking control
could cause an accident.
Before Driving
Driving Tips
3-43
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Rocking the Vehicle
WA R N I N G
Do not spin the wheels at more than 56
km/h (35 mph), and do not allow anyone
to stand behind a wheel when pushing the
vehicle:
When the vehicle is stuck, spinning the
wheels at high speed is dangerous. The
spinning tire could overheat and explode.
This could cause serious injuries.
CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and tire
damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever/
selector lever from 1 (D) to R position.
Winter Driving
Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag of
sand or salt.
Ask an Authorized Mazda Dealer to check
the following:
•Have the proper ratio of antifreeze in the
radiator.
Refer to Engine Coolant on page 6-25.
•Inspect the battery and its cables. Cold
reduces battery capacity.
•Use an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-22).
•Inspect the ignition system for damage
and loose connections.
•Use washer fluid made with
antifreeze―but do not use engine
coolant antifreeze for washer fluid (page
6-27).
NOTE
•Remove snow before driving. Snow left
on the windshield is dangerous as it
could obstruct vision.
•Do not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.
•Never use warm or hot water for
removing snow or ice from windows and
mirrors as it could result in the glass
cracking.
Before Driving
Driving Tips
3-45
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14
