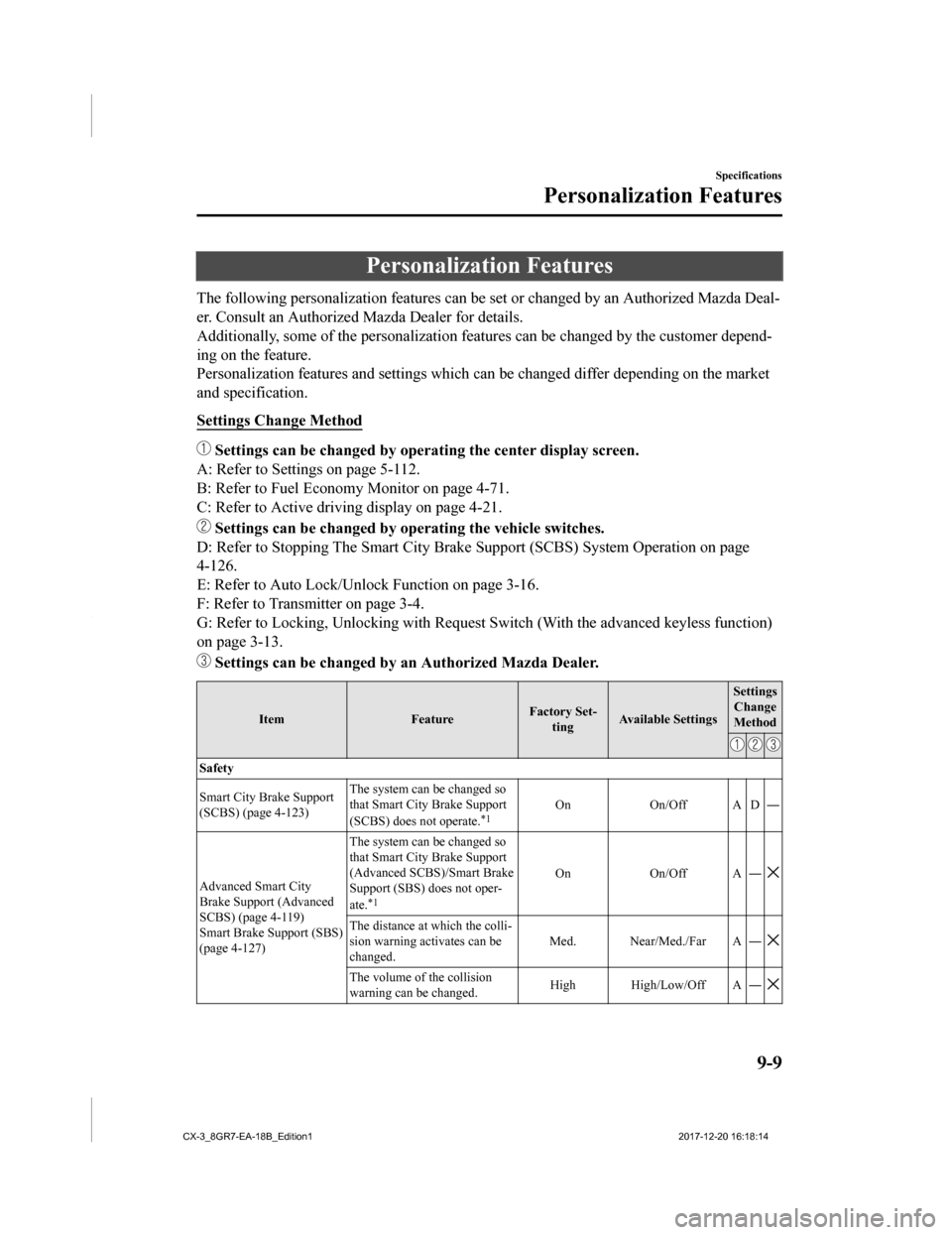

Personalization Features
The following personalization features can be set or changed by an Authorized Mazda Deal-
er. Consult an Authorized Mazda Dealer for details.
Additionally, some of the personalization features can be changed by the customer depend-
ing on the feature.
Personalization features and settings which can be changed diff er depending on the market
and specification.
Settings Change Method
Settings can be changed by opera ting the center display screen.
A: Refer to Settings on page 5-112.
B: Refer to Fuel Economy Monitor on page 4-71.
C: Refer to Active driving display on page 4-21.
Settings can be changed by op erating the vehicle switches.
D: Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page
4-126.
E: Refer to Auto Lock/Unlock Function on page 3-16.
F: Refer to Transmitter on page 3-4.
G: Refer to Locking, Unlocking with Request Switch (With the advanced keyless function)
on page 3-13.
Settings can be changed by an Authorized Mazda Dealer.
ItemFeatureFactory Set-
ting Available Settings Settings
Change
Method
Safety
Smart City Brake Support
(SCBS) (page 4-123) The system can be changed so
that Smart City Brake Support
(SCBS) does not operate.
*1On
On/Off A D ―
Advanced Smart City
Brake Support (Advanced
SCBS) (page 4-119)
Smart Brake Support (SBS)
(page 4-127) The system can be changed so
that Smart City Brake Support
(Advanced SCBS)/Smart Brake
Support (SBS) does not oper-
ate.
*1
On
On/Off A ―
The distance at which the colli-
sion warning activates can be
changed. Med. Near/Med./Far A ―
The volume of the collision
warning can be changed.
High High/Low/Off A ―
Specifications
Personalization Features
9-9
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

ItemFeatureFactory Set-
ting Available Settings Settings
Change
Method
Lane Departure Warning
System (LDWS) (page
4-84) The warning timing in which
the Lane Departure Warning
System (LDWS) determines
that the vehicle may be deviat-
ing from its lane can be
changed.
At At/Before A ―The sensitivity of the warning
for the Lane Departure Warning
System (LDWS) can be
changed.
Low
High/Low A ―
Warning beep sound*2Beep Beep/Rumbl. A ―
Warning beep volume Rumbl. Low High/Mid/Low A ―Beep Low
High/Low A ―
Blind Spot Monitoring
(BSM) (page 4-90)The system can be changed so
that Blind Spot Monitoring
(BSM) does not operate.*1On
On/Off A ―
Warning beep volume*3High High/
Low/ Off A―
Traffic Sign Recognition
System (TSR)*4 (page 4-
96) The Traffic Sign Recognition
System (TSR) can be set to in-
operable.
*1On
On/Off A ―
The warning pattern of the ex-
cessive speed warning can be
changed. OffOff/
Vi s ua l /
Audio & Visual A―
The activation timing for the
excessive speed warning can be
changed. 0 0/ 5/ 10
A―
Distance Recognition Sup-
port System (DRSS) (page
4-102) The system can be changed so
that Distance Recognition Sup-
port System (DRSS) does not
operate.*1
On
On/Off A ―
The distance at which the vehi-
cle ahead and your vehicle indi-
cated in the display flashes in
white can be changed. Near Far/Med./Near A ―
Specifications
Personalization Features
9-10
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

ItemFeatureFactory Set-
ting Available Settings Settings
Change
Method
Ve h i c l e
Door locks (page 3-16) Operation condition of auto
lock/unlock function Lock: When
Driving Un-
lock: IGN Off Lock: Out of Park
Unlock: In Park/
Lock: Shifting Out of
Park/
Lock: When Driving Unlock: In Park/
Lock: When Driving
Unlock: IGN Off/
Lock: When Driving/
Off AE
Keyless entry system (page
3-3)
The method for unlocking the
doors using the transmitter can
be changed.
Driver's: Once,
All Doors:Tw i c e All Doors: Once/
Driver's: Once, All Doors: Twice AFThe time required for the doors
to relock automatically after
unlocking with the transmitter
can be changed. 60 seconds
90 seconds/
60 seconds/
30 seconds A―
Advanced keyless entry
system (page 3-9) The method for unlocking the
doors using the request switch/
transmitter can be changed.
Driver's: Once,
All Doors:Tw i c e All Doors: Once/
Driver's: Once, All Doors: Twice A
F,
G
The volume of the answer-back
beep during advanced keyless
entry system operation can be
changed. MediumHigh/
Medium/ Low/Off AG
The function to automatically
lock the doors when leaving the
vehicle while carrying the key
can be changed. Off
On/Off A ―
The time required for the doors
to relock automatically after
unlocking with the request
switch/transmitter can be
changed. 60 seconds
90 seconds/
60 seconds/
30 seconds A―
Illuminated entry system
(page 5-127) Time until interior lights turn
off after closing door
15 seconds60 seconds/
30 seconds/
15 seconds/
7.5 seconds A―
Time until interior lights turn
off automatically when any
door is not closed completely
30 minutes60 minutes/
30 minutes/
10 minutes A―
Specifications
Personalization Features
9-11
CX-3_8GR7-EA-18B_Edition1
2017-12-20 16:18:14

ItemFeatureFactory Set-
ting Available Settings Settings
Change
Method
Auto-wiper control (page
4-49) Operational/non-operational On
On/Off*5A―
Daytime running lights
(page 4-47)Operational/non-operational On On/Off A ―
Auto headlight off*6 (page
4-43) Time until headlights
turn off 30 seconds 120 seconds/
90 seconds/
60 seconds/
30 seconds/
Off
*7
A―
Auto-light control (page
4-43) Timing by which lights turn on Medium High/
Med.High/ Medium/
Med.Low/ Low A―
High Beam Control System
(HBC) (page 4-81)
Operational/non-operational*1On
On/Off A ―
Adaptive Front Lighting
System (AFS) (page 4-80) Operational/non-operational*1On
On/Off A ―
Lights-on reminder*8 (page
7-43) Warning beep volume High High/Low/Off A ―
Coming home light (page
4-46)
Time until headlights
turn off 30 seconds 120 seconds/
90 seconds/
60 seconds/
30 seconds/ Off A―
Leaving home light (page
4-47)
Operational/non-operational On On/Off A ―
Turn indicator (page 4-48) Beep volume
HighHigh/Low A ―
Three-flash turn signal
(page 4-49) Operational/non-operational On On/Off A ―
Rear window defogger
(page 4-53)The operation time for the rear
window defogger can be
changed.
15 minutes
15 minutes/
Continuous*9――
Specifications
Personalization Features
9-12
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

ItemFeatureFactory Set-
ting Available Settings Settings
Change
Method
System
Language Language indicated in display US English Depends on mar-
ket
*10A―
Temperature Temperature unit indicated in
display °F °F/°C A ―
DistanceDistance unit indicated in dis-
play mi/km mi/km A ―
Fuel Economy Monitor
(page 4-71)
Ending display Display/non-display OffOn/Off B ―
Fuel economy resetting
procedure Linkage/non-linkage with fuel
economy reset and trip meter
reset
Off
On/Off B ―
Active Driving Display (page 4-21)
Display Setting can be changed so that
the Active Driving Display is
not displayed.
On On/Off C ―
The display height (up/down
position) can be changed.
013 steps up/down
from initial setting (total: 27 steps) C―
The method for
adjusting the
display brightness (automatical-
ly/manually) can be changed. Auto Auto/Man. C ―
The standard brightness while
automatic adjustment is select-
ed can be changed using the
brightness adjustment. 0
2 steps up/down from
initial setting (total: 5 steps) C―
The standard brightness while
manual adjustment is selected
can be changed using the
brightness adjustment. 0
20 steps up/down
from initial setting (total: 41 steps) C―
Navigation guidance Display/non-display
OnOn/Off C ―
*1 Though these systems can be tur ned Off, doing so will defeat the purpose of the system and Mazda
recommends that these systems remain On.
*2 For vehicles with an audio syst em other than the on-screen function type, the warning sound cannot be
changed. The warning sound is only a beep.
*3 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation ca n be changed. The
volume of the warning beep during Rear Cross Traffic Alert (RCT A) operation cannot be changed.
*4 This system functions only when the navigation system is funct ioning.*5 If the auto-wiper control is set to Off, the wiper lever position is set to intermittent operation.
Specifications
Personalization Features
9-13
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

*6 If the setting is changed to Off, the following operation is performed according to the headlight switch
position:
•At position: Headlights turn off immediately after the ignition i s switched off.•At any position other than : Headlights do not turn off after the ignition is switched off.*7 When set to Off, the lights-on reminder is operable.*8 The setting of the lights-on re minder can be changed with the time setting of auto head light off function set to
Off.
Refer to Lights-On Rem inder on page 7-43.
*9 The operation may stop in 15 mi nutes due to the effect of the outside temperature even if the operation time of
the rear window defogger has been changed to Continuous.
*10 Available only in display from the center display.
Specifications
Personalization Features
9-14
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

10Index
10-1
CX-3_8GR7-EA-18B_Edition12017-12-20 16:18:14

Index
A
Accessory Socket............................ 5-128
Active Driving Display..................... 4-21
Adaptive Front Lighting System
(AFS)................................................. 4-80
Add-On Non-Genuine Parts and
Accessories........................................ 8-19
Advanced Key
Advanced keyless entry system..... 3-9
Operational range........................ 3-10
Advanced Smart City Brake Support
(Advanced SCBS)........................... 4-119
Collision warning.... .................. 4-121
Smart City Brake Support (SCBS)
Indicator Light (Red).................4-121
Stopping the Advanced Smart City
Brake Support (Advanced SCBS)
system operation........................ 4-121
Air Bag Systems............................... 2-45
Air Bag/Front Seat Belt Pretensioner
System Warning Beep....................... 7-43
Ambient Temperature Display.......... 4-18
Antilock Brake System (ABS).......... 4-67
Audio Control Switch
Adjusting the Volume.................. 5-16
Seek Switch................................. 5-16
Audio Set [Type A (non-touchscreen)] AUX.............................................5-24
Bluetooth®.................................. 5-31
Clock............................................5-22
Error Indications.......................... 5-30
iPod mode....................................5-28
Power/Volume/Sound Controls... 5-20
Radio............................................5-23
Troubleshooting.......... ................. 5-60
USB............................................. 5-25
Voice Recognition.... ................... 5-56
Audio Set [Type B (touchscreen)]
Applications............................... 5-114
AUX.............................................5-78
Bluetooth®.................................. 5-84
Radio............................................5-71
Satellite Radio........ ..................... 5-75
Settings...................................... 5-112
Troubleshooting........... .............. 5-115
USB............................................. 5-79
Voice Recognition......................5-110
Volume/Display/Sound
Controls....................................... 5-69
Audio System
Antenna........................................5-19
Appendix................................... 5-120
Audio Control Switch................. 5-16
Audio Set [Type A (non-
touchscreen)]............................... 5-20
Audio Set [Type B
(touchscreen)].............................. 5-64
AUX/USB mode..........................5-17
Before Using the Audio
System......................................... 5-16
AUTOHOLD..................................... 4-61
AUTOHOLD Warning Beep.............7-46
Automatic Transaxle Active Adaptive Shift (AAS)...... 4-34
Automatic transaxle controls....... 4-32
Direct mode................................. 4-41
Driving tips..................................4-42
Manual shift mode.......................4-35
Shift-lock system......................... 4-33
Transaxle ranges.......................... 4-33
B
Battery............................................... 6-32Maintenance.................................6-34
Replacement................................ 6-34
Specifications.................................9-4
Battery runs out.................................7-18 Jump-Starting...............................7-18
Beep Sounds
10-2
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Index
Electric parking brake (EPB)
warning........................................ 7-45
Blind Spot Monitoring (BSM).......... 4-90
Canceling operation of Blind Spot
Monitoring (BSM).......................4-95
Blind Spot Monitoring (BSM) Warning
Beep...................................................7-46
Bluetooth® [Type A (non-touchscreen)] Bluetooth® Audio....................... 5-46
Bluetooth® Hands-Free...............5-48
Bluetooth® Preparation............... 5-34
Bluetooth® [Type B (touchscreen)] Bluetooth® Audio....................... 5-90
Bluetooth® Hands-Free.............5-100
Bluetooth® Preparation............... 5-87
Body Lubrication....... ....................... 6-28
Bottle Holder................................... 5-131
Brakes Brakes assist................................ 4-60
Electric Parking Brake (EPB)......4-57
Foot brake....................................4-56
Pad wear indicator....................... 4-59
Parking brake........ .......................4-57
Warning light............................... 4-59
Break-In Period.......... ....................... 3-43
C
Capacities............................................ 9-5
Carbon Monoxide............................. 3-26
Cell Phones....................................... 8-20
Center Console................................ 5-132
Child Restraint Categories of child-restraint
systems.........................................2-28
Child-restraint precautions.......... 2-23
Child-restraint system
installation................................... 2-28
Child-restraint system suitability for
various seat positions table..........2-30
Installing child-restraint
systems.........................................2-33
LATCH child-restraint systems... 2-41
Child Safety Locks fo r Rear Doors... 3-19
Climate Control System...................... 5-4 Fully Automatic Type..................5-12
Gas specifications.......................... 9-6
Manual Type.................................. 5-7
Operating Tips............................... 5-4
Vent Operation...............................5-5
Collision warning.............................. 7-47
Coming Home Light......................... 4-46
Cruise Control................................. 4-140 Cruise Control Switch............... 4-140
Cruise main indication
(white)........................................4-141
Cruise set indication (white)/indicator
light (green)............................... 4-141
Cruise Control Set Vehicle Speed
Display.............................................. 4-18
Cup Holder...................................... 5-129
Customer Assistance.... ....................... 8-2
D
Dashboard Illumination. ....................4-17
Daytime Running Lights................... 4-47
Defogger Mirror...........................................4-54
Rear window........... .................... 4-53
Dimensions.......................................... 9-5
Distance Recognition Support System
(DRSS)............................................ 4-102
Door Locks........................................ 3-11
Drive selection.................................. 4-73
Driving In Flooded Ar ea...................3-47
Driving on Uneven Road.................. 3-49
Driving Tips Automatic transaxle.....................4-42
Break-in period............................ 3-43
Driving in flooded a rea............... 3-47
10-3
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Index
Driving on uneven road...............3-49
Floor mat..................................... 3-44
Hazardous driving....................... 3-44
Overloading................................. 3-48
Rocking the vehicle..................... 3-45
Saving fuel and protection of the
environment................................. 3-43
Winter driving............................. 3-45
Dynamic Stability Control (DSC)..... 4-70 TCS/DSC Indicator Light............4-70
E
Electric Parking Brake (EPB)........... 4-57
Electric Parking Brake (EPB) Warning
Beep...................................................7-45
Emergency Starting
Push-Starting............................... 7-21
Starting a Flooded Engine........... 7-21
Emergency Towing Tiedown Hooks....... .................... 7-25
Towing Description..................... 7-24
Emission Control System..................3-25
Ending Screen Display......................4-72
Engine Coolant.........................................6-25
Engine Compartment
Overview..................................... 6-21
Exhaust gas.................................. 3-26
Hood release............................ .... 6-19
Oil................................................ 6-22
Essential information.......................... 6-2
Event Data Recorder......................... 8-21
Excessive Speed Warning................. 7-47
Exhaust Gas...................................... 3-26
Exterior Care..................................... 6-54 Aluminum Wheel Maintenance... 6-59
Bright-Metal Maintenance...........6-58
Maintaining the Finish................ 6-55
Plastic Part Maintenance............. 6-59
F
Flasher
Hazard warning........................... 4-55
Headlights.................................... 4-43
Flat Tire............................................... 7-3
Mounting the Spare Tire............. 7-13
Removing a Flat Tire.................... 7-9
Floor Mat.......................................... 3-44
Fluid
Brake/Clutch................................ 6-27
Washer......................................... 6-27
Fluids Classification................................. 9-4
Fog Lights......................................... 4-48
Foot Brake.........................................4-56
Forward Sensing Camera (FSC)..... 4-130
Front Seat............................................ 2-5
Fuel
Filler lid and cap......................... 3-27
Gauge........................................... 4-16
Requirements............................... 3-24
Tank capacity.................................9-5
Fuel Consumption Display............... 4-71
Fuel Economy Monitor..................... 4-71
Ending screen display................. 4-72
Fuel consumption display............4-71
Fuses.................................................. 6-48 Panel description......................... 6-50
Replacement................................ 6-48
G
Gauges............................................... 4-11
Glove Compartment........................ 5-132
H
Hazardous Driving............................ 3-44
Hazard Warning Flasher....................4-55
HeadlightsComing home light......................4-46
10-4
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14
