xWhen there is insufficient darkness
such as at dawn or dusk.
xWhen the luggage compartment is
loaded with heavy objects or the rear
passenger seats are occupied.
xWhen visibility is reduced due to a
vehicle in front of you spraying water
from its tyres onto your windscreen.
▼To Operate the System
The HBC operates to switch the
headlights automatically between high
and low beams after the ignition is
switched ON and the headlight switch
is in the AUTO and low beam position.
The HBC determines that it is dark
based on the brightness of the
surrounding area. At the same time,
the HBC indicator light (green) in the
instrument cluster illuminates.

NOTE
Operation of the HBC function can be
disabled.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Manual Switching
Switching to low beams
Switch the headlight switch to the
position, or press the high beam
control switch.
The HBC indicator light (green) turns
off.
1. High beam control switch

If the HBC is turned off using the high
beam control switch, press the high
beam control switch again to turn the
HBC back on.
Switching to high beams
Shift the lever to the high beam
position.
The HBC indicator light (green) turns
off and the headlight high-beam
indicator light is illuminated.
When Driving
i-ACTIVSENSE
4-100

Adaptive LED Headlights
(ALH)
*
▼Adaptive LED Headlights (ALH)
The ALH are a system which uses the
Forward Sensing Camera (FSC) to
determine the situation of a vehicle
ahead or a vehicle approaching in the
opposite direction while driving at
night to automatically switch the
illumination range of the headlights,
the illuminated area, or the
illumination brightness.
Refer to Forward Sensing Camera
(FSC) on page 4-216.
The ALH are controlled between high
and low beams as follows to assure the
driver’s visibility without dazzling a
vehicle ahead or a vehicle approaching
in the opposite direction.
Glare-Free High Beam
This feature dims only the high-beam
light shone on the vehicle ahead.
The high beams will dim while driving
at a speed of about 40 km/h (25 mph)
or faster. When the vehicle speed is
less than about 30 km/h (19 mph),
the beams switch to the low beams.
NOTE
The headlight high-beam indicator
light turns on while the high beams are
on.
Wide-Range Low Beam
This feature extends the illumination
range of the light cast by the low
beams while driving at a speed less
than about 40 km/h (25 mph).
Highway Mode
This feature shifts the illumination
angle of the light cast by the headlights
upward while driving on highways.
The distance in which the ALH can
detect objects varies depending on the
surrounding conditions.
CAUTION
¾Do not modify the suspensions or
headlight units, or remove the
camera. Otherwise, the ALH may not
operate normally.
¾Do not rely excessively on the ALH
and drive the vehicle while paying
sufficient attention to safety. Switch
the headlights between the high
beams and low beams manually if
necessary.
NOTE
Under the following conditions, the
ALH may not operate normally.
Manually switch between the high and
low beams according to the visibility,
and the road and traffic conditions.
When Driving
i-ACTIVSENSE
*Some models.4-101

xWhen there are other sources of light
in the area such as street lamps,
illuminated signboards, and traffic
signals.
xWhen there are reflective objects in
the surrounding area such as
reflective plates and signs.
xWhen visibility is reduced under rain,
snow and foggy conditions.
xWhen driving on roads with sharp
curves or undulations.
xWhen the headlights/rear lamps of
vehicles ahead or in the opposite
lane are dim or not illuminated.
xWhen there is insufficient darkness
such as at dawn or dusk.
xWhen the luggage compartment is
loaded with heavy objects or the rear
passenger seats are occupied.
xWhen visibility is reduced due to a
vehicle ahead spraying water from its
tyres onto your windscreen.
▼To Operate the System
The ALH operates to control Glare-Free
High Beam, Wide-Range Low Beam
and Highway Mode automatically after
the ignition is switched ON and the
headlight switch is in the
and
low beam position.
The ALH determines that it is dark
based on the brightness of the
surrounding area. At the same time,
the ALH indicator light (green) in the
instrument cluster illuminates.
NOTE
Operation of the ALH function can be
disabled.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Manual Switching
Switching to low beams
Switch the headlight switch to the
position, or press the ALH switch.
The ALH indicator light (green) turns
off.
1. ALH switch

If the ALH is turned off using the ALH
switch, press the ALH switch again to
turn the ALH back on.
Switching to high beams
Shift the lever to the high beam
position.
The ALH indicator light (green) turns
off and the headlight high-beam
indicator light is illuminated.
When Driving
i-ACTIVSENSE
4-102

xThe road surface is wet and shiny
after rain, or there are puddles on
the road.
xThe width of a lane is excessively
narrow.
xThe vehicle is driven on roads with
tight curves.
xHeavy luggage is loaded in the
luggage compartment or on the rear
seat causing the vehicle to tilt.
xThe vehicle is driven through a fork in
the road or a junction.
xThe shade of a guardrail parallel to a
white (yellow) lane line is cast on the
road.
xThe illumination of the headlights is
weakened because of dirt or the
optical axis is deviated at night.
xThe road is excessively uneven.xThe vehicle is shaken after hitting a
road bump.
xA vehicle in front of your vehicle is
running near a white (yellow) lane
line making it less visible.
xThe windscreen is dirty or foggy.xStrong light is directed from the front
of the vehicle (such as sunlight, or
headlights (high-beam) of
on-coming vehicles).
xThe vehicle is driven through an
intersection or a roundabout.
▼When the System Operates
When the ignition is switched ON, the
i-ACTIVSENSE status symbol (warning/
risk avoidance support system) (white)
turns on and the system goes on
standby.
NOTE
If the i-ACTIVSENSE status symbol
(warning/risk avoidance support
system) (white) does not turn on, the
system is cancelled using the
i-ACTIVSENSE switch or the
personalisation feature.
Operation conditions
When all of the following conditions
are met, the i-ACTIVSENSE status
symbol (warning/risk avoidance
support system) on the
multi-information display changes
from white to green and the system
becomes operational.
xThe ignition is switched ON.xThe vehicle speed is about 60 km/h
(37 mph) or faster.
xThe system detects white (yellow)
lane lines.
NOTE
When the system does not detect a
white (yellow) lane line on one side
only, the system does not operate on
the side that is not being detected.
When temporarily cancelling the
system
The LDWS goes on standby in the
following cases: The LDWS operation
is automatically restored when the
system's operation conditions are met.
xThe system cannot detect white
(yellow) lane lines.
xThe vehicle speed is less than about
55 km/h (34 mph).
xThe direction indicator lever is
operated.
xThe accelerator pedal is depressed.
When Driving
i-ACTIVSENSE
4-104

xThe steering wheel is operated.xThe brake pedal is operated.
The function is temporarily stopped.
The LDWS stops functioning in the
following cases:
xThe temperature in the forward
sensing camera (FSC) is too high or
too low.
xThe windscreen around the forward
sensing camera (FSC) is foggy.
xThe windscreen around the forward
sensing camera (FSC) is blocked by
an obstruction, causing poor forward
visibility.
xStrong light (such as sunlight, or
headlights (high-beam) of
on-coming vehicles) is directed at
the forward sensing camera (FSC).
System malfunction
If there is a problem with the system,
the i-ACTIVSENSE status symbol
(warning/risk avoidance support
system) (white) and the i-ACTIVSENSE
warning indication/warning light on
the multi-information display turns on
and a message is indicated.
Refer to i-ACTIVSENSE Status Symbol
(Warning/Risk Avoidance Support
System) on page 4-96.
▼Lane Departure Warning
If the system determines that the
vehicle may deviate from its lane, a
warning (beep sound, steering wheel
vibration) is activated and the direction
in which the system determines that
the vehicle may deviate is indicated on
the multi-information display and the
active driving display.
Multi-information display
Active driving display
NOTE
xThe LDWS settings can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
xYou may not be able to hear the
LDWS warning sound depending on
the surrounding conditions such as
outside noise.
xIf you set the LDWS to vibrate the
steering wheel, you may not feel the
vibrations depending on the road
surface conditions.
▼Cancelling the System
The LDWS can be set to inoperable.
x(If only the LDWS is turned off)
Refer to the Settings section in the
Mazda Connect Owner's Manual.
x(If the LDWS is turned off by
operating the i-ACTIVSENSE switch)
Refer to i-ACTIVSENSE Switch on
page 4-97.
When Driving
i-ACTIVSENSE
4-105

xThe TSR does not operate if there is a malfunction in the Forward Sensing Camera
(FSC).
xUnder the following conditions, the TSR may not operate normally.
xAn object placed on the instrument panel is reflected in the windscreen and
picked up by the camera.
xHeavy luggage is loaded in the luggage compartment or on the rear seat and the
vehicle is tilted.
xThe tyre pressures are not adjusted to the specified pressure.xTyres other than standard tyres are equipped.xThe vehicle is driven on the ramp and surrounding area to or from a rest area or
a tollgate on a highway.
xWhen surrounding brightness suddenly changes such as when entering or exiting
a tunnel.
xThe illumination of the headlights is weakened because of dirt or the optical axis
is deviated.
xThe windscreen is dirty or foggy.xThe windscreen and camera are fogged (water droplets).xStrong light is directed at the front of the vehicle (such as backlight or high-beam
headlights of on-coming vehicles).
xThe vehicle is making a sharp turn.xStrong light reflects off the road.xA traffic sign is in a position which makes it difficult to reflect the light from the
vehicle's headlights, such as when the vehicle is driven at night or in a tunnel.
xThe vehicle is driven under weather conditions such as rain, fog, or snow.xThe stored map data for the navigation system is not current.xA traffic sign is obscured by mud or snow.xA traffic sign is concealed by trees or a vehicle.xA
traffic sign is partially shaded.xA traffic sign is bent or warped.xA
traffic sign is too low or too high.xA traffic sign is too bright or too dark (including electronic traffic signs).xA traffic sign is too big or too small.xThere is an object similar to the traffic sign being read (such as another traffic
sign or other signs resembling it).
xThe TSR can be set to invisible on the active driving display.
Refer to the Settings section in the Mazda Connect Owner's Manual.
▼Traffic Sign Display Indication
The following traffic signs are displayed
on the active driving display/
instrument cluster.
Speed limit signs (including auxiliary
signs)
1. Speed limit signs
2. Auxiliary sign (example)
When Driving
i-ACTIVSENSE
4-113

xThe white (yellow) lane lines are
less visible because of dirt or paint
flaking.
xWhite (yellow) lane lines or
vehicles ahead are less visible
because of bad weather (rain, fog,
or snow).
xThe vehicle is driven on a
temporary lane or section with a
closed lane resulting from
construction where there might be
multiple white (yellow) lane lines,
or they are interrupted.
xThe camera picks up an obscure
line, such as a temporary line being
used for construction, or because
of shade, unmelted snow, or
grooves filled with water.
xThe road surface is wet and shiny
after rain, or there are puddles on
the road.
xHeavy luggage is loaded in the
luggage compartment or on the
rear seat causing the vehicle to tilt.
xA vehicle in front of your vehicle is
running near a white (yellow) lane
line making it less visible.
xThe windscreen is dirty or foggy.xThe vehicle is driven through an
intersection, a junction, or a fork in
the road.
xWhile white (yellow) lane lines
cannot be detected due to road or
weather conditions.
xThe surrounding brightness
suddenly changes such as when
entering or exiting a tunnel.
xThe illumination of the headlights
is weakened because of dirt or the
optical axis is deviated at night.
xBack-light is reflected off the road
surface or the road surface is wet
and shiny after rain.
xThe shade of a guardrail parallel to
a white (yellow) lane line is cast on
the road.
xThe width of a lane is excessively
narrow or wide.
xThe road is excessively uneven.xThe vehicle is shaken after hitting a
road bump.
xThere are various road markings or
division lines (lane markings) of
various shapes near an
intersection.
xThe area in front of the camera is
soiled or an object that obstructs
the field of view is installed.
xExhaust gas from the vehicle in
front, sand, snow, and water
vapour rising from manholes and
grating, and water splashed into
the air.
xThe surroundings are dark such as
during the early evening or early
morning.
xA vehicle ahead with a certain tail
light shape.
xA vehicle ahead veers off course
from your vehicle's line of travel.
xA vehicle ahead is driving
erratically.
xThe vehicle is driven on roads with
tight curves.

Headway control function
If a vehicle ahead is detected while
travelling at a constant speed, the
vehicle-ahead indication is displayed
and headway control is performed.

Steering assist function
When lane lines are detected, the
function assists the driver in keeping
the vehicle within the lane lines. If lane
lines are not detected, the function
provides the driver driving assistance in
keeping the vehicle along the motion
path with the vehicle ahead.
When Driving
i-ACTIVSENSE
4-151

¾The functions of the LAS have
limitations. Always stay on course
using the steering wheel and drive
with care.
¾Do not use the LAS under the
following circumstances, otherwise it
may result in an accident.
¾The vehicle is driven on slippery
roads such as icy or snow-covered
roads, and unpaved roads.
¾Tyres of a
different
specified size
are used, such as a temporary
spare tyre.
¾Tyres with
insufficient tread are
used.
¾The tyre pressures are not adjusted
to the
specified pressure.
¾The vehicle is being used to tow a
camper or boat trailer.
¾Tyre chains are used.
¾The vehicle is driven on roads with
lane lines other than white (yellow)
lines, such as an expressway.
CAUTION
Heed the following cautions so that
the LAS can operate normally.
¾Do not modify the vehicle's
suspensions.
¾Always use tyres of the specified type
and size for the front and rear
wheels. Consult an expert repairer
(we recommend an Authorised
Mazda Repairer) for tyre
replacement.
NOTE
The system may not operate normally
under the following conditions.
xThe white (yellow) lane lines are less
visible because of dirt or paint
flaking.
xWhite (yellow) lane lines are less
visible because of bad weather (rain,
fog, or snow).
xThe vehicle is driven on a temporary
lane or section with a closed lane
resulting from construction where
there might be multiple white
(yellow) lane lines, or they are
interrupted.
xThe camera picks up an obscure line,
such as a temporary line being used
for construction, or because of
shade, unmelted snow, or grooves
filled with water.
xThe surrounding brightness suddenly
changes such as when entering or
exiting a tunnel.
xBack-light is reflected off the road
surface.
xThe road surface is wet and shiny
after rain, or there are puddles on
the road.
xThe width of a lane is excessively
narrow.
xThe vehicle is driven on roads with
tight curves.
xHeavy luggage is loaded in the
luggage compartment or on the rear
seat causing the vehicle to tilt.
xThe vehicle is driven through a fork in
the road or a junction.
xThe shade of a guardrail parallel to a
white (yellow) lane line is cast on the
road.
xThe illumination of the headlights is
weakened because of dirt or the
optical axis is deviated at night.
xThe road is excessively uneven.xThe vehicle is shaken after hitting a
road bump.
xA vehicle in front of your vehicle is
running near a white (yellow) lane
line making it less visible.
xThe windscreen is dirty or foggy.
When Driving
i-ACTIVSENSE
4-163

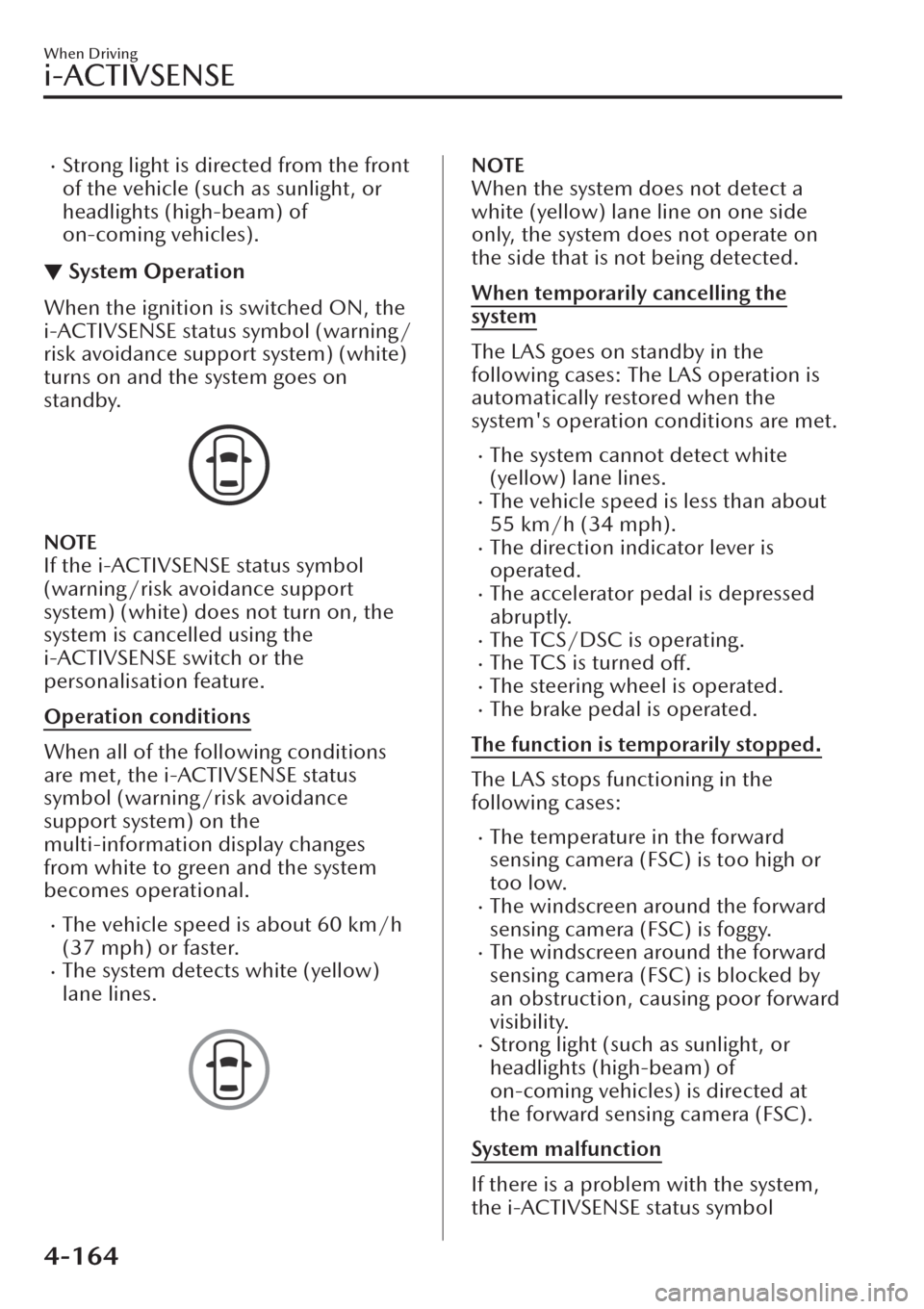

xStrong light is directed from the front
of the vehicle (such as sunlight, or
headlights (high-beam) of
on-coming vehicles).
▼System Operation
When the ignition is switched ON, the
i-ACTIVSENSE status symbol (warning/
risk avoidance support system) (white)
turns on and the system goes on
standby.
NOTE
If the i-ACTIVSENSE status symbol
(warning/risk avoidance support
system) (white) does not turn on, the
system is cancelled using the
i-ACTIVSENSE switch or the
personalisation feature.
Operation conditions
When all of the following conditions
are met, the i-ACTIVSENSE status
symbol (warning/risk avoidance
support system) on the
multi-information display changes
from white to green and the system
becomes operational.
xThe vehicle speed is about 60 km/h
(37 mph) or faster.
xThe system detects white (yellow)
lane lines.
NOTE
When the system does not detect a
white (yellow) lane line on one side
only, the system does not operate on
the side that is not being detected.
When temporarily cancelling the
system
The LAS goes on standby in the
following cases: The LAS operation is
automatically restored when the
system's operation conditions are met.
xThe system cannot detect white
(yellow) lane lines.
xThe vehicle speed is less than about
55 km/h (34 mph).
xThe direction indicator lever is
operated.
xThe accelerator pedal is depressed
abruptly.
xThe TCS/DSC is operating.xThe TCS is turned
off.xThe steering wheel is operated.xThe brake pedal is operated.
The function is temporarily stopped.
The LAS stops functioning in the
following cases:
xThe temperature in the forward
sensing camera (FSC) is too high or
too low.
xThe windscreen around the forward
sensing camera (FSC) is foggy.
xThe windscreen around the forward
sensing camera (FSC) is blocked by
an obstruction, causing poor forward
visibility.
xStrong light (such as sunlight, or
headlights (high-beam) of
on-coming vehicles) is directed at
the forward sensing camera (FSC).
System malfunction
If there is a problem with the system,
the i-ACTIVSENSE status symbol
When Driving
i-ACTIVSENSE
4-164

xExtremely bright light such as
sunlight or headlights hitting the
camera lens directly.
xThe surroundings are illuminated
by vehicle lights, fluorescent lights,
or LED lights (display may flicker).
xExtremely small dark or white dots
appear on the screen (dots may
flicker).
xBecause the 360°View Monitor
camera uses a special lens, the
distance displayed on the screen
differs from the actual distance.
xObstructions displayed on the screen
may appear differently than in
actuality. (Obstructions may appear
fallen, larger, or longer than they
actually are.)
xDo not apply stickers to a camera or
the area around it. In addition, do
not install accessories or an
illuminated number/character
number plate to the area around a
camera. Otherwise, the camera may
not correctly display the surrounding
conditions.
xFree/open source software
information
This product includes free/open
sources. Information about the
licensing and source code is available
at the following URL.
https://www.denso.com/
global/en/opensource/svss/
mazda/
When Driving
i-ACTIVSENSE
4-188
