Do not ignore the TPMS warning light
when it is turned on or flashing:
Continuing to drive the vehicle while
ignoring the illumination/flashing of
the TPMS warning light is dangerous
because a tyre may burst which could
lead to an accident. Take appropriate
measures as soon as possible.
NOTE
While the TPMS is learning the tyre
positions, such as immediately after a
tyre position has been changed, the
tyre pressure at the tyre position prior
to it being changed is displayed until
the system completes the learning. For
this reason, the tyre pressures
displayed for the tyre positions may be
different from the actual tyre pressures
at the tyre positions.
Action to be taken
Adjust the tyre pressures to the
appropriate pressures.
Refer to Tyre Inflation Pressure on page
6-41.
CAUTION
¾Adjust the tyre pressures while the
tyres are cool. Because the air
pressure in the tyres fluctuates
depending on the temperature,
before adjusting the tyre pressures,
let the vehicle sit for an hour or drive
it only within a 1.6 km (1 mile)
distance. If the tyre pressures are
adjusted while the tyres are warm,
the tyre pressures may decrease
below the specified air pressure after
cooling down which could turn on
the warning light. In addition,
because the air pressure in the tyres
decreases when the ambient
temperature is low, if the ambient
temperature increases, an
illuminated TPMS warning light may
turn off. Under any circumstances,
always adjust the tyre pressures while
the tyres are cool.
¾After adjusting the tyre pressures, the
TPMS warning light turns off. If the
TPMS warning light does not turn
off,
drive the vehicle at a speed of about
25 km (16 mph) or faster for 3
minutes or longer and make sure the
warning light turns off.
If the TPMS warning light remains on
even after adjusting the tyre pressures,
one of the tyres may have a puncture.
▼KEY Indicator Light (Green)
(Flashing)
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-61

“Low Key Fob Battery. Replace
Battery” is displayed/When the light
is flashing
When the key battery is low, the
indication is displayed when the
ignition is switched OFF.
Action to be taken
Replace the key battery.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-62

Display*1*2Content Action to be taken
Mazda Radar Cruise
Control Cancelled.
Drive SafelyThis message is indicated when the
Mazda Radar Cruise Control
(MRCC), Mazda Radar Cruise Con-
trol with Stop & Go function (MRCC
with Stop & Go function), and the
Cruising & Traffic Support (CTS) have
been cancelled other than by the
driver.Have your vehicle inspected by an ex-
pert repairer (we recommend an Au-
thorised Mazda Repairer).
Distance & Speed Alert
Operation Cancelled
Drive SafelyThis message is indicated when the
Distance & Speed Alert (DSA) have
been cancelled other than by the
driver.Have your vehicle inspected by an ex-
pert repairer (we recommend an Au-
thorised Mazda Repairer).
Cruise Control Opera-
tion Cancelled. Drive
SafelyThis message is indicated when the
Cruise Control have been cancelled
other than by the driver.Have your vehicle inspected by an ex-
pert repairer (we recommend an Au-
thorised Mazda Repairer).
Emergency Braking Acti-
vated. Depress Brake
Pedal to Hold StopThis message is indicated after the
Smart Brake Support (SBS) brakes op-
erate and when the Smart Brake Sup-
port (SBS) is cancelled.Depress the brake pedal.
Engine Stopped. Restart
Engine NormallyThis message is indicated under the
following conditions while the i-stop
function is operating.
(With M Hybrid)
x(Manual transmission)
The driver’s door is opened.
x(Automatic transmission)
The driver's seat belt is unfastened
and the driver’s door is opened.
(Without M Hybrid)
xThe driver's seat belt is unfastened
and the driver’s door is opened.Press the push button start again to
start the engine. For automatic trans-
mission vehicles, shift the selector
lever to the P position before starting
the engine.)
Continue to Depress
Brake Pedal While i-stop
Is ActiveThis message is indicated when the
driver's door is opened while the
i-stop function is operating.Depress the brake pedal. Stop the
engine before leaving the vehicle.
Touch Key Fob to Push
Button Start SwitchThis message is indicated when the
key battery is weak (battery dead or
damaged key).Touch the key against push button
start to start the engine.
Refer to Engine Start Function When
Key Battery is Dead on page 4-8.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-64

Warning Sound is
Activated
▼Lights-On Reminder
If the ignition is switched OFF with the
exterior lights turned on and the
driver’s door is opened, a sound is
activated.
Operate the headlight switch to turn
off the exterior lights.
NOTE
xWhen the ignition is switched to
ACC, the “Ignition Not Switched
Off
(STOP) Warning Beep” (page 7-67)
overrides the lights-on reminder.
xA personalised function is available
to change the sound volume for the
lights-on reminder.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Seat Belt Warning Beep
Front seat
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
passenger's seat belt unfastened, a
warning beep sounds continuously. If
the seat belt remains unfastened, the
beep sound stops once and then
continues for about 90 seconds. The
beep stops after the driver or front
passenger's seat belt is fastened.
NOTE
xPlacing heavy items on the front
passenger seat may cause the front
passenger seat belt warning function
to operate depending on the weight
of the item.
xTo allow the front passenger seat
weight sensor to function properly,
do not place and sit on an additional
seat cushion on the front passenger
seat. The sensor may not function
properly because the additional seat
cushion could cause sensor
interference.
xWhen a small child sits on the front
passenger seat, it is possible that the
warning beep will not operate.
Rear seat
The warning beep only sounds if a seat
belt is unfastened after being fastened.
▼Ignition Not Switched Off (STOP)
Warning Beep
European models
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard 6 times in the cabin to notify
the driver that the ignition has not
been switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be
locked, and the battery voltage will be
depleted.
Except European models
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard continuously in the cabin to
notify the driver that the ignition has
not been switched OFF (STOP). Under
this condition, the keyless entry system
will not operate, the vehicle cannot be
locked, and the battery voltage will be
depleted.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-67

▼Key Removed from Vehicle
Warning Beep
Vehicles with advanced keyless
function
If the key is taken out of the vehicle
while the ignition is switched to ACC
or ON, and all the doors are closed, a
sound is activated 6 times outside of
the vehicle and a sound is activated 1
time in the vehicle.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle
while the ignition is switched to ACC
or ON, and all the doors are closed, a
sound is activated 1 time in the
vehicle.
NOTE
Make sure that you leave the vehicle
while carrying the key, or switch the
ignition OFF.
▼Touch Sensor Inoperable Warning
Beep (With the advanced keyless
function)
A warning beep is activated to notify
the driver that the doors are not locked
when all of the following conditions
are met:
xThe ignition is switched OFF.xAll the doors and liftgate are not fully
closed.
xThe lock is operated 3 times within 5
seconds.
Check the ignition and whether the
doors and liftgate are open or closed,
and then operate the lock again.
▼Liftgate Door-lock Switch
Inoperable Warning Beep
When the door-lock switch on the
liftgate is pressed under any of the
following conditions, a warning sound
is activated.
xA transmitter is not being carried.xThe ignition is switched to a position
other than OFF.
xAny door is open.xLiftgate is automatically operating.*
Make sure that none of the above
conditions are present, and then press
the door-lock switch again.
▼Key Left-in-luggage compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all the doors locked
and the liftgate closed, a beep will be
heard outside for about 10 seconds to
notify the driver that the key is in the
luggage compartment. In this case,
take out the key by pressing the electric
liftgate opener and opening the
liftgate. The key taken out of the
luggage compartment may not operate
because its functions have been
temporarily stopped. To restore the
key's functions, perform the applicable
procedure (page 3-8).
▼Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and luggage
compartment are locked using another
key while the key is left in the cabin,
the beep which sounds outside of the
vehicle will be heard for about 10
seconds to notify the driver that the
key is in the cabin. In this case, take
out the key by opening the door. A key
taken out of the vehicle using this
method may not operate because its
functions have been temporarily
stopped. To restore the key's functions,
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-68*Some models.

Declaration of Conformity
▼Keyless Entry System/Immobilizer System
Customer Information
Declaration of Conformity
8-9

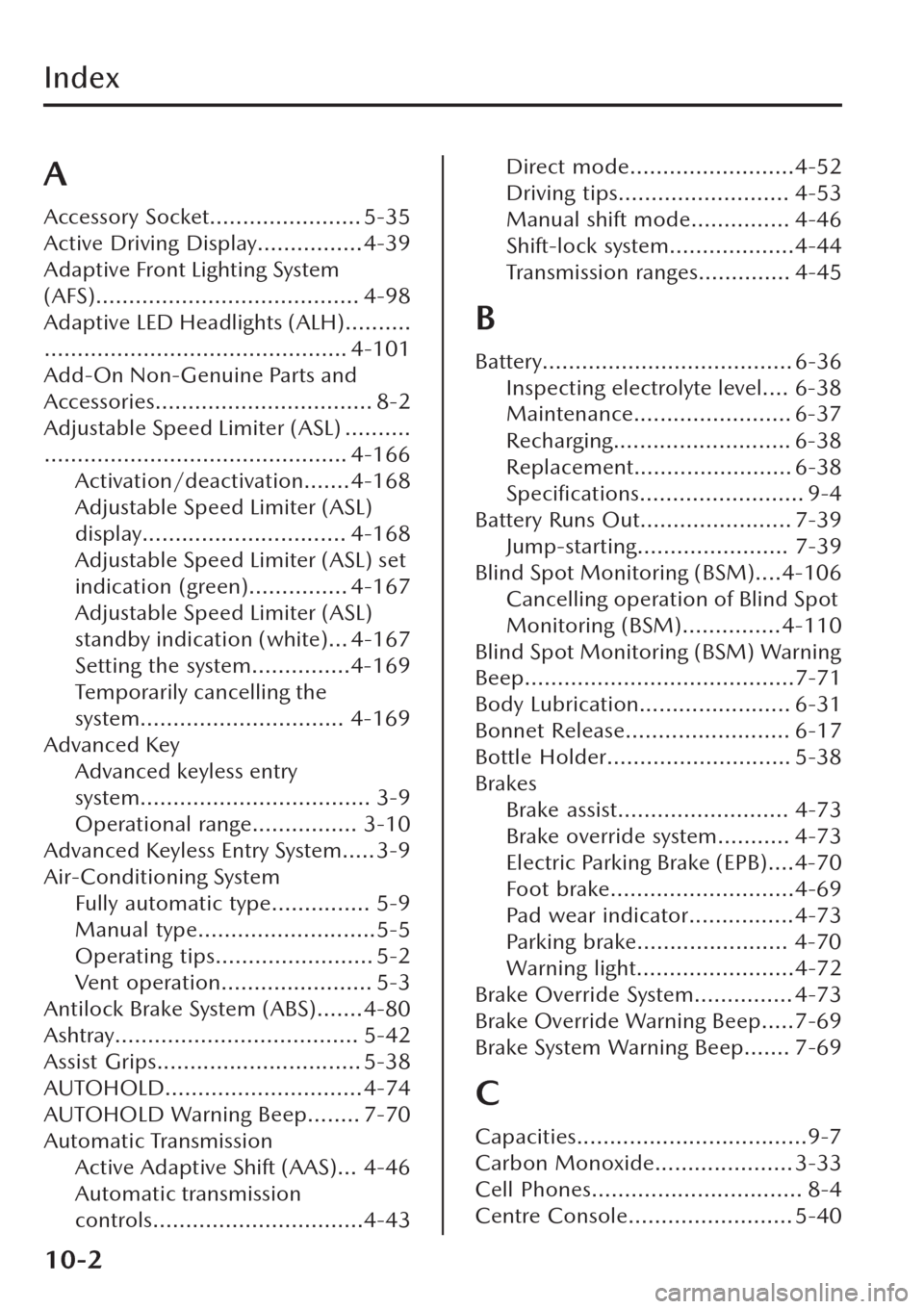

Index
A
Accessory Socket....................... 5-35
Active Driving Display................4-39
Adaptive Front Lighting System
(AFS)........................................ 4-98
Adaptive LED Headlights (ALH)..........
.............................................. 4-101
Add-On Non-Genuine Parts and
Accessories................................. 8-2
Adjustable Speed Limiter (ASL) ..........
.............................................. 4-166
Activation/deactivation.......4-168
Adjustable Speed Limiter (ASL)
display............................... 4-168
Adjustable Speed Limiter (ASL) set
indication (green)............... 4-167
Adjustable Speed Limiter (ASL)
standby indication (white)... 4-167
Setting the system...............4-169
Temporarily cancelling the
system............................... 4-169
Advanced Key
Advanced keyless entry
system................................... 3-9
Operational range................ 3-10
Advanced Keyless Entry System..... 3-9
Air-Conditioning System
Fully automatic type............... 5-9
Manual type...........................5-5
Operating tips........................ 5-2
Vent operation....................... 5-3
Antilock Brake System (ABS).......4-80
Ashtray..................................... 5-42
Assist Grips............................... 5-38
AUTOHOLD.............................. 4-74
AUTOHOLD Warning Beep........ 7-70
Automatic Transmission
Active Adaptive Shift (AAS)... 4-46
Automatic transmission
controls................................4-43
Direct mode.........................4-52
Driving tips.......................... 4-53
Manual shift mode............... 4-46
Shift-lock system...................4-44
Transmission ranges.............. 4-45
B
Battery...................................... 6-36
Inspecting electrolyte level.... 6-38
Maintenance........................ 6-37
Recharging........................... 6-38
Replacement........................ 6-38
Specifications......................... 9-4
Battery Runs Out....................... 7-39
Jump-starting....................... 7-39
Blind Spot Monitoring (BSM)....4-106
Cancelling operation of Blind Spot
Monitoring (BSM)...............4-110
Blind Spot Monitoring (BSM) Warning
Beep.........................................7-71
Body Lubrication....................... 6-31
Bonnet Release......................... 6-17
Bottle Holder............................ 5-38
Brakes
Brake assist.......................... 4-73
Brake override system........... 4-73
Electric Parking Brake (EPB)....4-70
Foot brake............................4-69
Pad wear indicator................4-73
Parking brake....................... 4-70
Warning light........................4-72
Brake Override System............... 4-73
Brake Override Warning Beep.....7-69
Brake System Warning Beep....... 7-69
C
Capacities...................................9-7
Carbon Monoxide..................... 3-33
Cell Phones................................ 8-4
Centre Console......................... 5-40
10-2

Index
Luggage compartment light... 5-33
Map lights............................5-33
Overhead lights.................... 5-33
i-ACTIVSENSE........................... 4-94
Active safety technology........ 4-94
Adaptive Front Lighting System
(AFS)................................... 4-98
Adaptive LED Headlights
(ALH)................................. 4-101
Adjustable Speed Limiter
(ASL)..................................4-166
Blind Spot Monitoring
(BSM)................................ 4-106
Camera and sensors............. 4-95
Cruising & Traffic Support
(CTS)................................. 4-148
Distance & Speed Alert
(DSA)................................ 4-118
Driver Attention Alert
(DAA)................................ 4-119
Driver monitoring camera....4-226
Driver Monitoring (DM)...... 4-121
Forward Sensing Camera
(FSC)................................. 4-216
Front camera/side cameras/rear
camera...............................4-226
Front Cross Traffic Alert
(FCTA)............................... 4-123
Front radar sensor...............4-220
Front side radar sensor........ 4-222
High Beam Control System
(HBC).................................. 4-99
Intelligent Speed Assistance
(ISA).................................. 4-170
i-ACTIVSENSE status symbol
(warning/risk avoidance support
system)................................ 4-96
i-ACTIVSENSE switch............ 4-97
Lane Departure Warning System
(LDWS).............................. 4-103Lane-keep Assist System
(LAS)..................................4-162
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)........... 4-139
Mazda Radar Cruise Control
(MRCC)............................. 4-130
Pre-crash safety technology... 4-94
Rear Cross Traffic Alert
(RCTA)............................... 4-126
Rear side radar sensor......... 4-224
Smart Brake Support (SBS)...4-175
Smart Brake Support [Rear
Crossing]
(SBS-RC)............. 4-181
Smart Brake Support [Rear]
(SBS-R).............................. 4-177
Tra ffi c Sign Recognition
System (TSR)...................... 4-111
Ultrasonic sensor................ 4-225
360°view monitor...............4-185
i-ACTIV AWD Operation........... 4-92
i-stop....................................... 4-11
Indicator light (Green).......... 4-18
i-stop OFF switch................. 4-16
Vehicle roll prevention
function............................... 4-17
Warning light (Amber).......... 4-18
i-stop warning beep.................. 7-69
J
Jack.......................................... 7-25
Jump-Starting............................ 7-39
K
Keyless Entry System.................... 3-4
Keys........................................... 3-2
Key suspend function..............3-8
Transmitter............................. 3-5
10-6

Index
Key Left-in-luggage Compartment
Warning beep (With the advanced
keyless function)....................... 7-68
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)...................................7-68
Key Removed from Vehicle Warning
Beep.........................................7-68
Key Suspend Function................. 3-8
L
Label Information
Chassis number...................... 9-2
Conformity plate.................... 9-3
Engine number....................... 9-3
Model plate........................... 9-2
Tyre pressure label.................. 9-3
Vehicle emission control
information label.................... 9-2
Vehicle identification
number..................................9-2
Lane Departure Warning sound.. 7-71
Lane Departure Warning System
(LDWS)...................................4-103
Lane-change Signals.................. 4-60
Lane-keep Assist System (LAS) ...........
.............................................. 4-162
Leaving Home Light................... 4-57
Liftgate..................................... 3-20
Luggage compartment.......... 3-28
When liftgate cannot be
opened................................ 7-73
Liftgate Door-lock Switch Inoperable
Warning Beep........................... 7-68
Lights-on Reminder................... 7-67
Light Bulbs
Replacement........................ 6-44
Specifications......................... 9-9
Low Fuel Warning Beep............. 7-69
Lubricant Quality......................... 9-6
Luggage Compartment.............. 5-41
Cargo sub-compartment....... 5-41
Luggage Compartment Light...... 5-33
M
Maintenance
Information............................ 6-2
Scheduled.............................. 6-3
Manual Transmission Shift
Pattern...................................... 4-41
Map Lights................................ 5-33
Mazda Connect........................ 5-13
Appendix............................. 5-26
Mazda Connect Basic
Operations........................... 5-17
Mazda ERA-GLONASS............... 7-12
Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function)........................4-139
Close proximity warning...... 4-142
Display indication............... 4-141
Setting the system...............4-143
Stop hold control............... 4-147
Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function) System
Warnings.................................. 7-71
Mazda Radar Cruise Control
(MRCC).................................. 4-130
Close proximity warning...... 4-132
Display indication............... 4-131
Setting the system...............4-134
Shift-up/shift-down request
display............................... 4-138
Mazda Radar Cruise Control (MRCC)
System Warnings....................... 7-71
Message Indicated on Multi-
information Display................... 7-63
Meters...................................... 4-21
Mirrors
10-7

Index
Outside mirrors.................... 3-36
Rearview mirror.................... 3-39
Mirror Defogger........................ 4-67
Multi-information Display.......... 4-23
M Hybrid.................................. 4-86
O
Off-Road Traction Assist............ 4-84
Off-Road Traction Assist
indicator light....................... 4-84
Off-Road Traction
Assist switch......................... 4-84
Outside Mirrors.........................3-36
Outside temperature warning
beep........................................ 7-70
Overhead Console.................... 5-39
Overhead Lights........................ 5-33
Overheating.............................. 7-44
Owner Maintenance
Closing the bonnet............... 6-18
Engine compartment
overview.............................. 6-19
Key battery replacement........6-39
Opening the bonnet............. 6-17
Owner maintenance
precautions.......................... 6-16
P
Parking Brake............................ 4-70
Parking Sensor System............. 4-252
Park assist sensor system
operation........................... 4-255
Sensor detection range........4-254
Petrol Particulate Filter............. 4-236
Power Liftgate........................... 3-22
Power Liftgate Warning Beep...... 7-69
Power Steering.......................... 4-93
Power Windows........................ 3-41
R
Rearview Mirror........................ 3-39
Rear Coat Hooks....................... 5-39
Rear Cross Traffic Alert (RCTA) ...........
.............................................. 4-126
Rear Cross Traffic Alert (RCTA)
Warning Beep........................... 7-71
Rear Door Child Safety Locks..... 3-20
Rear Fog Light........................... 4-59
Rear Side Radar Sensor............ 4-224
Rear View Monitor.................. 4-238
Displayable range on the
screen................................ 4-240
Rear view monitor
operation........................... 4-242
Rear view parking camera
location............................. 4-239
Switching to the rear view monitor
display............................... 4-239
Variance between actual road
conditions and displayed
image................................ 4-249
Viewing the display.............4-241
Rear window
Rear Window Defogger......... 4-66
Rear Window Defogger............. 4-66
Rear Window Washer................ 4-64
Rear Window Wiper.................. 4-64
Recommended Oil.................... 6-24
Registering Your Vehicle in A Foreign
Country...................................... 8-2
Replacement
Fuse..................................... 6-46
Key battery........................... 6-39
Light bulbs........................... 6-44
Tyres.................................... 6-42
Wheel.................................. 6-43
Wiper.................................. 6-32
Roadside Emergency Triangle
Retaining Strap.......................... 7-23
10-8
